Fluke Fluke 87V/PRV240 Manual

99 Washington Street
Melrose, MA 02176

Phone [phone]
Toll Free 1-800-517-8431

®

Visit us at www.TestEquipmentDepot.com

May 2004 Rev. 1, 8/04

2004 Fluke Corporation, All rights reserved.
All product names are trademarks of their respective companies.

80 Series V

Multimeters

Users Manual

Table of Contents

Title Page

Introduction......................................................................................................................... 1

Contacting Fluke ................................................................................................................ 1

Safety Information .............................................................................................................. 2

The Meter's Features ......................................................................................................... 6

Power-Up Options ......................................................................................................... 13

Automatic Power-Off ..................................................................................................... 13

Input Alert Feature...................................................................................................... 13

Making Measurements....................................................................................................... 13

Measuring AC and DC Voltage ..................................................................................... 13

Zero Input Behavior of True RMS Meters (87).............................................................. 15

Low Pass Filter (87) ...................................................................................................... 15

Measuring Temperature (87) ........................................................................................ 16

Testing for Continuity .................................................................................................... 16

Measuring Resistance................................................................................................... 18

Using Conductance for High Resistance or Leakage Tests ......................................... 20

Measuring Capacitance................................................................................................. 21

Testing Diodes .............................................................................................................. 22

i

80 Series V

Users Manual

Measuring AC or DC Current........................................................................................ 24

Measuring Frequency ................................................................................................... 27

Measuring Duty Cycle ................................................................................................... 29

Determining Pulse Width .............................................................................................. 30

Bar Graph........................................................................................................................... 30

Zoom Mode (Power Up Option Only) ........................................................................... 31

Uses for the Zoom Mode............................................................................................... 31

HiRes Mode (Model 87) ..................................................................................................... 31

MIN MAX Recording Mode ................................................................................................ 32

Smooth Feature (Power Up Option Only).......................................................................... 32

AutoHOLD Mode................................................................................................................ 34

Relative Mode .................................................................................................................... 34

Maintenance....................................................................................................................... 35

General Maintenance .................................................................................................... 35

Fuse Test ...................................................................................................................... 35

Replacing the Battery.................................................................................................... 36

Replacing the Fuses ..................................................................................................... 37

Service and Parts............................................................................................................... 37

Specifications ..................................................................................................................... 43

Detailed Specifications.................................................................................................. 44

ii

List of Tables

Table Title Page

1. Electrical Symbols ..................................................................................................................... 5

2. Inputs ......................................................................................................................................... 6

3. Rotary Switch Positions............................................................................................................. 7

4. Pushbuttons............................................................................................................................... 8

5. Display Features........................................................................................................................ 11

6. Functions and Trigger Levels for Frequency Measurements.................................................... 28

7. MIN MAX Functions................................................................................................................... 33

8. Replacement Parts.................................................................................................................... 39

9. Accessories ............................................................................................................................... 42

10. Model 87 AC Voltage Function Specifications .......................................................................... 44

11. Model 83 AC Voltage Function Specifications .......................................................................... 45

12. DC Voltage, Resistance, and Conductance Function Specifications........................................ 46

13. Temperature Specifications (87 Only)....................................................................................... 47

14. Current Function Specifications ................................................................................................ 48

15. Capacitance and Diode Function Specifications ....................................................................... 49

16. Frequency Counter Specifications ............................................................................................ 49

17. Frequency Counter Sensitivity and Trigger Levels ................................................................... 50

18. Electrical Characteristics of the Terminals................................................................................ 51

19. MIN MAX Recording Specifications .......................................................................................... 52

iii

List of Figures

Figure Title Page

1. Display Features (Model 87) ..................................................................................................... 11

2. Measuring AC and DC Voltage ................................................................................................. 14

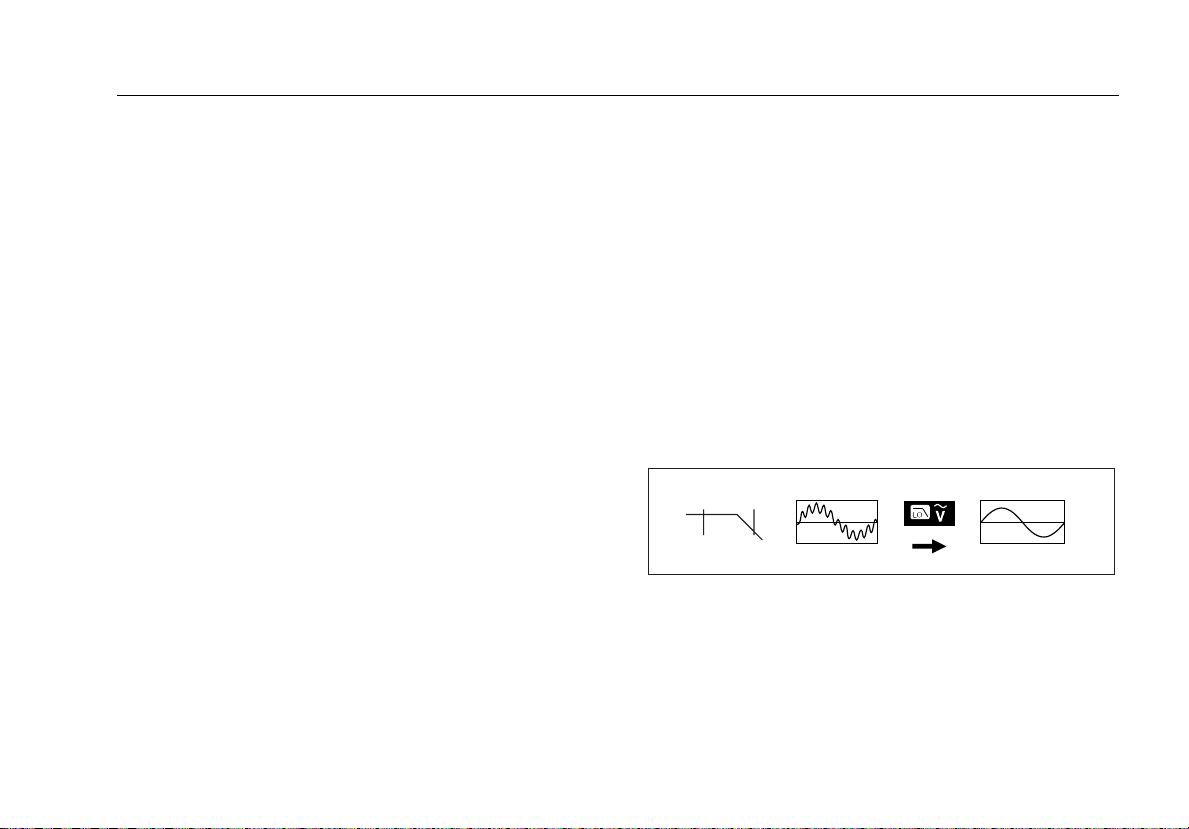

3. Low Pass Filter .......................................................................................................................... 15

4. Testing for Continuity................................................................................................................. 17

5. Measuring Resistance............................................................................................................... 19

6. Measuring Capacitance............................................................................................................. 21

7. Testing a Diode.......................................................................................................................... 23

8. Measuring Current..................................................................................................................... 25

9. Components of Duty Cycle Measurements............................................................................... 29

10. Testing the Current Fuses......................................................................................................... 36

11. Battery and Fuse Replacement................................................................................................. 38

12. Replaceable Parts ..................................................................................................................... 41

v

Introduction

Introduction

XWWarning

Read "Safety Information" before you use the
Meter.

Except where noted, the descriptions and instructions in
this manual apply to Series V Models 83 and 87
multimeters (hereafter referred to as “the Meter”).
Model 87 appears in all illustrations.

1

80 Series V

Users Manual

Safety Information

The Meter complies with:

• EN61010-1:2001

• ANSI/ISA S82.01-2004

• CAN/CSA C22.2 No. 1010.1:2004

• UL610101-1

• Measurement Category III, 1000V, Pollution

Degree 2

• Measurement Category IV, 600V, Pollution

Degree 2

In this manual, a Warning identifies conditions and
actions that pose hazards to the user. A Caution
identifies conditions and actions that may damage the
Meter or the equipment under test.

Electrical symbols used on the Meter and in this manual
are explained in Table 1.

XWWarning

To avoid possible electric shock or personal
injury, follow these guidelines:

• Use this Meter only as specified in this

manual or the protection provided by the
Meter might be impaired.

• Do not use the Meter if it is damaged.

Before you use the Meter, inspect the
case. Look for cracks or missing plastic.
Pay particular attention to the insulation
surrounding the connectors.

• Make sure the battery door is closed and

latched before operating the Meter.

• Replace the battery as soon as the

battery indicator (M) appears.

• Remove test leads from the Meter before

opening the battery door.

2

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com

Safety Information

• Inspect the test leads for damaged

insulation or exposed metal. Check the
test leads for continuity. Replace
damaged test leads before you use the
Meter.

• Do not apply more than the rated

voltage, as marked on the Meter,
between the terminals or between any
terminal and earth ground.

• Never operate the Meter with the cover

removed or the case open.

• Use caution when working with voltages

above 30 V ac rms, 42 V ac peak, or 60 V
dc. These voltages pose a shock hazard.

• Use only the replacement fuses specified

by the manual.

• Use the proper terminals, function, and

range for measurements.

• Avoid working alone.

• When measuring current, turn off circuit

power before connecting the Meter in the
circuit. Remember to place the Meter in
series with the circuit.

• When making electrical connections,

connect the common test lead before
connecting the live test lead; when
disconnecting, disconnect the live test
lead before disconnecting the common
test lead.

• Do not use the Meter if it operates

abnormally. Protection may be impaired.
When in doubt, have the Meter serviced.

• Do not operate the Meter around

explosive gas, vapor, or dust.

• Use only a single 9 V battery, properly

installed in the Meter case, to power the
Meter.

• When servicing the Meter, use only

specified replacement parts.

• When using probes, keep fingers

behind the finger guards on the
probes.

• Do not use the Low Pass Filter option to

verify the presence of hazardous
voltages. Voltages greater than what is
indicated may be present. First, make a
voltage measurement without the filter to
detect the possible presence of
hazardous voltage. Then select the filter
function.

3

80 Series V

Users Manual

WCaution

To avoid possible damage to the Meter or to
the equipment under test, follow these
guidelines:

• Disconnect circuit power and discharge

all high-voltage capacitors before testing
resistance, continuity, diodes, or
capacitance.

• Use the proper terminals, function, and

range for all measurements.

• Before measuring current, check the

Meter's fuses. (See "Fuse Test".)

4

Safety Information

Table 1. Electrical Symbols

B AC (Alternating Current) J Earth ground
F DC (Direct Current) I Fuse

X Hazardous voltage P Conforms to European Union directives.

W

Risk of Danger. Important information.
See Manual.

$

Conforms to relevant Canadian Standards
Association directives.

M Battery. Low battery when displayed. T Double insulated

R Continuity test or continuity beeper tone. E Capacitance

IEC Overvoltage Category III
CAT III equipment is designed to protect

CAT

III

t

s

5

against transients in equipment in fixed­equipment installations, such as
distribution panels, feeders and short
branch circuits, and lighting systems in
large buildings.

Underwriters Laboratories

Inspected and licensed by TÜV Product Services.

CAT

IV

G

IEC Overvoltage Category IV
CAT IV equipment is designed to protect against
transients from the primary supply level, such as an
electricity meter or an overhead or underground utility
service.

Diode

80 Series V

Users Manual

The Meter's Features

Tables 2 through 5 briefly describe the Meter's features.

Table 2. Inputs

Terminal Description

A Input for 0 A to 10.00 A current (20 A overload for 30 seconds maximum), current frequency, and duty cycle

measurements.

mA µA Input for 0 µA to 400 mA current measurements (600 mA for 18 hrs.) and current frequency and duty cycle.
COM Return terminal for all measurements.

I Input for voltage, continuity, resistance, diode, capacitance, frequency, temperature (87), and duty cycle

measurements.

6

The Meter's Features

Table 3. Rotary Switch Positions

Switch Position

Any Position When the Meter is turned on, the Meter model number briefly appears on the display.

Function

J AC voltage measurement

A for low pass filter (K) (87 only).

Press

L DC voltage measurement

M

600 mV dc voltage range
Press A for temperature (T) (87 only).

N Press E for continuity test.

e Resistance measurement
Press A for capacitance measurement.

O Diode test

P

Q

AC current measurements from 0 mA to 10.00 A
Press

A for dc current measurements, from 0 mA to 10.00 A.

AC current measurements from 0 µA to 6000 µA

A for dc current measurements from 0 µA to 6000 µA.

Press

7

80 Series V

Users Manual

Table 4. Pushbuttons

Button

A

(Yellow)

Switch

Positon

N

M

J

P
Q

Power-up

B

C

Any switch
position

Power-up

Any switch
position

M

Power-up

Function

Selects capacitance

Selects temperature (87 only)

Selects ac low pass filter function (87 only)

Switches between dc and ac current

Switches between dc and ac current

Disables automatic power-off feature (Meter normally powers off in 30 minutes).
The Meter reads

Starts recording of minimum and maximum values. Steps the display through MAX, MIN, AVG
(average), and present readings. Cancels MIN MAX (hold for 1 second)

Enables the Meter’s calibration mode and prompts for a password.
The Meter reads “

Switches between the ranges available for the selected function. To return to autoranging, hold
the button down for 1 second.

Switches between °C and °F.
Enables the Meter’s smoothing feature. The Meter reads “

“PoFF” until A is released.

CAL“ and enters calibration mode. See

80 Series V Service Information

5___” until C is released.

.

8

The Meter's Features

Table 4. Pushbuttons (cont.)

Button

D

H

E

Switch

Positon

Any switch
position

MIN MAX
recording

Frequency
counter

Power-up

Any switch
position

Continuity
ReE

MIN MAX
recording

Hz, Duty
Cycle

Power-up

Function

AutoHOLD (formerly TouchHold) captures the present reading on the display. When a new,
stable reading is detected, the Meter beeps and displays the new reading.

Stops and starts recording without erasing recorded values.

Stops and starts the frequency counter.

Turns on all LCD segments.

Turns the backlight on, makes it brighter, and turns it off.

For Model 87, hold
appears on the display. To return to the 3-1/2 digit mode, hold
HiRes=19,999

Turns the continuity beeper on and off

Switches between Peak (250 µs) and Normal (100 ms) response times.

Toggles the meter to trigger on positive or negative slope.

Disables the beeper for all functions. The Meter reads “

H down for one second to enter the HiRes digit mode. The “HiRes” icon

H down for one second.

bEEP” until E is released.

9

80 Series V

Users Manual

Button Switch Positon Function

Table 4. Pushbuttons (cont.)

F

(Relative
mode)

G

10

Any switch
position

Power-up

Any switch
position except
diode test

Power-up

Stores the present reading as a reference for subsequent readings. The display is
zeroed, and the stored reading is subtracted from all subsequent readings.

Enables zoom mode for the bar graph. The Meter reads “

Press

G for frequency measurements.

Starts the frequency counter.
Press again to enter duty cycle mode.
Enables the Meter’s high impedance mode when the mV dc function is used.

The Meter reads “

Hi2” until G is released.

2rEL” until F is released.

The Meter's Features

Number Feature Indication

Indicates negative readings. In relative
mode, this sign indicates that the present

-

input is less than the stored reference.

Indicates the presence of a high voltage
input. Appears if the input voltage is 30
V or greater (ac or dc). Also appears in

Z

low pass filter mode. Also appears in cal,
Hz, and duty cycle modes.

AutoHOLD is active.

Display Hold is active.

Indicates the Meter is in Peak Min Max
mode and the response time is 250 µs
(87 only).

Indicators for minimum-maximum
recording mode.

Low pass filter mode (87 only). See “Low
Pass Filter (87).

The battery is low. XWWarning: To

avoid false readings, which could lead
to possible electric shock or personal
injury, replace the battery as soon as
the battery indicator appears.

Figure 1. Display Features (Model 87)

Table 5. Display Features

Number Feature Indication

Y Polarity indicator for the analog bar graph.

A

Trig

B X The continuity beeper is on.

C W Relative (REL) mode is active.

D g Smoothing is active.

Positive or negative slope indicator for
Hz/duty cycle triggering.

Y

aom1_af.eps

E

F

G

RS

H

I

S

p

m

J

MAX

MIN

AVG

K

L

K

b

11

80 Series V

Users Manual

Table 5. Display Features (cont.)

Number Feature Indication

M

N
O

P

A, µA, mA

V, mV

µF, nF

nS

%

e, Me, ke

Hz, kHz

AC DC

°C, °F

610000 mV Displays selected range

HiRes

Auto

Q

Manual The Meter is in manual range mode.

Amperes (amps), Microamp, Milliamp

Volts, Millivolts

Microfarad, Nanofarad

Nanosiemens

Percent. Used for duty cycle
measurements.

Ohm, Megohm, Kilohm

Hertz, Kilohertz

Alternating current, direct current

Degrees Celsius, Degrees Fahrenheit

The Meter is in high resolution
(Hi Res) mode. HiRes=19,999

The Meter is in autorange mode and
automatically selects the range with
the best resolution.

Number Feature Indication

The number of segments is

R

--

bAtt Replace the battery immediately.
diSC
EEPr

Err
CAL

Err

LEAd

0L

In the capacitance function, too much electrical
charge is present on the capacitor being tested.

Invalid EEPROM data. Have Meter serviced.

Invalid calibration data. Calibrate Meter.

WTest lead alert. Displayed when the test leads are
in the A or mA/µA terminal and the selected rotary
switch position does not correspond to the terminal
being used.

relative to the full-scale value of
the selected range. In normal
operation 0 (zero) is on the left.
The polarity indicator at the left of
the graph indicates the polarity of
the input. The graph does not
operate with the capacitance,
frequency counter functions,
temperature, or peak min max. For
more information, see “Bar
Graph”. The bar graph also has a
zoom function, as described under
"Zoom Mode".

Overload condition is detected.

Error Messages

12

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com

Making Measurements

Power-Up Options

Holding a button down while turning the Meter on activates
a power-up option. Table 4 includes the power-up options.

Automatic Power-Off

The Meter automatically turns off if you do not turn the
rotary switch or press a button for 30 minutes. If MIN MAX
Recording is enabled, the Meter will not power off. To
disable automatic power-off, refer to Table 4.

Input Alert Feature

If a test lead is plugged into the mA/µA or A terminal, but
the rotary switch is not set to the correct current position,
the beeper warns you by making a chirping sound and the
display flashes “LEAd”. This warning is intended to stop
you from attempting to measure voltage, continuity,
resistance, capacitance, or diode values when the leads
are plugged into a current terminal.

W Caution

Placing the probes across (in parallel with) a
powered circuit when a lead is plugged into a
current terminal can damage the circuit you
are testing and blow the Meter's fuse. This
can happen because the resistance through
the Meter's current terminals is very low, so
the Meter acts like a short circuit.

Making Measurements

The following sections describe how to take
measurements with the Meter.

Measuring AC and DC Voltage

Model 87 features true rms readings, which are accurate
for distorted sine waves and other waveforms (with no dc
offset) such as square waves, triangle waves, and
staircase waves.

The Meter's voltage ranges are 600.0 mV, 6.000 V,

60.00 V, 600.0 V, and 1000 V. To select the 600.0 mV dc
range, turn the rotary switch to mV.

To measure ac or dc voltage, refer to Figure 2.

13

80 Series V

Users Manual

When measuring voltage, the Meter acts approximately
like a 10 MΩ (10,000,000 Ω) impedance in parallel with
the circuit. This loading effect can cause measurement
errors in high-impedance circuits. In most cases, the error
is negligible (0.1% or less) if the circuit impedance is
10 kΩ (10,000 Ω) or less.

For better accuracy when measuring the dc offset of an ac
voltage, measure the ac voltage first. Note the ac voltage
range, then manually select a dc voltage range equal to or
higher than the ac range. This procedure improves the
accuracy of the dc measurement by ensuring that the
input protection circuits are not activated.

AutoHOLD

Hz %

mA

A

A

V

AutoHOLD

Hz %

mA

A

A

V

AC Voltage

Switch Box

DC Voltage

+

V

mV

V

TRUE RMS MULTIMETER

87

V

F

˚C/˚

RANGE

MIN MAX

Peak MIN MAX

REL

4½ DIGITS
1 Second

mV

V

LOLO

V

OFF

A

COM

mA

A

400mA
FUSED

10A MAX
FUSED

TRUE RMS MULTIMETER

87

V

F

˚C/˚

RANGE

MIN MAX

Peak MIN MAX

REL

4½ DIGITS
1 Second

mV

V

LOLO

V

OFF

A

COM

mA

A

400mA
FUSED

10A MAX
FUSED

Figure 2. Measuring AC and DC Voltage

aom2f.eps

14

Making Measurements

Zero Input Behavior of True RMS Meters (87)

True Rms Meters accurately measure distorted
waveforms, but when the input leads are shorted together
in the AC functions, the meter displays a residual reading
between 1 and 30 counts. When the test leads are open,
the display readings may fluctuate due to interference.
These offset readings are normal. They do not affect the
Meter’s AC measurement accuracy over the specified
measurement ranges.

Unspecified input levels are:

• AC voltage: below 3 % of 600 mV AC, or 18 mV AC

• AC current: below 3 % of 60 mA AC, or 1.8 mA AC

• AC current: below 3 % of 600 µA AC, or 18 µA AC

Low Pass Filter (87)

The 87 is equipped with an ac low pass filter. When
measuring ac voltage or ac frequency, press A to
activate the low pass filter mode (K). The Meter continues
measuring in the chosen ac mode, but now the signal
diverts through a filter that blocks unwanted voltages above
1 kHz, refer to Figure 3. The lower frequency voltages pass
with reduced accuracy to the measurement below 1 kHz.
The low pass filter can improve measurement performance
on composite sine waves that are typically generated by
inverters and variable frequency motor drives.

XWWarning

To avoid possible electric shock or personal
injury, do not use the Low Pass Filter option
to verify the presence of hazardous voltages.
Voltages greater than what is indicated may
be present. First, make a voltage measure­ment without the filter to detect the possible
presence of hazardous voltage. Then, select
the filter function.

Note

In Low Pass Mode, the Meter goes to manual
mode. Select ranges by pressing the RANGE
button. Autoranging is not available in Low Pass
Mode.

1 kHz

100 Hz

Figure 3. Low Pass Filter

aom11f.eps

15

80 Series V

Users Manual

Measuring Temperature (87)

The Meter measures the temperature of a type-K
thermocouple (included). Choose between degrees
Celsius (°C) or degrees Fahrenheit (°F) by pushing C.

W Caution

To avoid possible damage to the Meter or
other equipment, remember that while the
Meter is rated for –200.0 °C to +1090.0 °C and
–328.0 °F to 1994.0 °F, the included K-Type
Thermocouple is rated to 260 °C. For
temperatures out of that range, use a higher
rated thermocouple.

Display ranges are –200.0 °C to +1090.0 °C and
–328.0 °F to 1994.0 °F. Readings outside of these ranges
show OL on the Meter display. When there is no
thermocouple connected, the display also reads OL.

To measure temperature, do the following:

1. Connect a type-K thermocouple to the Meter’s COM

and dV eG

2. Turn the rotary switch to

3. Press A to enter temperature mode.

4. Push C to choose Celsius or Fahrenheit.

terminals.

M.

Testing for Continuity

WCaution

To avoid possible damage to the Meter or to
the equipment under test, disconnect circuit
power and discharge all high-voltage
capacitors before testing for continuity.

The continuity test features a beeper that sounds as long
as a circuit is complete. The beeper allows you to perform
quick continuity tests without having to watch the display.

To test for continuity, set up the Meter as shown in
Figure 4.

Press Eto turn the continuity beeper on or off.
The continuity function detects intermittent opens and

shorts lasting as little as 1ms. A brief short causes the
Meter to emit a short beep.

16

Making Measurements

For in-circuit tests, turn circuit power off.

TRUE RMS MULTIMETER

87

V

Activates
continuity

TRUE RMS MULTIMETER

87

V

beeper

4½ DIGITS

1 Second

LOLO

A

F

˚C/˚

AutoHOLD

RANGE

MIN MAX

Peak MIN MAX

mV

V

V

OFF

mA

10A MAX

FUSED

Hz %

REL

mA
A

A

COM

V

A

400mA
FUSED

ON
(closed)

4½ DIGITS

1 Second

LOLO

V

V

OFF

A

10A MAX

FUSED

MIN MAX

Peak MIN MAX

mV

mA

F

˚C/˚

AutoHOLD

RANGE

Hz %

REL

mA
A

A

COM

V

A

400mA
FUSED

OFF
(open)

aom4f.eps

Figure 4. Testing for Continuity

17

80 Series V

Users Manual

Measuring Resistance

WCaution

To avoid possible damage to the Meter or to
the equipment under test, disconnect circuit
power and discharge all high-voltage
capacitors before measuring resistance.

The Meter measures resistance by sending a small
current through the circuit. Because this current flows
through all possible paths between the probes, the
resistance reading represents the total resistance of all
paths between the probes.

The Meter's resistance ranges are 600.0 Ω, 6.000 kΩ,

60.00 kΩ, 600.0 kΩ, 6.000 MΩ, and 50.00MΩ.
To measure resistance, set up the Meter as shown in

Figure 5.

The following are some tips for measuring resistance:

• The measured value of a resistor in a circuit is often

different from the resistor's rated value.

• The test leads can add 0.1 Ω to 0.2 Ω of error to

resistance measurements. To test the leads, touch
the probe tips together and read the resistance of the
leads. If necessary, you can use the relative (REL)
mode to automatically subtract this value.

• The resistance function can produce enough voltage

to forward-bias silicon diode or transistor junctions,
causing them to conduct. If this is suspected, press
C to apply a lower current in the next higher
range. If the value is higher, use the higher value.
Refer to Table 18.

18

Making Measurements

4½ DIGITS
1 Second

LOLO

In-Circuit Resistance Measurements

Isolating a Potentiometer

Circuit Power

TRUE RMS MULTIMETER

87

V

F

˚C/˚

AutoHOLD

RANGE

MIN MAX

Peak MIN MAX

mV

V

V

OFF

A

mA

10A MAX

FUSED

Hz %

REL

mA

A

A

COM

V

A

400mA

FUSED

OFF

1

2

3

Disconnect

1

2

3

Isolating a Resistor

Disconnect

aom6f.eps

Figure 5. Measuring Resistance

19

80 Series V

Users Manual

Using Conductance for High Resistance or Leakage Tests

Conductance, the inverse of resistance, is the ability of a
circuit to pass current. High values of conductance
correspond to low values of resistance.

The Meter's 60 nS range measures conductance in
nanosiemens (1 nS = 0.000000001 Siemens). Because
such small amounts of conductance correspond to
extremely high resistance, the nS range lets you
determine the resistance of components up to 100,000
MΩ, 1/1 nS = 1,000 MΩ.

To measure conductance, set up the Meter as shown for
measuring resistance (Figure 5); then press Cuntil
the nS indicator appears on the display.

The following are some tips for measuring conductance:

• High-resistance readings are susceptible to

electrical noise. To smooth out most noisy readings,
enter the MIN MAX recording mode; then step to the
average (AVG) reading.

• There is normally a residual conductance reading

with the test leads open. To ensure accurate
readings, use the relative (REL) mode to subtract
the residual value.

20

Making Measurements

Measuring Capacitance

TRUE RMS MULTIMETER

87

4½ DIGITS

1 Second

LOLO

V

F

˚C/˚

AutoHOLD

RANGE

MIN MAX

Peak MIN MAX

mV

V

V

OFF

A

mA

10A MAX
FUSED

Hz %

REL

mA
A

A

COM

V

A

400mA
FUSED

WCaution

To avoid possible damage to the Meter or to
the equipment under test, disconnect circuit
power and discharge all high-voltage
capacitors before measuring capacitance.
Use the dc voltage function to confirm that
the capacitor is discharged.

The Meter's capacitance ranges are 10.00 nF, 100.0 nF,

1.000 µF, 10.00 µF, 100.0 µF, and 9999 µF.
To measure capacitance, set up the Meter as shown in

Figure 6.
To improve the accuracy of measurements less than

1000 nF, use the relative (REL) mode to subtract the
residual capacitance of the Meter and leads.

Select

Capacitance

Note

+

If too much electrical charge is present on the
capacitor being tested, the display shows
“

diSC

“.

+
+
+
+
+
+
+

+

Figure 6. Measuring Capacitance

21

aom10f.eps

80 Series V

Users Manual

Testing Diodes

WCaution

To avoid possible damage to the Meter or to
the equipment under test, disconnect circuit
power and discharge all high-voltage
capacitors before testing diodes.

Use the diode test to check diodes, transistors, silicon
controlled rectifiers (SCRs), and other semiconductor
devices. This function tests a semiconductor junction by
sending a current through the junction, then measuring
the junction's voltage drop. A good silicon junction drops
between 0.5 V and 0.8 V.

To test a diode out of a circuit, set up the Meter as shown
in Figure 7. For forward-bias readings on any
semiconductor component, place the red test lead on the
component's positive terminal and place the black lead on
the component's negative terminal.

In a circuit, a good diode should still produce a forward­bias reading of 0.5 V to 0.8 V; however, the reverse-bias
reading can vary depending on the resistance of other
pathways between the probe tips.

A short beep sounds if the diode is good (< .85 V). A
continuous beep sounds if the reading is ≤ .100 V. This
reading would indicate a short circuit. The display shows
“OL” if the diode is open.

22

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com

Making Measurements

TRUE RMS MULTIMETER

87

V

Typical

Hz %

A

Reading

Single Beep

F

˚C/˚

AutoHOLD

RANGE

MIN MAX

Peak MIN MAX

REL

mV

mA
A

V

LOLO

V

OFF

A

COM

V

mA

A

400mA

FUSED

10A MAX

FUSED

TRUE RMS MULTIMETER

87

V

Bad Diode

F

˚C/˚

AutoHOLD

RANGE

MIN MAX

Peak MIN MAX

Hz %

REL

mV

mA

A

V

LOLO

V

OFF

A

10A MAX

FUSED

A

COM

V

mA

A

400mA
FUSED

Forward Bias

+

Open

TRUE RMS MULTIMETER

87

V

F

˚C/˚

AutoHOLD

RANGE

MIN MAX

Peak MIN MAX

Hz %

REL

mV

mA
A

V

LOLO

V

OFF

A

10A MAX

FUSED

mA

A

400mA
FUSED

87

V

COM

TRUE RMS MULTIMETER

A

V

Bad Diode

F

˚C/˚

AutoHOLD

RANGE

MIN MAX

Peak MIN MAX

Hz %

REL

mV

mA

A

V

LOLO

V

OFF

A

10A MAX
FUSED

A

COM

V

mA

A

400mA

FUSED

Reverse Bias

+

Shorted

or

aom9f.eps

Figure 7. Testing a Diode

23

80 Series V

Users Manual

Measuring AC or DC Current

XWWarning

To avoid possible electric shock or personal
injury, never attempt an in-circuit current
measurement where the open-circuit
potential to earth is greater than 1000 V. You
may damage the Meter or be injured if the
fuse blows during such a measurement.

WCaution

To avoid possible damage to the Meter or to
the equipment under test:

• Check the Meter's fuses before

measuring current.

• Use the proper terminals, function, and

range for all measurements.

• Never place the probes across (in

parallel with) any circuit or component
when the leads are plugged into the
current terminals.

To measure current, you must break the circuit under
test, then place the Meter in series with the circuit.

The Meter's current ranges are 600.0 µA, 6000 µA,

60.00 mA, 400.0 mA, 6000 mA, and 10 A. AC current is
displayed as an rms value.

To measure current, refer to Figure 8 and proceed as
follows:

1. Turn off power to the circuit. Discharge all high­voltage capacitors.

2. Insert the black lead into the COM terminal. For
currents between 6 mA and 400 mA, insert the red
lead into the mA/µA terminal. For currents above
400 mA, insert the red lead into the A terminal.

Note

To avoid blowing the Meter's 400 mA fuse, use
the mA/

µ

A terminal only if you are sure the

current is less than 400 mA continuously or less
than 600 mA for 18 hours or less.

24

Making Measurements

4½ DIGITS

1 Second

LOLO

OFF

A

1

Circuit Power:

OFF to connect meter.

Total current to circuit

ON for measurement.

TRUE RMS MULTIMETER

87

V

OFF to disconnect meter.

4

F

˚C/˚

AutoHOLD

RANGE

MIN MAX

Peak MIN MAX

mV

V

V

mA

10A MAX
FUSED

Hz %

REL

mA
A

A

COM

V

A

400mA
FUSED

mA

A

3

A

5

2

Current through one component

5

aom7f.eps

Figure 8. Measuring Current

25

80 Series V

Users Manual

3. If you are using the A terminal, set the rotary switch to

mA/A. If you are using the mA/µA terminal, set the
rotary switch to µA for currents below 6000 µA
(6 mA), or mA/A for currents above 6000 µA.

4. To measure dc current, press

5. Break the circuit path to be tested. Touch the black
probe to the more negative side of the break; touch
the red probe to the more positive side of the break.
Reversing the leads will produce a negative reading,
but will not damage the Meter.

6. Turn on power to the circuit; then read the display. Be
sure to note the unit given at the right side of the
display (µA, mA, or A).

7. Turn off power to the circuit and discharge all high­voltage capacitors. Remove the Meter and restore the
circuit to normal operation.

A.

The following are some tips for measuring current:

• If the current reading is 0 and you are sure the Meter

is set up correctly, test the Meter's fuses as described
under "Testing the Fuses".

• A current Meter drops a small voltage across itself,

which might affect circuit operation. You can calculate
this burden voltage using the values listed in the
specifications in Table 14.

26

Making Measurements

Measuring Frequency

The Meter measures the frequency of a voltage or current
signal by counting the number of times the signal crosses
a threshold level each second.

Table 6 summarizes the trigger levels and applications for
measuring frequency using the various ranges of the
Meter's voltage and current functions.

To measure frequency, connect the Meter to the signal
source; then press
trigger slope between + and -, as indicated by the symbol
at the left side of the display (refer to Figure 9 under
"Measuring Duty Cycle"). Pressing
the counter.

The Meter autoranges to one of five frequency ranges:

199.99 Hz, 1999.9 Hz, 19.999 kHz, 199.99 kHz, and
greater than 200 kHz. For frequencies below 10 Hz, the
display is updated at the frequency of the input.
Below 0.5 Hz, the display may be unstable.

G. Pressing Eswitches the

Dstops and starts

The following are some tips for measuring frequency:

• If a reading shows as 0 Hz or is unstable, the input

signal may be below or near the trigger level. You can
usually correct these problems by selecting a lower
range, which increases the sensitivity of the Meter. In
the L function, the lower ranges also have lower
trigger levels.

• If a reading seems to be a multiple of what you

expect, the input signal may be distorted. Distortion
can cause multiple triggerings of the frequency
counter. Selecting a higher voltage range might solve
this problem by decreasing the sensitivity of the
Meter. You can also try selecting a dc range, which
raises the trigger level. In general, the lowest
frequency displayed is the correct one.

27

80 Series V

Users Manual

Table 6. Functions and Trigger Levels for Frequency Measurements

Function Range

K

K

L

m

L
L
L
L

R e E Gd

\

µAF

^

AF 6 A, 10 A .30 A, 3.0 A

6 V, 60 V,
600 V, 1000 V

600 mV ± 30 mV High-frequency 5 V logic signals. (The dc-coupling of the L function can

600 mV 40 mV Refer to the measurement tips given before this table.

6 V 1.7 V 5 V logic signals (TTL).

60 V 4 V Automotive switching signals.

600 V 40 V Refer to the measurement tips given before this table.

1000 V 100 V

All ranges ± 5 % of scale AC current signals.

600 µA, 6000 µA 30 µA , 300 µA Refer to the measurement tips given before this table.

60 mA, 400 mA 3.0 mA , 30 mA

Approximate

Trigger Level

± 5 % of scale Most signals.

Frequency counter characteristics are not available or specified for these functions.

Typical Application

attenuate high-frequency logic signals, reducing their amplitude enough to
interfere with triggering.)

28

Making Measurements

Measuring Duty Cycle

Duty cycle (or duty factor) is the percentage of time a
signal is above or below a trigger level during one cycle
(Figure 9). The duty cycle mode is optimized for
measuring the on or off time of logic and switching
signals. Systems such as electronic fuel injection systems
and switching power supplies are controlled by pulses of
varying width, which can be checked by measuring duty
cycle.

To measure duty cycle, set up the Meter to measure
frequency; then press Hz a second time. As with the

+Slope

Trigger Point

30% Above

+Slope

Figure 9. Components of Duty Cycle Measurements

-Slope
Trigger Point

100%

frequency function, you can change the slope for the
Meter's counter by pressing E.

For 5 V logic signals, use the 6 V dc range. For 12 V
switching signals in automobiles, use the 60 V dc range.
For sine waves, use the lowest range that does not result
in multiple triggering. (Normally, a distortion-free signal
can be up to ten times the amplitude of the selected
voltage range.)

If a duty cycle reading is unstable, press MIN MAX; then
scroll to the AVG (average) display.

70% Below

-Slope

iy3f.eps

29

80 Series V

Users Manual

Determining Pulse Width

For a periodic waveform (its pattern repeats at equal time
intervals), you can determine the amount of time that the
signal is high or low as follows:

1. Measure the signal's frequency.

2. Press

3. Use the following formula to determine the pulse

Ga second time to measure the signal's

duty cycle. Press E to select a measurement of
the signal's positive or negative pulse, refer to Figure

9.

width:

Pulse Width = % Duty Cycle ÷ 100

(in seconds)

Frequency

Bar Graph

The analog bar graph functions like the needle on an
analog meter, but without the overshoot. The bar graph
updates 40 times per second. Because the graph
responds 10 times faster than the digital display, it is
useful for making peak and null adjustments and
observing rapidly changing inputs. The graph is not
shown for capacitance, frequency counter functions,
temperature, or peak min max.

The number of lit segments indicates the measured value
and is relative to the full-scale value of the selected
range.

In the 60 V range, for example, the major divisions on the
scale represent 0, 15, 30, 45, and 60 V. An input of -30 V
lights the negative sign and the segments up to the
middle of the scale.

The bar graph also has a zoom function, as described
under "Zoom Mode".

30

HiRes Mode (Model 87)

Zoom Mode (Power Up Option Only)

To use the Rel Zoom Bar Graph:

1. Hold down F while turning the Meter on. The
display reads “2rEL”.

2. Select the relative mode by pressing F
again.

3. The center of the bar graph now represents zero
and the sensitivity of the bar graph increases by
a factor of 10. Measured values more negative
than the stored reference activate segments to
the left of center; values more positive activate
segments to the right of center.

Uses for the Zoom Mode

The relative mode, combined with the increased
sensitivity of the bar graph's zoom mode, helps you make
fast and accurate zero and peak adjustments.

For zero adjustments, set the Meter to the desired
function, short the test leads together, press
connect the leads to the circuit under test. Adjust the
circuit's variable component until the display reads zero.
Only the center segment on the zoom bar graph is lit.

For peak adjustments, set the Meter to the desired
function, connect the leads to the circuit under test; then
press

F. The display reads zero. As you adjust for a

positive or negative peak, the bar graph length increases

F; then

to the right or left of zero. If an overange symbol lights
(< >), press
continue with the adjustment.

F twice to set a new reference; then

HiRes Mode (Model 87)

On a Model 87 Meter, pressing H for one second causes
the Meter to enter the high-resolution (HiRes), 4-1/2 digit
mode. Readings are displayed at 10 times the normal
resolution with a maximum display of 19,999 counts. The
HiRes mode works in all modes except capacitance,
frequency counter functions, temperature, and the 250 µs
(peak) MIN MAX modes.

To return to the 3-1/2 digit mode, press H again for one
second.

31

80 Series V

Users Manual

MIN MAX Recording Mode

The MIN MAX mode records minimum and maximum
input values. When the inputs go below the recorded
minimum value or above the recorded maximum value,
the Meter beeps and records the new value. This mode
can be used to capture intermittent readings, record
maximum readings while you are away or record readings
while you are operating the equipment under test and
cannot watch the Meter. MIN MAX mode can also
calculate an average of all readings taken since the MIN
MAX mode was activated. To use MIN MAX mode, refer
to the functions in Table 7.

Response time is the length of time an input must stay at
a new value to be recorded. A shorter response time
captures shorter events, but with decreased accuracy.
Changing the response time erases all recorded
readings. Model 83 has 100 millisecond response time;
Model 87 has 100 millisecond, and 250 µs (peak)
response times. The 250 µs response time is indicated by
"p" on the display.

The 100 millisecond response time is best for recording
power supply surges, inrush currents, and finding
intermittent failures.

The true average value (AVG) displayed in the 100 ms
mode is the mathematical integral of all readings taken
since the start of recording (overloads are discarded).

The average reading is useful for smoothing out unstable
inputs, calculating power consumption, or estimating the
percentage of time a circuit is active.

Min Max records the signal extremes lasting longer than
100 ms.

Peak records the signal extremes lasting longer than 250
µs.

Smooth Feature (Power Up Option Only)

When the input signal changes rapidly, “smoothing”
provides a steadier reading on the display.

To use the smooth feature:

1. Hold down C while turning the Meter on. The
display will read “

2. The smooth icon (g) will appear on the left side
of the display to let you know that smoothing is
active.

5___” until C is released.

32

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com

Smooth Feature (Power Up Option Only)

Table 7. MIN MAX Functions

Button MIN MAX Function

Enter MIN MAX recording mode. The Meter is locked in the range displayed before you

B

entered MIN MAX mode. (Select the desired measurement function and range before
entering MIN MAX.) The Meter beeps each time a new minimum or maximum value is
recorded.

B

(while in MIN MAX mode)

E

PEAK MIN MAX

Step through maximum (MAX), minimum (MIN), average (AVG) and present values.

Model 87 only: Select 100 ms or 250 µs response time. (The 250 µs response time is
indicated by pon the display.) Stored values are erased. The present and AVG
(average) values are not available when 250 µs is selected.

D Stop recording without erasing stored values. Press again to resume recording.

B

(hold for 1 second)

33

Exit MIN MAX mode. Stored values are erased. The Meter stays in the selected range.

80 Series V

Users Manual

AutoHOLD

Mode

XWWarning

To avoid possible electric shock or personal
injury, do not use AutoHOLD mode to
determine that circuits are without power.
The AutoHOLD mode will not capture
unstable or noisy readings.

The AutoHOLD mode captures the present reading on
the display. When a new, stable reading is detected, the
Meter beeps and displays the new reading. To enter or
exit AutoHOLD mode, press

D.

Relative Mode

Selecting relative mode ( F) causes the Meter to
zero the display and store the present reading as the
reference for subsequent measurements. The Meter is
locked into the range selected when you pressed
Press

Fagain to exit this mode.

In relative mode, the reading shown is always the
difference between the present reading and the stored
reference value. For example, if the stored reference
value is 15.00 V and the present reading is 14.10 V, the
display shows -0.90 V.

F.

34

Maintenance

Maintenance

XWWarning

To avoid possible electric shock or personal
injury, repairs or servicing not covered in
this manual should be performed only by
qualified personnel as described in the

80 Series V Service Information

General Maintenance

Periodically wipe the case with a damp cloth and mild
detergent. Do not use abrasives or solvents.

Dirt or moisture in the terminals can affect readings and
can falsely activate the Input Alert feature. Clean the
terminals as follows:

1. Turn the Meter off and remove all test leads.

2. Shake out any dirt that may be in the terminals.

3. Soak a new swab with a cleaning and oiling agent
(such as WD-40). Work the swab around in each
terminal. The oiling agent insulates the terminals
from moisture-related activation of the Input Alert
feature.

.

Fuse Test

If a test lead is plugged into the mA/µA or A terminal and
the rotary switch is turned to a non-current function, the
Meter chirps and flashes “LEAd” if the fuse associated
with that current terminal is good. If the Meter does not
chirp or flash “LEAd”, the fuse is bad and must be
replaced. Refer to Table 8 for the appropriate
replacement fuse.

To test the quality of the fuse:
before measuring current, test the appropriate fuse as
shown in Figure 10. If the tests give readings other than
those shown, have the Meter serviced.

XWWarning

To avoid electrical shock or personal injury,
remove the test leads and any input signals
before replacing the battery or fuses. To
prevent damage or injury, install ONLY
specified replacement fuses with the
amperage, voltage, and speed ratings shown
in Table 8.

35

80 Series V

Users Manual

Good F2 fuse: 00.0 Ω to

00.5 Ω

Replace fuse: OL

Touch top half

of input contacts

Good F1 fuse: 0.995 kΩ to

1.005 kΩ

Replace fuse: OL

Figure 10. Testing the Current Fuses

MIN MAX

Peak MIN MAX

4½ DIGITS
1 Second

mV

V

LOLO

V

OFF

AmACOM

10A MAX
FUSED

MIN MAX

Peak MIN MAX

4½ DIGITS
1 Second

mV

V

LOLO

V

OFF

AmACOM

10A MAX
FUSED

87

V

A

400mA
FUSED

87

V

A

400mA
FUSED

TRUE RMS MULTIMETER

F

˚C/˚

RANGE

REL

TRUE RMS MULTIMETER

F

˚C/˚

RANGE

REL

AutoHOLD

Hz %

mA
A

A

V

AutoHOLD

Hz %

mA
A

A

V

aom5f.eps

Replacing the Battery

Replace the battery with a 9 V battery (NEDA A1604,
6F22, or 006P).

XWWarning

To avoid false readings, which could lead to
possible electric shock or personal injury,
replace the battery as soon as the battery
indicator (b) appears. If the display shows
“bAtt” the Meter will not function until the
battery is replaced.

Replace the battery as follows, refer to Figure 11:

1. Turn the rotary switch to OFF and remove the test
leads from the terminals.

2. Remove the battery door by using a standard-blade
screwdriver to turn the battery door screws one­quarter turn counterclockwise.

3. Replace the battery and the battery door. Secure the
door by turning the screws one-quarter turn
clockwise.

36

Service and Parts

Replacing the Fuses

Referring to Figure 11, examine or replace the Meter's
fuses as follows:

1. Turn the rotary switch to OFF and remove the test
leads from the terminals.

2. Remove the battery door by using a standard-blade
screwdriver to turn the battery door screws one­quarter turn counterclockwise.

3. Remove the three Phillips-head screws from the
case bottom and turn the case over.

4. Gently push up the input terminal-end of the top case
from inside of the battery compartment to separate
the two halves of the case.

5. Remove the fuse by gently prying one end loose,
then sliding the fuse out of its bracket.

6. Install ONLY specified replacement fuses with the
amperage, voltage, and speed ratings shown in
Table 8.

7. Verify that the rotary switch and the circuit board
switch are in the OFF position.

8. Replace the case top, ensuring that the gasket is
properly seated and case snaps together above the
LCD (item A).

9. Reinstall the three screws and the battery door.
Secure the door by turning the screws one-quarter
turn clockwise.

Service and Parts

If the Meter fails, check the battery and fuses. Review this
manual to verify proper use of the Meter.

Replacement parts and accessories are shown in Tables
8 and 9 and Figure 12.

To order parts and accessories, refer to “Contacting
Fluke”.

37

80 Series V

Users Manual

F1

F2

1

38

Figure 11. Battery and Fuse Replacement

aom12f.eps

Service and Parts

Table 8. Replacement Parts

Item Description Qty.

BT1 Battery, 9 V 1
BT2 Cable Assy, 9 V Battery Snap 1 2064217

F1 W
F2 W Fuse, 11 A, 1000 V, FAST 1 803293
H2-4 Screw, Case 3 832246
H5-9 Screw, Bottom Shield 5 448456
J1-2 Elastomeric Connector 2 817460
MP2 Shield, Top 1 2073906
MP4 Shield, Bottom 1 2074025
MP5 Case Top (PAD XFER) With Window 1 2073992
MP6 Case Bottom 1 2073871
MP8 Knob, Switch (PAD XFER) 1 2100482
MP9 Detent, Knob 1 822643
MP10-11 Foot, Non-Skid 2 824466
MP13 Shock Absorber 1 828541
MP14 O-Ring, Input Receptacle 1 831933
MP15 Holster 1 2074033
MP22 Battery Door 1 2073938
MP27-MP30 Contact RSOB 4 1567683
MP31 Mask, LCD (PAD XFER) 1 2073950
MP41 Housing, RSOB 1 2073945
WTo ensure safety, use exact replacement only.

Fuse, 0.440 A, 1000 V, FAST 1 943121

Fluke Part or Model

Number

2139179

39

80 Series V

Users Manual

Table 8. Replacement Parts (cont.)

Item Description Qty.

AC72 Alligator Clip, Black 1 1670652
AC72 Alligator Clip, Red 1 1670641
TL75 Test Lead Set 1 855742

MP81 Thermocouple Assembly, K-Type, Beaded, Molded Dual Banana Plug, Coiled 1 1273113
MP390-391 Access Door Fastener 2 948609
NA Tiltstand 1 2074040
U5 LCD, 4.5 DIGIT,TN, Transflective, Bar Graph, OSPR80 1 2065213
CR6 Lightpipe 1 2074057
S2 Keypad 1 2105884
TM1 80 Series V Multi-Language Getting Started Manual 1 2101973
TM2 80 Series V Quick Reference Card 1 2101986
TM3 CD ROM,80 Series V User Manual 1 2101999

Fluke Part or Model

Number

40

Service and Parts

MP5

MP13

W

MP14

MP8

S2

MP9

F2

H5-9 (5)

J3

F1

MP6

H2-4 (3)

BT1

MP390-391

MP31

U5

J1-2

CR6

MP2

MP41

MP27-30

MP4

MP10-11

MP22

MP81

Figure 12. Replaceable Parts

TM3

TM1

TM2

Holster

MP15

TL75

Test Lead Set

MP66

Alligator Clips

AC72

Tilt Stand

aom01 5c.eps

41

80 Series V

Users Manual

Item Description

AC72 Alligator Clips for use with TL75 test lead set

AC220 Safety Grip, Wide-Jaw Alligator Clips

TPAK ToolPak Magnetic Hanger

H87 Holster, Yellow

C25 Carrying Case, Soft

TL76 4 mm Diameter Test Leads

TL220 Industrial Test Lead Set

TL224 Test Lead Set, Heat-Resistant Silicone

TP1 Test Probes, Flat Blade, Slim Reach

TP4 Test Probes, 4 mm diameter, Slim Reach
Fluke accessories are available from an authorized Fluke distributor.

Table 9. Accessories

42

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com

Specifications

Specifications

Maximum Voltage between any Terminal and Earth Ground: 1000 V rms

W Fuse Protection for mA or µA inputs: 44/100 A, 1000 V FAST Fuse
W Fuse Protection for A input: 11 A, 1000 V FAST Fuse

Display: Digital: 6000 counts updates 4/sec; (Model 87 also has 19,999 counts in high-resolution mode).
Analog Bargraph: 33 segments, updates 40/sec. Frequency: 19,999 counts, updates 3/sec at > 10 Hz
Temperature: Operating: -20 °C to +55 °C; Storage: -40 °C to +60 °C
Altitude: Operating: 2000 m; Storage: 10,000 m
Temperature Coefficient: 0.05 x (specified accuracy)/ °C (< 18 °C or > 28 °C)
Electromagnetic Compatibility:

Except: 600 µA dc range total accuracy=specified accuracy + 60 counts.
Temperature not specified.

Relative Humidity: 0 % to 90 % (0 °C to 35 °C); 0 % to 70 % (35 °C to 55 °C)
Battery Type: 9 V zinc, NEDA 1604 or 6F22 or 006P
Battery Life: 400 hrs typical with alkaline (with backlight off)
Vibration: Per MIL-PRF-28800 for a Class 2 instrument

Shock: 1 Meter drop per IEC 61010-1:2001
Size (HxWxL): 1.25 in x 3.41 in x 7.35 in (3.1 cm x 8.6 cm x 18.6 cm)
Size with Holster and Flex-Stand: 2.06 in x 3.86 in x 7.93 in (5.2 cm x 9.8 cm x 20.1 cm)
Weight: 12.5 oz (355 g)
Weight with Holster and Flex-Stand: 22.0 oz (624 g)

Safety: Complies with ANSI/ISA S82.01-2004, CSA 22.2 No. 1010.1:2004 to 1000 V Overvoltage Category III, IEC 664 to 600 V

Overvoltage Category IV. UL listed to UL61010-1. Licensed by TÜV to EN61010-1.

In an RF field of 3 V/m total accuracy = specified accuracy + 20 counts

43

80 Series V

Users Manual

Detailed Specifications

For all detailed specifications:
Accuracy is given as ±([% of reading] + [number of least significant digits]) at 18° C to 28° C, with relative humidity up to

90 %, for a period of one year after calibration.
For Model 87 in the 4 ½-digit mode, multiply the number of least significant digits (counts) by 10. AC conversions are ac-

coupled and valid from 3 % to 100 % of range. Model 87 is true rms responding. AC crest factor can be up to 3 at full scale, 6
at half scale. For non-sinusoidal wave forms add -(2 % Rdg + 2 % full scale) typical, for a crest factor up to 3.

Table 10. Model 87 AC Voltage Function Specifications

Function Range Resolution Accuracy

600.0 mV

2,4

K

6.000 V

60.00 V

600.0 V

1000 V 1 V
Low pass filter ± (0.7 % + 2) ± (1.0 % + 4)

1. Below 10 % of range, add 12 counts.

2. The Meter is a true rms responding meter. When the input leads are shorted together in the ac functions, the Meter may display a residual
reading between 1 and 30 counts. A 30 count residual reading will cause only a 2-digit change for readings over 3 % of range. Using REL to
offset this reading may produce a much larger constant error in later measurements.

3. Frequency range: 1 kHz to 2.5 kHz.

4. A residual reading of up to 13 digits with leads shorted, will not affect stated accuracy above 3 % of range.

5. Specification increases from -1% at 200 Hz to -6% at 440 Hz when filter is in use.

0.1 mV

0.001 V

0.01 V

0.1 V

45 - 65 Hz 30 - 200 Hz 200 - 440 Hz 440 Hz - 1 kHz 1 - 5 kHz

± (0.7 % + 4)

± (0.7 % + 2)

± (1.0 % + 4)

+1 % + 4

5

-6 % - 4

unspecified unspecified unspecified

± (2.0 % + 4)

± (2.0 % + 4)

unspecified unspecified

5 - 20 kHz

± (2.0 % + 20)

3

unspecified

44

1

Specifications

Table 11. Model 83 AC Voltage Function Specifications

Function Range Resolution Accuracy

1

K

1. Below a reading of 200 counts, add 10 counts.

2. Frequency range: 1 kHz to 2.5 kHz.

600.0 mV

6.000 V

60.00 V

600.0 V
1000 V

0.1 mV

0.001 V

0.01 V

0.1 V
1 V

50 Hz - 60 Hz 30 Hz - 1 kHz 1 kHz - 5 kHz

± (0.5 % + 4)
± (0.5 % + 2)
± (0.5 % + 2)
± (0.5 % + 2)
± (0.5 % + 2)

± (1.0 % + 4)
± (1.0 % + 4)
± (1.0 % + 4)
± (1.0 % + 4)
± (1.0 % + 4)

± (2.0 % + 4)
± (2.0 % + 4)
± (2.0 % + 4)

± (2.0 % + 4)

unspecified

2

45

80 Series V

Users Manual

Table 12. DC Voltage, Resistance, and Conductance Function Specifications

Function Range Resolution

L

F

mV

e

nS

1. When using the REL ∆ function to compensate for offsets.

2. Add 0.5 % of reading when measuring above 30 MΩ in the 50 MΩ range, and 20 counts below 33 nS in the 60 nS range.

6.000 V

60.00 V

600.0 V
1000 V

600.0 mV 0.1 mV ± (0.3 % + 1) ± (0.1 % + 1)

600.0 Ω

6.000 kΩ

60.00 kΩ

600.0 kΩ

6.000 MΩ

50.00 MΩ

60.00 nS

0.001 V

0.01 V

0.1 V
1 V

0.1 Ω

0.001 kΩ

0.01 kΩ

0.1 kΩ

0.001 MΩ

0.01 MΩ

0.01 nS

Model 83 Model 87

± (0.1 % + 1)

± (0.1 % + 1)
± (0.1 % + 1)
± (0.1 % + 1)

1

± (0.4 % + 2)
± (0.4 % + 1)
± (0.4 % + 1)
± (0.7 % + 1)
± (0.7 % + 1)
± (1.0 % + 3)
± (1.0 % + 10)

2

1

Accuracy

± (0.05 % + 1)
± (0.05 % + 1)
± (0.05 % + 1)
± (0.05 % + 1)

± (0.2 % + 2)
± (0.2 % + 1)
± (0.2 % + 1)
± (0.6 % + 1)
± (0.6 % + 1)
± (1.0 % + 3)
± (1.0 % + 10)

46

1

2

1

Specifications

Table 13. Temperature Specifications (87 Only)

1,2

Temperature Resolution Accuracy

-200 °C to +1090 °C

-328 °F to +1994 °F

1. Does not include error of the thermocouple probe.

2. Accuracy specification assumes ambient temperature stable to
applies after 1 hour.

0.1 °C

0.1 °F

1 % + 10
1 % + 18

± 1 °C. For ambient temperature changes of ± 5 °C, rated accuracy

47

80 Series V

Users Manual

Table 14. Current Function Specifications

Function Range Resolution

mA

\

(45 Hz to 2 kHz)

mA
[

µA B

(45 Hz to 2 kHz)

µAF

1. AC conversion for Model 83 is ac coupled and calibrated to the rms value of a sine wave input.

2. AC conversions for Model 87 are ac coupled, true rms responding, and valid from 3 % to 100 % of range, except 400 mA range (5 %
to 100 % of range) and 10 A range (15 % to 100 % or range).

3. Model 87 is a true rms responding meter. When the input leads are shorted together in the ac functions, the Meter may display a
residual reading between 1 and 30 counts. A 30 count residual reading will cause only a 2 digit change for readings over 3 % of
range. Using REL to offset this reading may produce a much larger constant error in later measurements

4. W 10 A continuous up to 35 °C; < 20 minutes on, 5 minutes off at 35 °C to 55 °C. 20 A for 30 seconds maximum; > 10 A unspecified.

5. Below a reading of 200 counts, add 10 counts.

6. 400 mA continuous; 600 mA for 18 hrs maximum.

60.00 mA

400.0 mA

6.000 A

4

10.00 A

60.00 mA

400.0 mA

6.000 A

4

10.00 A

600.0 µA
6000 µA

600.0 µA
6000 µA

6

6

0.01 mA

0.1 mA

0.001 A

0.01 A

0.01 mA

0.1 mA

0.001 A

0.01 A

0.1 µA
1 µA

0.1 µA
1 µA

Model 83

± (1.2 % + 2)
± (1.2 % + 2)
± (1.2 % + 2)
± (1.2 % + 2)

± (0.4 % + 4)
± (0.4 % + 2)
± (0.4 % + 4)
± (0.4 % + 2)

± (1.2 % + 2)
± (1.2 % + 2)

± (0.4 % + 4)
± (0.4 % + 2)

Accuracy

1

Model 87

5
5
5
5

5
5

2, 3

± (1.0 % + 2)
± (1.0 % + 2)
± (1.0 % + 2)
± (1.0 % + 2)

± (0.2 % + 4)
± (0.2 % + 2)
± (0.2 % + 4)
± (0.2 % + 2)

± (1.0 % + 2)
± (1.0 % + 2)

± (0.2 % + 4)
± (0.2 % + 2)

Burden Voltage

(typical)

1.8 mV/mA

1.8 mV/mA

0.03 V/A

0.03 V/A

1.8 mV/mA

1.8 mV/mA

0.03 V/A

0.03 V/A

100 µV/µA
100 µV/µA

100 µV/µA
100 µV/µA

48

Specifications

Table 15. Capacitance and Diode Function Specifications

Function Range Resolution Accuracy

E

G

1. With a film capacitor or better, using Relative mode to zero residual.

10.00 nF

100.0 nF

1.000 µF

10.00 µF

100.0 µF
9999 µF

3.000 V 0.001 V ± (2 % + 1)

0.01 nF

0. 1 nF

0.001 µF

0.01 µF

0.1 µF
1 µF

± (1 % + 2)
± (1 % + 2)
± (1 % + 2)
± (1 % + 2)
± (1 % + 2)
± (1 % + 2)

1

1

Table 16. Frequency Counter Specifications

Function Range Resolution Accuracy

Frequency
(0.5 Hz to 200 kHz,
pulse width > 2 µs)

199.99

1999.9

19.999 kHz

199.99 kHz
> 200 kHz

0.01 Hz

0.1 Hz

0.001 kHz

0.01 kHz

0.1 kHz

± (0.005 % + 1)
± (0.005 % + 1)
± (0.005 % + 1)
± (0.005 % + 1)

unspecified

49

80 Series V

Users Manual

Table 17. Frequency Counter Sensitivity and Trigger Levels

Minimum Sensitivity (RMS Sine wave) Approximate Trigger Level

Input Range1 5 Hz - 20 kHz 0.5 Hz - 200 kHz (DC Voltage Function)

600 mV dc
600 mV ac
6 V
60 V
600 V
1000 V

Duty Cycle Range Accuracy

0.0 to 99.9 % Within ± (0.2% per kHz + 0.1 %) for rise times < 1 µs.

1. Maximum input for specified accuracy = 10X Range or 1000 V.

70 mV (to 400 Hz)
150 mV

0.3 V
3 V
30 V
100 V

70 mV (to 400 Hz)
150 mV

0.7 V
7 V (≤140 kHz)
70 V (≤14.0 kHz)
200 V (≤1.4 kHz)

50

40 mV


1.7 V
4 V
40 V
100 V

Specifications

Table 18. Electrical Characteristics of the Terminals

Function

Overload

Protection

1

Input

Impedance

(nominal)

Common Mode
Rejection Ratio

(1 kΩ unbalance)

Normal Mode Rejection

L 1000 V rms 10 MΩ < 100 pF > 120 dB at dc, 50 Hz or 60 Hz > 60 dB at 50 Hz or 60 Hz
F

mV

K 1000 V rms 10 MΩ < 100 pF

1000 V rms 10 MΩ < 100 pF > 120 dB at dc, 50 Hz or 60 Hz > 60 dB at 50 Hz or 60 Hz

> 60 dB, dc to 60 Hz

(ac-coupled)

Open Circuit
Test Voltage

Full Scale Voltage Typical Short Circuit Current

To 6.0 MΩ 50 MΩ or

60 nS

600 Ω 6 k 60 k 600 k 6 M 50 M

e 1000 V rms < 7.9 V dc < 4.1 V dc < 4.5 V dc 1 mA 100 µA 10 µA 1µA 1 µA 0.5 µA
G 1000 V rms < 3.9 V dc 3.000 V dc 0.6 mA typical

6

1. 10

V Hz max

51

80 Series V

Users Manual

Table 19. MIN MAX Recording Specifications

Model Nominal Response Accuracy

83 100 ms to 80 % Specified accuracy ± 12 counts for changes > 200 ms in duration

(± 40 counts in ac with beeper on)

87 100 ms to 80 %

(dc functions)

120 ms to 80 %
(ac functions)

250 µs (peak)
(Model 87 only)

1. For repetitive peaks: 1 ms for single events.

1

Specified accuracy ± 12 counts for changes > 200 ms in duration

Specified accuracy ± 40 counts for changes > 350 ms and inputs > 25 % of range

Specified accuracy ± 100 counts for changes > 250 µs in duration
(add ± 100 counts for readings over 6000 counts)
(add ± 100 counts for readings in Low Pass mode)

52

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176

FAX [phone] - TestEquipmentDepot.com

Back to the Fluke 80v Product Info Page

Visit us at www.TestEquipmentDepot.com
