Fluke Fluke 1760 BASIC Manual

Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 - TestEquipmentDepot.com

®

1760

Power Quality Recorder

Users Manual

June 2006 Rev

© 2006-2010 Fluke Corporation, All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.

. 2, 5/10

LIMITED WARRANTY AND LIMITATION OF LIABILITY

Each Fluke product is warranted to be free from defects in material and workmanship under normal use and
service. The warranty period is two years and begins on the date of shipment. Parts, product repairs, and
services are warranted for 90 days. This warranty extends only to the original buyer or end-user customer of
a Fluke authorized reseller, and does not apply to fuses, disposable batteries, or to any product which, in
Fluke's opinion, has been misused, altered, neglected, contaminated, or damaged by accident or abnormal
conditions of operation or handling. Fluke warrants that software will operate substantially in accordance
with its functional specifications for 90 days and that it has been properly recorded on non-defective media.
Fluke does not warrant that software will be error free or operate without interruption.

Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers
only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is
available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the
applicable international price. Fluke reserves the right to invoice Buyer for importation costs of
repair/replacement parts when product purchased in one country is submitted for repair in another country.

Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price, free of charge repair,
or replacement of a defective product which is returned to a Fluke authorized service center within the
warranty period.

To obtain warranty service, contact your nearest Fluke authorized service center to obtain return
authorization information, then send the product to that service center, with a description of the difficulty,
postage and insurance prepaid (FOB Destination). Fluke assumes no risk for damage in transit. Following
warranty repair, the product will be returned to Buyer, transportation prepaid (FOB Destination). If Fluke
determines that failure was caused by neglect, misuse, contamination, alteration, accident, or abnormal
condition of operation or handling, including overvoltage failures caused by use outside the product’s
specified rating, or normal wear and tear of mechanical components, Fluke will provide an estimate of repair
costs and obtain authorization before commencing the work. Following repair, the product will be returned to
the Buyer transportation prepaid and the Buyer will be billed for the repair and return transportation charges
(FOB Shipping Point).

THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. FLUKE SHALL NOT BE LIABLE
FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES,
INCLUDING LOSS OF DATA, ARISING FROM ANY CAUSE OR THEORY.

Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or
limitation of incidental or consequential damages, the limitations and exclusions of this warranty may not
apply to every buyer. If any provision of this Warranty is held invalid or unenforceable by a court or other
decision-maker of competent jurisdiction, such holding will not affect the validity or enforceability of any other
provision.

Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
U.S.A.

Fluke Europe B.V.
P.O. Box 1186
5602 BD Eindhoven
The Netherlands

11/99

To register your product online, visit register.fluke.com

Table of Contents

Chapter Title Page

1 Introduction ......................................................................................... 1-1

About this Manual.................................................................................. 1-3

Symbols................................................................................................. 1-3

CAT Identification .................................................................................. 1-4

Safety Instructions................................................................................. 1-4

Safety Instructions on Device Housing.................................................. 1-7

Mains Connection.............................................................................. 1-7

Input Voltage – Measuring Inputs...................................................... 1-8

Servicing and Maintenance ............................................................... 1-8

Design and Functions............................................................................ 1-8

Mains Connection and Interfaces ...................................................... 1-8

Functional Description ....................................................................... 1-10

Basic Measurements............................................................................. 1-18

Measurement Types.......................................................................... 1-18

Measurements................................................................................... 1-19

2 Getting Started .................................................................................... 2-1

Delivered Items ..................................................................................... 2-3

Setup ..................................................................................................... 2-4

Installation ......................................................................................... 2-4

Switching the Device On ................................................................... 2-4

Switching the Device Off ................................................................... 2-4

Simple Measurement - Function Check ................................................ 2-4

Transport and Storage .......................................................................... 2-9

Transport ........................................................................................... 2-9

Storage .............................................................................................. 2-9

3 Operation ............................................................................................. 3-1

Connections to Measuring Circuits........................................................ 3-3

Connecting Sequence ....................................................................... 3-3

Connection Diagrams ........................................................................ 3-4

1-Phase Measurement .................................................................. 3-4

3-Wire Network with Two Current Sensors (ARON2 Method)....... 3-5

3-Wire Network with Two Current Sensors (ARON2 Method,

Open Delta Method) ...................................................................... 3-7

i

1760

Users Manual

4-Wire Network: 3-Wattmeter Method ........................................... 3-8

Four-Wire Network: Three-Wattmeter Method with N Conductor

Voltage and N Conductor Current ................................................. 3-9

Two Star-Connected Voltage Systems.......................................... 3-11

Two Voltage Systems in Delta Configuration ................................ 3-12

Methods of Measurement/Formulas...................................................... 3-13

Parameter Aggregation ..................................................................... 3-13

Calculation of Power Parameters ...................................................... 3-14

Aggregations 200 ms and higher................................................... 3-14

Real power .................................................................................... 3-14

Apparent power ............................................................................. 3-15

Reactive power.............................................................................. 3-15

Power factor .................................................................................. 3-16

Displacement power factor cos φ .................................................. 3-16

Half and full cycle aggregations......................................................... 3-17

Real power .................................................................................... 3-17

Apparent power ............................................................................. 3-18

Reactive power.............................................................................. 3-18

Power factor .................................................................................. 3-18

Events and Flicker ............................................................................. 3-18

Harmonics and Interharmonics Parameters ...................................... 3-19

Signaling Voltage............................................................................... 3-22

Unbalance, Overdeviation, Underdeviation ....................................... 3-22

Current Unbalance ........................................................................ 3-23

Overdeviation and Underdeviation ................................................ 3-24

4 Maintenance......................................................................................... 4-1

Introduction............................................................................................ 4-3

Maintenance of Battery Package........................................................... 4-3

Cleaning ................................................................................................ 4-3

Replacement of Battery Pack................................................................ 4-4

Decommissioning and Disposal ............................................................ 4-4

Shutting Down ................................................................................... 4-4

Recycling and Disposal ..................................................................... 4-5

Warranty................................................................................................ 4-5

Recalibration ......................................................................................... 4-5

5 Specifications ...................................................................................... 5-1

General Specifications .......................................................................... 5-3

6 Options and Accessories ................................................................... 6-1

Instruments............................................................................................ 6-3

Accessories ........................................................................................... 6-3

Standard Voltage Probes for AC and DC .......................................... 6-4

Flexible Current Probes for AC.......................................................... 6-5

Current Probes for AC Currents ........................................................ 6-5

Shunt Resistors for AC and DC Currents .......................................... 6-6

Other Accessories ............................................................................. 6-6

Current Clamp 1 A/10 A AC .............................................................. 6-6

Current Clamp 5 A/50 A AC .............................................................. 6-10

Current Clamp 20 A/200 A AC .......................................................... 6-14

Flexi Current Sensor 100 A/500 A..................................................... 6-17

Flexi Current Sensor 200 A/1000 A................................................... 6-21

ii

Contents (continued)

Flexi Current Sensor 3000 A/6000 A................................................. 6-24

GPS-Time Synchronization Module Option........................................... 6-27

iii

1760

Users Manual

iv

List of Tables

Table Title Page

1-1. Symbols..................................................................................................... 1-3

1-2. Controls and Indicators ............................................................................. 1-9

3-1. Symbols in the Connection Diagrams ....................................................... 3-4

3-2. Parameter Aggregation Matrix .................................................................. 3-25

v

1760

Users Manual

vi

List of Figures

Figure Title Page

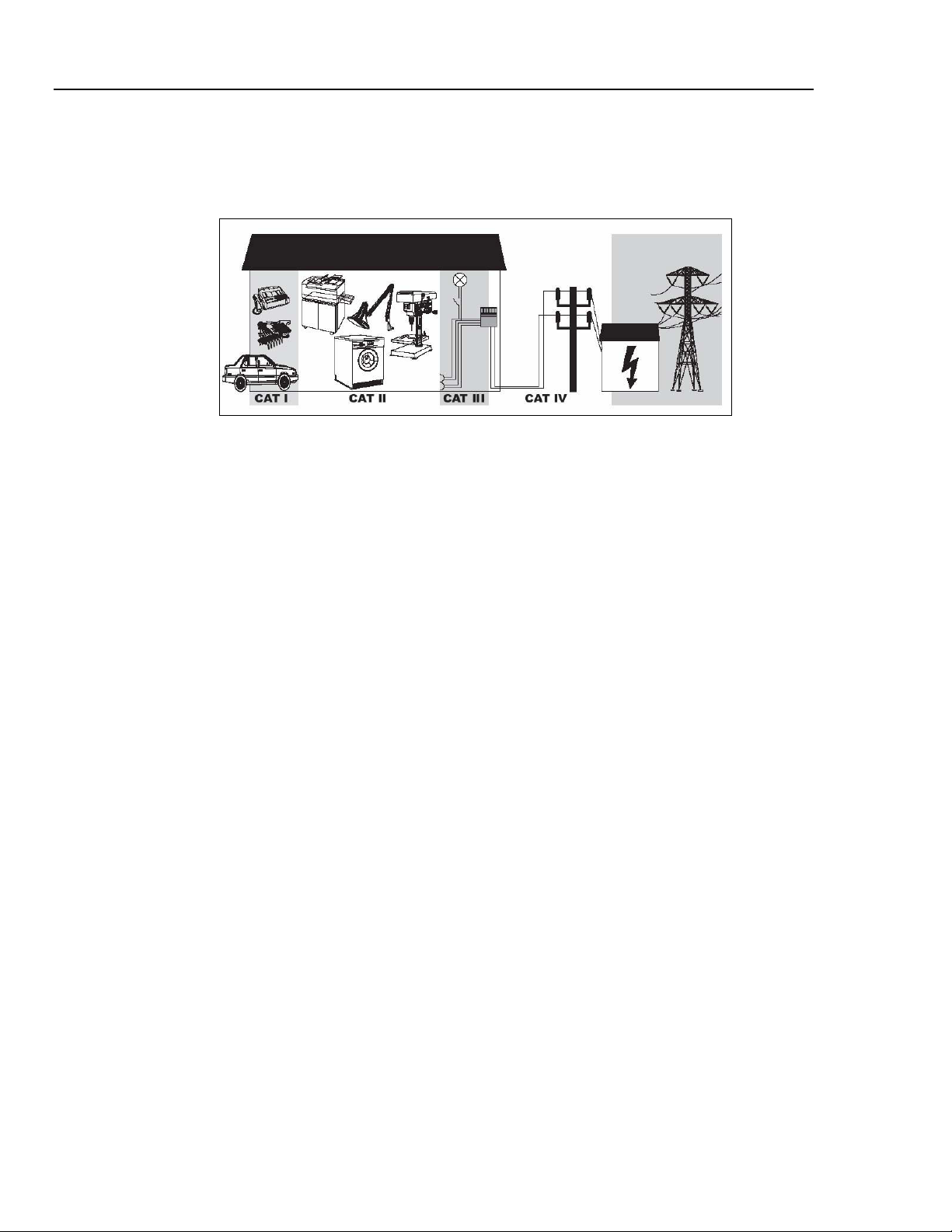

1-1. CAT ........................................................................................................... 1-4

1-2. Instrument Labels...................................................................................... 1-7

1-3. Top View ................................................................................................... 1-8

1-4. Front View ................................................................................................. 1-9

2-1. Communication Cables ............................................................................. 2-3

3-1. Circuit Diagram: 1-Phase Measurement ................................................... 3-4

3-2. Circuit Diagram: 3-Wire Network (Aron 2)................................................. 3-6

3-3. Circuit Diagram: Aron 2 Method/Open Delta Method................................ 3-7

3-4. Circuit Diagram: 4-Wire Network (Wye Connection) ................................. 3-8

3-5. Circuit Diagram: 4-Wire ............................................................................. 3-10

3-6. Circuit Diagram: 2 Voltage System with Neutral ....................................... 3-11

3-7. Circuit Diagram: 2 Voltage System in Delta Connection ........................... 3-12

vii

1760

Users Manual

viii

Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 - TestEquipmentDepot.com

Chapter 1

Introduction

Title Page

About this Manual ............................................................................................... 1-3

Symbols ............................................................................................................... 1-3

CAT Identification............................................................................................... 1-4

Safety Instructions ............................................................................................... 1-4

Safety Instructions on Device Housing................................................................ 1-7

Mains Connection............................................................................................ 1-7

Input Voltage – Measuring Inputs................................................................... 1-8

Servicing and Maintenance ............................................................................. 1-8

Design and Functions........................................................................................... 1-8

Mains Connection and Interfaces .................................................................... 1-8

Functional Description .................................................................................... 1-10

Basic Measurements ............................................................................................ 1-18

Measurement Types......................................................................................... 1-18

Measurements.................................................................................................. 1-19

1-1

1760

Users Manual

1-2

Introduction

About this Manual 1

About this Manual

This manual consists of several chapters.

• Introduction

• Getting Started

• Operation

• Maintenance

• Specifications

• Options and Accessories

Symbols

Table 1-1 shows the symbols used on the instrument and/or in this manual.

Table 1-1. Symbols

Symbol Description

X Hazardous voltage. Risk of electric shock.

W Important information. See manual.

- Do not apply around or remove from HAZARDOUS LIVE conductors.
J Earth ground.
T Double insulation.
B AC (Alternating Current)
F DC (Direct Current).

P Conforms to requirements of European Union.

)

~

Canadian Standards Association is the certified body used for testing
compliance to safety standards.

Do not dispose of this product as unsorted municipal waste. Go to Fluke’s
website for recycling information.

; Conforms to relevant Australian Standards.

CAT II

CAT III

IEC Overvoltage Category/Measurement Category II equipment is designed
to be protected against transients from socket outlets and similar points.

IEC Overvoltage Category III equipment is designed to protect against
transients in installations, such as distribution panels, feeders and short
branch circuits, and lighting systems in large buildings.

IEC Overvoltage Category IV equipment is designed to protect against

CAT IV

transients from the primary supply level, such as an electricity meter or an
overhead or underground utility service.

1-3

1760

Users Manual

CAT Identification

Figure 1-1 shows an example to identify the locations of different measurement
categories (CAT).

Safety Instructions

The design and manufacture of the device conform to the latest state of technology and
the safety standards laid down in EN/IEC 61010-1:2001 (2
there is a risk of injury to persons and damage of property.

Please read this section carefully. It will familiarize you with important safety
instructions for handling your 1760 Power Quality Recorder. In this manual a
identifies conditions and actions that pose hazard(s) to the user. A Caution identifies
conditions and actions that may damage the Recorder.

The 1760 Power Quality Recorder is referred to as ‘Recorder’ throughout
the manual.

To avoid electric shock or personal injury:

• The Power Quality Recorder must only be used and

handled by qualified personnel.

Figure 1-1. CAT

Note

XW Warnings

nd

ed.). If used improperly,

Warning


1-4

• Maintenance work must be done only by qualified service

personnel.

• Use only specified voltage and current probes. If you use

flexible current probes, wear suitable protective gloves or
work on de-energized conductors.

• Protect the Recorder against wetness and humidity.

• Do not hold the Current Clamp anywhere beyond the tactile

barrier.

• To prevent electrical shock, always connect current probe

test leads to the Recorder before connecting to the load.

Introduction

Safety Instructions 1

• To avoid electrical shock, do not connect the voltage

measuring or power supply input to systems with higher
voltages to ground (earth) than is marked on the Recorder.

• To avoid damage to the Recorder, never connect the

voltage measuring inputs to phase-to-phase voltages
higher than defined on the voltage sensors.

• To avoid damage to the Recorder, never connect the power

supply voltage inputs to phase-to-phase voltages.

• Use only the provided original or specified accessories.

• Use these accessories only in the specified overvoltage

category areas.

• Current transformers should not be applied or removed

from HAZARDOUS LIVE conductors without using high­voltage gloves.

• Flexi-probes should not be applied to or removed from

hazardous live conductors.

• Use the clamps only on insulated conductors, max. 600 V

rms or dc to ground.

• The power company side of the revenue power meter is

considered a CAT IV area. To avoid electrical shock or
damage to the equipment, never supply the Recorder from
the power in this area.

• Additional personal protective measures as required by

local government agencies must be taken if the measuring
sensors are installed on live conductors.

• Avoid connection from multiple channels to the same

phase.

Protection Class

This device is assigned to protection class I according to IEC 61140 and is equipped with
a protective earth connector.

Qualified Personnel

The device may only be operated by suitably qualified personnel. The adequate
qualifications required are:

• Trained and authorized to switch on/off, ground (earth) and mark the power

distribution circuits and devices in accordance with the safety standards of
electrical engineering

• Training or instruction in accordance with the standards of the safety engineering

in maintenance and use of appropriate safety equipment

• Training in first aid

Safe Operation

For safe operation of the Recorder:

• Ensure that all persons using the device have read and fully understood the

operating manual and safety instructions.

1-5

1760

Users Manual

• The device may only be used under certain ambient conditions. Ensure that the

actual ambient conditions conform to the admissible conditions laid down in
Chapter 5, General Specifications.

• During the operation, ensure that the circulation of air around the instrument is

possible in order to prevent the accumulation of heat inside the housing.

• Always comply with the instructions in Chapter 2, Transport and Storage.

Proper Usage

Do not use the device for any other purpose other than measuring of voltages and
currents that are within the measuring ranges and categories, including voltage to earth as
laid down in Chapter 5, General Specifications.

Improper use shall void all warranty.

Electrical Connections

• Ensure that the power and connecting cables used with the device are in proper

working order.

• Ensure that the protective earth connector of the power lead and the housing

earth connector are connected according to the instructions to the low-resistance
unit earth cable.

• Ensure that the power and connecting cables as well as all accessories used in

conjunction with the device are in proper working order and clean.

• Install the device in such a way that its power cable is accessible at all times and

can easily be disconnected. If this is not applicable a two pole circuit breaker
with a nominal current must be installed in the power supply lines.

Risks During Operation

For connection work, do not work on your own but in teams of at least two persons.

Do not use the device if the housing or an operating element is damaged.

Ensure that the connected devices work properly.

Measurement sensors must not be connected to unfused circuits.

Connectors with locking mechanism have to be locked firmly.

Maintenance and Repairs

Do not open the housing.

Do not carry out any repairs and replace any component parts of the device other than the
replaceable battery.

Damaged connecting and power leads must be repaired or replaced by an authorized
service technician.

Authorized, specialized technicians may only repair damaged or defective devices.

1-6

Accessories

Only use the accessories supplied with the device or specifically available as optional
equipment for your model.

Ensure that any third-party accessories used in conjunction with the device conform to
IEC 61010-031/-2-032 standard and are suitable for respective measuring voltage range.

Introduction

Safety Instructions on Device Housing 1

Device Shutdown

If you detect any damage to the housing, controls, power cable, connecting leads or
connected devices, immediately disconnect the measuring inputs of the unit and then
from the power supply.

If you are in doubt as regards the safe operation of the device, immediately shutdown the
unit and the respective accessories, secure them against inadvertent switching on and
bring them to an authorized service agent.

Safety Instructions on Device Housing

Mains Connection

The mains connection must conform to the ranges/values as inscribed on the instrument
labels.

Figure 1-2 shows the instrument labels.

Figure 1-2. Instrument Labels

schild-mains.wmf

schild-akku.wmf

1-7

1760

J

Users Manual

Risk of voltage peaks in higher categories. Connect the supply
cable of the device only to sections CAT I, II or III of the supply
system (Refer to the ‘Functional Description’ section) the
voltage to earth may not exceed 300 V.

Input Voltage – Measuring Inputs

The measurement category (refer to Functional Description section) and the max. voltage
to earth of the sensors has to conform to the power supply system (See the inscription and
the technical specifications of the accessories).

Servicing and Maintenance

• Do not remove the cover

• Refer servicing to qualified personnel

• The user can replace the accumulator package (Refer to Chapter 4, Maintenance)

Design and Functions

This section provides an overview of the terminals, ports and interfaces of the Recorder,
as well as a list of displays and operating devices and a brief introduction to the basic
functions of the unit.

XW

Warning

Mains Connection and Interfaces

Figure 1-3 and Figure 1-4 show the top view and front view of the Recorder respectively.

11

Figure 1-3. Top View

grafikview.eps

1-8

Introduction

Design and Functions 1

Figure 1-4. Front View

grafikview2.eps

Table 1-2 shows the controls and indicators of the Recorder.

Table 1-2. Controls and Indicators

Sl No. Description

A
B
C
D
E
F
G
H
I
J
K

1-9

Mains connection.

Mains switch.

LED indicators.

Ethernet connector

USB connectors type A.

COM1 – serial port (RS232).

Feature connector (GPS, DCF 77, COM2, alarms, etc).

Measurement input connectors.

Compact Flash card slot.

Compact Flash eject button and LED

Reset button.

1760

Users Manual

Note

Channels ‘CH1’ to ‘CH4’ are labeled:

Schild CH1.wmf

The text TRANSIENT indicates that these channels can be equipped with a
fast transient option.

Channels ‘CH5’ to ‘CH8’ cannot be used for fast transient recordings and
are labeled like this:

schild ch5.wmf

Functional Description

A Mains Connector

Connect the device to 83 V – 264 V AC-47 Hz – 65 Hz or 100 V – 375 V DC, power
consumption approx. 30 W.

Connect the supply cable of the device only to sections CAT I, II or III of
the supply system the voltage to earth may not exceed 300 V.

B Mains Switch

Activate the mains switch to switch the device on or off.

The switch is secured by a mechanical feature against inadvertent
activation. Lift the knob slightly before moving it to the other position.

Instrument can be turned on only if the mains power supply is connected
and the supply voltage is within the specified range.

If the mains switch is in position I the instrument is turned on automatically
as soon as an appropriate supply voltage is applied to the mains connector.

If there is no mains supply and the battery pack capacity is too low the
instrument is turned off automatically.

Rebooting the Instrument

To reboot the instrument:

1. Set the ma

ins switch to the 0-position.

2. Wait until all LEDs are off.

Note

Note

1-10

3. Connect instrument to mains and set the mains switch to the I-Posit

Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 - TestEquipmentDepot.com

ion.

If the Reset button is held down while rebooting the instrument, the
Recorder’s stored data will be erased. This may be useful when the
Recorder memory is full and may help to resolve connection problems.

C LED Indicators

LEDs in the field Power:

Introduction

Design and Functions 1

Note

led-schild gesamt.wmf

Overview

Condition LED POWER LED UPS

Instrument boot Green OFF

Mains is on, battery is not charged

Mains is on, battery is charged

Battery operation

Battery discharge mode

Instrument shutdown

Green

Green

OFF

OFF

Green, flashing

Flashing alternately

Green, yellow, or red according to
capacity

Slowly Flashing Green, yellow, or
red according to capacity

Green, yellow, or red according to
capacity

Flashing Green, yellow, or red,
Memory LEDs show “decreasing”
yellow flashlight

Flashing Green, yellow, or red
according to capacity

led-power.wmf

1-11

1760

Users Manual

Details

These LEDs provide information about the power supply:

LED POWER:

• Continuously green: Instrument is supplied from mains

• OFF: Supply from battery package

LED UPS:

Indicates charging state of the UPS battery package:

• Green: Battery is charged with 80 % to 100 % of nominal capacity

• Yellow: Capacity is between 30 % and 80 %, mains independent operation is

possible for more than 3 minutes

• Red: Capacity is between 25 % and 30 % of nominal capacity. Mains

independent operation is possible for less than 3 minutes

• Flashing: During charging the LED is flashing red, yellow, or green

corresponding to charging state and turns to continuous green light when
charging is complete

LED RECORDING STATUS:

This indicator gives information about the recording status of the measurement campaign.

Condition LED RECORDING STATUS

Instrument is not yet initialized for a measurement
campaign

Measurement initialization is in progress, Instrument is
not yet ready for recording data

Measurement campaign has been initialized, but not yet
started

Measurement campaign is active, data are recorded Green, flashing slowly

Measurement campaign is active, data are recorded, but
some memory portions are full, i. e. some virtual
instruments do not record any more

Measurement campaign finished, no further campaign is
programmed, data ready for upload to the PC, Instrument
does not record data any more

In case of error Red

OFF

green, flashing rapidly

Green

Yellow, flashing slowly

Yellow

LEDs Time Sync:

1-12

led-timesync.wmf

Introduction

Design and Functions 1

These indicators provide information about the time synchronization of the Instrument.

LED PULSE:

This LED indicates the reception of sync pulses. If Instrument is synchronized correctly
the LED is green and flashes yellow for each pulse detected.

If external pulses are used without GPS time information the LED is off and flashes red
for each detected sync pulse (to enable this, the “Pulse” protocol must be selected in the
“Time Synchronization Configuration” in the PQ Analyze software).

LED DATA:

• Green: The Recorder is configured for time synchronization (Service menu), a

time synchronization adaptor (GPS or DCF77) is connected, and the received
time information is valid.

• Yellow: The Recorder is configured for time synchronization; a time

synchronization adaptor is connected, but the received time information is not
correct. Possible reasons: No satellites or time source found or adaptor still
synchronizing after power on.

• Red: The Recorder is configured for time synchronization, but no time

synchronization adaptor is connected or it is not working properly.

• Off: The recorder is not configured for time synchronization.

LEDs for Data Transfer and Storage:

LED DATA TRANSFER:

The DATA TRANSFER LED indicates data transfer via external interfaces or to the
Compact Flash card.

• Off: No connection between PQ Analyze software and Recorder exists.

• Green: Connection between PQ Analyze software and Recorder established.

• Flashing yellow: data are written to the internal CF-card, external CF-card, USB

memory stick or data transfer via any of the interfaces (USB, RS232, or Ethernet)

LEDs MEMORY LEVEL:

The row of MEMORY LEVEL LEDs indicates the amount of free/occupied
measurement data memory on the Compact Flash card.

led-data.wmf

Occupied blocks are indicated by lit LEDs, 5 on the left side are green, 3 on the right side
are red to indicate that the memory is soon full.

During a forced battery discharge these LEDs are flashing yellow, the number of LEDs
lit represents the remaining capacity in minutes.

1-13

1760

Users Manual

LEDs CH1 to CH8:

led-kanäle.wmf

Three LEDs are assigned to each of the eight input channels of the Recorder. The
indicators refer to half cycle or full circle rms values of the input signal (depending on the
configuration).

The following information is provided in case a valid sensor is detected.

Condition

Signal within nominal
range

Signal too low (dip) Yellow Off Off

Signal too high (swell) Off Off Yellow

Over range (ADC­overflow

Phase sequence wrong Off

LED UNDER

Off Green Off

Off Off Flashing red

LED OK

LEDs blinking in

sequence L3-L2-L1

LED OVER

Off

The following information is provided in case no valid sensor is detected:

1-14

Condition

LED UNDER

LED OK

LED OVER

Signal within nominal
range

Signal too low Yellow Red Off

Signal too high Off Red Yellow

Over range Off Red Flashing red

Off Red Off

Introduction

Note

The LED OK is red if no valid sensor can be detected.

The limits for ‘Signal too low’ and ‘Signal too high’ are equal to the
thresholds for voltage dips and voltage swells (e.g.

For current inputs ‘Signal too low’ is indicated for half cycle or full cycle
rms values below 10 % of the sensor range as configured in the “Hardware
Settings” panel (if sensor is set to “Auto” the “Signal too low” indication
is deactivated).

‘Over range’ is indicated if the input signal is outside the valid
measurement range.

The phase voltages UL1, UL2, and UL3 of a three-phase system are monitored with the
symmetrical components (zero, positive and negative system). If the negative system
exceeds an upper threshold a wrong phase sequence condition is indicated (e.g. two lines
interchanged); the associated LEDs are flashing in sequence L3-L2-L1.

±

10 % of Un).

Design and Functions 1

XW Warning

The LEDs do not indicate whether there is voltage. Do not rely
on the LEDs to find out whether the device under test is live or
not.

D Ethernet port

Used for connection of the Recorder to an Ethernet port of a PC, or to an Ethernet
network (LAN). For a connection to an Ethernet network use the supplied Ethernet cable.
For direct connection of the instrument to a PC use the cross-linked Ethernet cable (with
the red plug).

E 2 USB connectors

The USB type A connectors for connection of a USB memory device, USB version V2.0
is supported.

USB connectors have the following function:

• USB stick support for storing of measurement data (same as external CF card).

CF card LED behaviour during USB copy process:

• copy process started --> flashing LED

• copy process finished and all data copied --> LED goes off

• copy process finished but not all data could be copied --> LED is turned on statically

• on error --> fast flashing LED for approx. 3 seconds then statically on

USB stick must not be pulled out while CF card LED is flashing. This can
cause permanent damage to the storage media. Only remove CF card /
USB stick while CF card LED is OFF or statically ON. Do not use CF card
or data connection at the same time.

Note

F Serial port COM1 (RS232)

Serial port for connection of the device to the serial port of a PC.

The default settings are 57.600 Baud, 8 data bits, 1 stop bit, no parity.

1-15

1760

Users Manual

Pin assignment:

Pin Signal Description

1 DCD Data Carrier Detect

2 RxD Receive Data

3 TxD Transmit Data

4 DTR Data Terminal Ready

5 GND Ground

6 DSR Data Set Ready

7 RTS Request To Send

8 CTS Clear To Send

9 RI Ring Indicator

G Feature connector

Specification of outputs / inputs:

1

69

5

com_stecker.wmf

Condition Voltage level

Low (inactive) 0 - 0.8 V

High (active) 2.5 - 5 V

Maximum load current: 5 mA.

1-16

Introduction

Design and Functions 1

stecker lpt.wmf

Pin assignment:

Pin Signal Description

1 +15 V Power supply voltage, max. 300 mA

2 TxD Output, Transmit Data COM2

3 RxD Input, Receive Data COM2

4 RTS Output, Request to send COM2

5 CTS Input, Clear to Send COM2

6 Service Output, internal use

7 GND Signal ground

8 Service Output, internal use

9 Watchdog Pulse Output, CPU watch dog signal

10 O1 Alarm output, reset with input RES 1

11 O2 Alarm output, reset with input RES 1

12 O3 Alarm output, reset with input RES 2

13 O4 Alarm output, reset with input RES 2
14 +5 V Power supply voltage
15 GPS PPS+ Input for GPS time synchronization
16 GPS PPS − Input for GPS time synchronization

17 GPS Transmit+ Input for GPS time synchronization

18 GPS Transmit- Input for GPS time synchronization

19-23 Service Output, internal use

24 RES1 Reset input for alarm outputs O1, O2

25 RES2 Reset input for alarm outputs O3, O4

H Measurement Channels

Plugs for 8 isolated measurement channels. Connect only original accessories such as
voltage and current sensors (clamps, Flexi Set, shunt resistors, etc.). The plug is secured
by means of a bayonet mechanism.

Note

Inputs that are not in use must be covered with the supplied protective caps
to prevent pollution.

When analyzing transients with 500 kHz transient option or 10 MHz
transient option, the potential to earth/ground is measured.

1-17

1760

Users Manual

I J Compact Flash Card

Replaceable Compact Flash card for storage of measurement data. J Compact Flash
eject button and LED. Do not operate when data transfer is active (LED indicates
activity).

CF card LED behaviour during CF copy process:

• CF card inserted and detected --> short flashing (double pulses)

• copy process started --> flashing LED

• copy process finished and all data copied --> LED goes off

• copy process finished but not all data could be copied --> LED is turned on

statically

• on error --> fast flashing LED for approx. 3 seconds then statically on

Notes

• CF card must not be pulled out while CF card LED is flashing.

This can cause permanent damage to the storage media. Only
remove CF card / USB stick while CF card LED is OFF or
statically ON. Do not use USB stick or data connection at the same
time.

• Stored data can be erased by holding down the Reset Button K

while switching on (booting) the instrument. This may be useful
when the memory is full and may also resolve connectivity issues.

Basic Measurements

The Instrument offers all functions necessary to perform network analysis, quality
assurance evaluations and location of disturbance sources. A large compact flash data
memory provides a method of effecting long-term recordings. All data is saved even
without connection of the instrument to an evaluation computer. No information will be
lost. The recordings are the basis for detailed evaluations and analyze to assess
disturbances and the mains voltage quality. The instrument records and provides
historical event data, which protective relays or protective switches have induced and
how the resources have performed.

Measurement Types

The instrument combines many different measurement types, also referred to as “virtual
instruments”:

• Digital recording of measured data (data logger)

• Power measuring device (recording of load profiles)

• Recording of power frequency

• Power Quality Analyzer (including statistical evaluation)

1-18

• Fast transient recorder (optional)

• Ripple control signal analyzer

• Harmonics analyzer

• Voltage disturbances analyzer (events)

Introduction

Basic Measurements 1

Measurements

The following measurements can be made:

• rms values of voltage and current as well as power values with programmable

averaging time

• Oscilloscope data (instantaneous value, sensing value)

• Powerful and versatile triggering engine

• Load and energy measurements

• Analysis of voltage and current harmonics

• Analysis of voltage and current interharmonics

• Fast transient analysis

• Signaling voltage, ripple control signal analysis

• Mains voltage quality analysis as per EN 50160

1-19

1760

Users Manual

1-20

Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 - TestEquipmentDepot.com

Chapter 2

Getting Started

Title Page

Delivered Items.................................................................................................... 2-3

Setup .................................................................................................................... 2-4

Installation ....................................................................................................... 2-4

Switching the Device On................................................................................. 2-4

Switching the Device Off ................................................................................ 2-4

Simple Measurement - Function Check............................................................... 2-4

Transport and Storage.......................................................................................... 2-9

Transport ......................................................................................................... 2-9

Storage............................................................................................................. 2-9

2-1

1760

Users Manual

2-2

Getting Started

Delivered Items 2

Delivered Items

Before commencing work with the device, check the delivery to ensure that it is complete,
using the following list and the delivery specifications.

• 1 Power Quality Recorder Instrument

• 1 Getting Started manual

• CD-ROM with PQ Analyze application software, manuals, data sheets, and demo

data

• 1 power cord for mains connection

• 1 main connection adapter set

• 1 crosslink RS232 connection cable

• 1 Ethernet cable for direct PC connection

• 1 Ethernet cable for network connection

Optional:

• 4 voltage sensors

• 4 Flexi current sensors

• Carrying bag

• GPS receiver module

Figure 2-1 shows the communication cables.

Figure 2-1. Communication Cables

2-3


1760

Users Manual

Setup

Installation

Follow the safety instructions regarding the ambient conditions and location of the
installation.

XW Warning

First connect the device with the mains cable and compatible
adapter to the power supply network. Observe the
specifications on the device type plate.

The device is connected to mains power, and a number of
internal components are live with dangerous voltage levels. To
remain safe during the operation, the device must be equipped
with a low-resistance connection to the earth. Therefore, check
the mains socket and its wiring.

Connect the supply cable of the device only to the sections
CAT I, II or III of the supply system. The voltage to earth may
not exceed 300 V.

Switching the Device On

Switch on the power supply to the device (lift switching knob B slightly and move to
position ‘I’). The LED POWER is lit. After approx. 40 seconds of booting, the device is
ready for the operation.

Switching the Device Off

Lift switching knob B slightly and move to position ‘0’. The LED POWER goes off
after closing all the internal data files.

Note

The instrument can be only switched off after the boot process is finished
(duration is approx. 40 seconds).

Simple Measurement - Function Check

The procedure below allows users to familiarize themselves with the measuring functions
of the instrument, while testing all basic device functions.

Installation: Install the instruments SW PQ Analyze, see Reference Manual PQ

Analyze.

Connect device: Connect instrument to mains and switch on.

Connect your computer and the recorder via the red Ethernet cable
for direct connection. Wait for a short time (see the 1760 Reference
Manual, “Direct Peer to Peer Communication over Crossover
Ethernet Cable”.

2-4

Connect the device channels as described in the “Connections to
Measuring Circuits”.

Getting Started

Simple Measurement - Function Check 2

Communication: Start PQ Analyze



2-5

1760

Users Manual

In the “Live Modes” section press “Setup”.


In the “Search Devices” dialog press “Search”.

Select your instrument in the list and press “Connect”.


After successful connection, you see a green light in the lower right corner next to status
information about the instrument.


2-6

Getting Started

Simple Measurement - Function Check 2

Initialization: The “Settings” window is the starting point for all measurement
configurations. For now accept the default settings and press “Initialize”


Choose a name or accept the default one. Press OK.


Wait while measurement is initialized.



Press “OK” and watch the “RECORDING STATUS” LED on the instrument. It should
start flashing slowly indicating the active measurement.

Close the “Settings” window.

2-7

1760

Users Manual

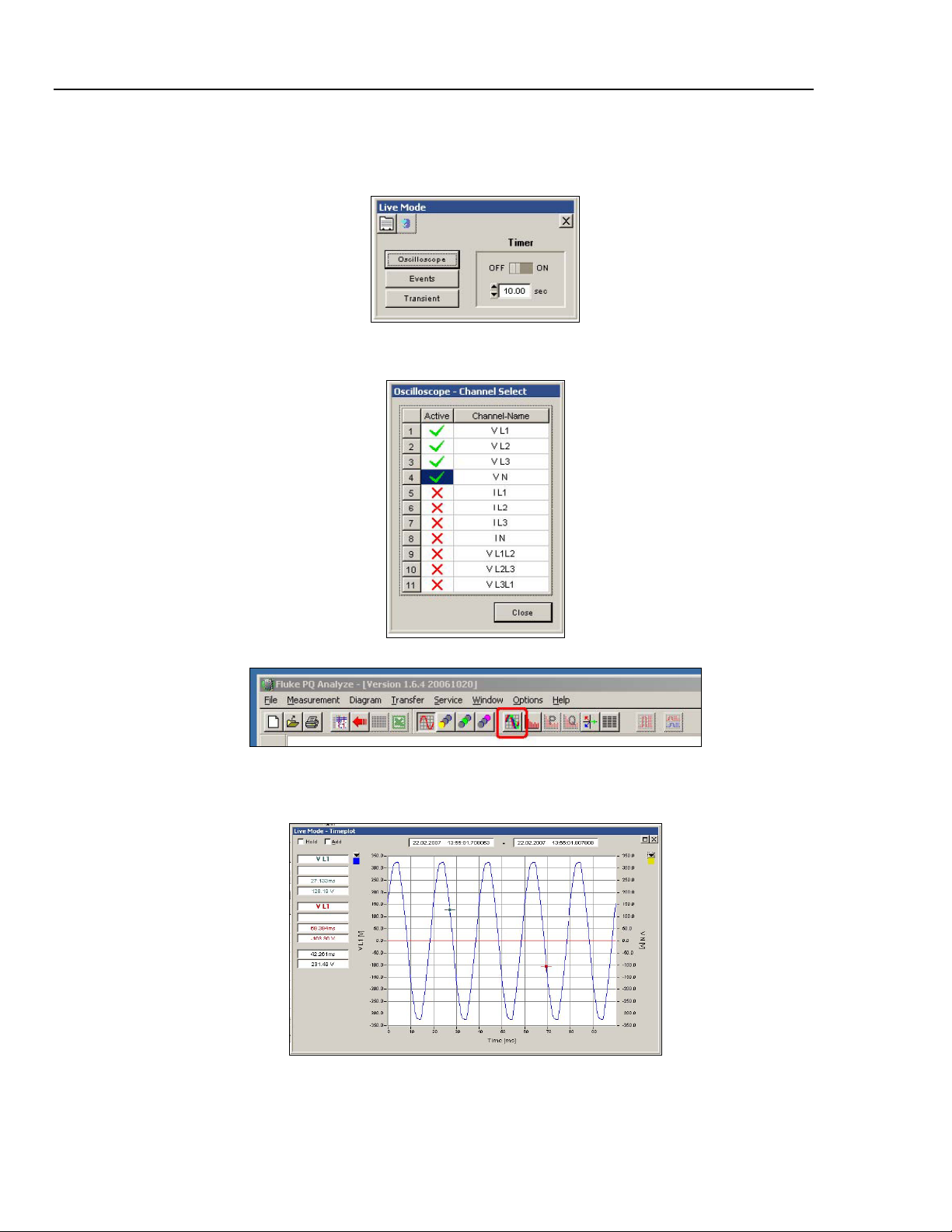

Measure: Select menu “Transfer > Live Mode”.

Press “Oscilloscope”


Select all channels that you want to have displayed and press the “Timeplot” icon.



If everything works correctly you will see an oscilloscope like recording of the signals
supplied to the input channels. All connections and sensors are working properly.

2-8

For detailed instructions, refer to the Reference Manual PQ Analyze.


Getting Started

Next steps: For transferring the measured data from the device to the PC and for

evaluating the data according to your requirements see Reference Manual PQ
Analyze.

Transport and Storage 2

Transport and Storage

Transport

• Transport the device only in its original packaging

• Keep the operating manual supplied with the device for future reference

• Protect the device during the transport against heat and moisture. Do not exceed

the temperature range of −20 °C to +60 °C and a maximum humidity of 85 %

• Protect the device against impacts and loads

Storage

• Keep the original packaging, as it might be required at a later stage for transport

purposes or to return the device for repairs. Only the original packaging
guarantees the proper protection against mechanical impacts

• Store the device in a dry room; the temperature range of −20 °C to +60 °C and a

maximum humidity of 85 % may not be exceeded
Keep the operating manual supplied with the device for future reference

• Protect the device against direct sunlight, heat, moisture and mechanical impacts.

2-9

1760

Users Manual

2-10

Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 - TestEquipmentDepot.com

Chapter 3

Operation

Title Page

Connections to Measuring Circuits...................................................................... 3-3

Connecting Sequence ...................................................................................... 3-3

Connection Diagrams ...................................................................................... 3-4

1-Phase Measurement ................................................................................. 3-4

3-Wire Network with Two Current Sensors (ARON2 Method) ................. 3-5

3-Wire Network with Two Current Sensors (ARON2 Method,

Open Delta Method).................................................................................... 3-7

4-Wire Network: 3-Wattmeter Method....................................................... 3-8

Four-Wire Network: Three-Wattmeter Method with N Conductor

Voltage and N Conductor Current .............................................................. 3-9

Two Star-Connected Voltage Systems........................................................ 3-11

Two Voltage Systems in Delta Configuration ............................................ 3-12

Methods of Measurement/Formulas .................................................................... 3-13

Parameter Aggregation.................................................................................... 3-13

Calculation of Power Parameters .................................................................... 3-14

Aggregations 200 ms and higher................................................................. 3-14

Real power .................................................................................................. 3-14

Apparent power........................................................................................... 3-15

Reactive power............................................................................................ 3-15

Power factor ................................................................................................ 3-16

Displacement power factor cos φ................................................................ 3-16

Half and full cycle aggregations...................................................................... 3-17

Real power .................................................................................................. 3-17

Apparent power........................................................................................... 3-18

Reactive power............................................................................................ 3-18

Power factor ................................................................................................ 3-18

Events and Flicker ........................................................................................... 3-18

Harmonics and Interharmonics Parameters..................................................... 3-19

Signaling Voltage ............................................................................................ 3-22

Unbalance, Overdeviation, Underdeviation .................................................... 3-22

Current Unbalance ...................................................................................... 3-23

Overdeviation and Underdeviation ............................................................. 3-24

3-1

1760

Users Manual

3-2

Operation

Connections to Measuring Circuits 3

Connections to Measuring Circuits

XW Warning

By connecting the unit to circuits, the terminals and certain
parts inside the device are live. Utilization of leads and
accessories that do not fulfill the relevant safety standards
could lead to serious injury or death from electric shock.

In order to ensure safe operation:

First connect the device to protective earth and to the power
supply.

Open the circuit before establishing a connection to the device.
Prior to connecting the circuits, ensure that the maximum
measuring voltage and the max. voltage to earth do not exceed
and the category of distribution system corresponds with the
inscription of the sensor ‘or’ meet the country specific standard.

Connecting Sequence

When connecting a circuit to Instrument, for safety reasons, proceed in the sequence
outlined below:

1. Check the standard mains socket for a proper protective earth connection.

Connect the instrument to the power supply socket. The PQ Recorder is now
connected to the protective earth (Safety Class 1 equipment).

2. Connect the measuring circuit as shown in the connection diagrams.

3. Switch on the Recorder.

4. Ensure that the direction of the energy flow is correct (load flow direction).

3-3

1760

Users Manual

Connection Diagrams

The measuring circuit is selected by means of the File > New / Hardware Settings menu
of the PQ Analyze software. Connect the sensors in load flow direction (observe arrows).

Table 3-1. Symbols in the Connection Diagrams

Symbol Meaning

Connect the Flexi current sensors in the right

direction.

The arrow on the Flexi must show from the network
to the load.

Red connector.

Black connector.

Use channel ‘CH4’ as control channel for triggering on external signals.

Fast voltage transients are always measured between the red plug of the
voltage sensor and the device ground (earth, protective conductor).

Please, note that the voltage sensors with a rated range of
equipped with the fast transient function (if the transient option is installed).

1-Phase Measurement

Figure 3-1 shows the circuit diagram for 1-phase measurement.

L1

Mains

L2

Note

Note

>

100 V are

L1

L3

PEN

Load

3-4

Fluke 1760

Figure 3-1. Circuit Diagram: 1-Phase Measurement

1wattm1.eps

Operation

Connections to Measuring Circuits 3

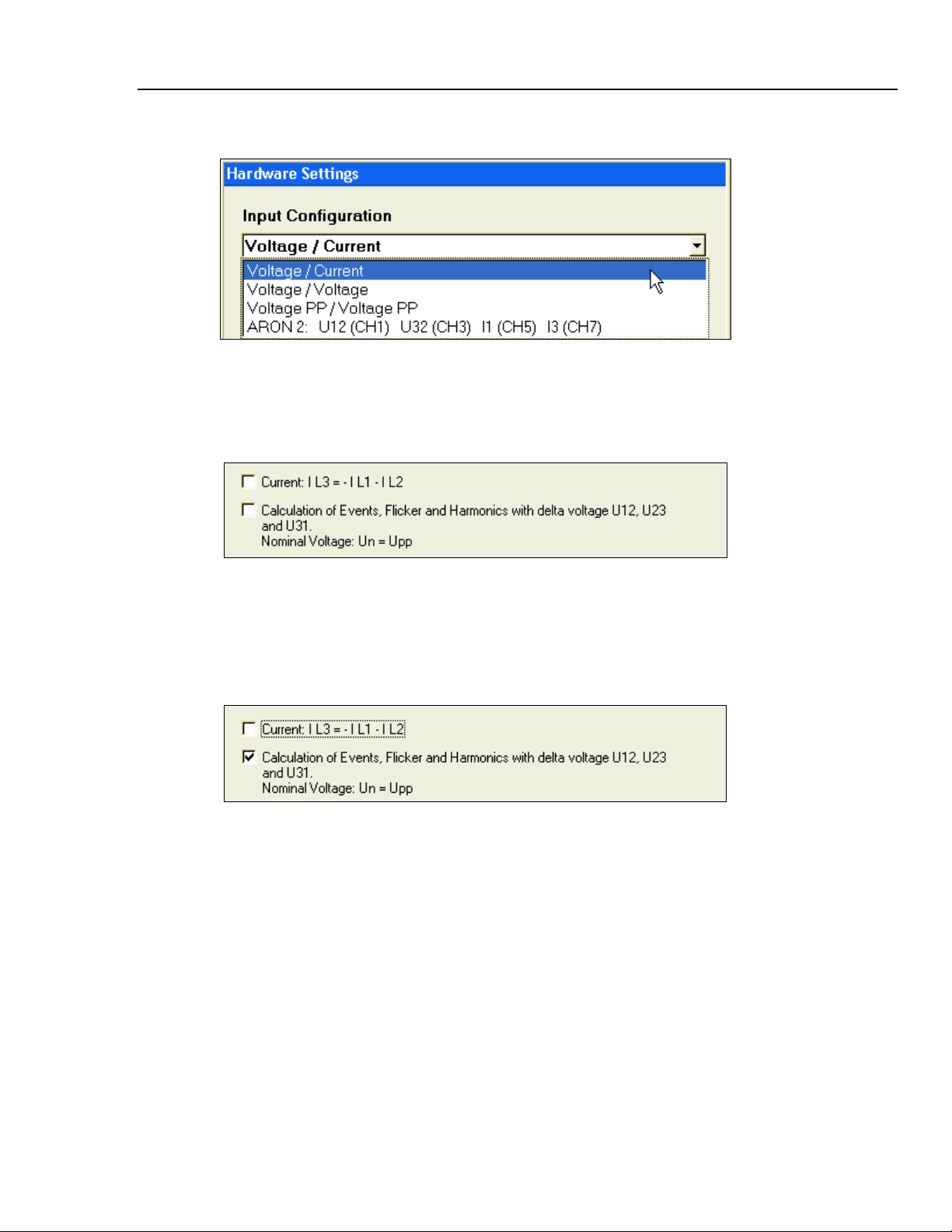

Associated PC software settings:

Connection to Single-Phase 2-Wire Network:

messsystem1 u-i.bmp

and

The option Calculation of Events, Flicker, and Harmonics with delta voltage U12, U23

and U31 for the phase-to-phase voltages is not of relevance here.

Note

All 8 channels are measured. Please keep this in mind when assessing the
power quality according to EN 50160.

To avoid false triggering, please switch channels that are not connected to
“OFF” in the “Hardware Settings” configuration panel.

3-Wire Network with Two Current Sensors (ARON2 Method)

Conventional two-wattmeter method with current sensors on phases L1 and L3.

The device calculates IL2 = -IL1 – IL3. Two phase-to-phase voltages (U12 U32) are
measured. The third phase-to-phase voltage (U23) is calculated. The recorder then
transforms this delta system into a virtual Wye system by calculating virtual phase
voltages. This virtual Wye system is in turn used to calculate the power values of all three
phases as well as the total power. This method is applicable only if I1 + I2 + I3 =0, i.e. if
there is no neutral conductor.

Figure 3-2 shows the circuit diagram for 3-wire network (Aron 2).

messsystem1 u-i-1.bmp

3-5

1760

Users Manual

Load Transformer

CH5 = I1

CH1 = U12

CH2 = U23

CH3 = U32

CH7 = I3

Fluke 1760

Figure 3-2. Circuit Diagram: 3-Wire Network (Aron 2)

Note

The voltage sensor at channel CH2 denoted with dotted lines is only
required for transient measurements; for current, voltage power
measurements, no sensor is required at CH2.

2wattm1-aron2.eps

Associated Device Software Settings:

messsystem5 aron2.bmp

Check the respective option.

messsystem5 aron2-1.bmp

If the option IL2 = -IL1 - IL3 is checked, the current IL2 is calculated. If this option is not
checked, the current IL2 is measured by means of a sensor at phase L2 (Instrument
channel CH6).

3-6

Note

The nominal voltage has to be entered as a phase-phase voltage in the
dialogue Nominal-Limit values (i.e. 400 V in a 230 V P-N-system).

Operation

Connections to Measuring Circuits 3

3-Wire Network with Two Current Sensors (ARON2 Method, Open Delta Method)

The conventional two-wattmeter method with current sensors at phases L1 and L3 is
frequently used in the medium voltage networks with built-in current and voltage
converters.

The device calculates IL2 = -IL1 - IL3. Two phase-to-phase voltages (U12, U32) are
measured. The third phase-to-phase voltage (U23) is calculated. The recorder then
transforms this delta system into a virtual Wye system by calculating virtual phase
voltages. This virtual Wye system is in turn used to calculate the power values of all three
phases as well as the total power. This method is only applicable, if I1+I2+I3 = 0, i.e. if
there is no neutral conductor.

Figure 3-3 shows the circuit diagram for 3-wire network with 2 current sensors (Aron
method), open delta method.

L1

L1

L2

L2

L3

CH1 = U12

CH3 = U32

L3

Figure 3-3. Circuit Diagram: Aron 2 Method/Open Delta Method

Fluke 1760

CH5 = I1

CH7 = I3

v-schaltung-3.eps

Associated PC Software Settings:

messsystem5 aron2.bmp

3-7

1760

Users Manual

Check the respective option.

messsystem5 aron2-1.bmp

If option IL2 = -IL1 - IL3 is checked, the current IL2 is calculated. If this option is not
checked, the current IL2 is measured by means of a sensor connected to phase L2
(Instrument channel CH6).

The option Calculation of Events, Flicker, and Harmonics with delta voltage U12, U23

and U31 is automatically on and cannot be deactivated.

Note

The nominal voltage has to be entered as a phase-phase voltage in the
dialogue Nominal-Limit values (i.e. 400 V in a 230 V P-N-system).

Enter the applicable transformation ratios for the current and voltage
converters in the ‘Hardware Settings’ dialog.

As conventional current converters have an output current of 1 A or 5 A AC
respectively at rated current, we recommend using current probes rather
than flexible current sensors, as they provide better resolution and linearity
at low currents.

4-Wire Network: 3-Wattmeter Method

This is the standard measurement configuration for three-phase networks with 3 voltage
and 3 current sensors.

Figure 3-4 shows the circuit diagram for 4-wire network (Wye connection).

Network

L1

L2

L3

PEN

LoadTransformer

3-8

Fluke 1760

Figure 3-4. Circuit Diagram: 4-Wire Network (Wye Connection)

3wattm1.eps

Operation

Connections to Measuring Circuits 3

Associated PC Software Settings:

messsystem1 u-i.bmp

If required, you have the option to determine events, Flicker and Harmonics, of the
phase-to-phase voltages.

Check the respective option.

Note

If this option (calculation) is checked, you must enter the phase-to-phase
voltage as the rated voltage V

in ‘Settings – Nominal / Limit values’ (e.g.

N

400 V in the 230 V P-N network).

Four-Wire Network: Three-Wattmeter Method with N Conductor Voltage and N
Conductor Current

This is the standard measurement configuration for three-phase networks with 4 voltage
and 4 current sensors.

Figure 3-5 shows the circuit diagram for 4-wire network (3-wattmeter method) with N­conductor voltage and N-conductor current.

messsystem1 u-i-1.bmp

messsystem1 u-i-2.bmp

3-9

1760

Users Manual

Transformer

Associated PC Software Settings:

PEN

L1

L2

L3

Fluke 1760

Figure 3-5. Circuit Diagram: 4-Wire

L1

L2

Load

L3

N

PE

3wattm2.eps

3-10

messsystem1 u-i-0.bmp

If required, you have the option to determine events, Flicker and Harmonics, of the
phase-to-phase voltages.

Check the respective option.

messsystem1 u-i-2.bmp

Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 - TestEquipmentDepot.com

If this option (Calculation) is checked, you have to enter the phase-to-phase
voltage as the rated voltage V

N

400 V in the 230 V P-N network).

Two Star-Connected Voltage Systems

With this method, you can determine two phase voltages and the respective N conductor
voltages in two star connected three-phase systems.

Figure 3-6 shows the circuit diagram for 2-voltage system with neutral.

Mains

L1

Operation

Connections to Measuring Circuits 3

Note

in ‘Settings – Nominal / Limit Values’ (e.g.

L1

L2

L3

PEN

Figure 3-6. Circuit Diagram: 2 Voltage System with Neutral

Associated PC Software Settings:

L2

L3

N

PE

Fluke 1760

System-U-U-Stern.eps

Note

The power quality assessment according to EN50160 can be performed for
the phase voltages of system 1 and system 2 respectively; the preset limit
values apply to both evaluations.


3-11

1760

Users Manual

If required, you have the option to determine events, Flicker and Harmonics, of the
phase-to-phase voltages.

Check the respective option.

Note

If this option (Calculation) is checked, you have to enter the phase-to-phase
voltage as the rated voltage V

in ‘Settings – Nominal / Limit Values’ (e.g.

N

400 V in the 230 V P-N network).

Two Voltage Systems in Delta Configuration

This method is used to measure 3 phase-to-phase voltages in two delta-configured three­phase systems. Channels CH4 and CH8 can be used for other parameters.

messsystem1 u-i-2.bmp

Figure 3-7 shows the circuit diagram for 2-voltage system in Delta connection.

Mains

L1

L2

L3

Fluke 1760

Figure 3-7. Circuit Diagram: 2 Voltage System in Delta Connection

Load

L1

L2

L3

system u-u dreieck.eps

3-12

Operation

Methods of Measurement/Formulas 3

Associated PC Software Settings:


Note

The power quality assessment according to EN50160 can be performed for
the phase-to-phase voltages of system 1 and system 2 respectively; the
preset limit values apply to both evaluations.

We have to enter the phase-to-phase voltage as the rated voltage V
‘Settings – Nominal/Limit Values’ (e.g. 400 V in the 230 V P-N network).

Methods of Measurement/Formulas

Parameter Aggregation

Signal Sampling

The device samples measurement signals at a nominal frequency of 10.24 kHz at nominal
power frequencies of 50 Hz and 60 Hz respectively.

The sampling frequency is synchronized to the power frequency on the reference channel
CH1, the signal level has to be at least 10 % of the input range. The required PLL (Phase
Locked Loop) is realized in the firmware of the instrument.

The synchronization range is according to IEC 61000-4-30 class A:

• Range for 50 Hz systems: 50 Hz ±15 % (42.5 Hz - 57.5 Hz)

• Range for 60 Hz systems: 60 Hz ±15 % (51 Hz - 69 Hz)

• Resolution: 16 ppm

Aggregations

The time aggregation2:02:05 PM of the measurement values is according to IEC 61000­4-30 class A, section 4.5 based on 10/12 cycle values (10 cycles for 50 Hz and 12 cycles
for 60 Hz nominal frequency).

N

in

The following time aggregations are available:

• Half cycle, full cycle updated every half cycle, 200 ms (precisely: 10/12 cycle
values), 3 s (precisely: 150/180 cycles), 10 minutes, 2 hours, Free interval ( ≥ 10
seconds)

• Half cycle and full cycle values are based on the zero crossings of the
fundamental

3-13

1760

Users Manual

• The 10/12 cycle values are aggregated from 2.048 samples synchronized to the
power frequency

• The 3s (150/180 cycles)-intervals are derived from 15 consecutive 10/12 cycle
intervals

• The 10 minute and free interval values are based on the synchronized 10/12 cycle
values

• 2 hours interval is aggregated from 12 – ten minute intervals

• The 10 minute values are synchronized to the absolute time (e.g. via GPS time

sync option)

Power Frequency

For 10 s frequency values, the sample data are filtered by a 2
cut-off frequency is 50 Hz for 50 Hz nominal frequency and 60 Hz for 60 Hz nominal
frequency). Based on the filtered signal whole periods within 10 s intervals (taken from
the internal real time clock) are counted by detecting the zero crossings. The frequency is
calculated by dividing the number of whole periods by the duration of this number of
whole periods. The time interval is derived from the timestamps generated by the
hardware of the first and the last sample within the block of whole periods. A special
calculation method is used for the frequency measurement related to the 10 ms and 20 ms
(half/full cycle) rms values. The measured frequency is the sync frequency of the PLL
which is refreshed every 200 ms (based on the FFT evaluation).

nd

order IIR filter (the 3 dB

Voltage, Current rms Values, Min-/Max-Values

Half cycle rms is synchronized with the zero crossings of the fundamental component.
The fundamental component zero crossing is calculated from 200 ms FFT. Half cycle rms
is available as real half cycle rms and/or as full cycle rms, updated every half cycle.

The extreme values (Min-, Max-values) are derived from the half cycle rms values or full
cycle rms values updated every half cycle (whatever is configured in the “Nominal and
Limit Values” settings panel in PQ Analyze.

The interval values are averaged squared over the respective time interval.

FFT – Fast Fourier Transformation

FFT is calculated using an algorithm which is optimized for real input and complex
output with 2.048 points. As long as the PLL controlling the sampling frequency is
locked, no window function is applied. If locking cannot be established, a Hanning
window is used. The FFT is caclulated over 200 ms intervals and therefore results in a
frequency spectrum of 1024 5 Hz bins (DC to 5115 Hz).

Calculation of Power Parameters

Two different sets of power parameter calculations are used. One for aggregations of
200ms and higher the other one for half and full cycle aggregations.

Aggregations 200 ms and higher

3-14

Real power

Real power

1023

∑

=

i

P is derived from the results of the FFT calculations of voltage and current.

⋅⋅=

cos

IUP

0

ϕ

iii

Operation

ϕ

Methods of Measurement/Formulas 3

where

U rms value of the voltage bin with the frequency i⋅5 Hz

i

I rms value of the current bin with the frequency i⋅5 Hz

i

phase angle difference between voltage and current of the frequency i⋅5 Hz

i

The 3-phase real power sum is calculated as

PPPP ++=

321 LLLsum

Apparent power

Apparent power

S is calculated by multiplying rms values of voltage and current of the

given aggregation.

IUS ⋅=

The 3-phase apparent power sum is calculated as

Reactive power

The harmonic reactive power
of voltage and current. The index h in
component is derived from the harmonics (FFT) calculation.

1023

∑

=

i

Because every frequency component of the calculation has a sign,
other reactive power components are unsigned (always positive) by definition.

The 3-phase harmonic reactive power sum is calculated as

The total reactive power

tot

0

⋅⋅=

sin

IUQ

22

PSQ

−=

SSSS ++=

321 LLLsum

Q is also derived from the results of the FFT calculations

h

ϕ

iiih

QQQQ ++=

321 LhLhLhsumh

Q is calculated by

tot

Q indicates that the calculated reactive power

h

Q is also signed. All

h

The 3-phase total reactive power sum is calculated as

QQQQ ++=

321 LtotLtotLtotsumtot

The remaining reactive power component

Q (d stands for distortion) contains the rest of

d

the reactive power phenomena (mainly distortion reactive power and modulation reactive
power, the first originating e.g. from power converters with highly non sinusoidal current
waveforms, the latter from pulsating loads).

3-15

1760

Users Manual

The 3-phase distortion reactive power sum is calculated as

Please note that the quadratic terms in the

Power factor

For the power factor one of two different formulas can be selected by the user through the
“Options > Power Factor” menu in PQ Analyze.

Formula 1: The sign is taken from the reactive harmonic power therefore giving an
indication about inductive or capacitive characteristic of the load.

PF ⋅=

22

QQQ −=

htotd

QQQQ ++=

321 LdLdLdsumd

Q calculation means that

d

22

QQQ −≠

sumhsumtotsumd

P

Q

h

Q

S

h

Formula 2: The sign is taken from the real power therefore giving the power flow
direction (motor / generator characteristic of the load).

P

PF =

S

The 3-phase power factor sum is calculated as

PF ⋅=

sum

Displacement power factor cos φ

The cos φ is most commonly referred to as the power factor of the fundamental
component. More general there is a cos φ for every harmonic frequency component.

When you select the harmonics analysis in the main analysis window in PQ Analyze you
can display the cos φ for all harmonics including the fundamental.

Harmonics analysis parameter group:

The formula used for calculating the cos φ is:

ϕ

Q

P

sum

S

sum

=

i

Q

sumh

or

sumh

⎛
⎜

arctancoscos

⎜
⎝

⎛

Q

⎜
⎜

P

⎝

PF =

sum

⎞

⎞

i

⎟

⎟
⎟

⎟

i

⎠

⎠

P

sum

S

sum

3-16

Operation

P

where

P Real power of harmonic order i

i

Q Reactive power of harmonic order i

i

For historic reasons the cos φ parameter is also included in the V-I-P parameter group:

Calculation formula:

Methods of Measurement/Formulas 3

ϕ

where

⎛
⎜

=

⎜
⎝

⎛

Q

h

⎜

arctancoscos

⎜

P

⎝

P Real power

Q Harmonic reactive power

h

If you want to display the displacement power factor of the fundamental
component select the harmonics analysis parameter group and choose the
fundamental component in the drop-down list of available parameters.

Half and full cycle aggregations

Real power

Real power
the time domain.

n

∑

i

=

1

P

=

is calculated by directly multiplying the samples of voltage and current in

iiiu

⋅

)()(

n

⎞

⎞

⎟

⎟
⎟

⎟

⎠

⎠

Note

where

)(iu the i-th voltage sample of the cycle or half cycle

)(ii the i-th current sample of the cycle or half cycle

n

the number of samples per cycle or half cycle

Note

There is no integer number of samples per cycle or half cycle (neither for
50 Hz nor for 60 Hz systems). A 50 Hz cycle consists of 204.8 samples a 60
Hz cycle of 170.67 samples. Therefore the calculation uses sample
interpolation.

The 3-phase real power sum is calculated as

PPPP ++=

321 LLLsum

3-17

1760

Users Manual

Apparent power

Apparent power
given aggregation.

The 3-phase apparent power sum is calculated as

Reactive power

The reactive power

tot

Q always has a positive sign.

tot

IUS ⋅=

S is calculated by multiplying rms values of voltage and current of the

SSSS ++=

321 LLLsum

Q is calculated by

tot

22

PSQ

−=

The 3-phase total reactive power sum is calculated as

QQQQ ++=

321 LtotLtotLtotsumtot

Note

The reactive power components

Q and dQ are not calculated with these

h

aggregations.

Power factor

The power factor is calculated as

P

PF =

S

The sign of the power factor is an indication of the power flow direction (motor /
generator characteristic of the load).

Events and Flicker

Voltage Events as per EN 50160 or as per IEC 61000-4-30

Voltage events are detected based on half cycle rms values (as per EN 50160) or on full
cycle rms values updated every half cycle (as per IEC 61000-4-30). As a default, the
phase-neutral voltages are monitored. If the opton Events, Flicker, and Harmonics of

U12.... is activated in the “Hardware Settings” dialog in PQ Analyze, the voltage events

of the phase-to-phase voltages U12, U23, U31 are recorded.

3-18

Flicker

Flicker is measured according to the methods described by the standard IEC 61000-4­15:2003-02 edition 1.1. As a default Flicker is calculated on the basis of the phase
voltages. For 50 Hz or 60 Hz power systems the appropriate filter coefficients are applied.
The classifier consists of 1130 logarithmic classes.

If the option Events, Flicker, and Harmonics of U12…. in the device settings is activated,
the Flicker of the phase-to-phase voltages U12, U23, U31 is recorded.

Operation

Methods of Measurement/Formulas 3

Harmonics and Interharmonics Parameters

Voltage and Current Harmonics and Interharmonics

Voltage and current harmonics are calculated based on a 10/12 cycle (200ms) averaging
interval. This interval contains exactly 2048 sample values. From these samples 1024
FFT bins (5Hz) are calculated.

The harmonics are then calculated using a gapless harmonic subgroup assessment.

The interharmonics are calculated using a gapless interharmonic centered subgroup
assessment.

Harmonics and interharmonics calculation as per IEC 61000-4-7:2002 section 5.6 (no
smoothing).

THD – (Total Harmonic Distortion)

The calculation utilizes the following formula: Voltage or current respectively.

40

2

V

∑

n

2

n

THD

=

=

V

1

n: order of the harmonic.

: rms value of the voltage fundamental.

V

1

Vn: rms value of the voltage harmonic with order n.

THD

TID

THD ind

40

2

I

∑

n

2

n

=

=

I

1

n: order of the harmonic.

: rms value of the current fundamental.

I

1

In: rms value of the current harmonic with order n.

TID is the complete interharmonics contents of the signal. It is calculated as per EN
61000-4-7:1993 from all interharmonics spectral bins (absolute values) up to the
harmonic with order 40.

THD ind is calculated according to the formula in the norm EN61000-4-7:1993. This
formula is no more part of the actual version of EN 61000-4-7 but has still importance for
applications in networks with inductive loads.

2

40

THD

ind

1

=

V

1

∑

n

V

n

n

=

2

n: Order of the harmonic.

: rms value of the voltage fundamental.

V

1

Vn: rms value of the voltage harmonic with order n.

3-19

1760

Users Manual

THD cap

THD cap is calculated according to the formula in the norm EN61000-4-7:1993. This
formula is no longer part of the most recent version of EN 61000-4-7 but has still
importance for applications regarding reactive power compensation equipment.

40

∑

n

THD

cap

K-Factor and Factor K

The two parameters are meant to assess transformer losses.

Harmonic currents are generated whenever a non-linear load is connected to the mains
supply. The problems caused by harmonic currents include overheating of cables,
especially the neutral conductor, overheating and vibration in induction motors and
increased losses in transformers. Where power factor capacitors are fitted, harmonic
currents can damage them and care must be taken to avoid resonance with the supply
inductance.

Losses in transformers are due to stray magnetic losses in the core, and eddy current and
resistive losses in the windings. Of these, eddy current losses are of most concern when
harmonics are present, because they increase approximately with the square of the
frequency.

There are two distinct approaches to accounting for this increased eddy current loss in
selecting a transformer. The first, devised by transformer manufacturers in conjunction
with Underwriters Laboratories in the United States, is to calculate the factor increase in
eddy current loss and specify a transformer designed to cope; this is known as ‘K-Factor’.
The second method, used in Europe, is to estimate by how much a standard transformer
should be de-rated so that the total loss on harmonic load does not exceed the
fundamental design loss; this is known as ‘Factor K’. The figures produced by each
method are numerically different; ‘Factor K’ is a total rating factor while ‘K-Factor’ is a
multiplier (although a de-rating factor can be derived from it). The fact that both methods
use K as a designation can lead to confusion when talking to suppliers.

=

=

2

2

*VVn

2

n

1

n: Order of the harmonic.

V

: rms value of the voltage fundamental.

1

Vn: rms value of the voltage harmonic with order n.

3-20

Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 - TestEquipmentDepot.com

Operation

I

Methods of Measurement/Formulas 3

K-Factor formula:

=

50

h

P

t

K

==

∑

P

f

22

hI

h

=

1

h

where

P total eddy current loss

t

P eddy current loss at fundamental frequency

f

I relative harmonic current component at order h (relative to fundamental)

h

h harmonic order

Factor K formula:

2

⎞

⎞

⎛

I

q

n

⎟

⎟

⎜

⎜
⎝

⎟

⎟

I

1

⎠

⎠

K

2

=

50

n

∑

⎛
⎜

n

⎜

+=

2,1

nn

⎝

I

e

+=

1

+

1

⎞

⎛

1

⎟

⎜

I

e

⎠

⎝

where

e eddy current loss at the fundamental frequency divided by the loss due to a dc current
equal to the RMS value of the sinusoidal current (constant factor to be entered by the
user – see dialog below)

q exponential constant that is dependent on the type of winding and frequency. Typical
values are 1.7 for transformers with round or rectangular cross section conductors in both
windings and 1.5 for those with foil low voltage windings (to be entered by the user – see
dialog below)

rms value of the sinusoidal current including all harmonics

I magnitude of the harmonic current of order n

n

I magnitude of the fundamental current component

1

h harmonic order

3-21


1760

Users Manual

PQ Analyze supports both formulas, the user can select the formula he wants to use.

K-Factor (US) and Factor K (EU) are only available via the Measurement menu.

Signaling Voltage

Ripple Control Signals

The frequency of the ripple control signal of the local utility can be defined in the PQ
Analyze software in the trigger settings dialogue. These signals are calculated from the
FFT results. The FFT bin related to the signaling voltage is calculated from the rated
signaling frequency and the nominal power frequency (derived from the 50 Hz or 60 Hz
setting in the PQ Analyze software) using 2.048 samples per 10/12 cycle interval with

10.24 kHz sample rate. If the signaling voltage corresponds to the frequency of a FFT bin
within 1 % (referred to the bin spacing), only this bin is used. Otherwise, the rms values
of four neighboring FFT bins are added, giving the rms value of the signaling frequency.
200 ms and 3 s aggregations are available.

Unbalance, Overdeviation, Underdeviation

Unbalance

The unbalance (imbalance) is derived from the symmetrical components as per IEC
61000-4-30 class A section 5.7.1. based on the 10/12 cycle values of the voltage
fundamentals. The symmetrical components are calculated as:

1

Z

1

P

3

1

N

3

()()

3

()() ()()

()() ()()

2

1331221

2

1331221

1321221

VZ, VP, VN rms values of zero, positive, and negative system

V

, V2, V3 rms values of the fundamentals of the phase voltages

1

ϕ

, ϕ

phase angles between phases 1 and 2, phases 1 and 3

12

13

(nominal: -120° and -240°)

sin*sin*cos*cos*

VVVVVV

++++=

2

2

ϕϕϕϕ

133122

2

οοοο

240sin*120sin*240cos*120cos*

++++++++=

VVVVVV

VVVVVV

ϕϕϕϕ

133122

2

οοοο

120sin*240sin*120cos*240cos*

++++++++=

ϕϕϕϕ

133122

3-22

Operation

Methods of Measurement/Formulas 3

Calculation of unbalance as per IEC 61000-4-30:

V

V

V =

V

V

V

N

=

2

V

P

V

Z

0

V

P

: zero system

Z

: positive system

P

: negative system

N

%100*

%100*

The calculation of V
system the following formulas with phase-phase voltages (same results):

=

V

2

4

β

=

1,12

2

()

1,12

For a 3-wire network the zero system component V

The voltage values are averaged squared versus time, afterwards the
unbalance is calculated for the time interval.

For more information, see Table 3-2.

Current Unbalance

In addition to the system component parameters that are available for voltage
measurement (zero system, positive system, negative system) for current there is the
special current unbalance calculation.

In some applications when you want to check if the current load of the power system is
distributed equally over the three phases this simpler calculation of current unbalance is
preferred.

, V2 utilizes the above formulas for VZ, VP, VN or for a 3-wire

0

−−

631

β

%100*

631

β

−+

4

2

4

VVV

++

1,23

1,23

1,31

kkk

2

2

VVV

++

1,31

kkk

Note

is 0 per definition.

z

Calculation:

Calculate average current I

= (I1 + I2 + I3)/3

avg

Find the maximum deviation from this average current.

Maximum value of max(|I

Current unbalance is 100 * max(|I

1

– I

|,|I2 – I

avg

1

– I

avg

avg

|,|I3 – I

|,|I2 – I

avg

|,|I3 – I

avg

|)

avg

|) / I

avg

The purpose is to have a simple indicator of detecting an unbalanced current load in a 3­phase system based on the RMS values only. The phase angles do not matter in this
calculation.

3-23

1760

Users Manual

Overdeviation and Underdeviation

The Over- and Underdeviation parameters give an indication if the signal in a given
aggregation was higher or lower than the nominal voltage.

The formulas according to IEC 61000-4-30 are:

Underdeviation

U if

under

0=

UU >

...

otherwise

U

under

⎛
⎜

=

⎜
⎝

U

−

nom

UU

...

smrnom

Overdeviation:

over

0=

UU <

nomsmr

...

U if

otherwise

U

over

⎛
⎜

=

⎜
⎝

U

...

−

nom

⎞

UU

nomsmr

⎟
⎟

⎠

nomsmr

⎞
⎟

⋅

⎟
⎠

⋅

%100

%100


3-24

These parameters give additional information for assessing the stability of the voltage.

Operation

ADC data

F

F,max

F,min

rms

rms,max

rms,min

over deviation

under deviation

P

P,max

P,min

Q

Q,max

Q,min

S

S,max

S,min

PF

cosphi

cos,phi

Pst

Plt

instantaneous flicker

THD

THD,max

THD,ind

THD,ind,max

THD,cap

THD,cap,max

TID

TID,max

TDD

k-factor

factor K

rms harmonics 0 .. 50

rms harmonics,max 0 .. 50

power harmonics real 0 .. 50

power harmonics reactive 0 .. 50

interharmonics 0 .. 50

real energy W

reactive energy Wq

apparent energy Ws

unbalance

unbalance simple

sample data

RMS

half/full cycle,

200ms, 3s

V1

V

Vn

I

In

Vp

V

Vp

V

Vp

PPPPPP(P)(P)(P)(P)(P) V (P) (P) (P)

DAY

V1 V1 V1

V

Vn

I

In

Vp

V

Vn

I

In

Vp

V

Vn

I

In

Vp

PPPPPP(P)(P)(P)(P)(P)(P) V

V

I

V

I

V

I

V

I

V

I

V

I

V

I

V

I

V

I

Vn

In

V

I

Vn

In

P P (P) (P) (P)

V

I

I

Free interval

10s, 20s, 30s

multiples of 1min

max: 1440 min(1d)

V1 V1 V1

V

Vn

I

In

Vp

V

Vn

I

In

Vp

V

Vn

I

In

Vp

V

Vp

V

Vp

PPPPPP(P)(P)(P)(P)(P)(P)V

V

I

V

I

V

I

V

I

V

I

V

I

V

I

V

I

I

II

V

I

Vn

In

V

I

Vn

In

PP

V

I

Vn

In

(P) (P) (P)

V

I

I

10 min

V1 V1 V1

V

Vn

I

In

Vp

V

Vn

I

In

Vp

V

Vn

I

In

Vp

V

Vp

V

Vp

PPPPPP(P)(P)(P)(P)(P)(P)V (V)

V

I

V

I

V

I

V

I

V

I

V

I

V

I

V

I

I

II

V

I

Vn

In

V

I

Vn

In

PP

V

I

Vn

In

(P) (P) (P)

V

I

I

Harmonics

200ms, 3s

(P)

V

I

V

I

V

I

V

I

V

I

V

I

V

I

V

I

V

I

Vn

In

V

I

Vn

In

PP

V

I

Vn

In

V

I

I

ripple control

200ms, 3s

V

I

Vn

In

P(P)

transient

100kHz..10MHz

V

I

oscilloscope

10,24kHz

V

I

harmonics
parameters

energy parameters

symmetry
parameters

frequency

power parameters

flicker parameters

rms parameters

Table 3-2. Parameter Aggregation Matrix

Methods of Measurement/Formulas 3

I ... applies to current inputs Interpolation for the RMS cycle values with 10,24kHz = 176,4 samples/cycle for 60Hz

Vn ... applies to neutral line voltage (ch4, ch8)

In ... applies to neutral line current (ch8)

P ... applies only to voltage/current systems

V1 ... applies to reference channel (ch1)

Vp ... applies to phase- voltages

Symbols: V ... applies to voltage inputs Interpolation for the RMS cycle values with 10,24kHz = 204,8 samples/cycle for 50Hz

( ) ... calculated in PC SW (not available in the instrument)

table.eps

3-25

1760

Users Manual

3-26 4-1

Chapter 4

Maintenance

Title Page

Introduction.......................................................................................................... 4-3

Maintenance of Battery Package ......................................................................... 4-3

Cleaning............................................................................................................... 4-3

Replacement of Battery Pack............................................................................... 4-4

Decommissioning and Disposal........................................................................... 4-4

Shutting Down................................................................................................. 4-4

Recycling and Disposal ................................................................................... 4-5

Warranty .............................................................................................................. 4-5

Recalibration........................................................................................................ 4-5

1760

Users Manual

4-2

Maintenance

Introduction 4

Introduction

The instrument itself is maintenance-free.

Maintenance of Battery Package

Note

We recommend carrying out a forced battery discharge at regular time
intervals (no longer than 3 months) to maintain the battery capacity as long
as possible. It is recommended to replace the battery every 2 years to
ensure full operational readiness for UPS.

Procedure:

1. Connect the instrument to mains.

2. Set the mains switch to the I-position.

3. Wait until the POWER LED is on.

4. Disconnect the power supply.

5. Wait until the POWER LED goes off.

6. Set the mains switch to the 0-position.

7. Wait until the LEDs POWER and UPS are flashing rapidly.

8. Within 3 second set the mains switch to I-position again.

The battery package will be discharged completely when:

• LED POWER is OFF

• LED UPS is flashing slowly

• LEDs MEMORY LEVEL show flashing light, the number of LEDs lighting up

• Afterwards the instrument is turned off automatically

For terminating the forced discharge mode at any time, connect instrument
to mains or set the mains switch to the 0-position.

Cleaning

The device can be cleaned with an Isopropanol impregnated cloth.

Do not use abrasives or other solvents.

indicates the remaining time period for discharging in minutes (e.g. 5 LEDs
means that the discharging will last for appr. 5 minutes)

Note

W Caution

4-3

1760

Users Manual

Replacement of Battery Pack

XW Warning

• Disconnect all the sensors from the instrument’s input

connectors.

• Disconnect the instrument from the power supply.

• Do not short circuit the terminals of the battery

• For replacement of the battery pack, use the original

spare parts only (PN 2540406).

‰ Note

Always adhere to the applicable statutory regulations for recycling and
waste disposal.

Procedure:

1. Locate the battery compartment on the backside of the instrument.

2. Rem

3. Unlock and remove the connector cable.

4. Replace the battery pack by an original spare part (PN 2540406) using the

5.

Note the polarity of the plug and the locking mechanism.

Decommissioning and Disposal

ove the screw of the lid with a screwdriver (Pozi-drive).

attached strip.

Connect the cable to the plug of the instrument.

Note

pack.

4-4

Shutting Down

1. Ensure that all the devices connected to measuring circuits are disconnected from

the measuring circuits.

2. Switch off the Power Quality Recorder.

3. Disconnect the plug from the mains socket.

4. Remove all the connected devices.

5. Secure the unit against inadvertent switching on.

6. Ensure that the operating manual is kept near the device.

Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 - TestEquipmentDepot.com

Maintenance

Recycling and Disposal

Warranty 4

‰ Note

Always adhere to the applicable statutory regulations for recycling and
waste disposal. Do not dispose in domestic household waste.

Packaging: Packaging consists solely of recycleable material.

For any packaging disposal licenses for your country, contact
your distributor or retailer.

Housing: The housing is made of insulating plastics material.

Weight, Volume: The instrument has a weight of approx. 4.900 g (10.8 lbs) and a

Warranty

The warranty period for the instrument is limited to 2 years, the specified uncertainty of
measurement is limited to 1 year from the date of purchase.

The warranty is not valid for batteries.

The warranty is only valid if accompanied with the respective invoice or receipt of
payment.

Damages due to improper use, overload or operation under conditions that are outside the
range of permitted ambient conditions are not covered by the warranty.

Warranty covers only technical data that is specified with a tolerance range. Values or
limits for which there are no tolerances specified are intended for information purposes
only.

Recalibration

Fluke recommends recalibrating the device every year if the instrument is operated over
the full operating temperature range. For operation between +15 °C and +35 °C the
calibration period can be extended to 2 years. For an accuracy of 0.5 % for voltages and
1 % for currents, 5 years calibration period is recommended.

volume of approx. 4.700 cm

3

(287 cubic in).

The device can be calibrated by the Fluke service department or any other calibration
specialist.

4-5

1760

Users Manual

4-6 5-1

Chapter 5

Specifications

Title Page

General Specifications ......................................................................................... 5-3

1760

Users Manual

5-2

Specifications

General Specifications 5

General Specifications

Intrinsic uncertainty refers to reference conditions and is guaranteed for one year

Quality system developed, manufactured as per ISO 9001: 2000

Ambient conditions

Operating temp. range

Working temp. range

Storage temp. range

Reference temperature

Climatic class

Max. Voltage to earth/ Overvoltage
category

Reference conditions

0 °C... +50 °C; 32 °F... +122 °F

-20 °C... +50 °C; -4 °F... +122 °F

-20 °C... +60 °C; -4 °F... 140 °F
23 °C ± 2 K; 74 °F ± 2 K
B2 (IEC 654-1), -20 °C... +50 °C; -4 °F +122 °F

Altitude: 2000 m: max. 600 V CAT IV*

Basic unit and mains supply: 300 V CAT III

Altitude: 5000 m: max 600 V CAT III*

Basic unit and mains supply: 300 V CAT II

* depending on the connected sensor

Environment temp.: 23 °C ± 2 K < 60 % rH; 74 °F ± 2 K < 60
% RH

Power frequency: 50 Hz / 60 Hz

Signal: declared input voltage Udin

Averaging: 10 minute intervals

Warmed up instrument > 3 h
Power supply: 120 V/60 Hz or 230 V/50 Hz, ± 10 %

Housing

Protection

Electrical safety

Power supply

Environmental Pollution Degree 2, Protection class I

Emissions/Immunity IEC 61326-1:2006

Display

Power LED

insulated, robust plastics housing

IP40

EN 61010-1 2nd edition, basic unit 300 V CAT III

entire measuring system depending on the used sensors
from 300V CATII up to 600V CATIV (1000V CATIII)

83 to 264 V ac, 35 W, < 70 V A 45 to 65 Hz

dc: 100 to 375 V

Fluke 1760 features LED indicators for the status of the 8
channels, phase sequence, power supply (mains or
accumulator), memory usage, time synchronization, and data
transfer.

• Permanent light: normal power supply from mains.

• OFF: supply via internal accumulator in case of a

power failure.

5-3

1760

Users Manual

Channel LEDs 3-color LEDs per channel for:

• overload condition

• OK and signal level too low condition

signal level in nominal range

Data memory 2 GB Flash memory

Memory model Selectable : Linear or circular

Recording mode Continuous, gapless recording

Measurement system

Interfaces

Baud rate for RS 232 9600 Baud … 115 kBaud

Dimensions (H x W x D) 325 mm x 300 m x 65 mm (13 x 12 x 2.6 inch)

Weight (without accessories) approximately 4.9 kg (10.8 lbs)

Warranty 2 years

Calibration interval 1 year recommended for Class-A, otherwise 2 years

Signal conditioning Specification

Range for 50 Hz systems 50 Hz ± 15 % (42.5 Hz to 57.5 Hz)

Range for 60 Hz systems 60 Hz ± 15 % (51 Hz to 69 Hz)

Frequency Resolution 16 ppm

Sampling frequency for 50 Hz and 60 Hz
nominal power frequency

Uncertainty for frequency measurements < 20 ppm

Uncertainty of internal clock < 1s / day

4 voltages + 4 currents for 3 phases + N conductor or 8
voltages

Ethernet (100 MB/s), compatible to Windows® 2000/XP
SP3/Vista, RS 232 and USB 2.0

10.24 kHz, The sampling rate is synchronized to mains
frequency.

5-4

Measurement intervals

Min-Max-values

Transients

Aggregation of the interval values as per IEC 61000-4-30
Class-A

Half cycle

Sample rate 100 kHz to10 MHz per channel

Specifications

Harmonics Range

Intrinsic uncertainty

basic aggregation interval 200 ms

Interharmonics Range

Intrinsic uncertainty

basic aggregation interval 200 ms

<25 % of VRMS fundamental up to a THD of 50 %
≥1 % Vnom: ±5 % of reading
< 1 % of Vnom: ±0.05 % of Vnom

as per IEC 61000-4-7:2002 and amendment 1:2008, IEC
61000-2-4 Class 3

<25 % of VRMS fundamental up to a TID of 50 %
≥1 % Vnom: ±5 % of reading
< 1 % of Vnom: ±0.05 % of Vnom

as per IEC 61000-4-7:2002 and amendment 1:2008

General Specifications 5

Conditions for Harmonics and
Interharmonics Specifications

Temperature

Humidity

Supply voltage
Common mode interference voltage
Static electricity discharge
Radiated electric fields

Voltage unbalance – Range

Intrinsic uncertainty

Flicker

within operating temperature range

10%-60% r.H.
83 - 264 V ac, 45 - 65 Hz, 100 - 375 V dc

≤ Vnom
IEC 61326-1 / industrial environment
IEC 61326-1 / industrial environment

0 to 100 %
±0.15 % absolute deviation

as per EN 61000-4-15:2003:

10 min (Pst), 2 h (Plt)

All PQ parameters are evaluated in accordance with IEC 61000-4-30 Class A, 2008 Edition 2

In regulations the standard expression for V

nom

is U

nom

Measurement inputs

Number of inputs 8 galvanically isolated inputs for voltage and current

measurements.

Sensor safety up to 600 V CAT IV depending on sensor

Basic unit safety rating 300 V CAT III

Nominal voltage (rms) 100 mV

Range (peak value) 280 mV

Overload capacity (rms) 1000 V, continuously

Voltage rise rate max. 15 kV / μs

Input resistance 1 M Ω for instrument, 1000 V sensor 10 MΩ

Input capacitance < 50 pF

Input filter

Each channel is equipped with a passive low-pass filter, an anti­aliasing filter and a 16-bit A/D converter. All channels are sampled
synchronously with a common quartz-controlled clock pulse.

The filters protect against voltage transients and limit the signal rise
rate, reduce high frequency components and especially the noise
voltage above half the sampling rate of the A/D converter by 80 dB,
thus achieving very small measuring errors in an exceptionally large
amplitude range. This is also valid under extreme operating
conditions like transient voltages at the output of converters.

5-5

1760

Users Manual

Uncertainties Instrument with 600V/1000V Sensor

Uncertainty including the voltage sensors is in compliance with IEC
61000-4-30 Class-A. All voltage sensors are suitable for DC to 5 kHz

Sensor 1000 V

Sensor 600 V

Intrinsic uncertainty for Harmonics Class I as per EN 61000-4-7:2002 and amendment 1:2008

Temperature drift: < 65 ppm / K

Aging < 0.04 % / year

Common mode rejection

Noise

Udin = 600 V P-N:

Range: 0 to 1200 V rms Peak 1700 V rms

0.1 % of Udin according to IEC 61000-4-30 Class A 2008 Edition 2

Udin = 480 V P-N:

Range: 0 to 960 V, Peak 1700 V rms

0.1 % of Udin according to IEC 61000-4-30 Class A 2008 Edition 2

Udin = 230 V P-N:

Range: 0 to 460 V, Peak 900 V rms

0.1 % of Udin according to IEC 61000-4-30 Class A 2008 Edition 2

Instrument > 100 dB at 50Hz (e.g. shunt)

With voltage sensor 600 V/1000 V > 65 dB at 50 Hz

Noise voltage for instrument, input short-circuited:< 40 μV rms

HzV /8,0

μ

With sensor 1000 V: < 0.8V rms

5-6

With sensor 600 V: < 0.5 V rms

DC ± (0.2 % rdg + 0.1 % sensor range)

Chapter 6

Options and Accessories

Title Page

Instruments........................................................................................................... 6-3

Accessories .......................................................................................................... 6-3

Standard Voltage Probes for AC and DC........................................................ 6-4

Flexible Current Probes for AC....................................................................... 6-5

Current Probes for AC Currents ...................................................................... 6-5

Shunt Resistors for AC and DC Currents........................................................ 6-6

Other Accessories............................................................................................ 6-6

Current Clamp 1 A/10 A AC........................................................................... 6-6

Current Clamp 5 A/50 A AC........................................................................... 6-10

Current Clamp 20 A/200 A AC....................................................................... 6-14

Flexi Current Sensor 100 A/500 A.................................................................. 6-17

Flexi Current Sensor 200 A/1000 A................................................................ 6-21

Flexi Current Sensor 3000 A/6000 A.............................................................. 6-24

GPS-Time Synchronization Module Option........................................................ 6-27

6-1

1760

Users Manual

Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 - TestEquipmentDepot.com

6-2

Options and Accessories

Instruments 6

Instruments

Product Description/technical specifications

Fluke 1760 Basic

without fast transient

without voltage and current
sensors

Fluke 1760TR Basic

with fast transient, without voltage
and current sensors

Fluke-1760 INTL

Fluke-1760 US

Power Quality Recorder/Analyzer

8 channels

(4 voltages/4 currents or 8 voltages)

Interfaces: 1 RS 232 interface cable

Ethernet

1 Ethernet cable for network connection

1 crosslink Ethernet cable for direct PC connection

Memory: 2 GB Flash memory

CDROM: PQ Analyze software and SW manual, operators guide on

CDROM

1 mains cable, mains adapter set, for country specific connection

1 Getting Started Manual

1 carrying bag

The Fluke 1760 TR Basic includes all of the items in the Fluke 1760
Basic unit, plus.

Fast transient analysis up to 10 MHz

The Fluke 1760 includes all of the items in the Fluke 1760 Basic unit,

plus.

without fast transient, with voltage
and current sensors

Fluke-1760TR INTL

Fluke-1760TR US

with fast transient, with voltage
and current sensors

Accessories

The voltage probes for various ranges between 0.1 V and 1000 V are available for the
instrument.

The current sensor for direct current measurement (shunt) is available for 20 mA, 1 A,
and 5 A.

The passive current clamps (ac only) are available in ranges with 1 A up to 200 A,
2 ranges can be selected in the PQ Analyze software.

The flexible current sensors (TPS Flex) are available for ranges between 100 A and
6000 A ac; 2 ranges can be selected in the PQ Analyze software.

INTL: 4 voltage probes 600 V + two Dolphin clips for each probe

US: 4 voltage probes 1000 V + two Dolphin clips for each probe

4 flexible current probes 1000 A/200 A

GPS time sync receiver

The Fluke 1760 TR includes all of the items in the Fluke 1760 unit,

plus.

Fast transient analysis up to 10 MHz

6-3

1760

Users Manual

All probes contain a memory for calibration factors, sensor identity, and serial number
which is read automatically by the instrument. Ranges can be selected in the PQ Analyze
software.

Other measuring transducers can be connected to the inputs of these sensors, such as mV
output temperature sensors.

Standard Voltage Probes for AC and DC

Temperature coefficient: 100 ppm/K
Aging: <0.05 %/year

All voltage sensors are suitable for DC for DC and AC up to 5 kHz

Voltage Probe PN

TPS VOLTPROBE

2540613 0.1 V 10 mV -

0.1 V

TPS VOLTPROBE

2540636 10 V 0.1-17 V 100 V 16 kΩ 0.15 % of rdg

V

nom

Range

V rms

0.2 V

max.

overload

continuous

100 V 1 MΩ 0.15 % of rdg

Input

resistance1

10 V

TPS VOLTPROBE

2540624 100 V 1-170 V 1000 V 8.5 MΩ 0.15 % of rdg

100 V

TPS VOLTPROBE

2540660 400 V 4-680 V 1000 V 8.5 MΩ 0.15 % of rdg

400 V

TPS VOLTPROBE

2540697 600 V 10-1000 1000 V 8.5 MΩ 0.1 %2

600 V

TPS VOLTPROBE

2540649 1000 V 10-1700 2000 V 13 MΩ 0.1 %3

1000 V

1

between red and black connector

2

sensor + basic unit 0.1 % of Udin = 230 V P-N in accordance with IEC61000-4-30 Class A

3

sensor + basic unit 0.1 % of Udin = 480 V and 600 V P-N in accordance with IEC61000-4-30 Class A

Voltage Probe PN

Transient

Range

1

Transient

uncertainty

Max. Voltage to earth

Overvoltage category

Intrinsic

Uncertainty

± 0.8 mV

± 8 mV

± 80 mV

± 0.32 V

6-4

TPS VOLTPROBE

0.1 V

TPS VOLTPROBE
10 V

TPS VOLTPROBE
100 V

TPS VOLTPROBE
400 V

TPS VOLTPROBE
600 V

TPS VOLTPROBE
1000 V

1

signal duration <1ms

2540613 --- --- 300V CATII

2540636 --- --- 300V CATII

2540624 50-6000V 5 % 600V CATIV

2540660 50-6000V 5 % 600V CATIV

2540697 50-6000V 5 % 600V CATIV

2540649 50-6000V 5 % 1000V CATIII / 600 V CAT IV

Options and Accessories

Accessories 6

Flexible Current Probes for AC

Intrinsic

Uncer-

tainty

(>1 % of

range)

1 %

1 %

1 %

Frequency

Range

45 Hz –

3.0 kHz

45 Hz –

3.0 kHz

45 Hz –

3.0 kHz

Operating

Voltage

600 V

CAT IV

600 V

CAT IV

600 V

CAT IV

Phase

Error

0.5 °

0.5 °

0.5 °

Diameter

45 cm

(18 inch)

length

2 m cable

61 cm

(24 inch)

length

2 m cable

91 cm

(36 inch)

length

4 m cable

Model No.

Product No

TPS Flex 18

PN 2540477

TPS Flex 24

PN 2540489

TPS Flex 36

PN 2540492

Type

Flexible

Current

Probe

Flexible

Current

Probe

Flexible

Current

Probe

Range

Selectable Per

Software

1 A – 100 A

5 A – 500 A

2 A – 200 A

10 A – 1000 A

30 A – 3000 A

60 A – 6000 A

Peak Current

for

Sinusoidal

Currents

240 A

1350 A

480 A

2700 A

10 kA

19 kA

Current Probes for AC Currents

Model No.

Product No

TPS CLAMP

10 A/1 A

PN 2540445

TPS CLAMP

50 A/5 A

PN 2540461

TPS CLAMP

200 A/20 A

PN 2540450

Type

Clip-on

Current

Trans-

former

Clip-on

Current

Trans-

former

Clip-on

Current

Trans-

former

Range

Selectable

0.01 A – 1 A

0.1 A – 10 A

0.05 A – 5 A

0.5 A – 50 A

0.2 A – 20 A

2 A – 200 A

Peak Current

for

Sinusoidal

Currents

3.7 A

37 A

18 A

180 A

74 A

300 A

Intrinsic

Uncertainty

(>1 % of

range)

0.5 %

0.5 %

0.5 %

Frequency

Range

40 Hz –

10 kHz

40 Hz –

10 kHz

40 Hz –

10 kHz

Operating

voltage

300 V

CAT IV

300 V

CAT IV

300 V

CAT IV

Phase

error

0.5 °

0.5 °

0.5 °

Jaw

Opening

conductor

cross-

section

15 mm,

(0.6 inch)

2 m cable

conductor

cross-

section

15 mm,

(0.6 inch)

2 m cable

conductor

cross-

section

15 mm,

(0.6 inch)

2 m cable

6-5

1760

Users Manual

Shunt Resistors for AC and DC Currents

Peak

Model No.

Product No.

TPS SHUNT
20 MA
PN 2540553
TPS SHUNT
1 A
PN 2540548
TPS SHUNT
5 A
PN 2540566

Type Range

SHUNT
20 mA

SHUNT
1 A

SHUNT
5 A

0 – 55 mA 77.8 mA

0 – 2.8 A 4 A

0 – 10 A 21.9 A

Current

for

Sinusoidal

Currents

Imax=1.5 A

Imax=5.5 A

Imax=10 A

Errors in % of measuring range at 23 °C ± 2 K, for 48 – 65 Hz.

Phase angle error at nominal current.

I

maximum current without time limit.

max

Intrinsic

Uncertainty

(>1 % of

range)

0.2 % DC 3.0 kHz 300 V CAT II 0.1 °

0.2 % DC 3.0 kHz 300 V CAT II 0.1 °

0.2 % DC 3.0 kHz 300 V CAT II 0.1 °

Frequency

Range

Operating

Voltage

Phase

Error

Other Accessories

Product Description/technical specifications Product- No.

Transport case For Instrument and accessories 2540414

Safety adapter With quick-break fuse of 100 kA circuit-breaking capacity 2540530

2 A quick-break fuse With 100 kA circuit-breaking capacity 2540509

Battery pack Replacement battery pack 2540406

Current Clamp 1 A/10 A AC

This current probe has been designed for non intrusive, accurate measurements of small
AC currents. Using latest technologies (internal memory for calibration data) provides
current ranges from 0.01 A up to 10 A. The measurement range can be selected in the PQ
Analyze software: IAC1 or IAC10.

XW Warning

To protect against electrical shock:

• Use personal protective equipment measures as required

by local government agencies, when attaching clamps to
live circuits.

• Utilize the clamps only on insulated conductors, max.

600 V r.m.s. or dc to ground.

6-6

Options and Accessories

Accessories 6

Electrical Characteristics

Nominal current In: 1 A/10 A AC rms

Measuring ranges: 0.01 A – 1 A or 0.1 A – 10 A
Crest factor: < 3

Peak current: 3.7 A/37 A

Max. non destructive current: Up to 100 A rms
Conductor position influence: < 0.5 % of range for 50/60 Hz
Error due to adjacent conductor: ≤ 15 mA/A for 50 Hz
Phase error (to reference conditions): < ±0.5 degrees

Frequency range (clamp without the
instrument):

Temperature coefficient: 0.015 % of range/ °C

Safety: 300 V CAT IV, type C sensor, pollution

General Characteristics

Maximum conductor size: Diameter: 15 mm.

Cable length: 2 m
Operating temperature range: −10 °C - +55 °C

Storage temperature range: −20 - +70 °C

Operating humidity: 15 % - 85 % (non-condensing)

Weight (per clamp): 220 g

Order-number: 2540445

Reference Conditions

Environment temperature range: +18 °C to +26 °C

40 Hz – 10 kHz (−3 dB)

degree 2

Bus bar: 15 x 17 mm

Humidity: 20 to 75 % rh

Current: Sinusoidal waveform with 48 to 65 Hz
Distortion factor: <1 %, no DC component, stray field <40 A/m,

conductor centered within the clamp jaws

Safety Standards

• IEC/EN 61010-1 2

nd

edition

• IEC/EN 61010-2-032

• IEC/EN 61010-031

EMC Standards

EN61326 –1:2006

6-7

1760

Users Manual

Accuracy (Typical, for 50/60 Hz)

Linearity, error in % of measured value, primary current in A:



6-8

Options and Accessories

Accessories 6

Phase angle in degrees, primary current in A:



6-9

1760

Users Manual

Dimensions (in mm):

6-10

Current Clamp 5 A/50 A AC

This current probe has been designed for non intrusive, accurate measurements of small
AC currents. Using the latest technologies (internal memory for calibration data) provides
reliable current ranges from 0.05 A up to 50 A. The measurement range can be selected
in the PQ Analyze software: IAC5 or IAC50.

To protect against electrical shock:

• Utilize the clamps only on insulated conductors, max.

600 V rms or dc to ground.

• Use personal protective equipment measures as required

by local government agencies, when attaching clamps to
live circuits.

Electrical Characteristics

Nominal current In: 5 A/50 A AC rms

Measuring ranges: 0.05 A – 5 A or 0.5 A – 50 A

XW Warning

small clamp-dimensions.bmp

Crest factor: < 3

Peak current: 18 A, 180 A

Options and Accessories

Accessories 6

Max. non destructive current: Up to 200 A rm
Conductor position influence: < 0.5 % of range at 50/60 Hz
Error due to adjacent conductor: ≤ 15 mA/A at 50 Hz

Phase error (t

o reference conditions): < ±

Frequency range (clamp without the
instrument):

Temperature coefficient: 0.015 % of range/ °C

Safety: 300 V AC CAT IV, type C sensor, pollution

General Characteristics

Maximum conductor size: Diameter: 15 mm.

Cable length: 2 m
Operating temperature range: −10 °C - +55 °
Storage temperature range: −20 - +70 °C

Operating humidity: 15 % - 85 % (non-condensing)

Weight (per clamp): Approx. 220 g

s

0.5 degrees

40 Hz – 10 kHz (−3 dB)

degree 2

Bus bar: 15 x 17 mm

C

Order-number: 2540

Reference Conditions

Environment tem

perature range: +18 °C to +26 °C

Humidity: 20 to 75 % rh

Current: Sinusoidal waveform, with 48 to 65 Hz
Distortion factor: <

Safety Standards

• IEC/EN 61010-1 2

• IEC/EN 61010-2-032

• IEC/EN 61010-031

EMC Standards

EN61326 –1:

2006

Accuracy (Typical, for 50/60 Hz)

Linearity, error in % of measured value, primary current in A:

nd

edition

461

1 %, no DC component, stray field < 40 A/m,

conductor centered within

the clam

p jaws

6-11

1760

Users Manual



6-12

Test Equipment Depot - 800.517.8431 - 5 Commonwealth Ave, Woburn MA 01801 - TestEquipmentD

epot.com

Phase angle in degrees, primary current in A:

Options and Accessories

Accessories 6



Dimensions: See 2540445 (1 A/10 A Current Clamp).

6-13

1760

Users Manual

Current Clamp 20 A/200 A AC

This current probe has been designed for non intrusive, accurate measurements of small
AC currents. Using the latest technologies (internal memory for calibration data) provides
current ranges from 0.2 A up to 200 A. The measurement range can be selected in the PQ
Analyze software: IAC20 or IAC200.

XW Warning

To protect against electrical shock:

• Utilize the clamps only on insulated conductors, max.

600 V rms or dc to ground.

• Use personal protective equipment measures as required

by local government agencies, when attaching clamps to
live circuits.

Electrical Characteristics

Nominal current In: 20 A, 200 A AC rms

Measuring ranges: 0.2 A – 20 A or 2 A – 200 A
Crest factor: < 3

Peak current: 74 A, 300 A

Max. non destructive current: Up to 300 A rms
Conductor position influence: < 0.5 % of range for 50/60 Hz
Error due to adjacent conductor: ≤15 mA/A for 50 Hz
Phase error (to reference conditions): < ±0.5 degrees

Frequency (clamp without the
instrument):

Temperature coefficient: 0.015 % of range/ °C

Safety: 300 V CAT IV, type C sensor, pollution

General Characteristics

Maximum conductor size: Diameter: 15 mm

Cable length: 2 m
Operating temperature range: −10 °C - +55 °C
Storage temperature range: −20 - +70 °C

Operating humidity: 15 % - 85 % (non-condensing)

40 Hz – 10 kHz (−3 dB)

degree 2

Bus bar: 15 x 17 mm

6-14

Weight (per clamp): Approx. 220 g

Order-number: 2540450

Reference Conditions

Environment temperature range: +18 °C to +26 °C.

Humidity: 20 up to 75 % r.h.

Options and Accessories

Accessories 6

Current: Sinusoidal waveform with 48 to 65 Hz.
Distortion factor: < 1 %, no DC component, stray field < 40 A/m,

conductor centered within the clamp jaws

Safety Standards

• IEC/EN 61010-1 2

nd

edition

• IEC/EN 61010-2-032

• IEC/EN 61010-031

EMC Standards

EN61326 –1:2006

Accuracy (Typical, for 50/60 Hz)

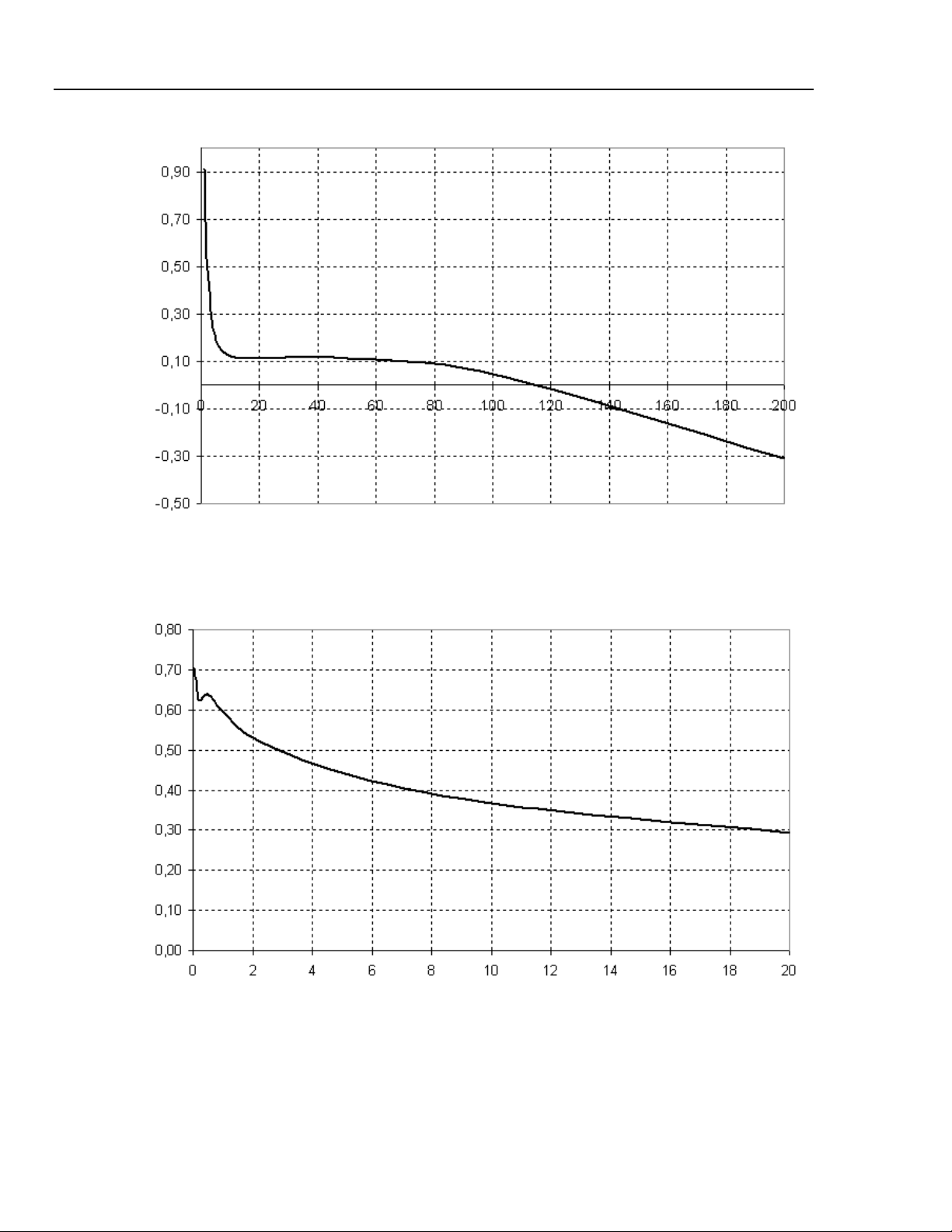

Linearity, error in % of measured value, primary current in A:


6-15

1760

Users Manual

Phase angle in degrees, primary current in A:


6-16


Options and Accessories

Accessories 6

Dimensions: See 2540445.

Flexi Current Sensor 100 A/500 A

This current probe has been designed for non intrusive, accurate AC current
measurements. Using the latest technologies (internal memory for calibration data)
provides current measurements between 1 A and 500 A. The measurement range can be
selected in the PQ Analyze software: IAC100 or IAC500.

To protect against electrical shock:

• Utilize the clamps only on insulated conductors, max.

600 V rms or dc to ground.

• Use personal protective equipment measures as required

by local government agencies, when attaching clamps to
live circuits.

Electrical Characteristics

Nominal current In: 100 A, 500 A AC rms

Measuring ranges: 1 A – 100 A or 5 A – 500 A AC

Peak current: 240 A, 1350 A

XW Warning


Overload capacity: Up to 2000 A rms
Intrinsic error: < ±1 % of mv
Linearity (10 % - 100 % of In): ±0.2 % of In.
Conductor position influence: < ±2 % of mv, distance to measuring head

>30 mm

Error due to adjacent conductor: ≤ ±2 A (Iext = 500 A, distance to head

>200 mm)

6-17

1760

Users Manual

Phase error (to reference conditions): < ± 0.5 degrees
Temperature coefficient: 0.005 % of range/ °C

Safety: 600 V CAT IV, type B sensor, pollution

degree 2

General Specification

Cable length: 2 m

Length of measuring head: 45 cm (18 inch)
Operating temperature range: −10 °C - +70 °C
Storage temperature range: −20 °C - +90 °C

Operating humidity: 10 % - 80 % (non-condensing)

Weight: Approx. 220 g

Order-number: 2540477

Reference Conditions

Environment temperature range: +18 °C to +26 °C

Humidity: 20 – 75 % rh

Current: Nominal value In, sinusoidal waveform, 48 –

Distortion factor: < 1 %. No DC component, stray field <

Safety Standards

• IEC/EN 61010-1 2

• IEC/EN 61010-2-032

• IEC/EN 61010-031

EMC Standards

EN61326 –1:2006

Accuracy (Typical, for 50/60 Hz)

Linearity, error in % of measured value, primary current in A:

nd

edition

65 Hz

40 A/m, conductor centered within the Flexi
current sensor

6-18

Options and Accessories

Accessories 6



6-19

1760

Users Manual

Phase angle in degrees, primary current in A:



6-20

Options and Accessories

Accessories 6

Flexi Current Sensor 200 A/1000 A

This current probe has been designed for non intrusive, accurate ac current measurements.
Using the latest technologies (internal memory for calibration data) provides current
measurements between 2 A and 1000 A. The measurement range can be selected in the
PQ Analyze software: IAC200 or IAC1000.

XW Warning

To protect against electrical shock:

• Utilize the clamps only on insulated conductors, max.

600 V rms or dc to ground.

• Use personal protective equipment measures as required

by local government agencies, when attaching clamps to
live circuits.

Electrical Characteristics

Nominal current In: 200 A, 1000 A AC rms

Measuring ranges: 2 A – 200 A or 10 A – 1000 A ac

Peak current: 480 A, 2700 A

Max. non destructive current: Up to 2000 A rms
Intrinsic error: < ±1 % of mv
Linearity (10 % - 100 % of In): ±0.2 % of In
Conductor position influence: < ±2 % of mv, distance to measuring head

Error due to adjacent conductor: ≤ ±2 A (Iext = 500 A, distance to head

Phase error (to reference conditions): < ± 0.5 degrees
Temperature coefficient: 0.005 % of range/ °C

Safety: 600 V CAT IV, type B sensor, pollution

General Specifications

Cable length: 2 m

Length of measuring head: 61 cm (24 inch)
Operating temperature range: −10 °C - +70 °C
Storage temperature range: −20 °C - +90 °C

Operating humidity: 10 % - 80 % (non condensing)

Weight: Approx. 220 g

Order-number: 2540489

>30 mm

>200 mm)

degree 2

Reference Conditions

Environment temperature range: +18 °C to +26 °C

Humidity: 20 – 75 %

6-21

1760

Users Manual

Current: Nominal value In, sinusoidal waveform, 48 –

Distortion factor: < 1 %. No DC stray field <40 A/m, conductor

Safety Standards

• IEC/EN 61010-1 2

• IEC/EN 61010-2-032

• IEC/EN 61010-2-031

EMC Standards

EN61326 –1:

To protect against electrical shock:

• Utilize the clamps only on insulated conductors, max.

600 V rms or dc to ground.

• Use personal protective equipment measures as required

by local government agencies, when attaching clamps to
live circuits.

2006

65 Hz

centered within the Flexi current sensor

nd

edition

XW Warning

Accuracy (Typical, for 50/60 Hz)

Linearity, error in % of measured value, primary current in A:


6-22
