Fluke 572, 574
and 574-NI Infrared
Thermometers
Non-contact temperature
measurement
When the job demands
precision and accuracy
Broad temperature range,
superior optics and the
advanced extra-bright
three-dot laser sighting
system make Fluke 570
series thermometers the
most advanced portable
thermometers in the industry.
Technical Data
Preventive Maintenance
Electrical
Page 2

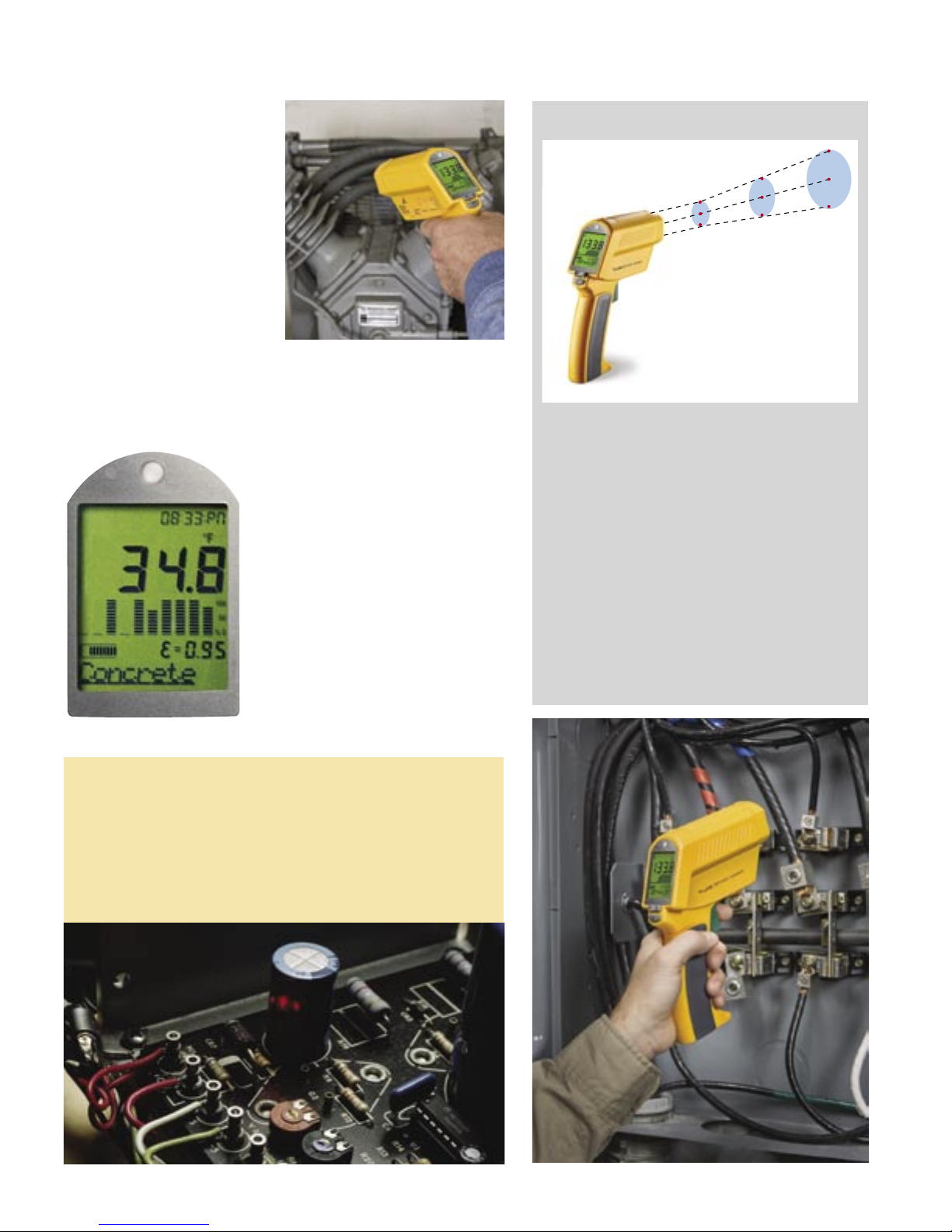

Advanced Display
•
100-point onboard temperature
data logging capability
•
30 preset common material
emissivity values
•
Adjustable emissivity values
(0.01 increments)
•
Customizable log names, alarms,
and emissivity
574-NI Nonincendive
Model
When safety is a concern and
data logging and downloading
are required, the Fluke 574
Nonincendive (NI) model
thermometer is the product to
choose. It has the same great
features as the standard 574
model thermometers with the
extra confidence of a Factory
Mutual approval for use in
hazardous environments*.
The Fluke 574-NI thermometer,
does not to release enough electrical or thermal energy to
ignite flammable gases or vapors under normal operational and
environmental conditions.
*See specification table for details.
Advanced Sighting
Accurate measurements depend in part on
accurately sighting a target. Fluke 570 series
thermometers are the only thermometers with
a sighting system designed to precisely track
the infrared path as seen by the sensors. This
enables the advanced coaxial three-dot laser
sighting to accurately show both the center
and the edges of the spot being measured,
regardless of the thermometer’s distance from
the target.
This laser sighting also appears twice as
bright to the human eye as normal lasers
(while maintaining the same safety rating as
less bright lasers), making precise sighting
easier in a variety of lighting conditions and
distances.
Close Focus Option
The Close Focus (CF) option lets you accurately measure very
small areas at the focus point – where the IR beam narrows.
Paired with the advanced coaxial laser sighting system,
extremely small objects 6 mm (0.24 in) at 300 mm (11.4 in)
can be easily measured. Ideal for electrical maintenance and
refrigeration troubleshooting.
Page 3

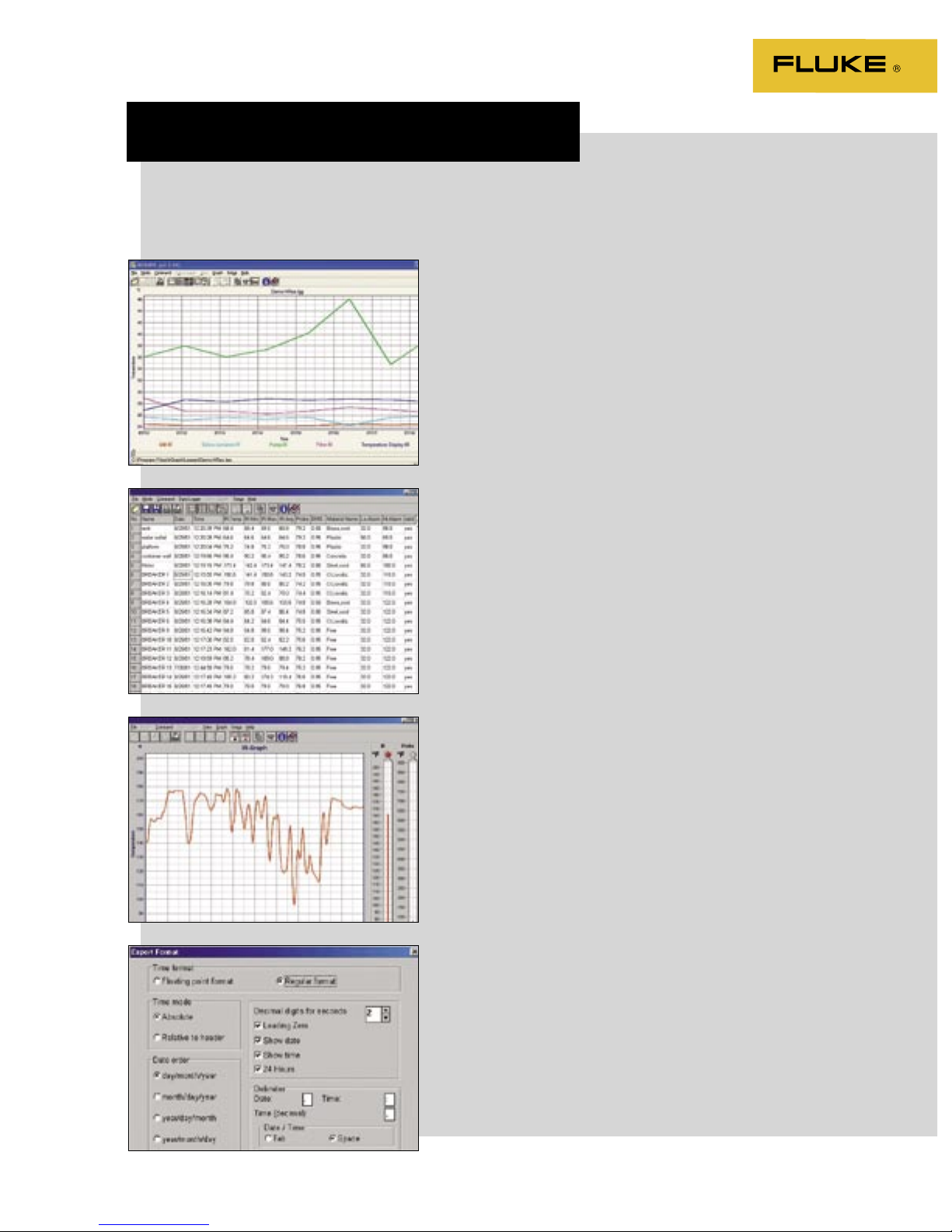

Visualize, systematically maintain and analyze temperature data using Windows®
compatible software and a Fluke 574 or 574-NI IR thermometer.
Software for Condition Monitoring and
Process Control
Graph
•
Visually review data and
spot trends instantly through
graphs
•
Simultaneously graph
results while continuously
monitoring temperatures
•
Quickly compare
temperatures of up to five
log locations for trends or
anomalies
•
Display infrared and/or probe
temperature trends over time
•
View infrared and probe
values continuously on
thermometer sidebar
Data log
•
Create recognizable names
for inspection locations
•
Track both infrared and
probe temperature trends
•
Tailor high/low alarms per
individual inspection location
•
View min, max, and
average infrared and probe
temperatures
•
Create and customize
emissivity tables for each
inspection location
•
Store up to 10,000 data
points in a file
Reporting and
documentation
•
Customize report views and
printing formats
•
Generate time and date-
stamp printouts for accurate
records
•
Export data as text files
for integration with
Maintenance, Repair and
Operations (MRO) systems
and other database programs
Easily see
temperature trends
and potential
equipment problems
by graphing data
accumulated with
the unit’s data
logging feature.
The software
makes it easy
to error-proof
inspection routes
by giving names,
alarm points and
emissivities to
locations.
The 574 can be used
to monitor, graph,
and record real-time
temperature changes
with the software.
The software
provides a
convenient way to
export temperature
data files in a format
that can be used by
programs such as
Access®, Excel®, and
condition monitoring
programs.
Page 4
Fluke Corporation
PO Box 9090, Everett, WA USA 98206
Fluke Europe B.V.
PO Box 1186, 5602 BD
Eindhoven, The Netherlands
For more information call:
In the U.S.A. (800) 443-5853 or
Fax (425) 446-5116
In Europe/M-East/Africa (31 40) 2 675 200 or
Fax (31 40) 2 675 222
In Canada (800) 36-FLUKE or
Fax (905) 890-6866
From other countries +1 (425) 446-5500 or
Fax +1 (425) 446-5116
Web access: http://www.fluke.com/
©2005 Fluke Corporation. All rights reserved.
Printed in U.S.A. 4/2005 2437646 D-US-N Rev A
Fluke. Keeping your world
up and running.

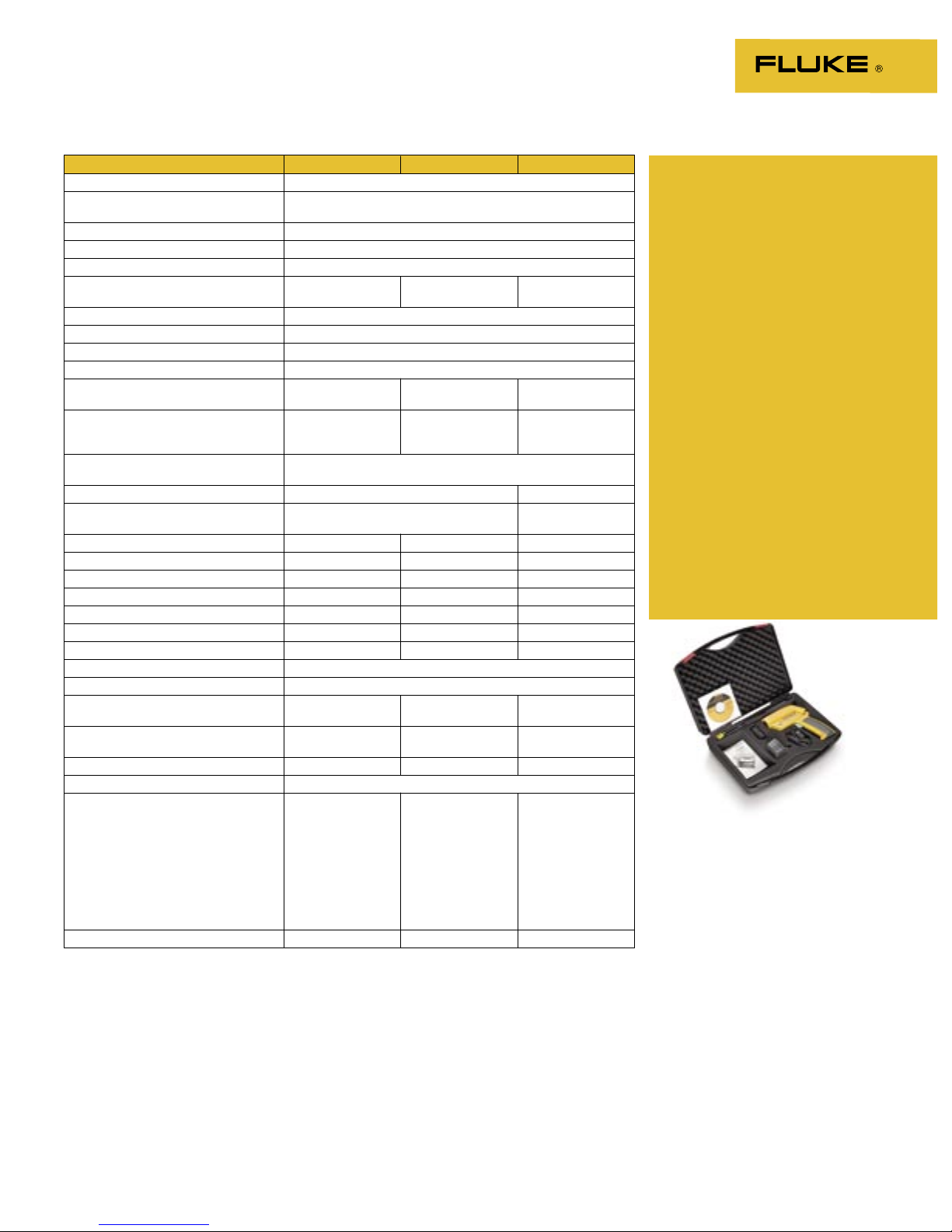

Specifications Fluke 572 Fluke 574 Fluke 574-NI
Temperature range -30 °C to 900 °C (-25 °F to 1600 °F)
Accuracy ±0.75% of reading or ±1 ºC (±2 ºF), whichever is greater
(assumes ambient operating temperature of 23 ºC (73 ºF))
Repeatability ≤ ±0.5 of reading or ≤ ±1 ºC (±2 ºF), whichever is greater
Response time 250 mSec (95% of reading)
Spectral response 8 -14 microns, thermopile detector
Adjustable emissivity
•
•
•
(from 0.1 to 1.0 by 0.01)
Ambient operating temperature 0 °C to 50 ºC (32 °F to 122 ºF )
Relative humidity 10 to 90% at 30 ºC (86 ºF) non-condensing
Storage temperature -20 ºC to 50 ºC (-25 ºF to 122 ºF)
Weight 480 g (1 lb 6 oz)
Power 2 AA batteries 2 AA batteries/ 2 AA batteries/
AC adapter AC adapter
Power supply, RS232
Computer Cable, 1.5 m (60 in),
–
•
•
K thermocouple probe
Laser Class II 3-dot laser sighting (meets IEC Class 2
and FDA Class II requirements)
Distance-to-Spot (D:S) 60:1 (50:1 with Close Focus Option) 60:1
Minimum measurement diameter 19 mm (0.76 in) 19 mm (0.76 in)
(6 mm (0.24 in) with Close Focus option)
Maximum and minimum temperature
• • •
Audible/visible high/low alarm
• • •
Differential and average temperature
–
•
•
Bar graph display
• • •
100-points-data logging
–
•
•
Display hold
• • •
LCD backlit
• • •
Temperature display ºC or ºF selectable
Display resolution 0.1 ºC of reading up to 900 ºC (0.2 ºF up to 999.8 ºF)
Data graphing software
–
•
•
(Windows® NT, 2000, XP compatible)
Data output: RS-232 or
–
•
•
1 mV per degree (ºC or ºF)
Hard carrying case
•
•
•
Tripod mount 1/4-20 UNC
The 574-NI has a factory Mutual
Nonincendive rating. The rating from
this USA organization reads: “Class I,
Division 2, Groups A, B, C, D; Class I,
Zone 2 IIC; T4 Ta=50 ºC when used
with 1.5 V alkaline batteries.”
– – •
WARNING: Battery changes and
RS-232 connection in non-hazardous
locations only.
Warranty 2 Years, Conditional*
•
•
•
Specifications
* Warranty duration may vary by country.
Ordering Information
Options
(all models)
•
Close focus*
•
NIST calibration
certification
* Not available with 574-NI
Options
(574 and 574-NI)
•
mV/degree output cable
Accessories
(all models)
•
Padded pouch with belt clip
Accessories
(574 and 574-NI)
•
PC software
•
RS232 computer cable
•
Plug-in power supply
•
Thermocouple K probe
(Power supply and cable not approved by
FM for use in hazardous locations)
Included with the Fluke 572 and
574 units:
•
User’s guide on CD
•
Hardshell carrying case.
