572-2
Getting Started Manual
ii
Introduction
The 572-2 Infrared Thermometer (the Product) is for noncontact temperature measurement. The Product determines the
surface temperature of an object by measuring the amount of
infrared energy radiated by the object surface. A K-type
thermocouple can be used with the Product for contacttemperature measurement.
Safety Information
A Warning identifies conditions and procedures that are
dangerous to the user. A Caution identifies conditions and
procedures that can cause damage to the Product or the
equipment under test.
Symbols used on the Product and in this manual are explained
in Table 1.
Warning
To prevent possible electrical shock, fire, eye
damage, and personal injury:
• Read all safety Information before you use
the Product.
• Use the Product only as specified, or the
protection supplied by the Product can be
compromised.
• Do not use the Product around explosive
gas, vapor, or in damp or wet environments.
• Do not use the Product if it operates
incorrectly.
1
572-2
Getting Started Manual
• See emissivity information for actual
temperatures. Reflective objects result in
lower than actual temperature
measurements. These objects pose a burn
hazard.
• Do not look directly into the laser with optical
tools (for example, binoculars, telescopes,
microscopes). Optical tools can focus the
laser and be dangerous to the eye.
• Do not look into the laser. Do not point laser
directly at persons or animals or indirectly off
reflective surfaces.
• Use the product only as specified, or
hazardous laser radiation exposure can
occur.
• Do not use laser viewing glasses as laser
protection glasses. Laser viewing glasses are
used only for better visibility of the laser in
bright light.
• Do not open the Product. The laser beam is
dangerous to eyes. Have the Product
repaired only through an approved technical
site.
• Have an approved technician repair the
product.
2
Infrared Thermometer
Safety Information
Caution
For safe operation and maintenance of the
Product:
• Remove the batteries if the Product is not
used for an extended period of time, or if
stored in temperatures above 50 °C. If the
batteries are not removed, battery leakage
can damage the Product.
• Replace the batteries when the low battery
indicator shows to prevent incorrect
measurements.
• Repair the Product before use if the batteries
leak.
• Be sure that the battery polarity is correct to
prevent battery leakage.
• Do not short the battery terminals together.
• Do not keep cells or batteries in a container
where the terminals can be shorted.
• Do not put battery cells and battery packs
near heat or fire. Do not put in sunlight.
3
572-2
Getting Started Manual
Caution
To avoid damage to the Product or the equipment
under test, protect them from:
• EMF (electro-magnetic fields) from arc
welders, induction heaters, etc.
• Static electricity
• Thermal shock (caused by large or abrupt
ambient temperature changes. For highest
accuracy, allow 30 minutes for Product to
stabilize before use).
See Figure 1 for the safety markings.
Laser
Aperture
Figure 1. Safety Markings
hdp01.eps
4
Infrared Thermometer
Safety Information
Table 1. Symbols
Symbol Explanation
Hazardous voltage. Risk of electrical shock.
Risk of danger. Important information. See manual.
Warning. Laser.
Conforms to European Union directives.
°C Celsius
°F Fahrenheit
Battery
This product complies with the WEEE Directive
(2002/96/EC) marking requirements. The affixed label
indicates that you must not discard this
electrical/electronic product in domestic household
waste. Product Category: With reference to the
equipment types in the WEEE Directive Annex I, this
product is classed as category 9 "Monitoring and Control
Instrumentation” product. Do not dispose of this product
as unsorted municipal waste. Go to Fluke’s website for
recycling information.
Battery
Conforms to relevant South Korean EMC Standards.
Conforms to China Metrology Certification.
5
572-2
Getting Started Manual
Thermometer Use
To take a temperature reading, point the Product at the desired
object and pull the trigger. You can use the laser pointer to aim
the Product. You may also insert the K-type thermocouple probe
for contact measurement.
Warning
To avoid electrical shock or personal injury, do
not connect the external contact probe to live
electrical circuits.
Cable Connections and Battery Replacement
To connect the USB cable and Thermocouple to the Product,
and to change the batteries, see Figure 2.
AA
(+)
Figure 2. Cable Connections and Battery Replacement
hdv04.eps
6
Infrared Thermometer
Menu Overview
Note
To prevent incorrect readings, do not do a temperature
measurement of an earthed conductor while the Product is
connected to a PC that is earthed by a three-phase
grounding plug.
Menu Overview
There are many settings that can be changed by using the
menu. Table 2 is a top-level description of the menu. Push the
Menu button to advance the menu to the next level. Figure 3
shows the LCD and menu interface. The Users Manual explains
the menus in full detail.

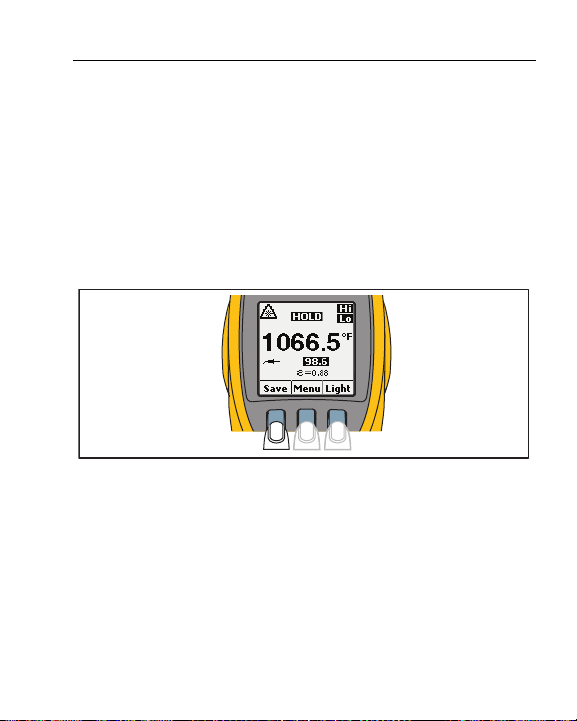

Figure 3. Menu Navigation
hdp02.eps
7
572-2
Getting Started Manual
Table 2. Top-Level Menu Description
Level
Left
Softkey
1 Save
2 Mem
3 MnMx
4 °F/°C
5
6 Setup
Description
Save reading
to memory
Review / delete
memories
Enables
Min/Max
Toggle
between C and F Menu Alarm
Lock the
Product on
- Turn off
backlight
- Change
Time/Date
- Change
Language
Center
Softkey
Menu Light
Menu
Menu Avg
Menu Laser
Menu
Right
Softkey
ε
Description
Adjust bright
backlight
Set emissivity
Enable
Avg/Diff
Set and
enable alarms
Toggle the
laser on/off
8
Infrared Thermometer
Specifications Summary
Specifications Summary
See Users Manual on CD for full specifications.
IR Temperature
Range
Accuracy
K-Type Thermocouple Input
Temperature Range
K-Type Thermocouple Input
Accuracy
Distance:Spot
(90 % energy)
Laser sighting Dual laser, output <1 mW
Emissivity
Data storage 99 points
-30 °C to 900 °C (-22 °F to 1652 °F)
≥0 °C: ± 1 °C or ± 1 % of reading,
whichever is greater
(≥32 °F: ± 2 °F or ± 1 % of reading,
whichever is greater)
≥-10 °C to <0 °C: ±2 °C(≥14 °F to <32 °F:
±4 °F)
<-10°C: ±3 °C (<14 °F: ±6 °F)
-270 °C to 1372 °C (-454 °F to 2501 °F)
<-40 °C: ±(1 °C + 0.2 °/1 °C)
≥-40 °C: ±1 % or 1 °C, whichever is greater
<-40 °F: ±(2 °F + 0.2 °/1 °F)
≥-40 °F: ±1 % or 2 °F, whichever is greater
60:1
Digitally adjustable from 0.10 to 1.00 by 0.01
or via built-in table of common materials
9
572-2
Getting Started Manual
Communication USB 2.0
Operating Altitude 2000 meters
Storage Altitude 12,000 meters
Relative Humidity
Operating
Temperature
Storage
Temperature
10 % to 90 % RH non-condensing up to
30 °C (86 °F)
0 °C to 50 °C (32 °F to 122 °F)
-20 °C to 60 °C (-4 °F to 140 °F)
Power 2 AA Batteries
8 hours with laser and backlight on;
Battery Life
100 hours with laser and backlight off, at
100 % duty cycle (Thermometer
continuously on)
EMC: meets IEC61326-1: Portable
Safety Compliance: IEC 60825-1, Class 2
Standards and
Agency Approval
Electromagnetic
Compatibility
Implement Standard: Q/SXAV 16
Applies to use in Korea only. Class A
equipment; (Industrial Broadcasting &
Communication Equipment)
[1] This product meets the requirement for
industrial (Class A) electromagnetic wave
equipment and seller or user should take
notice of it. This equipment is intended to
use in business environment and is not to be
used in homes.
[1]
10
