Fluidwell F118-A, F-Series User Manual

Page 1

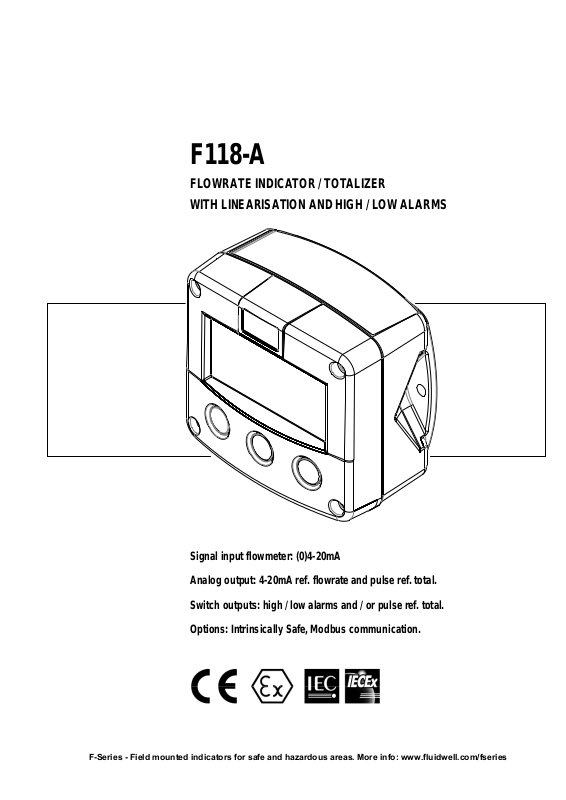

F118-A

FLOWRATE INDICATOR / TOTALIZER WITH LINEARISATION AND HIGH / LOW ALARMS

Signal input flowmeter: (0)4-20mA Analog output: 4-20mA ref. flowrate and pulse ref. total. Switch outputs: high / low alarms and / or pulse ref. total. Options: Intrinsically Safe, Modbus communication.

F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries

Page 2

SAFETY INSTRUCTIONS

 Any responsibility is lapsed if the instructions and procedures as described in this

manual are not followed.

 LIFE SUPPORT APPLICATIONS: The F118-A is not designed for use in life support

appliances, devices, or systems where malfunction of the product can reasonably be expected to result in a personal injury. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify the manufacturer and supplier for any damages resulting from such improper use or sale.

 Electro static discharge does inflict irreparable damage to electronics! Before installing

or opening the unit, the installer has to discharge himself by touching a well-grounded object.

 This unit must be installed in accordance with the EMC guidelines (Electro Magnetic

Compatibility).

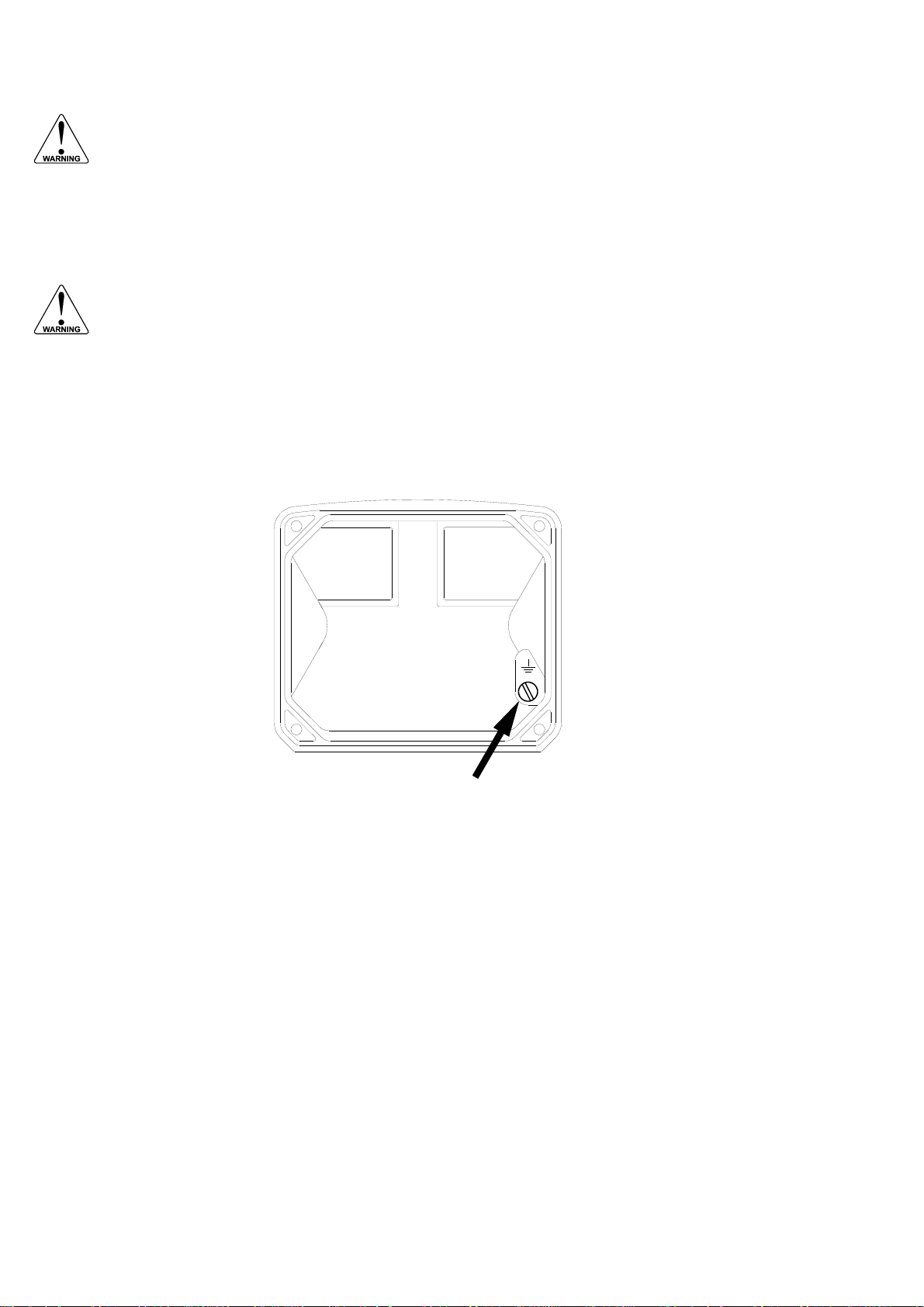

 Do connect a proper grounding to the aluminum casing (type HA/HU) as indicated if the

F118-A has been supplied with the 115-230V AC power-supply (type PM/PN). The green/yellow wire between the back-casing and removable terminal-block may never be removed.

 Intrinsically Safe applications: follow the instructions as mentioned in Chapter 5 and

consult “Fluidwell F1..-..-XI - Documentation for Intrinsic Safety”.

DISPOSAL

At the end of its life this product should be disposed of according to local regulations regarding waste electronic equipment. If a battery is present in this product it should be disposed of separately. The separate collection and recycling of your waste equipment will help to conserve natural resources and ensure that it is recycled in a manner that protects the environment.

SAFETY RULES AND PRECAUTIONARY MEASURES

 The manufacturer accepts no responsibility whatsoever if the following safety rules and

precautions instructions and the procedures as described in this manual are not followed.

 Modifications of the F118-A implemented without a preceding written consent from the

manufacturer, will result in the immediate termination of product liability and warranty period.

 Installation, use, maintenance and de-mounting of this equipment must be carried out by

authorized technicians.

 Check the mains voltage and information on the manufacturer's plate before installing the unit.  Check all connections, settings and technical specifications of the various peripheral devices

with the F118-A supplied.

 Open the casing only if all leads are free of potential.  Never touch the electronic components (ESD sensitivity).  Never expose the system to heavier conditions than allowed according to the casing

classification (see manufacture's plate and chapter 4.2.).

 If the operator detects errors or dangers, or disagrees with the safety precautions taken, then

inform the owner or principal responsible.

 The local labor and safety laws and regulations must be adhered to.

HF118AEN_v0501_06

Page 3

ABOUT THE OPERATION MANUAL

This operation manual is divided into two main sections:  The daily use of the unit is described in chapter 2 "Operation". This instruction is meant for

users.

 The following chapters and appendices are exclusively meant for electricians/technicians. These

provide an extensive description of all software settings and installing the hardware.

This operation manual describes the standard unit as well as most of the options available. For additional information, please contact your supplier.

A hazardous situation may occur if the F118-A is not used for the purpose it was designed for or is used incorrectly. Please carefully note the information in this operating manual indicated by the pictograms:

A "warning" indicates actions or procedures which, if not performed correctly, may lead to personal injury, a safety hazard or destruction of the F118-A or connected instruments.

A "caution" indicates actions or procedures which, if not performed correctly, may lead to personal injury or incorrect function of the F118-A or connected instruments.

A "note" indicates actions or procedures which, if not performed correctly, may indirectly affect operation or may lead to an instrument response which is not planned.

Information in this manual is subject to change without prior notice. The manufacturer is not responsible for mistakes in this material or for incidental damage caused as a direct or indirect result of the delivery, performance or use of this material.

HF118AEN_v0501_06

Page 4

CONTENTS MANUAL

Safety instructions ........................................................................................................................................... 1

Safety rules and precautionary measures ....................................................................................................... 2

About the operation manual ............................................................................................................................ 3

Contents manual .............................................................................................................................................. 3

1. Introduction ................................................................................................................................. 5

1.1. System description of the F118-A .......................................................................................... 5

2. Operational .................................................................................................................................. 7

2.1. General .................................................................................................................................. 7

2.2. Control panel .......................................................................................................................... 7

2.3. Operator information and functions ....................................................................................... 8

3. Configuration ............................................................................................................................. 10

3.1. Introduction .......................................................................................................................... 10

3.2. Programming SETUP-level .................................................................................................. 10

3.2.1. General .............................................................................................................................. 10

3.2.2. Overview functions SETUP level ....................................................................................... 13

3.2.3. Explanation SETUP-functions ........................................................................................... 14

1 - Total ........................................................................................................................... 14

2 - Flowrate ..................................................................................................................... 15

3 - Alarm ......................................................................................................................... 16

4 - Power management .................................................................................................. 16

5 - Flowmeter .................................................................................................................. 17

5 - Flowmeter (continued) ............................................................................................... 18

6 - linearisation ................................................................................................................ 19

6 - linearisation (continued) ............................................................................................ 20

7 - Analog output ............................................................................................................. 20

8 - Relay output ............................................................................................................... 21

9 - Communication (optional) .......................................................................................... 21

A - Others ........................................................................................................................ 22

4. Installation ................................................................................................................................. 23

4.1. General directions ................................................................................................................ 23

4.2. Installation / surrounding conditions .................................................................................... 23

4.3. Dimensions- Enclosure ........................................................................................................ 24

4.4. Installing the hardware ......................................................................................................... 26

4.4.1. Introduction ........................................................................................................................ 26

4.4.2. Voltage selection sensor supply ........................................................................................ 27

4.4.3. Terminal connectors .......................................................................................................... 28

5. Intrinsically safe applications..................................................................................................... 35

5.1. General information and instructions ................................................................................... 35

5.2. Terminal connectors Intrinsically Safe applications ............................................................. 36

5.3 Configuration Examples ....................................................................................................... 38

5.4 Battery replacement instructions .......................................................................................... 40

6. Maintenance .............................................................................................................................. 41

6.1. General directions ................................................................................................................ 41

Appendix A: Technical specification .............................................................................................................. 42

Appendix B: Problem solving ......................................................................................................................... 45

Appendix C: Communication variables .......................................................................................................... 46

Index of this manual ....................................................................................................................................... 49

List of figures in this manual .......................................................................................................................... 49

HF118AEN_v0501_06

Page 5

1. INTRODUCTION

1.1. SYSTEM DESCRIPTION OF THE F118-A

Functions and features

The flowrate / totalizer model F118-A is a microprocessor driven instrument designed to linearize the flowmeters flowcurve and to display flowrate, total and accumulated total. Moreover, two alarm values can be set to monitor the flowrate. This product has been designed with a focus on:

 ultra-low power consumption to allow long-life battery powered applications (type PB),  intrinsic safety for use in hazardous applications (type XI),  several mounting possibilities with ABS or aluminum enclosures for harsh industrial

surroundings,

 ability to process all types of flowmeter signals,  transmitting possibilities with analog / pulse and communication (option) outputs.

Flowmeter input

This manual describes the unit with a analog type input from the flowmeter "-A version". Other versions are available to process pulses or 0-10V flowmeter signals. One flowmeter with a (0)4-20mA signal output can be connected to the F118-A. To power the sensor, several options are available.

Standard outputs

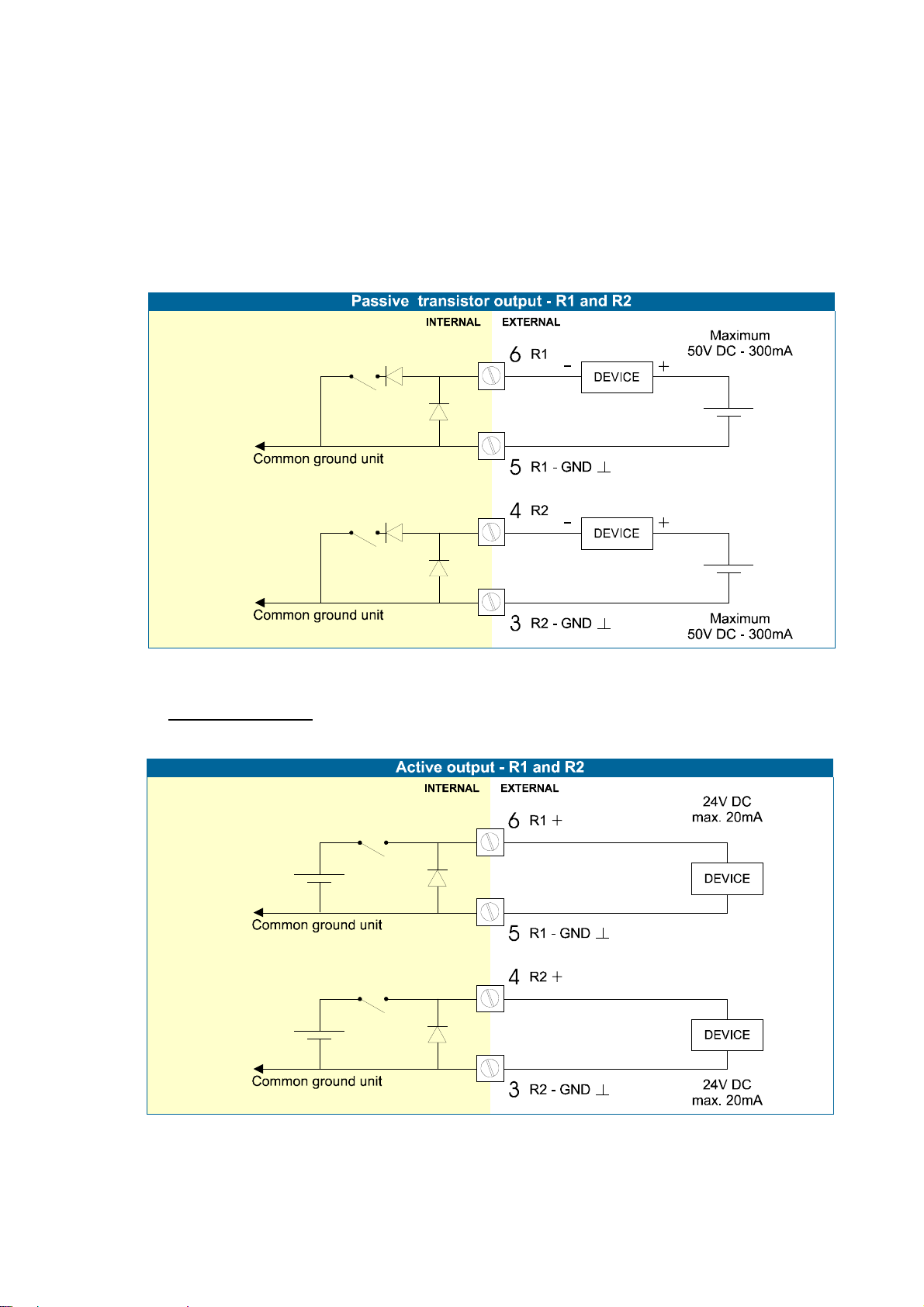

 Two / three configurable outputs: high or low flowrate alarm, all alarms or pulse output.  Configurable pulse output: a scaled pulse mirroring a certain linearised total quantity. Maximum

frequency 60Hz.; the pulse length can be set from 7,8msec up to 2 seconds.

 Configurable passive linear 4-20mA analog output with 10-bits resolution mirroring the actual

linearised flowrate. Flowrate levels as well as the minimum and maximum signal output can be tuned.

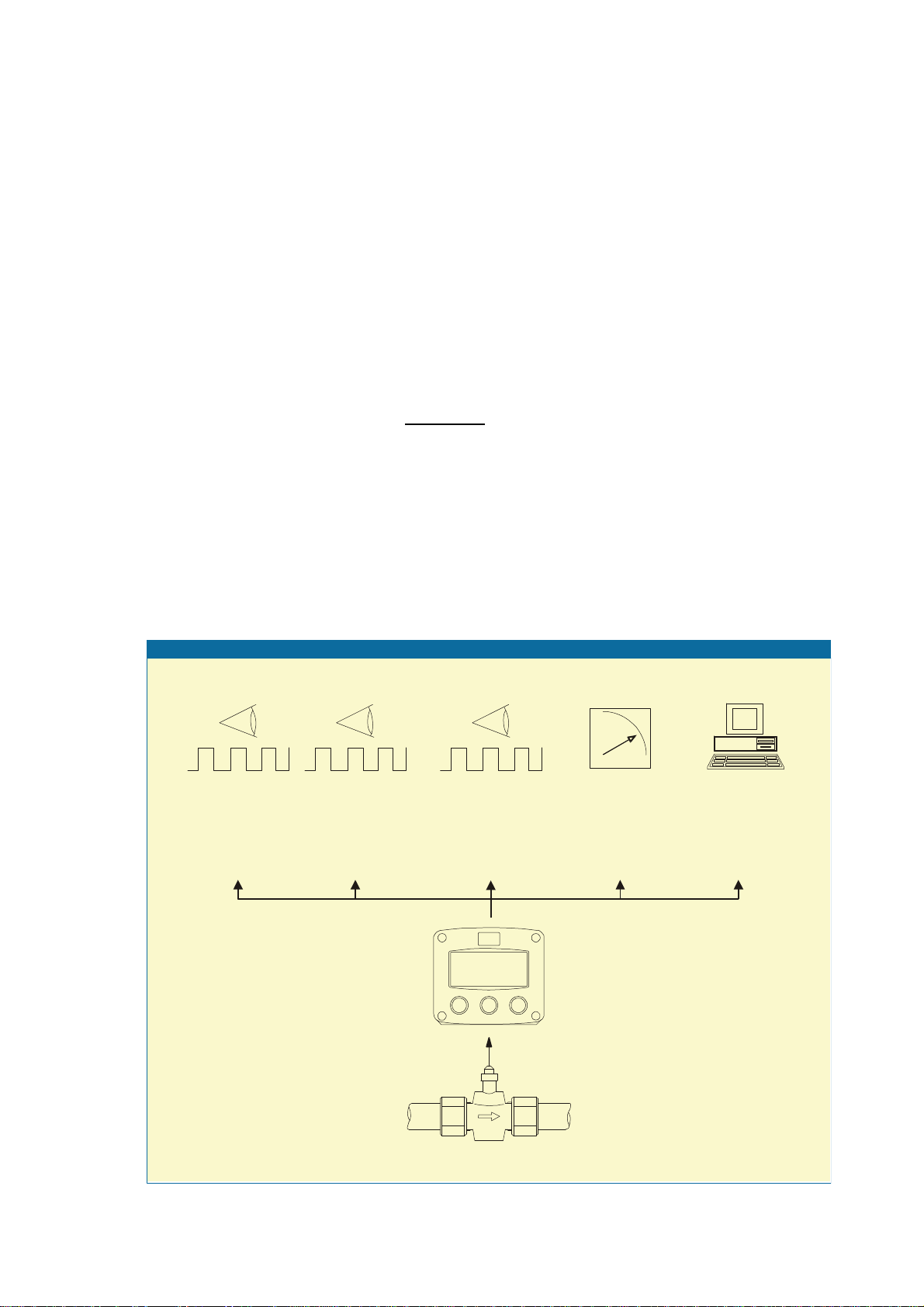

Overview typical application F118-A

R1:

alarm output

pulse output

R2:

alarm output

pulse output

R3:

alarm output

pulse output

(0)4-20mA output

0-10V

RS232/RS485

Modbus

(option)

Fig. 1: Typical application for the F118-A.

HF118AEN_v0501_06

Page 6

Configuration of the unit

The F118-A was designed to be implemented in many types of applications. For that reason, a SETUP-level is available to configure your F118-A according to your specific requirements. SETUP includes several important features, such as K-factors, measurement units, signal selection etc. All setting as are stored in EEPROM memory and will not get lost in case of power break-down or empty battery. To extend the battery-life time (option), please make use of the power-management functions as described in chapter 3.2.3.

Display information

The unit has a large transflective LCD with all kinds of symbols and digits to display measuring units, status information, trend-indication and key-word messages. Flowrate and totals can be displayed either with the small 8mm digits or with the 17mm digits. A backup of the total and accumulated total in EEPROM memory is made every minute.

Options

Following options are available: isolated or active 4-20mA / 0-10V / 0-20mA analog output, full Modbus communication RS232/485 (also battery powered), intrinsic safety, mechanic relay or active outputs, power- and sensor-supply options, panel-mount, wall-mount and weather-proof enclosures, flame proof enclosure.

HF118AEN_v0501_06

Page 7

2. OPERATIONAL

2.1. GENERAL

 The F118-A may only be operated by personnel who are authorized and trained by the

operator of the facility. All instructions in this manual are to be observed.

 Take careful notice of the " Safety rules, instructions and precautionary measures " in

the front of this manual.

This chapter describes the daily use of the F118-A. This instruction is meant for users / operators.

2.2. CONTROL PANEL

The following keys are available:

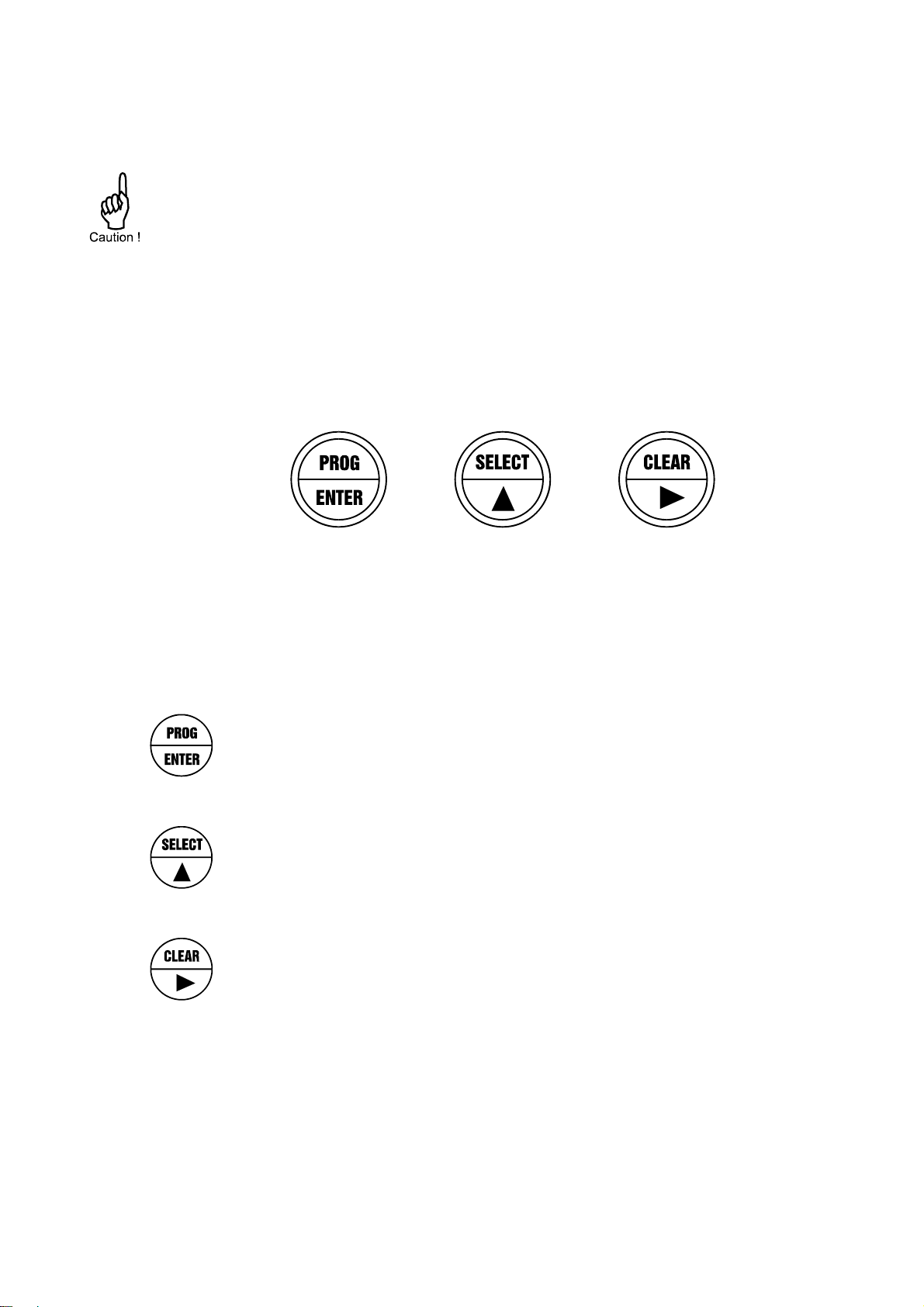

Fig. 2: Control Panel.

Functions of the keys

This key is used to program and save new values or settings.

It is also used to gain access to SETUP-level; please read chapter 3.

This key is used to SELECT accumulated total and flowrate alarm values.

The arrow-key  is used to increase a value after PROG has been pressed or to configure the unit; please read chapter 3.

Press this key twice to CLEAR the value for total.

The arrow-key is used to select a digit after PROG has been pressed or to

configure the unit; please read chapter 3.

HF118AEN_v0501_06

Page 8

2.3. OPERATOR INFORMATION AND FUNCTIONS

In general, the F118-A will always function at Operator level. The information displayed is dependant upon the SETUP-settings. All pulses generated by the connected flowmeter are measured by the F118-A in the background, whichever screen refresh rate setting is chosen. After pressing a key, the display will be updated very quickly during a 30 second period, after which it will slow-down again.

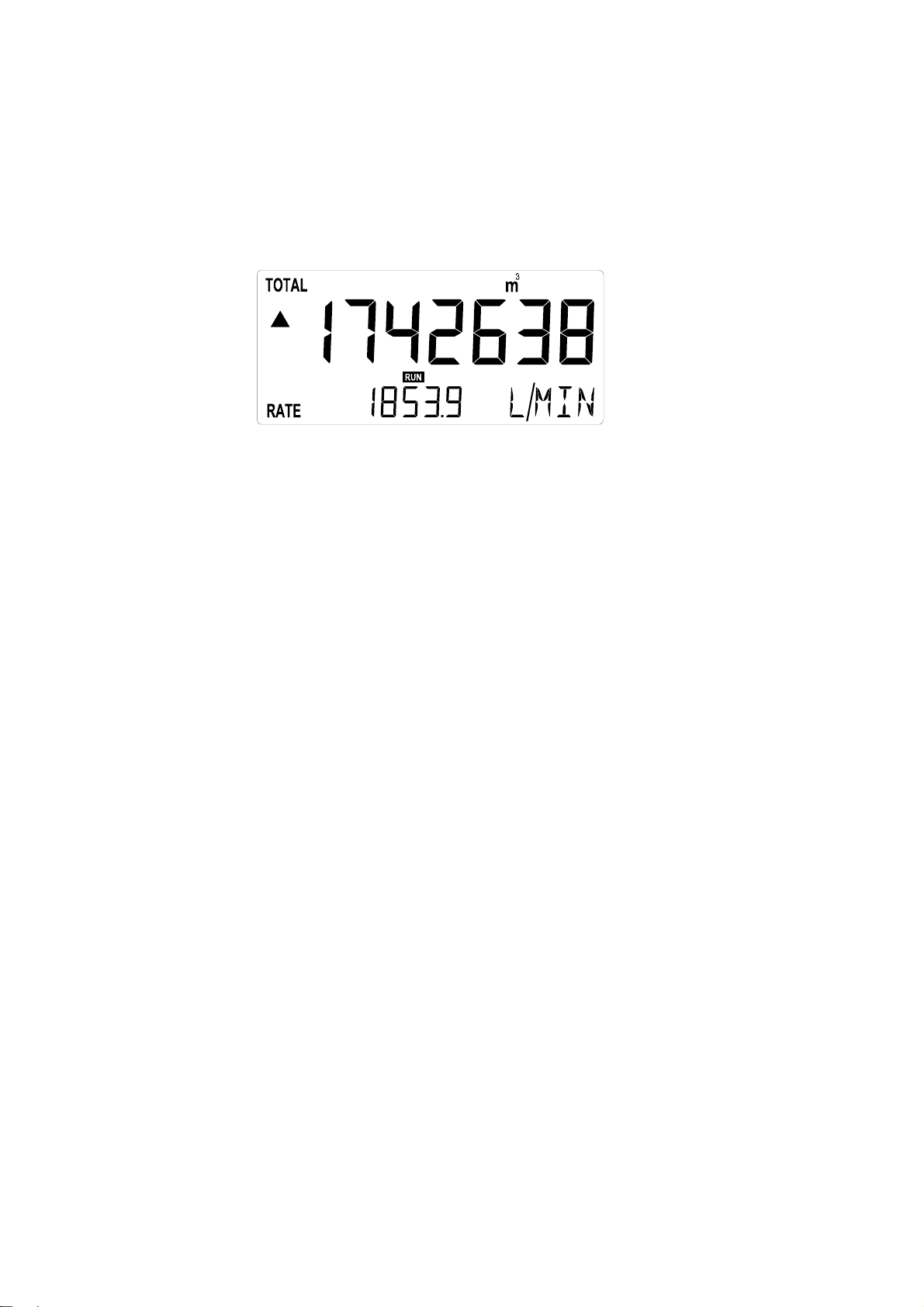

Fig. 3: Example of display information during process.

For the Operator, the following functions are available:

 Display flowrate / total

This is the main display information of the F118-A. After selecting any other information, it will always return to this main display automatically. Total is displayed on the upper-line of the display and flowrate on the bottom line. When "-------" is shown, then the flowrate value is too high to be displayed. The arrows  indicate the increase/decrease of the flowrate trend.

 Clear total

The value for total can be re-initialized. To do so, press CLEAR twice. After pressing CLEAR once, the flashing text "PUSH CLEAR" is displayed. To avoid re-initialization at this stage, press another key than CLEAR or wait for 20 seconds. Re-initialization of total DOES NOT influence the accumulated total.

 Display accumulated total

When the SELECT-key is pressed, total and accumulated total are displayed. The accumulated total cannot be re-initialized. The value will count up to 99,999,999,999. The unit and number of decimals are displayed according to the configuration settings for total.

HF118AEN_v0501_06

Page 9

 Programming the flowrate alarm values

Note: This function might not be immediately accessible due to a configuration setting.

When the SELECT-key is pressed a few times, following flowrate alarm values are displayed:

 low flowrate alarm: enter here 40 L/min for example,  high flowrate alarm: enter here 200 L/min for example,

To change the alarm value, the following procedure must be executed:

1) press PROG: the word "PROGRAM" will flash or a pass code will be requested,

2) use  to select the digits and  to increase that value,

3) confirm the new alarm value by pressing ENTER.

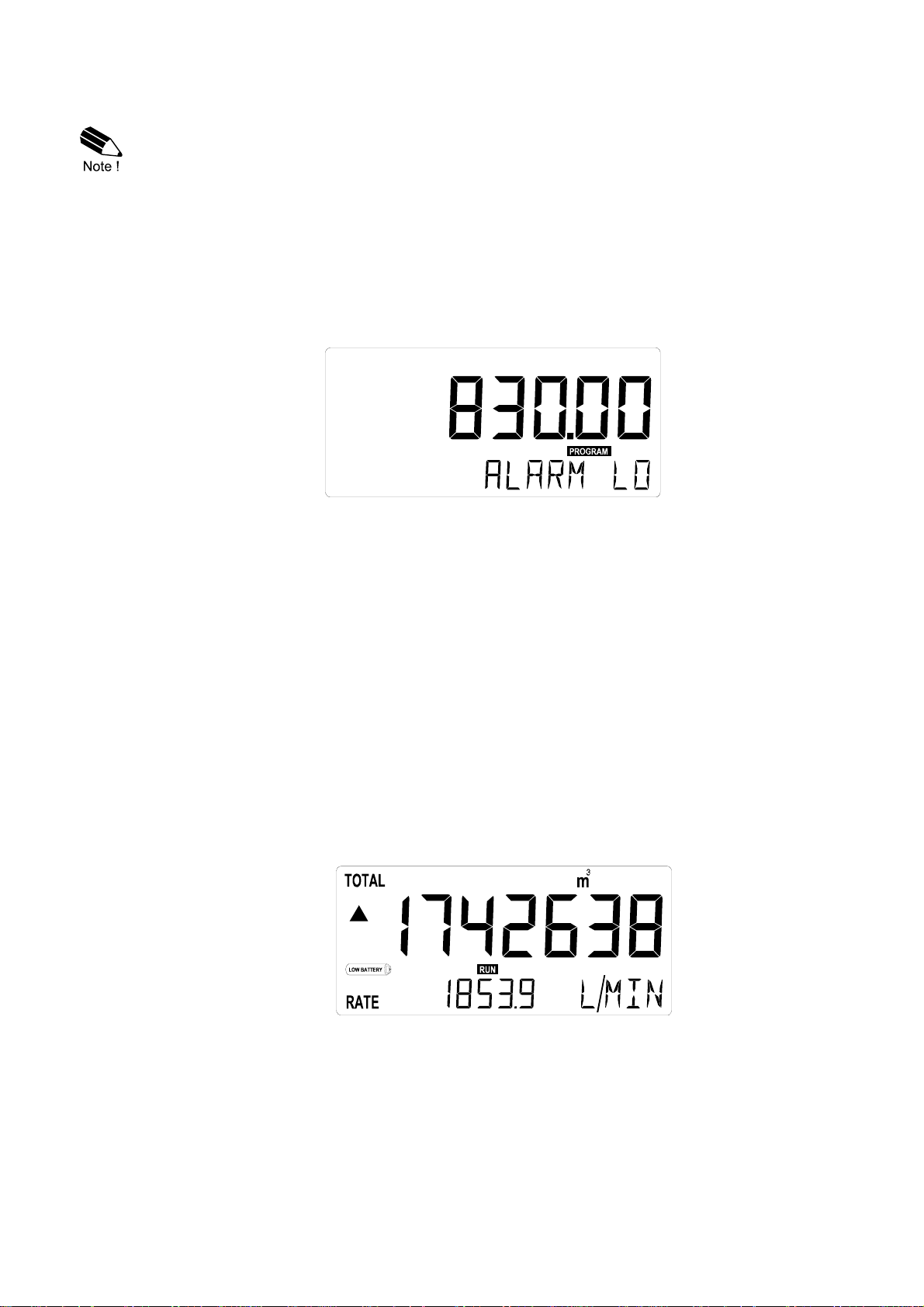

Fig. 4: Example of display information during programming minimum flowrate.

When data is altered but ENTER has not been pressed yet, then the alteration can still be

cancelled by waiting for 20 seconds or by pressing ENTER during three seconds: the former value will be reinstated.

 Flowrate alarm When the actual flowrate is outside the allowed range, an alarm message will be displayed

indicating the type of alarm: "LO RATE" or "HI RATE".

The alarm is terminated automatically as soon as the flowrate is within its range again.

 Low-battery alarm

When the battery voltage drops, it must be replaced. At first "low-battery" will flash, but as soon as it is displayed continuously, the battery MUST be replaced shortly after! Only official batteries may be used, or else the guarantee will be terminated. The remaining lifetime after the first moment of indication is generally several days up to some weeks.

Fig. 5: Example of low-battery alarm.

 Alarm 01-03 When "alarm" is displayed, please consult Appendix B: problem solving.

HF118AEN_v0501_06

Page 10

3. CONFIGURATION

3.1. INTRODUCTION

This and the following chapters are exclusively meant for electricians and non-operators. In these, an extensive description of all software settings and hardware connections are provided.

 Mounting, electrical installation, start-up and maintenance of the instrument may only

be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions.

 The F118-A may only be operated by personnel who are authorized and trained by the

operator of the facility. All instructions in this manual are to be observed.

 Ensure that the measuring system is correctly wired up according to the wiring

diagrams. The housing may only be opened by trained personnel.

 Take careful notice of the " Safety rules, instructions and precautionary measures " in

the front of this manual.

3.2. PROGRAMMING SETUP-LEVEL

3.2.1. GENERAL

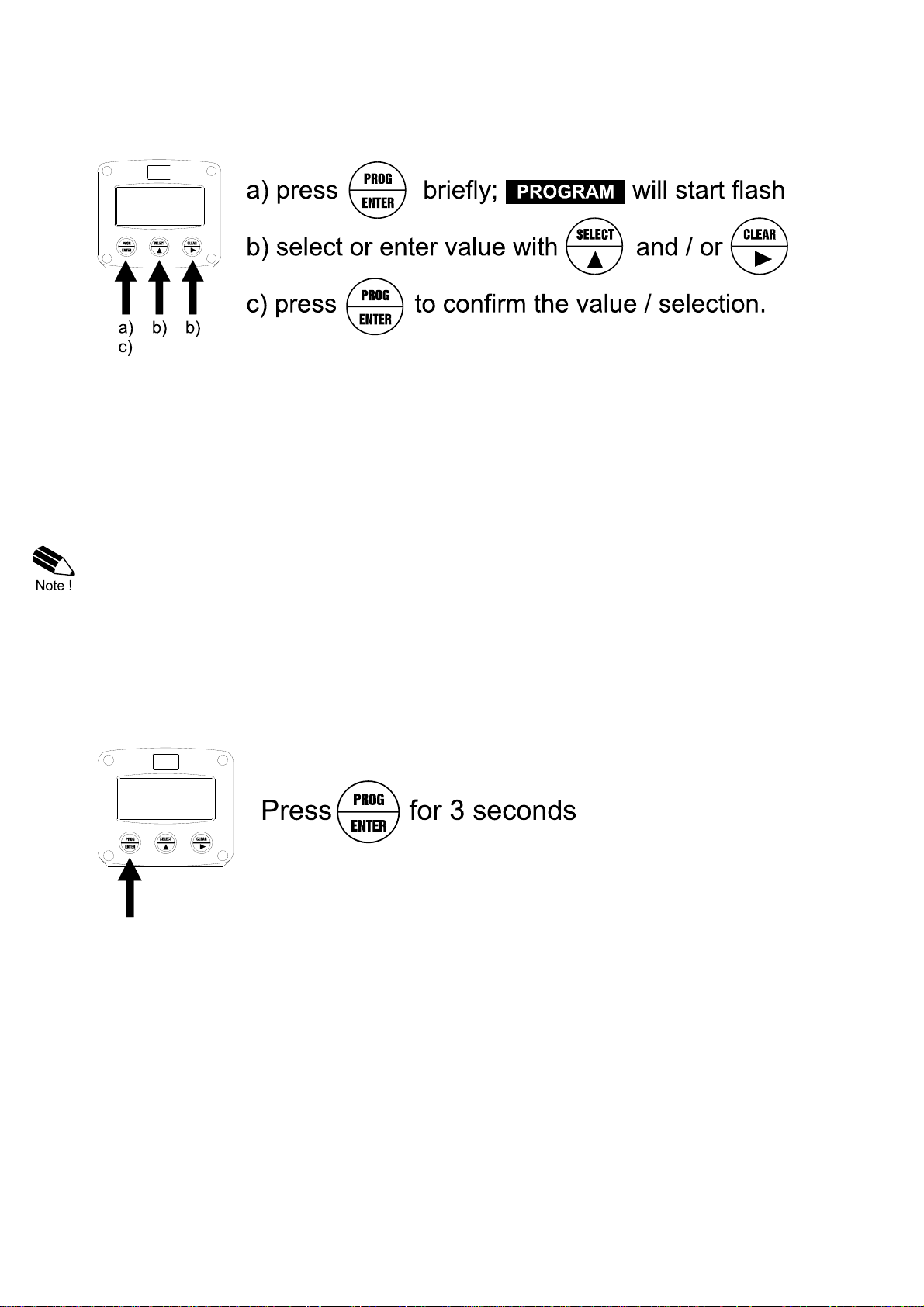

Configuration of the F118-A is done at SETUP-level. SETUP-level is reached by pressing the PROG/ENTER key for 7 seconds; at which time, both arrows  will be displayed. In order to return

to the operator level, PROG will have to be pressed for three seconds. Alternatively, if no keys are

pressed for 2 minutes, the unit will exit SETUP automatically. SETUP can be reached at all times while the F118-A remains fully operational.

Note: A password may be required to enter SETUP. Without this password access to SETUP is denied.

To enter SETUP-level:

HF118AEN_v0501_06

Page 11

Matrix structure SETUP-level:

Page 11

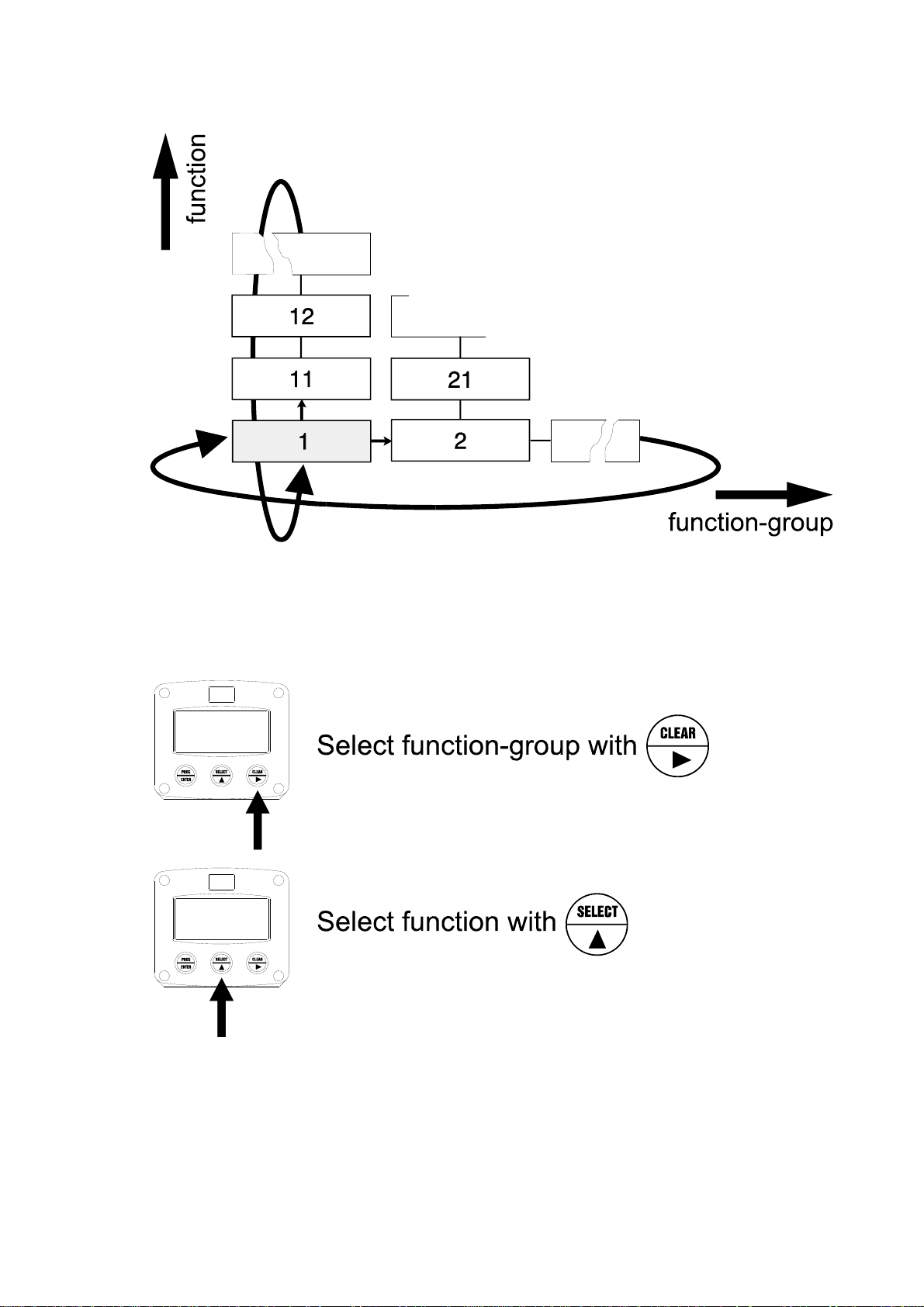

SCROLLING THROUGH SETUP-LEVEL

Selection function-group and function:

SETUP is divided into several function groups and functions.

Each function has a unique number, which is displayed below the word "SETUP" at the bottom of the display. The number is a combination of two figures. The first figure indicates the function-group and the second figure the function. Additionally, each function is expressed with a keyword.

After selecting a sub-function, the next main function is selected after scrolling through all "active" sub-functions (e.g. 1, 11, 12, 13, 14, 1, 2, 3, 31 etc.).

HF118AEN_v0501_06

Page 12

To change or a select a value or value:

To change a value, use  to select the digits and  to increase that value. To select a setting, both  and  can be used. When the new value is not valid, the increase sign or decrease-sign will be displayed while you are programming.

When data is altered but ENTER is not pressed, then the alteration can still be cancelled by waiting for 20 seconds or by pressing ENTER for three seconds: the PROG-procedure will be left automatically and the former value reinstated.

Note: alterations will only be set after ENTER has been pressed!

To return to OPERATOR-level:

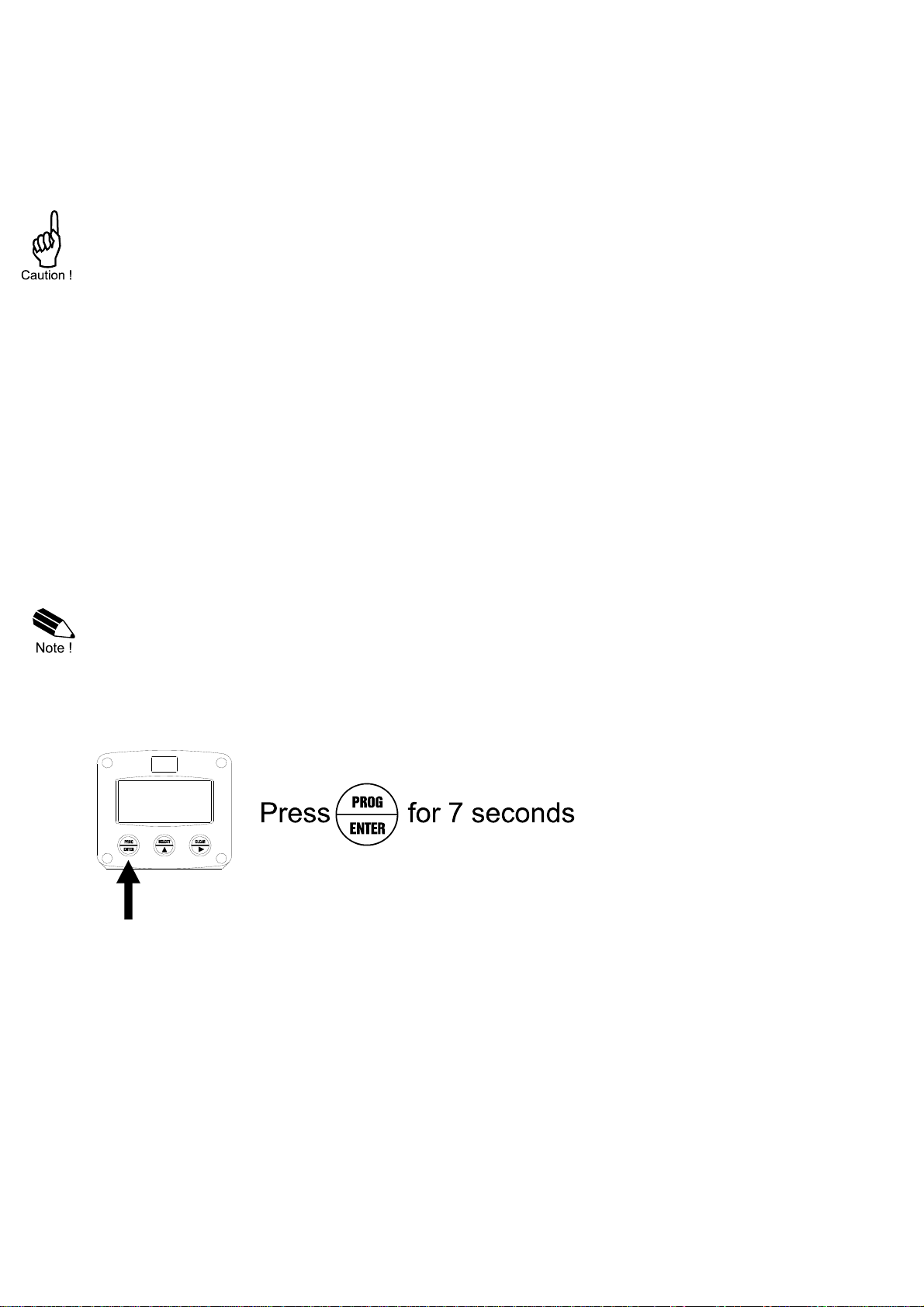

In order to return to the operator level, PROG will have to be pressed for three seconds. Also, when no keys are pressed for 2 minutes, SETUP will be left automatically.

HF118AEN_v0501_06

Page 13

3.2.2. OVERVIEW FUNCTIONS SETUP LEVEL

SETUP FUNCTIONS AND VARIABLES

1 TOTAL

11 UNIT L - m3 - kg - lb - GAL - USGAL - bbl - no unit 12 DECIMALS 0 - 1 - 2 - 3 (Ref: displayed value) 13 SPAN 0.000001 - 999,999 unit/second 14 DECIMALS SPAN 0 - 6

2 FLOWRATE

21 UNIT mL - L - m3 - mg - g - kg - ton - GAL - bbl - lb - cf - REV -

no unit 22 TIME UNIT sec - min - hour - day 23 DECIMALS 0 - 1 - 2 - 3 (Ref: displayed value) 24 SPAN 0.000001 - 999,999 unit/time-unit 25 DECIMALS SPAN 0 - 6

3 ALARM

31 ALARM SET operator - setup level 32 FLOWZERO default - no relays - ignore 33 ALARM LOW 0000.000 - 9,999,999 34 ALARM HIGH 0000.000 - 9,999,999 35 DELAY ALARM LOW 0.1 - 999.9 seconds 36 DELAY ALARM HIGH 0.1 - 999.9 seconds

4 POWER MANAGEMENT

41 LCD UPDATE fast - 1 sec - 3 sec - 15 sec - 30 sec - off 42 BATTERY MODE operational - shelf

5 FLOWMETER

51 FORMULA interpolation, square root 52 FILTER 00 - 99 53 CUT-OFF 0.0 - 99.9% 54 CALIBRATE LOW (0)4mA 55 CALIBRATE HIGH 20mA

6 LINEARISATION

61 % / M-FACTOR 1 0.01% – 99.99% / 0 – 9.999999 62 % / M-FACTOR 2 0.01% – 99.99% / 0 – 9.999999 63 % / M-FACTOR 3 0.01% – 99.99% / 0 – 9.999999

.. .. ……..

6A % / M-FACTOR 10 0.01% – 99.99% / 0 – 9.999999 6B LINEARISATION enable / disable

7 ANALOG

71 OUTPUT disable - enable 72 RATE MIN - (0)4mA / 0V 0000.000 - 9,999,999 73 RATE MAX - 20mA / 10V 0000.000 - 9,999,999 74 TUNE MIN - 4mA / 0V 0 - 9,999 75 TUNE MAX- 20mA / 10V 0 - 9,999

8 RELAYS

81 OUTPUT R1 off - low - high - all - pulse 82 OUTPUT R2 off - low - high - all - pulse 83 OUTPUT R3 off - low - high - all - pulse 84 UNIT WIDTH 0 - 250 85 IMPULSE PER X,XXX,XXX quantity

9 COMMUNICATION

91 SPEED / BAUDRATE 1200 - 2400 - 4800 - 9600 92 ADDRESS 1 - 255 93 MODE rtu - off

A OTHERS

A1 TYPE / MODEL A2 SOFTWARE VERSION A3 SERIAL NO. A4 PASSWORD 0000 - 9999 A5 TAGNUMBER 0000000 - 9999999

HF118AEN_v0501_06

Page 14

3.2.3. EXPLANATION SETUP-FUNCTIONS

MEASUREMENT UNIT 11

DECIMALS 12

SPAN 13

DECIMALS SPAN 14

SETUP - 11 determines the measurement unit for total, accumulated total and pulse output. The following units can be selected:

L - m3 - kg - lb. - GAL - USGAL - bbl - _ (no unit).

Alteration of the measurement unit will have consequences for operator and SETUP-level values. Please note that the Span has to be adapted as well; the calculation is not done automatically. The decimal point determines for total, accumulated total and pulse output the number of digits following the decimal point. The following can be selected:

With the span, the flowmeter signal is converted to a quantity. The span for Total is determined on the basis of the measurement unit (setting 11) and the flowrate per second at 20mA. Enter the span in whole numbers (decimals are set with SETUP 14). The more accurate the span, the more accurate the functioning of the system will be.

Example 1: Calculating the span for Total.

Example 2: Calculating the span for Total

This setting determines the number of decimals for the Span (SETUP 13). The following can be selected:

0 - 1 - 2 - 3 - 4 - 5 - 6

Please note that this function influences the accuracy of the Span indirectly. This setting has NO influence on the displayed number of digits for total (SETUP 12)!

1 - TOTAL

0000000 - 111111.1 - 22222.22 - 3333.333

Let us assume that the flowmeter generates 20mA at a flowrate of 2,481.3 Liters/minute and the selected unit is "cubic meters / m3". The rate per second is 2,481.3÷60 is 41.355 L/sec. This is

0.041355 m3/sec., which is the span. Enter for SETUP - 13: "041355" and for SETUP - 14 - decimals span "6".

Let us assume that the flowmeter generates 20mA at a rate of

652.31 USGAL per hour, the selected unit is barrels. There are 42 gallons in one barrel; so the rate is 652.31/42 is

15.53119 barrels/hour. This is 0.0043142 barrels/s econd, which is the span. Enter for SETUP - 13: "004314" and for SETUP - 14 "6".

HF118AEN_v0501_06

Page 15

2 - FLOWRATE

The settings for total and flowrate are entirely separate. In this way, different units of measurement can be used for each e.g. cubic meters for total and liters for flowrate. The display update time for flowrate is one second or more.

Note: these settings also influence the analog output.

MEASUREMENT UNIT 21

TIME UNIT 22 DECIMALS 23

SPAN 24

DECIMALS SPAN 25

SETUP - 21 determines the measurement unit for flowrate. The following units can be selected:

mL - L - m3 - mg - g - kg - ton - GAL - bbl - lb - cf - REV - no unit

Alteration of the measurement unit will have consequences for operator and SETUP-level values. Please note that the Span has to be adapted as well; the calculation is not done automatically. The flowrate can be calculated per second (SEC), minute (MIN), hour (HR) or day (DAY). This setting determines for flowrate the number of digits following the decimal point. The following can be selected:

00000 - 1111.1 - 2222.22 - 3333.333

With the span, the flowmeter signal is converted to a quantity. The span for flowrate is determined on the basis of the selected measurement unit and time unit at 20mA. Enter the span in whole numbers (decimals are set with SETUP 25). The more accurate the span, the more accurate the functioning of the system will be.

Example 1 Calculating the span for flowrate

Let us assume that the flowmeter generates 20mA at a

flowrate of 2,481.3 Liters/minute, the selected unit is

"Liters" and time unit "minute".

The span is 2481.3

Enter for SETUP - 24: "248130" and for SETUP - 25 -

decimals span "2".

Example 2 Calculating the span for flowrate

Let us assume that the flowmeter generates 20mA at a

rate of 652.31 USGAL per hour, the selected unit is USG

and the time unit is minute.

The span is 652.31 / 60 minutes is 10.87183 (GPM).

Enter for SETUP - 24: "108718" and for SETUP - 25 "4".

This setting determines the number of decimals for Span (SETUP 24). The following can be selected:

0 - 1 - 2 - 3 - 4 - 5 - 6

Please note that this SETUP - influences the accuracy of the Span indirectly. This setting has NO influence on the displayed number of digits for "flowrate" (SETUP 23)!

HF118AEN_v0501_06

Page 16

3 - ALARM

With these settings, it is determined how the flowrate will be monitored and the functionality of the transistor / relay outputs (terminals 03-04, 05-06 and 15-16) be determined.

Note: for transistor / relay output functions: read SETUP 8 “relays”.

SET ALARM 31

FLOW ZERO 32

ALARM VALUE LOW 33 ALARM VALUE HIGH 34 DELAY TIME ALARM LOW 35 DELAY TIME ALARM HIGH 36

This function determines if the flowrate alarm values can be set at both Operator level and SETUP-level or SETUP-level only. If SETUP has been selected, the alarm values are still visible for the Operator but can not be changed. When the flowrate is zero, then it is possible to ignore or disable the flowrate monitoring. The following settings can be selected: DEFAULT: in case of a low-flowrate alarm and zero flow, it will switch

the alarm output and indicate the alarm on the display.

NO RELAY: in case of a low-flowrate alarm and zero flow, it won't

switch the alarm output but will indicate the alarm on the display only.

IGNORE: in case of a low-flowrate alarm and zero flow, it won't

switch the alarm output and nothing will be indicated on

the display. The low alarm is set with this setting. An alarm will be generated as long as the flowrate lower as this. With value 0.0 this function is disabled. The high alarm is set with this setting. An alarm will be generated as long as the flowrate higher as this. With value 0.0 this function is disabled. An alarm generated by SETUP 33 “low” can be ignored during X-time period. If the actual flowrate is still incorrect after this delay time, then an alarm will be generated. An alarm generated by SETUP 34 “high” can be ignored during X-time period. If the actual flowrate is still incorrect after this delay time, then an alarm will be generated.

4 - POWER MANAGEMENT

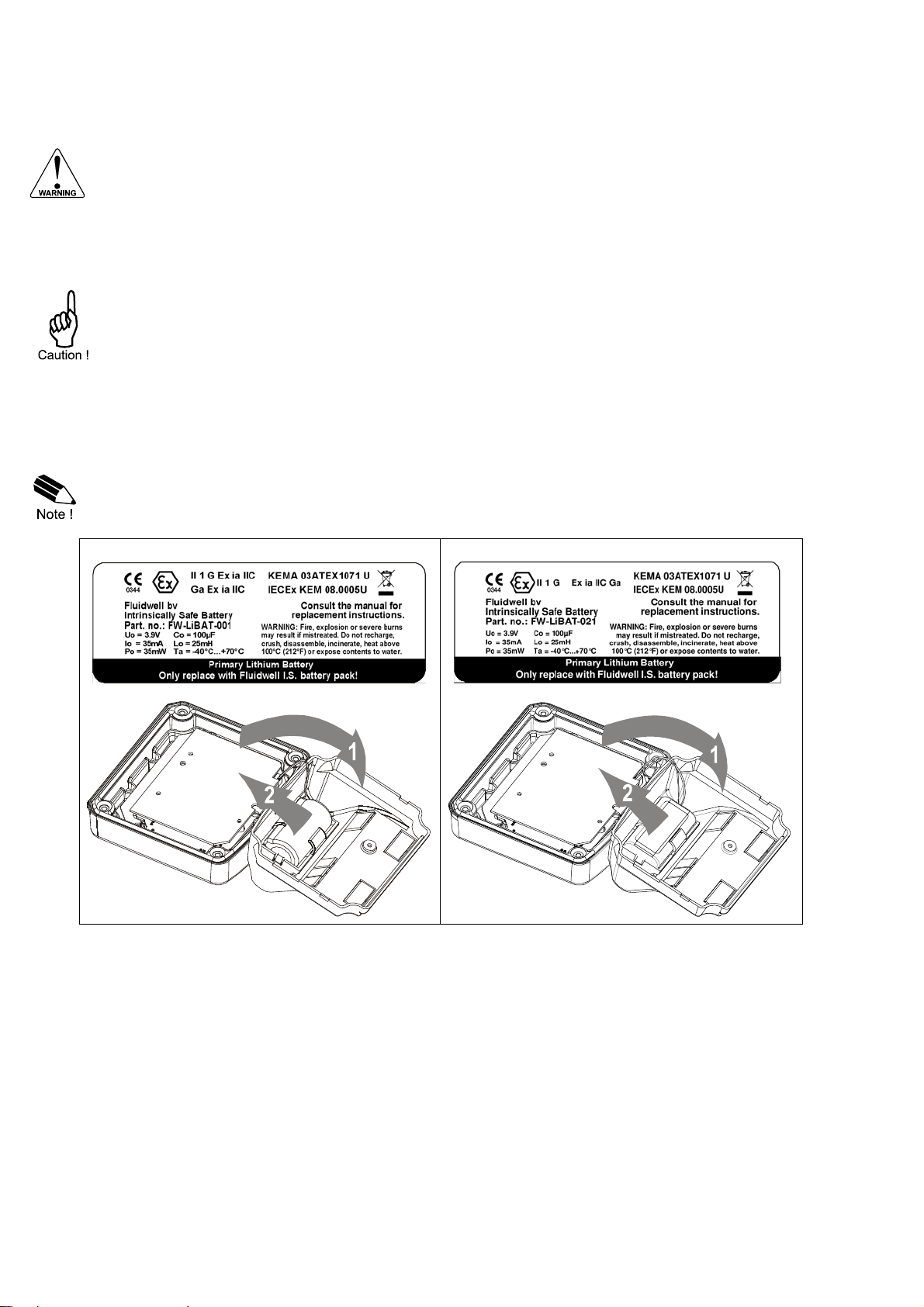

When used with the internal battery option, the user may hold the concern of reliable measurement over a long period of time. The F118-A has several smart power management functions to extend the battery life time significantly. Two of these functions can be set:

LCD NEW 41

BATTERY-MODE 42

The calculation of the display-information influences the power consumption significantly. When the application does not require a fast display update, it is strongly advised to select a slow refresh-rate. Please understand that NO information will be lost; every pulse will be counted and the output-signals will be generated in the normal way. The following can be selected:

Fast - 1 sec - 3 sec - 15 sec - 30 sec - off.

Example 3: Battery life-time

battery life-time with a coil pick-up, 1KHz. pulses and FAST

update: about 2 years.

battery life-time with a coil pick-up, 1KHz. pu lses and 1 sec

update: about 5 years.

Note: after a button has been pressed by the operator - the display refresh-rate will always be FAST during 30 seconds. When "OFF" is selected, the display will be switched-off after 30 seconds and will be switched-on as soon as a button has been pressed.

The unit has two modes: operational or shelf. After "shelf" has been selected, the unit can be stored for several years; it will not count pulses, the display is switched-off but all settings and totals are stored. In this mode, power consumption is extremely low. To wake-up the unit again; press the SELECT-key twice.

HF118AEN_v0501_06

Page 17

SIGNAL 51

5 - FLOWMETER

The F118-A can process the 4-20mA signal in two ways:

 Interpolation: the signal is processed linear

 Square root: for differential pressure

R = S x I

Page 17

R = S √ I

where: R = Rate: the calculated flowrate S = Span: the maximum flowrate at 20mA. The span is programmed

with setting 24 for flowrate and with setting 13 for total. I = Input: the scaled analog value; in these formulas value 0 (zero)

for (0)4mA and value 1 (one) for 20mA.

FILTER 52

FILTER 53

The analog output signal of a flowmeter does mirror the actual flow. This signal is measured several times a second by the F118-A. The value measured is a "snap-shot" of the real flow as it will be fluctuating. With the help of this digital filter a stable and accurate reading can be obtained while the filter level can be set to a desired value. The filter principal is based on three input values: the filter level (01-99), the last measured analog value and the last average value. The higher the filter level, the longer the response time on a value change will be. Below, several filter levels with there response times are indicated: This function is used to stabilize the analog output signal. The output value is update every 0.1 second. With the help of this digital filter a more stable but less actual reading can be obtained. The filter principal is based on three input values: the filter level (01-99), the last analog output value and the last average value. The higher the filter level, the longer the response time on a value change will be. Below, several filter levels with there response times are indicated:

FILTER VALUE RESPONSE TIME ON STEP CHANGE OF ANALOG VALUE.

TIME IN SECONDS

50% INFLUENCE 75% INFLUENCE 90% INFLUENCE 99% INFLUENCE

01 filter disabled filter disabled filter disabled filter disabled 02 0.3 seconds 0.5 seconds 1.0 seconds 1.8 seconds 03 0.5 seconds 1.0 seconds 1.5 seconds 3 seconds 05 1.0 seconds 1.8 seconds 2.8 seconds 5.3 seconds 10 1.8 seconds 3.5 seconds 5.6 seconds 11 seconds 20 3.5 seconds 7.0 seconds 11 seconds 23 seconds 30 5.3 seconds 10 seconds 17 seconds 34 seconds 50 8.8 seconds 17 seconds 29 seconds 57 seconds 75 13 seconds 26 seconds 43 seconds 86 seconds 99 17 seconds 34 seconds 57 seconds 114 seconds

Continued next page >>>

HF118AEN_v0501_06

Page 18

5 - FLOWMETER (CONTINUED)

CUT-OFF 54

FUNCTION

(setup 51)

SPAN

(setup

13/24)

interpolation 450 L/min 25 L/min 25/450 x 100%=5.5% 16mA x 5.5% + 4mA = 4.88mA

square root 450 L/min 25 L/min (25/450)2 x 100%=0.3% 16mA x 0.3% + 4mA = 4.05mA

TUNE MIN / 4MA 55

TUNE MAX / 20MA 56

To ignore e.g. leakage of the flow or vibration, a low-flow cut-off can be set as percentage over the full range of 16mA (or 20mA / 10V). When the analog value is less then required with this setting, the signal will be ignored. The cut-off value can be programmed is the range 0.0 - 99.9%.

Examples:

REQUIRED

CUT-OFF

With this setting it is possible to calibrate the input value for (0)4mA as the signal from the flowmeter might not be exact 4.0 mA (or 0.0 mA) at flowrate zero. This function will measure the real output value at flow zero.

 Warning: be very sure that the offered signal is correct

before the calibration is executed as this function has major influences on the accuracy of the system!

After pressing PROG, three settings can be selected:  CALIBRATE: with this setting, the input will be calibrated with the

actual "(0)4mA" value. After pressing enter, CAL SET will be displayed as soon as the calibration is completed. From that moment, the analog value must be more than the calibrated value before the signal will be processed.

 DEFAULT: with this setting, the manufactures value is re-installed.  CAL SET: to select the last calibrated value.

With this setting it is possible to calibrate the input value for 20mA as the signal from the flowmeter might not be exact 20.0 mA at maximum flowrate. This function will measure the real output value at maximum flowrate.

 Warning: be very sure that the offered signal is correct

before the calibration is executed as this function has major influences on the accuracy of the system!

After pressing PROG, three settings can be selected:  CALIBRATE: with this setting, the input will be calibrated with the

actual "20mA" value. After pressing enter, CAL SET will be displayed as soon as the calibration is completed. From that moment, the analog value must be less than the calibrated value for a reliable measurement.

 DEFAULT: with this setting, the manufactures value is re-installed.  CAL SET: to select the last calibrated value.

CUT-OFF

(setup 63)

REQUIRED OUTPUT

HF118AEN_v0501_06

Page 19

6 - LINEARISATION

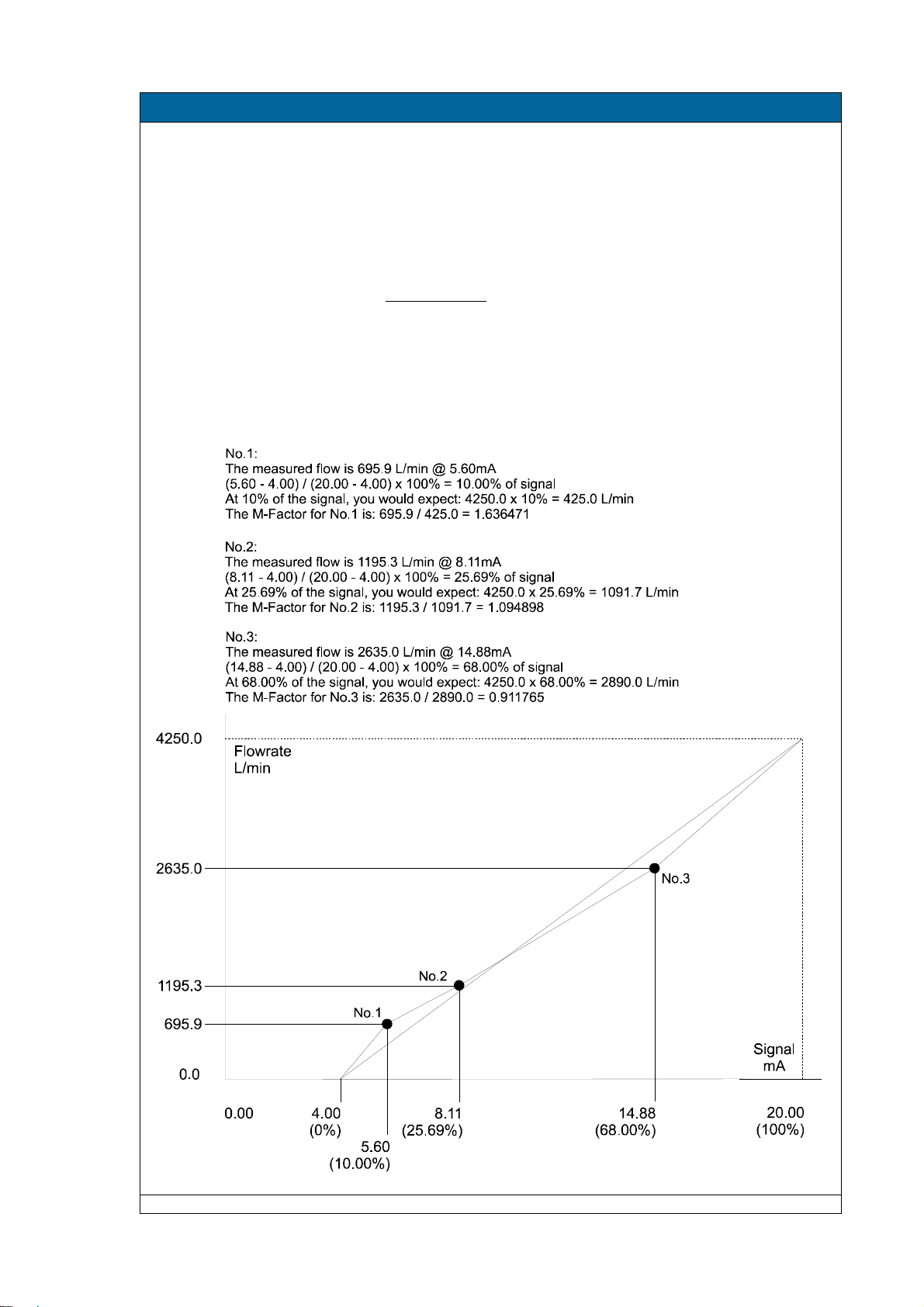

The linearisation function is available to approach the real flowcurve better as with the general Span entered with setup 14 and 24. This to obtain a more accurate flowrate, total and accumulated total as well as the analog and pulse output at any flowmeter signal. A maximum of 15 linearisation-positions can be entered while the interpolation will calculate any other position in-between.

For each linearisation position, the percentage of signal and the Meter Factor (MF) must be entered.

The Meter Factor for each linearisation step is calculated with following formula:

calculated flow

The lowest percentage and MF you enter will be valid from 0V. The highest percentage and MF will be valid till 10V. It is advised to enter the percentages in increasing order, however it is not necessary. Please have a look at following example to understand the method of linearisation:

Continued next page >>>

Meter-Factor =

measured flow

HF118AEN_v0501_06

Page 20

6 - LINEARISATION (CONTINUED)

PERCENTAGE / M-FACTOR 61 TO 6A

DISABLE / ENABLE 6B

The percentage is displayed at the bottom line of the display. With value 0% the M-Factor is disabled.

The M-Factor is displayed at the top-line of the display. The minimum value to be entered is 0.000001 and the maximum value is 9.999999.

Please note that this value has always six decimals while the "dot" is not displayed.

Most M-factors will be around 1.000000 like 0.945354 or 1.132573. With this setup function, you can easily enable / disable the linearisation function.

7 - ANALOG OUTPUT

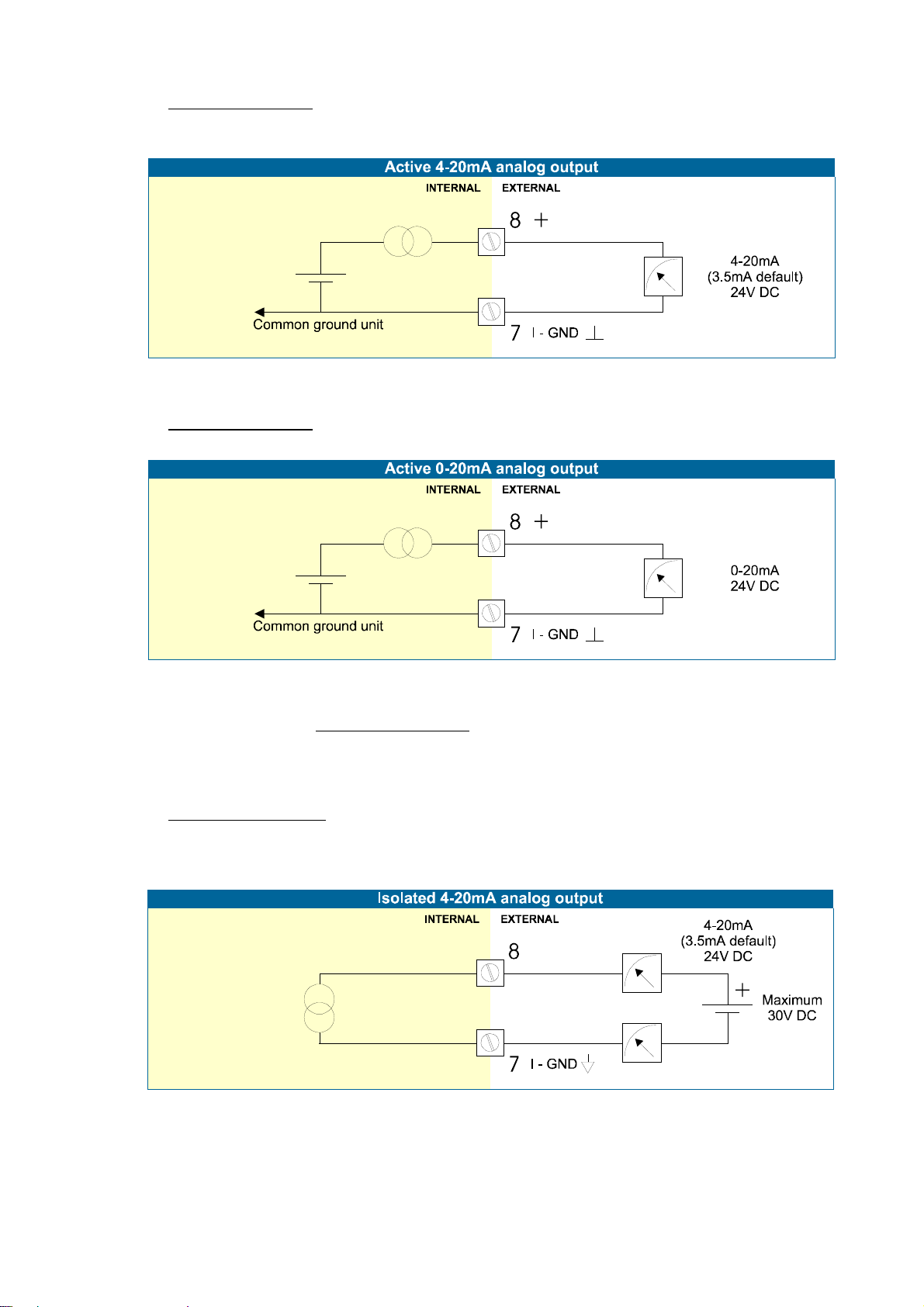

A linear 4-20mA signal (type AB: 0-20mA or type AU: 0-10V) output signal is generated according to the flowrate with a 10 bits resolution. The settings for flowrate (SETUP - 2) influences the analog output directly.

Note: When the analog-output is not used, please make sure that setting 71 is disabled, else the battery life-time will be reduced significantly!

When a power supply is available but the output is disabled, a 3.5mA signal will be generated. The relationship between rate and analog output is set with following functions:

DISABLE / ENABLE 71

MINIMUM FLOWRATE 72

MAXIMUM FLOWRATE 73

TUNE MIN / 4MA 74

TUNE MAX / 20MA 75

The D/A converter has a relatively high power consumption. If the analog output will not be used, select "disable" to switch-off the converter. For more information read par. 4.4.3. Enter here the flowrate according which the output should generate a 4mA signal (or 0mA / 0V) - in most applications at flowrate "zero". The number of decimals displayed is according to SETUP 23. The time and measuring units (L/min for example) are according SETUP 21 and 22 but can not be displayed. Enter here the flowrate according which the output should generate a 20mA (or 10V) - in most applications at maximum flow. The number of decimals displayed is according to SETUP 23. The time and measuring units (L/min for example) are according SETUP 21 and 22 but can not be displayed. The initial minimum analog output value is 4mA (or 0mA / 0V). However, this value might slightly differ due to external influences such as temperature for example The 4mA value (or 0mA / 0V) can be tuned exactly with this setting.

 Before tuning the signal, be sure that the analog signal is not

used for any application!

After pressing PROG, the current will be about 4mA (or 0mA / 0V). The current can be increased/decreased with the arrow-keys and is directly active. Press ENTER to store the new value. The initial maximum analog output value is 20mA (or 10V). However, this value might slightly differ due to external influences such as temperature for example The 20mA value (or 10V) can be tuned exactly with this setting.

 Before tuning the signal, be sure that the analog signal is not

used for any application!

After pressing PROG, the current will be about 20mA. The current can be increased/decreased with the arrow-keys and is directly active. Press ENTER to store the new value.

HF118AEN_v0501_06

Page 21

8 - RELAY OUTPUT

With the exception of the Intrinsically Safe version, three transistor outputs are available or one transistor output plus two electro-mechanical relay outputs.

Note: the alarm settings - SETUP 3 - need to correspond with the selections below.

OUTPUT R1 TRANSISTOR / RELAY 81

OUTPUT R2 TRANSISTOR / RELAY 82 OUTPUT R3 TRANSISTOR 83

PERIOD TIME PULSE OUTPUT 84

PULSE PER 85

Assign the output function to R1 - terminal 05-06: high alarm, low alarm, flowrate alarm or pulse output (max 5Hz)

Note: Intrinsically safe applications: this setting has no influence on any output; please read 83: R3.

Assign the output function to R2 - terminal 03-04: high alarm, low alarm, flowrate alarm or pulse output (max 60Hz)

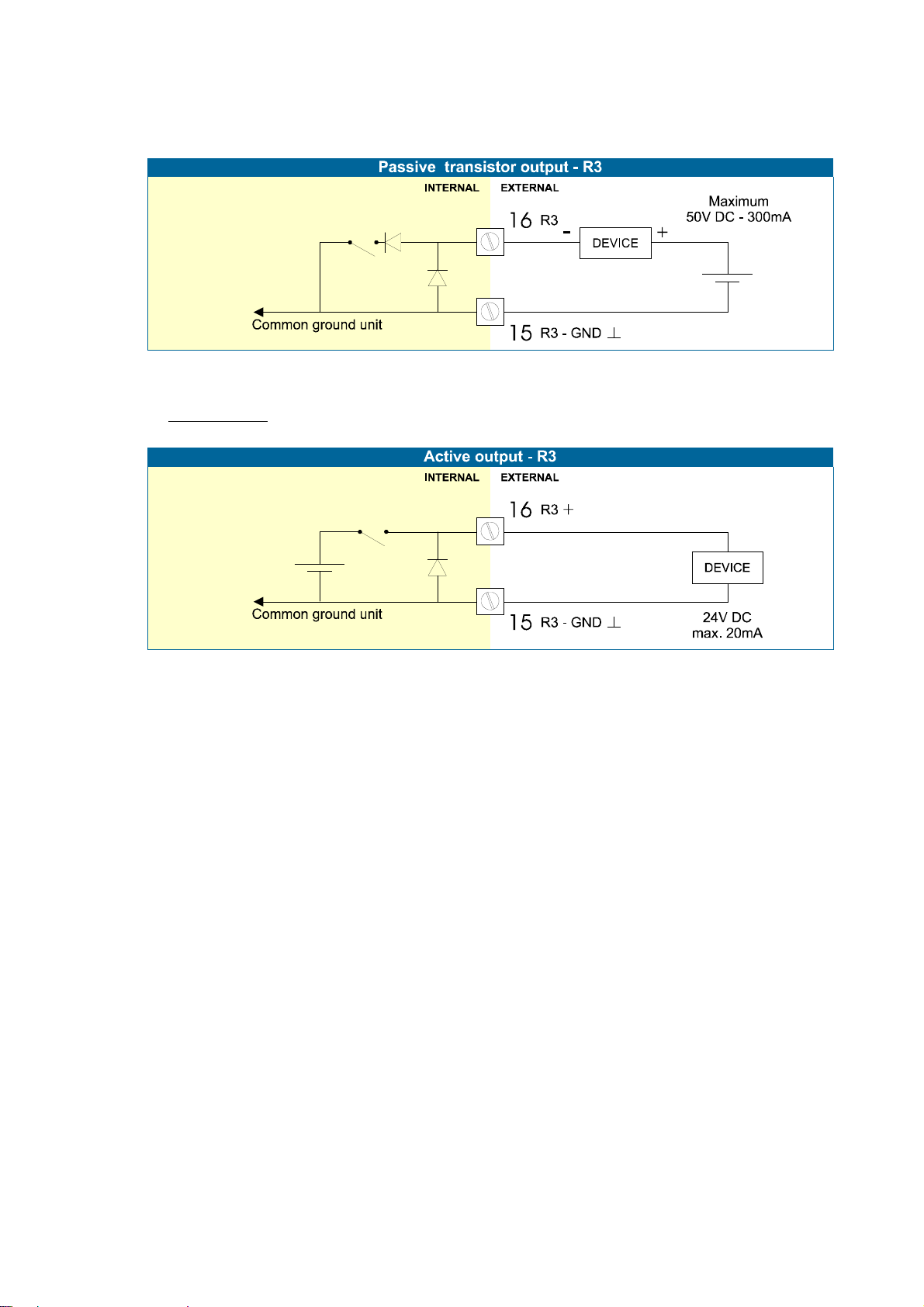

Assign the output function to R3 - terminal 15-16 - which is always a transistor output: high alarm, low alarm, flowrate alarm or pulse output (max 60Hz)

Note: Intrinsically safe applications: This output is assigned to output R1 and not R3.

The period time determines the time that the transistor or relay will be switched; in other words the pulse length. The minimum time between the pulses is as long as the period time. One period is approx. 7.8 msec. If the value selected is “zero”, the pulse output is disabled. The maximum value is 255 periods.

Note: If the frequency should go out of range - when the flowrate increases for example - an internal buffer will be used to "store the missed pulses": As soon as the flowrate reduces again, the buffer will be "emptied". It might be that pulses will be missed due to a buffer-overflow, so it is advised to program this setting within it's range.

NUMBER OF PERIODS PERIOD TIME MAX. FREQUENCY

0 disabled disabled 1 0,0078 seconds 64 Hz. 2 0,0156 seconds 32 Hz. 3 0,0234 seconds 21 Hz.

64 0,5000 seconds 1 Hz.

255 1,9922 seconds 0.25 Hz. According to the measurement unit settings for total, a pulse will be generated every X-quantity. Enter this quantity here while taking the displayed decimal position and measuring unit into account.

Page 21

9 - COMMUNICATION (OPTIONAL)

Functions as described below deal with hardware that are not part of the standard delivery. Programming of these functions does not have any effect if this hardware has not been installed. Consult Appendix C and the Modbus communication protocol description for a detailed explanation.

BAUDRATE 91

BUS ADDRESS 92 MODE 93

For external control, following communication speeds can be selected:

1200 - 2400 - 4800 - 9600 baud

For communication purposes, a unique identity can be attributed to every F118-A. This address can vary from 1-255. The communication can only be executed according Modbus protocol RTU mode (ASCII is not available for this model). With OFF, the communication is disabled.

HF118AEN_v0501_06

Page 22

TYPE OF MODEL A1

VERSION SOFTWARE A2

SERIAL NUMBER A3

PASSWORD A4

TAGNUMBER A5

A - OTHERS

For support and maintenance it is important to have information about the characteristics of the F118-A. Your supplier will ask for this information in the case of a serious breakdown or to assess the suitability of your model for upgrade considerations. For support and maintenance it is important to have information about the characteristics of the F118-A. Your supplier will ask for this information in the case of a serious breakdown or to assess the suitability of your model for upgrade considerations. For support and maintenance it is important to have information about the characteristics of the F118-A. Your supplier will ask for this information in the case of a serious breakdown or to assess the suitability of your model for upgrade considerations. All SETUP-values can be password protected. This protection is disabled with value 0000 (zero). Up to and including 4 digits can be programmed, for example 1234. For identification of the unit and communication purposes, a unique tagnumber of maximum 7 digits can be entered.

HF118AEN_v0501_06

Page 23

4. INSTALLATION

4.1. GENERAL DIRECTIONS

 Mounting, electrical installation, start-up and maintenance of this instrument may only be carried

out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions.

 The F118-A may only be operated by personnel who are authorized and trained by the operator

of the facility. All instructions in this manual are to be observed.

 Ensure that the measuring system is correctly wired up according to the wiring diagrams.

Protection against accidental contact is no longer assured when the housing cover is removed or the panel cabinet has been opened (danger from electrical shock). The housing may only be opened by trained personnel.

 Take careful notice of the " Safety rules, instructions and precautionary measures " at the front

of this manual.

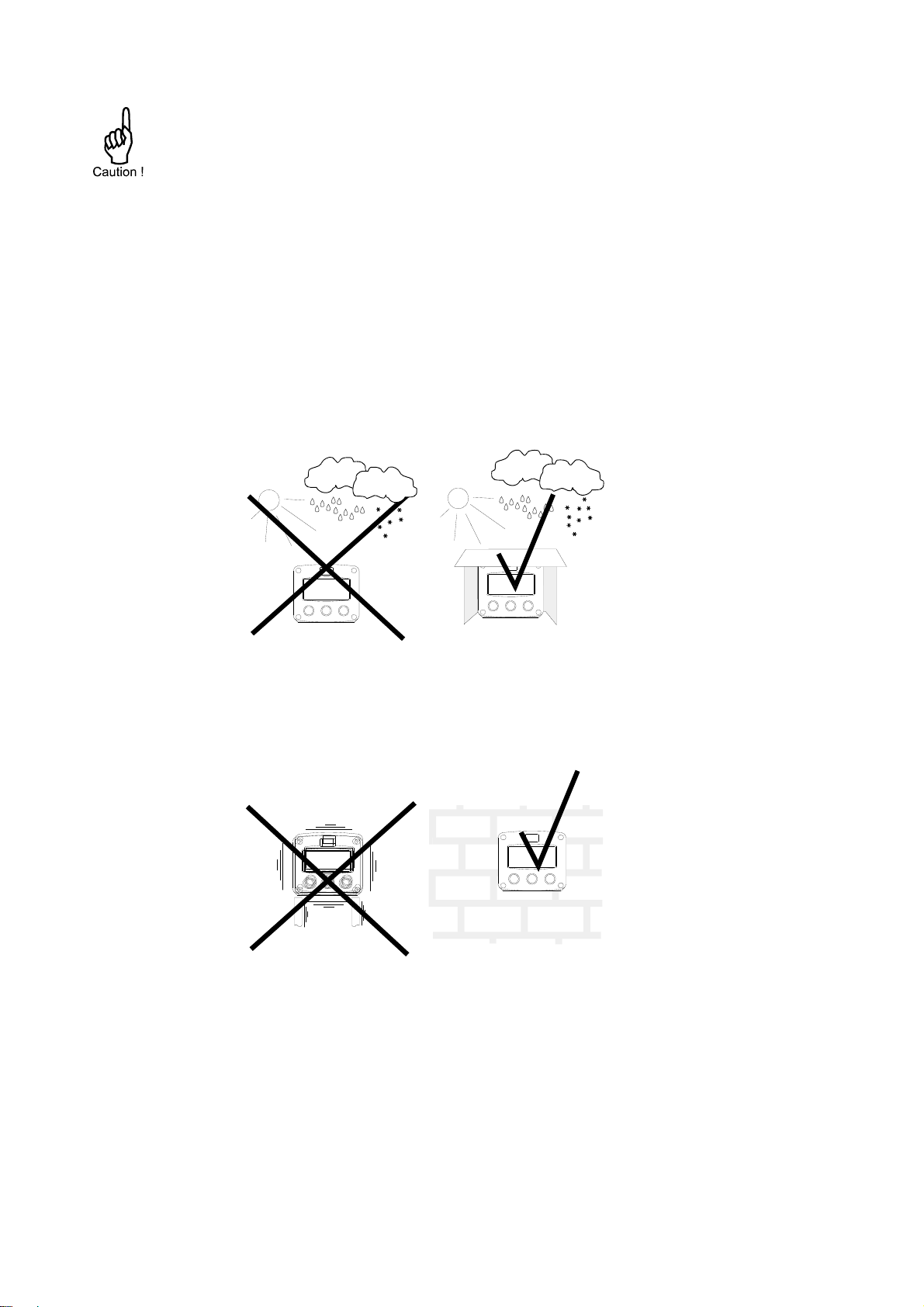

4.2. INSTALLATION / SURROUNDING CONDITIONS

Take the relevant IP classification of the casing into account (see manufactures plate). Even an IP67 (NEMA 4X) casing should NEVER be exposed to strongly varying (weather) conditions. When panel-mounted, the unit is IP65 (NEMA 4X)! When used in very cold surroundings or varying climatic conditions, take the necessary precautions against moisture by placing a dry sachet of silica gel, for example, inside the instrument case.

Mount the F118-A on a solid structure to avoid vibrations.

HF118AEN_v0501_06

Page 24

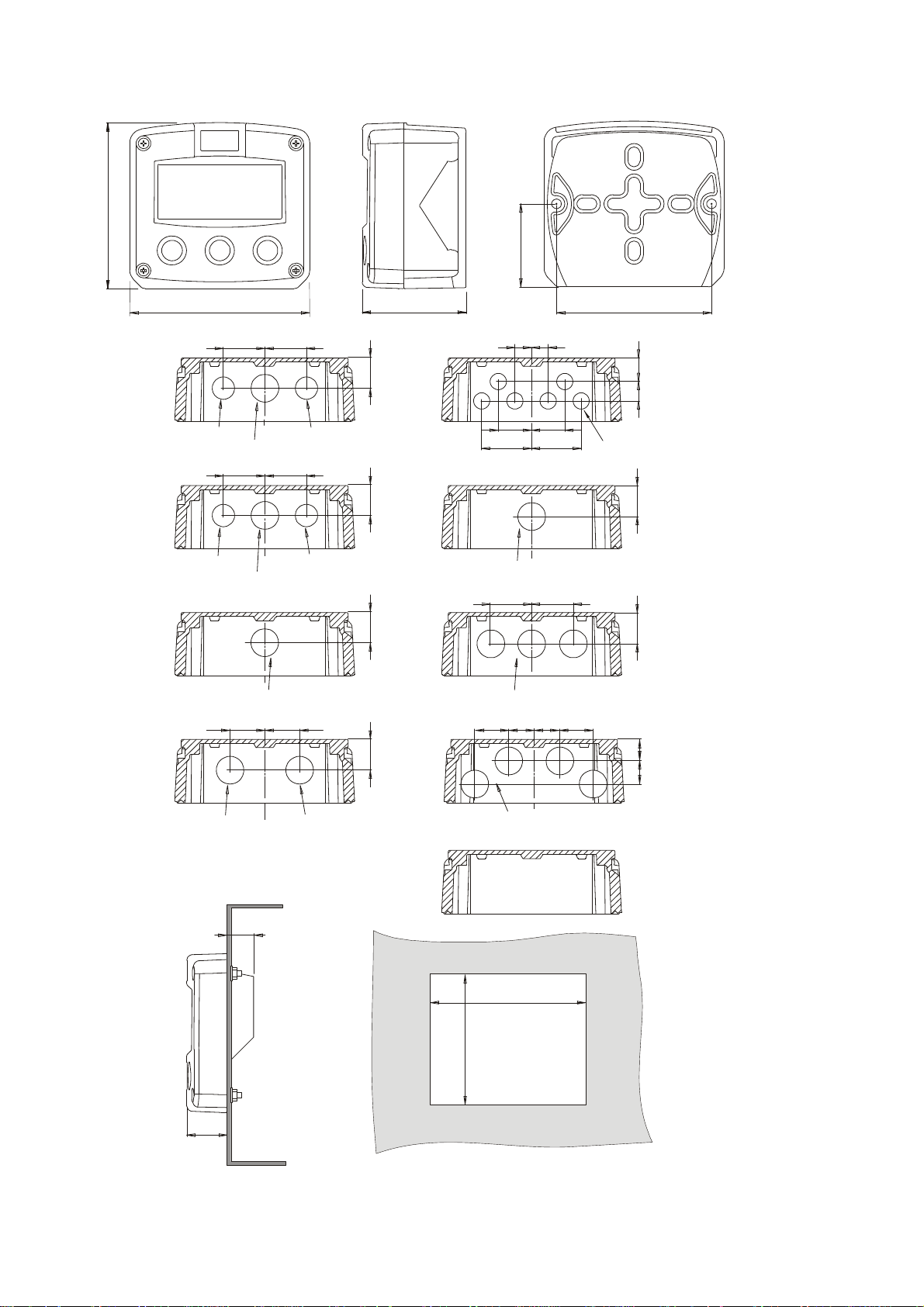

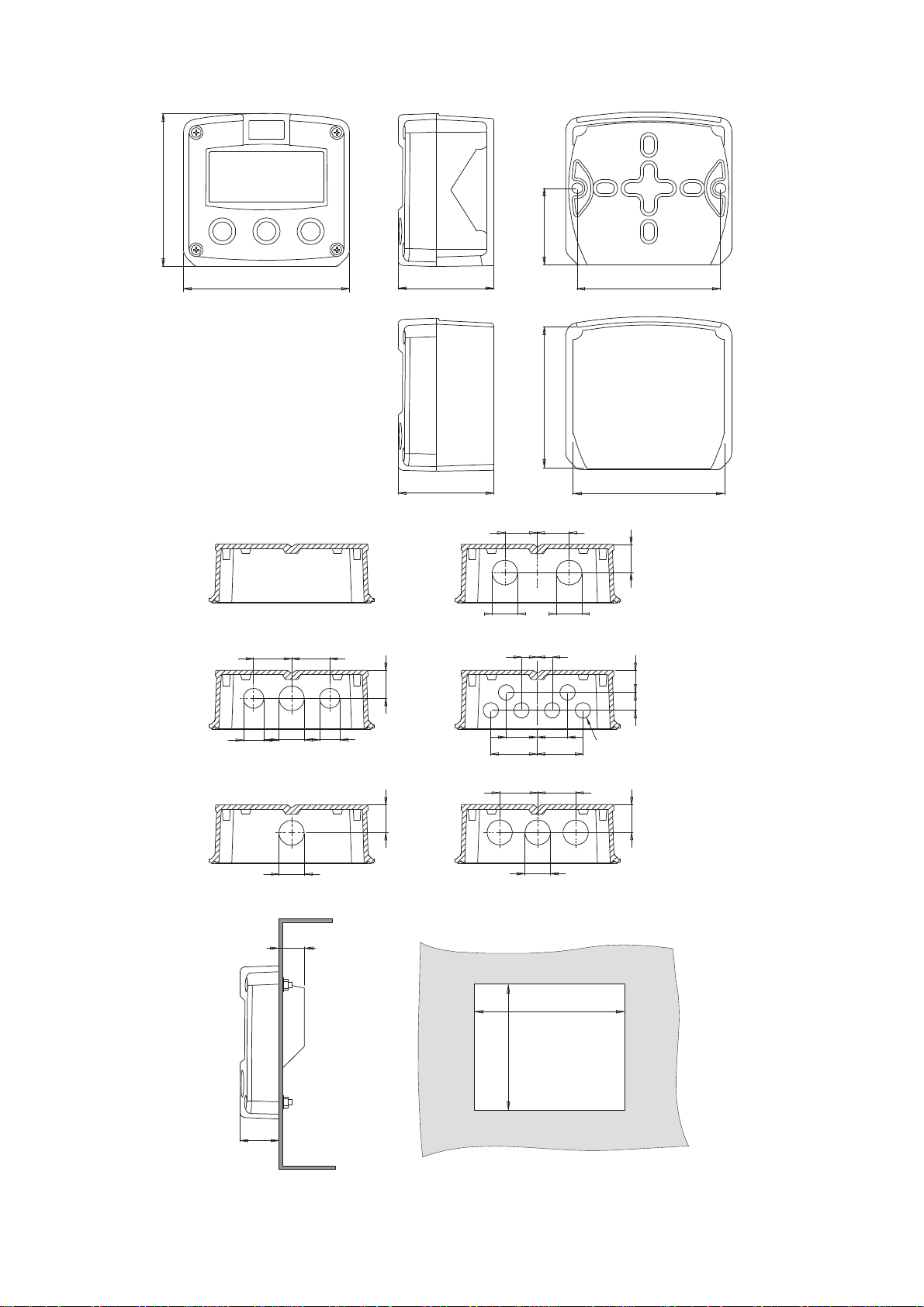

4.3. DIMENSIONS- ENCLOSURE Aluminum enclosures:

120 mm (4.72")

130 mm (5.12")

30mm 30mm

75 mm (2.95")

60 mm (2.36")

12mm

112 mm (4.40")

12mm

PG9

M20 x 1,5

30mm 30mm

M16 x 1,5 M16 x 1,5

M20 x 1,5

25mm 25mm

M20 x 1,5 M20 x 1,5

PG9

22,5mm

22,50mm

22,5mm

24mm24mm

36mm

4x M20 x 1,5

36mm

1/2"NPT

0.12" 0.12"

3x 1/2"NPT

15 15

2323

6 x M12

14mm 17mm

0.9"

15 16

31 mm

(1.22”)

29.1 mm (1.15”)

115 mm (4.53”)

98 mm (3.86”)

Fig. 6: Dimensions aluminum enclosures.

HF118AEN_v0501_06

Page 25

GRP enclosures:

120 mm (4.72")

130 mm (5.12")

HK back box:

75 mm (2.95")

60 mm (2.36")

112 mm (4.40")

Page 25

(flat bottom)

HD HK

D=16mm

30mm 30mm

D=16mm

D=20mm

75 mm (2.95")

22,5mm

0.9"

25mm 25mm

D=20mm

12mm

36mm

0.12” 0.12”

104 mm (4.09”)

D=20mm

12mm

24mm24mm

36mm

118 mm (4.65”)

22,5mm

14mm 17m m

D=12mm

0.9”

D=22mm (0.866")

29.1 mm (1.15”)

31 mm

(1.22”)

3x D=22mm (0.866”)

115 mm (4.53”)

98 mm (3.86”)

Fig. 7: Dimensions GRP enclosures.

HF118AEN_v0501_06

Page 26

4.4. INSTALLING THE HARDWARE

4.4.1. INTRODUCTION

 Electro static discharge does inflict irreparable damage to electronics! Before installing or

opening the unit, the installer has to discharge himself by touching a well-grounded object.

 This unit must be installed in accordance with the EMC guidelines (Electro Magnetic

Compatibility).

Aluminum enclosures

 When installed in an aluminum enclosure and a potentially explosive atmosphere requiring

apparatus of equipment protection level Ga and Da, the unit must be installed such that, even in the event of rare incidents, an ignition source due to impact or friction sparks between the enclosure and iron/steel is excluded.

 Do ground the aluminum enclosure properly as indicated, if the F118-A has been supplied with

the 115-230V AC power-supply type PM. The green / yellow wire between the back-casing and removable terminal-block may never be removed.

Fig. 8: Grounding aluminum enclosure with type PM 115-230V AC.

FOR INSTALLATION, PAY EMPHATIC ATTENTION TO:

 Separate cable glands with effective IP67 (NEMA4X) seals for all wires.  Unused cable entries: ensure that you fit IP67 (NEMA4X) plugs to maintain rating.  A reliable ground connection for both the sensor, and if applicable, for the metal casing.  An effective screened cable for the input signal, and grounding of its screen to terminal 9 (GND)

or at the sensor itself, whichever is appropriate to the application.

HF118AEN_v0501_06

Page 27

4.4.2. VOLTAGE SELECTION SENSOR SUPPLY

For Intrinsically Safe applications: read chapter 5.

Battery powered and output-loop powered applications:

Terminal 11 offers a supply voltage of 3.2 V DC (coil signals 1.2V) for the signal output of the flowmeter.

Note: This voltage MAY NOT be used to power the flowmeters electronics, converters etc. as it is not a power output! All energy used by the flowmeters pick-up influences the battery life-time directly.

Option PD-PN: Sensor supply: 3.2V - 8.2V - 12V or 24 V:

With this option, a real power supply for the sensor is available. The flowmeter can be powered with

8.2 - 12 or 24 V DC (max. 50mA@24V). The voltage is selected with the three switches inside the enclosure.

Page 27

 Warning: be sure that all the leads to the terminals are disconnected from the unit when

the internal plastic protection cover has been removed !

 HIGH VOLTAGE 400V !! NEVER connect the mains power supply to the unit when the

plastic protection cover has been removed !!!

First, remove the terminals after which the internal plastic cover can be removed. The switches are located in the top left corner (option PD) or on the right hand (option PM) as indicated:

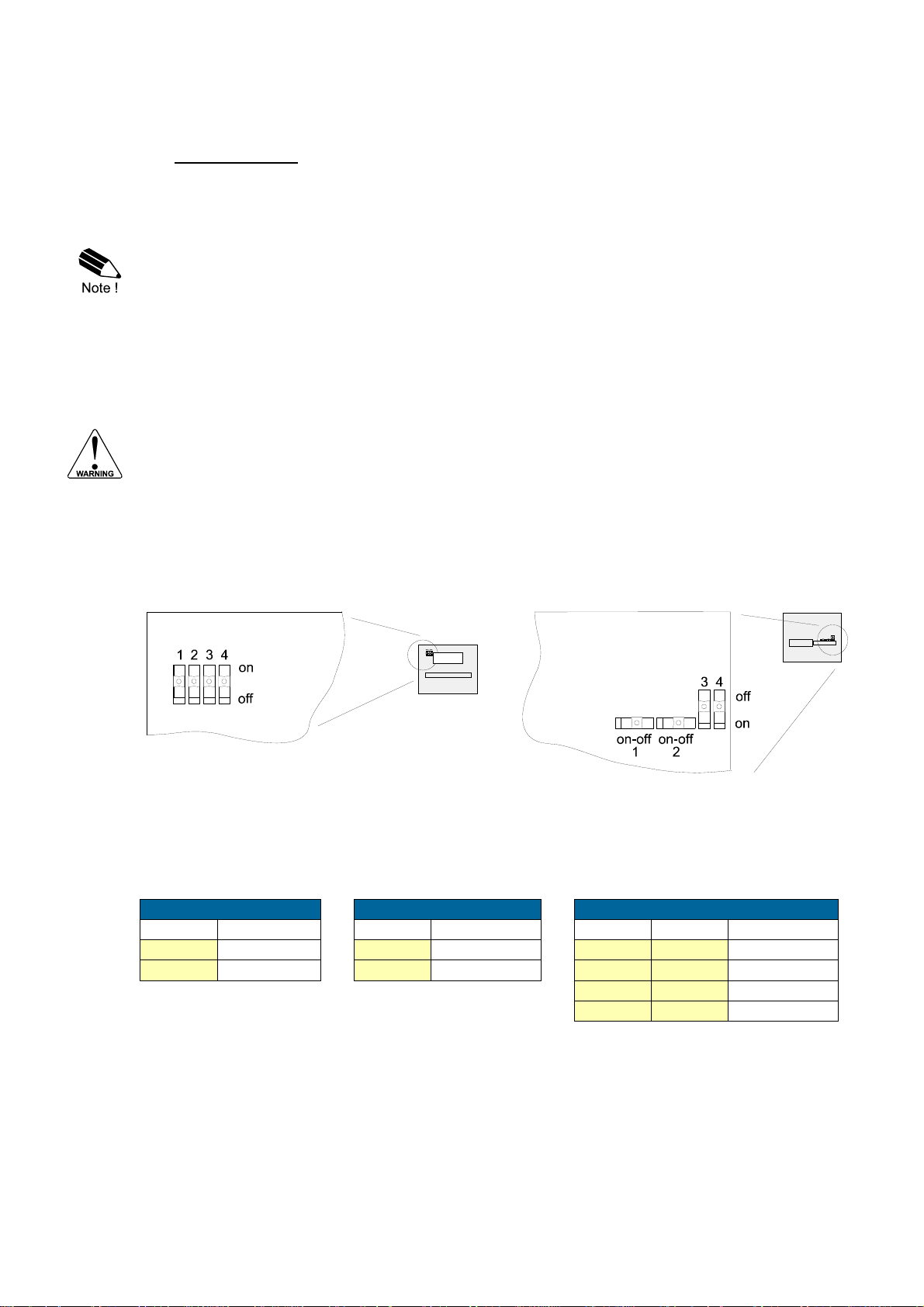

Fig. 9: switch position voltage selection (option PD and PM).

Switch positions

SENSOR A SENSOR B VOLTAGE SELECTION

SWITCH 1 VOLTAGE SWITCH 2 VOLTAGE SWITCH 3 SWITCH 4 VOLTAGE

on 3.2 V DC on on 8.2 V DC off switch 3+4 off on 12 V DC

on off 12 V DC off off 23 V DC

Function switch 1: voltage selection sensor A - terminal 11. Function switch 2: voltage selection sensor B - terminal 14. Function switch 3+4: the combination of these switches determine the voltage as indicated.

If switch 1 and 2 are both set to position OFF than the selected voltage with switch 3+4 is valid for both sensors.

HF118AEN_v0501_06

Page 28

bac

YPE

ype

O ype

4.4.3. TERMINAL CONNECTORS

For Intrinsically Safe applications: read chapter 5.

The following terminal connectors are available:

Fig. 10: Overview of terminal connectors standard configuration F118-A and options.

REMARKS: TERMINAL CONNECTORS:

Power Supply: Terminal GND- 01- 02 only available with type PD, PF or PM:

Terminal

TYPE SENSOR SUPPLY

GND 01 02

PD 8-24V AC 8,2-12-24V max. 50mA

AC AC

PD 8-30V DC 8,2-12-24V max. 50mA L- L+ PF

24V AC ± 15%

24V DC ± 15%

115-230V AC ± 15%

Note PF / PM

8,2-12-24V max. 400mA 8,2-12-24V max. 400mA L- L+ 8,2-12-24V max. 400mA EARTH AC AC

The total consumption of the sensors and outputs may not exceed 400mA@24V

AC AC

◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊

h kli

TYPE AA

◊=option

For Intrinsically Safe applications: read chapter 5.

HF118AEN_v0501_06

Page 29

Terminal 03-04; transistor type OT - output R2:

This output is always a fast output. With SETUP 8, the function of this output is set to a flowrate alarm output or pulse output. If pulse output function is selected: the maximum pulse frequency of this output is 60Hz. If a relay output option has been supplied, be sure that the output frequency does not exceed 5Hz or else the life-time of the relay will be reduced significantly.

Terminal 05-06; transistor type OT - output R1:

This output is always a slow output. With SETUP 8, the function of this output is set to a flowrate alarm output or pulse output. If pulse output function is selected: the maximum pulse frequency of this output is 5Hz.

Type OA: An active 24V DC signal flowrate alarm output or pulse output is available with this option. Max. driving capacity 20mA@24V per output. (Requires power supply type PD / PF / PM).

HF118AEN_v0501_06

Page 30

Type OR:

A mechanical relay output flowrate alarm output or pulse output is available with this option. Max. switch power 240V 0,5A per output. (Requires power supply type PF / PM).

Terminal 07-08 POWER SUPPLY type PX - output loop powered:

Connect an external power supply of 8-24 volts AC or 8-30VDC to these terminals or a 4-20mA loop. For a DC supply: connect the "-" to terminal 7 and the "+" to terminal 8. When power is applied to these terminals, the (optional) internal battery will be disabled / enabled automatically to extend the battery life time. (Only valid for standard passive output).

Terminal 07-08 analog output (passive) (SETUP 6) :

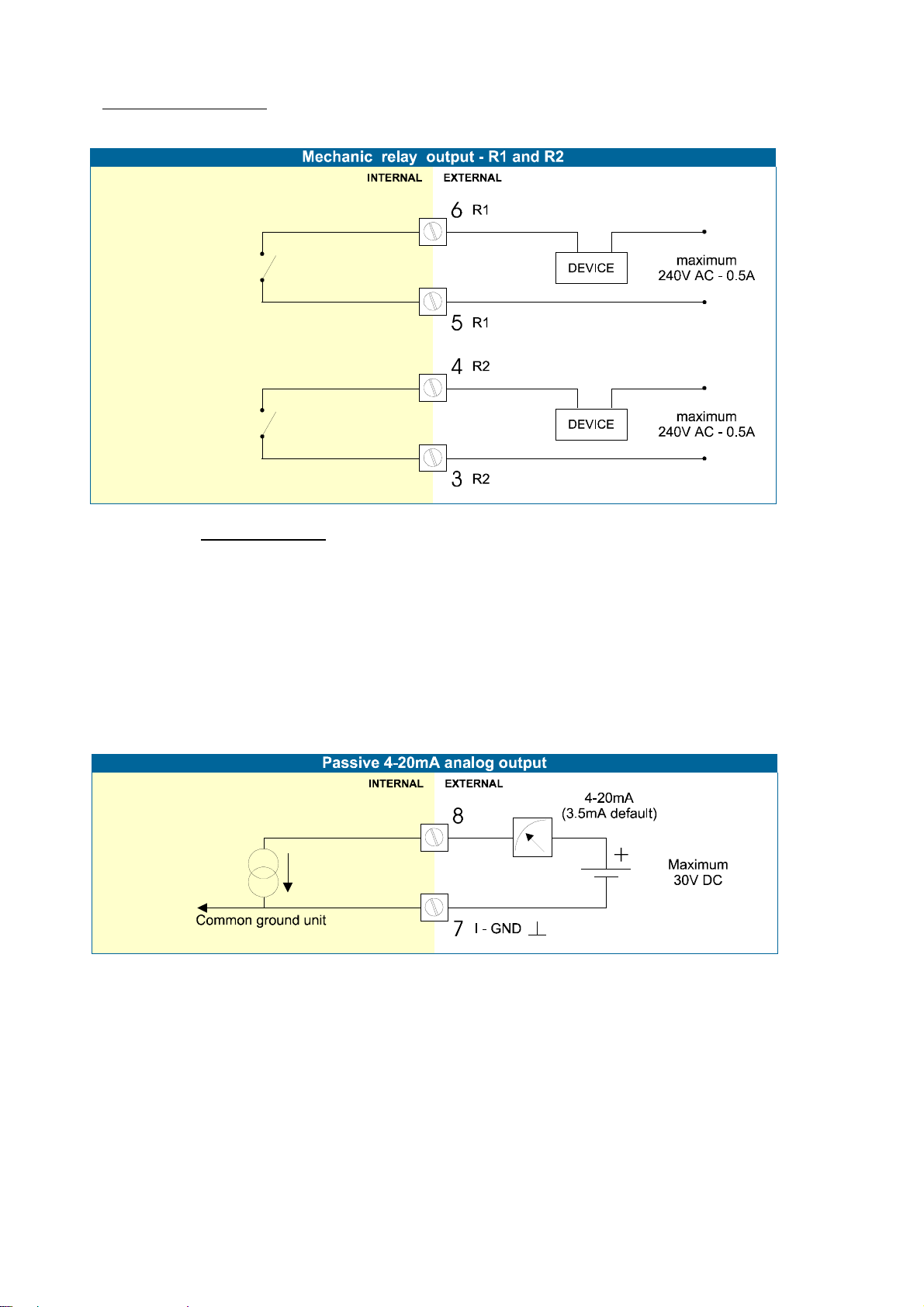

A 4-20mA current-sinking signal proportional to the flowrate is available as standard. A DC power supply should be connected to terminal 07 and 08, the current is then regulated by unit. This DC supply is also used to power the unit (output loop-powered). When a power supply is connected but the output is disabled, a 3.5mA signal will be generated. Max. driving capacity 1000 Ohm.

HF118AEN_v0501_06

Page 31

Type AA: An active 4-20mA signal proportional to the flowrate is available with this option. When the output is disabled, a 3.5mA signal will be generated on these terminals. Max. driving capacity 1000 Ohm @ 24VDC. (Requires power supply type PD / PF / PM).

Type AB: An active 0-20mA signal proportional to the flowrate is available with this option. Max. driving capacity 1000 Ohm @ 24VDC. (Requires power supply type PD / PF / PM).

Page 31

Type AF:

For the Intrinsically Safe floating 4-20mA signal: please read Chapter 5.

Type AI:

An isolated 4-20mA signal proportional to the flowrate is available with this option. When the output is disabled, a 3.5mA signal will be generated on these terminals. Max. driving capacity 1000 Ohm @ 30VDC. This option can be battery powered but the life time of the battery is about 2 -3 years.

HF118AEN_v0501_06

Page 32

Type AU:

A 0-10VDC signal proportional to the flowrate is available with this option. Max. load 10mA @ 10VDC. (Requires power supply type PD / PF / PM).

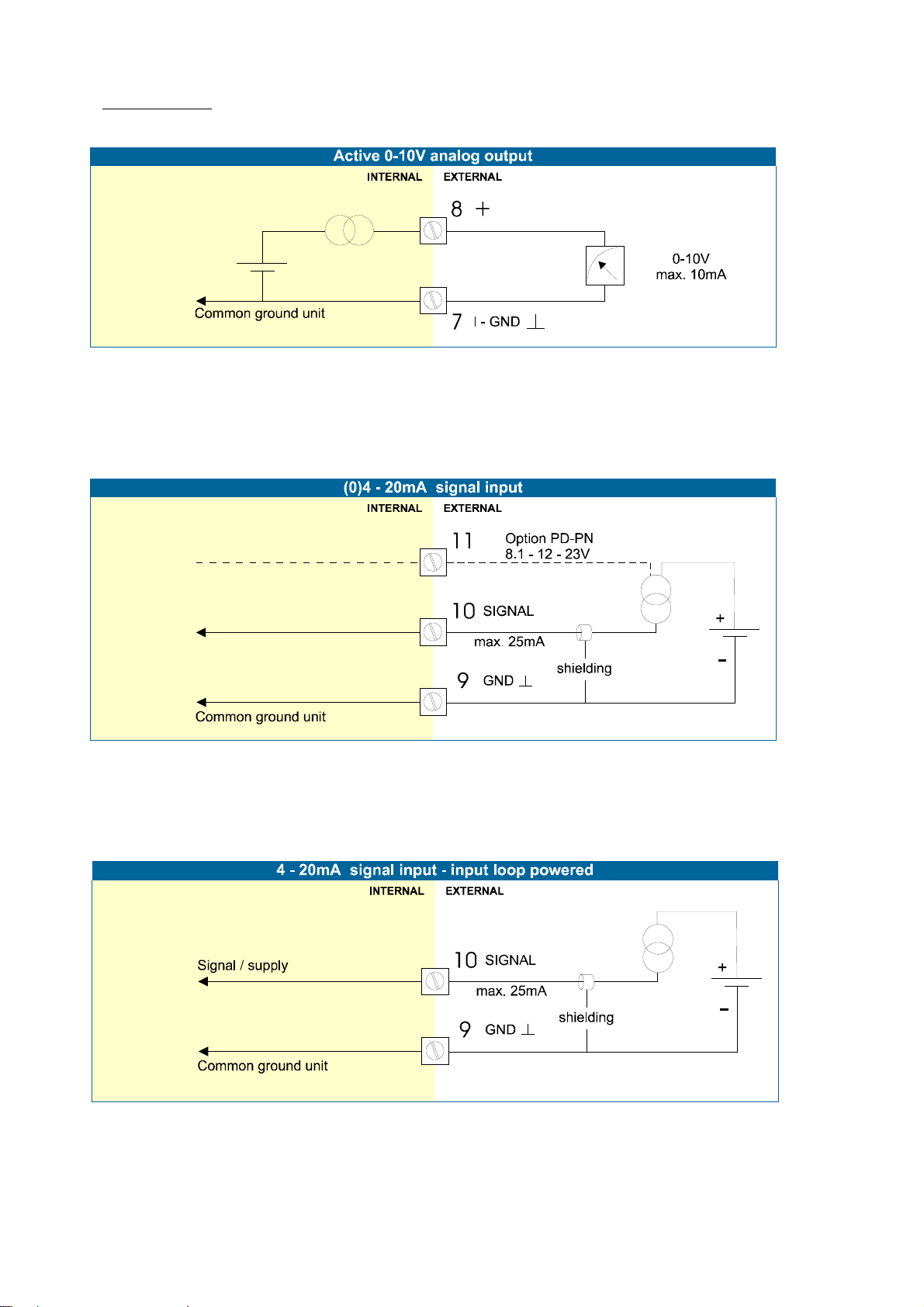

Terminal 09-11: Type A – Flowmeter input (general)

The F118-A requires a (0)4-20mA flowmeter signal which will be processed 4 times a second with a 14 bits accuracy. The input is not isolated.

For Intrinsically safe applications (without input loop power): please read chapter 5.

Terminal 09-10: Type A-PL – Flowmeter input / power supply:

The F118-A-PL requires a 4-20mA flowmeter signal which has a double function: The signal will be processed 4 times a second with a 14 bits accuracy and the unit will be powered from the sensor signal (input loop powered). The input is not isolated and not intrinsically safe.

HF118AEN_v0501_06

Page 33

Terminal 14-15; transistor output R3:

This output is always a fast transistor output. With SETUP 8, the function of this output is set to a flowrate alarm output or pulse output. If used as a pulse output: the maximum frequency of this output is 60Hz.

Type OA: An active 24V DC flowrate alarm output or pulse output is available with this option. Max. driving capacity 20mA@. (Requires power supply type PD / PF / PM).

HF118AEN_v0501_06

Page 34

Terminal 26 - 31: communication RS232/RS485 - type CB / CH / CI / CT:

 Full serial communications and computer control in accordance with RS232 (length of cable

max. 15 meters) or RS485 (length of cable max. 1200 meters) is possible.

 Read the Modbus communication protocol and Appendix C.

RS485 - 2-wire

RS485 - 4-wire

RS232

26 27 29

A B+

30 31 30 31

26 27

A B+

30 31

26 27 29

DTR +12V

RXD TXD

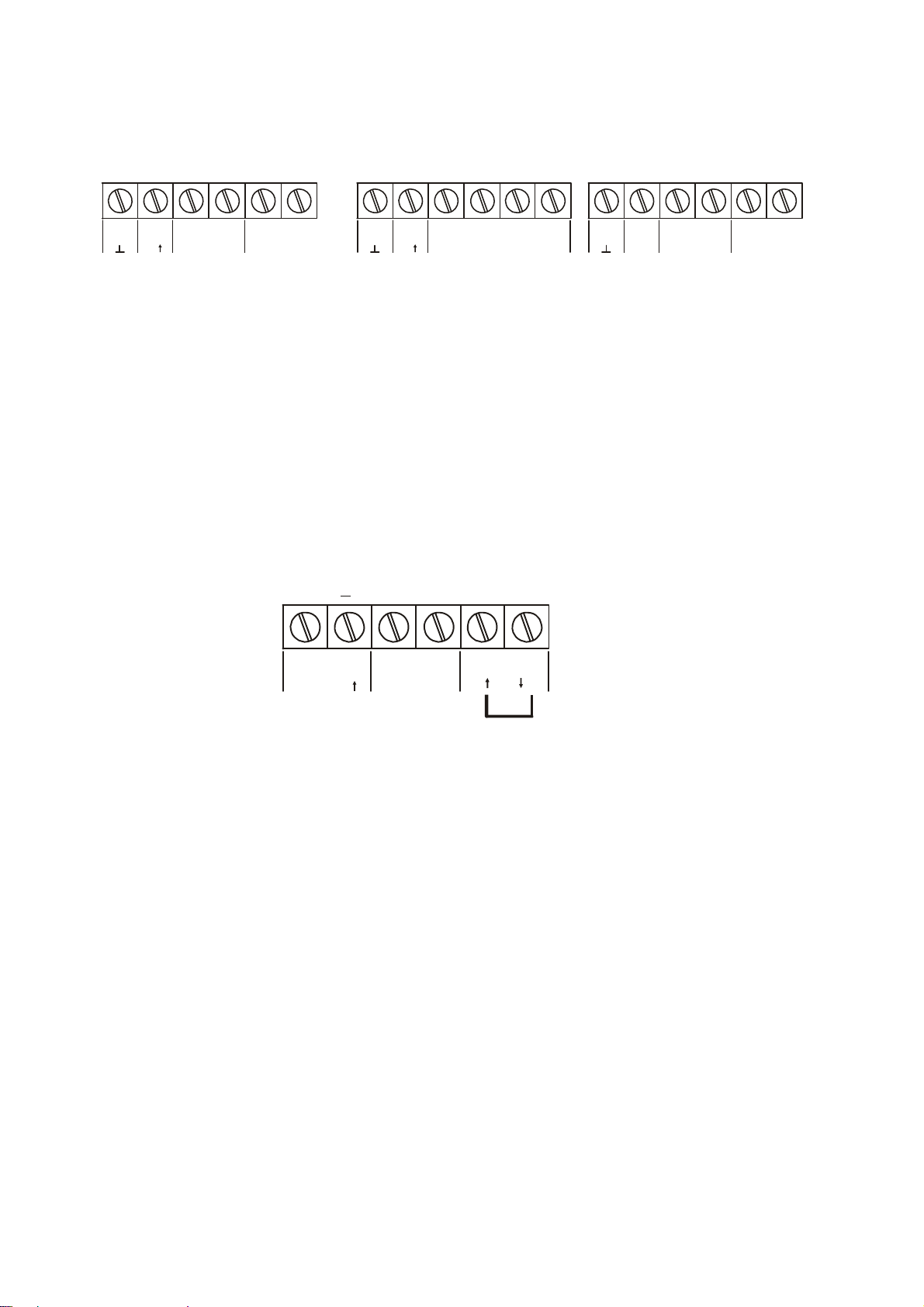

Fig. 11: Overview terminal connectors communication option.

When using the RS232 communication option, terminal 27 is used for supplying the interface. Please connect the DTR (or the RTS) signal of the interface to this terminal and set it active (+12V). If no active signal is available it is possible to connect a separte supply between terminals 26 and 27 with a voltage between 8V and 24V.

Terminal 26-31: backlight option type ZB:

To power the backlight, provide a 12-24V DC to terminal 26 (-) and 27 (+). An external trimmer 1kOhm trimmer can be used to tune the brightness of the backlight, or if not desired, a short-cut between these terminals have to be made which will result in the maximum brightness. Note: Intrinsically Safe as well as 4-wire RS485 communication is not possible in combination with option ZB.

Option type ZB: adjustable backlight

Power suppply

12-24V DC 10%+

GND

1kOhm trimmer connection

or short-cut

30 3126 27

HF118AEN_v0501_06

Page 35

5. INTRINSICALLY SAFE APPLICATIONS

5.1. GENERAL INFORMATION AND INSTRUCTIONS

Cautions

 Mounting, electrical installation, start-up and maintenance of this device may only be carried out

by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions.

 This device may only be operated by personnel who are authorized and trained by the operator

of the facility. All instructions in this manual are to be observed.

 Ensure that the measuring system is correctly wired up according to the wiring diagrams.

Protection against accidental contact is no longer assured when the housing cover is removed or the cabinet has been opened (danger of electric shock). The housing may only be opened by trained personnel.

 To maintain the degree of protection of at least IP65 in accordance with IEC 60529, certified

cable entries in accordance with IEC 61241-0 must be used and correctly installed. Unused openings must be closed with suitable blanking elements.

 When the enclosure of the Indicator is made of aluminum alloy, when used in a potentially

explosive atmosphere requiring apparatus of equipment protection level Ga and Da, the unit must be installed such that, even in the event of rare incidents, an ignition source due to impact or friction sparks between the enclosure and iron/steel is excluded.

 Take careful notice of the " Safety rules, instructions and precautionary measures " in the front

of this manual.

Safety Instructions

 When two or more active intrinsically safe circuits are connected to the indicator, in order to

prevent voltage and/or current addition, applicable to the external circuits, precautions must be taken to separate the intrinsically safe circuits in accordance with IEC 60079-11.

 For the combined connection of the different supply, input and output circuits, the instructions in

this manual must be observed.

 From the safety point of view the circuits shall be considered to be connected to earth.  For installation under ATEX directive: this intrinsically safe device must be installed in

accordance with the Atex directive 94/9/EC and the product certificate KEMA 03ATEX1074 X.

 For installation under IECEx scheme: this intrinsically safe device must be installed in

accordance the product certificate IECEx DEK 11.0042X.

 Exchange of Intrinsically Safe battery FWLiBAT-0xx with certificate number

KEMA 03ATEX1071 U or IECEx KEM 08.0005U is allowed in Hazardous Area. See paragraph 5.4. for detailed battery replacement instructions.

Please Note

 Certificates, safety values and declaration of compliance can be found in the document named:

“Fluidwell F1..-..-XI - Documentation for Intrinsic Safety”.

 Special conditions for safe use mentioned in both the certificate and the installation instructions

must be observed for the connection of power to both input and / or output circuits.

 When installing this device in hazardous areas, the wiring and installation must comply with the

appropriate installation standards for your industry.

 Study the following pages with wiring diagrams per classification.

HF118AEN_v0501_06

Page 36

(0)

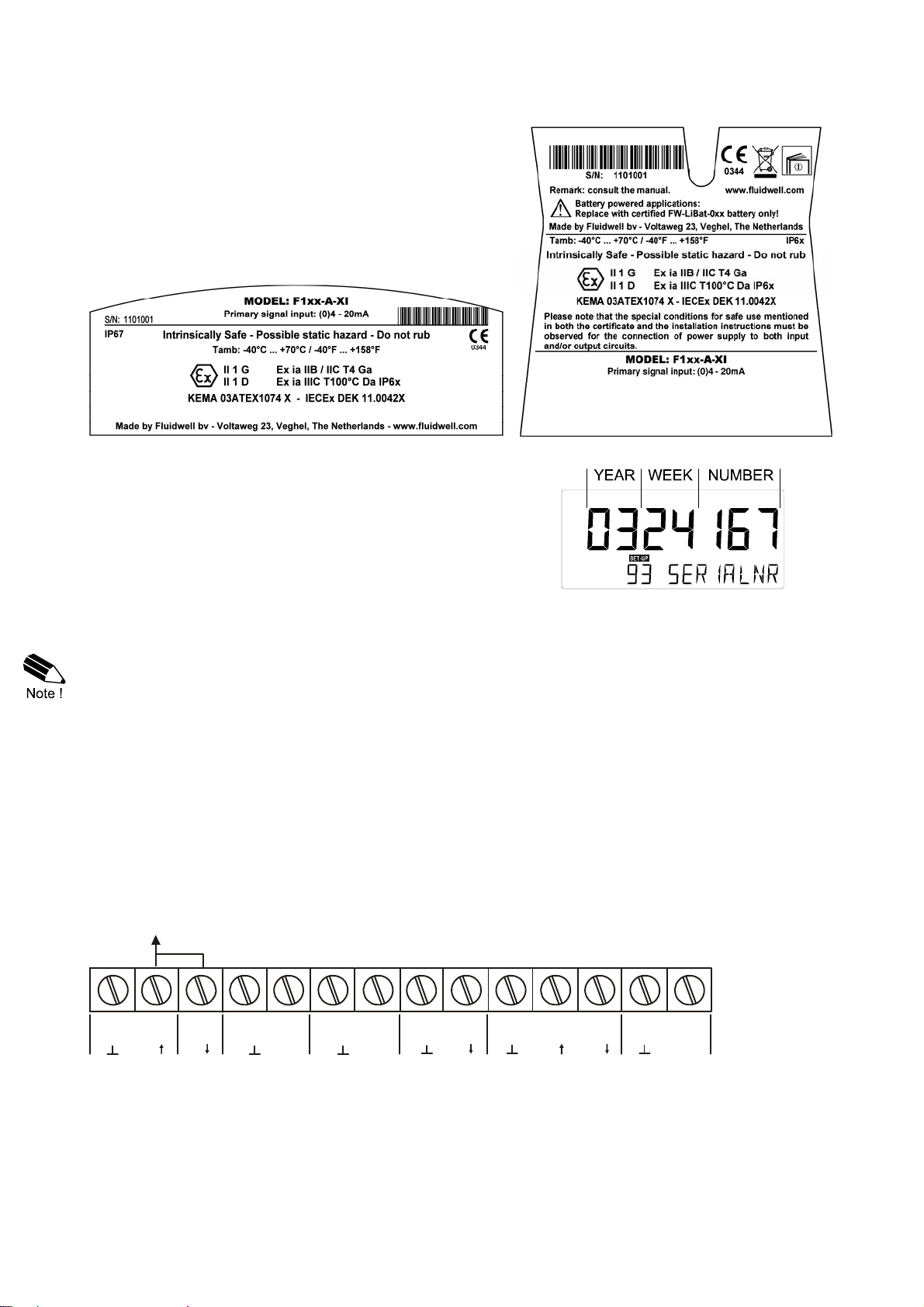

Label information (inside and outside the enclosure)

Indicated labels on the back cover (below) and on the inside cover (right) show the type labels for intrinsically safe certified units. For details on usage see the separate “Fluidwell F1..-..-XI Documentation for Intrinsic Safety”.

Serial number and year of production

This information can be looked-up on the display: See setup function (par. 3.2.2.) for details.

5.2. TERMINAL CONNECTORS INTRINSICALLY SAFE APPLICATIONS

The unit is classified as group IIB/IIIC by default.

Classification of the unit as group IIC is only possible under the following conditions:

 The indicator is either supplied by

 the internal supply (option -PC); or  the external supply connected to terminals 0 and 1 (option -PD); or  the circuit supply connected to terminals 7 and 8 (option -AP);

The maximum values for any of those circuits are those as defined for group IIB/IIIC;

 No other active external intrinsically safe circuits may be connected to the indicator, with

exception of circuits connected to terminals 3 and 4 and/or terminals 5 and 6; the maximum values for any of those circuits are those as defined for group IIB/IIIC

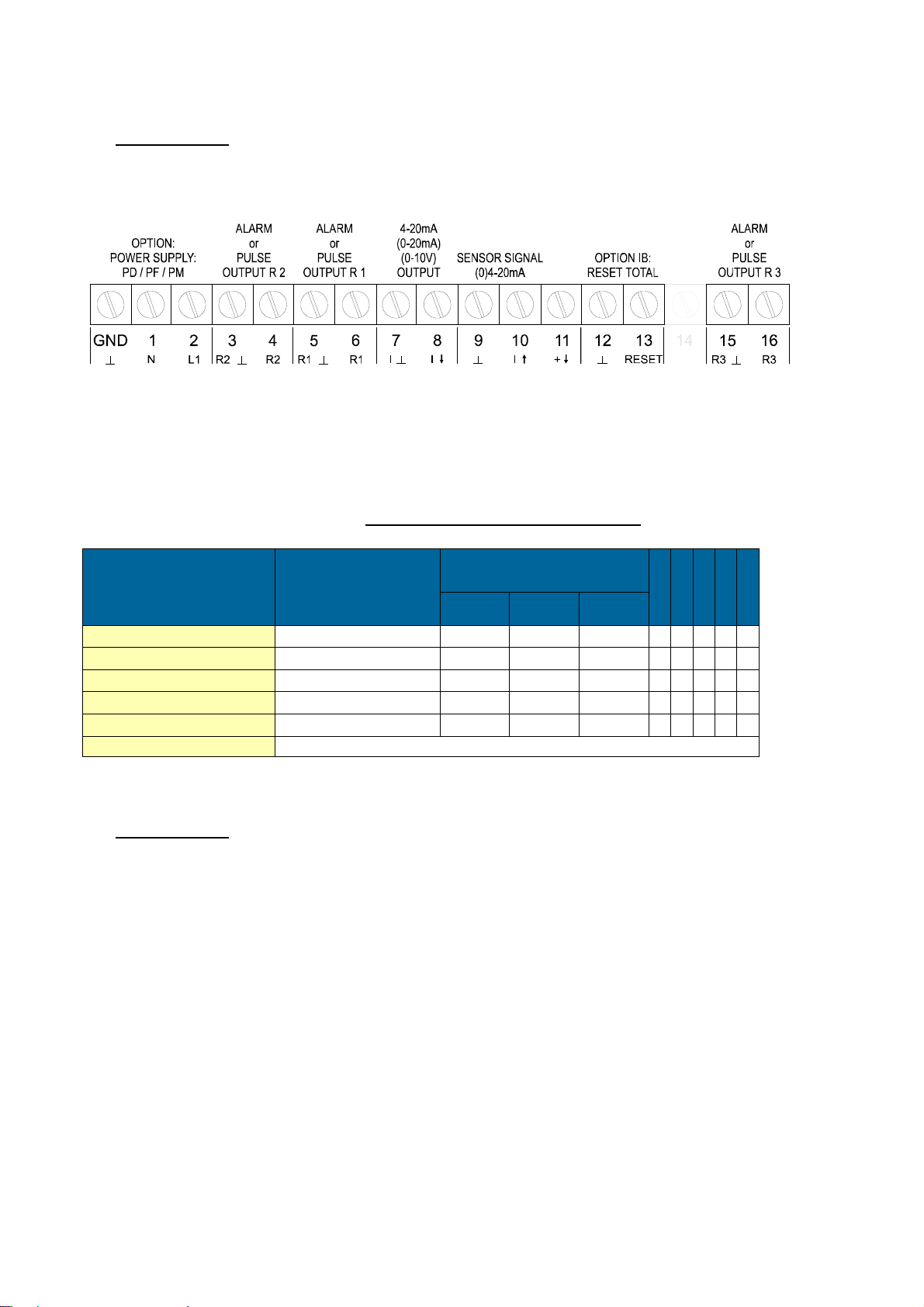

Terminal connectors F118-A-XI:

OPTION PD:

POWER SUPPLY

LARM

PULSE

OUTPUT 2

LARM

PULSE

OUTPUT 1

4-20mA

OUTPUT

SENSOR SIGN A L

4-20mA I NPUT

RESET TOTAL

GND 314

R1 R1

IR2

91011

Fig. 12: Overview of Intrinisically Safe terminal connectors F118-A and options.

OPTION IB:

RESET++

HF118AEN_v0501_06

Page 37

Explanation Intrinsically Safe options:

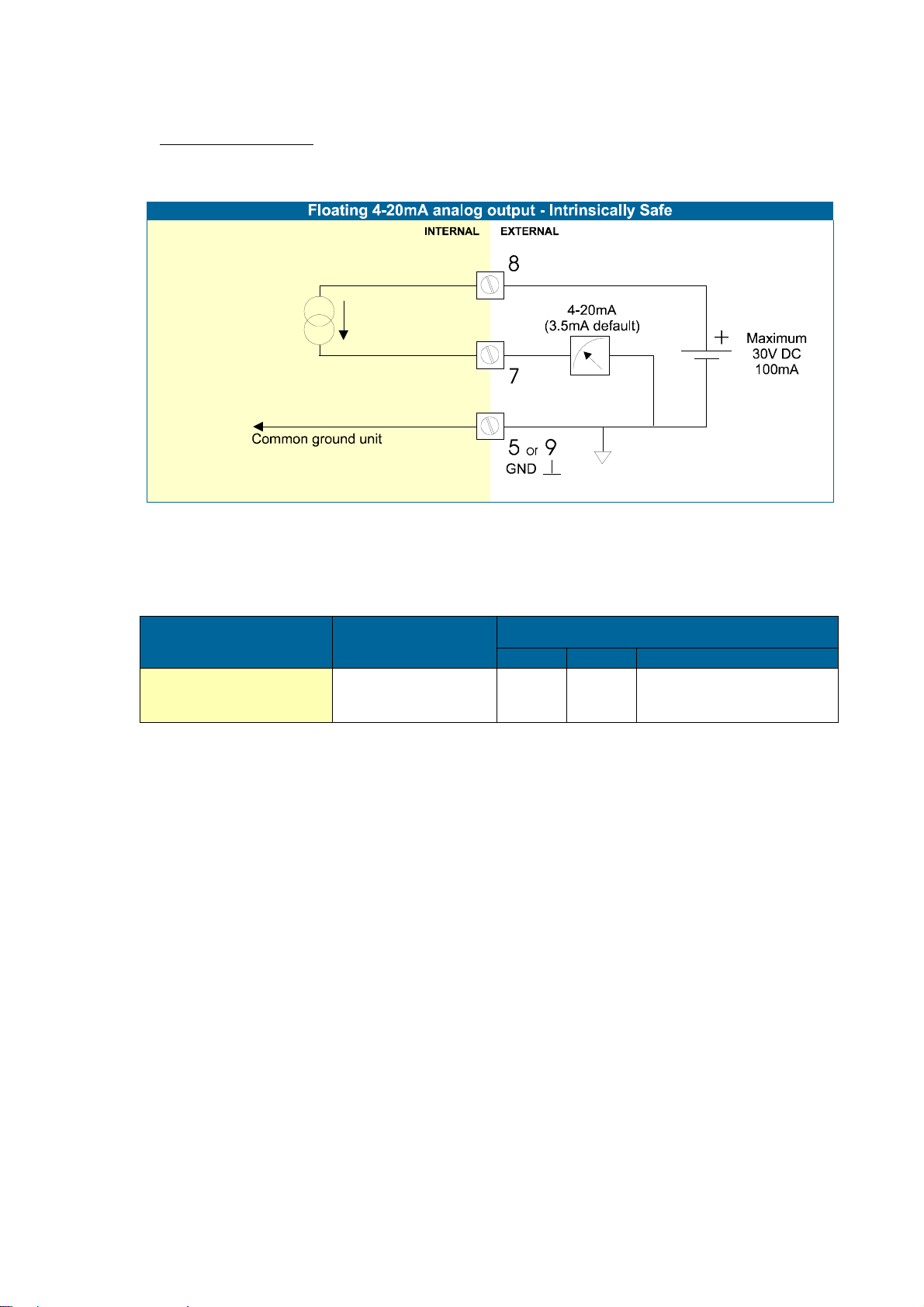

Option AF - Intrinsically Safe floating 4-20mA analog output:

A floating 4-20mA signal proportional to the flowrate is available with this option. When the output is disabled, a 3.5mA signal will be generated. Max. driving capacity 1000 Ohm @ 30VDC.

Page 37

Option PD-XI - Intrinsically Safe power supply and sensor supply - Terminal GND- 01 and 11.

OPTION

PD-XI

Terminal 02 and 11: these terminals offer the same voltage as connected to terminal 01.

Input voltage:

8-30V DC

SENSOR SUPPLY

(TERMINAL 11 AND 14)

GND 01 02

= input voltage L- L+

Terminal

output voltage is according the input voltage; internally linked with terminal 01.

HF118AEN_v0501_06

Page 38

5.3 CONFIGURATION EXAMPLES

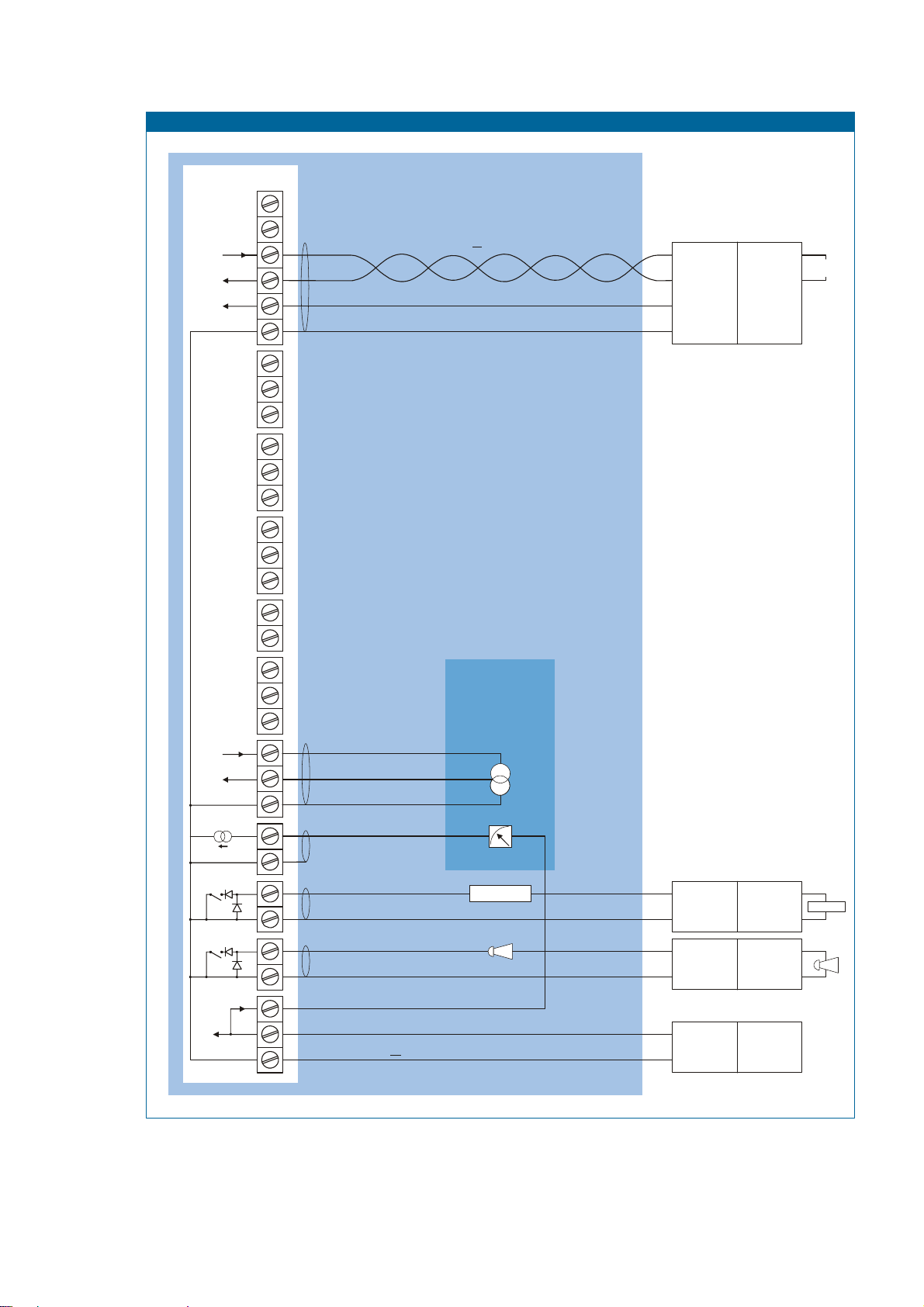

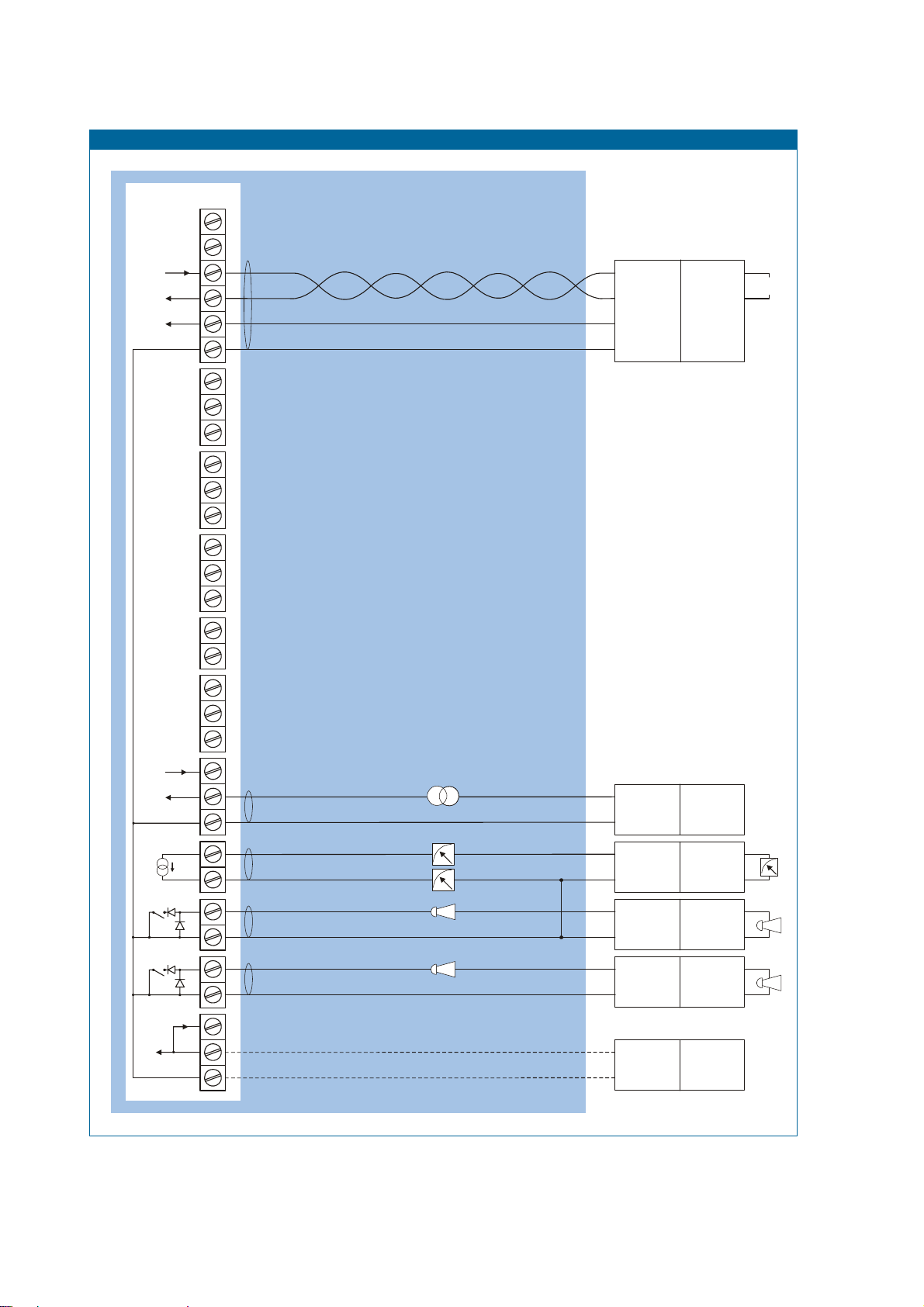

Configuration example IIB - /IIIC F118-A-AF-CT-OT-(PB)-(PD)-XI

TERMINAL CONNECTOR S

F100-series

TXD

RXD

DTR +12V

Common ground

HAZARDOUS AREA

Modbus communication type CT: TTL

26 29

SAFE AREA

Uo Io

= max. 30 V = max. 250 mA = max. 0.85 W

I.S. Certified

Isolator

TTL to: RS232 RS422

TTL

For example:

MTL5051



e.g. PC

Supply *

Signal

type of signal

Circuit depends on

Common ground

910

Ci is negligibly

Ci = 17nF

Ci is negligibly

Main supply

Common ground

* Note power supply type PD: the supply voltage to pulse sensors is maximum 8.7V (Uo=8.7V Io=25mA Po=150mW) and to analog sensors as connected to terminal 1 (internally linked).

Flowmeter input type: A

small

(0)4-20mA

Analog output type AF:

passive floating 4-20mA

Switch output type OT:

passive transistor

Switch output type OT:

passive transistor

Due to analog output type AF, the unit has to be powered with

battery type PB or with external power supply type PD.

Power supply type PD: 16-30V DC

e.g. indicator

e.g. counter or alarm

e.g. alarm or counter

Fig. 13: Configuration example 1 Intrinsically Safe.

= max. 30 V

= max. 100 mA

= max. 0.75 W

= max. 30 V

= max. 100 mA

= max. 0.75 W

= max. 30 V

= max. 100 mA

= max. 0.75 W

= max. 30 V

= max. 100 mA

= max. 0.75 W

= max. 30 V

= max. 100 mA

= max. 0.75 W

Note: above values are safety values. Consult the technical specification for operational values.

Power supply

For example

MTL5525

Power supply

and/or repeater

For example

MTL5525 MTL5541

Power supply or switch interface

For example

MTL5525 MTL5511

Power supply or switch interface

For example

MTL5525 MTL5511

Power supply

For example

MTL5525

e.g. indicator

e.g. alarm

HF118AEN_v0501_06

Page 39

Configuration exam ple IIB/IIIC and IIC - F118-A-AP-(CT)-OT-PD-XI

TERMINAL CONNECTOR S

F100-series

TXD

RXD

DTR

+12V

Common ground

26 29

Please note: communciation type CT is allowed in IIC applications.not

Modbus communication type CT: TTL

HAZARDOUS AREA

SAFE AREA

I.S. Certified

Isolator

= max. 30 V

= max. 250 mA

= max. 0.85 W

* Note: Communication only allowed when configured as IIB/IIIC.

TTL to: RS232 RS422

TTL

For example:

MTL5051



e.g. PC

TOTAL OF ALL CONNECTED

PPARATUS MAY NOT EXCEED

66nF

MINUS 17nF

(17nF IS USED BY THE ANALOG

OUTPUT SIGNAL TERMINAL 7+ 8)

Flowmeter input type: A

Supply *

Signal

type of signal

Circuit depends on

Common ground

Common ground Common ground

Common ground

910

Ci is negligibly

small

Ci = 17nF

Ci is negligibly

small

Ci is negligibly

small

Switch output type OT:

passive transistor

Switch output type OT:

passive transistor

(0)4-20mA

e.g. indicator

Analog output type AP:

passive 4-20mA

e.g. counter or alarm

123456

e.g. alarm or counter

Main supply

Common ground

* Note power supply type PD: the supply voltage to pulse sensors is maximum 8.7V (Uo=8.7V Io=25mA Po=150mW) and to analog sensors as connected to terminal 1 (internally linked).

(please note: both PD battery supply (type PB) is NOT allowed in IIC applications).and

Power supply type PD: 16-30V DC

Fig. 14: Configuration example 2 Intrinsically Safe.

= max. 30 V

= max. 100 mA

= max. 0.75 W

= max. 30 V

= max. 100 mA

= max. 0.75 W

= max. 30 V

= max. 100 mA

= max. 0.75 W

Note: above values are safety values. Consult the technical specification for operational values.

Power supply or switch interface

For example

MTL5525 MTL5511

Power supply or switch interface

For example

MTL5525 MTL5511

Power supply

For example

MTL5525

123456

e.g. counter

e.g. alarm

HF118AEN_v0501_06

Page 40

5.4 BATTERY REPLACEMENT INSTRUCTIONS

Safety Instructions

 Fire, explosion or severe burns may result if mistreated. Do not recharge, crush,

disassemble, incinerate, heat above 100°C (212°F) or expose contents to water.

 Mounting, electrical installation, start-up and maintenance of this device may only be carried out

by trained personnel authorized by the plant operator. Personnel must read and understand this instruction before carrying out the replacement procedure.

 Always follow the instructions listed in the supplied Battery Replacement Instruction Sheet.  Batteries pose an environmental hazard. Return used batteries to a recycling point.

Safety instructions for hazardous areas  Verify the correct battery is supplied: Only batteries with indicated Ex label are certified for

replacement and use in hazardous areas. Batteries for use in safe areas have no Ex label. DO NOT EXCHANGE: Using the wrong type of battery can pose a SERIOUS RISK.

 For use in hazardous areas Fluidwell recommends FW-LiBAT batteries (manufactured by

Fluidwell bv) only.

Battery replacement procedure

Depending on the production batch, one of two visualized Intrinsically Safe ce rtified battery types may have been installed in the unit. They are interchangeable .

FW-LiBAT-001 battery FW-LiBAT-021 battery

1. To replace the battery, open the unit to gain access to the back inside cover of the unit.

2. Unplug the field connectors from the back inside of the unit.

3. Remove the screw that holds the plastic inside cover.

4. Open the cover and unplug the battery connector.

5. Remove the battery from the inside of the plastic cover. Do not remove the battery clip!

6. Install the new battery and re-assemble the unit in reverse order.

7. Start-up the unit

HF118AEN_v0501_06

Page 41

6. MAINTENANCE

6.1. GENERAL DIRECTIONS

 Mounting, electrical installation, start-up and maintenance of the instrument may only

be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions.

 The F118-A may only be operated by personnel who are authorized and trained by the

operator of the facility. All instructions in this manual are to be observed.

 Ensure that the measuring system is correctly wired up according to the wiring

diagrams. Protection against accidental contact is no longer assured when the housing cover is removed or the panel cabinet has been opened (danger from electrical shock). The housing may only be opened by trained personnel.

 Take careful notice of the " Safety rules, instructions and precautionary measures " in

the front of this manual.

The F118-A does not require special maintenance unless it is used in low-temperature applications or surroundings with high humidity (above 90% annual mean). It is customers responsibility to take all precautions to dehumidify the internal atmosphere of the F118-A in such a way that no condensation will occur, for example by placing dry silica-gel in the casing just before closing the enclosure. Furthermore, is required to replace or dry the silica gel from time to time as advised by the silica gel supplier.

Battery life-time:

It is influenced by several issues as:

 Type of sensor: read chapter 3.2.3. NPN and PNP inputs consume more energy then coil inputs.  Input frequency: the higher the frequency the shorter the battery life-time.  Flowrate calculation: the lower number of pulses (SETUP 26) the shorter the battery life-time.  Analog output signal; be sure that an external power supply is connected or that the function is

disabled if not in use; else it has major influence on the battery life-time (SETUP 71).

 Display update: fast display update has major influence; SETUP 51.  Pulse output and communication.  Low temperatures; the available power will be less due to battery chemistry.

Note: It is strongly advised to disable unused functions.

Check periodically:

 The condition of the casing, cable glands and front panel.  The input/output wiring for reliability and aging symptoms.  The process accuracy. As a result of wear and tear, re-calibration of the flowmeter might be

necessary. Do re-enter any subsequent K-factor alterations.

 The indication for low-battery.  Clean the casing with soapy-water; don't use any aggressive solvents as these might damage

the polyester coating.

HF118AEN_v0501_06

Page 42

APPENDIX A: TECHNICAL SPECIFICATION

GENERAL

Display

Type High intensity reflective numeric and alphanumeric LCD, UV-resistant. Digits Seven 17mm (0.67") and eleven 8mm (0.31"). Various symbols and measuring units. Refresh rate User definable: 8 times/sec - 30 secs. Type ZB Transflective LCD with green LED backlight. Good readings in full sunlight and darkness.

Enclosures

General

Control Keys

Painting

Panel-mount enclosures

Classification Panel cut-out

Type HC Type HB

Field/wall-mount enclosures

Classification

Aluminium enclosures

Type HA Type HM Type HN Type HO Type HP

Type HT Type HU Type HV Type HZ

GRP enclosures

Type HD Type HE

Type HF Type HG

Type HJ Type HH Type HK

ABS enclosure

Type HS

Operating temperature

Operational -40°C to +80°C (-40°F to +176°F) Intrinsically Safe -40°C to +70°C (-40°F to +158°F)

Power requirements

Standard Output loop powered: 8-28V DC (or AC) supply can be connected to power the unit. Type PB Long life Lithium battery - life-time depends upon settings - up to 5 years. Type PD 8-28 V AC/DC. Type PF 24-28V AC/DC. Type PM 80-240V AC.

Sensor excitation

Standard / type PB Supply voltage: 3.2V DC for pulse signals and 1.2V DC for coil pick-up. Type PD Sensor supply: 8.2 - 12 and 24V DC - max. 50mA@24V DC Type PF/PM Sensor supply: 8.2 - 12 and 24V DC - max. 100mA@24V DC

Note: only available for safe area applications. Power requirements: 12-24V DC + 10% or type PD, PF, PM. Power consumption max. 1 Watt.

Die-cast aluminum or GRP (Glassfibre Reinforced Polyamide) enclosure with Polycarbonate window, silicone and EPDM gaskets. UV stabilized and flame retardant material. Three industrial micro-switch keys. UV-stabilized silicone keypad. Aluminum enclosure only: UV-resistant 2-component industrial painting. Dimensions: 130 x 120 x 60mm (5.10" x 4.72" x 2.38") – LxHxD. IP65 / NEMA4X 115 x 98mm (4.53" x 3.86") LxH. GRP panel-mount enclosure Aluminum panel-mount enclosure Dimensions: 130 x 120 x 75mm (5.10” x 4.72” x 2.95”) – LxHxD. IP67 / NEMA4X

Drilling: 2x PG9 – 1x M20. Drilling: 2x M16 – 1x M20. Drilling: 1x M20. Drilling: 2x M20. Drilling: 6x M12. Drilling: 1x ½”NPT. Drilling: 3x ½”NPT. Drilling: 4x M20 No drilling.

No drilling. Drilling: 2x 16mm (0.63”) – 1x 20mm (0.78”). Drilling: 1x 22mm (0.87”). Drilling: 2x 20mm (0.78”). Drilling: 3x 22mm (0.87”). Drilling: 6x 12mm (0.47”). Flat bottom - no drilling.

Silicone free ABS enclosure with EPDM and PE gaskets. UV-resistant polyester keypad. (no drilling)

HF118AEN_v0501_06

Page 43

Terminal connections

Type: Removable plug-in terminal strip. Wire max. 1.5mm2 and 2.5mm2 (type PM / PF)

Data protection

Type EEPROM backup of all setting. Backup of running totals every minute.

Data retention at least 10 years.

Pass code Configuration settings can be pass code protected.

Hazardous area

(optional)

Intrinsically safe Type XI

ATEX approval:

II 1 G Ex ia IIB/IIC T4 Ga II 1 D Ex ia IIIC T100°C Da IP6x

IECEx approval:

Ex ia IIB/IIC T4 Ga

Ex ia IIIC T100°C Da IP6x Explosion proof Type XD/XF

ATEX approval ref: II 2 EEx d IIB T5. Weight appr. 20kg.

Dimensions of enclosure: 278 x 358 x 270mm (10.94” x 14.09” x 10.63”) LxHxD.

Environment

Electromagnetic

Compliant ref: EN 61326 (1997), EN 61010-1 (1993), NAMUR NE21 (1998) compatibility

Page 43

INPUTS

Flowmeter

Type A (0)4-20mA - with signal calibration feature. Resolution: 14 bit. Type U 0-10 V - with signal calibration feature at any voltage within range. Resolution: 14 bit.

Accuracy 0.05%. Low level cut-off programmable.

Span 0.000010 - 9,999,999 with variable decimal position.

Update time Four times a second.

Voltage drop 2.5 Volt.

Load impedance 3kOhm

Relationship Linear and square root calculation.

Linearisation 15 positions with interpolation function; Meter-Factor versus percentage analog value.

Note For signal type A and U: external power to sensor required; e.g. type PD.

OUTPUTS

Analog output

Type 4-20mA - passive output - not isolated. Resolution 10-bit. Accuracy < 0.05% - update 10 times a second. Software function to calibrate the 4.00mA and 20.00mA

levels precisely within set-up. Load max. 1 kOhm Function transmitting linearised flowrate. Type AA Active 4-20mA output (requires type PD, PF or PM). Type AB Active 0-20mA output (requires type PD, PF or PM). Type AF Floating 4-20mA output for Intrinsically Safe applications Type AI Galvanically isolated output - also for battery powered models. Type AU Active 0-10V output (requires type PD, PF or PM).

HF118AEN_v0501_06

Page 44

Transistor outputs

Type OT three passive transistor outputs - not isolated. Load max. 50V DC - 300mA Function User defined: flowrate alarm or pulse output. Alarm output low flowrate, high flowrate or flowrate alarm (both). Pulse output Max. frequency 60Hz. Pulse length user definable between 7,8msec up to 2 seconds. Type OA Active 24V DC output; max. 50mA per output (requires type PD or PM). Type OR Electro-mechanical relay output; max. switch power 230V AC - 0,5A (requires type PD or PM).

Communication option

Type RS232 or RS485 (2-wire or 4-wire). Protocol Modbus RTU Speed 1200 - 2400 - 4800 - 9600 baud Addressing maximum 255 addresses. Functions reading display information, reading / writing all settings.

OPERATIONAL

Operator functions

Displayed functions

• total and/or flowrate.

• total and accumulated total.

• total can be reset to zero by pressing the CLEAR-key twice.

• alarm value’s low and high flowrate

• alarm value’s can be entered (this function can be disabled)

Total

Digits 7 digits. Units L, m3, GAL, USGAL, KG, lb, bbl, no unit. Decimals 0 - 1 - 2 or 3. Note total can be reset to zero.

Accumulated total

Digits 11 digits. Units / decimals according selection for total.

Flowrate

Digits 7 digits. Units mL, L, m3, Gallons, KG, Ton, lb, bl, cf, RND, ft3, scf, Nm3, Nl, igal - no units. Decimals 0 - 1 - 2 or 3. Time units /sec - /min - /hr - /day.

Alarm values

Digits 7 digits. Units According to selection for flowrate. Decimals According to selection for flowrate. Time units According to selection for flowrate. Type of alarm low and high flowrate alarm. Includes delay time alarm and configurable alarm outputs.

HF118AEN_v0501_06

Page 45

APPENDIX B: PROBLEM SOLVING

In this appendix, several problems are included that can occur when the F118-A is going to be installed or while it is in operation.

Flowmeter does not generate pulses:

Check:

 Signal selection SETUP - 51,  Pulse amplitude (par. 4.4.3.),  Flowmeter, wiring and connection of terminal connectors (par. 4.4.3.),  Power supply of flowmeter (par. 4.4.2.).

Flowmeter generates "too many pulses":

Check:

 Settings for total and Flowrate: SETUP 11-14 and 21-27,  Type of signal with actual signal selection - SETUP - 51,  Sensitivity of coil input - SETUP - 51 and par. 4.4.3.  Proper grounding of the F118-A - par. 4.4.1.  Use screened wire for flowmeter signals and connect screen to terminal 9.

Analog output does not function properly:

Check:

 SETUP 71 - is the function enabled?  SETUP 72 / 73: are the flow-levels programmed correctly?  connection of the external power-supply according specification.  SETUP 27 - when 4mA should be generated as soon as the flowrate is zero, it might take this

time worst case. To get a quick response, decrease this time according to you desired response time.

Pulse output does not function:

Check:  SETUP 81 - pulse per X-quantity; is the value programmed reasonable and will the maximum

output be under 20Hz?

 SETUP 82 - impulse width; is the external device able to recognize the selected pulse width and

frequency?

Flowrate displays "0 / zero" while there is flow (total is counting):

Check:

 SETUP 22 / 25: are the K-factor and time unit correct?  SETUP 26 / 27: The unit has to count the number of pulses according to SETUP 26 within the

time according to SETUP 27. Make sure that 27 is set like 10.0 seconds for example : the result is that the unit has at least 10 seconds time to measure the number of pulses according to SETUP 26.

The password is unknown:

If the password is not 1234, there is only one possibility left: call your supplier.

ALARM

When the alarm flag starts to blink an internal alarm condition has occurred. Press the "select button" several times to display the 5-digit error code. The codes are:

0001: irrecoverable display-data error: data on the display might be corrupted. 0002: irrecoverable data-storage error: the programming cycle might have gone wrong: check

programmed values.

0003: error 1 and error 2 occurred simultaneously

If the alarm occurs more often or stays active for a longer time, please contact your supplier.

HF118AEN_v0501_06

Page 46

APPENDIX C: COMMUNICATION VARIABLES

Remarks:

 Below, an overview of the F118-A specific variables; other common variables are described in

the standard table.

 All numbers are decimal numbers, unless otherwise noted.  Following variables of the standard table (var00-var30) are not valid for this product and will be

responded with value 1: var00, 03-05, 07,08, 16-22, 24, 26-29.

CONFIGURATION VARIABLES F118-A - SETUP-LEVEL:

VAR DESCRIPTION BYTES VALUE REMARKS

TOTAL

unit 1 0=L

(20h)

decimals 1 0…3

(21h)

span 3 1....9.999.999 S 0000001 up to S 0000009 is

(22h)

decimals Span 1 0…6

(25h)

FLOWRATE

unit 1 0=mL

(30h)

time unit 1 0=sec

(31h)

decimals 1 0…3

(32h)

span 3 1....9.999.999 S 0000001 up to S 0000009 is

(33h)

decimals span 1 0…6

(36h)

1=m3 2=kg 3=lb 4=gal 5=usgal 6=bbl 7=none

1=L 2=m3 3=mg 4=g 5=kg 6=ton 7=gal 8=bbl 9=lb 10=cf 11=rev (revolutions for RPM) 12=none 13=scf 14=NM3 15=NL 16=p

1=min 2=hour 3=day

allowed when decs < 6! (VAR37)

allowed when decs < 6! (VAR54)

HF118AEN_v0501_06

Page 47

VAR DESCRIPTION BYTES VALUE REMARKS

Page 47

234

minimum flowrate 3 0-9,9999 decimals: see 50 (32h)

EAh

237

maximum flowrate 3 0-9,9999 decimals: see 50 (32h)

EDh

205 CDh DDh delay time alarm

delay time alarm min. flowrate

2 1…9,999 steps of 0.1 second

max. flowrate

44h edit flowrate alarm 1 0=operator

1=SETUP level

46h alarm at flowrate

zero

1 0=ignore

1=default 2=no relay

set flowrate monitor 1 0=operator level

(44h)

1=SETUP level

POWERMANAGEMENT

LCD update time 1 0=fast

(50h)

1=1sec 2=3sec 3=15sec 4=30sec 5=off

power-mode battery 1 0=operational

(51h)

1=shelf

FLOWMETER

98 (62h) 99

formula 1 0=linear

1=square root

filter 1 0….99 (63h) 100

cut-off 2 0….999 steps of 0.1% (64h) 102 (66h)

calibration low

(4mA)

1 0=default

1=calibrate

2=cal set 103 (67h)

calibration high (20mA)

1 0=default

1=calibrate

2=cal set

LINEARISATION

10244

00h

10384

0Eh

linearisation table entry

6 m=0..9999999 /

f=0..99999

linearisation on/off 1 0=disable

1=enable

ANALOG OUTPUT

112

(70h)

113

analog output 1 0=disable

1=enable

minimum rate 3 0..9999999 unit, time, decimals acc. var48-50

(71h)

116

maximum rate 3 0..9999999 unit, time, decimals acc. var48-50

(74h)

120

tune minimum rate 2 0..9999

(78h)

122

tune maximum rate 2 0..9999

(7Ah)

INDEXED 3 bytes m-factor MS-part 3 bytes freq. LS-part. | m | m | m | f | f | f | MSB……..….LSB

HF118AEN_v0501_06

Page 48

VAR DESCRIPTION BYTES VALUE REMARKS

PULSE OUTPUT

128

(80h)

impulse width 1 0=off

1=short 2=long

129

pulse per X quantity 3 1..9999999 unit, decimals acc. var32 -33

(81h)

OTHERS

168

password 2 xxxx read only!

(A8h)

170

tagnumber 3 0..9999999 Other vars: see standard table

AAh

OTHER F118-A VARIABLES FOR COMMUNICATION

TOTAL - variable number 566 (236h) – 6 bytes

Read total: The value of total read using communication might differ from the value that appears

on the display. This is due to the fact that the display can only display up to seven digits ( for example when two decimals are selected for total and total has a value of 123456,78 the display will show 23456,78 while communication will read a “total” of 12345678 and a “total decimals” of 2).

Write total: total can only be cleared. This means writing a value different from 0 will result in

the reply of an error message. Only writing 6 bytes of zero’s to total will be accepted.

ACCUMULATED TOTAL - variable number 560 (230h) – 6 bytes Read acc. total: A difference between the read value and the display value, as explained for

“Read total”, might appear here too.

Write acc. total: Impossible.

When reading or writing total or accumulated total it should be noted that the used values are given including the decimals. This means a read/write to one of these variables should be accompanied with a read/write to the variable that holds the number of decimals for this variable:

Example: read var. 566 for total:

Read var. 33 for total decimals and calculate the real value of total by multiplying total with

-(total decimals)

FLOWRATE - variable number 572 (23Ch) – 4 bytes Read flowrate: The value difference as mentioned with total/acc. total might appear here

too.

Write flowrate: Impossible.

HF118AEN_v0501_06

Page 49

INDEX OF THIS MANUAL

accumulated Total 8 actual settings 51, 52 Alarm values 16 analog

0-10V output 32 floating output. 37 flowrate min. 20 intrinsically safe output. 37 isolated output. 31 output loop powered. 30

passive output. 30 battery life time 16, 41 Clear Total 8 communication 34

family-specific variables 46 Configuration 10 Dimension enclosures 24, 25 display update 16 filter 17 flowmeter 17 Flowmeter input 32 flowrate

alarm 9, 16

decimals 15

decimals Span 15

enter alarm value 9

measuring unit 15

Span 15

time unit 15 Frequency 20 high alarm output 29, 33 Installation 23 Intrinsic safety 35 Intrinsically Safe options 37

IP classification 23 keys 7 Linearisation function 19 low-battery 9 Low-battery alarm 9 main-function 11 maintenance 41 Meter Factor 19 model 22 Operator level 8 password 22, 45 power supply 28 power supply - loop powered 30 power supply intrinsically safe 37 Problem solving 45 pulse output

pulse length / period time 21

pulse per quantity 21 rate/Total 8 relay output

function 21 serial number 22 SETUP-level 10 subfunction 11 tagnumber 22 Technical specification 42 terminal connectors 28 Total

decimals 14

decimals span 14

measuring unit 14

span 14 version software 22

LIST OF FIGURES IN THIS MANUAL

Fig. 1: Typical application for the F118-A. ............................................................................................ 5

Fig. 2: Control Panel. ............................................................................................................................ 7

Fig. 3: Example of display information during process. ....................................................................... 8

Fig. 4: Example of display information during programming minimum flowrate. ................................. 9

Fig. 5: Example of low-battery alarm. ................................................................................................... 9

Fig. 6: Dimensions aluminum enclosures. ......................................................................................... 24

Fig. 7: Dimensions GRP enclosures. ................................................................................................. 25

Fig. 8: Grounding aluminum enclosure with type PM 115-230V AC. ................................................. 26

Fig. 9: switch position voltage selection (option PD and PM). ........................................................... 27

Fig. 10: Overview of terminal connectors standard configuration F118-A and options. .................... 28

Fig. 11: Overview terminal connectors communication option. .......................................................... 34

Fig. 12: Overview of Intrinisically Safe terminal connectors F118-A and options. ............................. 36

Fig. 13: Configuration example 1 Intrinsically Safe. ........................................................................... 38

Fig. 14: Configuration example 2 Intrinsically Safe. ........................................................................... 39

HF118AEN_v0501_06

Page 50

NOTES

HF118AEN_v0501_06

Page 51

LIST OF CONFIGURATION SETTINGS

SETTING DEFAULT DATE : DATE :

1 - TOTAL

11 unit L 12 decimals 0000000 13 span 001600 /sec /sec /sec 14 decimals span 0

2 - FLOWRATE

21 unit L 22 time unit /sec 23 decimals 0000000 24 span 001600 /min 25 decimals span 0

3 - ALARM Enter your settings here

31 alarm set operator level 32 flow zero Ignore 33 alarm value low 0 34 alarm value high 0 35 delay time alarm low 0.0 sec 36 delay time alarm high 0.0 sec

4 - POWER MANAGEMENT

41 LCD-new 1 sec. 42 mode operational

5 - FLOWMETER

51 formula interpolation 52 filter 01 (off) 53 cut-off % 00.0% 54 calibrat. low-(0)4mA default 55 calibrat. high-20mA default

6 - LINEARISATION

61 percentage % M-Factor 62 percentage % M-Factor 63 percentage % M-Factor 64 percentage % M-Factor 65 percentage % M-Factor 66 percentage % M-Factor 67 percentage % M-Factor 68 percentage % M-Factor 69 percentage % M-Factor 6A percentage % M-Factor

0.0%

1.000000

0.0%

1.000000

0.0%

1.000000

0.0%

1.000000

0.0%

1.000000

0.0%

1.000000

0.0%

1.000000

0.0%

1.000000

0.0%

1.000000

0.0%

1.000000

6B linearisation disabled

HF118AEN_v0501_06

Page 52

7 - ANALOG OUTPUT

71 output Disabled 72 min. flowrate 4-mA 0000000 73 max. flowrate 20mA 9999999 74 tune min - 4mA 0160 75 tune max - 20mA 6656

8 - RELAY OUTPUT

81 relay1 off 82 relay 2 off 83 relay 3 off 84 impulse width 000 periods 85 pulse per 0001000

9 - COMMUNICATION

91 baud-rate 2400 92 address 1 93 mode BUS-RTU

A - OTHERS

A4 password 0000 A5 tagnumber 0000000

SETTING DEFAULT DATE : DATE :

Fluidwell bv

PO box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives The Netherlands The Netherlands Copyright Fluidwell bv - 2014 - HF118AEN_v0501_06

HF118AEN_v0501_06
