Fluidwell F110-A, F113-A Operation Manual

Page 1

F110-A

FLOWRATE INDICATOR / TOTALIZER

Signal input flowmeter: (0)4-20mA Signal outputs: (0)4-20mA / 0-10V ref. flowrate and pulse ref. total. Options: Intrinsically Safe, Modbus communication, external reset and

backlight.

F-Series - Field mounted indicators for safe and hazardous areas. More info: www.fluidwell.com/fseries

Page 2

SAFETY INSTRUCTIONS

 Any responsibility is lapsed if the instructions and procedures as described in this

manual are not followed.

 LIFE SUPPORT APPLICATIONS: The F110-A is not designed for use in life support

appliances, devices, or systems where malfunction of the product can reasonably be expected to result in a personal injury. Customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify the manufacturer and supplier for any damages resulting from such improper use or sale.

 Electro static discharge does inflict irreparable damage to electronics! Before installing

or opening the unit, the installer has to discharge himself by touching a well-grounded object.

 This unit must be installed in accordance with the EMC guidelines (Electro Magnetic

Compatibility).

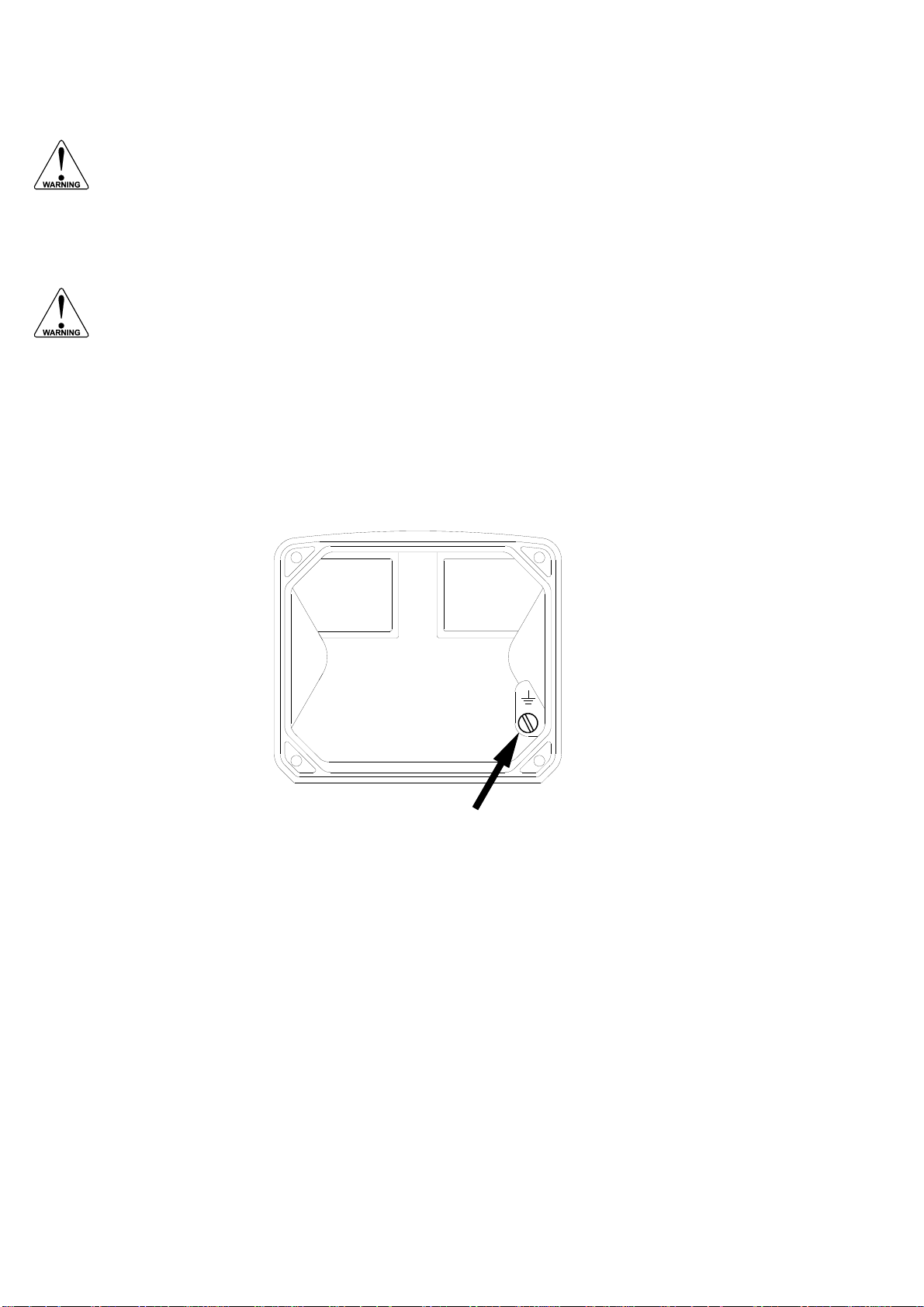

 Do connect a proper grounding to the aluminum casing as indicated if the F110-A has

been supplied with the 115-230V AC power-supply type PM. The green / yellow wire between the back-casing and removable terminal-block may never be removed.

 Intrinsically Safe applications: follow the instructions as mentioned in Chapter 5 and

consult “Fluidwell F1..-..-XI - Documentation for Intrinsic Safety”.

DISPOSAL

At the end of its life this product should be disposed of according to local regulations regarding waste electronic equipment. If a battery is present in this product it should be disposed of separately. The separate collection and recycling of your waste equipment will help to conserve natural resources and ensure that it is recycled in a manner that protects the environment.

SAFETY RULES AND PRECAUTIONARY MEASURES

 The manufacturer accepts no responsibility whatsoever if the following safety rules and

precautions instructions and the procedures as described in this manual are not followed.

 Modifications of the F110-A implemented without preceding written consent from the

manufacturer, will result in the immediate termination of product liability and warranty period.

 Installation, use, maintenance and servicing of this equipment must be carried out by authorized

technicians.

 Check the mains voltage and information on the manufacturer's plate before installing the unit.  Check all connections, settings and technical specifications of the various peripheral devices

with the F110-A supplied.

 Open the casing only if all leads are free of potential.  Never touch the electronic components (ESD sensitivity).  Never expose the system to heavier conditions than allowed according to the casing

classification (see manufacture's plate and chapter 4.2.).

 If the operator detects errors or dangers, or disagrees with the safety precautions taken, then

inform the owner or principal responsible.

 The local labor and safety laws and regulations must be adhered to.

HF110AEN_v0501_04

Page 3

ABOUT THE OPERATION MANUAL

This operation manual is divided into two main sections:  The daily use of the unit is described in chapter 2 "Operation". These instructions are meant for

users.

 The following chapters and appendices are exclusively meant for electricians/technicians. These

provide a detailed description of all software settings and hardware installation guidance.

This operation manual describes the standard unit as well as most of the options available. For additional information, please contact your supplier.

A hazardous situation may occur if the F110-A is not used for the purpose it was designed for or is used incorrectly. Please carefully note the information in this operating manual indicated by the pictograms:

A "warning" indicates actions or procedures which, if not performed correctly, may lead to personal injury, a safety hazard or damage of the F110-A or connected instruments.

A "caution" indicates actions or procedures which, if not performed correctly, may lead to personal injury or incorrect functioning of the F110-A or connected instruments.

A "note" indicates actions or procedures which, if not performed correctly, may indirectly affect operation or may lead to an instrument response which is not planned.

Information in this manual is subject to change without prior notice. The manufacturer is not responsible for mistakes in this material or for incidental damage caused as a direct or indirect result of the delivery, performance or use of this material.

HF110AEN_v0501_04

Page 4

CONTENTS MANUAL

Safety instructions ........................................................................................................................................... 2

Disposal .................................................................................................................................................... 2

Safety rules and precautionary measures ....................................................................................................... 2

About the operation manual ............................................................................................................................ 3

Contents manual .............................................................................................................................................. 4

1. Introduction ................................................................................................................................. 5

1.1. System description of the F110-A .......................................................................................... 5

2. Operational .................................................................................................................................. 7

2.1. General .................................................................................................................................. 7

2.2. Control panel .......................................................................................................................... 7

2.3. Operator information and functions ....................................................................................... 8

3. Configuration ............................................................................................................................... 9

3.1. Introduction ............................................................................................................................ 9

3.2. Programming SETUP-level .................................................................................................... 9

3.2.1. General .................................................................................................................................. 9

3.2.2. Overview functions SETUP level ......................................................................................... 12

3.2.3. Explanation OF SETUP-functions........................................................................................ 13

1 - Total ........................................................................................................................... 13

2 - Flowrate ..................................................................................................................... 14

3 - Display ....................................................................................................................... 15

4 - Power management .................................................................................................. 15

5 - Flowmeter .................................................................................................................. 16

6 - Analog output ............................................................................................................. 18

7 - Relay output ............................................................................................................... 19

8 - Communication (optional) .......................................................................................... 20

9 - Others ........................................................................................................................ 20

4. Installation ................................................................................................................................. 21

4.1. General directions ................................................................................................................ 21

4.2. Installation / surrounding conditions .................................................................................... 21

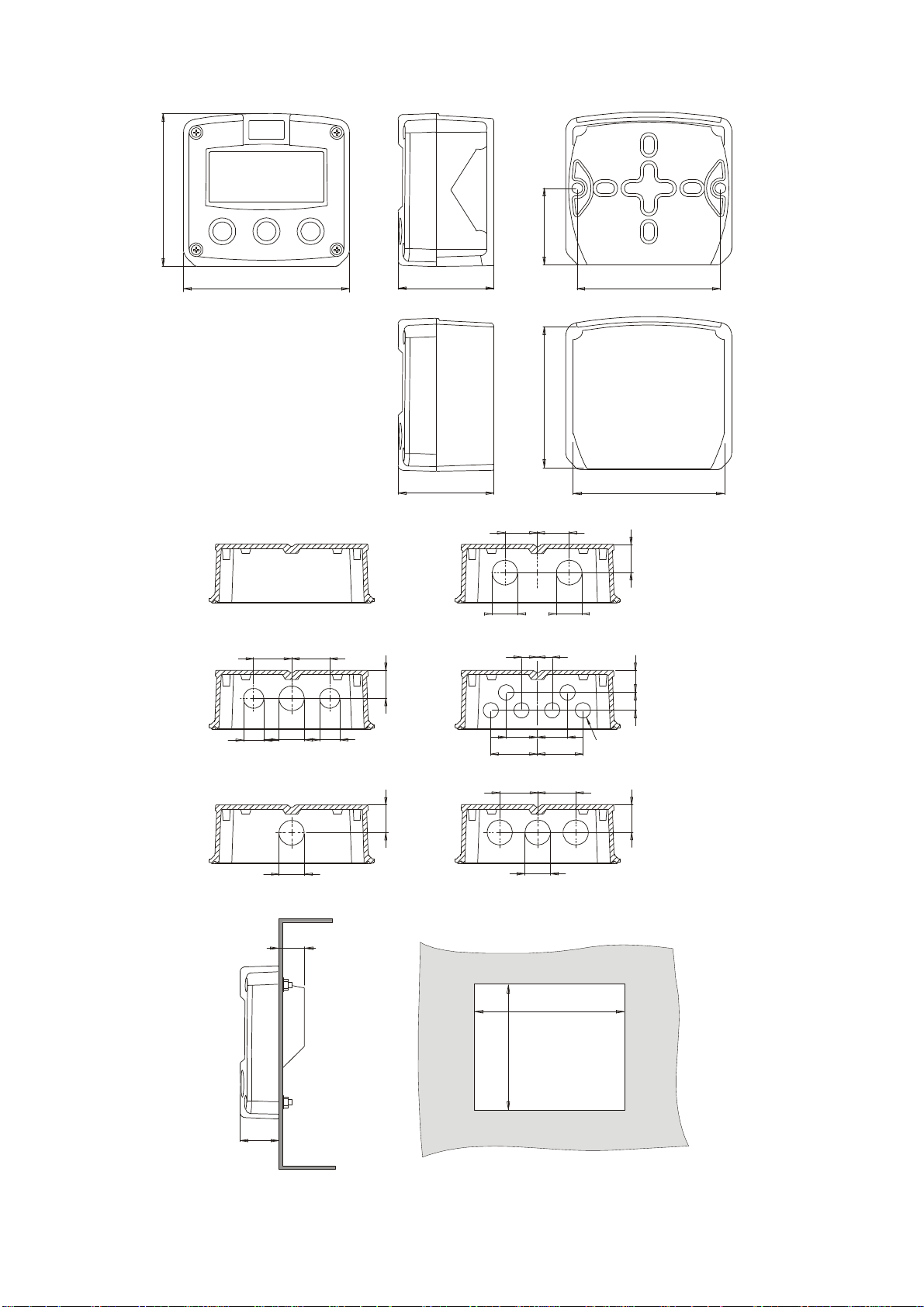

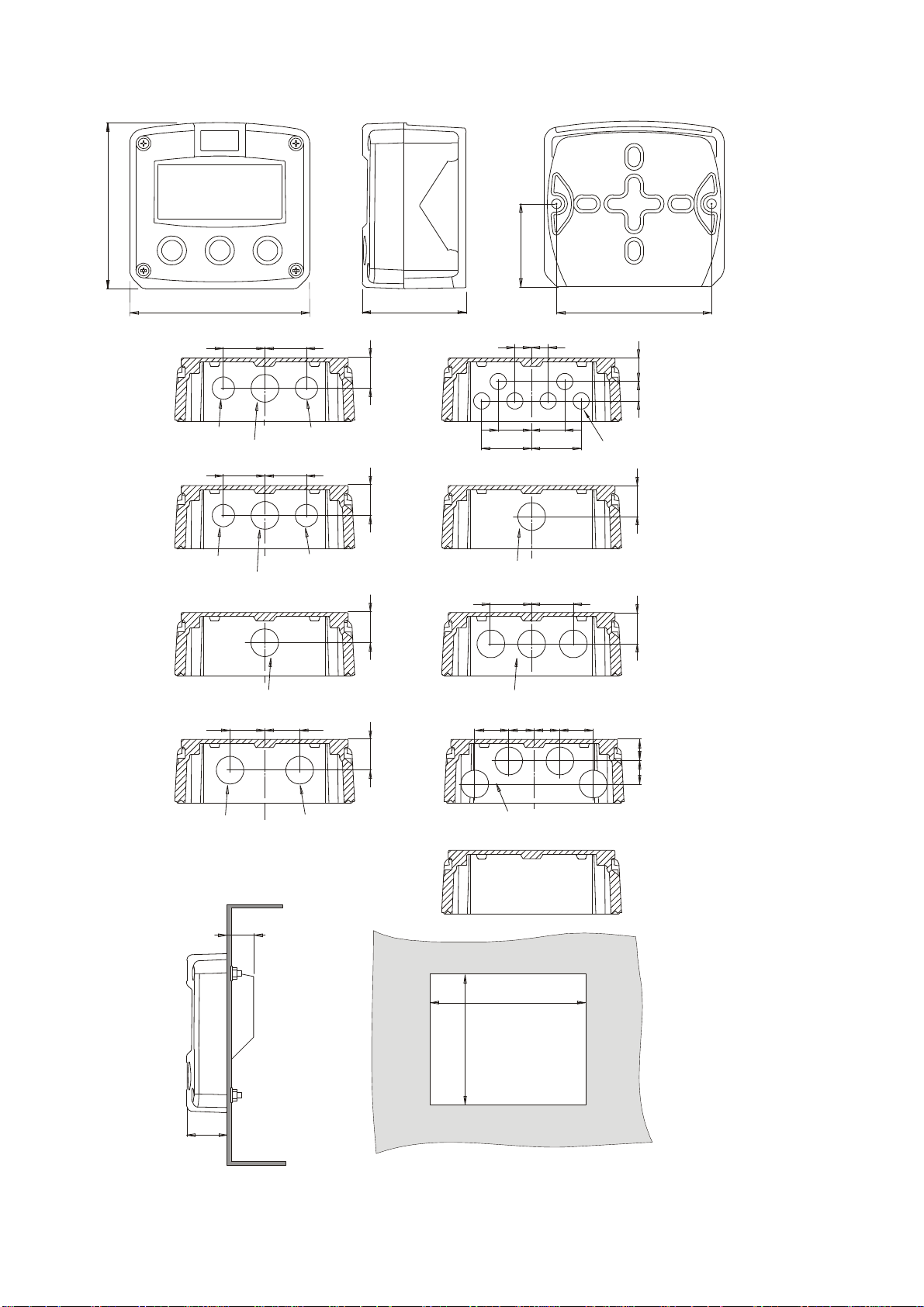

4.3. Dimensions- Enclosure ........................................................................................................ 22

4.4. Installing the hardware ......................................................................................................... 24

4.4.1. Introduction .......................................................................................................................... 24

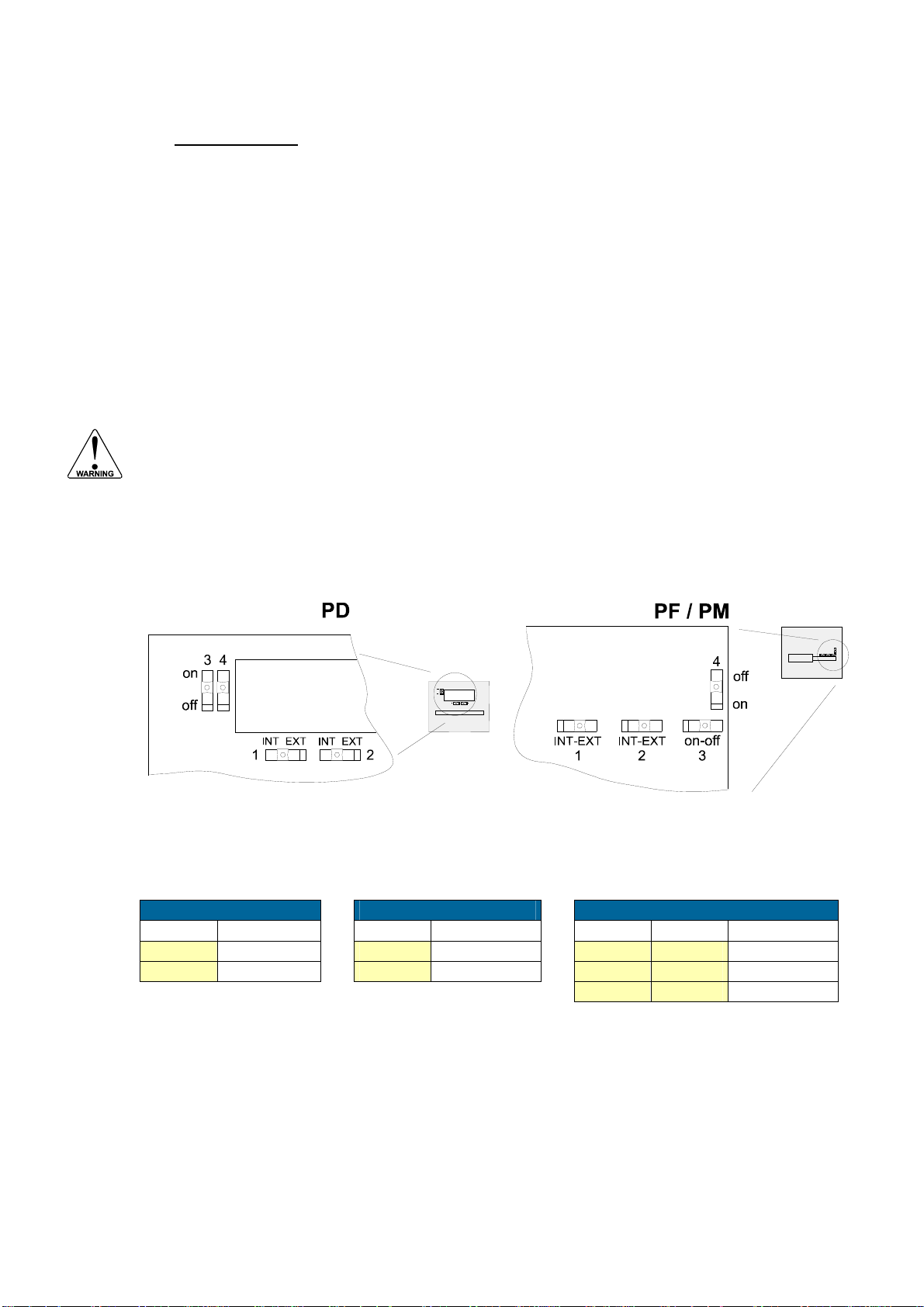

4.4.2. Voltage selection sensor supply .......................................................................................... 25

4.4.3. Terminal connectors ............................................................................................................ 26

5. Intrinsically safe applications..................................................................................................... 32

5.1. General information and instructions ................................................................................... 32

5.2. Terminal connectors Intrinsically Safe applications ............................................................. 33

5.3. Configuration examples Intrinsically Safe applications ........................................................ 35

5.4 Battery replacement instructions .......................................................................................... 37

6. Maintenance .............................................................................................................................. 38

6.1. General directions ................................................................................................................ 38

6.2. Repair ................................................................................................................................... 38

6.3 Battery life-time .................................................................................................................... 38

Appendix A: Technical specification .............................................................................................................. 39

Appendix B: Problem solving ......................................................................................................................... 42

Appendix C: Communication variables .......................................................................................................... 43

Index of this manual ....................................................................................................................................... 46

Notes .................................................................................................................................................. 47

HF110AEN_v0501_04

Page 5

1. INTRODUCTION

1.1. SYSTEM DESCRIPTION OF THE F110-A

Functions and features

The flowrate / totalizer model F110-A is a microprocessor driven instrument designed to display flowrate, total and accumulated total. This product has been designed with a focus on:

 ultra-low power consumption to allow long-life battery powered applications (type PB / PC),  intrinsic safety for use in hazardous applications (type XI),  several mounting possibilities with aluminum or GRP enclosures for harsh industrial

surroundings,

 ability to process all types of flowmeter signals,  transmitting possibilities with analog / pulse and communication (option) outputs.

Flowmeter input

This manual describes the unit with a (0)4-20mA input from the flowmeter "-A version". Other versions are available to process pulse or 0-10V flowmeter signals. One flowmeter with a (0)4-20mA output can be connected to the F110-A. To power the sensor, several options are available.

Standard outputs

 Configurable pulse output: a scaled pulse mirroring a certain totalized quantity. Maximum

frequency 60Hz.; the pulse length can be set from 7,8msec up to 2 seconds.

 Configurable linear (0)4-20mA or 0-10V analog output with 10-bits resolution mirroring the actual

flowrate. Flowrate levels as well as the minimum and maximum signal output can be tuned.

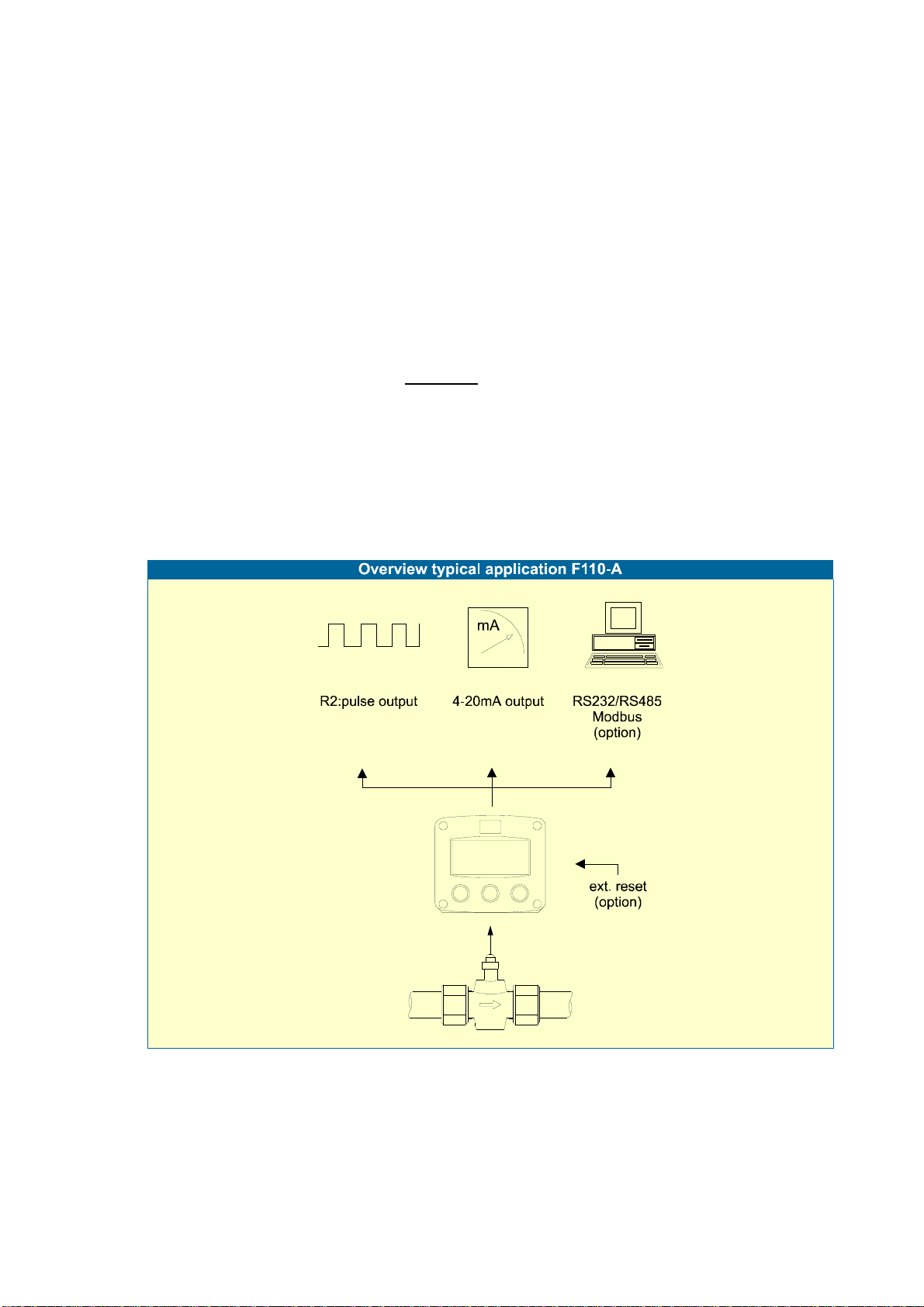

Fig. 1: Typical application for the F110-A.

HF110AEN_v0501_04

Page 6

Configuration of the unit

The F110-A was designed to be implemented in many types of applications. For that reason, a SETUP-level is available to configure your F110-A according to your specific requirements. SETUP includes several important features, such as Span, measurement units, signal settings etc. All setting are stored in EEPROM memory and will not be lost in the event of power failure or a drained battery. To extend the battery-life time (option), please make use of the power-management functions as described in chapter 3.2.3.

Display information

The unit has a large transflective LCD with all kinds of symbols and digits to display measuring units, status information, trend-indication and key-word messages. Flowrate and totals can be displayed either with the small 8mm digits or with the 17mm digits. A backup of the total and accumulated total in EEPROM memory is made every minute.

Options

The following options are available: isolated or active 4-20mA / 0-10V / 0-20mA analog output, full Modbus communication RS232/485/TTL (also battery powered), intrinsic safety, mechanical relay or active output, power- and sensor-supply options, panel-mount, wall-mount and weather-proof enclosures, flame proof enclosure and LED backlight.

HF110AEN_v0501_04

Page 7

2. OPERATIONAL

2.1. GENERAL

The F110-A may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. Take careful notice of the " Safety rules, instructions and precautionary measures " in the front of this manual.

This chapter describes the daily use of the F110-A. This instruction is meant for users / operators.

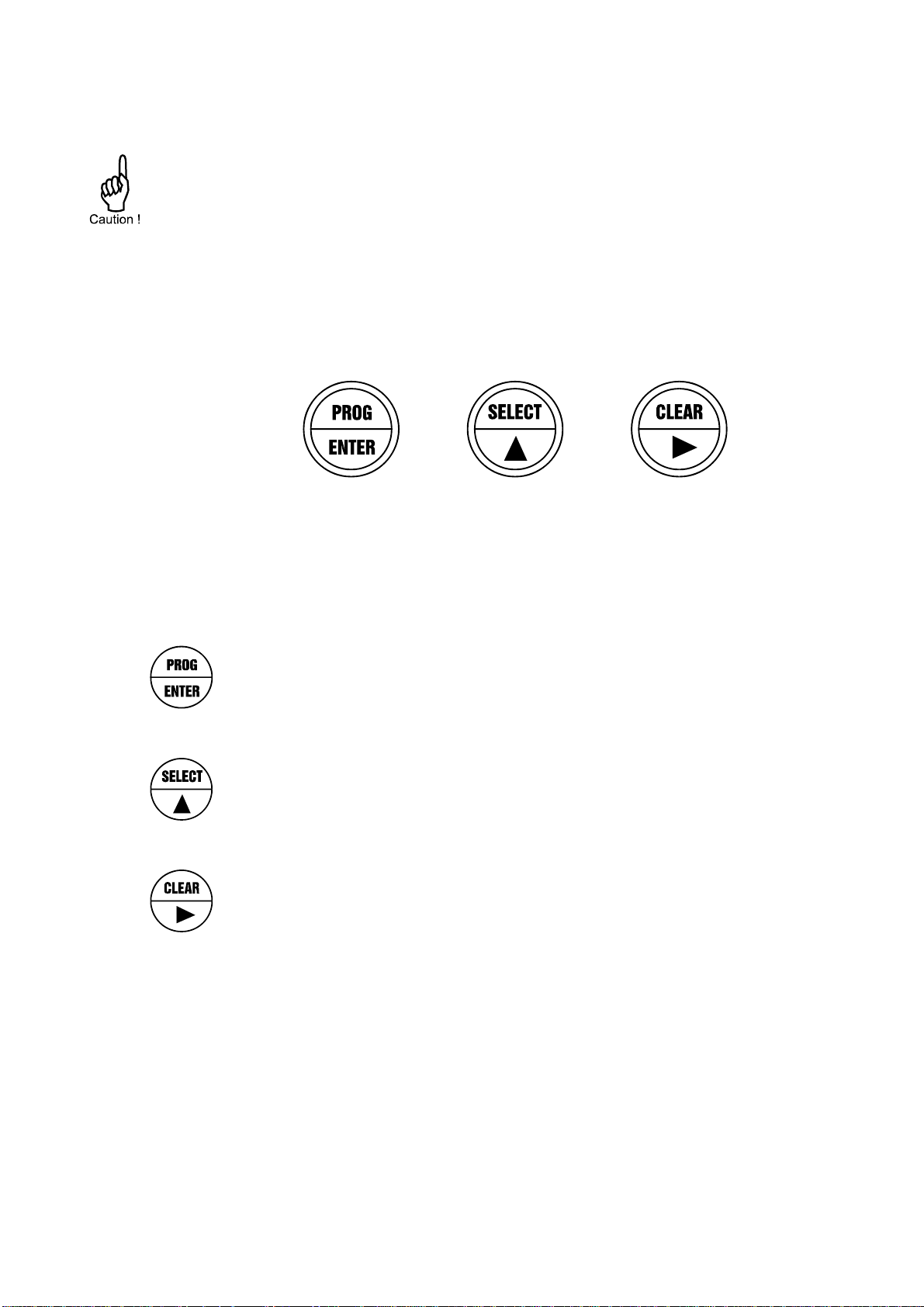

2.2. CONTROL PANEL

The following keys are available:

Fig. 2: Control Panel.

Functions of the keys

This key is used to program and save new values or settings.

It is also used to gain access to SETUP-level; please read chapter 3.

This key is used to SELECT accumulated total.

The arrow-key  is used to increase a value after PROG has been pressed or to configure the unit; please read chapter 3.

Press this key twice to CLEAR the value for total.

The arrow-key is used to select a digit after PROG has been pressed or to

configure the unit; please read chapter 3.

HF110AEN_v0501_04

Page 8

2.3. OPERATOR INFORMATION AND FUNCTIONS

In general, the F110-A will always act at Operator level. The information displayed depends upon the SETUP-settings. The signal generated by the connected flowmeter is measured by the F110-A in the background, whichever screen refresh rate setting is chosen. After pressing a key, the display will be updated very quickly during a 30 second period, after which it will slow-down again.

RUN

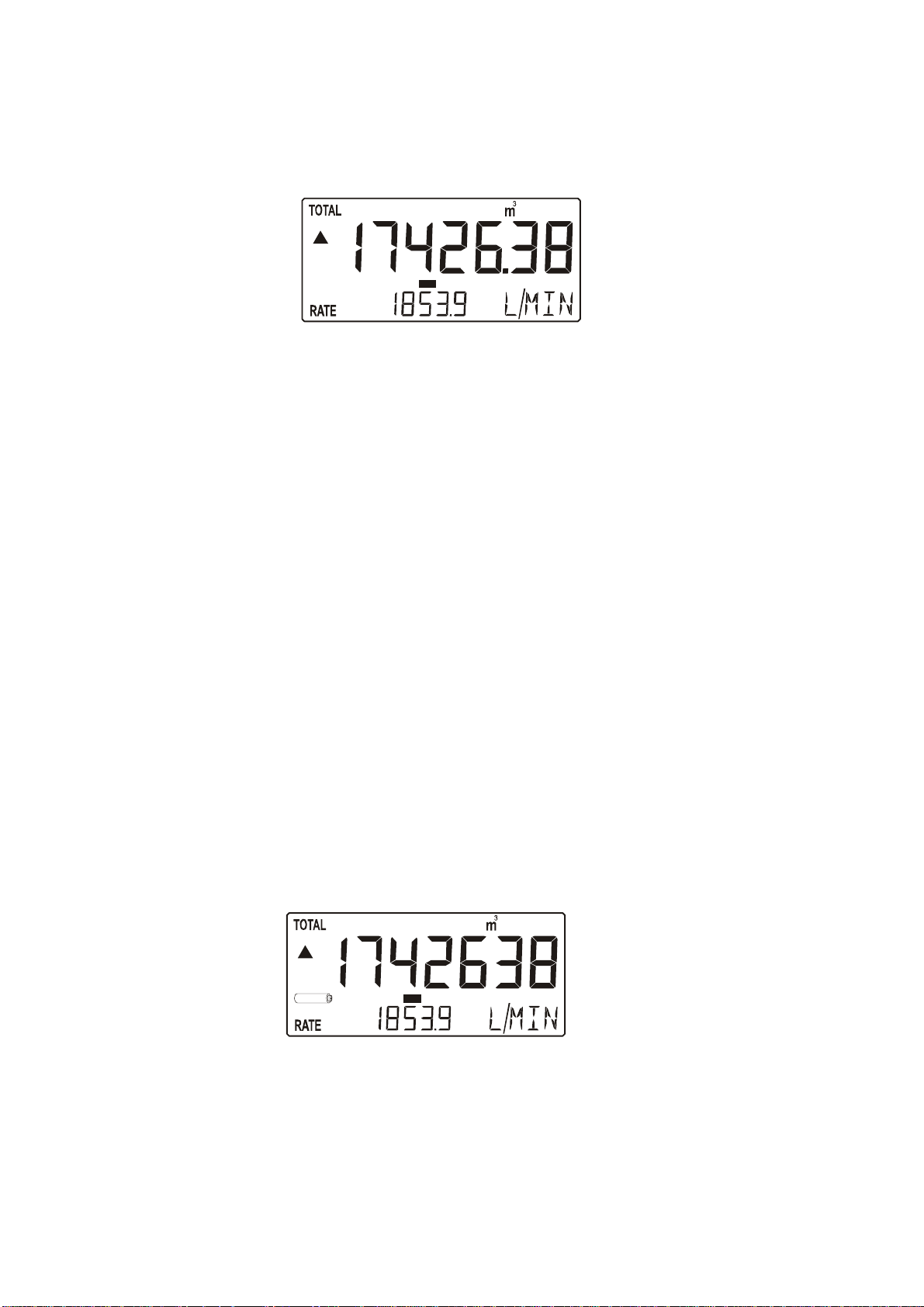

Fig. 3: Example of display information during process.

For the Operator, the following functions are available:

 Display flowrate / total or flowrate

This is the main display information of the F110-A. After selecting any other information, it will always return to this main display automatically. Total is displayed on the upper-line of the display and flowrate on the bottom line. It is possible to display flowrate only with the large 17mm digits; in this instance press the SELECT-key to read the total. When "-------" is shown, then the flowrate value is too high to be displayed. The arrows  indicate the increase/decrease of the flowrate trend.

 Clear total

The value for total can be re-initialized. To do so, press CLEAR twice. After pressing CLEAR once, the flashing text "PUSH CLEAR" is displayed. To avoid re-initialization at this stage, press another key than CLEAR or wait for 20 seconds. Re-initialization of total DOES NOT influence the accumulated total.

 Display accumulated total

When the SELECT-key is pressed, total and accumulated total are displayed. The accumulated total cannot be re-initialized. The value will count up to 99,999,999,999. The unit and number of decimals are displayed according to the configuration settings for total.

 Low-battery alarm

When the battery voltage drops, it must be replaced. At first "low-battery" will flash, but as soon as it is displayed continuously, the battery MUST be replaced shortly after! Only original batteries supplied by the manufacturer may be used, else the guarantee and liability will be terminated. The remaining lifetime after the first moment of indication is generally several days up to some weeks.

LOW BATTERY

RUN

Fig. 4: Example of low-battery alarm.

• Alarm 01-03

When "alarm" is displayed, please consult Appendix B: problem solving.

HF110AEN_v0501_04

Page 9

3. CONFIGURATION

3.1. INTRODUCTION

This and the following chapters are exclusively meant for electricians and non-operators. In these, an extensive description of all software settings and hardware connections are provided.

Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions. The F110-A may only be operated by personnel who are authorized and trained by the operator of the facility. All instructions in this manual are to be observed. Ensure that the measuring system is correctly wired up according to the wiring diagrams. The housing may only be opened by trained personnel. Take careful notice of the " Safety rules, instructions and precautionary measures " in the front of this manual.

3.2. PROGRAMMING SETUP-LEVEL

3.2.1. GENERAL

Configuration of the F110-A is done at SETUP-level. SETUP-level is reached by pressing the PROG/ENTER key for 7 seconds; at which time, both arrows  will be displayed. In order to return

to the operator level, PROG will have to be pressed for three seconds. Alternatively, if no keys are

pressed for 2 minutes, the unit will exit SETUP automatically. SETUP can be reached at all times while the F110-A remains fully operational.

Note: A pass code may be required to enter SETUP. Without this pass code access to SETUP is denied.

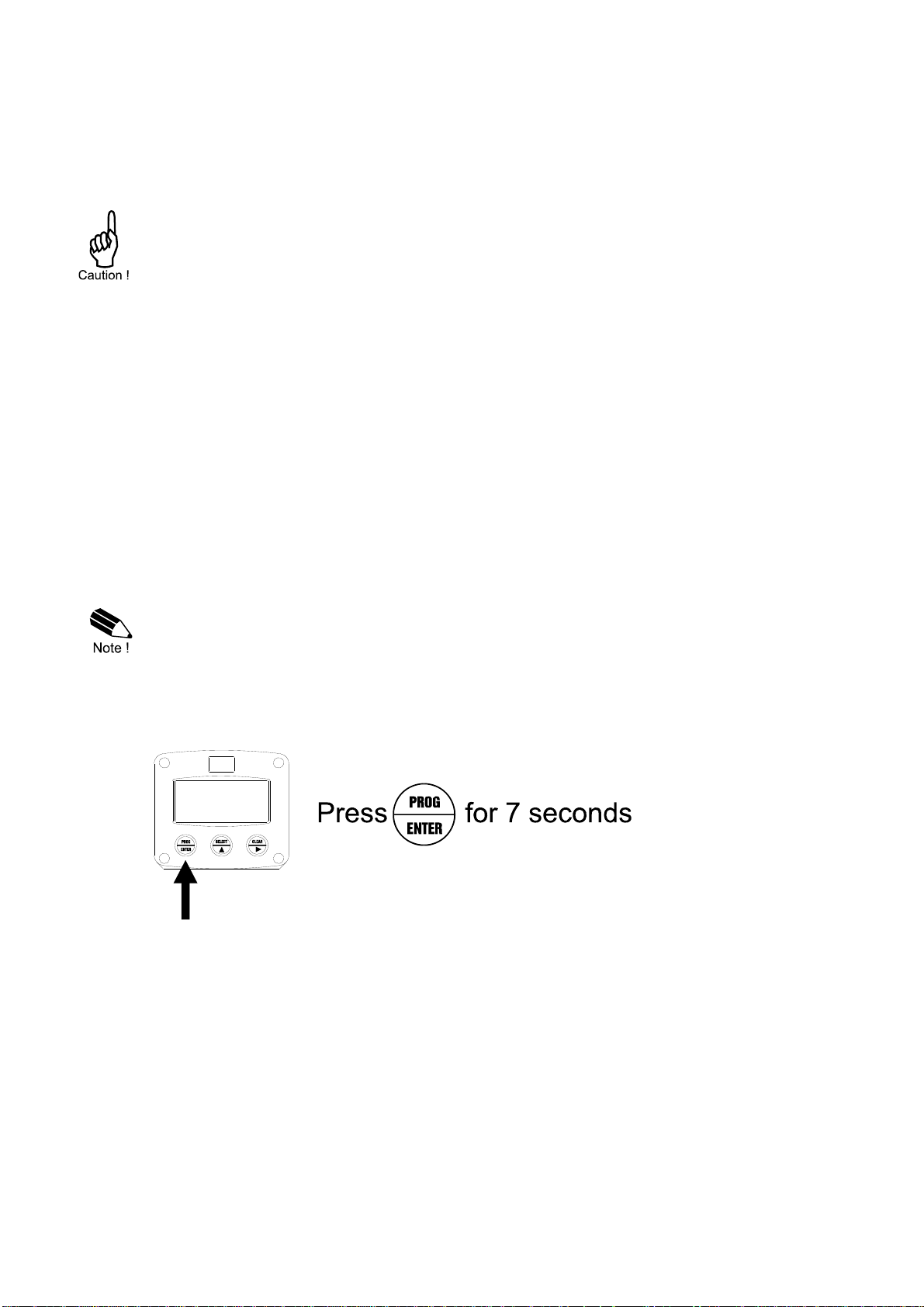

To enter SETUP-level:

HF110AEN_v0501_04

Page 10

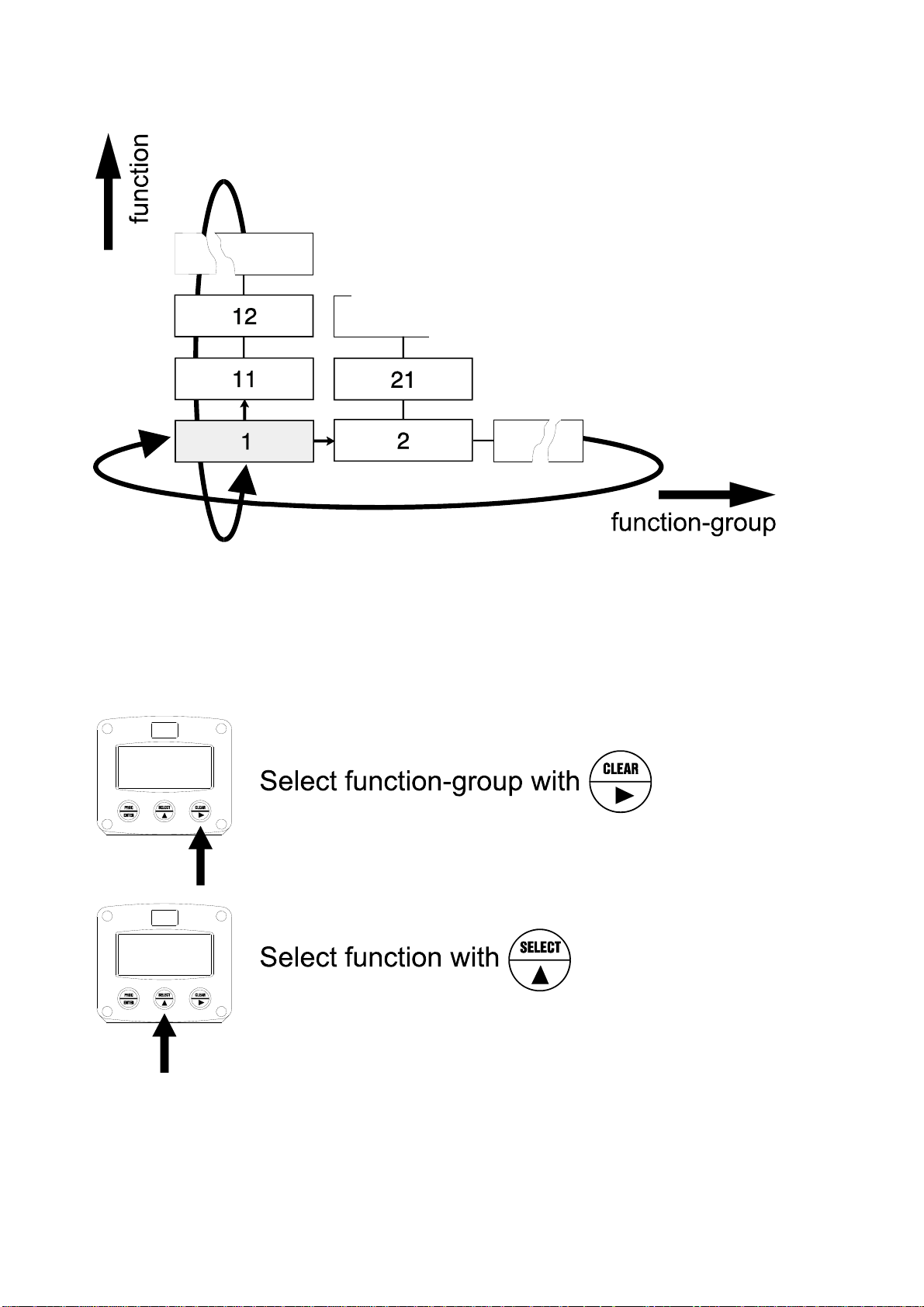

Matrix structure SETUP-level:

SCROLLING THROUGH SETUP-LEVEL

Selection of function-group and function:

SETUP is divided into several function groups and functions.

Each function has a unique number, which is displayed below the word "SETUP" at the bottom of the display. The number is a combination of two figures. The first figure indicates the function-group and the second figure the sub-function. Additionally, each function is expressed with a keyword.

After selecting a sub-function, the next main function is selected by scrolling through all "active" subfunctions (e.g. 1, 11, 12, 13, 14, 1, 2, 3, 31 etc.).

HF110AEN_v0501_04

Page 11

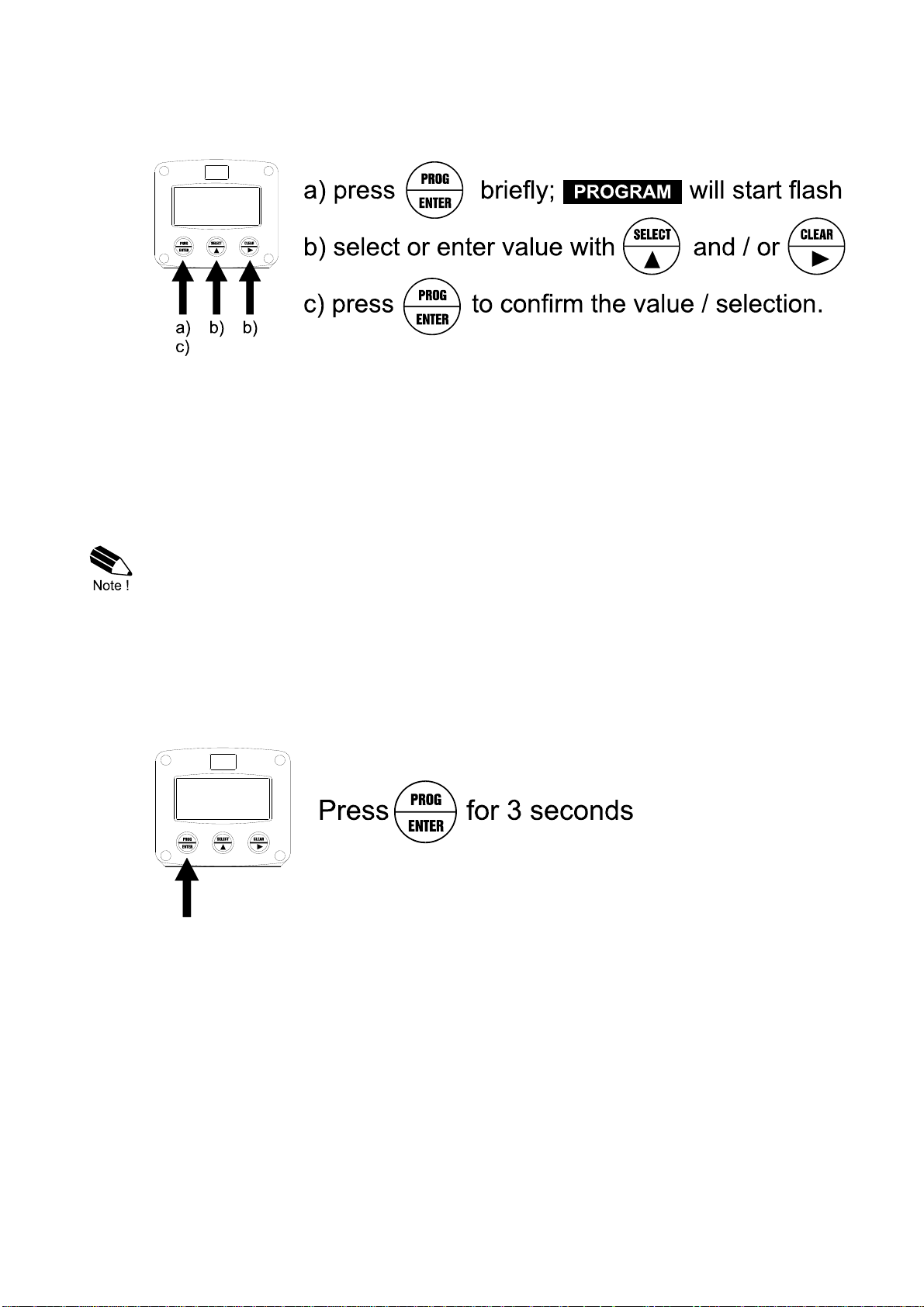

To change or select a value:

To change a value, use  to select the digits and  to increase that value. To select a setting, both  and  can be used. If the new value is invalid, the increase sign or decrease-sign will be displayed while you are programming.

When data is altered but ENTER is not pressed, then the alteration can still be cancelled by waiting for 20 seconds or by pressing ENTER for three seconds: the PROG-procedure will be left automatically and the former value reinstated.

Note: alterations will only be set after ENTER has been pressed!

To return to OPERATOR-level:

In order to return to the operator level, PROG will have to be pressed for three seconds. Also, when no keys are pressed for 2 minutes, SETUP will be left automatically.

HF110AEN_v0501_04

Page 12

3.2.2. OVERVIEW FUNCTIONS SETUP LEVEL

SETUP FUNCTIONS AND VARIABLES

1 TOTAL

11 UNIT L - m3 - kg - lb - GAL - USGAL - bbl - no unit 12 DECIMALS 0 - 1 - 2 - 3 (Ref: displayed value) 13 SPAN 0.000001 - 999,999 unit/second 14 DECIMALS SPAN 0 - 6

2 FLOWRATE

21 UNIT mL - L - m3 - mg - g - kg - ton - GAL - bbl - lb - cf - REV -

no unit - scf - Nm3 - NL - P 22 TIME UNIT sec - min - hour - day 23 DECIMALS 0 - 1 - 2 - 3 (Ref: displayed value) 24 SPAN 0.000001 - 999,999 unit/time-unit 25 DECIMALS SPAN 0 - 6

3 DISPLAY

31 FUNCTION total - flowrate

4 POWER MANAGEMENT

41 LCD UPDATE fast - 1 sec - 3 sec - 15 sec - 30 sec - off 42 BATTERY MODE operational - shelf

5 FLOWMETER

51 FORMULA interpolation, square root 52 FILTER 00 - 99 53 CUT-OFF 0.0 - 99.9% 54 CALIBRATE LOW

55 CALIBRATE HIGH

6 ANALOG

61 OUTPUT disable - enable 62 MINIMUM SIGNAL flowrate 000.000 - 999,999 unit/time unit 63 MAXIMUM SIGNAL flowrate 000.000 - 999,999 unit/time unit 64 CUT-OFF 0.0 - 9.9% 65 TUNE MIN – (0)4mA / 0V 0 - 9,999 66 TUNE MAX- 20mA / 10V 0 - 9,999 67 FILTER 00 - 99

7 IMPULSE

71 PERIOD TIME 0 - 250 72 IMPULSE PER X,XXX,XXX quantity

8 COMMUNICATION

81 SPEED / BAUDRATE 1200 - 2400 - 4800 - 9600 82 ADDRESS 1 - 255 83 MODE ASCII - rtu - off

9 OTHERS

91 TYPE / MODEL 92 SOFTWARE VERSION 93 SERIAL NO. 94 PASS CODE 0000 - 9999 95 TAGNUMBER 0000000 - 9999999

default - calibrate - calibrate set

HF110AEN_v0501_04

Page 13

3.2.3. EXPLANATION OF SETUP-FUNCTIONS

1 - TOTAL

MEASUREMENT UNIT 11

DECIMALS 12

SPAN 13

DECIMALS SPAN 14

SETUP - 11 determines the measurement unit for total, accumulated total and pulse output. The following units can be selected:

L - m3 - kg - lb. - GAL - USGAL - bbl - _ (no unit).

Alteration of the measurement unit will have consequences for operator and SETUP-level values. Please note that the Span has to be adapted as well; the calculation is not done automatically. The decimal point determines for total, accumulated total and pulse output the number of digits following the decimal point. The following can be selected:

0000000 - 111111.1 - 22222.22 - 3333.333

With the span, the flowmeter signal is converted to a quantity. The span for Total is determined on the basis of the measurement unit (setting 11) and the flowrate per second at 20mA (or max signal). Enter the span in whole numbers (decimals are set with SETUP 14). The more accurate the span, the more accurate the functioning of the system will be:

Example 1 Calculating the Span.

Let us assume that the flowmeter generates 20mA at a rate of

652.31 USGAL per hour, the selected unit is barrels. There are 42 gallons in one barrel; so the rate is 652.31/42 is

15.53119 barrels/hour. This is 0.0043142 barrels/second, which is the span. Enter for

Example 2 Calculating the Span.

Let us assume that the flowmeter generates 20mA at a flowrate of 2,481.3 Liters/minute and the selected unit is "cubic meters / m3". The rate per second is 2,481.3÷60 is 41.35 5 L/sec. This is 0.041355 m3/sec., which is the span. Enter for decimals span "6".

This setting determines the number of decimals for the Span (SETUP 13). The following can be selected:

0 - 1 - 2 - 3 - 4 - 5 - 6

Please note that this function influences the accuracy of the Span indirectly. This setting has NO influence on the displayed number of digits for total (SETUP 12)!

Page 13

SETUP - 13: "004314" and for SETUP - 14 "6".

SETUP - 13: "041355" and for SETUP - 14 -

HF110AEN_v0501_04

Page 14

2 - FLOWRATE

The settings for total and flowrate are entirely separate. In this way, different units of measurement can be used for each e.g. cubic meters for total and liters for flowrate. The display update time for flowrate is one second or more.

Note: these settings also influence the analog output.

MEASUREMENT UNIT 21

TIME UNIT 22 DECIMALS 23

SPAN 24

DECIMALS SPAN 25

SETUP - 21 determines the measurement unit for flowrate. The following units can be selected:

mL - L - m3 - mg - g - kg - ton - GAL - bbl - lb - cf - REV - no unit - scf - Nm3 - NL - P.

Alteration of the measurement unit will have consequences for operator and SETUP-level values. Please note that the Span has to be adapted as well; the calculation is not done automatically. The flowrate can be calculated per second (SEC), minute (MIN), hour (HR) or day (DAY). This setting determines for flowrate the number of digits following the decimal point. The following can be selected:

00000 - 1111.1 - 2222.22 - 3333.333

With the span, the flowmeter signal is converted to a quantity. The span for flowrate is determined on the basis of the selected measurement unit and time unit at 20mA (or maximum signal). Enter the span in whole numbers (decimals are set with SETUP 25). The more accurate the span, the more accurate the functioning of the system will be:

Example 1 Calculating the span for flowrate

Let us assume that the flowmeter generates 20mA at a

flowrate of 2,481.3 Liters/minute, the selected unit is

"Liters" and time unit "minute".

The span is 2481.3

Enter for SETUP - 24: "248130" and for SETUP - 25 -

decimals span "2".

Example 2 Calculating the span for flowrate

Let us assume that the flowmeter generates 20mA at a

rate of 652.31 USGAL per hour, the selected unit is USG

and the time unit is minute.

The span is 652.31 / 60 minutes is 10.87183 (GPM).

Enter for SETUP - 24: "108718" and for SETUP - 25 "4".

This setting determines the number of decimals for the Span (SETUP 24). The following can be selected:

0 - 1 - 2 - 3 - 4 - 5 - 6

Please note that this SETUP - influences the accuracy of the Span indirectly. This setting has NO influence on the displayed number of digits for "flowrate" (SETUP 23)!

HF110AEN_v0501_04

Page 15

3 - DISPLAY

FUNCTION 31

The large 17mm digits can be set to display total or flowrate. When "total" is selected, both total and flowrate are displayed simultaneously. When "flowrate" is selected, only flowrate will be displayed with it’s measuring unit while total will be displayed after pressing SELECT.

4 - POWER MANAGEMENT

When used with the internal battery option, the user can expect reliable measurement over a long period of time. The F110-A has several smart power management functions to extend the (optional) battery life time significantly. Two of these functions can be set:

LCD NEW 41

BATTERY-MODE 42

The calculation of the display-information influences the power consumption significantly. When the application does not require a fast display update, it is strongly advised to select a slow refresh rate. Please understand that NO information will be lost; the signal will be processed and the output signals will be generated in the normal way. The following can be selected:

Fast - 1 sec - 3 sec - 15 sec - 30 sec - off.

Example 3: Battery life-time

battery life-time with a FAST update: about 3 years. battery life-time with a 1 sec update: about 7 years.

Note: after a button has been pressed by the operator - the display refresh rate will always switch to FAST for 30 seconds. When "OFF" is selected, the display will be switched off after 30 seconds and will be switched on as soon as a button has been pressed.

The unit has two modes: operational or shelf. After "shelf" has been selected, the unit can be stored for several years; it will not process the signal, the display is switched-off but all settings and totals are stored. In this mode, power consumption is extremely low. To wake up the unit again, press the SELECT-key twice.

HF110AEN_v0501_04

Page 16

SIGNAL 51

5 - FLOWMETER

The F110-A can process the 4-20mA signal in two ways:

 Interpolation: the signal is processed linear

 Square root: for differential pressure

R = S x I

FILTER 52

The analog output signal of a flowmeter does mirror the actual flow. This signal is measured several times a second by the F110-A. The value measured is a "snap-shot" of the real flow. With the help of this digital filter a more stable and accurate reading can be obtained while the filter level can be set to a desired value. The filter principal is based on three input values: the filter level (01-99), the last measured analog value and the last average value. The higher the filter level, the longer the response time on a value change will be. Below, several filter levels with their response times are indicated:

R = S √ I

where: R = Rate: the calculated flowrate S = Span: the maximum flowrate at 20mA. The span is programmed

with setting 24 for flowrate and with setting 13 for total.

I = Input: the scaled analog value; in these formulas value 0 (zero)

for (0)4mA and value 1 (one) for 20mA.

FILTER VALUE RESPONSE TIME ON STEP CHANGE OF ANALOG VALUE.

TIME IN SECONDS

50% INFLUENCE 75% INFLUENCE 90% INFLUENCE 99% INFLUENCE

01 filter disabled filter disabled filter disabled filter disabled 02 0.3 seconds 0.5 seconds 1.0 seconds 1.8 seconds 03 0.5 seconds 1.0 seconds 1.5 seconds 3 seconds 05 1.0 seconds 1.8 seconds 2.8 seconds 5.3 seconds 10 1.8 seconds 3.5 seconds 5.6 seconds 11 seconds 20 3.5 seconds 7.0 seconds 11 seconds 23 seconds 30 5.3 seconds 10 seconds 17 seconds 34 seconds 50 8.8 seconds 17 seconds 29 seconds 57 seconds 75 13 seconds 26 seconds 43 seconds 86 seconds 99 17 seconds 34 seconds 57 seconds 114 seconds

Continued next page >>>

HF110AEN_v0501_04

Page 17

5 - FLOWMETER (CONTINUED)

CUT-OFF 53

FUNCTION

(SETUP

51)

SPAN

(SETUP

13/24)

interpolation 450 L/min 25 L/min 25/450 x 100%=5.5% 16mA x 5.5% + 4mA = 4.88mA

square root 450 L/min 25 L/min (25/450)2 x 100%=0.3% 16mA x 0.3% + 4mA = 4.05mA

TUNE MIN / 4MA 54

TUNE MAX / 20MA 55

To ignore e.g. leakage of the flow or vibration, a low-flow cut-off can be set as percentage over the full range of 16mA (or 20mA / 10V). When the analog value is less than required with this setting, the signal will be ignored. The cut-off value can be programmed is the range 0.0 - 99.9%.

Examples:

REQUIRED

CUT-OFF

With this setting it is possible to calibrate the input value for (0)4mA as the signal from the flowmeter might not be exact 4.0 mA (or 0.0 mA) at flowrate zero. This function will measure the real output value at flow zero.

 Warning: be very sure that the offered signal is correct

before the calibration is executed as this function has major influences on the accuracy of the system!

After pressing PROG, three settings can be selected:  CALIBRATE: with this setting, the input will be calibrated with the

actual "(0)4mA" value. After pressing enter, CAL SET will be displayed as soon as the calibration is completed. From that moment, the analog value must be more than the calibrated value before the signal will be processed.

 DEFAULT: with this setting, the manufactures value is re-installed.  CAL SET: to select the last calibrated value.

With this setting it is possible to calibrate the input value for 20mA as the signal from the flowmeter might not be exact 20.0 mA at maximum flowrate. This function will measure the real output value at maximum flowrate.

 Warning: be very sure that the offered signal is correct

before the calibration is executed as this function has major influences on the accuracy of the system!

After pressing PROG, three settings can be selected:  CALIBRATE: with this setting, the input will be calibrated with the

actual "20mA" value. After pressing enter, CAL SET will be displayed as soon as the calibration is completed. From that moment, the analog value must be less than the calibrated value for a reliable measurement.

 DEFAULT: with this setting, the manufactures value is re-installed.  CAL SET: to select the last calibrated value.

CUT-OFF

(SETUP 53)

REQUIRED OUTPUT

HF110AEN_v0501_04

Page 18

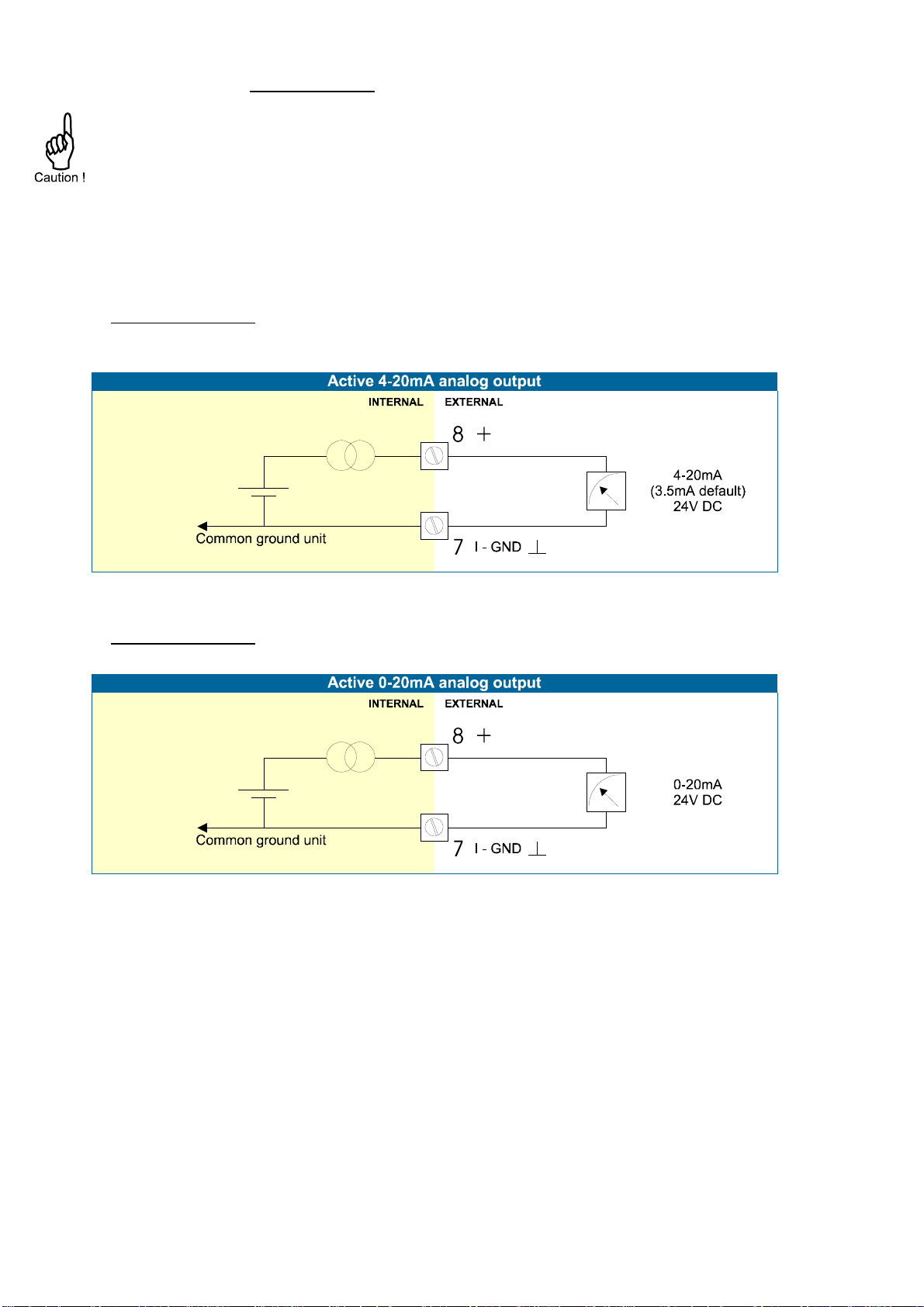

6 - ANALOG OUTPUT

A linear analog (0)4-20mA or 0-10V signal is generated according to the flowrate with a 10 bits resolution. The settings for flowrate (SETUP - 2) influence the analog output directly. The relationship between rate and analog output is set with the following functions:

DISABLE / ENABLE 61

MINIMUM FLOWRATE 62

MAXIMUM FLOWRATE 63

CUT-OFF 64

4MA

(SETUP

62)

20MA

(SETUP

63)

0 L/min 100 L/min 2% (100-0)*2% = 2.0 L/min 4+(16*2%) = 4.32mA

20 L/min 800 L/min 3.5% (800-20)*3.5%= 27.3 L/min 4+(16*3.5%)=4.56mA

TUNE MIN / 4MA 65

TUNE MAX / 20MA 66

Continued next page >>>

The analog output can be disabled. In case of a passive analog output type AP, 3.5mA will be generated if a power supply is available but the output is disabled.

Enter here the flowrate at which the output should generate the minimum signal (0/4mA or 0V) - in most applications at flowrate "zero". The number of decimals displayed depend upon SETUP 23. The time and measuring units (L/min for example) are dependant upon SETUP 21 and 22 but are not displayed. Enter here the flowrate at which the output should generate the maximum signal (20mA or 10V) - in most applications at maximum flow. The number of decimals displayed depend upon SETUP 23. The time and measuring units (L/min for example) are dependant upon SETUP 21 and 22 but cannot be displayed. To ignore leakage of the flow for example, a low flow cut-off can be set as a percentage of the full range of 16mA, (or 20mA or 10V). When the flow is less than the required rate, the current will be the minimum signal (0/4mA or 10V).

Examples:

CUT-OFF

REQUIRED RATE OUTPUT

(SETUP 64)

The initial minimum analog output value is 0/4mA or 0V. However, this value might differ slightly due to external influences such as temperature for example. The 0/4mA or 0V value can be tuned precisely with this setting.

Before tuning the signal, be sure that the analog signal is not being used for any application!

After pressing PROG, the current will be about 4mA (or 0mA / 0V). The current can be increased / decreased with the arrow-keys and is directly active. Press ENTER to store the new value. Remark: the analog output value can be programmed “up-side-down” if desired, so 20mA at minimum flowrate for example! The initial maximum analog output value is 20mA (or 10V). However, this value might differ slightly due to external influences such as temperature for example. The 20mA value (or 10V) can be tuned precisely with this setting.

Before tuning the signal, be sure that the analog signal is not being used for any application!

After pressing PROG, the current will be about 20mA. The current can be increased / decreased with the arrow-keys and is directly active. Press ENTER to store the new value. Remark: the analog output value can be programmed “up-side-down” if desired, so 4mA at maximum flowrate for example!

HF110AEN_v0501_04

Page 19

6 - ANALOG OUTPUT (CONTINUED)

FILTER 67

FILTER VALUE RESPONSE TIME ON STEP CHANGE OF ANALOG VALUE.

50% INFLUENCE 75% INFLUENCE 90% INFLUENCE 99% INFLUENCE

01 filter disabled filter disabled filter disabled filter disabled 02 0.1 second 0.2 second 0.4 second 0.7 second 03 0.2 second 0.4 second 0.6 second 1.2 seconds 05 0.4 second 0.7 second 1.1 seconds 2.1 seconds 10 0.7 second 1.4 seconds 2.2 seconds 4.4 seconds 20 1.4 seconds 2.8 seconds 4.5 seconds 9.0 seconds 30 2.1 seconds 4 seconds 7 seconds 14 seconds 50 3.5 seconds 7 seconds 11 seconds 23 seconds 75 5.2 seconds 10 seconds 17 seconds 34 seconds 99 6.9 seconds 14 seconds 23 seconds 45 seconds

This function is used to stabilize the analog output signal. The output value is updated every 0.1 second. With the help of this digital filter a more stable but less precise reading can be obtained. The filter principal is based on three input values: the filter level (01-99), the last analog output value and the last average value. The higher the filter level, the longer the response time on a value change will be. Below, several filter levels with their response times are indicated:

TIME IN SECONDS

Page 19

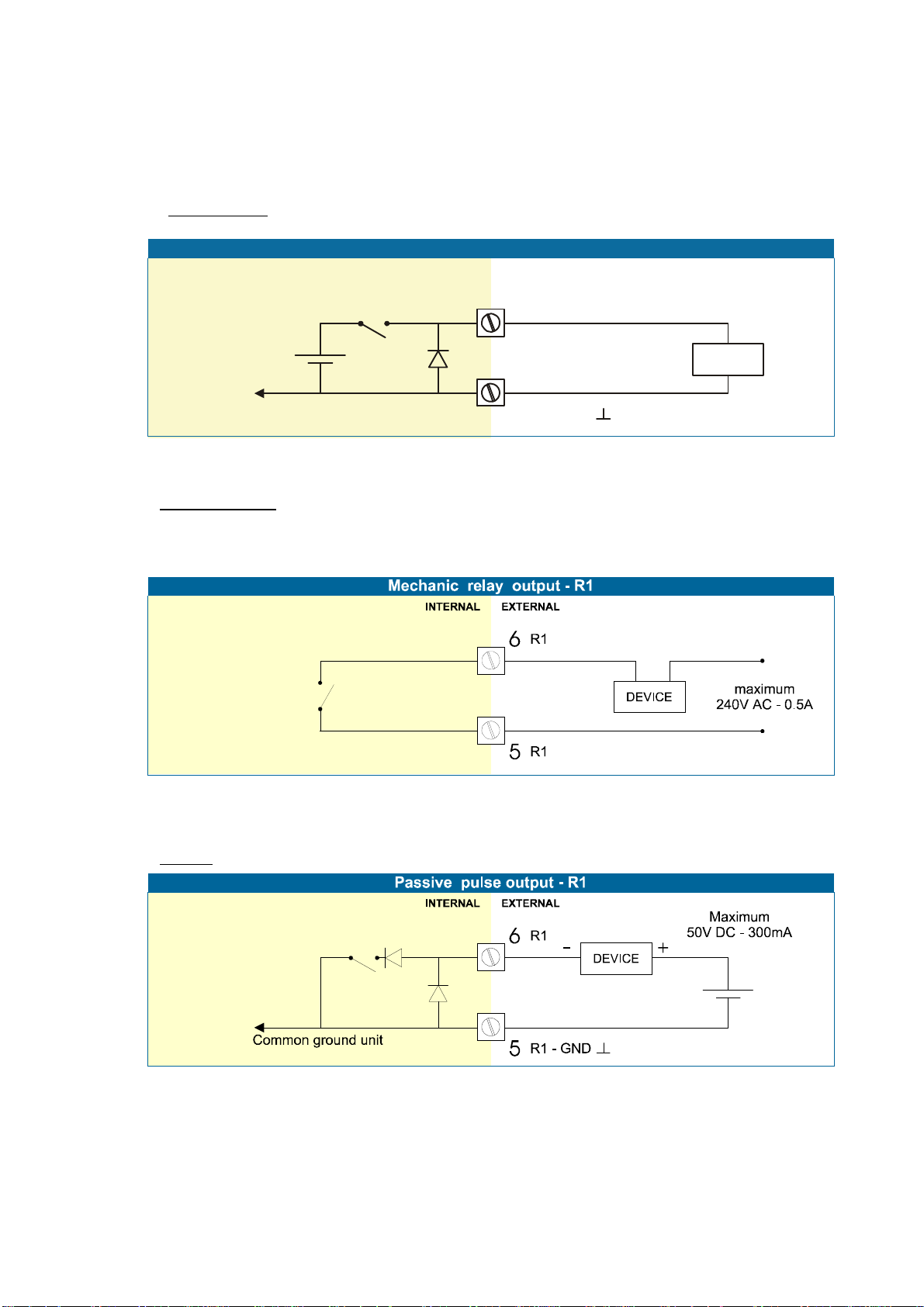

7 - RELAY OUTPUT

One transistor or mechanic relay output is available as scaled pulse output according to the accumulated total.

PERIOD TIME PULSE OUTPUT 71

PULSE PER 72

The period time determines the time that the transistor or relay will be switched; in other words the pulse length. The minimum time between the pulses is as long as the selected period time. One period is approx. 7.8 msec. If the value selected is “zero”, the pulse output is disabled. The maximum value is 255 periods.

Note: If the frequency should go out of range - when the flowrate increases for example - an internal buffer will be used to "store the missed pulses": As soon as the flowrate reduces again, the buffer will be "emptied". It might be that pulses will be missed due to a buffer-overflow, so it is advised to program this setting within it's range. If a mechanic relay is used for the pulse output, it is recommended to reduce the max. output frequency to 0.5Hz, else the life time will be reduced significantly.

NUMBER OF PERIODS PERIOD TIME MAX. FREQUENCY

0 disabled disabled 1 0,0078 seconds 64 Hz. 2 0,0156 seconds 32 Hz. 3 0,0234 seconds 21 Hz.

64 0,5000 seconds 1 Hz.

255 1,9922 seconds 0.25 Hz.

According to the measurement unit settings for total, a pulse will be generated every X-quantity. Enter this quantity here while taking the displayed decimal position and measuring unit into account.

HF110AEN_v0501_04

Page 20

8 - COMMUNICATION (OPTIONAL)

The functions described below deal with hardware that is not part of the standard delivery. Programming of these functions does not have any effect if this hardware has not been installed. Consult Appendix C and the Modbus communication protocol description for a detailed explanation.

BAUDRATE 81

BUS ADDRESS 82 MODE 83

For external control, the following communication speeds can be selected:

1200 - 2400 - 4800 - 9600 baud

For communication purposes, a unique identity can be attributed to every F110-A. This address can vary from 1-255. The communication protocol is Modbus ASCII or RTU mode. Select OFF, to disable this communication function.

9 - OTHERS

TYPE OF MODEL 91

VERSION SOFTWARE 92

SERIAL NUMBER 93

PASS CODE 94

TAGNUMBER 95

For support and maintenance it is important to have information about the characteristics of the F110-A. Your supplier will ask for this information in the case of a serious breakdown or to assess the suitability of your model for upgrade considerations. For support and maintenance it is important to have information about the characteristics of the F110-A. Your supplier will ask for this information in the case of a serious breakdown or to assess the suitability of your model for upgrade considerations. For support and maintenance it is important to have information about the characteristics of the F110-A. Your supplier will ask for this information in the case of a serious breakdown or to assess the suitability of your model for upgrade considerations. All SETUP-values can be pass code protected. This protection is disabled with value 0000 (zero). Up to and including 4 digits can be programmed, for example 1234. For identification of the unit and communication purposes, a unique tag number of maximum 7 digits can be entered.

HF110AEN_v0501_04

Page 21

4. INSTALLATION

4.1. GENERAL DIRECTIONS

 Mounting, electrical installation, start-up and maintenance of this instrument may only be

carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions.

 The F110-A may only be operated by personnel who are authorized and trained by the

operator of the facility. All instructions in this manual are to be observed.

 Ensure that the measuring system is correctly wired up according to the wiring diagrams.

Protection against accidental contact is no longer assured when the housing cover is removed or the panel cabinet has been opened (danger from electrical shock). The housing may only be opened by trained personnel.

 Take careful notice of the " Safety rules, instructions and precautionary measures " at the front

of this manual.

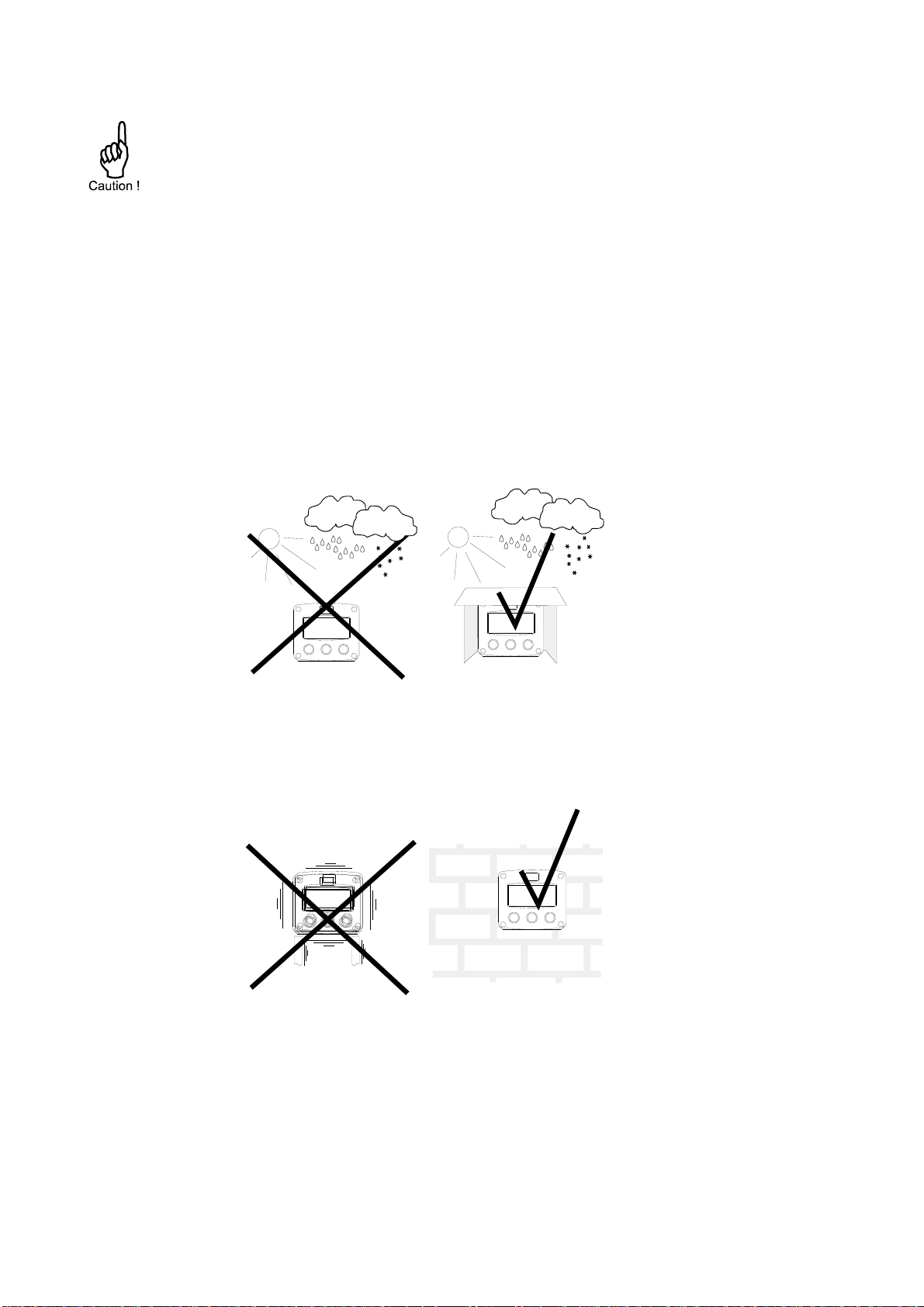

4.2. INSTALLATION / SURROUNDING CONDITIONS

Take the relevant IP classification of the casing into account (see manufactures plate). Even an IP67 (NEMA 4X) casing should NEVER be exposed to strongly varying (weather) conditions. When panel-mounted, the unit is IP65 (NEMA 4X)! When used in very cold surroundings or varying climatic conditions, take the necessary precautions against moisture by placing a dry sachet of silica gel, for example, inside the instrument case.

Mount the F110-A on a solid structure to avoid vibrations.

HF110AEN_v0501_04

Page 22

4.3. DIMENSIONS- ENCLOSURE Aluminum enclosures:

120 mm (4.72")

130 mm (5.12")

30mm 30mm

75 mm (2.95")

60 mm (2.36")

12mm

112 mm (4.40")

12mm

PG9

M20 x 1,5

30mm 30mm

M16 x 1,5 M16 x 1,5

M20 x 1,5

25mm 25mm

M20 x 1,5 M20 x 1,5

PG9

22,5mm

22,50mm

22,5mm

24mm24mm

36mm

4x M20 x 1,5

36mm

1/2"NPT

0.12" 0.12"

3x 1/2"NPT

15 15

2323

6 x M12

14mm 17mm

0.9"

15 16

31 mm

(1.22”)

29.1 mm (1.15”)

115 mm (4.53”)

98 mm (3.86”)

Fig. 5: Dimensions aluminum enclosures.

HF110AEN_v0501_04

Page 23

GRP enclosures:

120 mm (4.72")

130 mm (5.12")

HK back box:

75 mm (2.95")

60 mm (2.36")

112 mm (4.40")

Page 23

(flat bottom)

HD HK

D=16mm

30mm 30mm

D=16mm

D=20mm

75 mm (2.95")

22,5mm

0.9"

25mm 25mm

D=20mm

12mm

36mm

0.12” 0.12”

104 mm (4.09”)

D=20mm

12mm

24mm24mm

36mm

118 mm (4.65”)

22,5mm

14mm 17mm

D=12mm

0.9”

D=22mm (0.866")

29.1 mm (1.15”)

31 mm

(1.22”)

3x D=22mm (0.866”)

115 mm (4.53”)

98 mm (3.86”)

Fig. 6: Dimensions GRP enclosures.

HF110AEN_v0501_04

Page 24

4.4. INSTALLING THE HARDWARE

4.4.1. INTRODUCTION

 Electro static discharge does inflict irreparable damage to electronics! Before installing or

opening the unit, the installer has to discharge himself by touching a well-grounded object.

 This unit must be installed in accordance with the EMC guidelines (Electro Magnetic

Compatibility).

Aluminum enclosures

 When installed in an aluminum enclosure and a potentially explosive atmosphere requiring

apparatus of equipment protection level Ga and Da, the unit must be installed such that, even in the event of rare incidents, an ignition source due to impact or friction sparks between the enclosure and iron/steel is excluded.

 Do ground the aluminum enclosure properly as indicated, if the F110-A has been supplied with

the 115-230V AC power-supply type PM. The green / yellow wire between the back-casing and removable terminal-block may never be removed.

Fig. 7: Grounding aluminum enclosure with type PM 115-230V AC.

FOR INSTALLATION, PAY EMPHATIC ATTENTION TO:

 Separate cable glands with effective IP67 (NEMA4X) seals for all wires.  Unused cable entries: ensure that you fit IP67 (NEMA4X) plugs to maintain rating.  A reliable ground connection for both the sensor, and if applicable, for the metal casing.  An effective screened cable for the input signal, and grounding of its screen to terminal 9 (GND)

or at the sensor itself, whichever is appropriate to the application.

HF110AEN_v0501_04

Page 25

4.4.2. VOLTAGE SELECTION SENSOR SUPPLY

For Intrinsically Safe applications: read chapter 5.

Type PL

Not applicable as the F110-A-PL is powered by the sensor signal.

Type PB / PC / PX (AP) - battery powered and output loop-powered applications:

Terminal 11 provides a limited supply voltage of 3.2 V DC for the signal output of the flowmeter. This is not suitable to power analog sensors.

Type PD / PF / PM: Sensor supply: 1.2 - 3.2V - 8.2V - 12V or 24 V DC:

With this option, a real power supply for the sensor is available. The flowmeter can be powered with

8.2 - 12 or 24 V DC. Total power consumption PD: max. 50mA@24V and PF / PM: max. 400mA@24V. The voltage is selected with the three switches inside the enclosure.

Page 25

Warning: be sure that all the leads to the terminals are disconnected from the unit when the internal plastic protection cover has been removed ! HIGH VOLTAGE 400V !! NEVER connect the mains power supply to the unit when the plastic protection cover has been removed !!!

First, remove the terminal strip(s) after which the internal plastic cover can be removed. The switches are located in the top left corner (type PD) or on the right hand (type PF / PM) as indicated:

Fig. 8: Switch setting sensor supply voltage.

Switch positions

SENSOR A SENSOR B VOLTAGE SELECTION

SWITCH 1 VOLTAGE SWITCH 3 SWITCH 4 VOLTAGE

internal 3.2 V DC on on 8.2 V DC external switch 3+4 on off 12 V DC

off off 23 V DC

Function switch 1: voltage selection sensor A - terminal 11. Function switch 2: not available. Function switch 3+4: the combination of these switches determine the voltage as indicated.

Do move switch 1 and / or switch 2 to the OFF position to enable the selected voltage with switch 3+4.

HF110AEN_v0501_04

Page 26

bac

YPE

ype

O ype

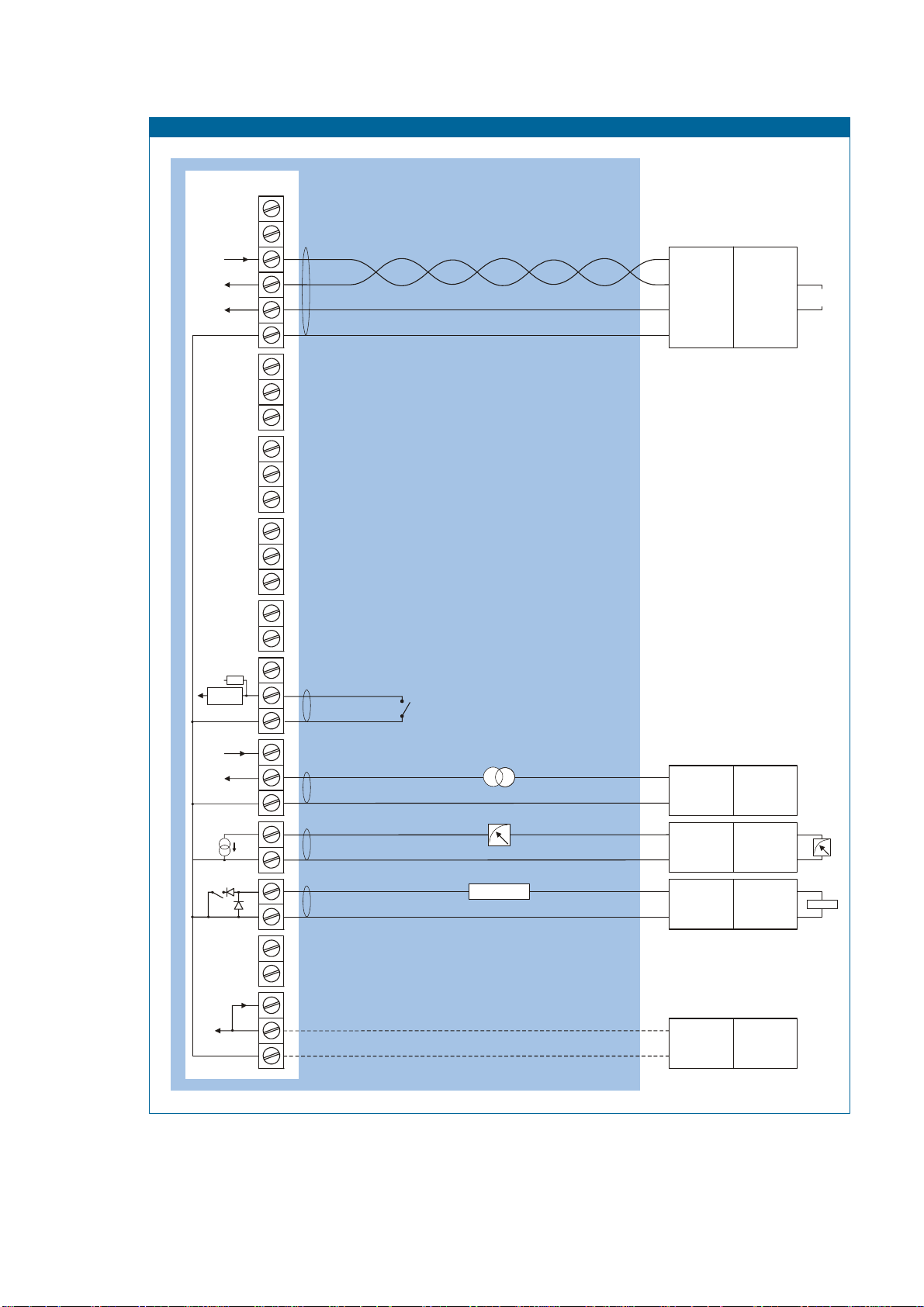

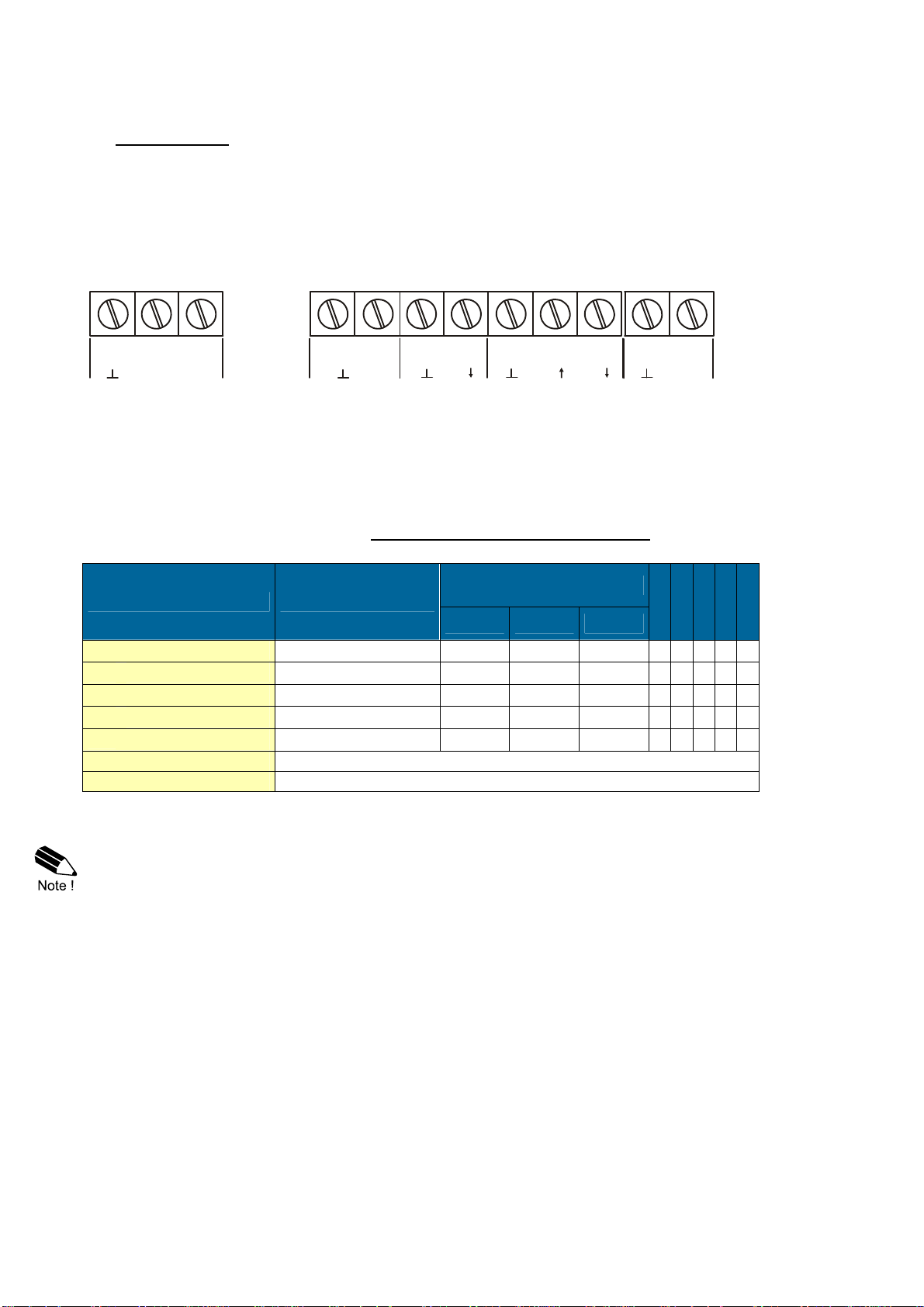

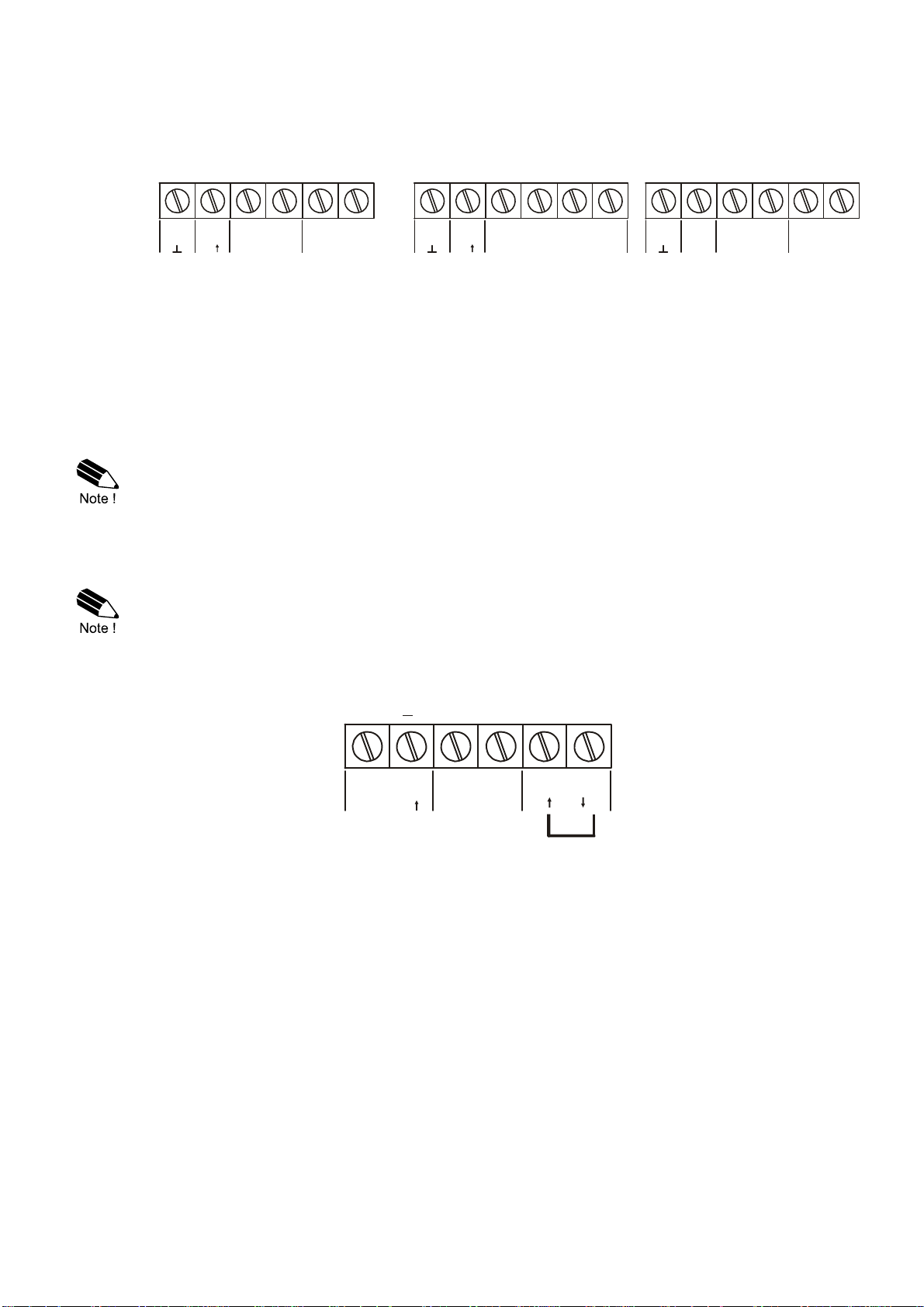

4.4.3. TERMINAL CONNECTORS

For Intrinsically Safe applications: read chapter 5.

The following terminal connectors are available:

OUTPUT

POWER SUPPLY:

TYPE P D / PF / P M

OA / OR / OT

PULSE

TYPE

ANALOG OUTPUT

TYPE AA / AB

AI / AP / AU

FLOWMETER

INPUT

TYPE A

(0)4-20mA

SUPPLY

EXTERNAL

RESET

TYPE IB:

GND 1

Fig. 9: Overview of terminal connectors standard configuration F110-A and optio ns.

REMARKS: TERMINAL CONNECTORS:

Terminal GND- 01- 02: Power Supply - only available with type PD / PF or PM:

NL1

R1 R1

91011

Terminal

TYPE SENSOR SUPPLY

GND 01 02

PD 8-24V AC 8,2-12-24V max. 50mA PD 8-30V DC 8,2-12-24V max. 50mA L- L+

24V AC ± 15%

24V DC ± 15%

115-230V AC ± 15%

Note PD

Note PF / PM

8,2-12-24V max. 400mA 8,2-12-24V max. 400mA L- L+ 8,2-12-24V max. 400mA EARTH AC AC

do not use a AC autotransformer (Spartrafo) without a galvanic isolation. The total consumption of the sensors and outputs may not exceed 400mA@24V

AC AC

RESET

h kli

TYPE AA

◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊ ◊

◊=option

Note: for power supply type PX: please read Terminal 07-08 !

HF110AEN_v0501_04

Page 27

Terminal 05-06; scaled pulse output R1:

Setup 7 (par. 3.4.4.) determines the pulse output function. The maximum pulse frequency of this output is 60Hz. If a relay output option has been supplied, be sure that the output frequency does not exceed 5Hz or else the life-time of the relay will be reduced significantly.

Type OA: An active 24V DC pulse signal output is available with this option. Max. driving capacity 50mA@24V per output. (Requires power supply type PD / PF / PM).

Active output - R1

INTERNAL EXTERNAL

24V DC

max. 50mA

DEVICE

Common ground unit

R1 - GND

Type OR: A mechanical relay output is available with this option. Max. switch power 240V 0,5A per output. (Requires power supply type PF / PM). Be sure that the output frequency does not exceed 5Hz, else the relay life time will be reduced significantly.

Type OT: A passive transistor output is available with this option. Max. driving capacity 300mA@50V DC.

HF110AEN_v0501_04

Page 28

Terminal 07-08; basic POWER SUPPLY - type PX - output loop powered:

Connect an external power supply of 8-30VDC to these terminals or a 4-20mA loop. Do connect the "-" to terminal 7 and the "+" to terminal 8. When power is applied to these terminals, the (optional) internal battery will be disabled / enabled automatically to extend the battery life time.

Only valid for standard passive output type AP!

Terminal 07-08 analog output (SETUP 7) :

An analog output signal proportional to the flowrate is available as standard.

Type AA: An active 4-20mA signal proportional to the flowrate is available with this option. When the output is disabled, a 3.5mA signal will be generated on these terminals. Max. driving capacity 1000 Ohm @ 24VDC. (Requires power supply type PD / PF / PM).

Type AB: An active 0-20mA signal proportional to the flowrate is available with this option. Max. driving capacity 1000 Ohm @ 24VDC. (Requires power supply type PD / PF / PM).

HF110AEN_v0501_04

Page 29

Type AF:

For the Intrinsically Safe floating 4-20mA signal: please read Chapter 5.

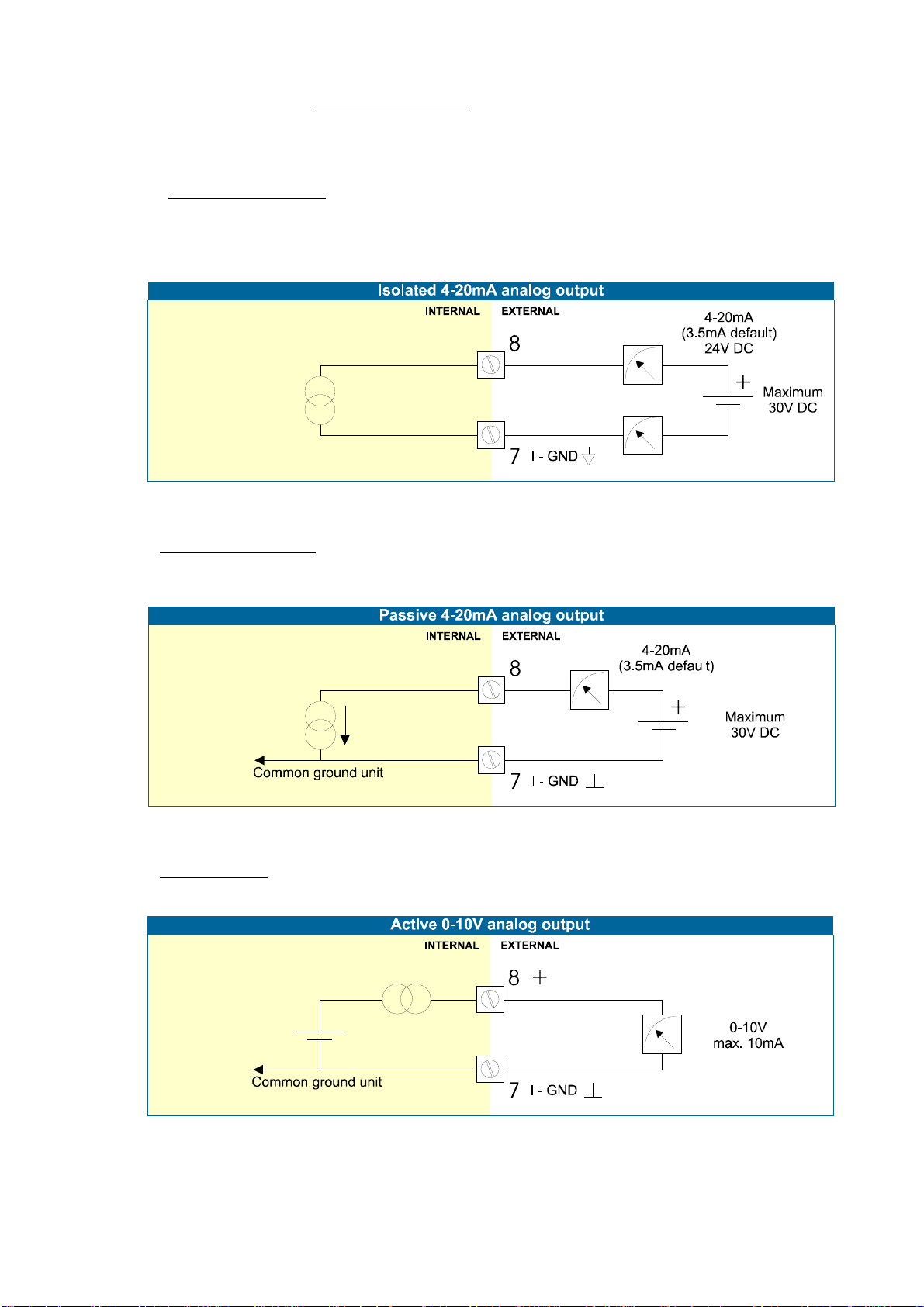

Type AI:

An isolated 4-20mA signal proportional to the flowrate is available with this option. When the output is disabled, a 3.5mA signal will be generated on these terminals. Max. driving capacity 1000 Ohm @ 30VDC. This option can be used with a battery powered unit but the life time of the battery is about 2 -3 years.

Type AP:

A passive 4-20mA signal proportional to the flowrate is available with this option. When a power supply is connected but the output is disabled, a 3.5mA signal will be generated. Max. driving capacity 1000 Ohm. This output does loop power the unit as well (type PX).

Type AU:

A 0-10VDC signal proportional to the flowrate is available with this option. Max. load 10mA @ 10VDC. (Requires power supply type PD / PF / PM).

HF110AEN_v0501_04

Page 30

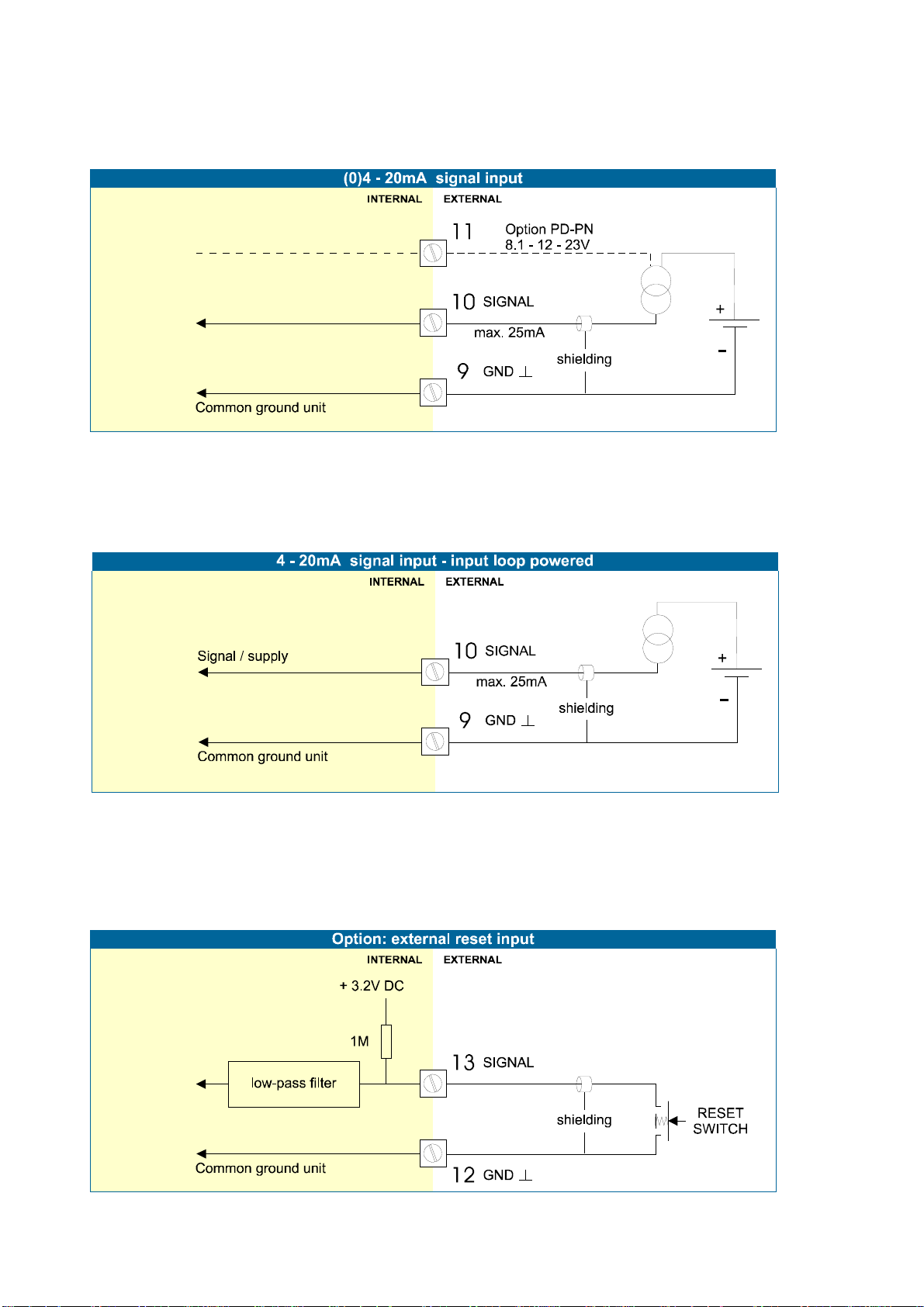

Terminal 09-11: Type A – Flowmeter input (general)

The F110-A requires a (0)4-20mA flowmeter signal which will be processed 4 times a second with a 14 bits accuracy. The input is not isolated.

For Intrinsically safe applications (without input loop power): please read chapter 5.

Terminal 09-10: Type A-PL – Flowmeter input / power supply:

The F110-A-PL requires a 4-20mA flowmeter signal which has a double function: The signal will be processed 4 times a second with a 14 bits accuracy and the unit will be powered from the sensor signal (input loop powered). The input is not isolated and not intrinsically safe.

Terminal 12-13: Type IB – external reset (option):

With this function the total can be reset to zero with an external switch. The Total resets only when

the switch opens. When closed Total still counts but the ”Clear Total” function is disabled (see

chapter 2). The input must be switched with a potential free contact to the GND-terminal number 12.

HF110AEN_v0501_04

Page 31

Terminal 26-31: type CB / CH / CI / CT - communication RS232 / RS485 / TTL (option)

 Full serial communications and computer control in accordance with RS232 (length of cable

max. 15 meters) or RS485 (length of cable max. 1200 meters) is possible.

 Read the Modbus communication protocol and Appendix C.

RS485 - 2-wire

RS485 - 4-wire

RS232

26 27 29

A B+

30 31 30 31

26 27

A B+

30 31

26 27 29

DTR +12V

RXD TXD

Fig. 10: Overview terminal connectors communication option.

When using the RS232 communication option, terminal 27 is used for supplying the interface. Please connect the DTR (or the RTS) signal of the interface to this terminal and set it active (+12V). If no active signal is available it is possible to connect a separate supply between terminals 26 and 27 with a voltage between 8V and 24V.

Terminal 26-31: backlight - type ZB (option):

Note: if the unit is supplied with a power supply type PD, PF or PM, the backlight supply is integrated, so the text following is not applicable.

To power the backlight, provide a 12-24V DC to terminal 26 (-) and 27 (+). An external trimmer 1kOhm trimmer can be used to tune the brightness of the backlight, or if not desired, a short-cut between these terminals have to be made which will result in the maximum brightness.

Note: Intrinsically Safe as well as 4-wire RS485 communication is not possible in combination with type ZB, except if a PD, PF or PM power supply is being used.

Option type ZB: adjustable backlight

Power suppply

12-24V DC 10%+

GND

1kOhm trimmer connection

or short-cut

30 3126 27

Fig. 11: Overview terminal connectors backlight option.

HF110AEN_v0501_04

Page 32

5. INTRINSICALLY SAFE APPLICATIONS

5.1. GENERAL INFORMATION AND INSTRUCTIONS

Cautions

 Mounting, electrical installation, start-up and maintenance of this device may only be carried out

by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions.

 This device may only be operated by personnel who are authorized and trained by the operator

of the facility. All instructions in this manual are to be observed.

 Ensure that the measuring system is correctly wired up according to the wiring diagrams.

Protection against accidental contact is no longer assured when the housing cover is removed or the cabinet has been opened (danger of electric shock). The housing may only be opened by trained personnel.

 To maintain the degree of protection of at least IP65 in accordance with IEC 60529, certified

cable entries in accordance with IEC 61241-0 must be used and correctly installed. Unused openings must be closed with suitable blanking elements.

 When the enclosure of the Indicator is made of aluminum alloy, when used in a potentially

explosive atmosphere requiring apparatus of equipment protection level Ga and Da, the unit must be installed such that, even in the event of rare incidents, an ignition source due to impact or friction sparks between the enclosure and iron/steel is excluded.

 Take careful notice of the " Safety rules, instructions and precautionary measures " in the front

of this manual.

Safety Instructions

 When two or more active intrinsically safe circuits are connected to the indicator, in order to

prevent voltage and/or current addition, applicable to the external circuits, precautions must be taken to separate the intrinsically safe circuits in accordance with IEC 60079-11.

 For the combined connection of the different supply, input and output circuits, the instructions in

this manual must be observed.

 From the safety point of view the circuits shall be considered to be connected to earth.  For installation under ATEX directive: this intrinsically safe device must be installed in

accordance with the Atex directive 94/9/EC and the product certificate KEMA 03ATEX1074 X.

 For installation under IECEx scheme: this intrinsically safe device must be installed in

accordance the product certificate IECEx DEK 11.0042X.

 Exchange of Intrinsically Safe battery FWLiBAT-0xx with certificate number

KEMA 03ATEX1071 U or IECEx KEM 08.0005U is allowed in Hazardous Area. See paragraph 5.4. for detailed battery replacement instructions.

Please Note

 Certificates, safety values and declaration of compliance can be found in the document named:

“Fluidwell F1..-..-XI - Documentation for Intrinsic Safety”.

 Special conditions for safe use mentioned in both the certificate and the installation instructions

must be observed for the connection of power to both input and / or output circuits.

 When installing this device in hazardous areas, the wiring and installation must comply with the

appropriate installation standards for your industry.

 Study the following pages with wiring diagrams per classification.

HF110AEN_v0501_04

Page 33

(

)

Page 33

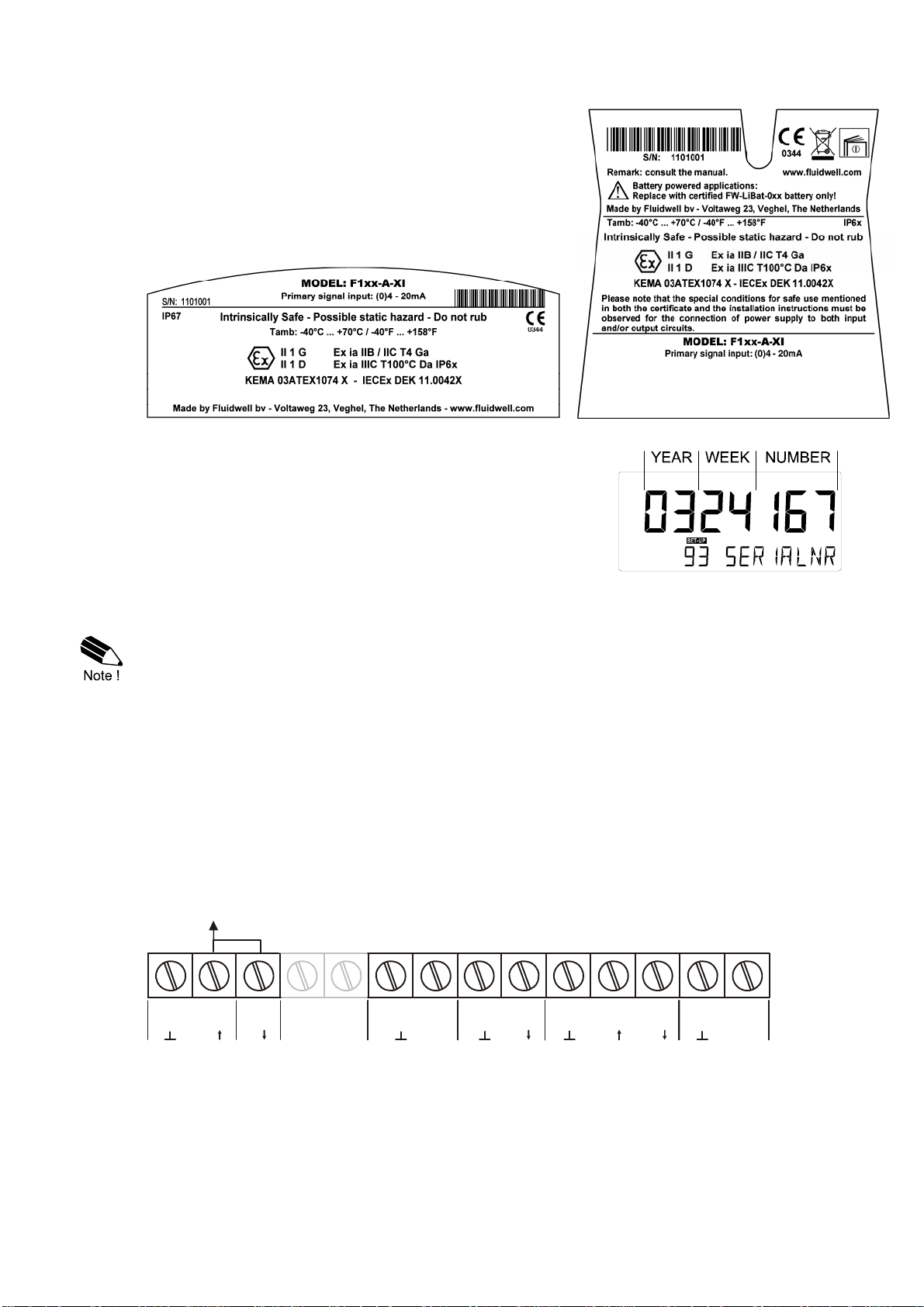

Label information (inside and outside the enclosure)

Indicated labels on the back cover (below) and on the inside cover (right) show the type labels for intrinsically safe certified units. For details on usage see the separate “Fluidwell F1..-..-XI Documentation for Intrinsic Safety”.

Serial number and year of production

This information can be looked-up on the display: See setup function (par. 3.2.2.) for details.

5.2. TERMINAL CONNECTORS INTRINSICALLY SAFE APPLICATIONS

The unit is classified as group IIB/IIIC by default.

Classification of the unit as group IIC is only possible under the following conditions:

 The indicator is either supplied by

 the internal supply (option -PC); or  the external supply connected to terminals 0 and 1 (option -PD); or  the circuit supply connected to terminals 7 and 8 (option -AP);

The maximum values for any of those circuits are those as defined for group IIB/IIIC;

 No other active external intrinsically safe circuits may be connected to the indicator, with

exception of circuits connected to terminals 3 and 4 and/or terminals 5 and 6; the maximum values for any of those circuits are those as defined for group IIB/IIIC

Terminal connectors F110-A-XI:

EXTERNAL

RESET

TYPE IB

OPTION

POWER SUPPLY

TYPE PD (OPTION)

PULSE

OUTPUT

TYPE OT

ANALOG

OUTPUT

TYPE

AF / AP

FLOWMETE

INPUT

TYPE A

(0)4-20mA

SUPPLY

GND 31 4

R1 R1

91011

RESET

Fig. 12: Overview terminal connectors XI - Intrinsically Safe applications.

HF110AEN_v0501_04

Page 34

Explanation Intrinsically Safe options:

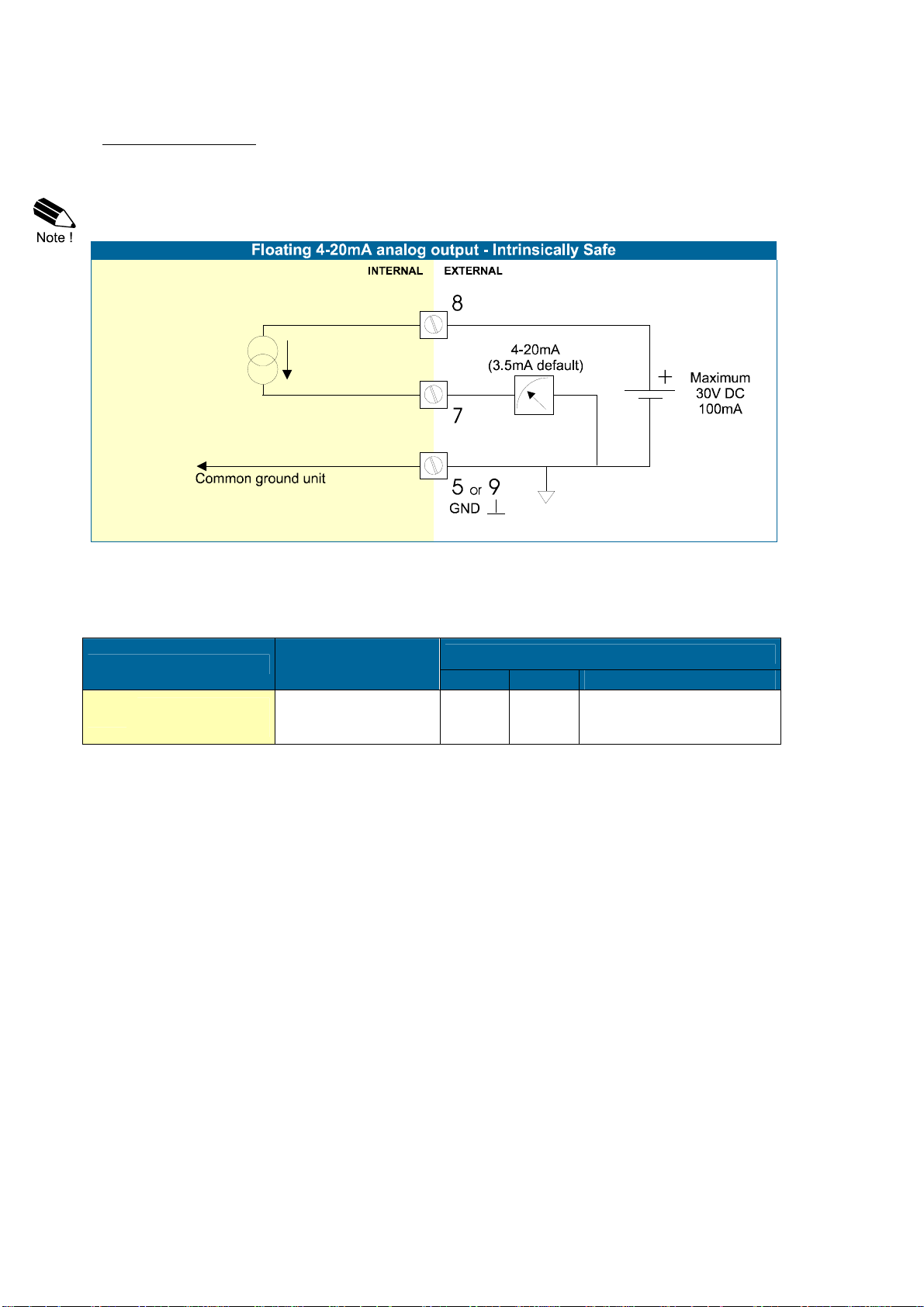

Type AF - Intrinsically Safe floating 4-20mA analog output - Terminal 7-8:

A floating 4-20mA signal proportional to the flowrate is available with this option. When the output is disabled, a 3.5mA signal will be generated. Max. driving capacity 1000 Ohm @ 30V DC.

Note! It is required to link the minus from the analog output - terminal 7 - with a ground terminal of the unit; terminal: GND, 3, 5, 9, 12 or 15.

Type PD - Intrinsically Safe power supply and sensor supply - Terminal GND- 01 and 11.

OPTION

PD-XI

Terminal 02 and 11: these terminals offer the same voltage as connected to terminal 01.

Input voltage:

8-30V DC

SENSOR SUPPLY

(TERMINAL 11 AND 14)

GND 01 02

= input voltage L- L+

Terminal

output voltage is according the input voltage; internally linked with terminal 01.

HF110AEN_v0501_04

Page 35

5.3. CONFIGURATION EXAMPLES INTRINSICALLY SAFE APPLICATIONS

Configuration example IIB/ - IIIC F110-A-AP-IB-CT-OT-(PD)-XI

Page 35

TERMINAL CONNECTORS

F100-series

TXD

RXD

DTR +12V

Common ground

HAZARDOUS AREA

Modbus communication type CT: TTL

2826 29

SAFE AREA

Uo Io

= max. 30 V = max. 250 mA = max. 0.85 W

I.S. Certified

Isolator

TTL to: RS232 RS422

TTL

For example:

MTL5051



e.g. PC

+ 3.2V

low-pass

filter

Common ground

Circuit depend s on

Common ground

Supply *

Signal

type of signal

91011

Common ground

Main supply

Common ground

* Note power supply type PD: the supply voltage to the sensor is as connected to terminal 1 (internally linked).

Ci is negligibly

Ci = 17nF

Ci is negligibly

Please note: power supply type PD is not required - unit is output loop powered - type AP.

Status input type IB:

reset total

small

Flowmeter input type: A

small

(0)4-20mA

Analog output type AP:

passive 4-20mA (output loop po wered)

Pulse output type OT:

passive transistor

Power supply type PD: 16-30V DC

123456

e.g. indicator

e.g. counter

= max. 30 V

= max. 100 mA

= max. 0.75 W

= max. 30 V

= max. 100 mA

= max. 0.75 W

= max. 30 V

= max. 100 mA

= max. 0.75 W

= max. 30 V

= max. 100 mA

= max. 0.75 W

Note: above values are safety values. Consult the technical specification for operational values.

Power supply

For example

MTL5525

Power supply

and/or repeater

For example

MTL5525 MTL5541

Power supply or

switch interface

For example

MTL5525 MTL5511

Power supply

For example

MTL5525

e.g. indicator

123456

e.g. counter

Fig. 13: Configuration example 1 Intrinsically Safe.

HF110AEN_v0501_04

Page 36

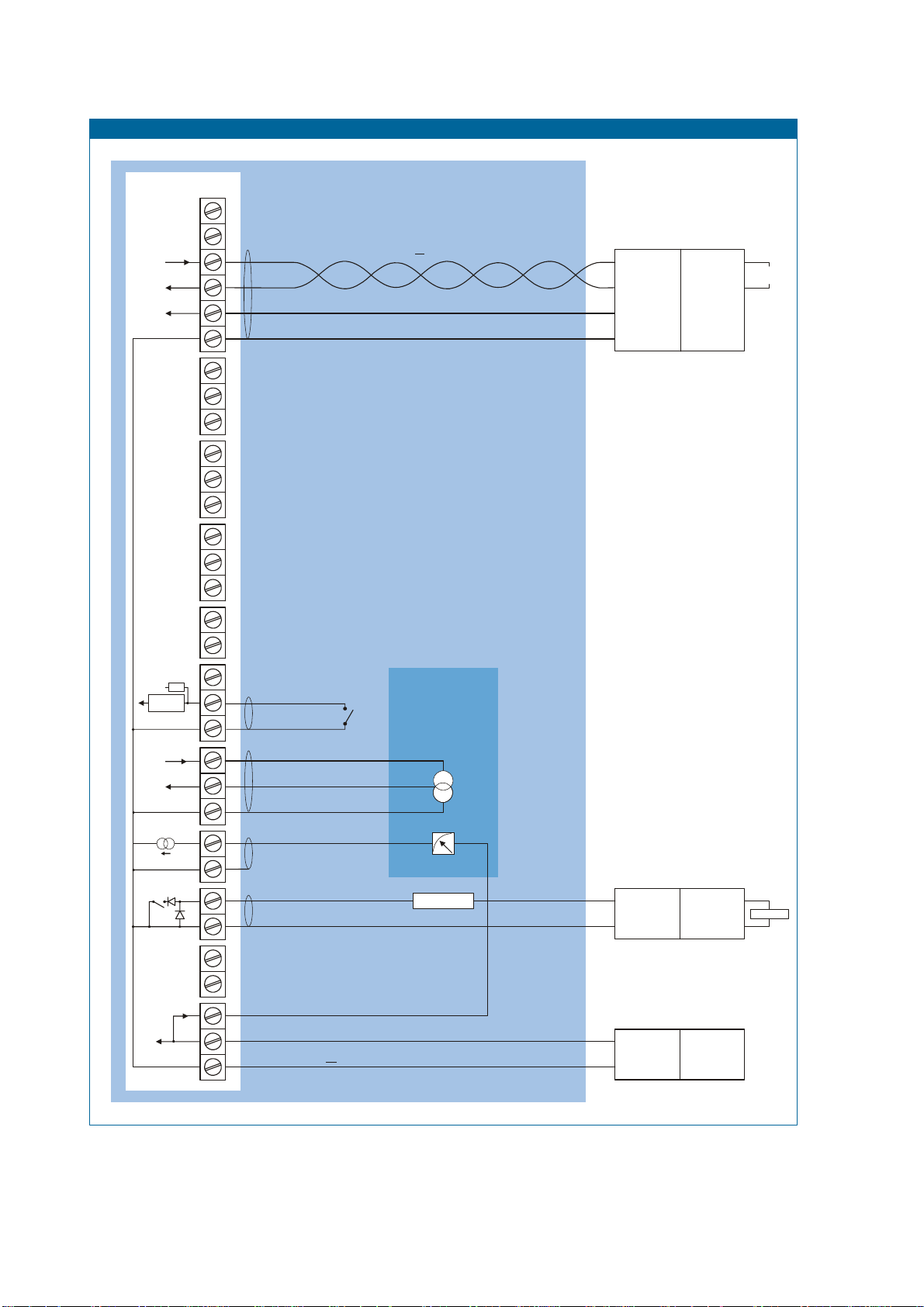

Configuration examp le IIB/IIIC and IIC - F110-A-AP-IB-(CT)-OT-PD-XI

TERMINAL CONNECTOR S

F100-series

TXD

RXD

DTR +12V

Common ground

HAZARDOUS AREA

Please note: communciation type CT is allowed in IIC applications.not

Modbus communication type CT: TTL

26 29

SAFE AREA

I.S. Certified

Isolator

= max. 30 V

= max. 250 mA

= max. 0.85 W

* Note: Communication only allowed when configured as IIB/IIIC.

TTL to: RS232 RS422

TTL

For example:

MTL5051



e.g. PC

+ 3.2V

low-pass

filter

Common ground

Supply *

Signal

type of signal

Circuit depends on

Common ground

Common ground Common ground

Common ground

small

Status input type IB:

reset total

Ci is negligibly

small

910

Ci = 17nF

Ci is negligibly

small

Pulse output type OT:

passive transistor

TOTAL OF ALL CONNECTED

PPARATUS MAY NOT EXCEED

66nF

(17nF IS USED BY THE ANALOG

OUTPUT SIGNAL TERMINAL 7+ 8)

Flowmeter input type: A

Analog output type AP:

123456

Main supply

Common ground

* Note power supply type PD: the supply voltage to the sensor is as connected to terminal 1 (internally linked).

(please note: PD battery supply (type PB) is NOT allowed in IIC applications).and

Power supply type PD: 16-30V DC

Fig. 14: Configuration example 2 Intrinsically Safe.

MINUS 17nF

(0)4-20mA

e.g. indicator

passive 4-20mA

e.g. counter

Uo Io

= max. 30 V = max. 100 mA = max. 0.75 W

Power supply or switch interface

For example

MTL5525 MTL5511

Power supply

For example

MTL5525

123456

e.g. counter

HF110AEN_v0501_04

Page 37

5.4 BATTERY REPLACEMENT INSTRUCTIONS

Safety Instructions

 Fire, explosion or severe burns may result if mistreated. Do not recharge, crush,

disassemble, incinerate, heat above 100°C (212°F) or expose contents to water.

 Mounting, electrical installation, start-up and maintenance of this device may only be carried out

by trained personnel authorized by the plant operator. Personnel must read and understand this instruction before carrying out the replacement procedure.

 Always follow the instructions listed in the supplied Battery Replacement Instruction Sheet.  Batteries pose an environmental hazard. Return used batteries to a recycling point.

Safety instructions for hazardous areas  Verify the correct battery is supplied: Only batteries with indicated Ex label are certified for

replacement and use in hazardous areas. Batteries for use in safe areas have no Ex label. DO NOT EXCHANGE: Using the wrong type of battery can pose a SERIOUS RISK.

 For use in hazardous areas Fluidwell recommends FW-LiBAT type batteries

(manufactured by Fluidwell bv) only.

Battery replacement procedure

Depending on the production batch, one of two visualized Intrinsically Safe ce rtified battery types may have been installed in the unit. They are interchangeable .

FW-LiBAT-001 battery FW-LiBAT-021 battery

1. To replace the battery, open the unit to gain access to the back inside cover of the unit

2. Unplug the field connectors from the back inside of the unit.

3. Remove the screw that holds the plastic inside cover.

4. Open the cover and unplug the battery connector.

5. Remove the battery from the inside of the plastic cover. Do not remove the battery clip!

6. Install the new battery and re-assemble the unit in reverse order.

7. Start-up the unit

HF110AEN_v0501_04

Page 38

6. MAINTENANCE

6.1. GENERAL DIRECTIONS

 Mounting, electrical installation, start-up and maintenance of the instrument may only be

carried out by trained personnel authorized by the operator of the facility. Personnel must read and understand this Operating Manual before carrying out its instructions.

 The F110-U may only be operated by personnel who are authorized and trained by the

operator of the facility. All instructions in this manual are to be observed.

 Ensure that the measuring system is correctly wired up according to the wiring diagrams.

 Take careful notice of the " Safety rules, instructions and precautionary measures " in the

front of this manual.

The F110-A does not require special maintenance unless it is used in low-temperature applications or surroundings with high humidity (above 90% annual mean). It is the users responsibility to take all precautions to dehumidify the internal atmosphere of the F110-A in such a way that no condensation will occur, for example by placing dry silica-gel sachet in the casing just before closing it. Furthermore, it is required to replace or dry the silica gel periodically as advised by the silica gel supplier.

Check periodically:

 The condition of the casing, cable glands and front panel.  The input/output wiring for reliability and aging symptoms.  The process accuracy. As a result of wear and tear, re-calibration of the flowmeter might be

necessary. Do not forget to re-enter any subsequent Span alterations.

 The indication for low-battery.  Clean the casing with soapy-water. Do not use any aggressive solvents as these might damage

the polyester coating.

6.2. REPAIR

This product cannot be repaired by the user and must be replaced with an equivalent certified product. Repairs should only be carried out by the manufacturer or his authorized agent.

6.3 BATTERY LIFE-TIME

It is influenced by several issues :  Analog output signal; be sure that an external power supply is connected or that the function is

disabled if not in use; or else it will have a major influence on the battery life-time (SETUP 61).

 Display update: fast display update uses significantly more power; SETUP 41.  Pulse output and communications .  Low temperatures; the available power will be less due to battery chemistry.

Note: It is strongly advised to disable unused functions.

HF110AEN_v0501_04

Page 39

APPENDIX A: TECHNICAL SPECIFICATION

GENERAL

Display

Type High intensity reflective numeric and alphanumeric LCD, UV-resistant. Digits Seven 17mm (0.67") and eleven 8mm (0.31"). Various symbols and measuring units. Refresh rate User definable: 8 times/sec - 30 secs. Type ZB Transflective LCD with green LED backlight. Good readings in full sunlight and darkness.

Enclosures

General

Control Keys

Painting

Panel-mount enclosures

Classification Panel cut-out

Type HC Type HB

Field/wall-mount enclosures

Classification

Aluminum enclosures

Type HA

Type HM

Type HN

Type HO

Type HP Type HT

Type HU

Type HZ

GRP enclosures

Type HD

Type HE

Type HF Type HG Type HH

Option ZS Silicone free ABS enclosure with EPDM and PE gaskets. UV-resistant polyester keypad.

Operating temperature

Operational -40°C to +80°C (-40°F to +176°F) Intrinsically Safe -40°C to +70°C (-40°F to +158°F)

Power supply

Type PB Lithium battery - life-time depends upon settings - up to 5 years. Type PC Intrinsically Safe lithium battery - life-time depends upon settings - up to 5 years. Type PD 8-24V AC / DC + 10%. Power consumption max. 10 Watt.

Type PF 24V AC / DC + 10%. Power consumption max. 15 Watt. Type PL Input loop powered from sensor signal 4-20mA (type A, non IS). Type PM 115-230V AC + 10%. Power consumption max. 15 Watt. Type PX Output loop powered: 8-30V DC. Power consumption max. 0.5 Watt.

Note PF / PM The total consumption of the sensors`, backlight and outputs may not exceed 400mA@24V.

Note I.S. applications For intrinsically safe applications, consult the safety values in the certificate.

Note: only available for safe area applications. Power requirements: 12-24V DC + 10% or type PD, PF, PM. Power consumption max. 1 Watt.

Die-cast aluminum or GRP (Glassfibre Reinforced Polyamide) enclosure with Polycarbonate window, silicone and EPDM gaskets. UV stabilized and flame retardant material. Three industrial micro-switch keys. UV-stabilized silicone keypad. Aluminum enclosure only: UV-resistant 2-component industrial painting. Dimensions: 130 x 120 x 60mm (5.10" x 4.72" x 2.38") – LxHxD. IP65 / NEMA4X 115 x 98mm (4.53" x 3.86") LxH. GRP panel-mount enclosure Aluminum panel-mount enclosure Dimensions: 130 x 120 x 75mm (5.10” x 4.72” x 2.95”) – LxHxD. IP67 / NEMA4X

Drilling: 2x PG9 – 1x M20. Drilling: 2x M16 – 1x M20. Drilling: 1x M20. Drilling: 2x M20. Drilling: 6x M12. Drilling: 1x ½”NPT. Drilling: 3x ½”NPT. No drilling.

No drilling. Drilling: 2x 16mm (0.63”) – 1x 20mm (0.78”). Drilling: 1x 22mm (0.87”). Drilling: 2x 20mm (0.78”). Drilling: 6x 12mm (0.47”).

Note: this option comes with type HD only.

Intrinsically safe: 16-30V DC; power consumption max. 0.75 Watt.

HF110AEN_v0501_04

Page 40

Sensor excitation

Type PB / PC / PX 3.2V DC for pulse signals and 1.2V DC for coil pick-up.

Note: This is not a real sensor supply. Only suitable for pulse sensors with a very low power

consumption like coils (sine wave) and reed-switches. Type PD 1.2 - 3.2 - 8.2 - 12 and 24V DC - max. 50mA@24V DC Type PD-XI Intrinsically safe: Pulse signals: 1.2 - 3.2 - 8.2 - max. [email protected] DC.

Analog signals: the sensor supply voltage is according to the power supply voltage connected

to terminal 1. Also terminal 2 offers the same voltage. Type PF / PM 1.2 - 3.2 - 8.2 - 12 and 24V DC - max. 400mA@24V DC.

Terminal connections

Type: Removable plug-in terminal strip. Wire max. 1.5mm2 and 2.5mm2 (Type PM / PF)

Data protection

Type EEPROM backup of all setting. Backup of running totals every minute.

Data retention at least 10 years. Pass code Configuration settings can be pass code protected.

Hazardous area

(option)

Intrinsically safe Type XI

ATEX approval:

II 1 G Ex ia IIB/IIC T4 Ga

II 1 D Ex ia IIIC T100°C Da IP6x

IECEx approval:

Ex ia IIB/IIC T4 Ga

Ex ia IIIC T100°C Da IP6x Explosion proof Type XD/XF

ATEX approval ref.: <EX> II 2 GD EEx d IIB T5. Weight appr. 15kg.

Dimensions of enclosure: 350 x 250 x 200mm (13.7” x 9.9” x 7.9”) LxHxD.

Environment

Electromagnetic

Compliant ref: EN 61326 (1997), EN 61010-1 (1993). compatibility

INPUTS

Flowmeter

Type P Coil/sine wave (minimum 20mVp-p or 80mVp-p - sensitivity selectable), NPN/PNP, open

collector, reed-switch, Namur, active pulse signals 8 - 12 and 24V.

Frequency Minimum 0 Hz - maximum 7 kHz for total and flowrate.

Maximum frequency depends on signal type and internal low-pass filter.

E.g. Reed switch with low-pass filter: max. frequency 120 Hz.

K-Factor 0.000010 - 9,999,999 with variable decimal position.

Low-pass filter Available for all pulse signals. Type A (0)4-20mA - with signal calibration feature at any current within the range. Type U 0-10 V - with signal calibration feature at any voltage within the range.

Accuracy Resolution: 14 bit.. Error < 0.025mA / ±0.125% FS. Low level cut-off programmable.

Span 0.000010 - 9,999,999 with variable decimal position.

Update time Four times a second.

Voltage drop 2.5 Volt.

Load impedance 3kOhm

Relationship Linear and square root calculation.

Note For signal type A and U: external power to sensor is required; e.g. Type PD.

Reset (option)

Type IB Make contact - external reset totalizer. Additional functionality to lock the RESET button of the

keyboard (as long as this contact is being made).

Duration Minimum 100mSec. to reset Total.

HF110AEN_v0501_04

Page 41

OUTPUTS

Analog output

Function transmitting flowrate. Accuracy 10 bit. Error < 0.05% - update 10 times a second.

Software function to calibrate the 4.00mA and 20.00mA levels precisely within set-up. Load max. 1 kOhm Type AA Active 4-20mA output (requires type OA + PD, PF or PM). Type AB Active 0-20mA output (requires type OA + PD, PF or PM). Type AF Passive floating 4-20mA output for Intrinsically Safe applications (requires PC or PD). Type AI Passive galvanically isolated output (requires PB, PD, PF, PL or PM). Type AP Passive 4-20mA output - output loop powered (type PX). Type AU Active 0-10V output (requires type OA + PD, PF or PM).

Transistor output(s)

Pulse output Max. frequency 60Hz. Pulse length user definable between 7,8msec up to 2 seconds. Function One pulse output - transmitting accumulated total. Type OA Active 24V DC transistor output; max. 50mA per output (requires type AA + PD, PF or PM). Type OR Isolated mechanic relay output; max. switch power 230V AC - 0,5A (requires type PF or PM). Type OT Passive transistor output - not isolated. Load max. 50V DC - 300mA.

Communication option

Functions reading display information, reading / writing all settings. Protocol Modbus ASCII or RTU Speed 1200 - 2400 - 4800 - 9600 baud Addressing maximum 255 addresses. Type CB RS232 Type CH RS485 2-wire Type CI RS485 4-wire Type CT TTL Intrinsically Safe communication. Type CX no communication.

OPERATIONAL

Operator functions

Displayed functions

• total and/or flowrate.

• total and accumulated total.

• total can be reset to zero by pressing the CLEAR-key twice.

Total

Digits 7 digits. Units L, m3, GAL, USGAL, KG, lb, bbl, no unit. Decimals 0 - 1 - 2 or 3. Note total can be reset to zero.

Accumulated total

Digits 11 digits. Units / decimals according to selection for total.

Flowrate

Digits 7 digits. Units mL, L, m3, Gallons, KG, Ton, lb, bl, cf, RND, ft3, scf, Nm3, Nl, igal - no units. Decimals 0 - 1 - 2 or 3. Time units /sec - /min - /hr - /day.

HF110AEN_v0501_04

Page 42

APPENDIX B: PROBLEM SOLVING

In this appendix, several problems are included that can occur when the F110-A is going to be installed or while it is in operation.

Analog output does not function properly:

Check:

 SETUP 61 - is the function enabled?  SETUP 62 / 63: are the flow-levels programmed correctly?  connection of the external power-supply according to the specification.

Analog output does not function properly:

Check:

 SETUP 61 - is the function enabled?  SETUP 62 / 63: are the flow-levels programmed correctly?  connection of the external power-supply according to the specification.

Pulse output does not function:

Check:  SETUP 71 - pulse per “x” quantity; is the value programmed reasonable and will the maximum

output be under 20Hz?

 SETUP 72 - impulse width; is the external device able to recognize the selected pulse width and

frequency?

Flowrate displays "0 / zero" while there is flow (total is counting):

Check:  SETUP 22 / 25: are the Span and time unit correct?

The pass code is unknown:

If the pass code is not 1234, there is only one possibility left: call your supplier.

ALARM

When the alarm flag starts to blink an internal alarm condition has occurred. Press the "select button" several times to display the 5-digit error code. The codes are:

0001: irrecoverable display-data error: data on the display might be corrupted. 0002: irrecoverable data-storage error: the programming cycle might have gone wrong: check programmed values. 0003: error 1 and error 2 occurred simultaneously

If the alarm occurs more often or stays active for a longer time, please contact your supplier.

HF110AEN_v0501_04

Page 43

APPENDIX C: COMMUNICATION VARIABLES

Remarks:

 Below, an overview of the F110-A specific variables; other common variables are described in

the standard table.

 All numbers are decimal numbers, unless otherwise noted.  The following variables of the standard table (var00-var30) are not valid for this product and will

be responded with value 1: var00, 03-05, 07,08, 16-22, 24, 26-29.

CONFIGURATION VARIABLES F110-A - SETUP-LEVEL:

VAR DESCRIPTION BYTES VALUE REMARKS

TOTAL

unit 1 0=L

(20h)

decimals 1 0…3

(21h)

span 3 1....9.999.999 S 0000001 up to S 0000009 is

(22h)

decimals Span 1 0…6

(25h)

FLOWRATE

unit 1 0=mL

(30h)

time unit 1 0=sec

(31h)

decimals 1 0…1

(32h)

span 3 1....9.999.999 S 0000001 up to S 0000009 is

(33h)

decimals span 1 0…6

(36h)

1=m3 2=kg 3=lb 4=gal 5=usgal 6=bbl 7=none

1=L 2=m3 3=mg 4=g 5=kg 6=ton 7=gal 8=bbl 9=lb 10=cf 11=rev (revolutions for RPM) 12=none

1=min 2=hour 3=day

allowed when decs < 6! (VAR37)

allowed when decs < 6! (VAR54)

HF110AEN_v0501_04

Page 44

VAR DESCRIPTION BYTES VALUE REMARKS

DISPLAY

display function 1 0=total

(40h)

(44h)

set flowrate monitor 1 0=operator level

1=flowrate

1=SETUP level

POWERMANAGEMENT

80 (50h)

LCD update time 1 0=fast

1=1sec 2=3sec 3=15sec 4=30sec

5=off 81 (51h)

power-mode battery 1 0=operational

1=shelf

FLOWMETER

98 (62h) 99

formula 1 0=linear

1=square root

filter 1 0….99 (63h) 100

cut-off 2 0….999 steps of 0.1% (64h) 102 (66h)

calibration low

(4mA)

1 0=default

1=calibrate

2=cal set 103 (67h)

calibration high (20mA)

1 0=default

1=calibrate

2=cal set

ANALOG OUTPUT

112 (70h) 113

analog output 1 0=disable

1=enable

minimum rate 3 0..9999999 unit, time, decimals acc. var48-50 (71h) 116

maximum rate 3 0..9999999 unit, time, decimals acc. var48-50 (74h) 119

cut off percentage 1 0..99 steps of 0.1% (77h) 120

tune minimum rate 2 0..9999 (78h) 122

tune maximum rate 2 0..9999 (7Ah) 99

filter 1 0….99 (63h)

PULSE OUTPUT

128 (80h)

impulse width 1 0=off

1=short 2=long

129

pulse per X quantity 3 1..9999999 unit, decimals acc. var32 -33 (81h)

OTHERS

168

pass code 2 xxxx read only! (A8h) 170

tagnumber 3 0..9999999 Other vars: see standard table AAh

HF110AEN_v0501_04

Page 45

OTHER F110-A VARIABLES FOR COMMUNICATION

TOTAL - variable number 566 (236h) – 6 bytes

Read total: The value of total read using RS communications might differ from the value that

appears on the display. This is due to the fact that the display can only display up to seven digits ( for example when two decimals are selected for total and total has a value of 123456,78 the display will show 23456,78 while communication will read a “total” of 12345678 and a “total decimals” of 2).

Write total: total can only be cleared. This means writing a value different from 0 will result in

the reply of an error message. Only writing 6 bytes of zero’s to total will be accepted.

ACCUMULATED TOTAL - variable number 560 (230h) – 6 bytes Read acc. total: A difference between the read value and the display value, as explained for

“Read total”, might appear here too.

Write acc. total: Not possible.

When reading or writing total or accumulated total it should be noted that the used values are given including the decimals. This means that a read/write to one of these variables should be accompanied with a read/write to the variable that holds the number of decimals for this variable:

Example: read var. 566 for total:

Read var. 33 for total decimals and calculate the real value of total by multiplying total with

-(total decimals)

FLOWRATE - variable number 572 (23Ch) – 4 bytes Read flowrate: The value difference as mentioned with total/acc. total might appear here

too.

Write flowrate: Not possible.

HF110AEN_v0501_04

Page 46

INDEX OF THIS MANUAL

accumulated Total 8 actual settings 48 alarm 8 analog

cut-off value 18 disable/enable 18 filter 19 floating output. 34 flowrate max. 18 flowrate min. 18 intrinsically safe output. 34

output loop powered. 28

tune / calibrate 18 Analog output 28 Backlight 31 battery life time 15, 38 Clear Total 8 communication 31

family-specific variables 43 Communication

address 20

baudrate 20

mode 20 Configuration 9 Dimension enclosures 22, 23 display

function 15 display update 15 external reset option 30 flowmeter 16 Flowmeter input 30 flowrate

decimals 14

decimals Span 14

measuring unit 14

Span 14

time unit 14 Flowrate 8 Installation 21 Intrinsic safety 32 Intrinsically Safe options 34 IP classification 21 keys 7 low-battery 8 main-function 10 maintenance 38 model 20 Operator level 8 pass code 20, 42 power supply 26, 28 power supply intrinsically safe 34 Problem solving 42 pulse output

pulse length / period time 19

pulse per quantity 19 Pulse output 27 serial number 20 SETUP-level 9 shelf mode 15 subfunction 10 tagnumber 20 Technical specification 39 terminal connectors 26 total

decimals 13

decimals Span 13

measuring unit 13

Span 13 Total 8 version software 20

LIST OF FIGURES IN THIS MANUAL

Fig. 1: Typical application for the F110-A. ............................................................................................ 5

Fig. 2: Control Panel. ............................................................................................................................ 7

Fig. 3: Example of display information during process. ........................................................................ 8

Fig. 4: Example of low-battery alarm. ................................................................................................... 8

Fig. 5: Dimensions aluminum enclosures. .......................................................................................... 22

Fig. 6: Dimensions GRP enclosures. .................................................................................................. 23

Fig. 7: Grounding aluminum enclosure with type PM 115-230V AC. ................................................. 24

Fig. 8: Switch setting sensor supply voltage. ..................................................................................... 25

Fig. 9: Overview of terminal connectors standard configuration F110-A and options. ....................... 26

Fig. 10: Overview terminal connectors communication option. .......................................................... 31

Fig. 11: Overview terminal connectors backlight option. .................................................................... 31

Fig. 12: Overview terminal connectors XI - Intrinsically Safe applications. ........................................ 33

Fig. 13: Configuration example 1 Intrinsically Safe. ........................................................................... 35

Fig. 14: Configuration example 2 Intrinsically Safe. ........................................................................... 36

HF110AEN_v0501_04

Page 47

NOTES

Page 47

HF110AEN_v0501_04

Page 48

SETTING

DEFAULT DATE

: DATE :

1 - TOTAL Enter your settings here

11 unit L 12 decimals 0000000 13 span 14 decimals span

000001 /sec

/sec /sec

2 - FLOWRATE

21 unit L 22 time unit /min 23 decimals 0000000 24 span

25 decimals span 0

000001 /min

3 - DISPLAY

31 function total

4 - POWER MANAGEMENT

41 LCD-new 1 sec. 42 mode operational

5 - FLOWMETER

51 formula 52 filter 53 cut-off % 54 calibrat. low-(0)4mA 55 calibrat. high-20mA

interpolation

01 (off)

00.0% default default

6 - ANALOG OUTPUT

61 output disabled 62 min. flowrate 4-mA 0000000 63 max. flowrate 20mA 9999999 64 cut off percentage 0.0% 65 tune min - 4mA 0208 66 tune max - 20mA 6656 67 filter 01 (off)

7 - PULSE OUTPUT

71 impulse width 000 periods 72 pulse per 0001000

8 - COMMUNICATION

81 baud-rate 2400 82 address 1 83 mode BUS-ASC

9 - OTHERS

91 model F110-A 92 software version 93 serial number 94 pass code 0000 95 tagnumber 0000000

F110-A F110-A

Fluidwell bv

PO box 6 Voltaweg 23 Website: www.fluidwell.com 5460 AA Veghel 5466 AZ Veghel Find your nearest representative: www.fluidwell.com/representatives The Netherlands The Netherlands Copyright Fluidwell bv - 2012 - HF110AEN_v0501_03

HF110AEN_v0501_04
