TI AUTOMOTIVE AFTERMARKET DIVISION

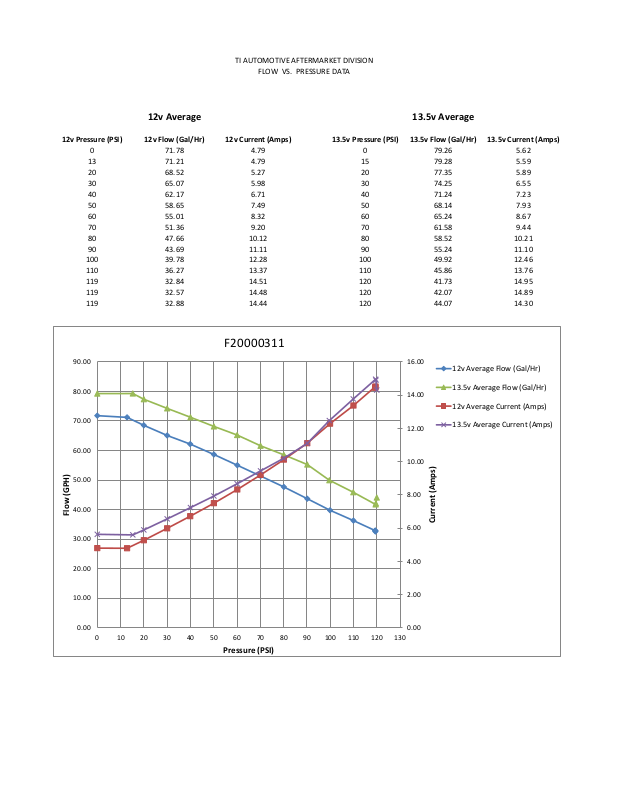

FLOW VS. PRESSURE DATA
12v Average 13.5v Average
12v Pressure (PSI) 12v Flow (Gal/Hr) 12v Current (Amps) 13.5v Pressure (PSI) 13.5v Flow (Gal/Hr) 13.5v Current (Amps)
0 71.78 4.79 0 79.26 5.62
13 71.21 4.79 15 79.28 5.59
20 68.52 5.27 20 77.35 5.89
30 65.07 5.98 30 74.25 6.55
40 62.17 6.71 40 71.24 7.23
50 58.65 7.49 50 68.14 7.93
60 55.01 8.32 60 65.24 8.67
70 51.36 9.20 70 61.58 9.44
80 47.66 10.12 80 58.52 10.21
90 43.69 11.11 90 55.24 11.10
100 39.78 12.28 100 49.92 12.46
110 36.27 13.37 110 45.86 13.76
119 32.84 14.51 120 41.73 14.95
119 32.57 14.48 120 42.07 14.89
119 32.88 14.44 120 44.07 14.30
0.00
2.00
4.00
6.00
8.00
10.00
12.00
14.00
16.00
0.00
10.00
20.00
30.00
40.00
50.00
60.00
70.00
80.00
90.00
0 10 20 30 40 50 60 70 80 90 100 110 120 130
Current (Amps)
Flow (GPH)
Pressure (PSI)
F20000311

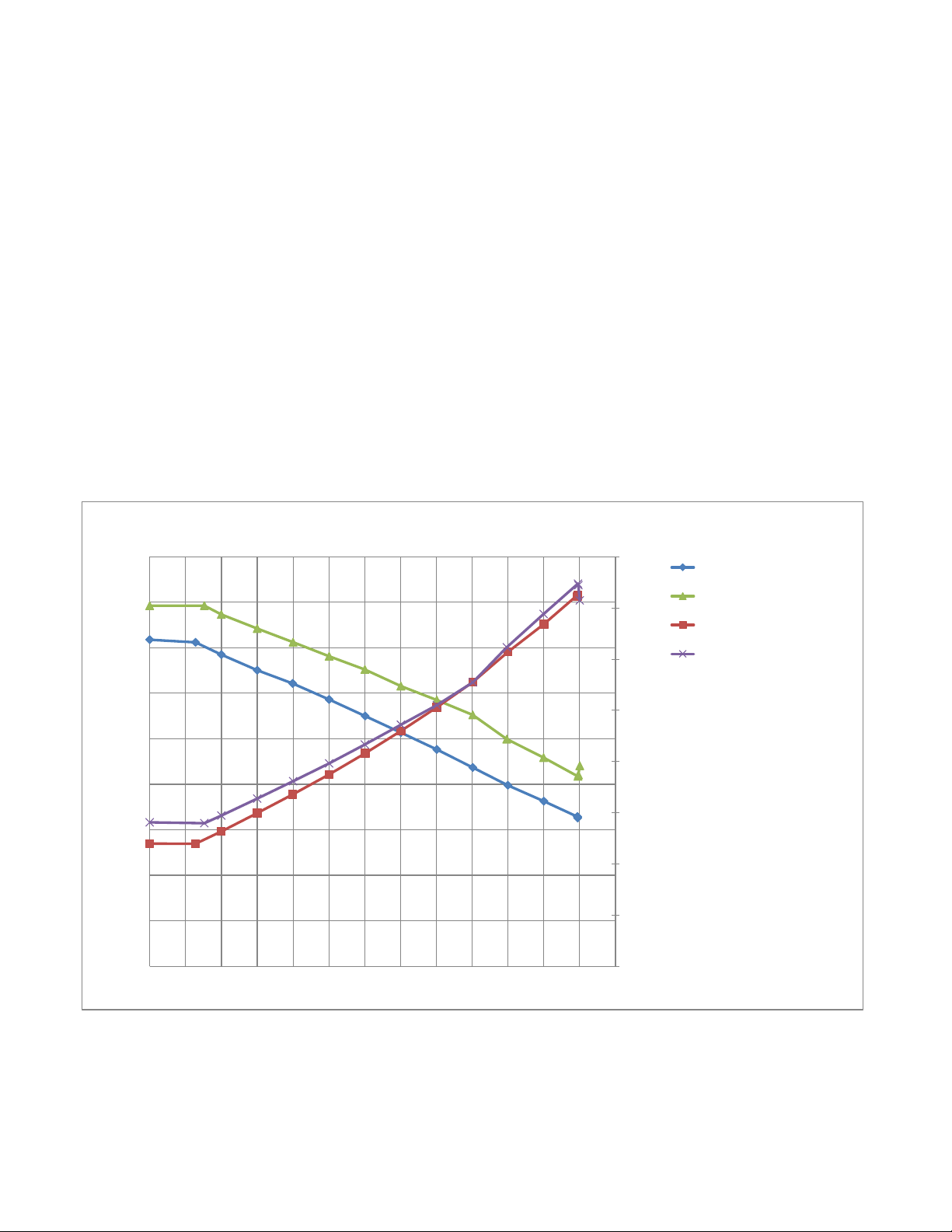

12v Average Flow (Gal/Hr)
13.5v Average Flow (Gal/Hr)
12v Average Current (Amps)
13.5v Average Current (Amps)
