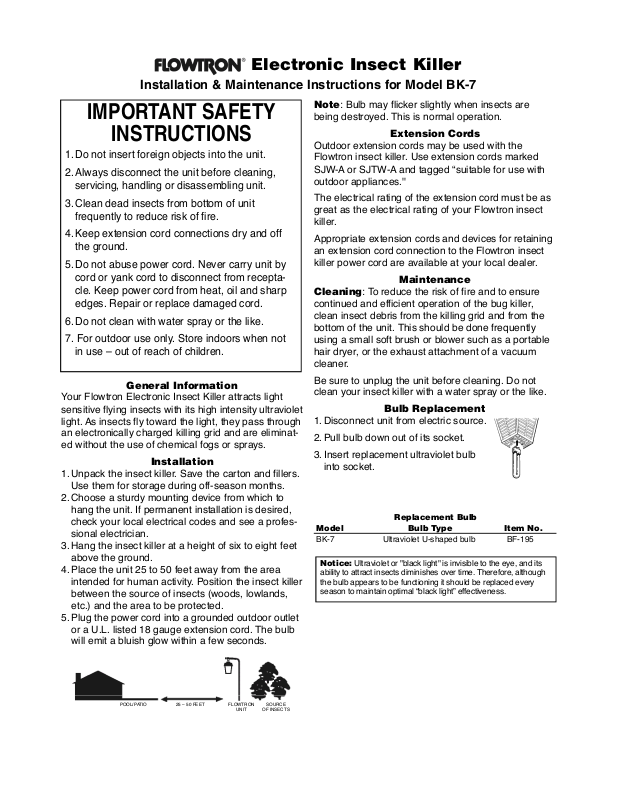

Flowtron BK-7 User Manual

Electronic Insect Killer

Installation & Maintenance Instructions for Model BK-7

General Information

Your Flowtron Electronic Insect Killer attracts light
sensitive flying insects with its high intensity ultraviolet
light. As insects fly toward the light, they pass through
an electronically charged killing grid and are eliminat­ed without the use of chemical fogs or sprays.

Installation

1. Unpack the insect killer. Save the carton and fillers.
Use them for storage during off-season months.

2. Choose a sturdy mounting device from which to
hang the unit. If permanent installation is desired,
check your local electrical codes and see a profes­sional electrician.

3. Hang the insect killer at a height of six to eight feet
above the ground.

4. Place the unit 25 to 50 feet away from the area
intended for human activity. Position the insect killer
between the source of insects (woods, lowlands,
etc.) and the area to be protected.

5. Plug the power cord into a grounded outdoor outlet
or a U.L. listed 18 gauge extension cord. The bulb
will emit a bluish glow within a few seconds.

Note: Bulb may flicker slightly when insects are
being destroyed. This is normal operation.

Extension Cords

Outdoor extension cords may be used with the
Flowtron insect killer. Use extension cords marked
SJW-A or SJTW-A and tagged “suitable for use with
outdoor appliances.''

The electrical rating of the extension cord must be as
great as the electrical rating of your Flowtron insect
killer.

Appropriate extension cords and devices for retaining
an extension cord connection to the Flowtron insect
killer power cord are available at your local dealer.

Maintenance

Cleaning: To reduce the risk of fire and to ensure

continued and efficient operation of the bug killer,
clean insect debris from the killing grid and from the
bottom of the unit. This should be done frequently
using a small soft brush or blower such as a portable
hair dryer, or the exhaust attachment of a vacuum
cleaner.

Be sure to unplug the unit before cleaning. Do not
clean your insect killer with a water spray or the like.

Bulb Replacement

1. Disconnect unit from electric source.

2. Pull bulb down out of its socket.

3. Insert replacement ultraviolet bulb
into socket.

1.Do not insert foreign objects into the unit.

2.Always disconnect the unit before cleaning,
servicing, handling or disassembling unit.

3.Clean dead insects from bottom of unit
frequently to reduce risk of fire.

4.Keep extension cord connections dry and off
the ground.

5.Do not abuse power cord. Never carry unit by
cord or yank cord to disconnect from recepta­cle. Keep power cord from heat, oil and sharp
edges. Repair or replace damaged cord.

6.Do not clean with water spray or the like.

7. For outdoor use only. Store indoors when not
in use – out of reach of children.

IMPORTANT SAFETY

INSTRUCTIONS

POOL/PATIO 25 – 50 FEET FLOWTRON

UNIT

SOURCE

OF INSECTS

Replacement Bulb

Model Bulb Type Item No.

BK-7 Ultraviolet U-shaped bulb BF-195

N o t i c e : Ultraviolet or "black light" is invisible to the eye, and its
ability to attract insects diminishes over time. Therefore, although
the bulb appears to be functioning it should be replaced every
season to maintain optimal “black light” eff e c t i v e n e s s .

Two Year Limited Warranty

Flowtron warrants your electronic insect killer to be free from defects in materials or workmanship under normal use and service for two years
from date of original purchase. All parts except for burned out bulbs, which are defective, will be repaired free of charge. Any implied warranties,
including the implied warranty of merchantability are also limited in duration to the two year period from the original purchase date.

The provisions of this warranty shall not apply to any Flowtron bug killer which as been subject to misuse, neglect or accident, nor which is used
for a purpose for which it is not designed, or which shall have been repaired or altered in any way so as to adversely affect its performance and
reliability. Service by unauthorized parties voids your warranty. Warranty covers only the original purchaser. Commercial and/or professional use is
excluded from warranty coverage.

Flowtron neither assumes nor authorizes any person to assume for it any other liability in connection with its product. No responsibility is assumed
for any consequential damages that may result from the use of a Flowtron product, nor for damages due to accident, abuse, lack of responsible
care, the affixing of any unauthorized attachment, loss of parts or subjecting this unit to any but the specified voltage.

If the unit fails to operate during the warranty period, send the product, along with purchase receipt showing purchase date and description of the
problem to: Flowtron Service Center, 15 Highland Avenue, Malden, MA 02148. Transportation costs for returning any defective product are the
responsibility of the consumer.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Troubleshooting and Repair Analysis
Caution: unplug unit before servicing

P r o bl e m Po s s i ble Cause C o r r e c t i o n

A. Bulb does not light and no voltage on grid. 1. No electrical power. 1. Check fuse or circuit breaker. Check extension cord.

2. Lamp not seated properly 2. Check socket for proper seating and alignment.

3. Starter defective. 3. Starter replacement by manufacturer required.

4. Burned-out bulb. 4. Replace bulb.

B. Bulb lights, but no voltage on grid. 1. Shorted grid. 1. Examine killing grid for material build-up. See cleaning under “Maintenance”.

C. Intermittent or continuous sparking between 1. Gap between grid wires too small. 1. Unplug unit and adjust grids by bending back into alignment using

grid wires. insulated screwdriver.

2. Grid clogged with foreign material. 2. Clean grid using a small soft brush or an air blower.

D. Bulb lights, but no longer attracts insects. 1. Invisible blacklight output reduced 1. Replace bulb. See bulb replacement section of owner’s manual.

due to bulb age.

Any problems you encounter that are not corrected by the action recommended in this chart should be referred to the Flowtron Service Department, 781-321-2300

Security Wall Bracket

Model SB 300

Attractive welded steel bracket with
locking feature to help prevent theft.
6 1/2" long with 10" extension.

Powerful Lure:

Fly Sex lure – FA 5000

Makes your insect killer more
effective in eliminating
house and garbage flies.

Security Lantern Pole

Model SP 200B

Lantern pole has 1" diameter
steel tubing. Locking feature helps
prevent theft.
10 feet long with 14" extension.

Replacement Bulbs

Yearly replacement recommended
to maintain maximum black light
output.

Flowtron Insect Killer Accessories

Flowtron Outdoor Products, 15 Highland Ave, Malden, MA 02148 • 800-343-3280 • www.Flowtron.com

To purchase Flowtron Accessories,

please visit our website at

www.flowtron.com

or call our customer service dept. at

1-800-343-3280
