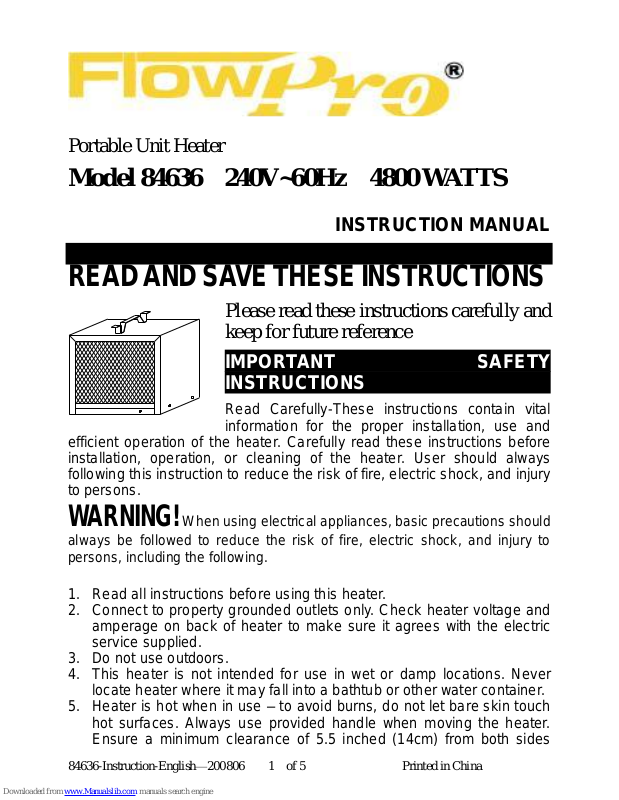

Flowpro 84636 Instruction Manual

84636-Instruction-English—200806 1 of 5 Printed in China

Portable Unit Heater

Model 84636 240V~60Hz 4800 WATTS

INSTRUCTION MANUAL

READ AND SAVE THESE INSTRUCTIONS

Please read these instructions carefully and
keep for future reference

IMPORTANT SAFETY
INSTRUCTIONS

Read Carefully-These instructions contain vital

information for the proper installation, use and
efficient operation of the heater. Carefully read these instructions before
installation, operation, or cleaning of the heater. User should always
following this instruction to reduce the risk of fire, electric shock, and injury
to persons.

WARNING!

When using electrical appliances, basic precautions should

always be followed to reduce the risk of fire, electric shock, and injury to
persons, including the following.

1. Read all instructions before using this heater.

2. Connect to property grounded outlets only. Check heater voltage and

amperage on back of heater to make sure it agrees with the electric
service supplied.

3. Do not use outdoors.

4. This heater is not intended for use in wet or damp locations. Never

locate heater where it may fall into a bathtub or other water container.

5. Heater is hot when in use – to avoid burns, do not let bare skin touch

hot surfaces. Always use provided handle when moving the heater.
Ensure a minimum clearance of 5.5 inched (14cm) from both sides

84636-Instruction-English—200806 2 of 5 Printed in China

and rear of heater to adjacent walls. Ensure combustible materials (i.e.
furniture, pillows, bedding, papers, clothes, curtains etc.) have a
minimum clearance of 3 feet (0.9m) from front of heater. Also keep
these items from the sides and rear of the heater.

6. Extreme caution is necessary when and heater is used by or near

children or invalids and whenever the heater is left operating and
unattended.

7. Do not insert or allow foreign objects to enter any ventilation or

exhaust opening as this may cause an electric shock, fire, or damage
the heater.

8. To prevent a possible fire, do not block air intakes or exhaust in any

manner. Do not use soft surfaces, like a bed, where openings may
become blocked. Clean as often as necessary to prevent dust from
clogging the grilles or element fins. Keep all electrical cords, drapes,
paper, plastics and other combustibles away from heater.

9. To disconnect heater, turn selector knob to off position, then remove

plug from outlet.

10. Do not run under carpeting. Do not cover cord with throw rugs, runners,

etc. To prevent entanglement or damage, route cord away from high
traffic areas.

11. A heater has hot and arcing or speaking parts inside. Do not use it in

areas where gasoline, paint, or flammable liquids are used or stored.

12. If this heater or its power cord become damaged or malfunction in any

way, unplug heater, discontinue use, and have unit repaired by a
reputable repair service.

13. Do not operate heater without stand.

14. Use this heater only as described in this manual. Any other use not

recommended by the manufacturer may cause fire, electric shock, or
injury to persons.

15. Avoid the use of an extension cord because the extension cord may

overheat and cause a risk of fire. If you have to use an extension cord,
the cord shall be No. 10 AWG minimum size and rated minimum
6000W.

16. Always unplug heater when not in use.

17. Mounts on wall or ceiling with enclosed bracket in garage or workshop.

May also be placed on hard floor, table top or shelf.

18. If heater is to be tilted on horizontal axis after mounting – ensure a

minimum clearance of 26.5 inches (67cm) between floor and bottom of
heater. Also, when mounted to ceiling, ensure a minimum clearance of

3.5 inches (9cm) from ceiling to top of heater. Ensure the air discharge
is parallel to or away from walls.

ASSEMBLY

This Heater has been pre-assembly in factory.

84636-Instruction-English—200806 3 of 5 Printed in China

FEATURES

 LIVE POWER SIGNAL LIGHT ( POWER ON LIGHT)—Glows amber

when unit is plugged in.

 Thermostat Control: Off, Low, High

Safety Features:

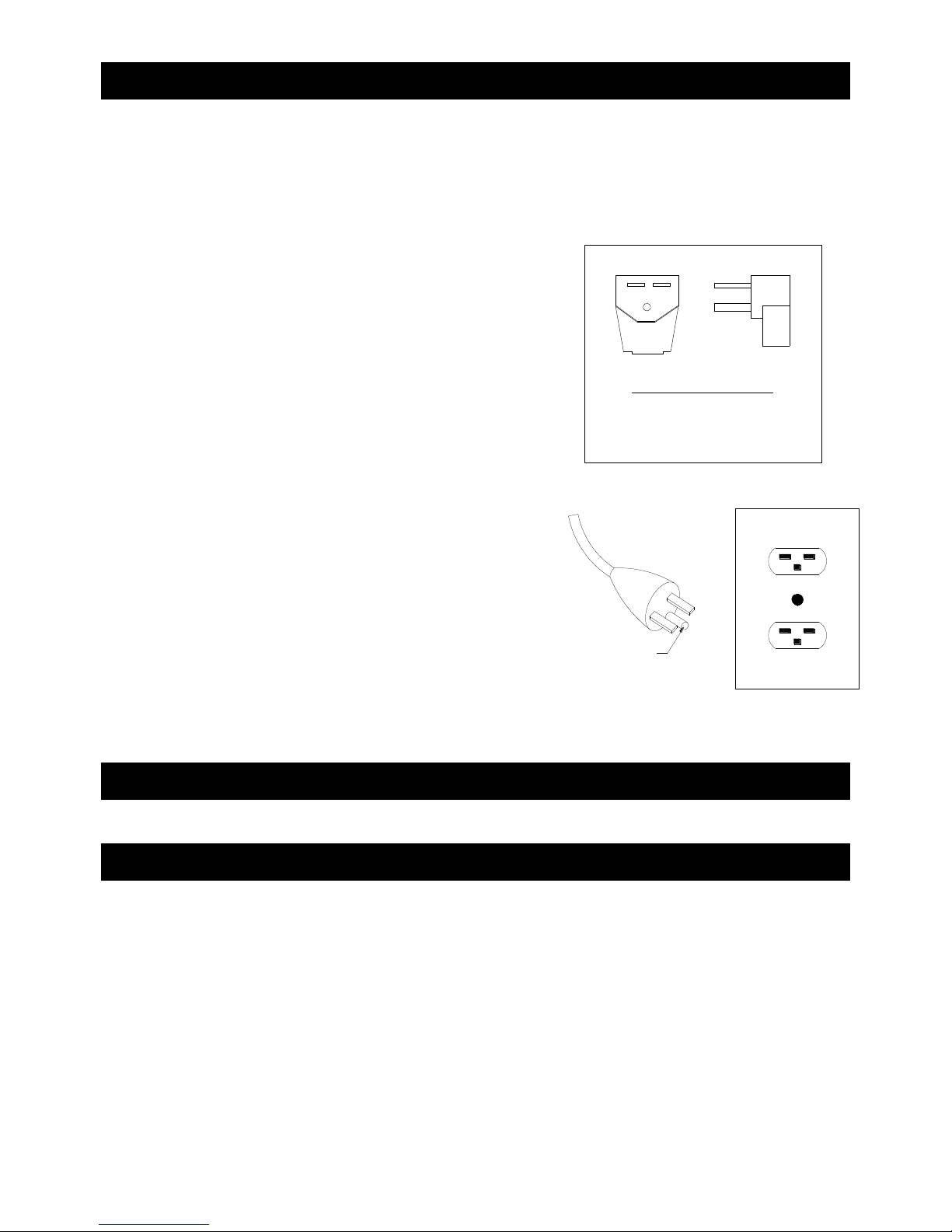

 Plug-- The cord has a 3-prong plug as

shown in Figure 1. No adapter is

available, and none should be
used.

Prior to operating heater, make sure
the electrical outlet is of the
configuration and capacity
appropriate for the heater. See outlet
configuration show at the right. This
heater is for use on 240 volts. The
type outlet is a 240 volt grounding
outlet. When properly installed, it

provides a ground connection through
the cord to the heater to protect operator
from electric shock. If you are unable to
insert the plug into the outlet, contact an
electrician.

ELECTRICAL RATINGS

This product is rated 20 amps (4800W) at 240 Volt AC, 60 Hz.

OPERATION

WARNING: Be careful not to direct the airstream at draperies, furniture,

or other objects that could be damaged by heat. Do not place the heater
where a small child maybe may fall over the heater. Do not place the
heater where the power cord may be walked on, tripped over or otherwise
subjected to hard usage.

1.The heater is for floor mounting. Place the heater on floor or other flat

surface free from obstructions, and at least 3 ft. (0.9m) away from any
wall or combustible material.

2. With the Thermostat Switch in the OFF position, Insert plug firmly into

Figure 1

Grounding Pin

30 amp 240V

NEMA # 6 - 30P

84636-Instruction-English—200806 4 of 5 Printed in China

proper wall outlet. Be sure plug fits tightly. A loose fit will cause
overheating and damage to the plug. Plug and cord may feel warm
during normal usage. Do not use an extension cord. Always operate
heater on its feet in the normal upright position.

3. Turn the ― THERMOSTAT‖ Control clockwise(right) to the ―HIGH‖ setting

until the knob stops. The heater should begin heating and the fan should
start to blow warm air.

4. Allow the heater to operate until the room temperature reaches the

desired level, then slowly rotate the ―THERMOSTAT‖ Control
counter-clockwise(left) until the heater cycles off. At this setting, the
heater will cycle on and off automatically to maintain this comfort level.

NOTE: Do not force knob beyond its normal stop position. It may be
necessary to make minor adjustments to the thermostat to maintain
the desired comfort level. Clockwise movement will increase the
room temperature. Counter-clockwise movement will decrease
room temperature.

5.When heater is not needed, rotate control knob to the ―OFF‖ position,

remove the plug from outlet, and move heater to safe place for storage.

NOTE: Each time heater is used, be sure to turn knob full “On”
before turning it back to approximate setting established as most
comfortable. (Design of the thermostat requires this operation every
time heater is used).

IMPORTANT NOTE: Do not expect the heating coils on your heater
to glow. Coil elements are normally dark. Air movement over these
coils prevents glowing yet provides convection heat, similar to a
forced-air furnace. Some glow may occur where the moving air does
not directly touch the coils.

IF YOUR HEATER FAILS TO OPERATE:

 Be sure it is plugged in and that the electrical outlet is working.
 Check that the thermostat is not set too low, turn the thermostat up

(clockwise) until the heater restarts.

 If you still notice the same malfunction mentioned above, remove the

plug from the socket and have the appliance serviced by authorized
service personnel only.

84636-Instruction-English—200806 5 of 5 Printed in China

CLEANING AND STORAGE

We recommend that the heater be cleaned at least once a month and
before off-season storage.

 Turn the heater OFF and unplug it. Allow it to cool.
 Use a dry cloth to clean the external surfaces of the heater.
 If heater is used in very dusty location, use a vacuum cleaner dust brush

or high pressure air to remove dust and other foreign material from the
grilles

DO NOT USE WATER, WAX, POLISH OR ANY CHEMICAL SOLUTION.

 Clean your heater using the above mentioned steps, then pack the

heater in its original container and store it in a cool dry place.

 This heater does not disassemble.

• The motor is factory lubricated for life, and will require no further

lubrication.

SPECIFICATIONS

If you should have any questions regarding operation,

contact us toll-free at 1-800-295-4448

WARNING
OPERATION OF THE SAFETY THERMAL LIMIT INDICATES THE
HEATER HAS BEEN SUBJECTED TO SOME ABNORMAL
CONDITIONS. IT IS RECOMMENDED THAT THE HEATER BE
CHECKED BY A REPUTABLE ELECTRICAL OR REPAIR SERVICE TO
INSURE THE HAS NOT BEEN DAMAGED.

Model NO.

84636

Voltage /Frequency

240V ~ 60 Hz

Output Power (W) & Electric Current (A)

4800W / 20.0A

NEMA Code Receptacle

6-30P

Dimensions

265x 270x332 (mm)

Net Weight

6.0Kgs
