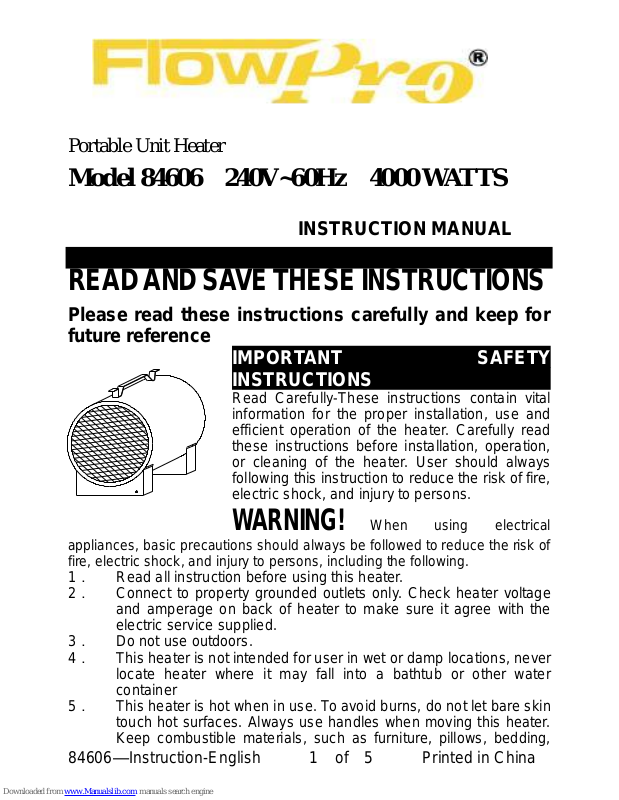

Flowpro 84606 Instruction Manual

84606—Instruction-English 1 of 5 Printed in China

Portable Unit Heater

Model 84606 240V~60Hz 4000 WATTS

INSTRUCTION MANUAL

READ AND SAVE THESE INSTRUCTIONS

Please read these instructions carefully and keep for
future reference

IMPORTANT SAFETY
INSTRUCTIONS

Read Carefully-These instructions contain vital
information for the proper installation, use and
efficient operation of the heater. Carefully read
these instructions before installation, operation,
or cleaning of the heater. User should always
following this instruction to reduce the risk of fire,
electric shock, and injury to persons.

WARNING!

When using electrical

appliances, basic precautions should always be followed to reduce the risk of
fire, electric shock, and injury to persons, including the following.

1． Read all instruction before using this heater.
2． Connect to property grounded outlets only. Check heater voltage

and amperage on back of heater to make sure it agree with the

electric service supplied.
3． Do not use outdoors.
4． This heater is not intended for user in wet or damp locations, never

locate heater where it may fall into a bathtub or other water

container
5． This heater is hot when in use. To avoid burns, do not let bare skin

touch hot surfaces. Always use handles when moving this heater.

Keep combustible materials, such as furniture, pillows, bedding,

For Model No: EH - 4606 (4000W)

NEMA # 6 - 20P

20 amp 240V

PLUG TYPE

84606—Instruction-English 2 of 5 Printed in China

papers, clothes, and curtains at least 3 feet (0.9m) from the front of

the heater and away from the sides and rear.
6． Extreme caution is necessary when any heater is used by or near

children or invalid and whenever the heater is left operating and

unattended.
7． Do not insert or allow foreign objects to enter any ventilation or

exhaust opening as this may cause an electric shock, fire, or

damage the heater.
8． To prevent a possible fire, do not block air intake or exhaust in any

manner. Do not use soft surface, like a bed, where openings may

become blocked. Clean as often as necessary to prevent dust from

clogging the grilles or element fins. Keep all electrical cords,

drapes, paper, plastics and other combustibles away from heater.
9． To disconnect heater, turn selector knob to off position, then

remove plug from outlet.
10． Do not run cord under carpeting. Do not cover cord with throw rugs,

runners, etc. To prevent entanglement or damage, route cord away

from high traffic areas.
11． A heater has hot and arcing or sparking parts insides. Do not use it

in areas where gasoline, paint, or flammable liquids are used or

stored.
12． If this heater or its power cord become damaged or malfunction in

any way, unplug heater discontinue use, and have unite repaired

by a reputable repair service.
13． Do not operate heater without stand.
14． Use this heater only as described in this manual. Any other use not

recommended by the manufacturer may cause fire, electric shock.

or injure to persons.
15． Avoid the use of an extension cord because the extension cord

may overheat and cause a risk of fire. If you have to use an

extension cord, the cord shall be No. 12 AWG minimum size and

rated minimum 4000W.
16． Always unplug heater when not in use.

ASSEMBLY

This Heater has been pre-assembly in factory.

FEATURES

 LIVE POWER SIGNAL LIGHT ( POWER ON LIGHT)—Glows amber

when unit is plugged in.

 Thermostat Control: Off, Low, High
