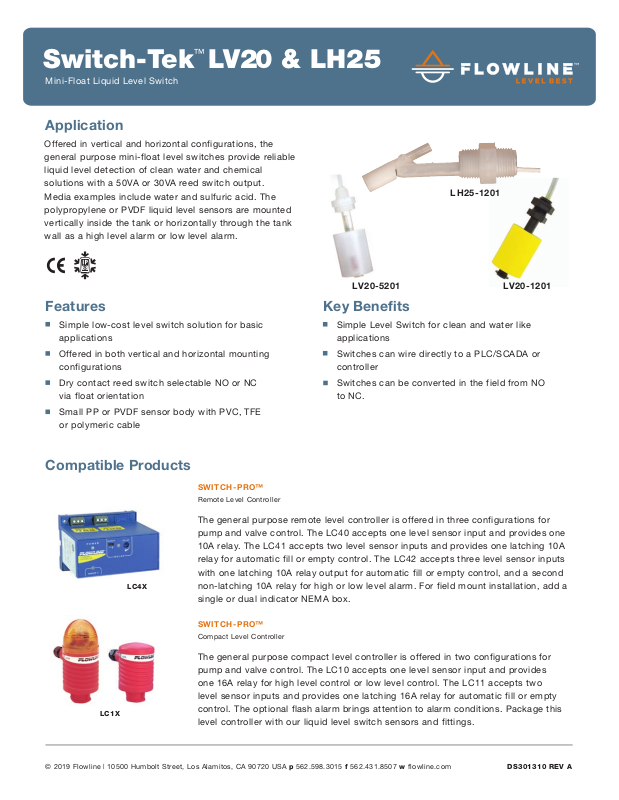

Flowline LH25, LV20 Specifications
™
Switch-Tek
Mini-Float Liquid Level Switch
LV20 & LH25
Application
Offered in vertical and horizontal configurations, the
general purpose mini-float level switches provide reliable
liquid level detection of clean water and chemical
solutions with a 50VA or 30VA reed switch output.
Media examples include water and sulfuric acid. The
polypropylene or PVDF liquid level sensors are mounted
vertically inside the tank or horizontally through the tank
wall as a high level alarm or low level alarm.
LH25-1201
LV20-1201LV20-5201
Features
Simple low-cost level switch solution for basic
applications
Offered in both vertical and horizontal mounting
configurations
Dry contact reed switch selectable NO or NC
via float orientation
Small PP or PVDF sensor body with PVC, TFE
or polymeric cable
Compatible Products
SWITCH-PRO™
Remote Level Controller
The general purpose remote level controller is offered in three configurations for
pump and valve control. The LC40 accepts one level sensor input and provides one
10A relay. The LC41 accepts two level sensor inputs and provides one latching 10A
relay for automatic fill or empty control. The LC42 accepts three level sensor inputs
with one latching 10A relay output for automatic fill or empty control, and a second
LC4X
non-latching 10A relay for high or low level alarm. For field mount installation, add a
single or dual indicator NEMA box.
Key Benefits
Simple Level Switch for clean and water like
applications
Switches can wire directly to a PLC/SCADA or
controller
Switches can be converted in the field from NO
to NC.
SWITCH-PRO™
Compact Level Controller
The general purpose compact level controller is offered in two configurations for
pump and valve control. The LC10 accepts one level sensor input and provides
one 16A relay for high level control or low level control. The LC11 accepts two
level sensor inputs and provides one latching 16A relay for automatic fill or empty
LC1X
© 2019 Flowline | 10500 Humbolt Street, Los Alamitos, CA 90720 USA p 562.598.3015 f 562.431.8507 w flowline.com DS301310 REV A
control. The optional flash alarm brings attention to alarm conditions. Package this
level controller with our liquid level switch sensors and fittings.
Switch-Tek
Mni-Float Liquid Level Switch
™
LV20 & LH25
Specifications
Orientation:
Accuracy:
Repeatibility:
Specific gravity:
Contact type:
Contact rating:
Contact output:
Process temp.:
Pressure range:
Sensor rating:
Sensor material:
Wire jacket mat.:
Wire type:
Wire length:
Process mount:
Classification:
Compliance:
LV20: ± 20º vertical
LH25: ± 20º vertical
± 5mm in water
± 2mm in water
LV20: 0.8 minimum
LH25: 06 minimum
(1) SPDT reed
LV20: 120VAC/VDC @50 VA
LH25: 120VAC/VDC @50 VA
Selectable NO / NC
LV20: F: -40° to 176°
C: -40° to 80°
LH25: F: -40° to 221°
C: -40° to 105°
LV20: 10 psi (0.7 bar)
LH25: 100 psi (6.9 bar)
NEMA 6 (IP68)
LV20-12_1: PP
LV20-52_1: PVDF
LH25-1201: PP
LH25-5201: PVDF
LV20-12_1: PVC
LV20-52_1: TFE
LH25-1201: Polymeric
LH25-5201: TFE
2-conductor, 22-gauge
2’ (61cm)
LV20: 1/8” NPT (1/8” R)
LH25: 1/2” NPT
General purpose
CE
Dimensions
LV20 Series
LH25 Series
Ordering
SENSOR MATERIAL (1)
1 PP
5 PVDF
LV20 - 2 1
NOTES
To special order a 25’ (7.6m) or 50’ (15.2 m) level sensor cable, place
1)
the cable length at the end of the part number (ie: LV20-1201-25’).
For PP, add $10 for 25’ (7.6m) or $20 for 50’ (15.2m) to the price. For
PVDF, add $20 for 25’ (7.6m) or $40 for 50’ (15.2m) to the price.
PROCESS MOUNT
0 NPT (US)
5 R (Metric)
LH25 - 2 0 1
To special order a 25’ (7.6m) level sensor cable, place the cable length
2)
at the end of the part number (ie: LH25-1201-25’). For PP, add $10 for
25’ (7.6m) to the price. For PVDF, add $65 for 25’ (7.6m) to the price.
SENSOR MATERIAL (2)
1 PP
5 PVDF
© 2019 Flowline | 10500 Humbolt Street, Los Alamitos, CA 90720 USA p 562.598.3015 f 562.431.8507 w flowline.com DS301310 REV A
