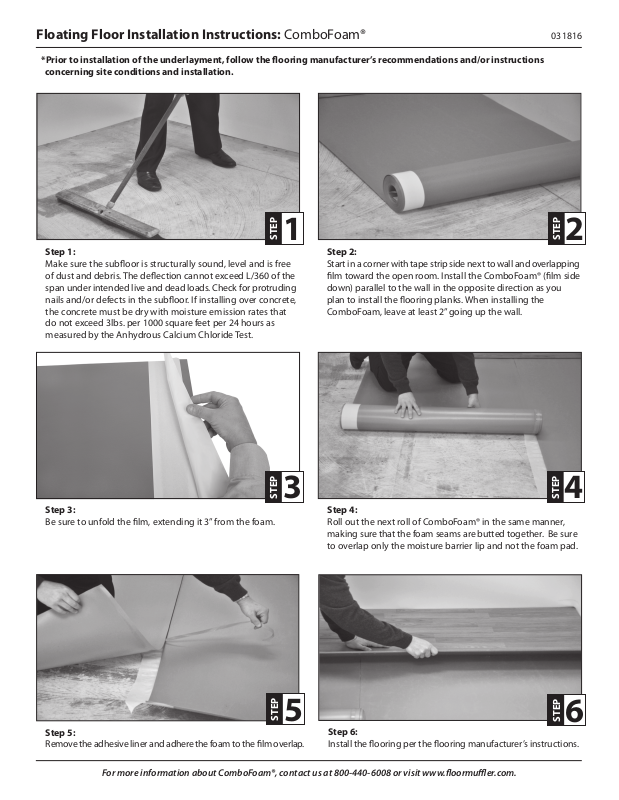

Floating Floor Installation Instructions: ComboFoam®
*Prior to installation of the underlayment, follow the flooring manufacturer’s recommendations and/or instructions
concerning site conditions and installation.
031816
1
STEP
Step 1:
Make sure the subfloor is structurally sound, level and is free
of dust and debris. The deflection cannot exceed L/360 of the
span under intended live and dead loads. Check for protruding
nails and/or defects in the subfloor. If installing over concrete,
the concrete must be dry with moisture emission rates that
do not exceed 3lbs. per 1000 square feet per 24 hours as
measured by the Anhydrous Calcium Chloride Test.
3
STEP
Step 3:
Be sure to unfold the film, extending it 3” from the foam.
2
STEP
Step 2:
Start in a corner with tape strip side next to wall and overlapping
film toward the open room. Install the ComboFoam® (film side
down) parallel to the wall in the opposite direction as you
plan to install the flooring planks. When installing the
ComboFoam, leave at least 2” going up the wall.
4
STEP
Step 4:
Roll out the next roll of ComboFoam® in the same manner,
making sure that the foam seams are butted together. Be sure
to overlap only the moisture barrier lip and not the foam pad.
5
STEP
Step 5:
Remove the adhesive liner and adhere the foam to the film overlap.
For more information about ComboFoam®, contact us at 800-440-6008 or visit www.floormuffler.com.
6
STEP
Step 6:
Install the flooring per the flooring manufacturer’s instructions.
