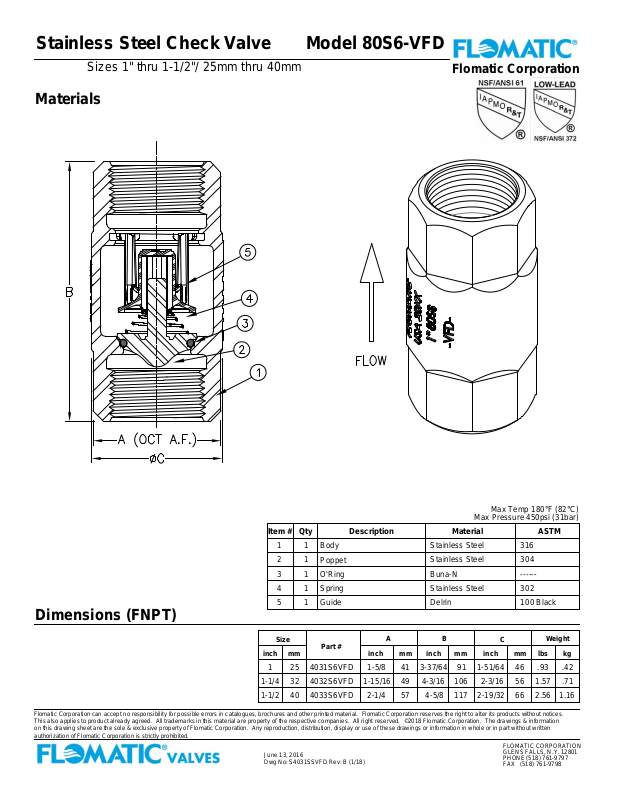

Stainless Steel Check Valve Model 80S6-VFD
Sizes 1" thru 1-1/2"/ 25mm thru 40mm
Materials
Flomatic Corporation
Max Temp 180°F (82°C)
Max Pressure 450psi (31bar)
Item # Qty
1
1
2
1
1
3
1
4
15
Description
Body
Poppet
O'Ring
Spring
Guide
Material
Stainless Steel 316
Stainless Steel
Buna-N
304
-----302Stainless Steel
Delrin
100 Black
ASTM
Dimensions (FNPT)
B
inch
3-37/64mm91
C
inch
mm
1-51/64 46
inch
1-5/8
A
mm
Size
mminch
Part #
251 4031S6VFD 41 .93 .42
1-15/16
Flomatic Corporation can accept no responsibility for possible errors in catalogues, brochures and other printed material. Flomatic Corporation reserves the right to alter its products without notices.
This also applies to product already agreed. All trademarks in this material are property of the respective companies. All right reserved. ©2018 Flomatic Corporation. The drawings & information
on this drawing sheet are the sole & exclusive property of Flomatic Corporation. Any reproduction, distribution, display or use of these drawings or information in whole or in part without written
authorization of Flomatic Corporation is strictly prohibited.
June 13, 2016
Dwg No: S4031SSVFD Rev: B (1/18)
FLOMATIC CORPORATION
GLENS FALLS, N.Y. 12801
PHONE (518) 761-9797
FAX (518) 761-9798
Weight
lbs kg
.711.574032S6VFD1-1/4 32 10649 4-3/16 562-3/16
1.162.564033S6VFD1-1/2 40 11757 4-5/8 662-19/322-1/4
