Floe MAXIS Assemnly Instructions

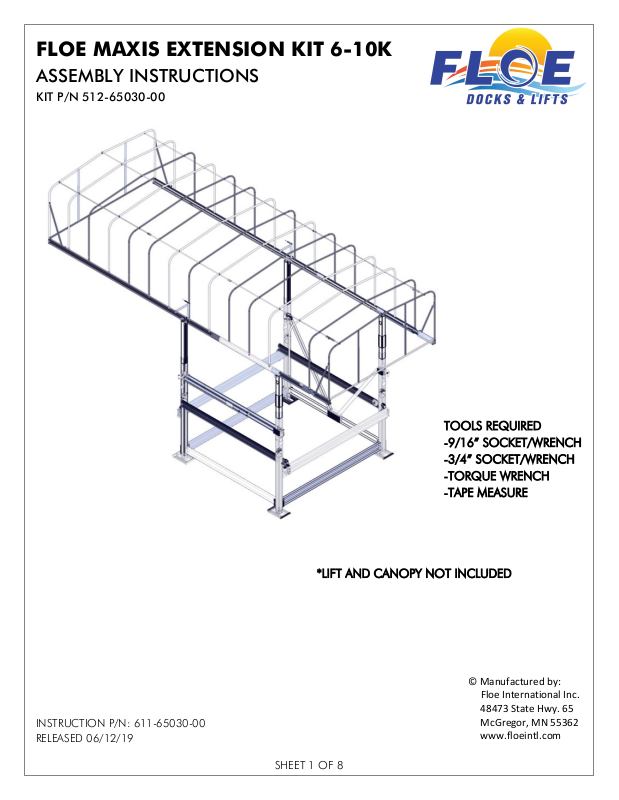

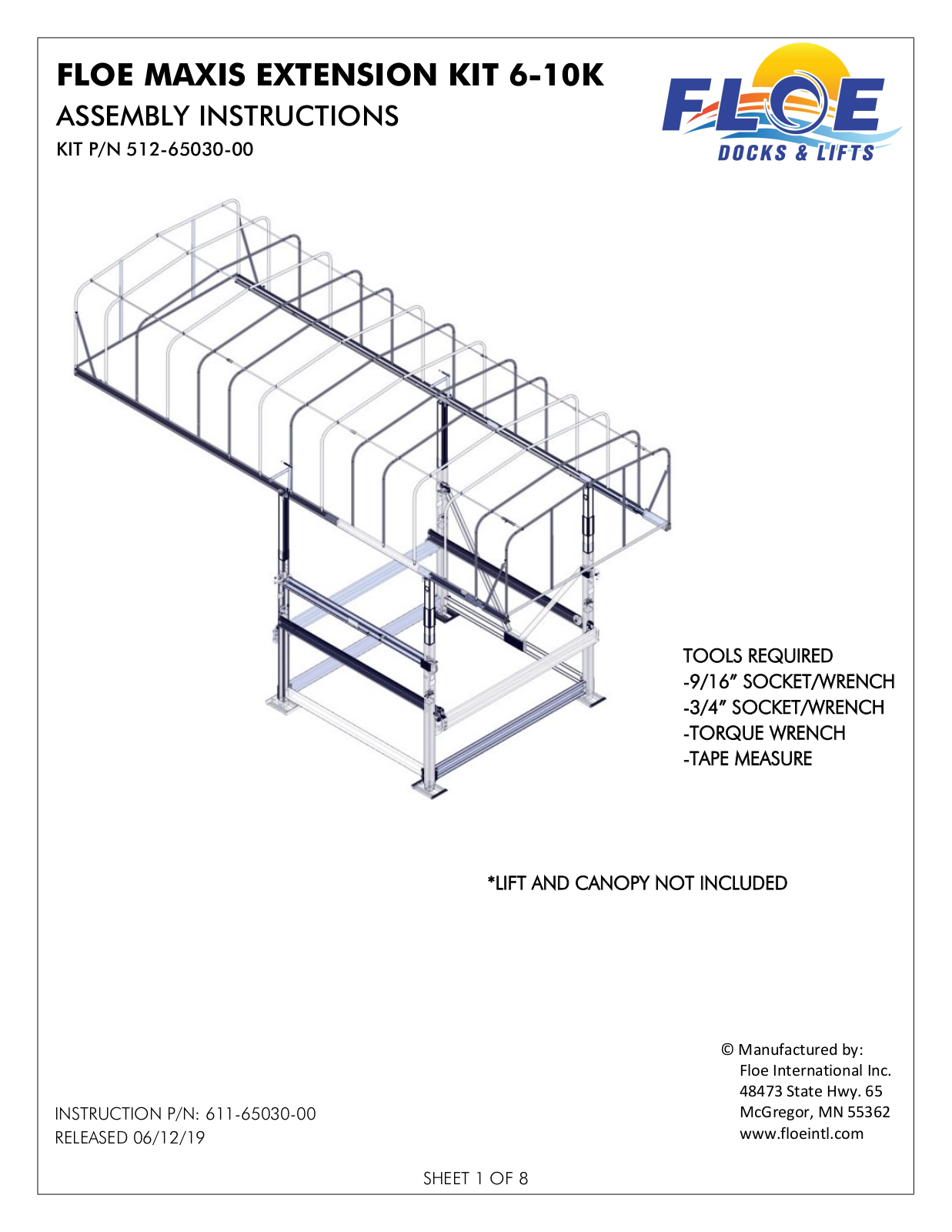

FLOE MAXIS EXTENSION KIT 6-10K

TOOLS REQUIRED

INSTRUCTION P/N: 611

-65030

-00

© Manufactured by:

*LIFT

AND CANOPY

N

OT INCLUDED

ASSEMBLY INSTRUCTIONS

KIT P/N 512-65030-00

-9/16” SOCKET/WRENCH

-3/4” SOCKET/WRENCH

-TORQUE WRENCH

-TAPE MEASURE

RELEASED 06/12/19

Floe International Inc.
48473 State Hwy. 65
McGregor, MN 55362
www.floeintl.com

SHEET 1 OF 8

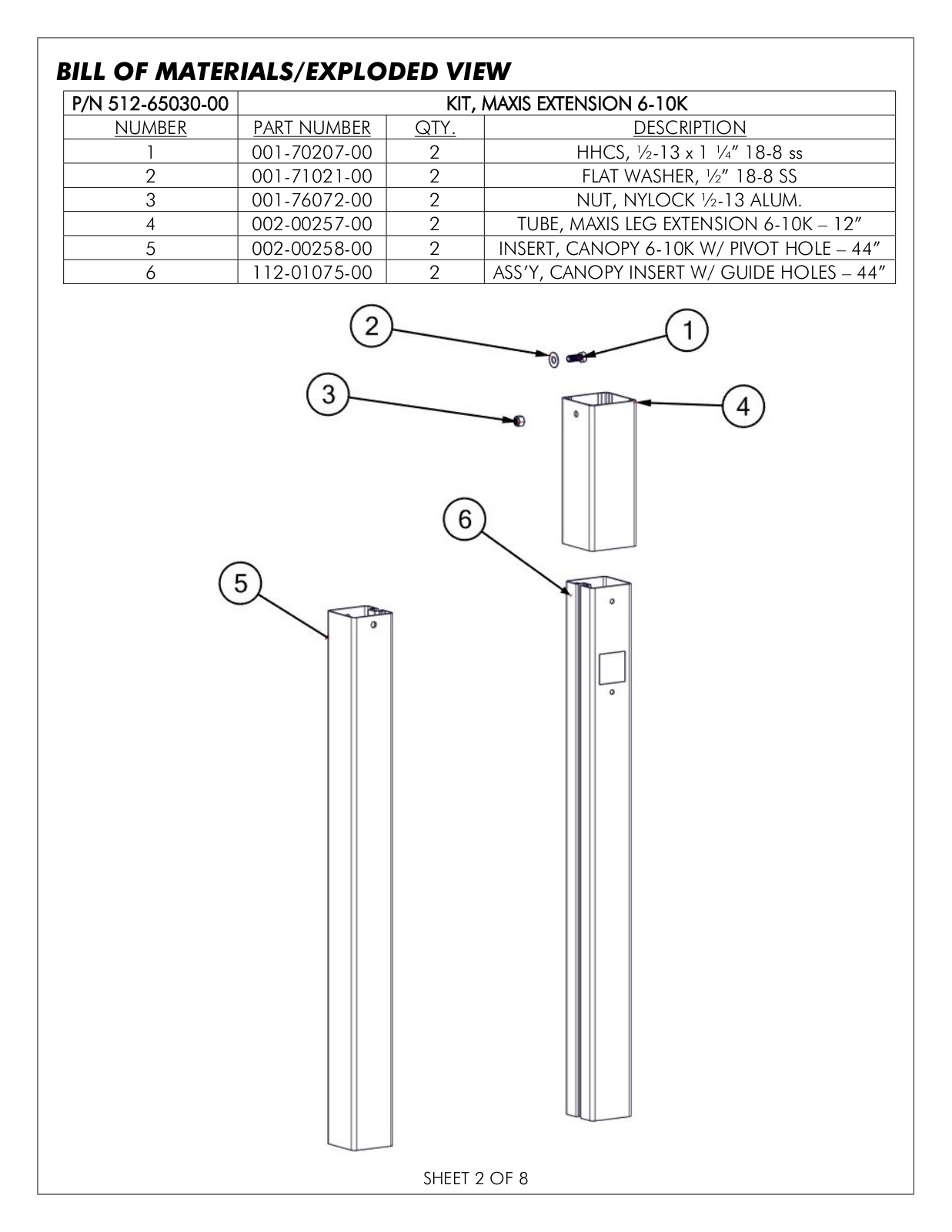

BILL OF MATERIALS/EXPLODED VIEW

P/N 512-65030-00

NUMBER PART NUMBER QTY. DESCRIPTION

1 001-70207-00 2 HHCS, ½-13 x 1 ¼” 18-8 ss
2 001-71021-00 2 FLAT WASHER, ½” 18-8 SS
3 001-76072-00 2 NUT, NYLOCK ½-13 ALUM.
4 002-00257-00 2 TUBE, MAXIS LEG EXTENSION 6-10K – 12”
5 002-00258-00 2 INSERT, CANOPY 6-10K W/ PIVOT HOLE – 44”
6 112-01075-00 2 ASS’Y, CANOPY INSERT W/ GUIDE HOLES – 44”

KIT, MAXIS EXTENSION 6-10K

SHEET 2 OF 8

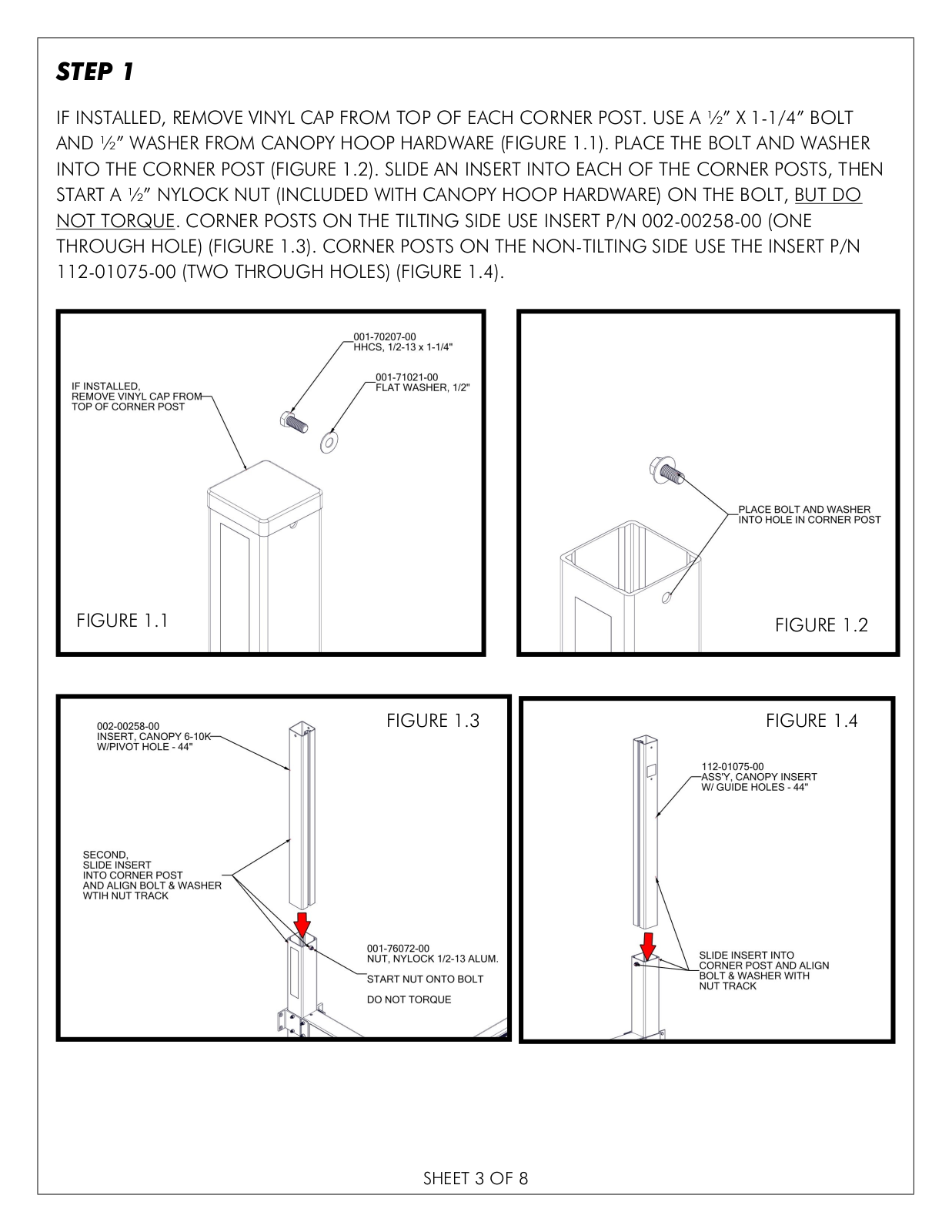

STEP 1

FIGURE 1.1

FIGURE 1.2

FIGURE 1.3

FIGURE 1.4

IF INSTALLED, REMOVE VINYL CAP FROM TOP OF EACH CORNER POST. USE A ½” X 1-1/4” BOLT
AND ½” WASHER FROM CANOPY HOOP HARDWARE (FIGURE 1.1). PLACE THE BOLT AND WASHER
INTO THE CORNER POST (FIGURE 1.2). SLIDE AN INSERT INTO EACH OF THE CORNER POSTS, THEN
START A ½” NYLOCK NUT (INCLUDED WITH CANOPY HOOP HARDWARE) ON THE BOLT, BUT DO
NOT TORQUE. CORNER POSTS ON THE TILTING SIDE USE INSERT P/N 002-00258-00 (ONE
THROUGH HOLE) (FIGURE 1.3). CORNER POSTS ON THE NON-TILTING SIDE USE THE INSERT P/N
112-01075-00 (TWO THROUGH HOLES) (FIGURE 1.4).

SHEET 3 OF 8
