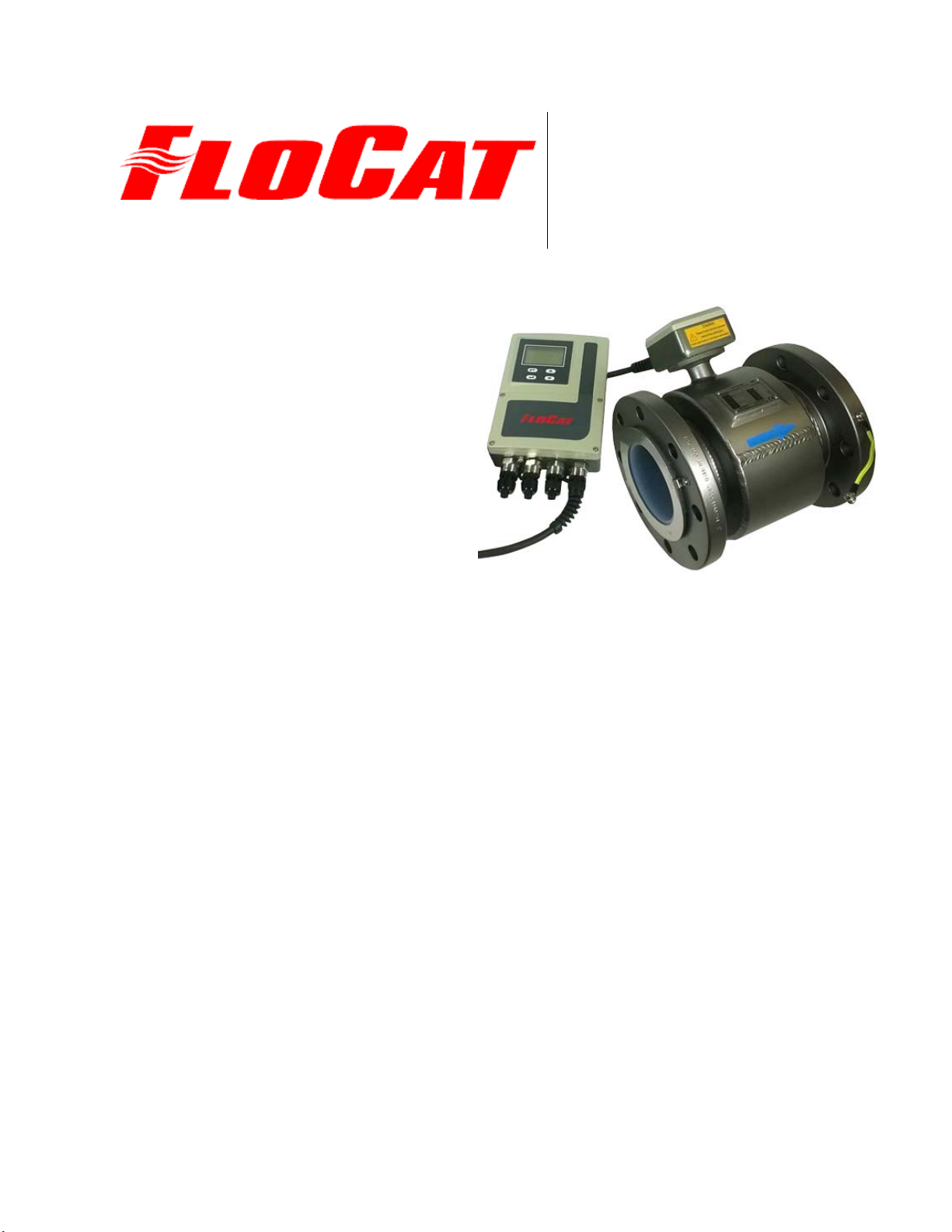

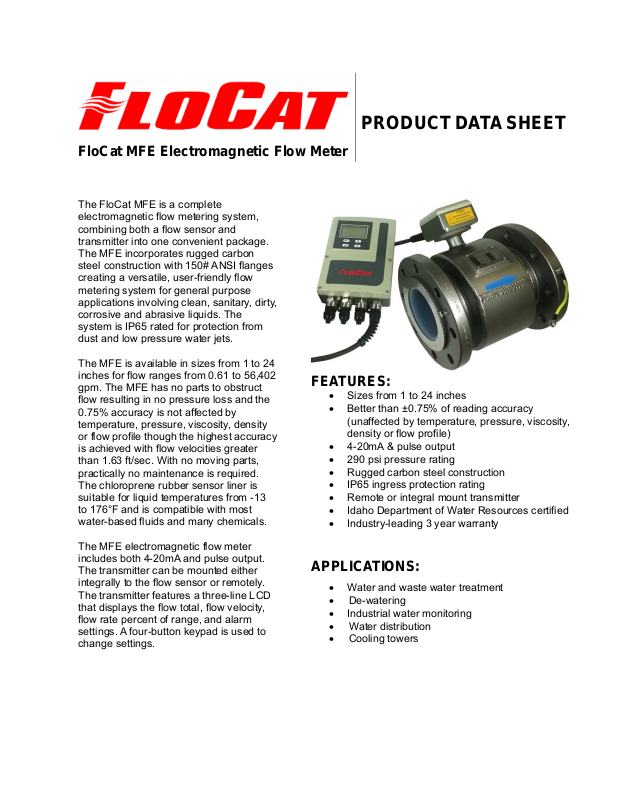

FloCat MFE Electromagnetic Flow Meter
The FloCat MFE is a complete
electromagnetic flow metering system,
combining both a flow sensor and
transmitter into one convenient package.
The MFE incorporates rugged carbon
steel construction with 150# ANSI flanges
creating a versatile, user-friendly flow
metering system for general purpose
applications involving clean, sanitary, dirty,
corrosive and abrasive liquids. The
system is IP65 rated for protection from
dust and low pressure water jets.
The MFE is available in sizes from 1 to 24
inches for flow ranges from 0.61 to 56,402
gpm. The MFE has no parts to obstruct
flow resulting in no pressure loss and the
0.75% accuracy is not affected by
temperature, pressure, viscosity, density
or flow profile though the highest accuracy
is achieved with flow velocities greater
than 1.63 ft/sec. With no moving parts,
practically no maintenance is required.
The chloroprene rubber sensor liner is
suitable for liquid temperatures from -13
to 176°F and is compatible with most
water-based fluids and many chemicals.
The MFE electromagnetic flow meter
includes both 4-20mA and pulse output.
The transmitter can be mounted either
integrally to the flow sensor or remotely.
The transmitter features a three-line LCD
that displays the flow total, flow velocity,
flow rate percent of range, and alarm
settings. A four-button keypad is used to
change settings.
FEATURES:
APPLICATIONS:
Sizes from 1 to 24 inches
Better than ±0.75% of reading accuracy
(unaffected by temperature, pressure, viscosity,
density or flow profile)
4-20mA & pulse output
290 psi pressure rating
Rugged carbon steel construction
IP65 ingress protection rating
Remote or integral mount transmitter
Idaho Department of Water Resources certified
Industry-leading 3 year warranty
Water and waste water treatment
De-watering
Industrial water monitoring
Water distribution
Cooling towers
Page 2
SPECIFICATIONS:
Sizes: 1 to 24 inches
Flange: ANSI 150# CS
Sensor Housing Material: Carbon Steel
Accuracy: Better than ±0.75% of reading
(at flow velocities >1.63 ft/sec)
Sensor Lining: Chloroprene rubber
Minimum Conductivity: 5 µS/cm
Flow velocity range: ~ 65 ft/s
Electrode Material: 316L SS
Ambient Temperature: -13 to 140°F
Liquid Temperature: -13 to 176°F
Communications: 4-20mA and Pulse
Power: 100-230 VAC
Ingress Protection: IP65
Cable Entry: NPT ½
cCSAus and CE certified

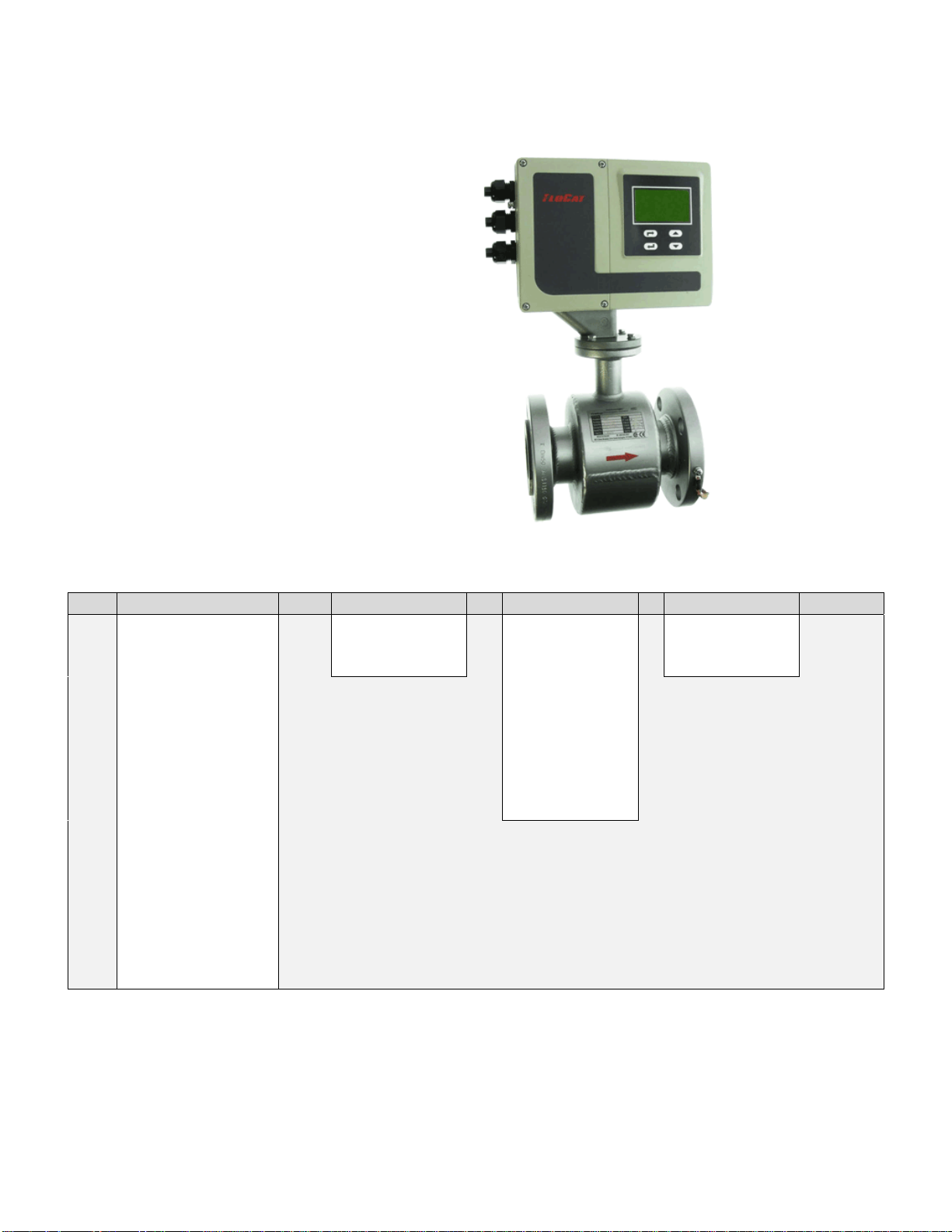

PART NUMBERING:
MFE Diameter* D811 Grounding Ring A Cable Length** 5
Code Description
25 1 inch (DN25)
32 1.25 inch (DN32)
40 1.5 inch (DN40)
50 2 inch (DN50)
65 2.5 inch (DN65)
80 3 inch (DN80)
100 4 inch (DN100)
125 5 inch (DN125)
150 6 inch (DN150)
200 8 inch (DN200)
250 10 inch (DN250)
300 12 inch (DN300)
350 14 inch (DN350)
400 16 inch (DN400)
450 18 inch (DN450)
500 20 inch (DN500)
600 24 inch (DN600)
* Meter diameters from 1/10 inch to 96 inches are available. Contact us for details.
** Custom cable lengths are available. Contact us for details.
Code Description
0 None
1 Included (2)
Code Description Code Description
0 None
5 15 feet
10 30 feet
15 50 feet
25 75 feet
30 100 feet
45 150 feet
60 200 feet
90 300 feet
Mount Type 1401111S
EH Integral
ER Remote
Page 3

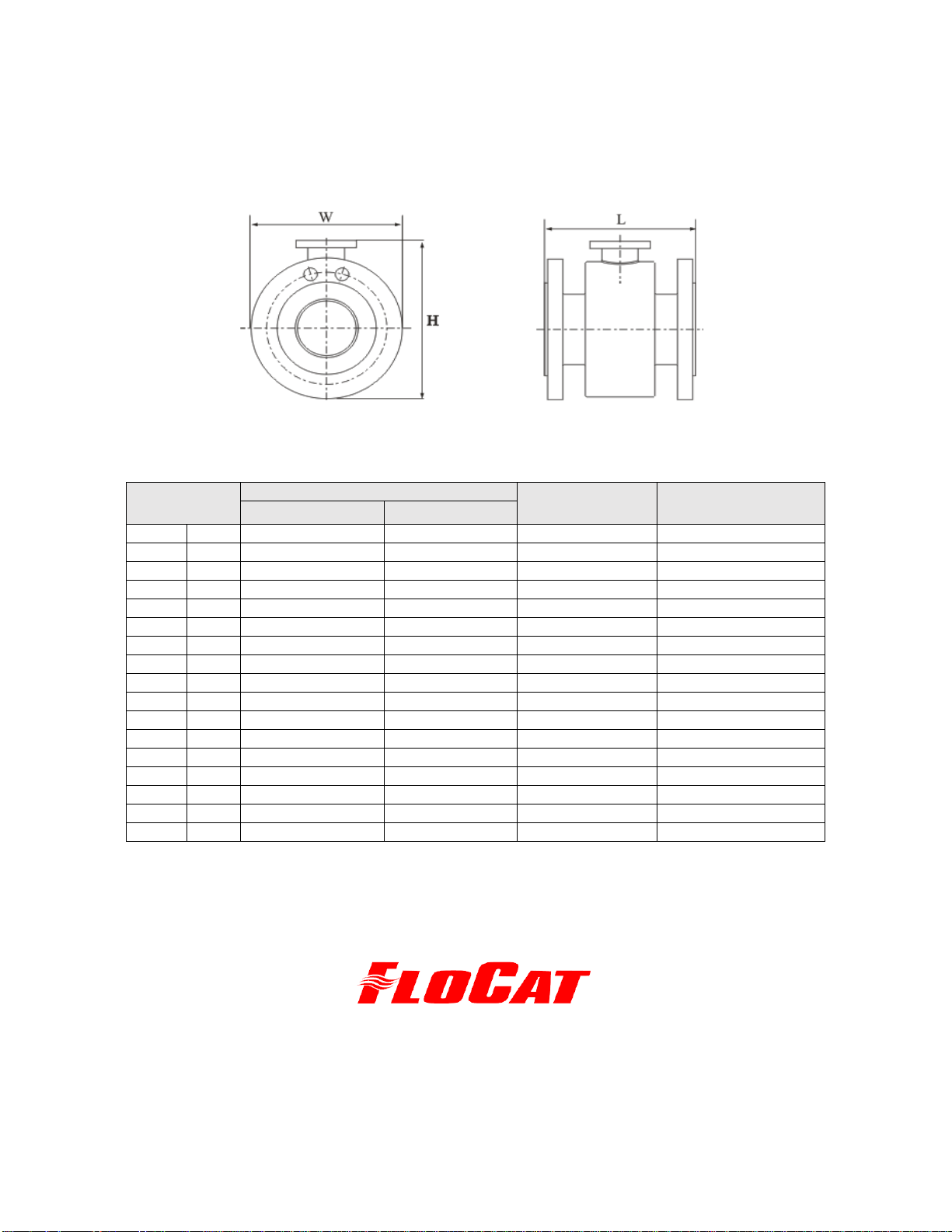

Sensor Dimensions:
Nominal Size
(inch) (mm)
1 25 7.9 x 5.0 x 5.8 21 x 18 x 14 21 lbs 0.61 to 97.92 gpm
1 1/4 32 7.9 x 5.0 x 6.1 21 x 18 x 14 25 lbs 0.96 to 153 gpm
1 1/2 40 7.9 x 5.0 x 6.5 21 x 18 x 14 25 lbs 1.38 to 220.3 gpm
2 50 7.9 x 6.5 x 7.4 21 x 18 x 14 32 lbs 2.45 to 391.68 gpm
2 1/2 65 7.9 x 7.3 x 8.0 21 x 18 x 14 38 lbs 3.83 to 612 gpm
3 80 7.9 x 7.9 x 8.8 21 x 18 x 14 47 lbs 5.51 to 881.28 gpm
4 100 9.8 x 8.7 x 9.8 21 x 18 x 15 62 lbs 9.79 to 1,566.7 gpm
5 125 9.8 x 9.8 x 10.9 Contact us Contact us 15.3 to 2,448 gpm
6 150 11.8 x 11.2 x 11.9 27 x 23 x 18 101 lbs 22.03 to 3,525.1 gpm
8 200 13.8x 13.4 x 14.1 25 x 21 x 35 206 lbs 39.17 to 6,266.9 gpm
10 250 17.7 x 15.9 x 16.5 31 x 24 x 37 Contact us 61.2 to 9,792 gpm
12 300 19.7 x 18.1 x 18.4 32 x 27 x 39 Contact us 88.13 to 14,100 gpm
14 350 21.7 x 22.1 x 22.0 Contact us Contact us 120 to 19,192 gpm
16 400 23.6 x 23.5 x 24.2 Contact us Contact us 156.7 to 25,067 gpm
18 450 23.6 x 25.2 x 25.8 Contact us Contact us 198.3 to 31,726 gpm
20 500 23.6 x 28.1 x 28.1 Contact us Contact us 244.8 to 39,168 gpm
24 600 23.6 x 31.9 x 31.9 Contact us Contact us 353.5 to 56,402 gpm
Dimensions (LxWxH in inches)
Unit Shipping
Shipping Weight
(lbs)
Flow Range
(gpm)
