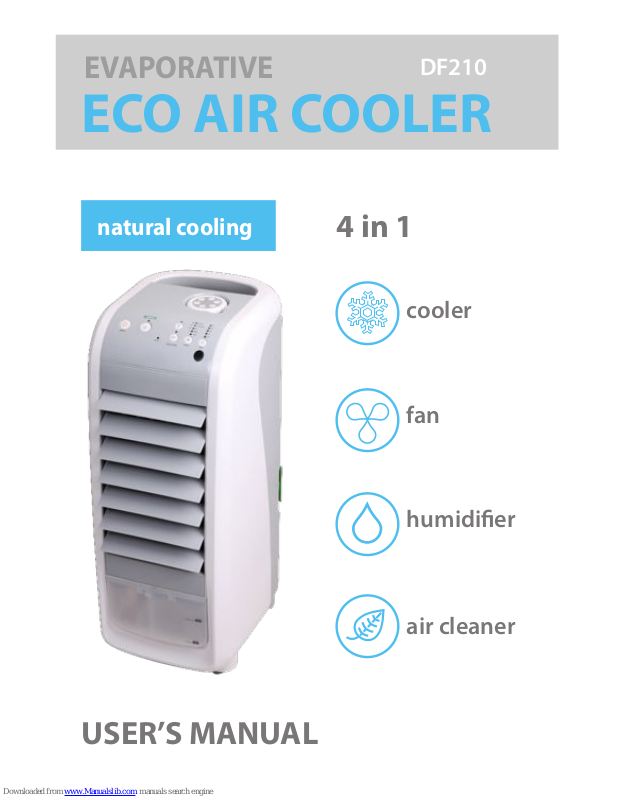

Floater DF210 User Manual
USER’S MANUAL
natural cooling
ECO AIR COOLER
EVAPORATIVE
cooler
fan
air cleaner
humidier
4 in 1
DF210
WHAT IS AN ECO AIR COOLER ?
ECO AIR COOLERS use evaporative cooling to provide
airow that is cooler than the surrounding air. Water is
pumped up and dripped onto the cooling pad and as hot
air is pulled through, the water in the cooling pad evaporates. Evaporation absorbs heat, dropping the temperature
of the air owing from the cooler. As a result, the airow is
much cooler than the ambient air.
The best feature of the ECO AIR COOLER is that it is an environmentally responsible method of air cooling since it
uses only water and only 70 Watts of power - about the
same as one light bulb !
Cold Water
Dust Filter
Water Tank
Cooling Pad
Water Pump
HOT AIR
COLD AIR
HOW TO USE THE ECO AIR
COOLER EFFECTIVELY
The ECO AIR COOLER is not an air conditioner. It is best described as the coldest
fan you will ever experience. Unlike an air conditioner, it does not recirculate
stale dry air - it constantly circulates healthy, fresh and cold air into your space.
The ECO AIR COOLER is most eective in drier climates and works best in areas
with less than 60% humidity.
*
For a short demonstration video of the ECO AIR COOLER, please visit
www.oater.ca. Enjoy your ECO AIR COOLER.
Place the rear of the ECO AIR COOLER in front of an opened door or
window. Evaporative coolers are
most ecient when they have a
constant supply of fresh air.
The colder the water is in the water
tank, the more eective the evaporative cooling works. As a result, for
additional and prolonged cooling,
freeze the included ice packs and
place them in the water tank. Ice
cubes can be used as a substitute or
in addition to the ice packs.
DO NOT USE THE ECO AIR COOLER IN A CLOSED ROOM - the room
may become humid.
To enhance the circulation of the
cold air from the ECO AIR COOLER,
use it in a space with two slightly
opened doors or windows opposite
each other, creating a cross ow of
air.
