Scout
Thermal Night Vision Camera
Operator’s Manual
Document Number: 431-TS00-00-10
Revision: 110
June 2011
www.GlobalTestSupply.com
—Scout Operator’s Manual
© 2011 FLIR Commercial Systems, Inc. All rights reserved worldwide. No
parts of this manual, in whole or in part, may b e copied , p hotocop ied,
translated, or transmitted to any electronic medium or machine readable
form without the prior written permission of FLIR Commercial Systems, Inc.
Names and marks appearing on the products herein are either registered
trademarks or trademarks of FLIR Commercial Systems, Inc. and/or its
subsidiaries. All other trademarks, trade names, or company names
referenced herein are used for identification only and are the property of their
respective owners.
This product is protected by patents, design patents, patents pending, or
design patents pending.
If you have questions that are not covered in this manual, or need service,
contact FLIR Commercial Systems, Inc. cus to mer supp ort at 805. 964.979 7
for additional information prior to returning a camera.
This documentation is subject to change without notice.
This equipment must be disposed of as electronic waste.
Contact your nearest FLIR Commercial Systems, Inc.
representative for instructions on how to return the product to
FLIR for proper disposal.
This document is controlled to FLIR Technology Level EAR 1. The information
contained in this document is proprietary and/or restricted and pertains to a
dual use product controlled for export by the Export Administration
Regulations (EAR). This document and data disclosed herein or herewith is not
to be reproduced, used, or disclosed in whole or in part to anyone without the
written permission of FLIR System s, Inc. Div ersion c on trary to US law is
prohibited. US Department of Commerce authorization is not required prior to
export or transfer to foreign persons, parties, or uses otherwise prohibited.
FLIR Commercial Systems, Inc.
70 Castilian Drive
Goleta, CA 93117
Phone: 888.747.FLIR (888.747.3547)
International: +1.805.964.9797
www.flir.com
ii June 2011
www.GlobalTestSupply.com
Table of Contents
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Scout Camera Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Detection Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Shipping Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Options and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating Your Scout Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Camera Features and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installing the Batteries and SD Card . . . . . . . . . . . . . . . . . . . . . . . 10
Charging the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Scout Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Buttons and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SD Card Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

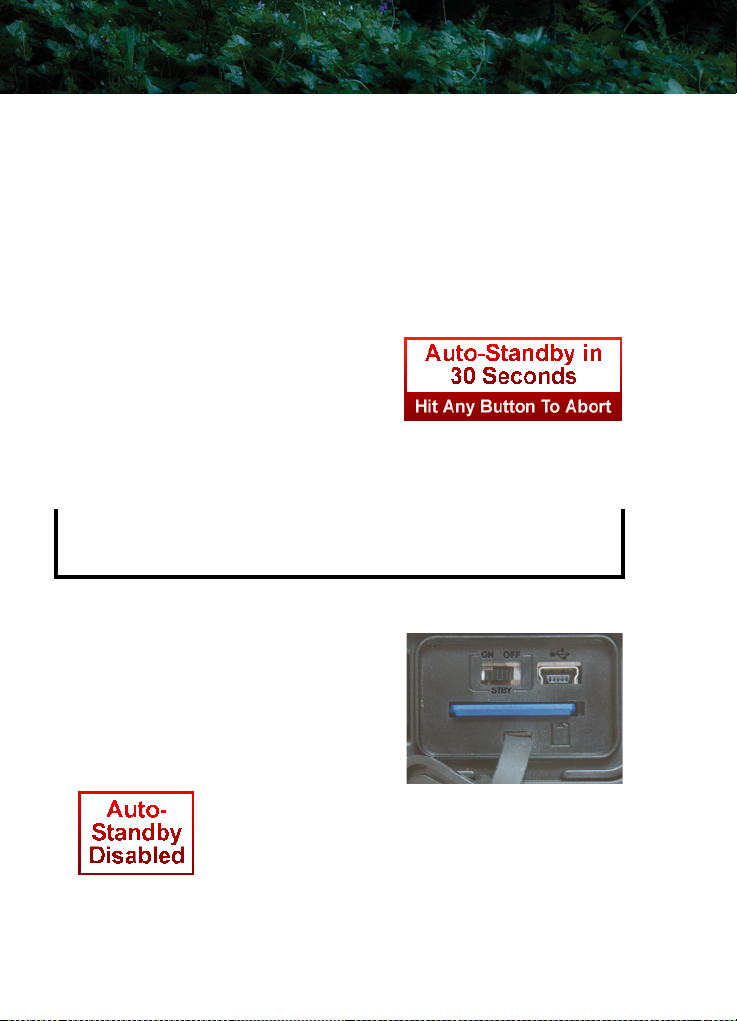

Auto-Standby Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
The Hot Shoe. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Installing the Shuttered Eyepiece . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Bayonet Lens Mounting System. . . . . . . . . . . . . . . . . . . . . . . . . . . 25
2× Extender (19 mm only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installing Software Upgrades. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Checking Software Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Scout Camera Model Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Physical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Lens Choice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Storage File Formats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Range Detection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
431-TS00-00-10, Revision 110 iii
www.GlobalTestSupply.com
—Scout Operator’s Manual
iv June 2011
www.GlobalTestSupply.com
1Introduction
FLIR’s Scout handheld thermal imaging cameras give hikers, hunters,
and outdoorsmen the ability to see clearly in total darkness, providing
a wealth of valuable information during any nighttime excursion.
The Scout camera enables the outdoorsman to:
•See animals and difficult terrain in reduced visibility and total
darkness
•See through smoke, dust, and light fog
•See camouflage and foliage in any lighting conditions
•See more—and see farther—than with low-light night vision
goggles
The Scout camera makes images from heat, not light, a feat
impossible for the naked eye or even image intensified (I
devices, which means you can see clearly even without any visible light
at all. People, animals, and objects all make their own heat and their
own contrast, and are clearly seen by the Scout in even the most
adverse conditions.
2
) night vision
Image with Scout CameraVisible Image
431-TS00-00-10, Revision 110 1
www.GlobalTestSupply.com
1—Introduction Scout Operator’s Manual
1–1 Scout Camera Features
•Rugged design—Built to withstand the demands of outdoor use.
It is fully submersible (IP67).
•240×180 or 320×240 microbolometer sensor for excellent
image quality and clarity
•Hot Shoe—Provides convenient power input and video output.
•Choose the 19 mm lens with 24° field of view or include a
removable 2× optical extender. Or, for longer-range viewing a 65
mm lens with 7° field of view is available.
•Two-sided Hand Strap—Accommodates both left-handed and
right-handed users.
•Software upgrades using an SD card.
•SD Card Slot—Allows for storing captured still images and video
(Pro models only) on the removable SD card.
•USB 2.0 Connection—Rapid transfer of files from the camera to
a PC.
• Four rechargeable AA NiMH batteries—Provides up to 5 hours of
camera operation on a single charge.
1
1. Available only with the TS24 Pro, TS32 Pro, or TS32r Pro
models.
2June 2011
www.GlobalTestSupply.com
Scout Operator’s Manual 1—Introduction
1–2 Detection Range
1
The illustration below shows the comparative range performance of
the Scout camera with different lens co nfig ur at io ns. T he da ta is b as ed
on detecting a man 1.8 meters tall (and one-half meter wide).
19 mm
Lens
19 mm
Lens with
×
2
Extender
65 mm
Lens
500 yd. (450 m)
863 yd. (790 m)
1586 yd. (1.45 km)
1. Actual range may vary depending on camera set-up,
environmental conditions, and user experience.
431-TS00-00-10, Revision 110 3
www.GlobalTestSupply.com
1—Introduction Scout Operator’s Manual
1–3 Cautions
Do not disassemble the camera encl osu re. Dis assembly can
cause permanent damage and will void the warranty.
Keep the compartment covers closed to avoid exposing the
cameras electronics to water or debris.
Do not point the camera directly at extremely high-intensity
radiation sources, such as the sun, lasers, arc welders, etc.
Only use the auxiliary power adapters provided with your
Scout camera. Connecting the camera to an improper power
source may damage the camera and void your warranty.
Be careful not to leave fingerprints on the camera’s infrared
optics.
Caution!
The camera window has an anti-reflective coating and should only
be cleaned with low pressure fresh water and a lens cloth.
Improper care of the camera window can cause damage to the
anti-reflective coating, degrade the camera’s performance, and
void the camera warranty.
4June 2011
www.GlobalTestSupply.com
2Getting Started
The Scout cameras shown below are available with the features,
options, and accessories described in this manual.
19 mm Lens Configuration
Focus Ring
TS32r with 65 mm Lens
431-TS00-00-10, Revision 110 5
www.GlobalTestSupply.com
2—Getting Started Scout Operator’s Manual
2–1 Ship ping Kits
Refer to the packing list enclosed with your camera shipment to
determine the actual contents of your camera package.
•TS24, TS32, and TS32r Cameras
In addition to the camera, Quick Start card, and Documentation/
Training CD or DVD; the following items are included in the camera
package:
SD Card
USB Cable
Rechargeable
AA Batteries
Video Output Cable
Neck Lanyard
Hot Shoe
AC Power Adaptor
6June 2011
www.GlobalTestSupply.com
Scout Operator’s Manual 2—Getting Started
r
•TS24 Pro, TS32 Pro, and TS32r Pro Cameras
In addition to the camera, Quick Start card, and Documentation/
Training CD or DVD; the following items are included in the camera
package:
Neck Lanyard
USB Cable
SD Card
Video Output Cable
Carrying Pouch
Hot Shoe
Rechargeable
AA Batteries
AC Power Adapto
431-TS00-00-10, Revision 110 7
www.GlobalTestSupply.com
2—Getting Started Scout Operator’s Manual

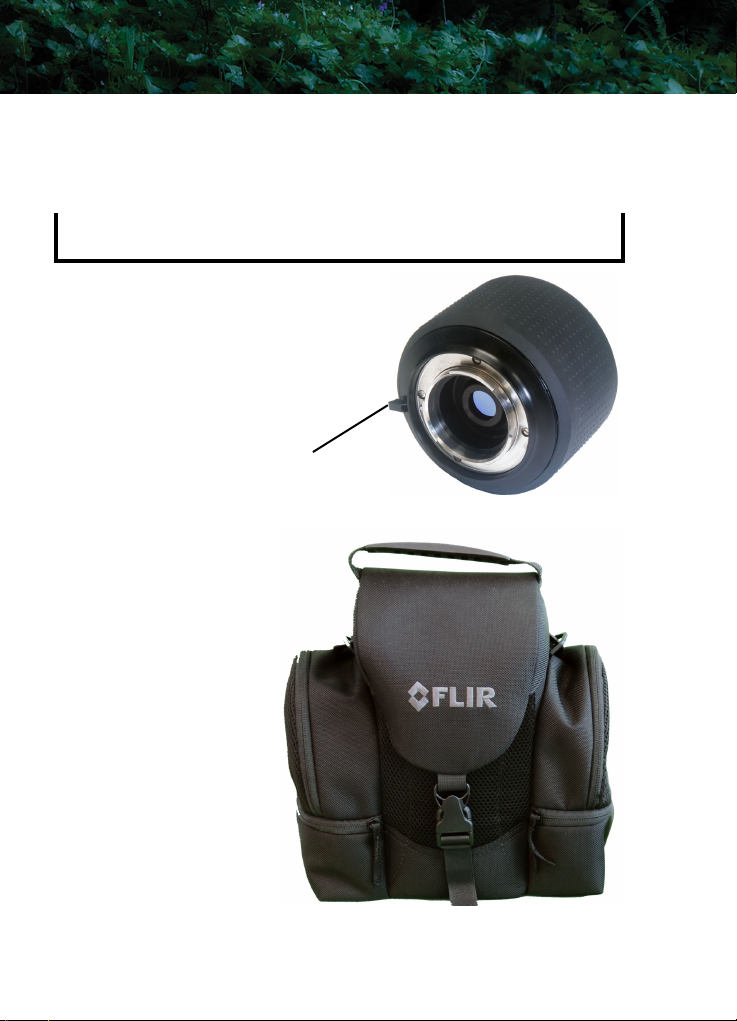

2–2 Options and Accessories
2× Op tical Exten d er for 19 mm lens configurations:
Note
The 2× Optical Extender is not waterproof and should not be used
in wet environments.
The attachable 2×
Optical Extender lens
doubles the range of
performance when
needed, without
sacrificing the
situational awareness
benefits of the wide field
of view lens.
Camera Case
Protection for your
camera and all
accessories (standard on
all Pro models).
Lens Release Lever
2× Optical Extender
8June 2011
www.GlobalTestSupply.com
3Operating Your Scout Camera

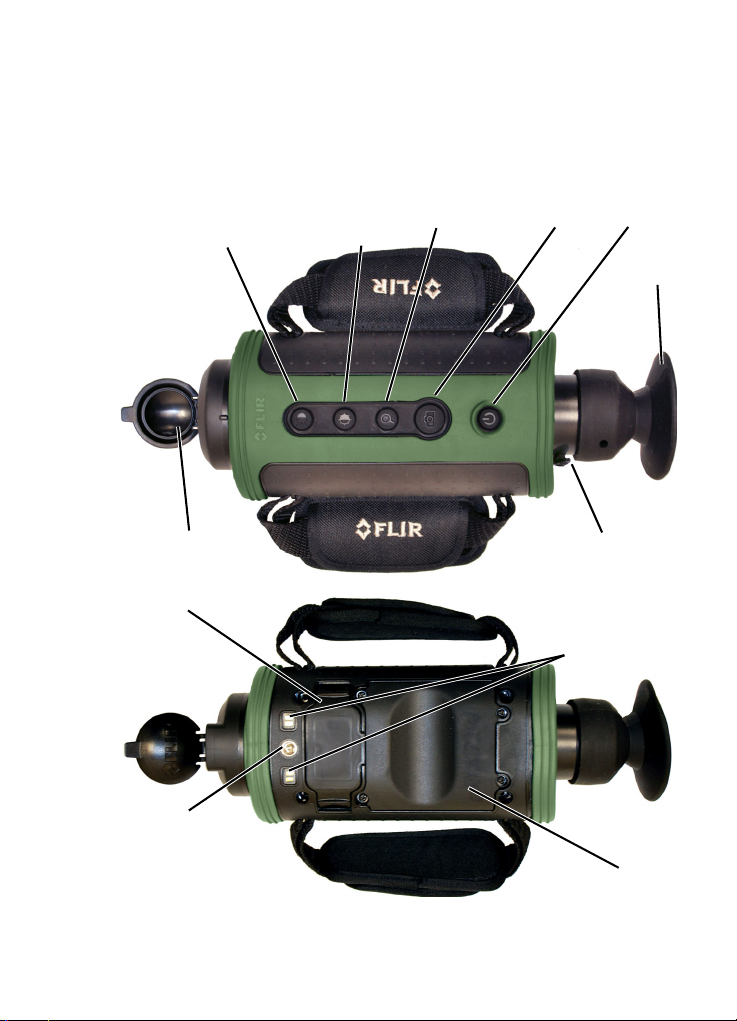

3–1 Camera Features and Controls
Lens cap
SD Card
door
Display
Brightness
White hot/
Black hot/
Instalert
Capture
Adjustable
diopter ±2
Hot Shoe
power contacts
Power2× zoom
Eyepiece
Hot Shoe/
Tripod mount
Battery
cover
431-TS00-00-10, Revision 110 9
www.GlobalTestSupply.com
3—Operating Your Scout Camera Scout Operator’s Manual

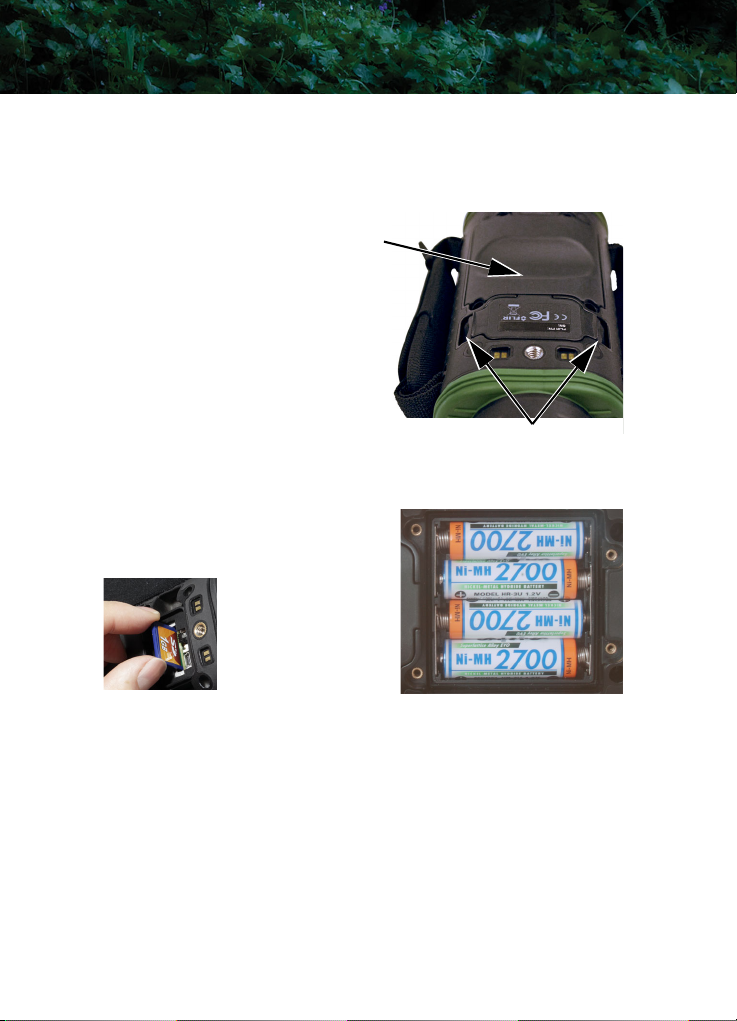

3–2 Installing the Batteries and SD Card
The batteries must be installed and charged before using your
camera. Also install your SD card at this time.
1. To aid in removal of the
battery cover, remove the
SD card door first. No tools
are needed.
2. Loosen the four captive
screws securing the battery
cover.
3. Remove the battery cover by
grasping the front edge, this
will be exposed when the SD
card door is removed.
4. Install the batteries as shown.
5. Install your SD card.
Battery
cover
Grasp SD card door edges and pull
–
–
+
+
+
+
–
–
–
–
+
+
6. Snap the SD card door back into
place, ensuring that the rubber lanyard retracts into the camera.
7. Re-install the battery cover—it only fits one way.
8. Tighten the four screws.
If you have installed rechargable batteries, they must be charged
before using the camera. Regular AA batteries will provide about one
and a half hours of camera use.
10 June 2011
www.GlobalTestSupply.com
+
+
–
–
Scout Operator’s Manual 3—Operating Your Scout Camera

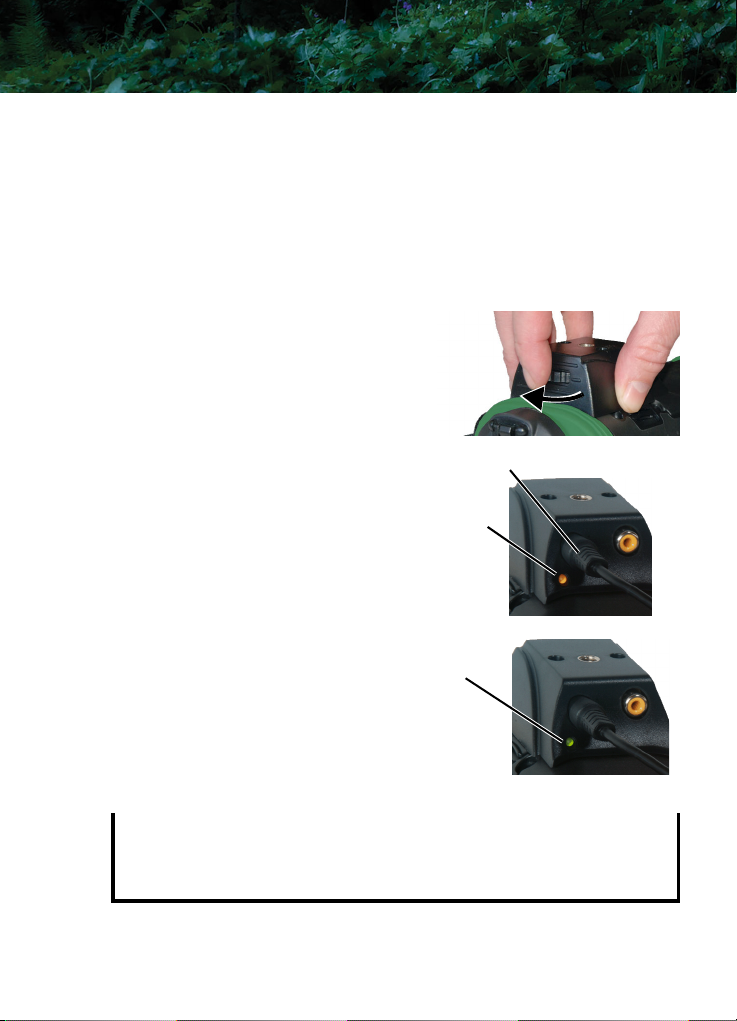

3–3 Cha rging the C amera
The batteries in the camera must be fully charged prior to use. If not
fully charged or if the recommended batteries are not installed, the
battery status indicator may not accurately reflect the remaining
battery life. Only use the auxiliary power adapter provided with your
Scout camera.
1. Connect the Hot Shoe to your camera.
2. Rotate the attachment wheel in
the clockwise direction until tight.
3. Plug the power adapter provided
with the camera into its power
source and also into the Hot Shoe.
4. Ensure that the plug is fully
Plug from power adapter
seated in the Hot Shoe.
When charging correctly, the
charging indicator will be lit
Charging
indicator
yellow and will blink green for one
second within about 35 seconds.
The charging indicator will
continue to blink at decreasing
intervals until the batteries are
fully charged.
Solid
green
When fully charged, the charging
indicator will be lit solid green.
The initial charge time is
approximately 4 hours.
Note
The charging indicator will be lit solid green when the Hot Shoe is
not connected to the camera or the recommended batteries are
not installed. Ensure the batteries are charging by verifying the
green blink described above.
431-TS00-00-10, Revision 110 11
www.GlobalTestSupply.com
3—Operating Your Scout Camera Scout Operator’s Manual
3–4 Scout Power Management
Your Scout camera is equipped with a power management system
that provides up to five hours of continuous operation and up to five
days of standby time between battery charges. To make the best use
of the camera and to assure it is always ready when you need it, it is
important to understand the basic power states of the camera.
The Scout camera is designed to operate much like your cell phone:
•It is rarely turned off unless you do not plan to use it for a few
days or more.
•When near a power source or when not in use, keep the charger
plugged into the camera.
•When the camera is turned on from the Off state, it takes about
90 seconds to become operational.
•In Standby, it is always ready to go. Press the Power button and it
is on in about two seconds.
•It will automatically put itself in Standby to conserve the battery.
A red state LED located next to the display indicates the current power
state and can only be seen when the shuttered eyepiece is opened (for
example, when the camera is held up to the eye) or when the eyepiece
is removed as shown in the photograph below.
State LEDDisplay screen
12 June 2011
www.GlobalTestSupply.com
Scout Operator’s Manual 3—Operating Your Scout Camera
Power States
•Three power states: Off, On, and Standby
•The initial power-on Bootup process between the Off state and
the On state takes about 90 seconds (fast flashing red state
LED). During the Bootup process, pressing the Power button
again will turn the camera off. After the camera finishes its
power-on Bootup process, it is in the On state (state LED is off).
After the camera is On, pressing the Power button will toggle the
camera between On and Standby (state LED is flashing slowly).
•When battery powered, if Auto-Standby is enabled (see “AutoStandby Operation” on page 22), the camera goes to Standby
after three minutes if no buttons are pushed. A warning is shown
in the display.
•From the Standby state, the camera comes back on within about
two seconds when the Power button is pushed.
•The Auto-Standby function is disabled if the camera is powered
with external power.
During most use scenarios you will change be twe en S tan dby and On.
When the camera will not be used for extended periods, you might
consider putting the camera into the OFF state.
Camera
State
Off The display and the state LED are off
Power-on Bootup—Color bars on the display and the state
On
Standby The display is off and the state LED is flashing slowly
431-TS00-00-10, Revision 110 13
LED is flashing quickly
There is a thermal image on the display and the state LED
is off
www.GlobalTestSupply.com
How do you know?
3—Operating Your Scout Camera Scout Operator’s Manual
3–5 Buttons and Controls
Power Button
Changing between the Off, On, and Standby power states is
controlled by the Power button. The table below describes
how the camera moves between states.
From
State
Off On Press the Power button for 1 second. (This will put the
On Standby Momentarily press the Power button
Standby On Momentarily press the Power button
On Off Press and hold the Power button for 8 seconds
Standby Off Press and hold the Power button for 8 seconds
To
State
Method
camera in power-on bootup for about 90 seconds
before going to On.)
To shut off the camera completely press and hold the Power button
for eight seconds.
After holding the Power button for three
seconds this message will be shown in
the display and the camera will enter the
Off state if the countdown finishes.
Release the Power button at any time during this countdown to
terminate Shutdown and resume normal operation.
ESD Recovery Sequence
In the unlikely event of a large Electrostatic Discharge (ESD) to the camera it is
possible for the camera system to lose video or become frozen. If this occurs,
the following recovery sequence should restore the video:
•Hold down the power button for fifteen seconds and then release.
•Wait for five to ten seconds.
•Press the power button again. The camera should begin its bootup sequence.
14 June 2011
www.GlobalTestSupply.com
Scout Operator’s Manual 3—Operating Your Scout Camera
Capture Button—Pro models only
Use this button to capture snapshots (in JPEG format) or
video clips (in AVI format). The files are stored on the
integrated SD card. AVI files are viewable via the FLIR Viewer Utility
included on the H-Series resource CD.
•Momentarily pressing the button captures a single snapshot.
•Pressing and holding the capture button for three seconds puts
the camera in video record state. The video record icon should be
displayed. The button may now be released and the camera will
continue to record until the capture button is pressed again. The
video file is then written to the SD card in AVI format.
Twenty-five seconds of video requires about one megabyte (MB) of
storage on the SD card. The image and video files must be transferred
to a computer for viewing.
Note
The images must be transferred to a computer via the USB cable,
or the SD card can be temporarily removed from the camera and
inserted in a card reader.
•If the camera is not a Pro model,
this message will be shown in the
display.
•If an SD card is not installed, this
message will be shown in the
display and no image will be stored.
•If the SD card is full, a warning will
be shown in the display and the
image will not be stored.
Note
The stored image will include the thermal image, time and date
information, and the FLIR logo. Other icons seen in the display are
not stored on the saved image.
431-TS00-00-10, Revision 110 15
www.GlobalTestSupply.com
3—Operating Your Scout Camera Scout Operator’s Manual
Still Frame Capture and Store—To capture
and store a single still image of what is
currently being shown in the display,
momentarily press the Capture button. The
thermal image will momentarily freeze and
the following icons will appear in the display:
The SD Card Memory Gauge indicates how much memory is left on
the SD card. The camera icon with the green lens indicates that a
single frame was successfully stored to the SD card. Still images are
stored in the JPEG file format at the captured pixel resolution. Still
images are approximately 90Kb in size.
Video Capture and Store—To capture and store a video sequence of
what is currently being shown in the display, press and hold the
Capture button for three seconds. Video capture will begin
immediately and continue until the Capture button is pressed again.
During the video store process, real-time
video will be shown and these icons will
appear in the display:
The lens on the camera icon will flash
red/green during recording.
Zoom Button—not available on TS24 models
Use this button to switch the camera between no zoom (full
resolution) and 2× zoom. The central part of the image is
magnified twice its normal size when 2× is selected.
Zoom Indicator—When zoom has been
selected the icon is continuously shown in the
display:
16 June 2011
www.GlobalTestSupply.com
Scout Operator’s Manual 3—Operating Your Scout Camera
White Hot/Black Hot/Instalert™ Button
Use this button to toggle between the two video and the four
Instalert modes. In the default White Hot mode, hotter
objects appear as white or light grey. In the Black Hot mode,
hotter objects appear as black or da rk g re y. I n th e In sta le rt™
modes the hottest objects in the scene are highlighted in red
to simplify detection of animals, people, and objects. There
are four pre-set levels of Instalert that you can select based
on the specific scene being viewed. All of the Instalert modes
are based on the white hot video mode.
While white hot is the most commonly used and visually intuitive
method of viewing thermal imagery; black hot can often enhance
contrast of certain objects or provide better visual perspective in
some conditions.
When switching between modes, the appropriate icon is displayed for
approximately 3 seconds.
Black hotWhite hot Instalert™ 1 – 4
431-TS00-00-10, Revision 110 17
www.GlobalTestSupply.com
3—Operating Your Scout Camera Scout Operator’s Manual
Display Brightness Button
Use this button to cycle through the five levels of display
brightness. Each press of the button advances to the next
level of brightness.
When the highest brightness level is reached, subsequent button
presses advance to the next lower brightness levels. When the lowest
brightness level is reached, subsequent button presses advance to
the next higher brightness levels. One of the following icons is
displayed for approximately 3 seconds after the button is pressed
indicating the current brightness level:
HighestLowest

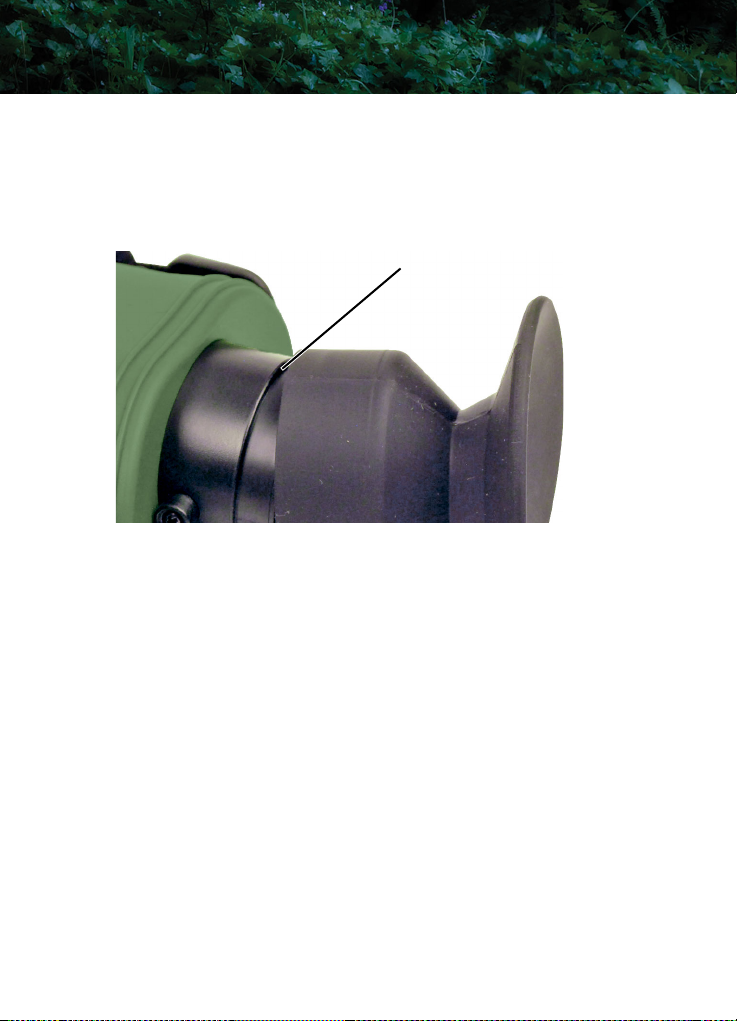

Diopter Controls
The diopter adjustment lever allows a ±2 diopter setting range. When
the diopter adjustment lever is pointing straight away from the
camera, it is in the neutral position.
Adjust the diopter setting for the sharpest image in the viewfinder.
18 June 2011
www.GlobalTestSupply.com
Scout Operator’s Manual 3—Operating Your Scout Camera
3–6 Batteries
Your Scout camera is equipped with a sophisticated power system
that accommodates a wide variety of AA battery types. This includes
rechargeable and non-rechargeable batteries.
The camera is optimized for operation with the 2700 mAh
rechargeable NiMh batteries that were supplied with your camera. It
is recommended that you use these batteries in all but emergency
situations.
Note
Replacement batteries are available online from FLIR Commercial
Systems, Inc.
Battery Status Indicator–While the camera
is On, a battery status indicator is always
shown in the corner of the display image. This
full charge
half charge
indicator provides an estimation of the
remaining battery charge.
no charge
charging
Note
If non-rechargable batteries are installed the battery indication
may not be accurate.
Using Non-Rechargeable Batteries – The Scout c ame ra a llo ws
Alkaline non-rechargeable batteries to be used. When nonrechargeable batteries are installed, connecting the Hot Shoe to a
power source will power the camera from the pow er s our ce and the
battery charging circuitry will be disabled.
Note
When using Alkaline batteries, operating battery life is reduced to
approximately 1.5 hours.
Low Battery Auto-Shutdown–When the batteries are almost fully
depleted the camera will automatically initiate a shutdown process.
431-TS00-00-10, Revision 110 19
www.GlobalTestSupply.com
3—Operating Your Scout Camera Scout Operator’s Manual
3–7 SD Card Door
The SD Card door is located on the
bottom of the camera in front of the
battery compartment. The SD card,
the USB connector, and the AutoStandby Enable switch are located
under the door. See “Auto-Standby
Operation” on page 22.
Auto-Standby Enable
switch
SD Card
SD Card
door
Lanyard
USB
Note
The Hot Shoe must be removed to access the SD Card door.
To open the SD Card door, grasp the
two edges with your thumb and finger
and pull straight up.
Caution!
Do not stretch or break the rubber
lanyard that keeps the door captive
to the camera when opened.
Grasp SD Card door
To close the SD Card door, slide the
edges and pull
lanyard strap back into the camera,
position the door in place, and then
firmly press in the middle of the door
until it is fully seated.
20 June 2011
www.GlobalTestSupply.com
Scout Operator’s Manual 3—Operating Your Scout Camera
SD Card Capacity and Type
The TS24 Pro and TS32 Pro model cameras support storing images
and video on standard 1-Gb and 2-Gb SD cards or up to 32-Gb on
SDHC cards.
If an SD card is inserted into a non-Pro model, the SD card will be
ignored unless the camera software detects a va lid upgrade file.
In order to store images and video on the SD card, non-Pro model
cameras must be upgraded to a Pro model camera: TS24 Pro,
TS32 Pro, or TS32r Pro.
Installing an SD Card
To install an SD card, insert the card into
the slot and press on the SD card until its
edge is nearly flush with the surface and
release.
To remove an SD card, use this same
motion.
Downloading Stored Files via USB
The TS24 Pro and TS32 Pro camera models also support
downloading stored images and video via the USB port.
With the camera on, plug the USB cable into the USB connector on
the camera and a USB port on your computer.
Allow up to two minutes for the USB connection to be recognized by
the computer’s operating system.
431-TS00-00-10, Revision 110 21
www.GlobalTestSupply.com
3—Operating Your Scout Camera Scout Operator’s Manual
3–8 Auto -Standby Op eration
Auto-Standby is a feature of the Scout cameras that helps to guard
against draining the batteries prematurely by inadvertently leaving the
camera on. Auto-Standby puts the camera into the Standby state if the
following three conditions are met:
•The camera is in the On state.
•The Auto-Standby switch (STBY) is set to ON.
•No buttons have been pressed for three minutes.
Once these conditions are met you will
see the following message in the display
and the camera will enter the Standby
state after the countdown is finished:
Press any button during this countdown to terminate Auto-Standby
and resume normal operation.
Note
Pressing any button during an Auto-Standby countdown will only
terminate the countdown and abort the Auto-Standby.
The normal function of the button will not occur.
Auto-Standby Switch
Some use scenarios involving
unattended operation of the camera may
require disabling Auto-Standby.
Select OFF to turn off Auto-Standby.
Select ON to turn on Auto-Standby.
If Auto-Standby is off, a reminder message will
appear in the display each time the camera enters
the On state.
22 June 2011
www.GlobalTestSupply.com
Scout Operator’s Manual 3—Operating Your Scout Camera
3–9 The Hot Shoe
Note
The Hot Shoe is not waterproof and should not be used in wet
environments.
The Hot Shoe provides the
connections to power the camera for
continuous operation or charging the
batteries; and for accessing the
analog video output. The Hot Shoe
attaches to the bottom of the camera
and is secured via the tripod mount.
The following steps are
recommended for quick and easy
attachment of the Hot Shoe.
1. With the camera positioned
bottom-side up, hold the Hot
Shoe in position.
Power
Video
2. Rotate the attachment wheel
in the clockwise direction until tight.
3. To remove the Hot Shoe, simply
rotate the attachment wheel in the
counter-clockwise direction until it is
free.
431-TS00-00-10, Revision 110 23
www.GlobalTestSupply.com
3—Operating Your Scout Camera Scout Operator’s Manual
3–10 Installing the Shuttered Eyepiece
The shuttered eyepiece keeps light from coming out of the viewfinder
display. Pressing your eye up against the eyepiece opens the shutter.
The shutter closes automatically.
The eyepiece fits into a groove around the display housing.
Groove for eyepiece
When pressing the eyepiece into position, ensure that the diopter
lever is free to move.
If the eyepiece is pushed too far onto t he dis pl ay h ou si n g i t w i ll in t er fer e
with the diopter lever.
When removing the eyepiece, grasp and pull on the bas e of the
eyepiece. Do not pull on the shuttered eye cup.
24 June 2011
www.GlobalTestSupply.com
Scout Operator’s Manual 3—Operating Your Scout Camera
3–11 Bayonet Lens Mounting System
All TS24 and TS32 camera models ar e equipped with a robust
bayonet mounting system to allow for field-interchangeable optics
options. As shipped, the camera comes with a lens-cover assembly
mounted on the bayonet mount.
Operation of the Lens-cover Assembly
The lens cover is a simple flip-to-open lens
cover that provides protection for the
camera lens when not in use. To open,
simply flip the lens cover down to the fully
open position (45° pointing toward the
ground as shown in the photograph at the
right).
To remove the lens-cover
assembly, rotate the outer ring
of the lens cover clockwise so
that the index mark on the top of
the lens cover aligns with the
index mark on the front body of
the camera (approximately
45°), and pull straight off.
Index marks
431-TS00-00-10, Revision 110 25
www.GlobalTestSupply.com
3—Operating Your Scout Camera Scout Operator’s Manual
3–12 2× Extender (19 mm only)
Note
The 2× Optical Extender is not waterproof and should not be used
in wet environments.
The 2× Optical Extender is compatible with all Scout camera models
and provides the user the ability to see farther and/or enhance the
resolution of objects in the field of view. The 2× Optical Extender is
mounted on the bayonet mount in front of the existing lens on the
camera.
To mount the 2× extender,
first remove the lens cover
assembly. Then, position the
2× extender so that the
release lever on the 2×
extender is in the 5 o’clock
position on the bayonet
mount. Firmly push the
extender onto the bayonet
mount, then rotate the lens
counter-clockwise so that the
release lever reaches the 3
o’clock position where it will hit a hard stop.
Note
The 2× extender is manually focused by rotating the outer rubbercoated ring.
Release Lever
To remove the 2× extender, press the release lever and rotate the
extender clockwise until the release lever is roughly at the 5 o’clock
position and pull straight off.
Caution!
Be sure to replace the lens cover assembly when the 2× Extender
is not in use to avoid moisture, dust, or other contaminants
reaching the inner lens surface of the 2× Extender.
26 June 2011
www.GlobalTestSupply.com
Scout Operator’s Manual 3—Operating Your Scout Camera
3–13 Installing Software Upgrades
Software upgrades may become available during the life of your Scout
camera. The upgrade process requires an SD card loaded with the
upgrade file. After receiving the upgrade file from FLIR, load it ont o
your SD card.
Caution!
During a software installation, the camera must remain powered
on. Turning off the camera, or losing power for any reason, may
damage the system files and require that the camera be returned
to the factory for repair.
Use the following procedure to install the upgrade:
1. Ensure that the camera battery is fully charged. (The software
installation will not start if the battery charge is less than 50%.)
2. With the camera off, install the SD card loaded with the upgrade
file. Refer to “SD Card Door” on page 20.
3. Install the Hot Shoe and connect to a power source. Refer to “The
Hot Shoe” on page 23.
4. Turn on the camera. During its Bootup process, the camera will
check the SD card for a valid upgrade file.
5. Watch the display. When a valid file is found, a message will be
shown for about ten seconds directing you to
Press and hold Capture button for 2 seconds to initiate
update. If you ignore the message, the camera will resume
normal operation and enter the On state.
6. While the message is displayed, press and hold the Capture
button for two seconds. The software upgrade takes about
four minutes. When finished you will see this prompt to restart
the camera. SW Upgraded: Please Shutdown & Restart now.
431-TS00-00-10, Revision 110 27
www.GlobalTestSupply.com
3—Operating Your Scout Camera Scout Operator’s Manual
3–1 4 Checking Software Version
To check the current installed version of software, place the camera in
standby, then turn on the camera while looking in the upper right
corner of the display for the software version number.
28 June 2011
www.GlobalTestSupply.com
4Technical Data
4–1 Scout Camera Model Features
The Scout cameras are available with either NTSC or PAL video output
format and two resolutions. The TS24 and TS24 Pro both have video
resolution of 240 × 180 pixels, while the,TS32, TS32r, TS32 Pro, and
TS32r Pro both have video resolution of 320 × 240 pixels.
Scout Model
TS24 Scout Handheld Thermal Camera with video resolution of 240 ×
TS24 Pro Scout Handheld Thermal Camera with video resolution of 240 ×
TS32/
TS32r
TS32 Pro/
TS32r Pro
Included with
all camera
models
Feature
Start up from
stand-by
Thermal Sensitivity,
Waveband
Detector Type VOx Microbolometer
Resolution 240
Image Processing FLIR Proprietary Digital Detail Enhancement
Focus, Zoom Fixed focus. 2
Video Output NTSC or PAL composite video; RCA jack; <9 Hz frame rate
180 pixels
180 pixels, 2× electronic zoom, still image capture, video capture,
and enabled USB2 port. Camera case is included with Pro camera
models.
Scout Handheld Thermal Camera with video resolution of 320 ×
240 pixels, 2× electronic zoom.
Scout Handheld Thermal Camera with video resolution of 320 ×
240 pixels, 2× electronic zoom, still image capture, video capture,
and enabled USB2 port. Camera case is included with Pro camera
models.
Hot Shoe Charging & Video Output Attachment, 4 Rechargeable AA
Batteries, AC Power Adapter/Charger, Neck Lanyard, Operator’s
Manual, Video Output Cable, and USB Cable
<1.5 seconds
<50 mK @ f/1.0,
7.5 - 13.5 m
× 180 pixels TS24 and TS24 Pro
× 240 pixels TS32 and TS32 Pro
320
× electronic zoom on applicable models only.
431-TS00-00-10, Revision 110 29
www.GlobalTestSupply.com
4—Technical Data Scout Operator’s Manual
4–2 Power
Battery Types 4 AA Batteries; NiMH or Alkaline
Battery Life Operating
(Stand-By)
Approximately 5 Hours on NiMH batteries at 25°C,
(120 hours on NiMH batteries)
4–3 Environmental
TS24 and
TS24 Pro
Operational Temp. 32°F – 122°F
Storage Temp. -4°F – 158°F
Ratings (not including the
Hot Shoe or the 2× Optical
Extender)
(0°C – 50°C)
(-20°C – 70°C)
IP-67, Submersible, 1 meter drop
TS32 and
TS32 Pro
-4°F – 140°F
(-20°C – 60°C)
-40°F – 158°F
(-40°C – 70°C)
TS32r and
TS32r Pro
-4°F – 140°F
(-20°C – 60°C)
-40°F – 158°F
(-40°C – 70°C)
4–4 Physical
TS24, TS24 Pro, TS32, and TS32 Pro
Weight (incl. lens) 1.59 lb. (721 g) with batteries; add 0.7 lb.
Size (L
× W × H) 9.36” × 3.33” × 2.62”
Weight (incl. lens) 2.17 lb. (985 g) with batteries
Size (L × W × H) 10.96” × 3.33” × 2.62”
(315 g) for 2
(238
× 84.5 × 66.5 mm)
TS32r, TS32r Pro
(278.5
× 84.5 × 68.4 mm)
× extender
30 June 2011
www.GlobalTestSupply.com
Scout Operator’s Manual 4—Technical Data
4–5 Lens Choice
TS24, TS24 Pro, TS32, and TS32 Pro
FOV
FOV (w/Optional 2
× Extender) 12° × 9°
24°
× 18°
TS32r, TS32r Pro
FOV 7° × 5°
4–6 Storage File Formats
TS32 Pro and
TS32r Pro
SD, SDHC card, JPEG;
320 × 240 resolution
SD, SDHC card,
320
× 240 AVI
Still Image Storage,
Format
Video Storage,
Format
TS24 Pro
SD, SDHC card, JPEG;
× 180 resolution
240
SD, SDHC card,
240 × 180 AVI
431-TS00-00-10, Revision 110 31
www.GlobalTestSupply.com
4—Technical Data Scout Operator’s Manual
4–7 Rang e Detection
TS24, TS24 Pro
Detect Man (1.8 m × 0.5 m)
Detect Vehicle (2.3 m
× 2.3 m)
TS32, and TS32 Pro/with 2× Optical Extender
Detect Man (1.8 m × 0.5 m)
Detect Vehicle (2.3 m
Detect Man (1.8 m × 0.5 m)
Detect Vehicle (2.3 m
× 2.3 m)
× 2.3 m)
350 yd. (320 m)
980 yd. (900 m)
500 yd. (450 m)/863 yd. (790 m)
1400 yd. (1.2 km)/1.3 mi. (2.15 km)
TS32r, TS32r Pro
1586 yd. (1.45 km)
4265 yd. (3.9 km)
1
1. Actual range may vary depending on camera set-up,
environmental conditions, and user experience.
32 June 2011
www.GlobalTestSupply.com
www.GlobalTestSupply.com
Santa Barbara Portland
FLIR Commercial Systems, Inc.
World Headquarters
FLIR Systems, Inc.
70 Castilian Dr.
Goleta, CA 93117
USA
PH: +1.888.747.FLIR
(+1.888.747.3547)
Europe
FLIR Commercial Systems B.V.
Charles Petitweg 21
4847 NW Teteringen - Breda
The Netherlands
PH: + 31 (0) 765 79 41 94
FX: + 31 (0) 765 79 41 99
flir@flir.com
FLIR Corporate Headquarters
FLIR Systems, Inc.
27700A SW Parkway Ave.
Wilsonville, OR 97070
USA
www.GlobalTestSupply.com
Loading...
