FLIR Systems CM83 User Manual

Download
User’s manual
Flir CM83
600 A power clamp
User’s manual
Flir CM83
#T559825; r.8008/8011; en-US
Table of contents
1 Disclaimers. . ... ... . .. . .. . .. . ... ... . .. . .. . ... ... . .. . .. . ... ... ... . .. . .. . .. 1
2 Safety information . ... ... ... . .. . .. . ... ... . .. . .. . ... ... ... . .. . .. . ... ... . . 2
3 Introduction . . ... ... . .. . .. . ... ... ... . .. . .. . ... ... . .. . .. . ... ... ... . .. . .. . . 6
4 Description . .. . ... ... . .. . .. . ... ... . .. . .. . ... ... ... . .. . .. . ... ... . .. . .. . ... 7
4.4 Display icons and indicators .. . ... ... . .. . .. . ... ... ... . .. . .. . .10
5 Operation ... . .. . .. . ... ... . .. . .. . ... ... . .. . .. . ... ... ... . .. . .. . ... ... . .. . .12
5.1 Powering the meter ... ... . .. . .. . ... ... . .. . .. . ... ... ... . .. . .. . .12
5.2 Auto/Manual select mode ... . .. . ... ... ... . .. . .. . ... ... . .. . .. .12
5.3 Auto/Manual range mode . . ... ... ... . .. . .. . ... ... . .. . .. . ... ..13
5.4 Silent mode . .. . ... ... . .. . .. . ... ... . .. . .. . ... ... ... . .. . .. . ... ..13
5.5 Voltage and current measurements .. . ... ... ... . .. . .. . ... ... .13
5.6 Power measurements . ... ... . .. . .. . ... ... . .. . .. . ... ... ... . .. .17
5.7 Resistance measurements . ... ... . .. . .. . ... ... ... . .. . .. . ... ..22
5.8 Capacitance measurements . . ... ... ... . .. . .. . ... ... . .. . .. . ..22
5.9 Continuity test. . ... ... . .. . .. . ... ... ... . .. . .. . ... ... . .. . .. . ... ..23
5.10 Diode test ... . .. . .. . ... ... . .. . .. . ... ... ... . .. . .. . ... ... ... . .. . .23
5.11 Streaming measurement data using Bluetooth . ... ... . .. . .. .24
6 Maintenance. .. . .. . ... ... . .. . .. . ... ... . .. . .. . ... ... ... . .. . .. . ... ... . .. . .25
6.1 Cleaning and storage.. ... . .. . .. . ... ... . .. . .. . ... ... ... . .. . .. .25
6.2 Battery replacement ... ... . .. . .. . ... ... . .. . .. . ... ... ... . .. . .. .25
7 Technical specifications . ... . .. . .. . ... ... ... . .. . .. . ... ... . .. . .. . ... ...26
7.1 Model specifications .. . ... ... . .. . .. . ... ... . .. . .. . ... ... ... . .. .26
7.2 System specifications . . ... ... ... . .. . .. . ... ... . .. . .. . ... ... . .. 29
7.3 Environmental specifications ... . .. . .. . ... ... ... . .. . .. . ... ... .29
8 Flir Global Limited Lifetime Warranty . .. . .. . ... ... ... . .. . .. . ... ... . .30
#T559825; r.8008/8011; en-US v

1 Disclaimers

1.1 Copyright

© 2013, Flir Systems, Inc. All rights reservedworldwide. No parts of the software including source codemay be re­produced, transmitted, transcribed or translated into any language or computer language in any form orby any means, electronic, magnetic, optical, manualor otherwise, without the prior written permission of Flir Systems.
The documentation must not, in whole or part, becopied, photocopied, reproduced, translated or transmitted to any electronic medium or machine readable form withoutprior consent, in writing, from Flir Systems.
Names and marks appearing on the products herein are either registered trademarks or trademarks of Flir Sys­tems and/or its subsidiaries. All other trademarks, trade names or company names referenced herein are usedfor identification only and are the property oftheir respective owners.

1.2 Quality assurance

The Quality Management System under which these products are developed and manufactured hasbeen certi­fied in accordance with the ISO 9001 standard.
Flir Systems is committed to a policyof continuous devel­opment; therefore we reserve the right to make changes and improvements on any ofthe productswithout prior notice.

1.3 Documentation updates

Our manuals are updated several times per year, and we also issue product-critical notifications of changes on a regular basis.
Toaccess thelatest manualsand notifications, go to the Download tab at:
http://support.flir.com
It only takes a few minutes toregister online. In the down­load area you will also findthe latestreleases of manuals for our other products, aswell as manuals for our historical and obsolete products.

1.4 Disposal of electronic waste

As with most electronic products, this equipment mustbe disposed of in an environmentally friendly way, and in ac­cordance with existing regulations for electronic waste.
Please contact your Flir Systems representativefor more details.
#T559825; r.8008/8011; en-US 1

2 Safety information

Note
Before operating the device, you must read, understand, and follow all in­structions, dangers, warnings, cautions, and notes.
Note
Flir Systems reserves the right to discontinue models, parts or accessories, and other items, or to change specifications at any time without prior notice.
Note
Remove the batteries if the device is not used for an extended period of time.
WARNING
Do not operate the device if you do not have the correct knowledge. Formal qualifications and/or national legislation for the electrical inspections can ap­ply. Incorrect operation of the device can cause damage, shock, injury or death to persons.
WARNING
Do not start the measuring procedure before you have set the function switch to the correct position. This can cause damage to the instrument and can cause injury to persons.
WARNING
Do not change to current or resistance when you measure the voltage. This can cause damage to the instrument and can cause injury to persons.
#T559825; r.8008/8011; en-US 2
2 Safety information
WARNING
Do not measure the current on a circuit when the voltage increases to more than 600 V. This can cause damage to the instrument and can cause injury to persons.
WARNING
You must disconnect the test leads from the circuit that you did a test on be­fore you change the range. If you do not do this, damage to the instrument and injury to persons can occur.
WARNING
Do not look directly into the laser beam. The laser beam can cause eye irritation.
WARNING
Do not use the laser pointer near explosive gases or in other possible explo- sive areas. Injury to persons can occur.
WARNING
Do not replace the batteries or the fuses before you remove the test leads. This can cause damage to the instrument and can cause injury to persons.
WARNING
Do not use the device if the test leads and/or the device show signs of dam­age. Injury to persons can occur.
#T559825; r.8008/8011; en-US 3
2 Safety information
WARNING
Be careful when you do the measurements if the voltages are more than 25 VAC rms or 35 VDC. There is a risk of shock from these voltages. Injury to per­sons can occur.
WARNING
Do not do diode, resistance or continuity tests before you have removed the power from the capacitors and from a device during a test. Injury to persons can occur.
WARNING
Do not use the device as a tool to identify live terminals. You must use the cor­rect tools. Injury to persons can occur if you do not use the correct tools.
WARNING
Make sure that children cannot touch the device. The device contains danger­ous objects and small parts that children can swallow. If a child swallows an object or a part, speak with a physician immediately. Injury to persons can occur.
WARNING
Do not let children play with the batteries and/or the packing material. These can be dangerous for children if they use them as toys.
WARNING
Do not touch expired or damaged batteries without gloves. Injury to persons can occur.
#T559825; r.8008/8011; en-US 4
2 Safety information
WARNING
Do not cause a short-circuit of the batteries. This can cause damage to the in­strument and can cause injury to persons.
WARNING
Do not put the batteries into a fire. Injury to persons can occur.
CAUTION
Do not use the device for a procedure that it is not made for. This can cause damage to the protection.
This symbol, adjacent to another symbol or terminal, indicates that the user must refer to the manual for further information.
This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present.
Double insulation.
#T559825; r.8008/8011; en-US 5

3 Introduction

Thank you for choosing a Flir CM83 clamp meter.
This device is shipped fully tested and calibrated and, with proper use, will pro­vide years of reliable service.

3.1 Key features

• 10 000-count digital display.
• Active backlit, large-scale display.
• Analog bar graph.
• True RMS reading in AC and AC+DC mode.
• Torch lightening when clamping.
• Auto AC/DC 1000 A capability and selection.
• Auto AC/DC 1000 V capability and selection.
• Auto resistance/continuity/diode selection.
• Power and power factor measurement.
• Total harmonic distortion and 1 to 25 harmonics.
• Phase rotation Indication.
• 100 kΩ resistance capability.
• VoltSense (none-contact voltage).
• Frequency counter.
• Capacitance capability.
• Temperature function.
• Smart data hold.
• Peak hold.
• In-rush current.
• DCA auto-zeroing key.
• Minimum/maximum hold.
• Low-pass filter.
• Auto power off.
• Up to 42 mm diameter (1000 MCM) conductor.
• Bus bar size 62 mm × 12 mm (2.4″ × 0.5″).
• 1.2 m (4′) drop-proof.
• Convenient battery cover.
• CAT. IV 600 V /CAT. III 1000 V standard.
#T559825; r.8008/8011; en-US 6

4 Description

4.1 Meter parts

Figure 4.1 Front view
1. Clamp jaw.
2. Jaw opening trigger.
3. Function buttons, see section 4.3 Function buttons, page 9.
4. Navigation buttons.
5. Work light.
6. Function switch, see section 4.2 Function switch, page 8.
7. LCD display.
8. Probe/thermocouple terminals.
#T559825; r.8008/8011; en-US 7
4 Description
Figure 4.2 Rear view
1. Battery compartment.

4.2 Function switch

The meter can measure capacitance through the probe inputs.
The meter can measure resistance, continuity, or diode polarity through the probe inputs. The type of measurement is selected
by the
The meter can measure power through the probe inputs and the clamp jaws.
The meter can measure current through the clamp jaws.
button.
#T559825; r.8008/8011; en-US 8
4 Description
The meter can measure voltage through the probe inputs.
The meter is in full power-saving mode.

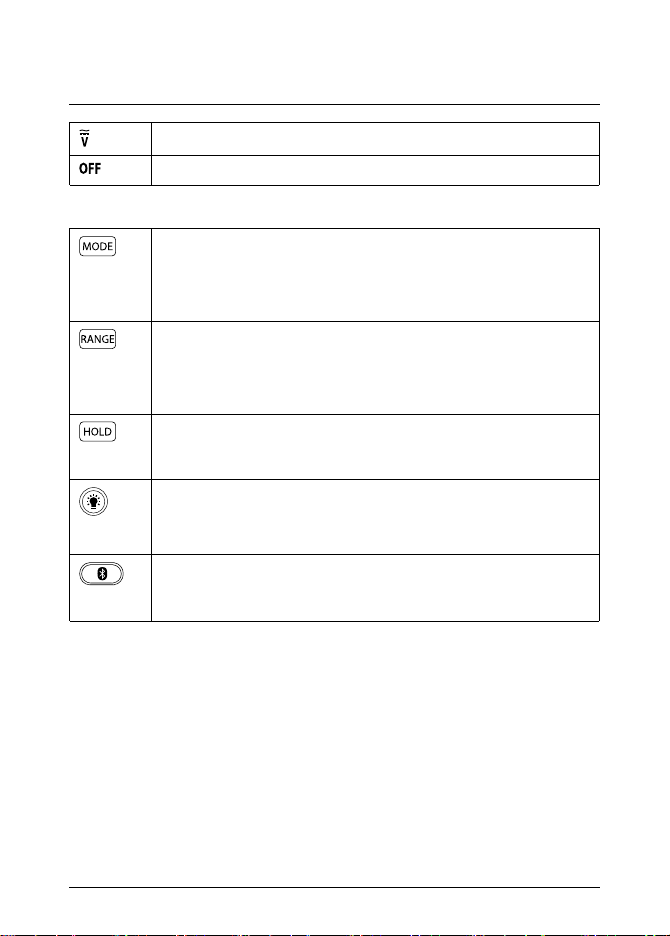

4.3 Function buttons

• Use the button to select Auto select or Manual select mode,
see section 5.2 Auto/Manual select mode, page 12.
• In Manual select mode, press the button to select the operat­ing mode.
• Use the button to select Auto range or Manual range mode, see section 5.3 Auto/Manual range mode, page 13.
• In Manual range mode, press the button to change the range (scale).
Press the button to toggle between Normal and Hold mode. In Hold mode, the display freezes the last reading and continues to display this value.
• Press the button to enable/disable the display backlight.
• Press and hold the button for 2 seconds to enable/disable the work light.
Press the button to enable/disable MeterLink (Bluetooth) commu­nication, see section 5.11 Streaming measurement data using Bluetooth, page 24.
#T559825; r.8008/8011; en-US 9
4 Description

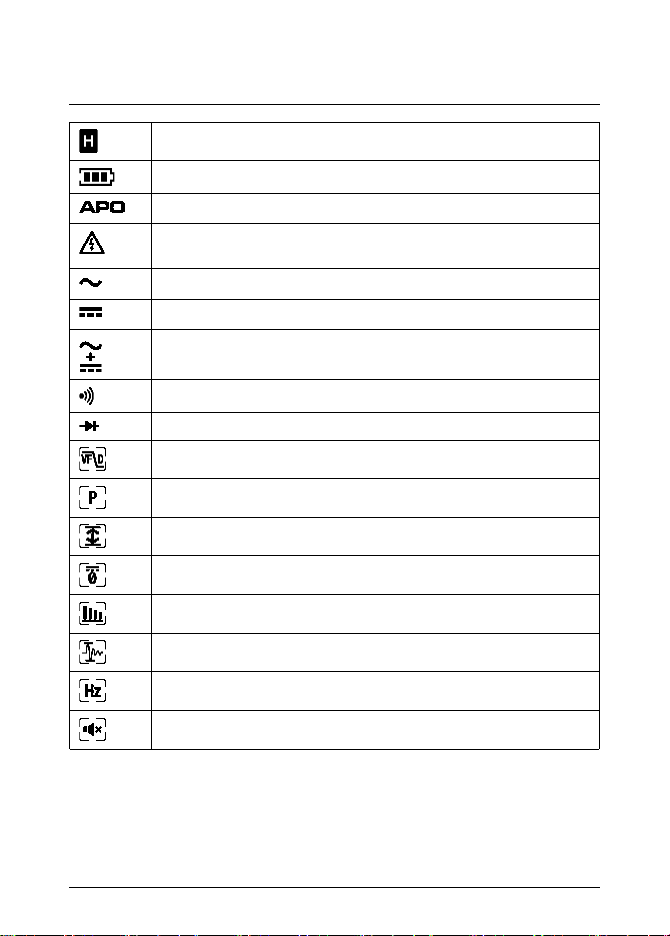

4.4 Display icons and indicators

Figure 4.3 Display
Indicates that MeterLink (Bluetooth) communication is active, see section 5.2 Auto/Manual select mode, page 12.
Indicates that the meter is in Auto select mode.
Indicates that the meter is displaying maximum reading values.
Indicates that the meter is displaying minimum reading values.
Indicates that the meter is displaying the average reading.
Indicates that the meter is displaying peak maximum values.
Indicates that the meter is displaying peak minimum values.
Indicates that the meter is in Auto range mode.
Indicates that the meter is in Power factor mode.
Indicates that the meter displays the total harmonic distortion.
Indicates that the meter is in Phase rotation mode.
#T559825; r.8008/8011; en-US 10
4 Description
Indicates that the meter is in Hold mode.
Indicates the battery voltage status.
Indicates that the auto power off function is enabled.
Indicates that the measured voltage is greater than 30 V DC or AC RMS.
Indicates that the meter is measuring AC current or voltage.
Indicates that the meter is measuring DC current or voltage.
Indicates that the meter is measuring AC+DC current or voltage.
Indicates that the continuity function is active.
Indicates that the diode test function is active.
LPF mode icon.
Peak mode icon.
Min/Max/Avg mode icon.
DC Zero mode icon.
Harmonic Distortion icon.
In-rush current mode icon.
Frequency mode icon.
Silent mode icon.
4.4.1 Out-of-range warning
If the input is out-of-range, OL is displayed.
#T559825; r.8008/8011; en-US 11

5 Operation

Note
Before operating the device, you must read, understand, and follow all in­structions, dangers, warnings, cautions, and notes.
Note
When the meter is not in use, the function switch should be set to the
position.
Note
When connecting the probe leads to the device under test, connect the nega­tive lead before connecting the positive lead. When removing the probe leads, remove the positive lead before removing the negative lead.

5.1 Powering the meter

1. Set the function switch to any position to switch on the meter.
2. If the battery indicator
ter does not power on, replace the battery. See section 6.2 Battery replace- ment, page 25.
5.1.1 Auto power off
The meter enters sleep mode after 30 minutes of inactivity. The meter beeps three times 15 seconds before powering off. Press any button or turn the function switch to prevent the meter from powering off. The auto power off time-out is then reset.
shows that the battery voltage is low or if the me-

5.2 Auto/Manual select mode

In Auto select mode, the meter attempts to automatically select the proper oper­ating mode (e.g., AC, DC, or AC+DC measurement) based on the input signal. In Manual select mode, the desired operating mode is selected manually.
Auto select mode is the default mode of operation. When a new function is se-
lected with the function switch, the starting mode is Auto select and the cator is displayed.
#T559825; r.8008/8011; en-US 12
indi-
5 Operation
• To enter Manual select mode, press the
operating mode, press the
button repeatedly.
• To enter Auto select mode, press and hold the
button. To manually select the
button until the indi-
cator is displayed.

5.3 Auto/Manual range mode

In Auto range mode, the meter automatically selects the most appropriate meas­urement scale. In Manual range mode, the desired range (scale) is set manually.
• To enter Manual range mode, press the
press the
button repeatedly until the desired range is displayed.
• To enter Auto range mode, press and hold the
button. To change the range,
button until the indi-
cator is displayed.

5.4 Silent mode

In Silent mode, the alert beeper is disabled. Silent mode does not affect the con­tinuity beeper.
1. Use the navigation buttons to select the Silent mode icon
, see section
5.5.3.1 Selecting the mode, page 15.

5.5 Voltage and current measurements

5.5.1 Basic voltage measurements
1. Set the function switch to the
position.
2. Insert the black probe lead into the negative COM terminal and the red probe lead into the positive V terminal.
3. Connect the probe leads in parallel to the part under test.
4. Read the voltage value on the display.
#T559825; r.8008/8011; en-US 13
5 Operation
5.5.2 Basic current measurements
WARNING
Do not measure the current on a circuit when the voltage increases to more than 600 V. This can cause damage to the instrument and can cause injury to persons.
Note
If the measured voltage is greater than 30 V DC or AC RMS, the
indicator
is displayed.
When measuring current using the clamp jaws, only one conductor should be en­closed by the jaws—refer to Figure 5.1.
Figure 5.1 Correct and incorrect setup
1. Ensure that the probe/thermocouple leads are disconnected from the meter.
2. Set the function switch to the
position.
3. Press the trigger to open the clamp jaws. Fully enclose one conductor—refer to Figure 5.1. For optimum results, center the conductor in the jaws.
4. Read the current value on the display.
#T559825; r.8008/8011; en-US 14
5 Operation
5.5.3 Extended functionality
In addition to the basic voltage and current measurements, the meter can be set to different modes for extended functionality.
5.5.3.1 Selecting the mode
The mode icons applicable for the selected measurement type are displayed in the lower part of the display. When a mode is enabled, the icon is framed.
Figure 5.2 Mode icons (AC voltage measurements): Peak mode and Silent mode are enabled
The navigation buttons are used to select a mode icon and to enable/disable a mode:
• Use the
and navigation buttons to navigate to a mode icon. The cur-
rently selected icon will flash.
• Press the
button to enable/disable the selected (flashing) mode.
5.5.3.2 Peak mode
In Peak mode, the meter captures and displays the positive and negative peak values, and updates only when a higher/lower value is registered. Peak mode is available when measuring AC current or voltage in Manual select mode.
1. Use the navigation buttons to select
2. Press the
button to toggle between the display of Peak Max and Peak
and enable Peak mode.
Min.
• In Peak Max mode, the
• In Peak Min mode, the
3. Press and hold the
#T559825; r.8008/8011; en-US 15
indicator is displayed.
indicator is displayed.
button to disable Peak mode.
5 Operation
5.5.3.3 In-rush current mode
In In-rush current mode, the meter displays the highest current reading in the first 100 ms after the trigger point. In-rush current mode is available when measuring AC current in Manual select mode.
1. Use the navigation buttons to select
and enable In-rush current mode.
Note
If the in-rush current under testing may be more than 100 A AC, manually set the range to 600 A/1000 A before activating the in-rush current, see section
5.3 Auto/Manual range mode, page 13.
5.5.3.4 DC Zero mode
The DC zero feature removes offset values and improves the accuracy for DC current measurements. DC Zero mode is available when measuring DC or AC +DC current in Manual select mode.
1. Ensure that there is no conductor in the clamp jaws.
2. Use the navigation buttons to select
and enable DC Zero mode.
5.5.3.5 Frequency mode
In Frequency mode, the meter measures and displays the frequency. Frequency mode is available when measuring AC current or voltage in Manual select mode.
1. Use the navigation buttons to select
and enable Frequency mode.
5.5.3.6 Min/Max/Avg mode
In Min/Max/Avg mode, the meter captures and displays the minimum or maxi­mum values and updates only when a higher/lower value is registered. The meter can also calculate the average of the minimum and maximum value. Min/Max/ Avg mode is available for all measurement types.
1. Use the navigation buttons to select
2. Press the
button repeatedly to cycle through the minimum, maximum,
and average reading displays. The corresponding icons are displayed:
and enable Min/Max/Avg mode.
,
, or .
#T559825; r.8008/8011; en-US 16
5 Operation
3. Press and hold the
button to disable Min/Max/Avg mode.
5.5.3.7 Harmonic Distortion mode
In Harmonic Distortion mode, the meter displays the distortion percentage value for the first 25 harmonics as well as the total harmonic distortion. Harmonic Dis­tortion mode is available when measuring AC current or voltage in Manual select mode.
The harmonic distortion is expressed as H
= (RMS of an individual harmonic n
n
)/(RMS of the fundamentals) × 100%.
1. Use the navigation buttons to select
and enable Harmonic Distortion
mode.
2. While in Harmonic Distortion mode, use the
and navigation buttons
to navigate through the individual and total harmonic data.
3. When the total harmonic distortion is displayed, the
indicator appears in
the upper part of the display.
4. Press and hold the
button to disable Harmonic Distortion mode.
5.5.3.8 LPF mode
In LPF mode, high-frequency noise is eliminated from the voltage measurement by a low-pass filter (LPF). LPF mode is intended for measurements on variable­frequency drives (VFDs). LPF mode is available when measuring AC current or voltage in Manual select mode.
1. Use the navigation buttons to select
and enable LPF mode.

5.6 Power measurements

5.6.1 Single-phase power measurements
1. Set the function switch to the
position.
2. Insert the black probe lead into the negative COM terminal and the red probe lead into the positive W terminal.
#T559825; r.8008/8011; en-US 17
5 Operation
3. Press the trigger to open the clamp jaws. Fully enclose one conductor—refer to Figure 5.1. For optimum results, center the conductor in the jaws.
Note
The + symbol on the jaw should be directed toward the power source.
4. Connect the probe leads in parallel to the part under test.
5. Read the active power value on the display.
• If the value is displayed without a sign, the power is flowing from the
power source to the load.
• If the value is displayed with a minus sign (–), the power is flowing from
the power load to the source.
6. To measure and display the power factor, press the
until the
indicator is displayed.
button repeatedly
7. Read the power factor value on the display.
• If the value is displayed without a sign, the phase of the current signal is
lagging behind the voltage signal (inductive load).
• If the value is displayed with a minus sign (–), the phase of the current sig-
nal is leading the voltage signal (capacitive load).
8. To return to active power measurements, press the
until neither the
nor the indicator is displayed.
button repeatedly
If an overload occurs, the following is displayed:
• OL.V: Voltage overload.
• OL.A: Current overload.
• OL: Both voltage and current overload.
• OL.W: Active power overload.
5.6.2 Three-phase power measurements
5.6.2.1 Three-phase three-wire balanced/unbalanced
The power of a three-phase three-wire wye (star) configuration is measured in two steps, in accordance with Figure 5.3. The total power is the sum of the two measurements: W = W
#T559825; r.8008/8011; en-US 18
+ W2.
1
5 Operation

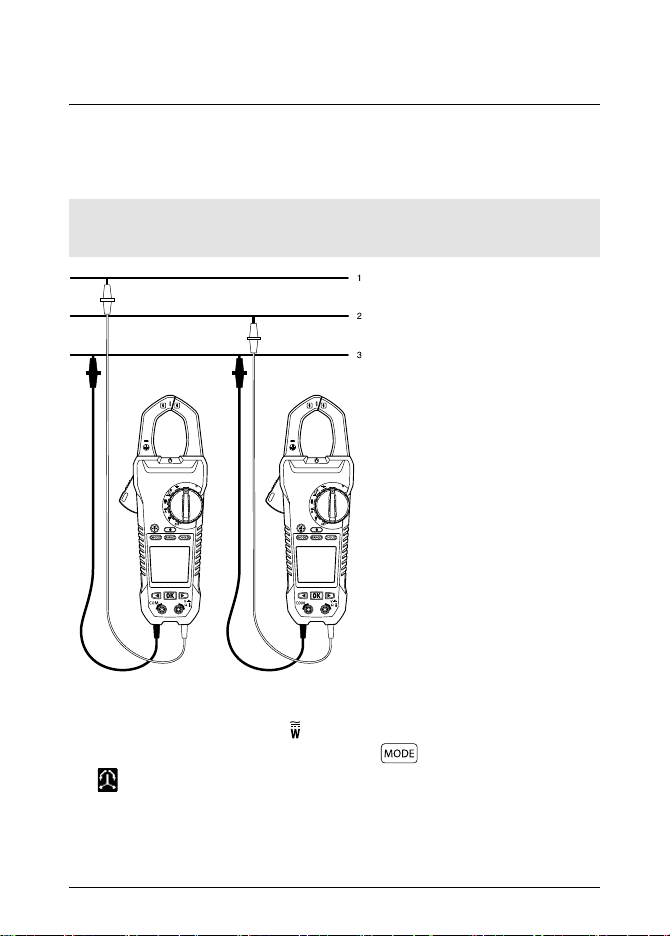

Figure 5.3 Three-phase three-wire measurement
1. Set the function switch to the
2. Ensure that the meter is set to active power measurement. If the
position.
or the
indicator is displayed, press the button repeatedly until none of
these indicators are displayed.
3. Take two measurements of the active power, in accordance with Figure 5.3.
5.6.2.2 Three-phase four-wire balanced/unbalanced
The power of a three-phase four-wire configuration is measured in three steps, accordance with Figure 5.4. The total power is the sum of the three measure­ments: W = W
#T559825; r.8008/8011; en-US 19
+ W2+ W3.
1
5 Operation

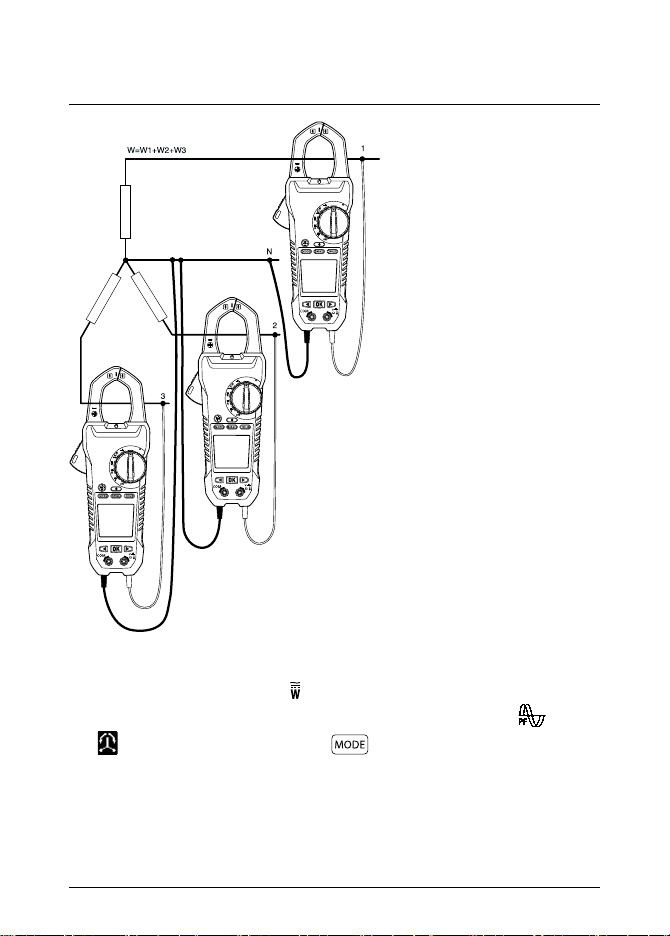

Figure 5.4 Three-phase four-wire measurement
1. Set the function switch to the
2. Ensure that the meter is set to active power measurement. If the
position.
or the
indicator is displayed, press the button repeatedly until none of
these indicators are displayed.
3. Take three measurements of the active power, in accordance with Figure
5.4.
#T559825; r.8008/8011; en-US 20
5 Operation
5.6.3 Phase rotation
With the meter set to Phase rotation mode, it is possible to determine the phase rotation for a three-wire system.
Note
The system frequency must be stable.
Figure 5.5 Phase rotation
1. Set the function switch to the
2. Enter Phase rotation mode by pressing the
position.
button repeatedly until the
indicator is displayed.
3. Connect the red test lead to the presumed phase line 1 and the black test lead to the presumed phase line 3.
#T559825; r.8008/8011; en-US 21
5 Operation
4. One of the following results is displayed:
• OLU flashes if the voltage is >1000 V.
• LoU flashes if the voltage is <30 V.
• outF flashes if the frequency is >65 Hz or <45 Hz.
• If normal, L1 flashes for about 3 seconds. Then L2 is displayed.
5. Move the red test lead to the presumed phase line 2.
6. One of the following results is displayed:
• 123 indicates clockwise or forward rotation, which means that the pre-
sumed phase line 1 is ahead of the presumed phase line 2.
• 321 indicates counterclockwise or reversed rotation, which means that
the presumed phase line 2 is ahead of the presumed phase line 1.
• - - - means that the meter is unable to determine the results.

5.7 Resistance measurements

WARNING
Do not do diode, resistance or continuity tests before you have removed the power from the capacitors and from a device during a test. Injury to persons can occur.
1. Set the function switch to the
2. Ensure that the meter is set to resistance measurement. If the
position.
or the
indicator is displayed, press the button repeatedly until none of these indicators are displayed.
3. Insert the black probe lead into the negative COM terminal and the red probe lead into the positive Ω terminal.
4. Touch the tips of the probe across the circuit or component under test.
5. Read the resistance value on the display.

5.8 Capacitance measurements

WARNING
Do not do diode, resistance or continuity tests before you have removed the power from the capacitors and from a device during a test. Injury to persons can occur.
#T559825; r.8008/8011; en-US 22
5 Operation
1. Set the function switch to the position.
2. Insert the black probe lead into the negative COM terminal and the red probe lead into the positive
terminal.
3. Touch the tips of the probe across the part under test.
4. Read the capacitance value on the display.
Note
For very large capacitance values, it may take several minutes for the measurement to settle and the final reading to stabilize.

5.9 Continuity test

WARNING
Do not do diode, resistance or continuity tests before you have removed the power from the capacitors and from a device during a test. Injury to persons can occur.
1. Set the function switch to the
position.
2. Insert the black probe lead into the negative COM terminal and the red probe lead into the positive Ω terminal.
3. Use the
button to select continuity measurement. The indicator will
be displayed.
4. Touch the tips of the probe across the circuit or component under test.
5. If the resistance is less than 30 Ω, the meter will beep.

5.10 Diode test

WARNING
Do not do diode, resistance or continuity tests before you have removed the power from the capacitors and from a device during a test. Injury to persons can occur.
1. Set the function switch to the
position.
2. Insert the black probe lead into the negative COM terminal and the red probe lead into the positive Ω terminal.
#T559825; r.8008/8011; en-US 23
5 Operation
3. Use the
button to select the diode test function. The indicator will
be displayed.
4. Touch the tips of the probe across the diode or semiconductor junction under test. Make a note of the value on the display.
5. Reverse the polarity of the probe, by interchanging the probe test locations.
6. Touch the tips of the probe across the diode or semiconductor junction under test. Make a note of the new value on the display.
7. The diode or semiconductor junction can be evaluated as follows:
• If one of the readings displays a value (typically 0.400 V or 0.900 V) and
the other reading displays OL, the component is good.
• If both readings display OL, the component is open.
• If both readings are very small or 0, the component is shorted.

5.11 Streaming measurement data using Bluetooth

5.11.1 General
Some IR cameras from Flir Systems support Bluetooth communication, and to those cameras you can stream measurement data from the meter. The data is then merged into the result table in the IR image.
Streaming measurement data is a convenient way to add important information to an IR image. For example, when identifying an overheated cable connection, you may want to know the current in that cable.
5.11.2 Procedure
1. Pair the IR camera with the instrument. Refer to the camera manual for infor­mation on how to pair Bluetooth devices.
2. Turn on the camera.
3. Turn on the meter.
4. Press the
on the meter to enable Bluetooth.
5. Choose the variable that you want to use (voltage, current, resistance, etc.). Results from the meter will now automatically be displayed in the result table in the top left corner of the IR camera screen.
#T559825; r.8008/8011; en-US 24

6 Maintenance

6.1 Cleaning and storage

Clean the meter with a damp cloth and mild detergent; do not use abrasives or solvents.
If the meter is not to be used for an extended period, remove the batteries and store them separately.

6.2 Battery replacement

1. To avoid electrical shock, disconnect the meter if connected to a circuit, re­move the probe/thermocouple leads from the terminals, and set the function switch to the
2. Unscrew and remove the battery compartment cover.
3. Replace the six standard AAA batteries, observing correct polarity.
4. Secure the battery compartment cover.
6.2.1 Disposal of electronic waste
As with most electronic products, this equipment must be disposed of in an envi­ronmentally friendly way, and in accordance with existing regulations for elec­tronic waste.
Please contact your Flir Systems representative for more details.
position before attempting to replace the batteries.
#T559825; r.8008/8011; en-US 25

7 Technical specifications

7.1 Model specifications

AC A
Ranges 100.00 A,
600.0 A
Resolution 0.01 A
Basic accuracy ±(1.5% + 5 digits) at 50–500 Hz
Conversion type: average sensing RMS indicating
DC A
Ranges 100.00 A, 600.0 A
Resolution 0.01 A
Basic accuracy ±(1.5% + 5 digits)
AC+DC A
Ranges 100.00 A, 600.0 A
Resolution 0.01 A
Basic accuracy Same as AC A + (1.5% + 5 digits)
AC V
Ranges 100.00–1000 V
Resolution 0.01 V
Basic accuracy ±(1.0% + 5 digits) at 50–500 Hz
Input impedance 3.5 MΩ
Overload protection 1000 V RMS
Conversion type: average sensing RMS indicating
DC V
• AC+DC
• True RMS
AC+DC true RMS
#T559825; r.8008/8011; en-US 26
7 Technical specifications
Ranges 100.00–1000 V
Resolution 0.01 V
Basic accuracy ±(0.7% + 2 digits)
Input impedance 3.5 MΩ
Overload protection 1000 V RMS
AC+DC V
Ranges 100.00–1000 V
Resolution 0.01 V
Basic accuracy ±(1.0% + 5 digits)
Input impedance 3.5 MΩ
Overload protection 1000 V RMS
Watts
Ranges 10–600 kW
Resolution 1 W
Basic accuracy ±(2.5% + 5 digits)
Power factor
Ranges –1.00 to 1.00
Resolution 0.01
Basic accuracy ±3°
Total harmonic distortion
Ranges 0.1%~100.0%
Resolution 0.1%
Basic accuracy ±(3.0% + 10 digits)
Harmonics
Ranges 0.1–100.0%
#T559825; r.8008/8011; en-US 27
7 Technical specifications
Resolution 0.1%
Basic accuracy
• ±(5.0% + 10 digits) for order 1–12
• ±(10.0% + 10 digits) for order 13– 25
Ohms
Ranges 1.0000 kΩ, 10.00 kΩ, 100.00 kΩ
Resolution 0.01 Ω
Accuracy ±( 1.0% + 3 digits)
Overload protection 1000 V RMS
Continuity beeper
<30 Ω, 2 kHz tone buzzer
Diode test
Open circuit voltage ±1.8 V max
Capacitance
Ranges 400.0 μF, 4.000 mF
Resolution 0.1 μF
Basic accuracy ±(1.9% + 8 digits)
Overload protection 1000 V RMS
Frequency counter
Ranges 20.0 Hz to 10 kHz
Resolution 0.1 Hz
Basic accuracy ±(0.5% + 3 digits)
Overload Protection AC/DC 600 A, AC/DC 1000 A
#T559825; r.8008/8011; en-US 28
7 Technical specifications

7.2 System specifications

Dimensions 49 mm × 100 mm × 262 mm (1.9″ ×
3.9″ × 10.3″)
Weight 0.59 kg (1.29 lb.), including batteries
Battery life 200 hours
Battery type 6 × AAA (LR03)
Agency approvals FCC Class B, CE, UL/CSA, GSA, S-
JQA

7.3 Environmental specifications

Operating temperature 0 to 50°C (32 to 122°F)
Storage temperature –20 to 60°C (–4 to 140°F)
Operating humidity Maximum 90% up to 35°C (95°F),
decreasing linearly to 60% at 45°C (113°F)
Storage humidity
90% maximum
Operational altitude 2000.0 m (6562′)
Electromagnetic compatibility
EMC EN6 1326-1
Vibration Random vibration per MIL-PRF-
28800f Class 2 (5– 55 Hz, 3g maximum).
Shock 5 m (16.4′) drop per IEC/EN 61010-
1, 2nd edition
#T559825; r.8008/8011; en-US 29

8 Flir Global Limited Lifetime Warranty

A qualifying FLIR Test and Measurement product (the “Product”) purchased either directly from FLIR Commer­cial Systems Inc and affiliates (FLIR) or from anauthor­ized FLIR distributor or reseller that Purchaser registers on-line with FLIR is eligible forcoverage under FLIR’s Lim­ited Lifetime Warranty, subject to the terms and conditions in this document. This warrantyonly applies to purchases of Qualifying Products (see below) purchased and manu­factured after April 1, 2013.
PLEASE READ THIS DOCUMENTCAREFULLY; ITCON­TAINS IMPORTANT INFORMATION ABOUT THE PROD­UCTS THAT QUALIFY FOR COVERAGEUNDER THE LIMITED LIFETIME WARRANTY, PURCHASER’S OBLI­GATIONS, HOWTO ACTIVATE THE WARRANTY, WAR­RANTY COVERAGE, AND OTHER IMPORTANTTERMS, CONDITIONS, EXCLUSIONS AND DISCLAIMERS.
1. PRODUCT REGISTRATION. To qualify forFLIR’s Lim­ited Lifetime Warranty, Purchaser must fully register the Product directly with FLIR on-line at http://www.flir.com within Sixty (60) DAYS of the date the Product waspur­chased by the first retail customer (the “PurchaseDate”). Qualifying PRODUCTS THAT ARE NOTREGISTERED ON-LINE WITHIN SIXTY (60) DAYS OF THE PURCHASE DATE WILL HAVE A LIMITED ONE YEARWARRANTY FROM DATE OF PURCHASE.
2. QUALIFYING PRODUCTS. Uponregistration, Test and Measurment products that qualify for coverageunder FLIR’s Limited Lifetime Warranty are:
• Flir CM78
• Flir CM83
• Flir DM93
• Flir MR77
• Flir VP50
• Flir VP52
• Flir VS70
3. WARRANTY PERIODS. Forpurposes of the The Lim­ited Lifetime Warranty, Lifetime is defined as seven years (7)after the product is no longer manufactured, or ten years (10) from date of purchase whichever is greater. This Warranty is only applicableto the original owner of the Products.
Any Product that is repaired or replaced under warranty is covered under this 2-5-10 Limited Warrantyfor one hun­dred eighty days (180) daysfrom the date of return ship­ment by FLIR or for the remaining durationof the applicable Warranty Period, whichever is longer.
4. LIMITED WARRANTY. In accordance with theterms and conditions of thisLimited Lifetime Warranty, and ex­cept as excluded or disclaimed inthis document, FLIR warrants, from the Purchase Date, thatall fully registered Products will conform to FLIR’spublished Product specifi­cations and be free from defects in materialsand work­manship during the applicable Warranty Period. PURCHASER’S SOLE AND EXCLUSIVE REMEDY
UNDER THIS WARRANTY, AT FLIR’S SOLE DISCRE­TION, IS THE REPAIR OR REPLACEMENT OF DEFEC­TIVE PRODUCTS IN A MANNER, AND BY A SERVICE CENTER, AUTHORIZED BY FLIR.IF THISREMEDY IS ADJUDICATEDTO BE INSUFFICIENT, FLIR SHALL RE­FUND PURCHASER’S PAIDPURCHASE PRICE AND HAVE NO OTHER OBLIGATION OR LIABILITY TO BUYER WHATSOEVER.
5. WARRANTY EXCLUSIONSAND DISCLAIMERS. FLIR MAKES NO OTHER WARRANTY OF ANYKIND WITH RESPECT TO THE PRODUCTS. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MER­CHANTABILITY, FITNESS FOR A PARTICULAR PUR­POSE (EVEN IF PURCHASER HAS NOTIFIEDFLIR OF ITS INTENDED USE FOR THE PRODUCTS),AND NON­INFRINGEMENT ARE EXPRESSLY EXCLUDEDFROM THIS AGREEMENT.
THIS WARRANTY EXPRESSLY EXCLUDES ROUTINE PRODUCT MAINTENANCE, AND SOFTWARE UP­DATES.FLIR FURTHER EXPRESSLY DISCLAIMS ANY WARRANTY COVERAGE FOR MANUALS, FUSES, DIS­POSABLE BATTERIES,WHERE THE ALLEGED NON­CONFORMITY IS DUE TO NORMALWEAR AND TEAR OTHER ALTERATION, MODIFICATION, REPAIR, AT­TEMPTED REPAIR, IMPROPERUSE, IMPROPER MAIN­TENANCE, NEGLECT, ABUSE, IMPROPER STORAGE, FAILURE TOFOLLOW ANY PRODUCT INSTRUCTIONS, DAMAGE (WHETHER CAUSEDBY ACCIDENT OR OTH­ERWISE), OR ANY OTHER IMPROPER CARE OR HANDING OF THE PRODUCTS CAUSEDBY ANYONE OTHER THAN FLIR OR FLIR’S EXPRESSLYAUTHOR­IZED DESIGNEE.
THIS DOCUMENT CONTAINS THE ENTIRE WAR­RANTY AGREEMENT BETWEEN PURCHASER AND FLIR AND SUPERSEDES ALL PRIOR WARRANTY NE­GOTIATIONS,AGREEMENTS, PROMISES AND UNDERSTANDINGS BETWEENPURCHASER AND FLIR. THIS WARRANTY MAY NOT BE ALTERED WITH­OUT THE EXPRESS WRITTEN CONSENT OFFLIR.
6. WARRANTY RETURN, REPAIR AND REPLACE­MENT. To be eligible for warrantyrepair or replacement,
Purchaser must notify FLIR within thirty (30) days of dis­covering of any apparent defectin materials or workman­ship. Before Purchaser may returna Product for warranty service or repair, Purchaser must first obtain areturned material authorization (RMA) number from FLIR. To obtain the RMA number Owner must provide an originalproof of purchase . For additional information, tonotify FLIRof an apparent defect in materials or workmanship, or to request an RMA number, visit http://www.flir.com. Purchaser is solely responsible for complying with all RMA instructions provided by FLIR including but not limited toadequately packaging the Product for shipment to FLIR andfor all packaging and shipping costs. FLIR will payfor returning
#T559825; r.8008/8011; en-US 30
8 Flir Global Limited Lifetime Warranty
to Purchaser any Product that FLIR repairs orreplaces under warranty.
FLIR reserves the right to determine, in itssole discretion, whether a returned Product is covered underWarranty. If FLIR determines that any returned Product isnot covered under Warranty or is otherwise excluded from Warranty coverage, FLIR may chargePurchaser areasonable han­dling fee and return the Product to Purchaser, at Purchas­er’s expense, or offerPurchaser theoption of handling the Product as a non-warranty return.
7. NON-WARRANTY RETURN. Purchase mayrequest that FLIR evaluate andserv iceor repair a Product not cov­ered under warranty, which FLIR may agree to do in its sole discretion. Before Purchaser returns a Product for non-warranty evaluation and repair, Purchaser must con­tact FLIR by visiting http://www.flir.com to request an eval­uation and obtain an RMA. Purchaser is solely
responsible for complying with all RMA instructions pro­vided by FLIR including but not limited to adequately packaging the Product for shipment to FLIR andfor all packaging and shipping costs. Upon receipt ofan author­ized non-warranty return, FLIR will evaluate the Product and contact Purchaser regarding the feasibility ofand the costs and fees associated with Purchaser’srequest. Pur­chaser shall be responsible for the reasonable cost of FLIR’s evaluation, for thecost of any repairs or services authorized by Purchaser, and forthe cost of repackaging and returning the Product to Purchaser.
Any non-warranty repair of a Productis warranted for one hundred eighty days (180) days from the date of return shipment by FLIR to be free from defectsin materials and workmanship only,subject to all of the limitations, exclu­sions and disclaimers in this document.
#T559825; r.8008/8011; en-US 31
A note on the technical production of this publication
This publication was produced using XML — the eXtensible Markup Language. For more information about XML, please visit http://www.w3.org/XML/
A note on the typeface used in this publication
This publication was typeset using Linotype Helvetica™ World. Helvetica™ was designed by Max Miedinger (1910–1980)
LOEF (List Of Effective Files)
T501025.xml; en-US; 8008; 2013-06-05 T505544.xml; en-US; 7912; 2013-05-31
#T559825; r.8008/8011; en-US 32

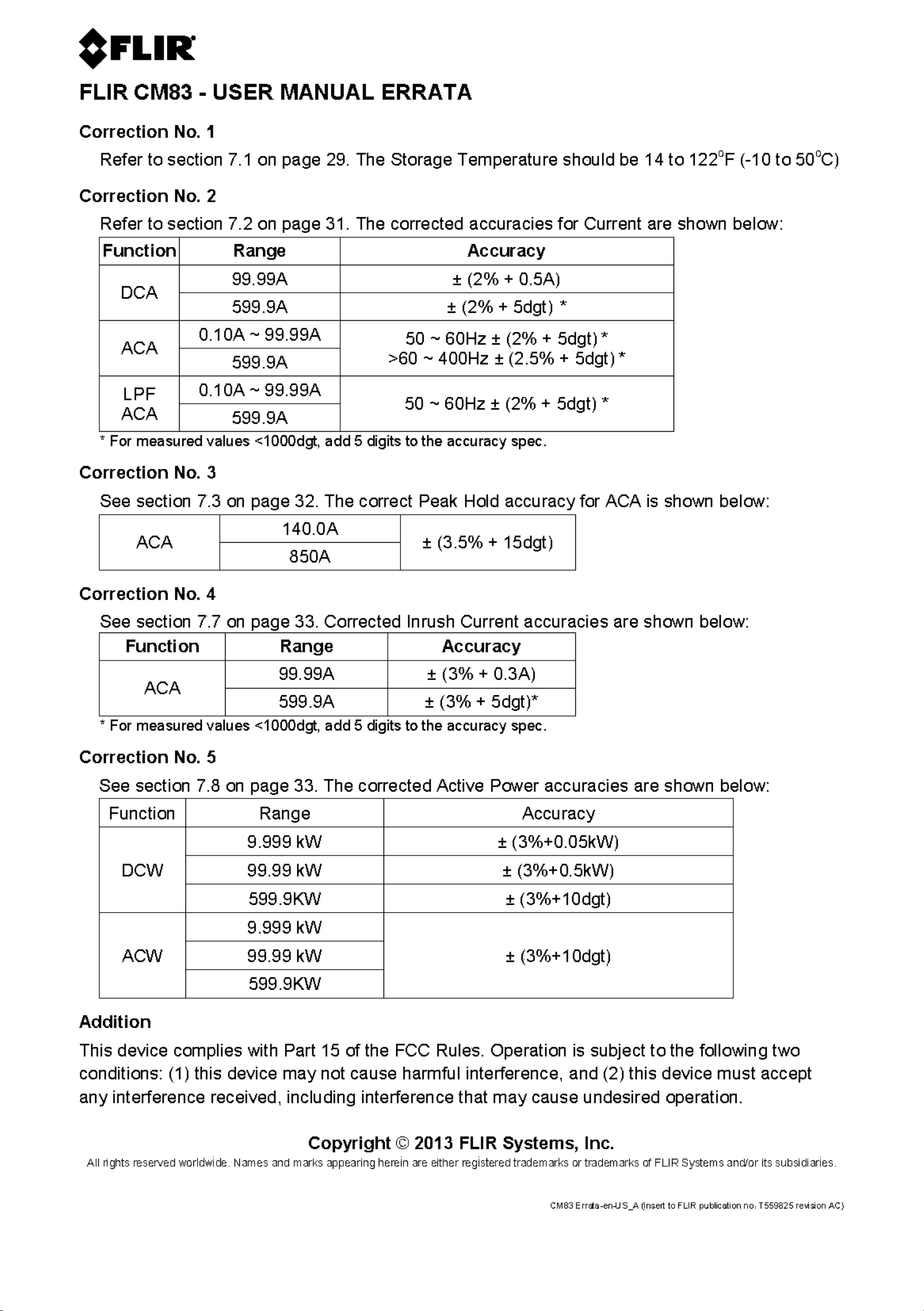

Corporate Headquarters
last page
Flir Systems, Inc. 27700 SW Parkway Ave. Wilsonville, OR 97070 USA Telephone: +1-503-498-3547
Website
http://www.flir.com
Customer support
http://support.flir.com
Publ. No.: T559825 Commit: 8008 Head: 8011 Language: en-US Modified: 2013-06-05 Formatted: 2013-06-05
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
