Overheating substation circuit breaker

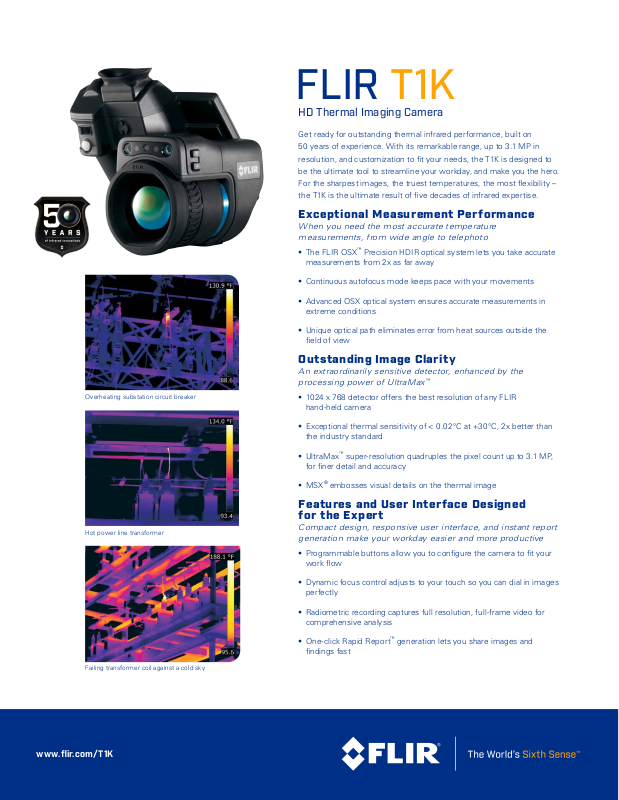

FLIR T1K

HD Thermal Imaging Camera

Get ready for outstanding thermal infrared performance, built on

50 years of experience. With its remarkable range, up to 3.1 MP in

resolution, and customization to t your needs, the T1K is designed to

be the ultimate tool to streamline your workday, and make you the hero.

For the sharpest images, the truest temperatures, the most exibility –

the T1K is the ultimate result of ve decades of infrared expertise.

Exceptional Measurement Performance

When you need the most accurate temperature
measurements, from wide angle to telephoto

• The FLIR OSX™ Precision HDIR optical system lets you take accurate
measurements from 2x as far away

• Continuous autofocus mode keeps pace with your movements

• Advanced OSX optical system ensures accurate measurements in
extreme conditions

• Unique optical path eliminates error from heat sources outside the
eld of view

Outstanding Image Clarity

An extraordinarily sensitive detector, enhanced by the
processing power of UltraMax

• 1024 x 768 detector offers the best resolution of any FLIR
hand-held camera

™

Hot power line transformer

Failing transformer coil against a cold sky

• Exceptional thermal sensitivity of < 0.02°C at +30°C, 2x better than
the industry standard

• UltraMax™ super-resolution quadruples the pixel count up to 3.1 MP,
for ner detail and accuracy

• MSX® embosses visual details on the thermal image

Features and User Interface Designed
for the Expert

Compact design, responsive user interface, and instant report
generation make your workday easier and more productive

• Programmable buttons allow you to congure the camera to t your
work ow

• Dynamic focus control adjusts to your touch so you can dial in images
perfectly

• Radiometric recording captures full resolution, full-frame video for
comprehensive analysis

• One- click Rapid Repor t™ generation lets you share images and
ndings fast

www.flir.com/T1K

Specifications

Model Numbers FLIR T1020

Imaging and Optical Data

IR Sensor 1024 × 768 ( 786,432 measurement pixels)

Thermal Sensitivity/NETD < 0.02°C at +30°C

Lens Choices 12°, 28°, 45°, 3x Close- up

Minimum Focus Distance 0.2m (0.66 ft.) to 0.8m (2.13 ft.), depending upon the lens

Image Frequency 30 Hz

Spectral Range 7.5 - 14 µm

4.3” Display 800 x 48 0 pixels

Auto Orientation Yes

Touch Screen Yes

Image Presentation Modes

Thermal Image Yes

Visual Image Yes

™

UltraMax

®

MSX

Gallery Yes

Embosses visual details on full resolution thermal image, for clear tex t and location identication

Measurement

Accuracy ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal

Measurement Analysis

Measurement Tools 10 spotmeters, 5+5 areas (boxes, circles) with min. /max./average

Emissivity Correction Variable from 0.01 to 1.0 or selected from materials list

Measurements Correction Emissivity, reected temperature, relative humidity, atmospheric temperature, object distance,

Color Palettes Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava

Storage of Media

Storage Media Removable SD card (Class 10)

Image File Format Standard JPEG, including digital photo and measurement data

Video Recording/Streaming

Radiometric IR-Video Recording Real- time radiometric recording to SD card

Non-Radiometric IR-Video Recording H.26 4 to SD card

Radiometric IR-Video Streaming Real-time radiometric streaming via USB

Non-Radiometric IR-Video Streaming H.26 4 video using Wi -Fi or USB

Digital Camera

Digital Camera FOV adapts to the IR lens

Video L amp Built-in LED light

Additional Information

USB, Connector Type USB Micro-AB Data transfer to and from PC/ Uncompressed colorized video

Batter y Rechargeable Li-ion polymer battery

Batter y Operating Time > 2.5 hours at 25°C (+6 8°F)

Charging System In camera ( AC adapter or 12 V from a vehicle) or 2-bay charger

Charging Time 2.5 hours to 9 0% capacity

External Power Operation AC adapter, 90-260 VAC input, 50/ 60 Hz or 12 V output from a vehicle

Power Management Automatic power-off functionality, user-congurable

Storage Temp. Range -4 0°C to +70°C (-40° F to 158° F)

Weight 1.9 kg (4.3 lb.) to 2.1 kg (4.6 lb.), depending upon lens model

Tripod Mounting UN C ¼”- 20

System Includes:

Infrared camera with lens
Batter y (2 each)
Battery charger
HDMI-HDMI cable

Hard transport case
Large eyecup
Lens cap
Neck strap

Unique super-resolution process quadruples pixel count, up to 3.1 MP

external IR window compensation

(cable with standard plug, optional)

Power supply, including multi-plugs
USB cable, Standard A to Micro -B
Calibration certicate
FLIR Tools+ license card

User documentation on CD-ROM
Printed documentation
Bluetooth headset
SD card

Covers parts and labor for two

years, batteries for ve, and

detector for ten.

Equipment described herein may require US Government authorization for export purposes. Diversion contrary to US law is prohibited. Imagery for illustration
purpo ses only. Spe cificati ons are subje ct to change w ithout no tice. ©201 5 FLIR Sys tems, Inc. A ll rights re served. 1 1/2015
