1Introduction
The H-Series handheld thermal imaging camera lets law enforcement
officers see clearly in total darkness, giving them the information they
need while making quick decisions, enhancing mission effectiveness,
maximizing operational capabilities, and improving officer safety.
The H-Series camera provides a 320 × 240 resolution Vanadium
Oxide (VO
) microbolometer giving excellent, high-fidelity thermal
x
imagery with the detail necessary for cutting edge performance. You
will see improved detection and recognition ranges in total darkness,
as well as through smoke, dust, and light fog.
You can see better through camouflage and foliage in any lighting
conditions. Because H-Series cameras see heat, not light, they are not
fooled by suspects wearing dark clothes or hiding in bushes.
You can see more—and see farther—than with other night vision
technologies because H-Series cameras see clearly without any light
whatsoever. You can see farther at night than with technologies that
need ambient light to work and you can see heat sources that these
other cameras could never find.
With a variety of lens options, on-board image, and video capture
capability all built in to the camera, H-Series cameras are the most
potent imaging package available today.
431-0003-01-10, Revision 130 1
Image with H-Series CameraImage Intensified Camera
1—Introduction H-Series Operator’s Manual
1–1 H-Series Camera Features
• 320×240 micro bolometer sensor for excellent image quality
and clarity
• Hot Shoe—Provides convenient power input and video output.
• Choose the 19 mm lens with 24° field of view or 2× optical
extender.
• Shuttered Eyepiece—Keeps light from coming out of the
viewfinder display, helping you stay covert.
• Two-sided Hand Strap—Accommodates both left-handed and
right-handed users.
• Software upgrades using SD card in the field.
• SD Card Slot—Allows for storing captured still images and video
on the removable SD card.
1
• USB 2.0 Connection—Rapid transfer of still images and video files
from the camera to a PC.
1
• Four rechargeable AA NiMH batteries—Provides up to 5 hours of
camera operation on a single charge.
• Rugged design—Built to withstand the demands of day-in, day-out
law enforcement operations.
1. Available only with the HS-324 Pro (Command version).
2 January 2010
H-Series Operator’s Manual 1—Introduction
1–2 Detection Range
The illustration below shows the comparative range performance of
the H-Series camera with different lens configurations. The data is
based on detecting and recognizing a man 1.8 meters tall (and onehalf meter wide).
19 mm
Lens
19 mm
Lens with
2
×
Extender
110 m Recognition
180 m Recognition
440 m Detection
720 m Detection
1–3 Cautions
Do not disassemble the camera enclosure. Disassembly can
cause permanent damage and will void the warranty.
Keep the compartment covers closed to avoid exposing the
cameras electronics to water or debris.
Do not point the camera directly at extremely high-intensity
radiation sources, such as the sun, lasers, arc welders, etc.
Use only the supplied power adapters to power or recharge the
camera.
Be careful not to leave fingerprints on the camera’s infrared
optics.
Caution!
The camera window has an anti-reflective coating and should only
be cleaned with low pressure fresh water and a lens cloth.
Improper care of the camera window can cause damage to the
anti-reflective coating, degrade the camera’s performance, and
void the camera warranty.
431-0003-01-10, Revision 130 3
1—Introduction H-Series Operator’s Manual
4 January 2010
2 Getting Started
The H-Series cameras shown below are available with the features,
options, and accessories described in this manual.
19 mm Lens Configuration
19 mm Lens with 2× Extender
Focus Ring
431-0003-01-10, Revision 130 5
2—Getting Started H-Series Operator’s Manual
2–1 Shipping Kits
Refer to the packing list enclosed with your camera shipment to
determine the actual contents of your camera package.
• HS-324 (Patrol version) Camera
In addition to the camera, Quick Start card, Operator’s manual, and
Documentation/Training CD or DVD; the following items are included
in the camera package:
Neck Lanyard
Rechargeable
AA Batteries
1-Gb SD Card
USB Cable
Video Output Cable
AC Power Adaptor
Hot Shoe
Car Adaptor
6 January 2010
H-Series Operator’s Manual 2—Getting Started
• HS-324 Pro (Command version) Camera
In addition to the camera, Quick Start card, Operator’s manual, and
Documentation/Training CD or DVD; the following items are included
in the camera package:
Neck Lanyard
Carrying Pouch
Rechargeable
AA Batteries
1-Gb SD Card
USB Cable
Video Output Cable
AC Power Adaptor
Hot Shoe
Car Adaptor
431-0003-01-10, Revision 130 7
2—Getting Started H-Series Operator’s Manual
2–2 Options and Accessories
2× Optical Extender for 19 mm lens:
Note
The 2× Optical Extender is not waterproof and should not be used
in wet environments.
The attachable 2× Optical Extender lens doubles the range of
performance when needed, without sacrificing the situational
awareness benefits of the wide field of view lens.
Manual Focus Ring
Front Lens Cover
Lens Release Lever
8 January 2010
Rear Lens Cover
3 Operating Your H-Series Camera
3–1 Camera Features and Controls
Brightness
Lens cap
Black hot
Capture
Adjustable
diopter ±2
Power2× zoomWhite hot/Display
Eyepiece
SD Card
door
Hot Shoe
power contacts
Hot Shoe/
Tripod mount
Battery
door
431-0003-01-10, Revision 130 9
3—Operating Your H-Series Camera H-Series Operator’s Manual
l
3–2 Installing the Batteries and SD Card
The batteries must be installed and charged before using your
camera. If an SD card is included with your camera package, you can
also install it at this time.

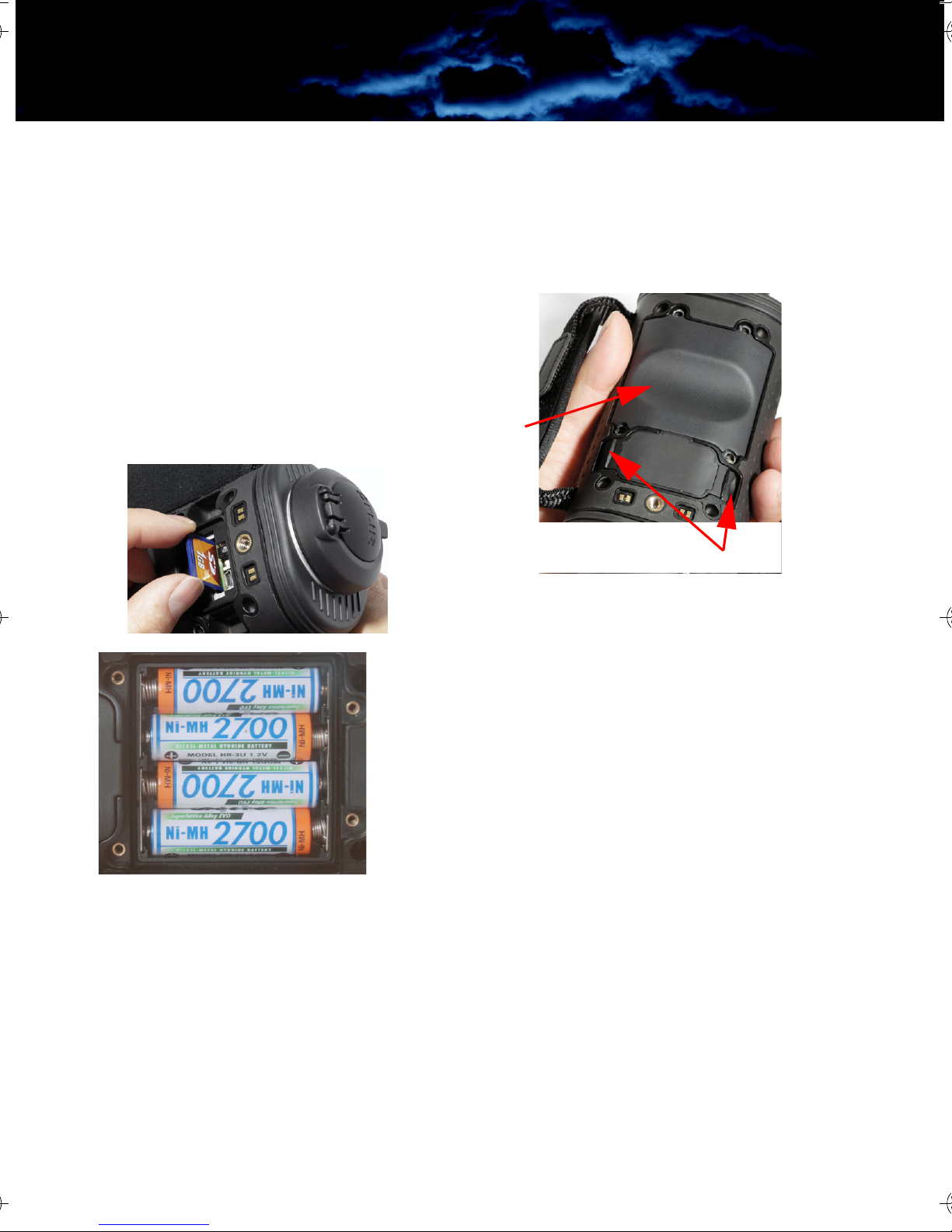

1. Remove the small SD card
door. No tools are required.
This will help later when
removing the battery cover.
2. If included with your camera
package, install the SD card.
3. Loosen the four captive screws
–
+
–
+
+
–
+
–
securing the battery cover.
4. Pry off the battery cover by grasping
the front edge exposed when the SD
card cover was removed.
5. Install the batteries as shown.
6. Snap the SD card door back into
place, ensuring that the rubber lanyard
retracts into the camera.
Battery
cover
Grasp SD card door edges and pul
7. Re-install the battery cover—it only fits one way.
8. Tighten the four screws.
If you have installed rechargable batteries, they must be charged
before using the camera. Regular AA batteries will provide about one
and a half hours of camera use.
10 January 2010
H-Series Operator’s Manual 3—Operating Your H-Series Camera
3–3 Charging the Camera
The batteries in the camera must be fully charged prior to use. If not
fully charged or if the recommended batteries are not installed, the
battery status indicator may not accurately reflect the remaining
battery life.
1. Connect the Hot Shoe to your camera.
2. Rotate the attachment wheel in
the clockwise direction until tight.
3. Plug the power adapter provided
with the camera into its power
source and also into the Hot Shoe.
4. Ensure that the plug is fully
Plug from power adapter
seated in the Hot Shoe.
When charging correctly, the
charging indicator will be lit
Charging
indicator
yellow and will blink green for one
second within about 35 seconds.
The charging indicator will
continue to blink at decreasing
intervals until the batteries are
fully charged.
Solid
green
When fully charged, the charging
indicator will be lit solid green.
The initial charge time is
approximately 4 hours.
Note
The charging indicator will be lit solid green when the Hot Shoe is
not connected to the camera or the recommended batteries are
not installed. Ensure the batteries are charging by verifying the
green blink described above.
431-0003-01-10, Revision 130 11
3—Operating Your H-Series Camera H-Series Operator’s Manual
3–4 H-Series Power Management
Your H-Series camera is equipped with a power management system
that provides up to five hours of continuous operation and up to five
days of standby time between battery charges. To make the best use
of the camera and to assure it is always ready when you need it, it is
important to understand the basic power states of the camera.
The H-Series camera is designed to operate much like your cell phone:
• It is rarely turned off unless you do not plan to use it for a few
days or more.
• When near a power source (AC power or a car cigarette lighter)
or when not in use, you keep it on a charger.
• When you turn it on from all the way off, it takes about 90
seconds to become operational.
• In Standby, it is always ready to go. Press the Power button and it
is on in about two seconds.
• It will automatically put itself in Standby to conserve the battery.
A red state LED located next to the display indicates the current power
state and can only be seen when the shuttered eyepiece is opened (for
example, when the camera is held up to the eye) or when the eyepiece
is removed as shown in the photograph below.
State LEDDisplay screen
12 January 2010
H-Series Operator’s Manual 3—Operating Your H-Series Camera
Power States
• Three power states: Off, On, and Standby
• The initial power-on Bootup process between the Off state and
the On state takes about 90 seconds (fast flashing red state
LED). During the Bootup process, pressing the Power button
again will turn the camera off. After the camera finishes its
power-on Bootup process, it is in the On state (state LED is off).
After the camera is On, pressing the Power button will toggle the
camera between On and Standby (state LED is flashing slowly).
• When battery powered, if Auto-Standby is enabled (see “AutoStandby Operation” on page 21), the camera goes to Standby
after three minutes if no buttons are pushed. A warning is shown
in the display.
• From the Standby state, the camera comes back on within about
two seconds when the Power button is pushed.
• The Auto-Standby function is disabled if the camera is powered
with auxiliary power.
During most use scenarios you will cycle between Standby and On.
Only at the end of a shift or when not needed on multi-day field missions
might you consider putting the camera into the OFF state.
Camera
State
Off The display and the state LED are off
Power-on Bootup—Color bars on the display and the state
LED is flashing quickly
On
There is a thermal image on the display and the state LED
is off
Standby The display is off and the state LED is flashing slowly
How do you know?
431-0003-01-10, Revision 130 13
3—Operating Your H-Series Camera H-Series Operator’s Manual

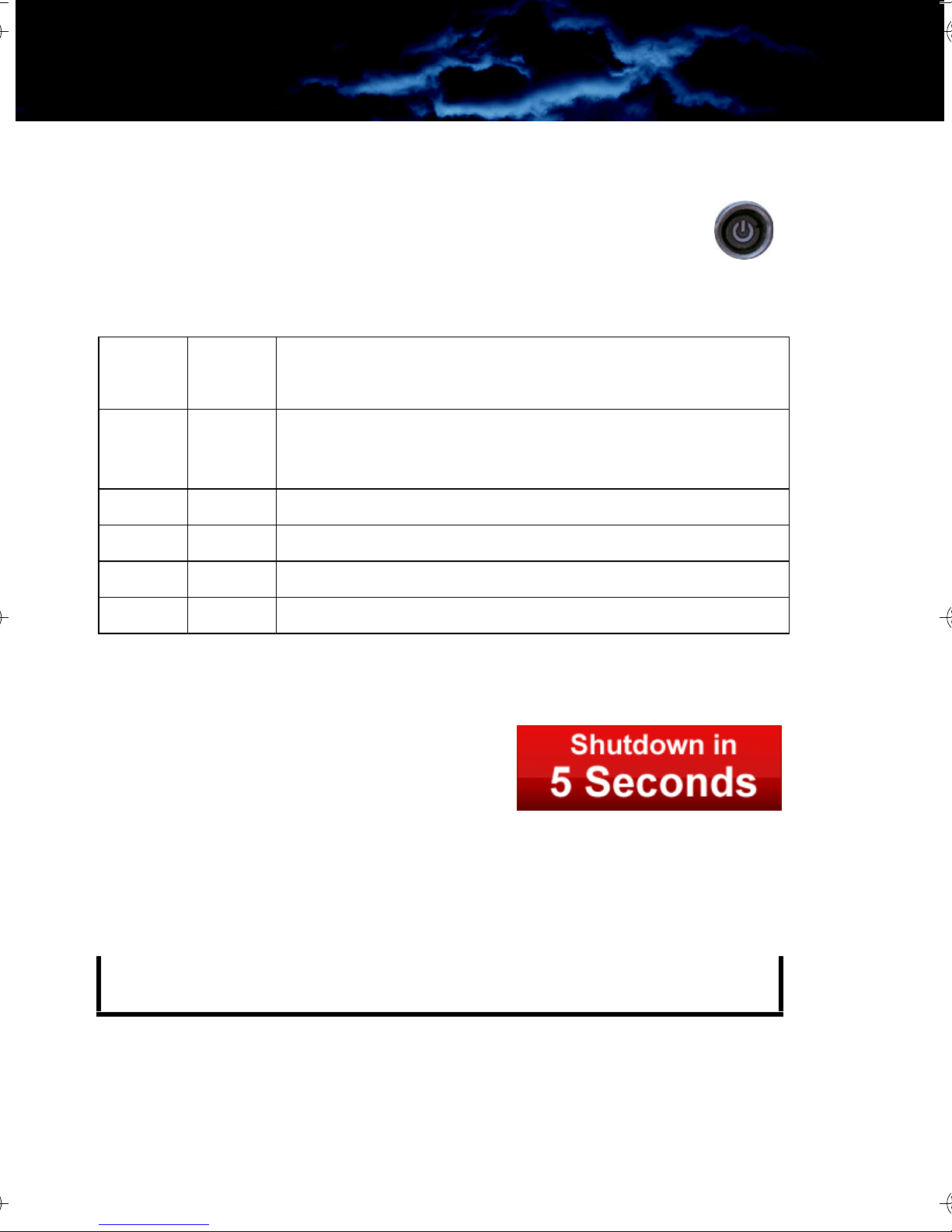

3–5 Buttons and Controls
Power Button
Changing between the Off, On, and Standby power states is
controlled by the Power button. The table below describes
how the camera moves between states.
From
State
Off On Press the Power button for 1 second. (This will put the
On Standby Momentarily press the Power button
Standby On Momentarily press the Power button
On Off Press and hold the Power button for 8 seconds
Standby Off Press and hold the Power button for 8 seconds
To
Method
State
camera in power-on bootup for about 90 seconds
before going to On.)
To shut off the camera completely press and hold the Power button
for eight seconds.
After holding the Power button for three
seconds the following message will be
shown in the display and the camera will
enter the Off state if the countdown
finishes.
Release the Power button at any time during this countdown to
terminate Shutdown and resume normal operation.
Note
If the camera is in the Standby state and the Power button is held
down for eight seconds, the camera will shutdown without warning.
14 January 2010
H-Series Operator’s Manual 3—Operating Your H-Series Camera
Capture Button–HS-324 Pro (Command version)
models only
Use this button to capture snapshots (in JPEG format) or
video clips (in MPEG-4 format). The files are stored on the integrated
SD card.
• Momentarily pressing the button captures a single snapshot.
• Pressing and holding the button will cause the camera to save a
video clip file. The file is written to the SD card when the button is
released.
Twenty-five seconds of video requires about one megabyte (MB) of
storage on the SD card. The image and video files must be transferred
to a computer for viewing.
Note
The images must be transferred to a computer via the USB cable,
or the SD card can be temporarily removed from the camera and
inserted in a card reader.
• If the camera is not an HS-324 Pro
(Command version) model, this
message will be shown in the
display.
• If an SD card is not installed, this
message will be shown in the
display and no image will be stored.
• If the SD card is full, a warning will
be shown in the display and the
image will not be stored.
Note
The stored image will include the thermal image, time and date
information, and the FLIR logo. Other icons seen in the display are
not stored on the saved image.
431-0003-01-10, Revision 130 15
3—Operating Your H-Series Camera H-Series Operator’s Manual
Still Frame Capture and Store—To capture
and store a single still image of what is
currently being shown in the display,
momentarily press the Capture button. The
thermal image will momentarily freeze and
the following icons will appear in the display:
The SD Card Memory Gauge indicates how much memory is left on
the SD card. The camera icon with the green lens indicates that a
single frame was successfully stored to the SD card. Still images are
stored in the JPEG file format at 320 × 240 pixel resolution. Still
images are approximately 90Kb in size.
Video Capture and Store—To capture and store a video sequence of
what is currently being shown in the display, press and hold the
Capture button. Video capture will begin immediately and continue
until the Capture button is released.
During the video store process, real-time
video will be shown and these icons will
appear in the display:
The lens on the camera icon will flash
red/green during recording.
Video is stored in an MPEG-4 format at
approximately 8 seconds per megabyte.
Zoom Button
Use this button to switch the camera between no zoom (full
resolution) and 2× zoom. The central part of the image is
magnified twice its normal size when 2× is selected.
Zoom Indicator—When zoom has been
selected the icon is continuously shown in the
display:
16 January 2010
H-Series Operator’s Manual 3—Operating Your H-Series Camera
White/Black Hot Button
Use this button to toggle between the two video options. In
the default White Hot mode, hotter objects appear as white
or light grey. In the Black Hot mode, hotter objects appear as
black or dark grey. While white hot is the most commonly
used and visually intuitive method of viewing thermal
imagery, black hot can often enhance contrast of certain objects or
provide better visual perspective in some conditions.
When switching between modes, the appropriate
Black hotWhite hot
icon is displayed for approximately 3 seconds.
Display Brightness Button
Use this button to cycle through the five levels of display
brightness. Each press of the button advances to the next
level of brightness.
When the highest brightness level is reached, subsequent button
presses advance to the next lower brightness levels. When the lowest
brightness level is reached, subsequent button presses advance to
the next higher brightness levels. One of the following icons is
displayed for approximately 3 seconds after the button is pressed
indicating the current brightness level:
HighestLowest
Diopter Controls
The diopter adjustment lever allows a ±2 diopter setting range. When
the diopter adjustment lever is pointing straight away from the
camera, it is in the neutral position.
Adjust the diopter setting for the sharpest image in the viewfinder.
431-0003-01-10, Revision 130 17
3—Operating Your H-Series Camera H-Series Operator’s Manual
3–6 Batteries
Your H-Series camera is equipped with a sophisticated power system
that accommodates a wide variety of AA battery types. This includes
rechargeable and non-rechargeable batteries.
The camera is optimized for operation with the 2700 mAh
rechargeable NiMh batteries that were supplied with your camera. It
is recommended that you use these batteries in all but emergency
situations.
Note
Replacement batteries are available online from FLIR Commercial
Systems, Inc.
Battery Status Indicator–While the camera is
full charge
On, a battery status indicator is always shown in
the corner of the display image. This indicator
half charge
provides an estimation of the remaining battery
charge.
no charge
Note
If non-rechargable batteries are installed the battery indication
may not be accurate.
Using Non-Rechargeable Batteries –The H-Series camera allows
Alkaline non-rechargeable batteries to be used. When nonrechargeable batteries are installed, connecting the Hot Shoe to a
power source will power the camera from the power source and the
battery charging circuitry will be disabled.
Note
When using Alkaline batteries, operating battery life is reduced to
approximately 1.5 hours.
Low Battery Auto-Shutdown–When the batteries are almost fully
depleted the camera will automatically initiate a shutdown process.
18 January 2010
H-Series Operator’s Manual 3—Operating Your H-Series Camera
3–7 SD Card Door
The SD Card door is located on the
bottom of the camera in front of the
battery compartment. The SD card,
the USB connector, and the AutoStandby Enable switch are located
under the door.
Auto-Standby Enable
switch
SD Card
Lanyard
USB
SD Card
door
Note
The Hot Shoe must be removed to access the SD Card door.
To open the SD Card door, grasp the
two edges with your thumb and finger
and pull straight up.
Caution!
Do not stretch or break the rubber
lanyard that keeps the door captive
to the camera when opened.
To close the SD Card door, slide the
lanyard strap back into the camera,
position the door in place, and then
firmly press in the middle of the door
until it is fully seated.
431-0003-01-10, Revision 130 19
Grasp SD Card door
edges and pull
3—Operating Your H-Series Camera H-Series Operator’s Manual
SD Card Capacity and Type
The HS-324 Pro (Command version) model camera supports storing
images and video on standard 1-Gb, 2-Gb, and 4-Gb SD cards that are
compliant with the SD 1.0 and 1.1 specification.
H-Series cameras are not compatible with SDHC standards.
If an SD card is inserted into an HS-324 (Patrol version) model, it will
be ignored unless the camera software detects a valid upgrade file.
The HS-324 (Patrol version) model must be upgraded to an HS-324
Pro (Command version) model in order to store images and video on
the SD card.
Installing an SD Card
To install an SD card, insert the card into
the slot and press on the SD card until its
edge is nearly flush with the surface and
release.
To remove an SD card, use this same
motion.
Downloading Stored Files via USB
The HS-324 Pro (Command version) model camera also supports
downloading stored images and video via the USB port.
With the camera on, plug the USB cable into the USB connector on
the camera and a USB port on your computer.
Allow up to two minutes for the USB connection to be recognized by
the computer’s operating system.
20 January 2010
H-Series Operator’s Manual 3—Operating Your H-Series Camera
3–8 Auto-Standby Operation
Auto-Standby is a feature of the H-Series camera that helps to guard
against draining the batteries prematurely by inadvertently leaving the
camera on. Auto-Standby puts the camera into the Standby state if the
following three conditions are met:
• The camera is in the On state.
• The Auto-Standby switch (STBY) is set to ON.
• No buttons have been pressed for three minutes.
Once these conditions are met you will
see the following message in the display
and the camera will enter the Standby
state after the countdown is finished:
Press any button during this countdown to terminate Auto-Standby
and resume normal operation.
Note
Pressing any button during an Auto-Standby countdown will only
terminate the countdown and abort the Auto-Standby.
The normal function of the button will not occur.
Auto-Standby Switch
Some use scenarios involving
unattended operation of the camera may
require disabling Auto-Standby.
Select OFF to turn off Auto-Standby.
Select ON to turn on Auto-Standby.
If Auto-Standby is off, a reminder message will
appear in the display each time the camera enters
the On state.
431-0003-01-10, Revision 130 21
3—Operating Your H-Series Camera H-Series Operator’s Manual
3–9 The Hot Shoe
Note
The Hot Shoe is not waterproof and should not be used in wet
environments.
The Hot Shoe provides the
connections to power the camera for
continuous operation or charging the
batteries; and for accessing the
analog video output. The Hot Shoe
attaches to the bottom of the camera
and is secured via the tripod mount.
Power
The following steps are
recommended for quick and easy
attachment of the Hot Shoe.
1. With the camera positioned
bottom-side up, hold the Hot
Shoe in position.
2. Rotate the attachment wheel in
the clockwise direction until tight.
Video
3. To remove the Hot Shoe, simply
rotate the attachment wheel in the
counter-clockwise direction until it is
free.
22 January 2010
H-Series Operator’s Manual 3—Operating Your H-Series Camera
3–10 Installing the Shuttered Eyepiece
The shuttered eyepiece keeps light from coming out of the viewfinder
display. Pressing your eye up against the eyepiece opens the shutter.
The shutter closes automatically.
The eyepiece fits into a groove
around the display housing.
When pressing the eyepiece
into position, ensure that the
diopter lever is free to move.
If the eyepiece is pushed too far
onto the display housing it will
interfere with the diopter lever.
Groove for eyepiece
431-0003-01-10, Revision 130 23
3—Operating Your H-Series Camera H-Series Operator’s Manual
3–11 Bayonet Lens Mounting System
The H-Series camera is equipped with a robust bayonet mounting
system to allow for field-interchangeable optics options and future
accessories. As shipped, the HS-324 comes with a lens-cover
assembly mounted on the bayonet mount.
Operation of the Lens-cover Assembly
The lens cover is a simple flip-to-open lens
cover that provides protection for the
camera lens when not in use. To open,
simply flip the lens cover down to the fully
open position (45° pointing toward the
ground as shown in the photograph at the
right).
To remove the lens-cover
assembly, rotate the outer ring
of the lens cover clockwise so
that the index mark on the top of
the lens cover aligns with the
index mark on the front body of
the camera (approximately 45°),
and pull straight off.
24 January 2010
H-Series Operator’s Manual 3—Operating Your H-Series Camera
3–12 2× Extender
Note
The 2× Optical Extender is not waterproof and should not be used
in wet environments.
The 2× Optical Extender, compatible with both HS-324 and HS-324
Pro (Command version) camera models, provides the user the ability
to see twice as far and/or enhance the resolution of objects in the
field of view. The 2× Optical Extender is mounted on the bayonet mount
in front of the existing lens on the camera.
To mount the 2× extender,
first remove the lens cover
assembly. Then, position the
2× extender so that the
release lever on the 2×
extender is in the 5 o’clock
position on the bayonet
mount. Firmly push the
extender onto the bayonet
mount, then rotate the lens
Release Lever
counter-clockwise so that the
release lever reaches the 3
o’clock position where it will hit a hard stop.
Note
The 2× extender is manually focused by rotating the outer rubbercoated ring.
To remove the 2× extender, press the release lever and rotate the
extender clockwise until the release lever is roughly at the 5 o’clock
position and pull straight off.
Caution!
Be sure to replace the lens cover assembly when the 2× Extender
is not in use to avoid moisture, dust, or other contaminants
reaching the inner lens surface of the 2× Extender.
431-0003-01-10, Revision 130 25
3—Operating Your H-Series Camera H-Series Operator’s Manual
3–13 Hand Position
The H-Series camera is designed for use in a wide variety of
applications and environments and by a wide range of users. Individual
preference and lens configuration will determine the most
comfortable hand position. Positions are interchangeable between
left- and right-handed users.
The Base position is the most common hand position for an HS-324
camera used without a 2× extender. These configurations have less
weight in the front of the unit and the center-of-gravity is roughly
centered on the unit.
In the Base position, the index
finger is comfortably positioned
over the Power button as shown in
Figure 3–1. Middle, ring, and little
fingers naturally fall on the
Camera, 2×, and WH/BH buttons
respectively. The less-often used
Display Brightness button is easily
reached with the little finger when
needed.
The Forward hand position is often
used to compensate for the
heavier optical systems found on
HS-324 equipped with a 2×
extender. In these cases shifting
the hand position forward so that
the index finger falls on the
Capture button helps to
compensate for a more forward
center-of-gravity of the camera as
shown in Figure 3–2.
Figure 3–1. Base Hand Position
Figure 3–2. Forward Hand Position
Of course, hand position is purely an individual user preference.
26 January 2010
H-Series Operator’s Manual 3—Operating Your H-Series Camera
3–14 Installing Software Upgrades
Your H-Series camera may require software upgrades during it’s
lifetime. The upgrade process requires an SD card loaded with the
upgrade file. After receiving the upgrade file from FLIR Commercial
Systems, Inc., load it onto your SD card.
Caution!
During a software installation, the camera must remain powered
on. Turning off the camera, or losing power for any reason, may
damage the system files and require that the camera be returned
to the factory for repair.
Use the following procedure to install the upgrade:
1. Ensure that the camera battery is fully charged. (The software
installation will not start if the battery charge is less than 50%.)
2. With the camera off, install the SD card loaded with the upgrade
file. Refer to “SD Card Door” on page 19.
3. Install the Hot Shoe and connect to a power source. Refer to “The
Hot Shoe” on page 22.
4. Turn on the camera. During its Bootup process, the camera will
check the SD card for a valid upgrade file.
5. Watch the display. When a valid file is found, a message will be
shown for about ten seconds directing you to
“Press and hold Capture button for 2 seconds to initiate update.”
If you ignore the message, the camera will resume normal
operation and enter the On state.
6. While the message is displayed, press and hold the Capture
button for two seconds.
The software upgrade takes about four minutes and the camera
will reboot automatically when it is finished.
431-0003-01-10, Revision 130 27
3—Operating Your H-Series Camera H-Series Operator’s Manual
28 January 2010
4Technical Data
4–1 H-Series Camera Model Features
HS-324 (Patrol version) H-Series Handheld Thermal Camera (with choice of
lens) and accessory kit.
HS-324 Pro (Command
version)
Accessory Kit Hot Shoe Charging & Video Output Attachment, 4
Start up from
stand-by
Thermal Sensitivity,
Waveband
Detector Type
Image Processing FLIR Proprietary Digital Detail Enhancement
H-Series Handheld Thermal Camera (with choice of
lens) and accessory kit. Additionally includes the
image save function, video save function with realtime stamp, enabled USB2 port, and carrying pouch.
Rechargeable AA Batteries, AC Power Adapter/
Charger, Car Adapter/Charger, Neck Lanyard, USB
Cable, and Video Output Cable.
<1.5 seconds
<50 mK @ f/1.0, 7.5 - 13.5 μm
320
× 240 VOx Microbolometer
Focus, Zoom
Video Output NTSC or PAL composite video; RCA jack
431-0003-01-10, Revision 130 29
Fixed focus, 2
× electronic zoom
4—Technical Data H-Series Operator’s Manual
4–2 Power
Battery Types 4 AA Batteries; NiMH or Alkaline
Battery Life Operating
(Stand-By)
>Approximately 5 Hours on NiMH batteries at 25°C,
(120 hours on NiMH batteries)
4–3 Environmental
Ratings (not including the Hot
Shoe or the 2× Optical Extender)
Operational Temp. -4°F – 140°F (-20°C – 60°C)
IP-67, Submersible, 1 meter drop
4–4 Physical
Weight (incl. lens) 1.45 lb. (653 g) with batteries; add 0.7 lb.
Size (L
(315 g) for 2
× W × H) 10.42” × 3.33” × 2.62”
(256
× 84.5 × 66.5 mm)
× extender
4–5 Lens Choice
FOV
FOV (w/Optional 2
30 January 2010
× Extender) 12° × 9°
HS-324
24°
× 18°
H-Series Operator’s Manual 4—Technical Data
4–6 Additional Features: HS-324 Pro
(Command version)
Still Image Storage,
Format
Video Storage,
Format
SD card, JPEG; 320
Approx. 8 seconds/Mb on SD card,
320
× 240 MPEG-4
4–7 Range Detection
HS-324/with 2× Optical Extender
Detect Man
(1.8 m
Recognize
Man
Detect Vehicle
(2.3 m
× 0.5 m)
× 2.3 m)
1,445’ (440 m)/2,362’ (720 m)
360’ (110 m)/590’ (180 m)
4,070’ (1240 m)/6,234’ (1900 m)
× 240 resolution
1
Recognize
Vehicle
1,050’ (320 m)/1,640’ (500 m)
1. Actual range may vary depending on camera set-up,
environmental conditions, and user experience.
431-0003-01-10, Revision 130 31
4—Technical Data H-Series Operator’s Manual
32 January 2010
Santa Barbara Portland
FLIR Commercial Systems, Inc.
World Headquarters
FLIR Systems, Inc.
70 Castilian Dr.
Goleta, CA 93117
USA
PH: +1.888.747.FLIR
(+1.888.747.3547)
Europe
CVS Eurasian Headquarters
FLIR Commercial Systems B.V.
Charles Petitweg 21
4847 NW Teteringen - Breda
The Netherlands
FLIR Corporate Headquarters
FLIR Systems, Inc.
27700A SW Parkway Ave.
Wilsonville, OR 97070
USA
PH: + 31 (0) 765 79 41 94
FX: + 31 (0) 765 79 41 99
flir@flir.com
Loading...
