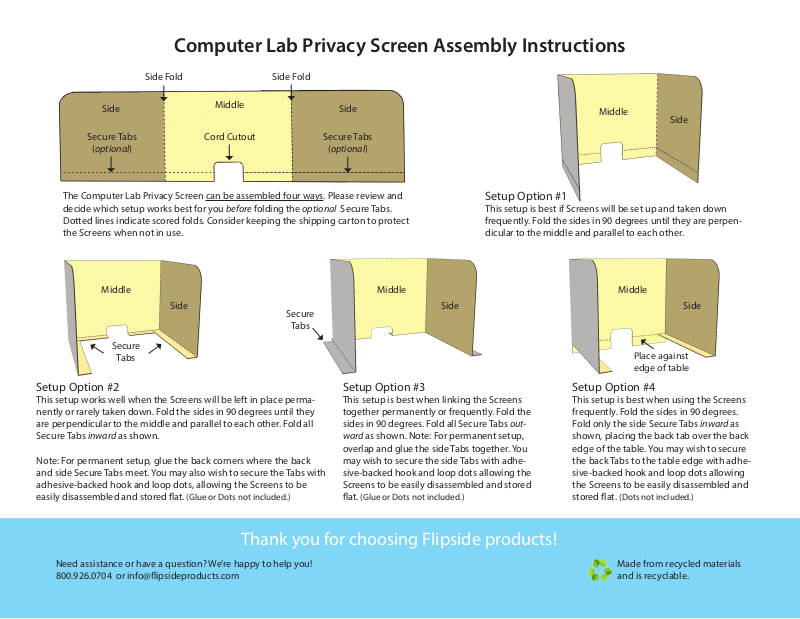

Computer Lab Privacy Screen Assembly Instructions
Side FoldSide Fold
Middle
Secure Tabs
(optional)
The Computer Lab Privacy Screen can be assembled four ways. Please review and
decide which setup works best for you before folding the optional Secure Tabs.
Dotted lines indicate scored folds. Consider keeping the shipping carton to protect
the Screens when not in use.
Middle
Side
Secure
Tabs
Cord Cutout
Secure
Tabs
Setup Option #2
This setup works well when the Screens will be left in place permanently or rarely taken down. Fold the sides in 90 degrees until they
are perpendicular to the middle and parallel to each other. Fold all
Secure Tabs inward as shown.
Note: For permanent setup, glue the back corners where the back
and side Secure Tabs meet. You may also wish to secure the Tabs with
adhesive-backed hook and loop dots, allowing the Screens to be
easily disassembled and stored at. (Glue or Dots not included.)
SideSide
Secure Tabs
(optional)
Setup Option #3
This setup is best when linking the Screens
together permanently or frequently. Fold the
sides in 90 degrees. Fold all Secure Tabs out-
ward as shown. Note: For permanent setup,
overlap and glue the side Tabs together. You
may wish to secure the side Tabs with adhesive-backed hook and loop dots allowing the
Screens to be easily disassembled and stored
at. (Glue or Dots not included.)
Middle
Side
Middle
Side
Setup Option #1
This setup is best if Screens will be set up and taken down
frequently. Fold the sides in 90 degrees until they are perpendicular to the middle and parallel to each other.
Middle
Side
Place against
edge of table
Setup Option #4
This setup is best when using the Screens
frequently. Fold the sides in 90 degrees.
Fold only the side Secure Tabs inward as
shown, placing the back tab over the back
edge of the table. You may wish to secure
the back Tabs to the table edge with adhesive-backed hook and loop dots allowing
the Screens to be easily disassembled and
stored at. (Dots not included.)
Thank you for choosing Flipside products!
Need assistance or have a question? We’re happy to help you!
800.926.0704 or info@ipsideproducts.com
Made from recycled materials
and is recyclable.
