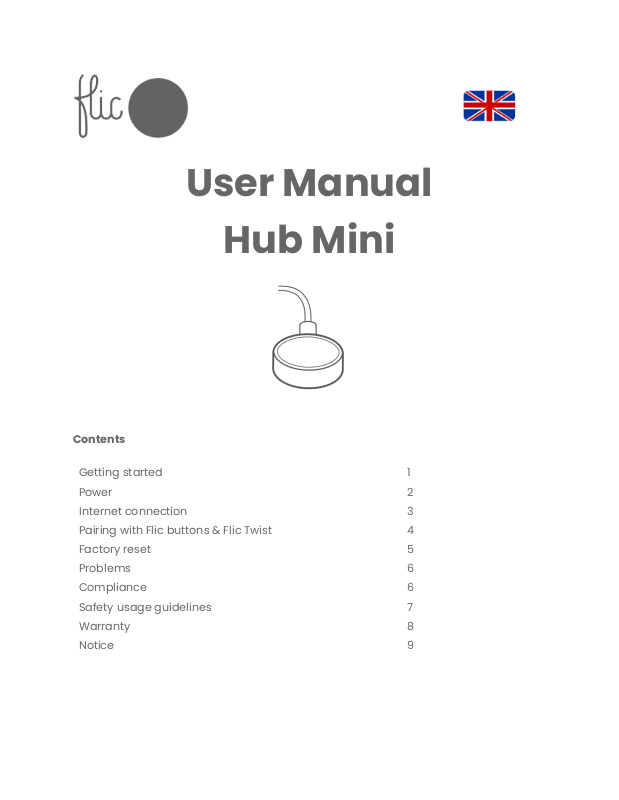

Page 1
Contents
Getting started
1
Power
2
Internet connection
3
Pairing with Flic buttons & Flic Twist
4
Factory reset
5
Problems
6
Compliance
6
Safety usage guidelines
7
Warranty
8
Notice
9
User Manual
Hub Mini
Page 2
Getting started
1
To get started make sure that you have the following:
1. An active internet connection (Ethernet or WiFi)
2. A phone with the Flic App installed
3. A Flic button, “Flic” or “Twist”, within Bluetooth range of the Flic Hub Mini
(“Hub Mini”)
The phone is only necessary during the setup process. Once the setup is
complete you no longer need the phone to enjoy Flic!
Page 3
Power
2
Connect the USB-C cable and an external power adapter to the Hub Mini. The
Hub Mini will turn on, indicated by a bright red LED.
After approximately 15 seconds the LED will dim and become discoverable.
Please follow the instructions in the app to complete the initial setup.
We recommend that you use an adapter with at least 1A output. An adapter
with less than the recommended current rating may result in unstable
behavior.
Page 4
Internet Connection
3
To connect the Hub Mini to your WiFi network open the Flic App and follow
the setup steps to get the Hub Mini connected to the internet.
If the Hub Mini doesn’t have an active internet connection you will not be
able to make use of all the available features.
To check if the internet connection for the Hub Mini is active you should
open the Hub Mini settings page in the app. Look for the network settings
section and press test.
Page 5
Pairing your Flic Buttons & Twist
4
To pair a brand new Flic to the Hub Mini, simply tap the ‘+’ button in the
bottom right corner of the Hub Mini app page. Press and Hold the Flic button
or Flic Twist and the pairing should only take a few seconds.
If you are pairing a Flic that was previously paired then you will need to
remove it from that device first. You can do this by navigating to the app
page of the Flic you want to remove, tapping the gear icon, and selecting
the ‘Remove’ option. Now you can pair this button as described above.
Page 6
Factory reset
5
If, for any reason, you must perform a factory reset you need to press the
pinhole button for between 10-15 seconds. By pushing the button, all your
account settings will be lost and the Hub MINI will return to default.
If you remove the Hub Mini from your account and reconnect to it then you
will be prompted to use the Factory Password when pairing. This can be
found on the label on the underside of your Hub Mini.
If during the initial setup, you assign your password and forget this then you
must perform a factory reset to gain access again.
Page 7
Problems
6
If you have any issues setting up or using the Flic products that are not
answered here, please read FAQ’s at https://start.flic.io/faq
Alternatively, you can contact us via [email protected]
Compliance
Shortcut Lab’s declaration of conformity is available at https://flic.io/doc
For full compliance, list visit https://flic.io/compliance
Flic 2 and the Twist are certified as FCC, IC, CE, AUS, R-NZ and WEEE, RoHS,
REACH compliant.
The Hub Mini is certified as FCC, IC, CE, AUS, R-NZ and WEEE, RoHS, REACH
compliant.
Page 8
Safety usage guidelines
7
The Hub Mini is not a toy. It contains small parts and accessories that
present a choking hazard as such it is not suitable for children or pets.
General
- Do not attempt to service the product.
- Do not use the product in temperatures below -20°C or above +54 °C.
- Clean with a damp cloth only. Do not submerge and do not use chemical
or abrasive cleaning products.
Flic specific
- Battery life will be shortened with heavy usage and/or use in extreme
conditions.
- Flic is not waterproof. Do not submerge or attempt to use it underwater as
this will result in irreversible damage that is outside the scope of the Shortcut
Labs AB warranty.
Page 9
Warranty
8
Shortcut Labs AB warrants that your Flic hardware product (“the product”)
will be free from defects in materials and workmanship for 24 months from
the date of delivery to the original retail purchaser (“the warranty period”).
If a defect in the product arises within the warranty period, Shortcut Labs will,
at its sole option and subject to applicable laws:
(1) repair or replace it with a new or refurbished product or component, or
(2) refund the original purchase price upon return of the defective product.
This warranty does not apply to products you purchase from unauthorized
resellers, where the instructions for use and activation of the product are not
complied with, or where the product is damaged as a result of abuse,
accident, modification, moisture, or other causes beyond our reasonable
control.
Note: Battery usage is regarded as normal wear and tear and is therefore
not covered by the 24-month warranty.
For detailed warranty information visit:
https://flic.io/documents/warranty-police
Page 10
Notice
9
Federal Communications Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, under part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used by the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
Caution
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the
equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Radio Frequency (RF) Exposure Warning
This equipment must be installed and operated by provided instructions and the antenna(s) used for this transmitter must be
installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions
and transmitter operating conditions for satisfying RF exposure compliance.
Canada, Industry Canada (IC) Notices
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Canada, avis d'Industry Canada (IC)
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless
Device should be used in such a manner that the potential for human contact during regular operation is minimized.
This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions
(antennas are greater than 20 cm from a person's body).
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industrie
Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal.
Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions
d'exposition à des appareils mobiles (antennes supérieures à 20 cm à partir du corps d'une personne).
Page 11
Join us! https://community.flic.io/
10
Share your ideas with other Flic users and keep up to date with the latest
news and happenings from the Flic team.
Shortcut Labs AB, Drottning Kristinas Väg 41, 11428, Stockholm, Sweden
