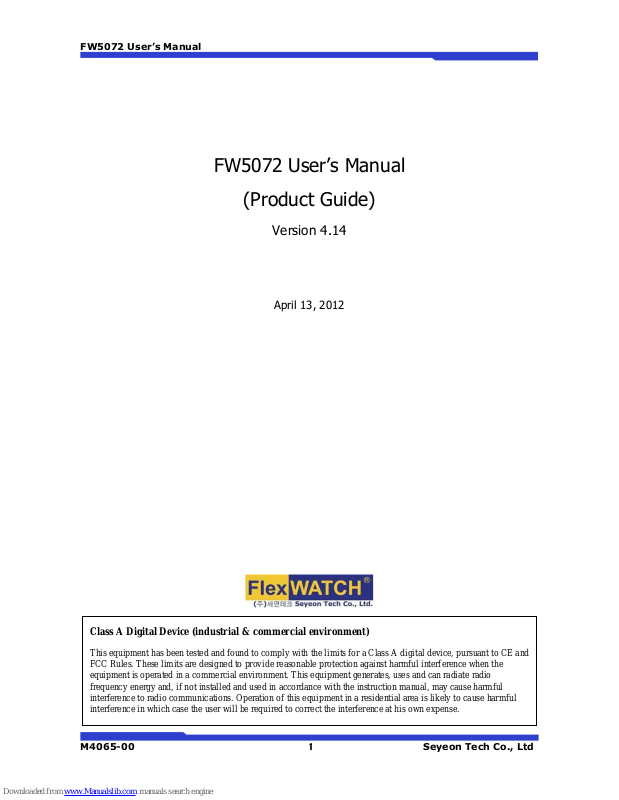

Page 1
FW5072 User’s Manual
M4065-00 １１１１ Seyeon Tech Co., Ltd
FW5072 User’s Manual
(Product Guide)
Version 4.14
April 13, 2012
Class A Digital Device (industrial & commercial environment)
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to CE and
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
Page 2
FW5072 User’s Manual
M4065-00 ２２２２ Seyeon Tech Co., Ltd
FW5072 User’s Manual
Document Part Number: M4065-00
Document Version: 4.14
Revised: April 13, 2012
About This Document
This document is prepared for users of FW5072 supplied by Seyeon Tech Co., Ltd. It is assumed that the
users are familiar with Microsoft Windows operating systems and Web browsers such as Internet Explorer.
It is also assumed that the users are well aware of how to install and use the network equipment such as
LAN, Hub, router, and having basic knowledge of network terminologies. If you have any questions
regarding network installations, please contact your network equipment vendor or network administrator
or Internet service providers.
For updated contents, detailed features and other applications from Seyeon Tech, please refer to the user’s
manual in CD-ROM provided with the product you purchased, or visit Seyeon Tech’s Internet homepage at
http://www.flexwatch.com/.
Copyright Notice
Copyright © 2012 Seyeon Tech Co., Ltd. All rights reserved.
No part of this document may be reproduced in any form or by any means without the prior written
permission of Seyeon Tech Co., Ltd.
Disclaimer
Seyeon Tech Co., Ltd. (Seyeon Tech) Makes no representations or warranties with respect to the contents
hereof. In addition, information contained herein is subject to change without notice. Every precaution has
been taken in the preparation of this manual, nevertheless, Seyeon Tech assumes no responsibility for
errors or omissions or any damages resulting from the use of the information contained in this document.
Trademarks
FlexWATCH® and FlexWATCH® Logo are trademarks of Seyeon Tech Co., Ltd.
Windows and Internet Explorer are a trademark of Microsoft Corporation.
All other trademarks belong to their respective owners.
Technical Support
For technical support call, email, or visit our web site.
Telephone: +82-2-2192-6840~1
Email: [email protected]
Web site: http://www.flexwatch.com or http://www.seyeon.co.kr
Page 3
FW5072 User’s Manual
M4065-00 ３３３３ Seyeon Tech Co., Ltd
Contents
1. PRODUCT OVERVIEW ......................................................................................................................... 4
1.1. FW5072 .......................................................................................................................................................................... 4
1.2. K
EY FEATURES
................................................................................................................................................................. 5
1.3. S
PECIFICATION FOR
FW5072 ...................................................................................................................................... 6
1.4. FW5072 P
ACKING LIST
................................................................................................................................................ 8
2. HARDWARE DESCRIPTION ................................................................................................................ 9
2.1. FW5072 F
RONT VIEW
.................................................................................................................................................. 9
2.2. FW5072 R
EAR PANEL
................................................................................................................................................ 10
2.2.1. COM Port Description ...................................................................................................................................... 11
3. FW5072 INSTALLATION AND BASIC SETUP ................................................................................. 12
3.1. B
EFORE INSTALLATION
................................................................................................................................................. 12
3.2. F
ACTORY DEFAULT SETTINGS
..................................................................................................................................... 12
3.3. I
NSTALLING
FW5072 .................................................................................................................................................. 12
Page 4
FW5072 User’s Manual
M4065-00 4 Seyeon Tech Co., Ltd
1. Product Overview
1.1. FW5072
FlexWATCH® 5072 is a standalone, pure network video recorder which saves, transmits real-time
video from FlexWATCH(Network Video Server, Network Camera) over TCP/IP network.
It can transmit up to 120fps@HD over the existing network. You can monitor video of FW5072 through
web browser(ie. MS Internet Explorer), if FW5072 is connected to network. Saving & search is possible as
well with HDD equipped.
FW5072 supports video compression MJPEG, and H.264 simultaneously so that user can choose
appropriate video compression for the purpose. A hard drive is equipped inside FW5072 so the video
streams can be recorded and searched per user’s need. The recording can be kept enabled all the time, or it
can also be initiated by motion-detection, sensor input, or time scheduling. The searching feature provides
various search conditions that can be combined together for efficiency.

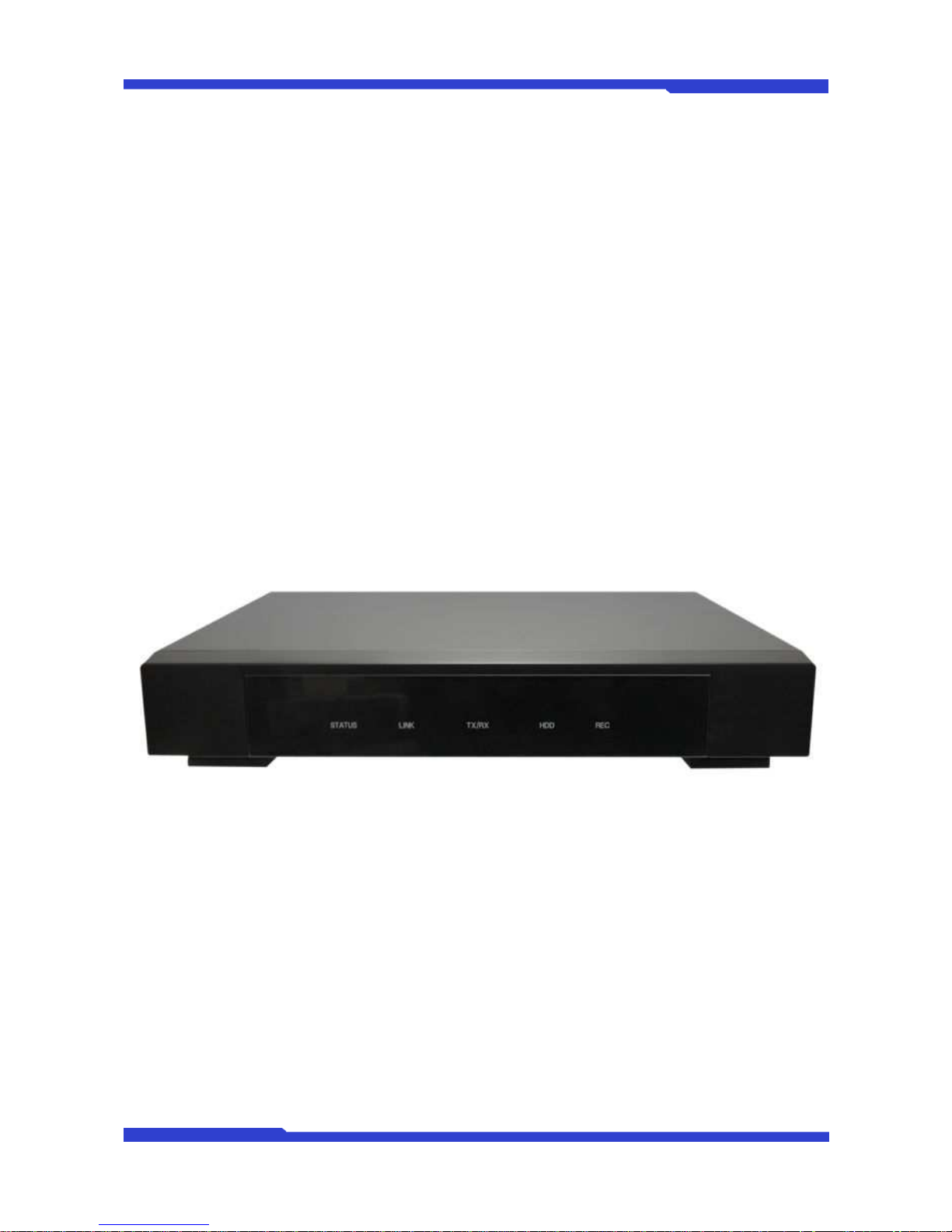

Picture 1 : FW5072
Page 5
FW5072 User’s Manual
M4065-00 5 Seyeon Tech Co., Ltd
1.2. Key Features
Standalone device built-in web server
10M/100M/1000M Auto-Sensing Ethernet
Configuration and control device through Web browser
Max 240 fps transmission speed on TCP/IP network
Effective Bandwidth & Bit-rate Control (VBR/CBR) by H.264
Support Dynamic IP network by IPCCTVDNS Server
Support various PTZ (Pan/Tilt/Zoom) devices
Support Transparent Mode
Encryption function by user authentication
Network server adding, saving
Encryption function by user authentication
Image transmission function via FTP and Email
User-friendly GUI for playback & export Video as AVI file
Record Video by motion event
Page 6
FW5072 User’s Manual
M4065-00 6 Seyeon Tech Co., Ltd
1.3. Specification for FW5072
Hardware
32bit Embedded CPU
Flash 8Mbytes /SDRAM: DDR2 128Mbytes
Linux version 2.6.24.4 operating system
Battery backed up real-time clock
Video compression
MJPEG
MPEG-4
H.264
Recording
2 Step frame rate
(Fast on event/Slow on continuous recording mode)
Supports Linux File system.
Supports max. 4 Tera SATA HDD (Two 2 Tera SATA HDD)
Anti-shock system
Transmission or Recording
(Single Mode)
Performance(1000Base-T / LAN)
Trans: 120fps(NTSC)/100fps (PAL)
Rec : 120fps(NTSC)/100fps (PAL)
when Single Mode with total channels at HD
Transmission and Recording
(Duplex Mode)
Performance(1000Base-T / LAN)
Trans: 120fps(NTSC)/100fps (PAL)
Rec: 110fps(NTSC)/100fps (PAL)
when Duplex Mode with total channels at HD
Transmission and Recording
and Playback
(Triplex Mode)
Performance(1000Base-T / LAN)
Trans: 120fps(NTSC)/100fps (PAL)
Rec : 110fps(NTSC)/100fps (PAL)
when Triplex Mode with total channels at HD
LAN interface 10/100/1000 BaseT Ethernet auto sensing
Serial Interface
One serial ports for console, modem(PSTN & GSM), serial input/output device,
COM Port is RS-232,
Max Baudrate: 115200 bit/s
Management
Configurable by serial, web or telnet
Remote system update via telnet, FTP OR web browser.
Developer support
Provides HTTP CGI API
ActiveX control development kit
PWR Consumption
DC 12Volt
Max or Peak: 1.8 A
Normal : 1.0 A
(with Seagate Barracuda ES.2 1000Gbyte)
Operating Environment
Temperature : 41° ~ 122°F (5° ~ 50°C)
Humidity : 20 ~ 80% RH(non-condensing)
Miscellaneous
Work with Smart NVR(CMS software)
Dynamic IP support through IPCCTVDNS Server
Users
Live-cast for up to 16x8 Channel
Playback for up to 16 clients
Installation, management and
maintenance
Installation CD and web-based configuration
Firmware upgrades over HTTP, telnet & FTP, firmware available at homepage
Page 7
FW5072 User’s Manual
M4065-00 7 Seyeon Tech Co., Ltd
Video access from Web
browser
Video access from Web browser
Minimum Web browsing
requirements
Pentium 4, 2 GHz, 2GB(RAM) or higher
Video Card: 256MB RAM, 1024x768 resolution or higher
100Mbps Network Adaptor or faster
Windows XP Pro or later
Internet Explorer 6.x or later
System integration support
Powerful API for software integration available at http://www.flexwatch.com,
including Simple Viewer API, FlexWATCH Control SDK, event trigger data in video
stream, embedded scripting and access to serial port peripherals over HTTP/TCP
User can be installed user program daemon for event notification or sending image.
Embedded operating system: Linux 2.6
Supported protocols HTTP, TCP/IP, FTP, Telnet, RARP, PPPoE, PAP, CHAP, DHCP, NTP, SMTP client
Approvals
KCC
FCC : Class A
CE : Class A
RoHS
Dimensions (HxWxD) and
weight
378(W) x 267(D) x 64(H) (in mm)
About 2.3kg without power supply & HDD.
* All specifications are subject to change without prior notice.
Table 1 : Specification for FW5072
Page 8
FW5072 User’s Manual
M4065-00 8 Seyeon Tech Co., Ltd
1.4. FW5072 Packing List
FW5072’s packing box includes the following items
FW5072 1 EA
Power Supply Unit
(Power Cable & SMPS DC12V 5A Adapter)
1 EA
CD (User’s Manual, IP Installer and etc) 1 EA
Table 2 : FW5072 Packing list
Please check all the listed items are included in your package. For any missing items, please contact
your local distributor.
Page 9
FW5072 User’s Manual
M4065-00 9 Seyeon Tech Co., Ltd
2. Hardware Description
2.1. FW5072 Front View

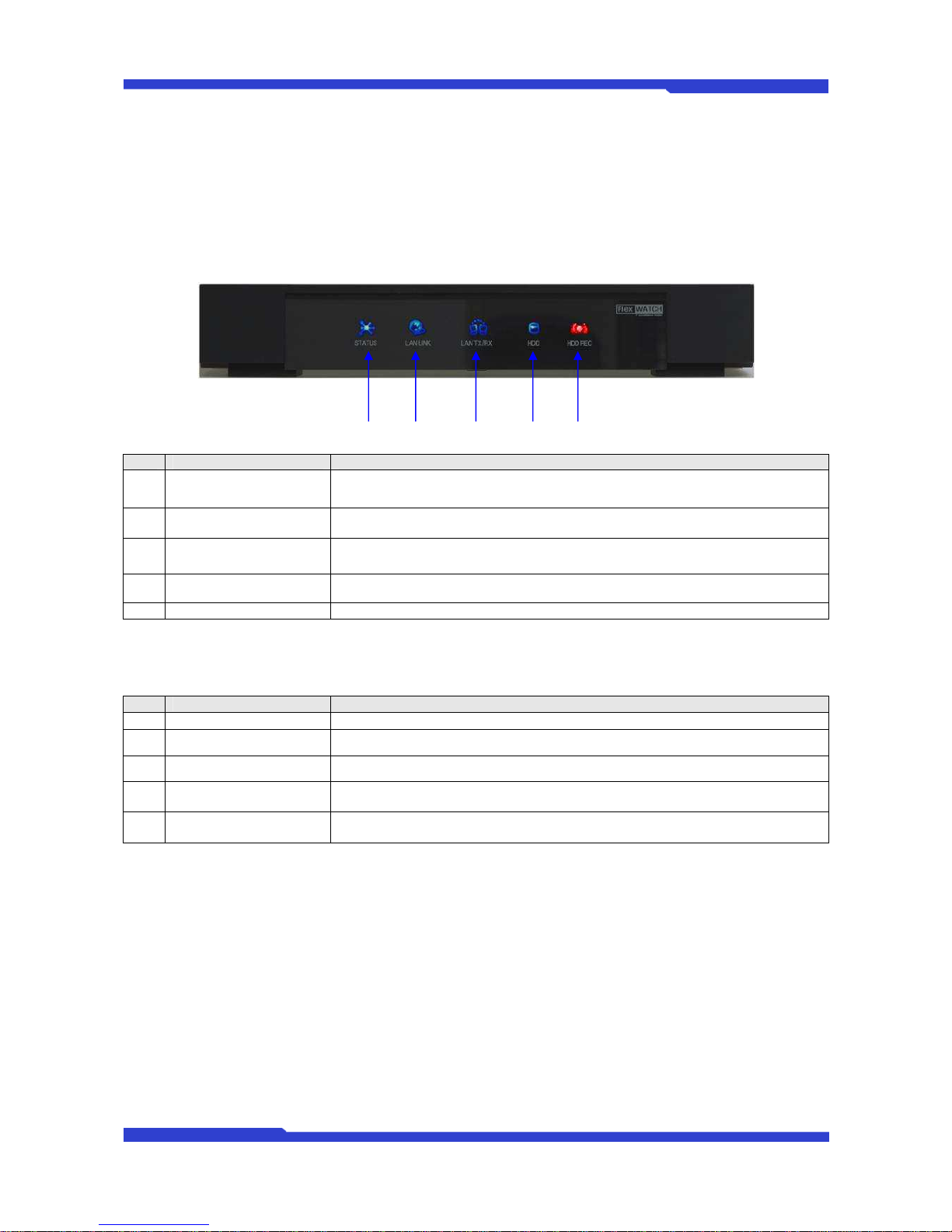

Picture 2 : FW5072 Front panel
A B C D E
PART DESCRIPTION
A STATUS LED
It indicates the status of operation & shutdown of FW5072.
Blue LED turns on during normal operation after FW5072 boots.
B LAN LINK LED
It indicates the status of access to LAN physically.
Blue LED turns on in case it accesses to LAN normally.
C LAN(Tx/Rx) LED Blue LED turns on when there is data transmission at the connected LAN.
D HDD LED Blue LED blinks when formatting or recording at HDD.
E HDD RECORDING LED Red LED blinks when HDD is recording.
Table 3 : FW5072 Front panel description
Beep Sound Description
Name Description
1 Power ON Beep one time shortly when power switch on.
2 System Ready Beep two times when booting is finished.
3 Power Off Beep two times (0.5 sec) when power switch off.
4 HDD Error
Beeps continuously for five seconds when HDD has an error.
To make it keep quiet, you can set it on admin menu.
5 FD Button
Beep one time (0.5 sec) after three seconds and then beep three times shortly
after another three seconds.
Table 4 : FW5072 Beep Sound Description
Page 10
FW5072 User’s Manual
M4065-00 10 Seyeon Tech Co., Ltd
2.2. FW5072 Rear Panel

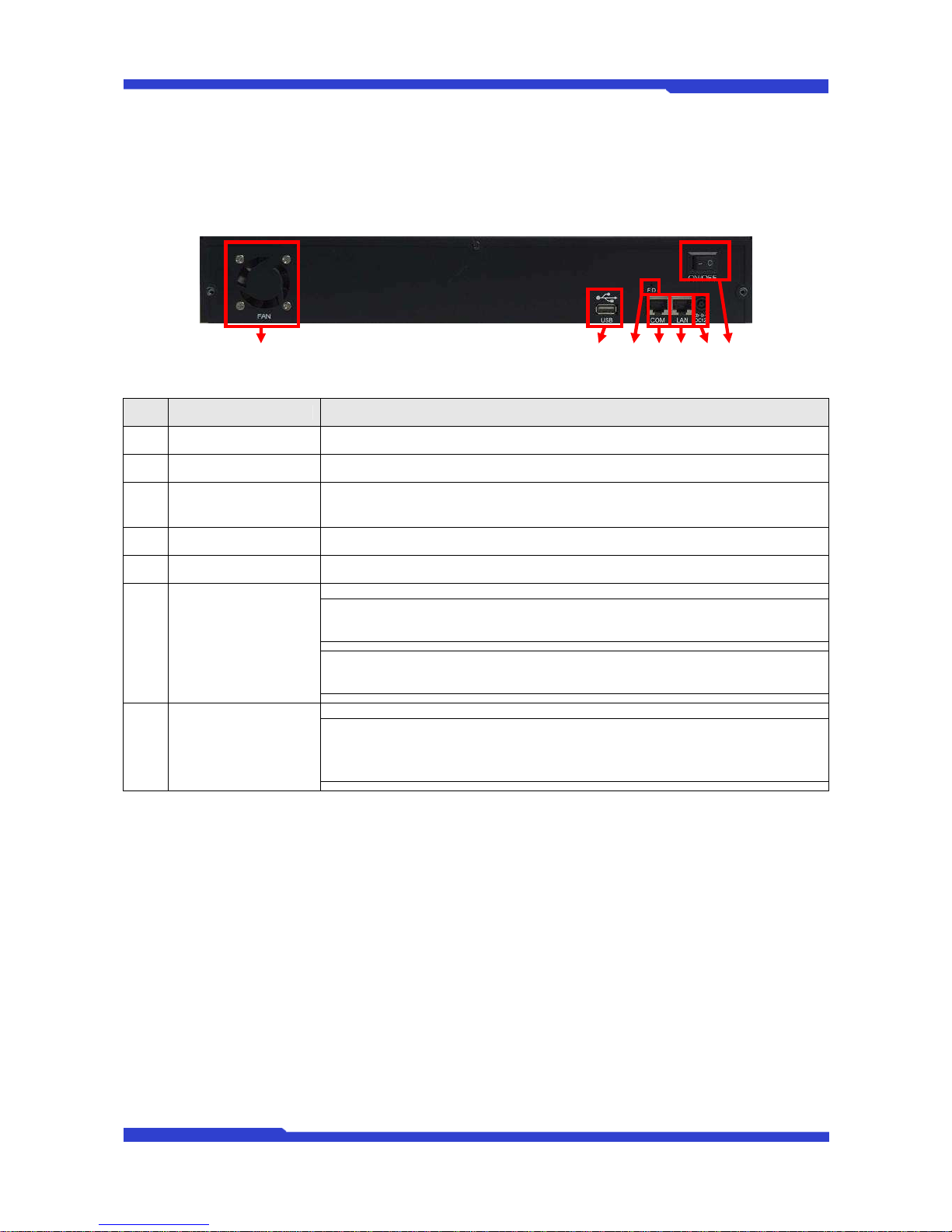

Picture 3 : FW5072 Real panel
A B C D E F G
PART DESCRIPTION
A Cooling FAN HDD Cooling FAN
B USB USB port (reserved for future use)
C Factory Default Switch
It gets back system to factory default.
Push the switch for 7 secs after system booting.
D COM Needed to set up devices with Console ( UART-Out, UART-In)
E LAN LAN port
F Power
DC 12V 5A
Do not push power switch right after power turns off.
Push power switch after HDD, FAN stops operation.
G Power Switch
Used to switch on/off power
Do not turn off the power switch until format is completed since fatal
problem happens if users turn off the switch during HDD format.
Table 5 : FW5072 Rear panel view
Page 11
FW5072 User’s Manual
M4065-00 11 Seyeon Tech Co., Ltd
2.2.1. COM Port Description
Below image illustrates PIN No. of COM Port to connect in case of setting devices using console,
numbers are displayed in order from the left.
For RS-232 connection, RXD& TXD& GND are used only in general, RXD and TXD should be crossed
to communicate properly in case it connects with PC one by one.

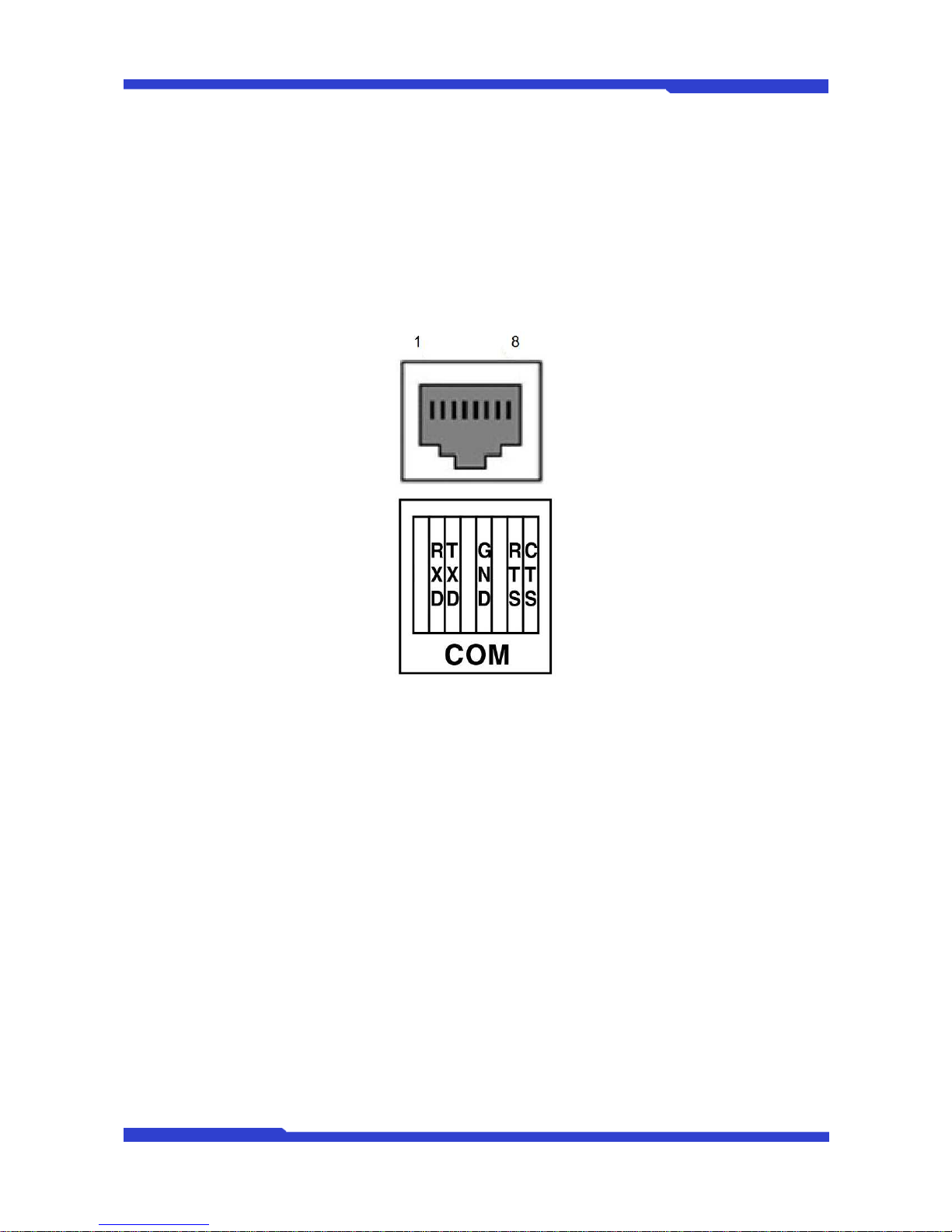

Picture 4 : COM Port Description
Page 12
FW5072 User’s Manual
M4065-00 12 Seyeon Tech Co., Ltd
3. FW5072 Installation and Basic Setup
3.1. Before Installation
Read carefully User's Manual.
Check User’s Network (IP Address, Network Mask and default gateway)
Secure IP address for FW5072.
3.2. Factory Default Settings
The following table shows the factory default condition. Please refer to this when you need to change
the values on admin menu.
Factory Default
Admin ID root
Admin password root
IP address 10.20.30.40
Network mask 255.255.255.0
Gateway 10.20.30.1
Table 5 : Factory Default
Note:
Factory default Admin ID and Password are all lower case letters. You can change the
password with Capital letters.
3.3. Installing FW5072
For installation of FW5072, please follow the steps below.
1.
Place the FW5072 in place.
2.
Connect the FW5072 to the Internet cable through the LAN port.
3.
Connect the power supply of FW5072.
After that, you need to follow the steps below.
Network Configuration: Refer to “IP Installer User’s Manual”
Camera Configuration: Refer to “FlexWATCH Admin Menu User’s Manual”
Service Configuration: Refer to “FlexWATCH Admin Menu User’s Manual”
Loading...
