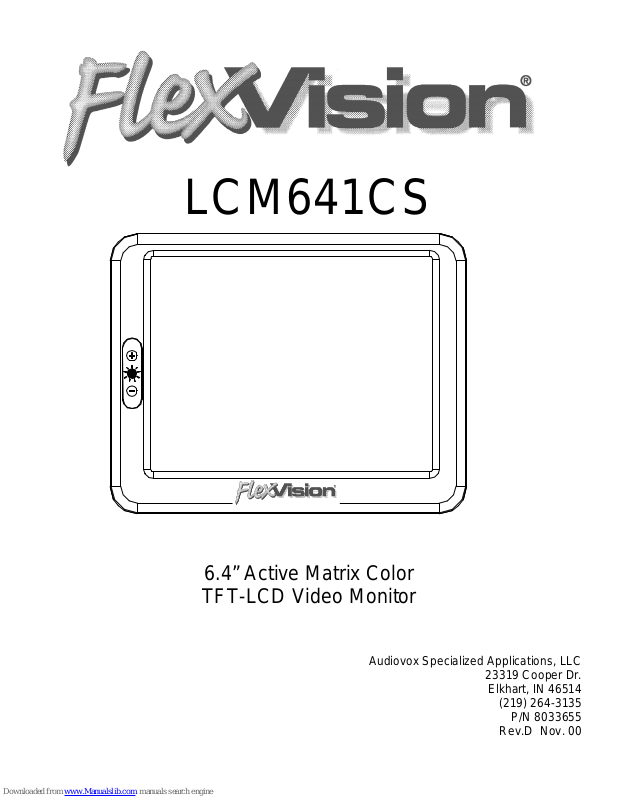

flexvision LCM641CS User Manual

LCM641CS

6.4” Active Matrix Color

TFT-LCD Video Monitor

Audiovox Specialized Applications, LLC

23319 Cooper Dr.

Elkhart, IN 46514

[phone]

P/N 8033655

Rev.D Nov. 00

Features

Wide Viewing Angle
High Resolution (640 x 480)
High Brightness (300 nit)
Slim Line Housing (1” Deep)
Flat Rear Housing for Easy Surface Mounting
Automatic Video Signal Sensing Turn-On Circuit
Designed and Tested for Automotive use

1

Physical Features

Viewing Area

Brightness

Control

Switch

6.66"

SN:
QC'd:

Front View

LCM-641-CS

000001

5.22"

Power/Video
Connector Recess

Power/Video
Harness Cable
Recess

Mounting Holes
Typ. (#10 Screw)

2

Rear

Package Contents

Quantity

6.4” TFT LCD Panel 1

Power Connection Harness 1

Power/Video Harness 1

#10 – 5/16” Mounting Screw 4

3
