FlexTone Rx-8000 User Manual
User Manual
FlexTone
Rx-4000
Page 2
2
FlexTone Rx-4000 User Manual
Table Of Contents
Pg. 4 Quick Start guide....................................................
Pg. 5 Key Guidelines .......................................................
Connecting Electrodes and Leads....................
Starting & Stopping a session ..........................
Pg. 6 Rx-8000 Diagram ...................................................
Pg .7 LCD Display ...........................................................
Power Indicator.................................................
Time Indicator ...................................................
Body diagram ..................................................
Pg. 8 Battery & Charging ...............................................
Pg. 9 Setting The Intensity ...........................................
Intensity For EMS Training ..............................
Intensity For TENS Pain Relief ........................
Pg. 10 Program Guide .....................................................
TENS Programs (Pain Relief & Rehab) ...........
Knee / Elbow ...................................................
Hip (Sciatica Nerve Treatment) .......................
Pg. 11 Program Guide .....................................................
Back.................................................................
Arm / Leg .........................................................
Shoulder ..........................................................
Foot / Sole .......................................................
Pg. 12 EMS Programs (Muscle toning)
Program 1 - Abdominal Toning .........................
Program 2 - Russian Stim ................................
Program 3 - Active Recovery ............................
Page 3
3
FlexTone Rx-4000 User Manual
Pg. 13 Strength Training .................................................
Pg. 14 Active Recovery ...................................................
Pg. 15-17 Pad Placement Chart ......................................
Pg. 18 Electrode Care .....................................................
Pg. 19 Indications For Use ..............................................
Pg. 20 Precautions ..........................................................
Pg. 21 Warnings ..............................................................
Pg. 22 Precautions ..........................................................
Page 4
4
FlexTone Rx-4000 User Manual
1
Connect the electrodes to the lead wires
and the lead wires to the unit.
2
Place the electrodes on the desired muscle
group.
3
Press the green ON button and Select the
desired program.
4
Set the Timer, and slowly increase the
intensity until the desired level of stimulation
is achieved.
QUICK START
GUIDE
Note: To STOP a session, briey press the ON/OFF
button. You can change a program without ending the
session. All you have to do is press the program you
desire.
Page 5
5
FlexTone Rx-4000 User Manual
QUICK START
GUIDE
Page 6
6
FlexTone Rx-4000 User Manual
1
2
3
5
6
7
4
Rx-4000 Diagram
1. On/O Button - Press for 1 Second to turn unit On or O.
2. Power Indicator LCD - The Power LCD indicator illuminates
green when the unit is on.
3. LCD Display Window - The LCD display window will remain
back-lit for 12 seconds after any changes are made. The LCD
displays the current program, timer, and battery life.
4. TENS Body IQ Program Bank - The Purple Buttons are for
Body IQ.
5. Channel Intensity Knob - The four knobs located across the
bottom of the unit control the intensity of each channel.
6. Channel Status Indicator LCD - When illuminated, the
channel is on.
7. EMS Programs - The 3 blue buttons on the bottom panel of
the unit are the EMS programs-Abdominal training, Strength
training and Active Recovery.
8. Timer - Adjustable between 10-60 Minutes.
8
Page 7
7
FlexTone Rx-4000 User Manual
LCD Display
1
1
2
3
1. Battery Indicator - Indicates remaining battery life.
2. Body IQ Display -
The human body will illuminate with
a corresponding dot for the selected Body IQ program
selected.
3. Time Indicator- The Timer Indicator shows remaining
time of session.
Page 8
8
FlexTone Rx-4000 User Manual
Battery
The StimRX® Rx-8000 has a built-in, rechargeable, lithium
battery, and will fully charge within 30-45 minutes. Check
battery indicator to conrm that battery is fully charged.
The battery can be charged with a USB connection, or
the adapter provided with your unit. Do not use unit while
charging.
The battery icon symbol will appear on the Blue LCD
display at all times during operation. As the battery power
decreases, the 3 bars on the battery symbol disappear one
by one. The outline of the battery symbol will ash to indicate
when the batteries need to be charged.
PRO
TIP
1. In order to preserve battery longevity you
should fully charge the unit at least once a
month.
2. DO NOT USE THE UNIT WHEN
PLUGGED IN AND CHARGING
Page 9
9
FlexTone Rx-4000 User Manual
Setting the Intensity
When rst beginning the treatment session make sure all
of the channel intensity knobs are in the OFF position by
twisting them all the way left until they click and the channel
indicator LCD is no longer illuminated.
Begin by slowly increasing the intensity until you feel a
tingling sensation. Depending on the desired eect, the
intensity plays a major role in the eectiveness of the
session:
For EMS (Muscle Training / Active Recovery)
For EMS training and active recovery you need to ensure
that the muscles are optimally contracting. In order to do so,
increase the intensity of the stimulation until you can feel and
see the muscles contract. A setting between 5-10 typically
works best.
For TENS (Pain Relief)
For TENS therapy the goal is to achieve immediate pain
relief. Adjust the intensity as needed to alleviate pain.

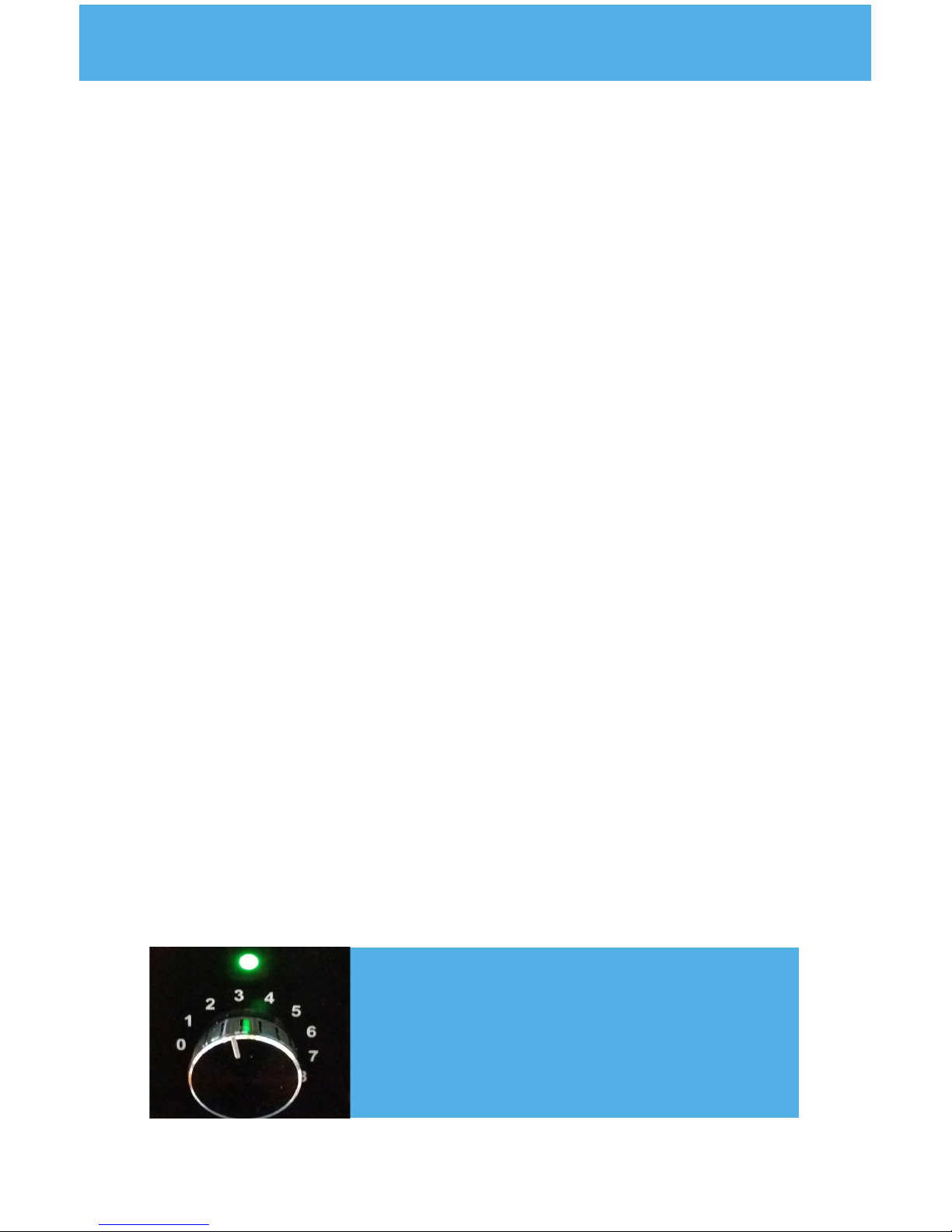

A channel intensity knob indicating a
power level of 2.5. You can see the
channel is active when the LCD above
the knob is green.
Page 10
10
FlexTone Rx-4000 User Manual
Program Guide
The Rx-8000 incorporates some of the most advanced TENS
& EMS technology in the world into each of our 9 unique
Body IQ programs. Whether your goal is strength training,
endurance, pain relief, or recovery, the Rx-8000 allows
you to achieve your goals quickly, and with scientically
engineered waveforms designed for best results.
KNEE & ELBOW
This program is a combination of
rapid pulses followed by a series of
slower more deliberate contractions.
This mixture is very eective in
eliminating knee and elbow pain
because of high cartilage and bone
density. Recommended stimulation
time is 20-30 minutes.
Placeholder
Body IQ Programs
The Rx-8000 oers 6 unique Body IQ
programs designed for individual body
parts which are located in the purple
button bank.
HIP
This Hip program produces a strong,
steady, and deeply penetrating
frequency that is critical in preventing
hip pain. The HIP frequency is also
designed for people who suer from
sciatic nerve pain. Stim time 20-40
minutes.
Page 11
11
FlexTone Rx-4000 User Manual

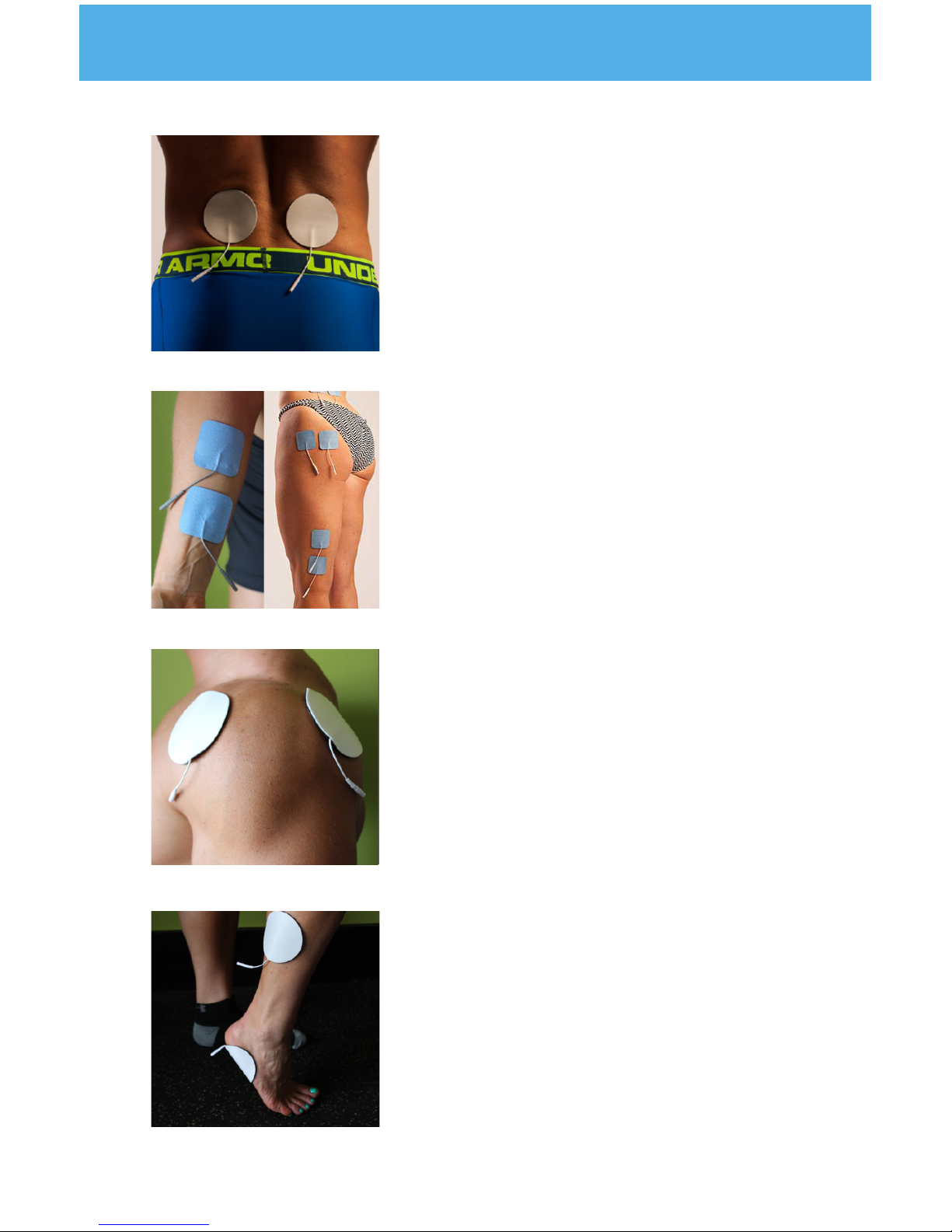

BACK
ARM & LEG
SHOULDER
FOOT & SOLE
The Back program oers a
combination of deep penetrating
therapy, coupled with soft and gentle
pulses allowing you to treat a variety
of back pain from tightness, to sore or
strained muscles. This program works
best when used with the Back & Ab
Belt Pro. Stim time 20-30 minutes.
The Arm and Leg program uses a
series of 4 unique cycles that are
designed to reach deeply into the
muscles of the leg and arm. Beginning
with a series of rapid pulses, followed
by smooth powerful contractions, and
nishing with short deep deliberate
pulses. Stim time 20-40 minutes
The shoulder program is designed
for all areas related to the shoulder
muscles in order to prevent pain in
the upper back, neck, and shoulder
area. The Shoulder program cycles
throughout multiple frequencies. Stim
time 20-30 minutes.
The Foot & Sole Program is designed
to increase blood ow to the ankle,
foot, and toes. It is recommended
to use this frequency with our
therapy sandals, or the smaller 2”x2”
electrodes. Stim time 15-30 minutes.
Placeholder
Placeholder
Page 12
12
FlexTone Rx-4000 User Manual
EMS Programs
The Rx-4000 oers 3 unique Body IQ programs designed
to tone, rm, and strengthen muscles.
Abdominal Toning Strength Training Active Recovery

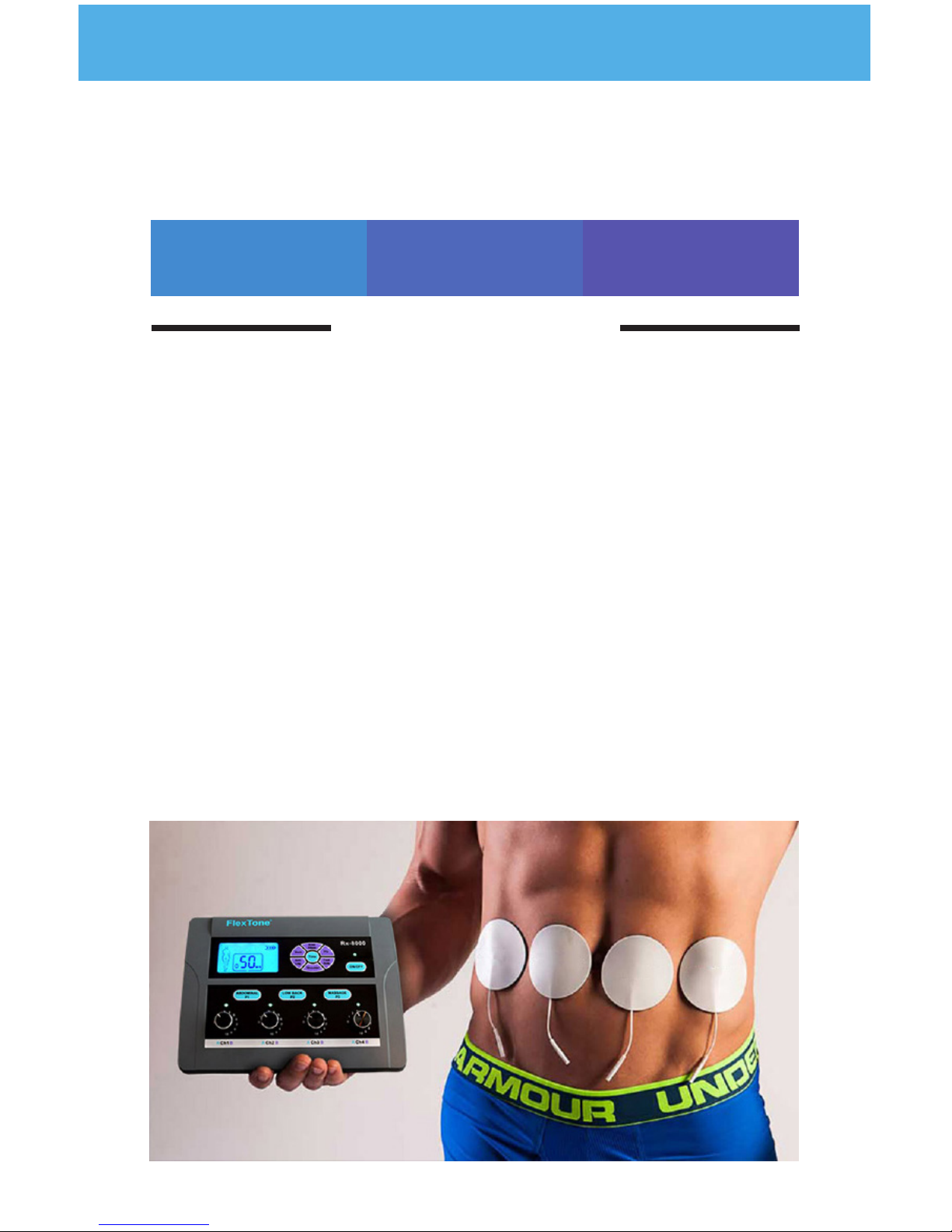

Abdominal Toning
Core Muscle Strength is the most important factor for
overall body mechanics. A strong core is crucial for injury
prevention. The abdominal muscles are one of the most
important muscle groups for tness and wellness.
The Abdominal Toning Frequency with the Rx-4000 utilizes
cutting edge research to deliver the most eective and
comfortable workout. The Abdominal Toning Frequency
relies on a deep penetrating and rhythmic frequency in order
to stimulate a thorough contraction.
The Abdominal Toning frequency works best when used with
the StimRX Ab Belt Pro.
Recommended Stim Time: 30-45 Minutes
Page 13
13
FlexTone Rx-4000 User Manual
Strength Training
Since the Early 1970’s athletes have turned to EMS, or
electrical muscle stimulation, to push their strength to
another level. By incorporating EMS into your workout
routine, or even by itself, you can increase your muscle
performance, strength, and tone.
The Strength Training Program on the Rx-4000 utilizes stateof-the-art Russian Stim (2500hz Packets) adapted to include
proper rest time between contractions, allowing the muscle
bers to contract and increase strength, while remaining
comfortble.
The Strength Training Program is more eective the higher
the intensity is turned up. We recommend a level just below
your maximum threshold in order to get the most ecient
results.
Recommended Stim Time: 30 Minutes
Page 14
14
FlexTone Rx-4000 User Manual
Active Recovery
Active recovery, as opposed to passive recovery, is the
stimulation and exercise of a muscles in the o-day of
training. The purpose of active recovery is to stimulate
muscles, decrease recovery time, increase strength, and
reduce pain associated with DOMS, or Delayed Onset
Muscle Soreness. Active recovery works by:
• Removing waste build-up
• Bringing nourishment to muscles
• Stimulating the production of myokines
What are some benets of active recovery
with Electronic Muscle Stimulation?
Electronic muscle stimulation provides one of the best forms
of active recovery because of its low impact deployment,
coupled with convenience and control. Electronic Muscle
Stimulation allows the user to pinpoint specic muscles for
treatment, while using very little amounts of energy. Active
recovery with EMS is comfortable, convenient, and highly
eective.
StimRX - Active Recovery Perfected
The StimRX Active Recovery Program is a unique blend of
frequencies including both TENS and EMS which provide the
most ecient and eective Electronic Active Recovery on the
market.
PRO
TIP
Active Recovery should be performed at
about 60% intensity of regular exercise to
avoid over-exerting your muscles.
Page 15
15
FlexTone Rx-4000 User Manual

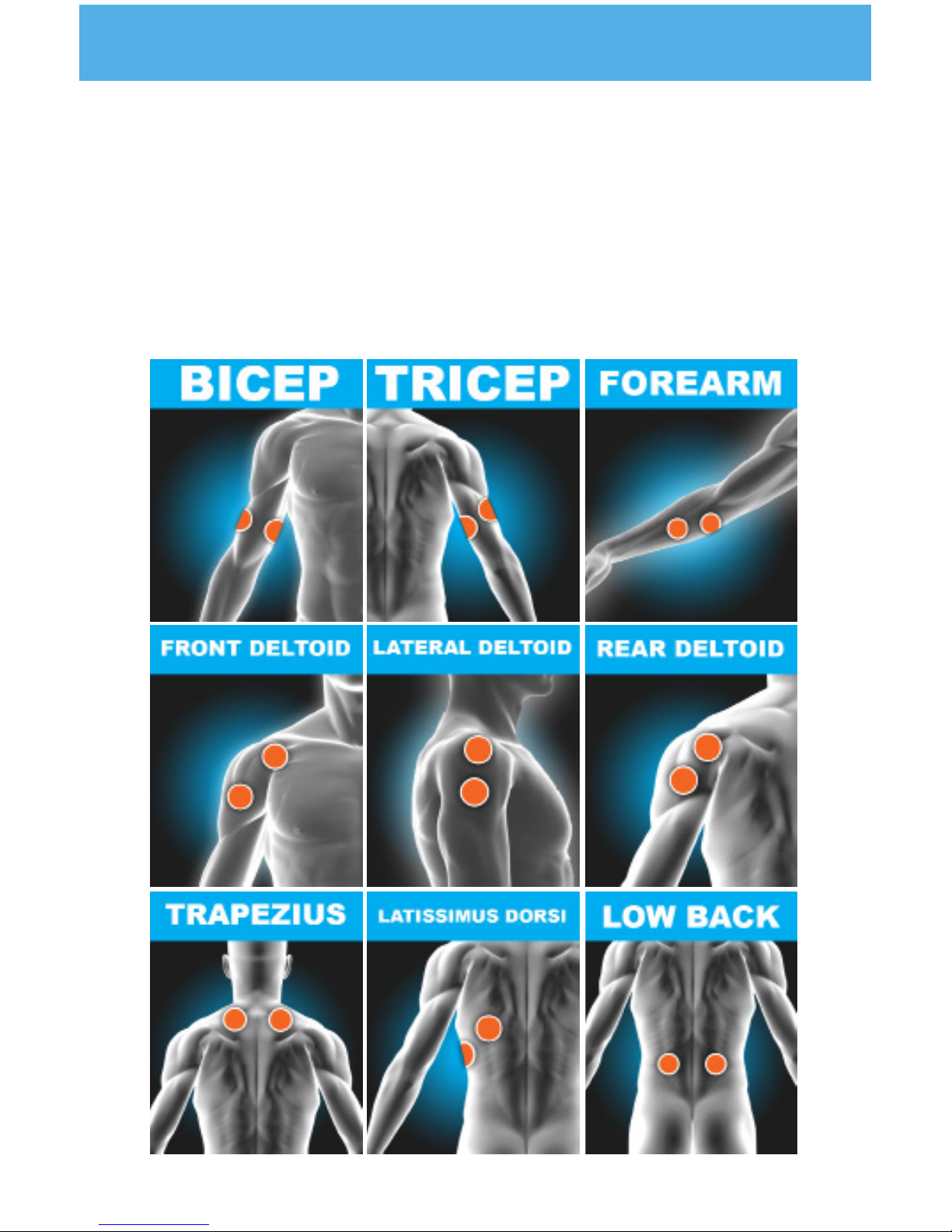

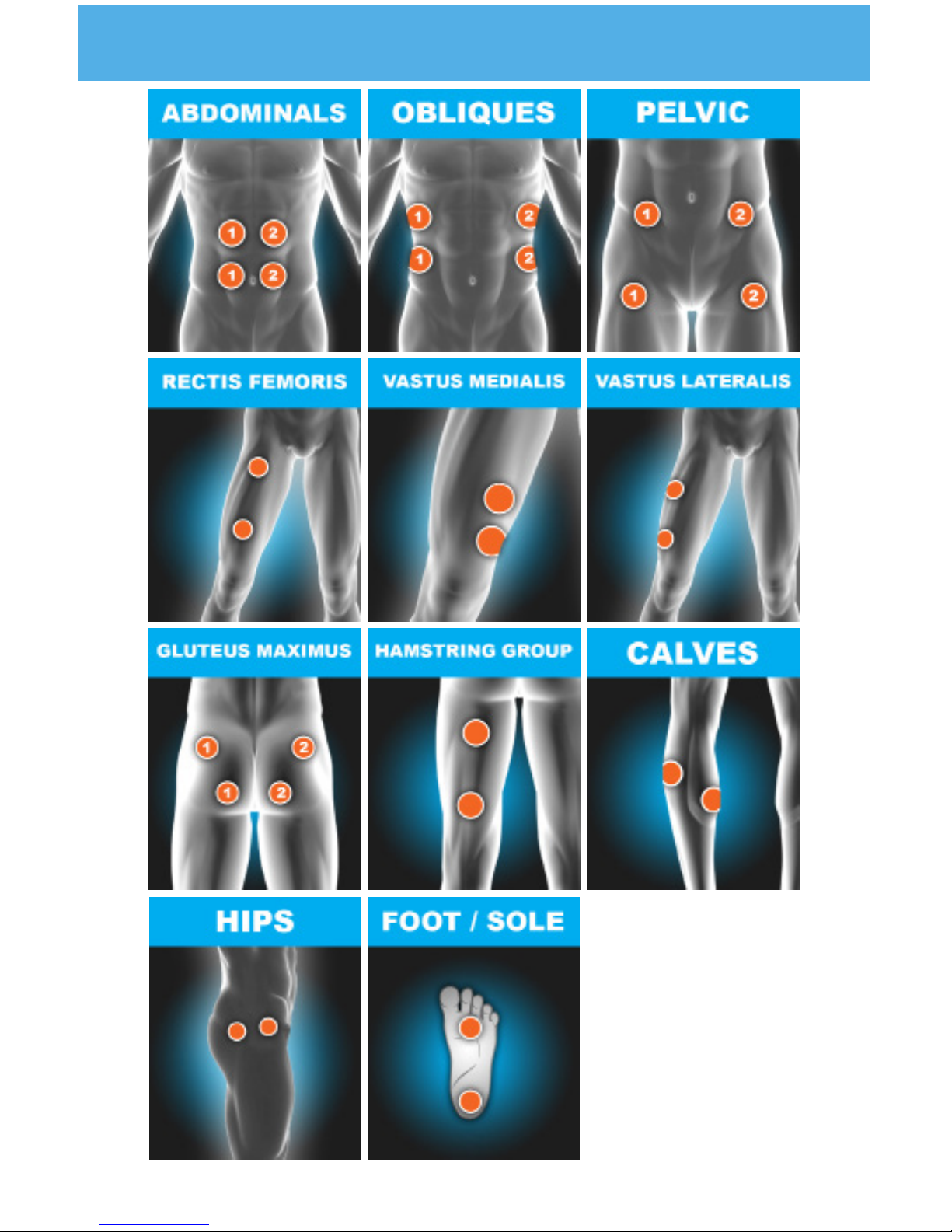

Pad Placement
Chart
Page 16
16
FlexTone Rx-4000 User Manual
Page 17
17
FlexTone Rx-4000 User Manual

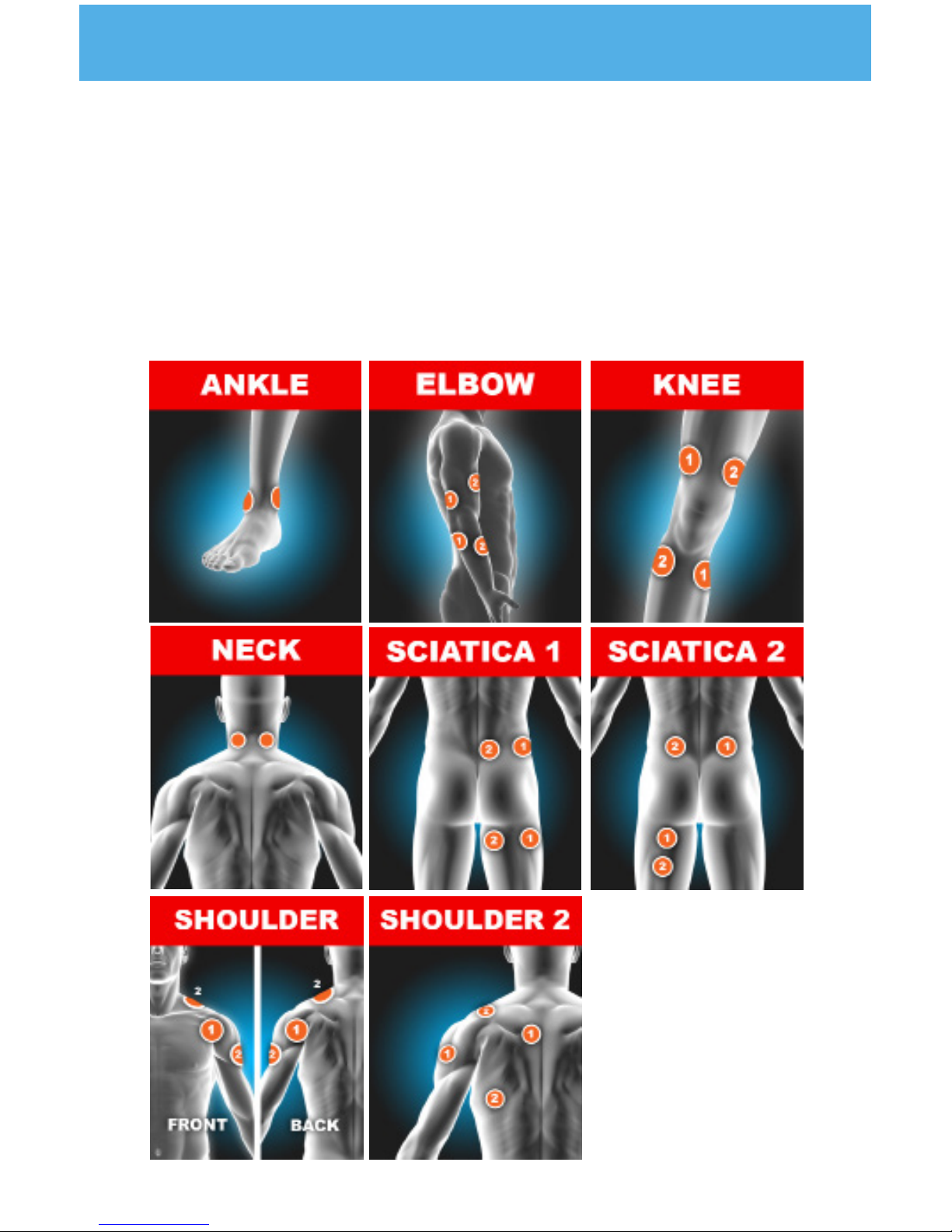

Advanced Pad
Placement
Page 18
18
FlexTone Rx-4000 User Manual
Electrode Care & Life
To get the most benet from your electrodes, be sure your
skin is free from dirt, oil and body lotion. The electrodes will
disperse stimulation more eectively with little or no hair in
the desired treatment area, so we recommend removing any
hair in the area to be treated. The lifespan of the electrode
pads will vary depending on how often you use them and
how you care for them. Keeping electrode pads clean and
stored on the original sheet, and sealed in the zip lock bag
after each use will extend their lifespan. If your electrodes
are no longer able to adhere to the skin properly, make sure
to replace them in order to maximize dispersion and comfort.
EXTENDING ELECTRODE LIFE
The electrodes typically have a cloth or foam backing, and
a sticky gel coating that conducts electricity. The gel is the
“middle man” between the wire and the skin. Our electrodes
are hypo-allergenic, and constructed with water-based
material. Keep adhesive electrodes away from heat and
cold. Electrode life is prolonged when they are stored at
room temperature.
• To revive the adhesive gel just take your nger, pass
it under some running water, and wipe a few drops on
the sticky side of the pad. The water will soak in and
rehydrate the surface, giving the electrode pad some
extra life!
Page 19
19
FlexTone Rx-4000 User Manual
INDICATIONS FOR USE
Please read the contra-indications, precautions and warnings
carefully to determine whether any of them apply to you.
The RX-4000 stimulates motor nerves that supply the muscle.
There are nine (9) dierent programs with varying times and
intensities which can be used for warm-up, strength training, and
recovery after exercise.
CONTRA-INDICATIONS, PRECAUTIONS &
WARNINGS
The RX-4000 can be used by all healthy adults; however some
care should be taken during use. Read the Manual and follow
the guidelines prior to use. The signal strength can be adjusted
to a high intensity and caution should be taken when setting the
intensity. If there is any doubt whether you should use TENS &
EMS see your doctor for an opinion.
KEY GUIDELINES
• EMS/TENS use is for healthy adults. Keep out of reach of
children.
• Never apply electrodes to any part of the head, face, neck,
throat, or directly over the heart.
• Always ensure the two electrodes from the same lead are
used to exercise one muscle.
• Never use the device in ways other than those directed in the
user manual.
CONTRA-INDICATIONS Do not use if:
• You have an electronic implant, or if you suer from any other
heart problem because it may interfere with the functioning of
the implant.
Page 20
20
FlexTone Rx-4000 User Manual
CONTRA-INDICATIONS Continued:
• You have cancer or cancerous lesions. The eects of
electronic stimulation on cancerous tissue are unknown.
• You suer from epilepsy
• The unit is in close proximity to shortwave or microwave
therapy equipment, or you are connected to high-frequency
surgical equipment
• Wearing the pads necessitates placement over areas where
drugs/medicines are administered by injection.
• You have a bad back. Also, ensure the intensity is kept at a
low setting for back treatment.
• You have serious injury or illness not mentioned in this manual
• You experience any irritation, skin reaction, hypersensitivity, or
other adverse reaction. Note that some reddening of the skin
under the pad is normal.
Additional Information
• Contact StimRx®, or an authorized dealer, if your unit is
not working correctly, and immediately discontinue use until
resolved.
• An eective session should not cause discomfort.
• For rst time users we recommend you begin in a seated
position with low stimulation intensity settings.
• Keep out of reach of children.
• Leads and electrodes must not be connected to, or used with
,other objects.
• Do not use this unit while using any other device that transmits
electrical current into the body
• .Do not use when driving, operating machinery, or cycling.
• Cease usage if you are feeling light headed or faint. Call your
doctor immediately if this happens.
• Do not place pads over jewelry or body piercings.
• StimRx® will not accept responsibility if the instructions
and guidelines supplied with this unit are not followed.
Page 21
21
FlexTone Rx-4000 User Manual
WARNINGS
• Do not use while sleeping, electrodes may become loose.
• User must position the pads and operate unit ONLY as
indicated in this manual. Never place the pads on the front or
sides of neck, across or through the heart (i.e., one pad on the
front of the chest and one on the back), in the genital region or
on the head, because of the risk of stimulating inappropriate
muscles and organs
• Avoid placing electrodes over any recent scars, broken or
inamed skin, infected areas or areas susceptible to acne,
thrombosis or other vascular problems (varicose veins), or any
part of the body where feeling is limited without rst consulting
your doctor.
• Avoid areas of injury or restricted movement without rst
consulting your doctor.
• Avoid placing the pads over metal implants.
• Wait before using your StimRx® product until:
• At least 6 weeks after the birth of your baby. You must
consult your doctor before use.
• One month after an IUD contraceptive device has been
tted. You must consult your doctor before use.
• At least 3 months after having a caesarian section. You
must consult your doctor before use.
• The heavy days of your period have nished because
vigorous abdominal exercise is not recommended at this
time.
• Do not use in the bath or shower, or in an environment of
elevated humidity (sauna).
• Caution should be used in the following:
• When there is a tendency to bleed internally following a
fracture or injury.
• Following recent surgical procedures when electronic
stimulation may disrupt the healing process.
• Over areas of skin which lack normal sensation.
Page 22
22
FlexTone Rx-4000 User Manual
Adverse Reactions
• Skin irritations and burns have been reported with the
improper use of electronic muscle stimulators
• On very rare occasions, rst time users of EMS have reported
feeling light-headed or faint. StimRx® recommends you use
the product while seated until you become accustomed to the
sensation.
Pad Precautions
• To reposition pads during a session, always turn o the
program in use, THEN reposition the pads as directed in this
manual. Once you have repositioned the electrodes properly,
you may restart the program.
• Only use pads supplied by StimRx® with your muscle
conditioner. The pads are for single person use only.
• Do not submerge the pads into water.
• Do not apply solvents of any kind to the pads.
• Always ensure the unit is OFF before removing the pads
• Apply the entire surface of the pads rmly to the skin. Do not
use pads which do not adhere properly and completely to the
skin. You can purchase new pads at www.Stimrx.com
• If your skin is red under the pad after a session, do not start
another session on the same area until the redness has
completely disappeared
Loading...
