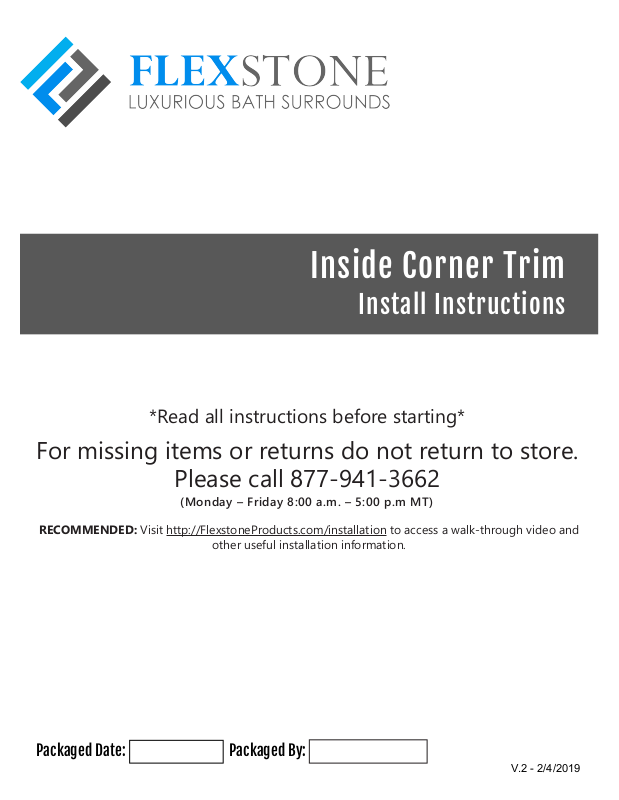

Inside Corner Trim
V.2 - 2/4/2019
Install Instructions
*Read all instructions before starting*
For missing items or returns do not return to store.
Please call 877-941-3662
(Monday – Friday 8:00 a.m. – 5:00 p.m MT)
RECOMMENDED: Visit http://FlexstoneProducts.com/installation to access a walk-through video and
other useful installation information.
Packaged Date: Packaged By:
Inside Corner Trim Instructions
V.2 - 2/4/2019
Inside Corner Trim
FLXICN
Installation of Inside Corner Trim
1. Inside Corner Trims can be used to hide gaps or poor
cuts where two panels meet in a corner. Install Inside Corner
Trims AFTER the FlexStone wall panels and edge trims and
corner shelf are installed. Be sure to peel away protective
masking from the wall panels efore installing the Inside
Corner Trim.
2. Measure from the tub or shower base to the bottom of
the horizontal edge trims of the bath kit. Cut the Inside Corner Trim to proper length. If a corner shelf is installed in this
corner, divide the Inside Corner Trim into sections to run from
the tub or shower base up to the bottom of the corner shelf,
and from the top of the corner shelf up to the edge trims.
3. Peel away protective masking from the trim, apply con-
struction adhesive to the back of each ange of the trim,
keeping the adhesive away from the edges of each ange (to
avoid adhesive squeezing out the edges).
4. Secure in place, and hold with painter’s tape while the
adhesive cures.
5. Seal all edge joints with Performance Pro 100% Silicone,
as with the rest of the surround.
– 1 –
