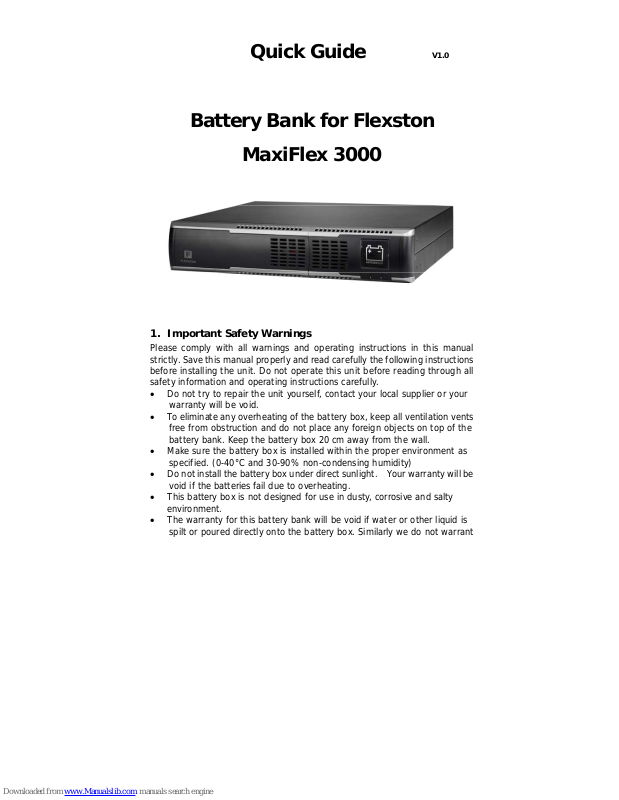

Quick Guide V1.0
Battery Bank for Flexston
MaxiFlex 3000
1. Important Safety Warnings
Please comply with all warnings and operating instructions in this manual
strictly. Save this manual properly and read carefully the following instructions
before installing the unit. Do not operate this unit before reading through all
safety information and operating instructions carefully.
Do not try to repair the unit yourself, contact your local supplier or your
warranty will be void.
To eliminate any overheating of the battery box, keep all ventilation vents
free from obstruction and do not place any for eign objects on top of the
battery bank. Keep the battery box 20 cm away from the wall.
Make sure the battery box is installed within the proper environment as
specified. (0-40°C and 30-90% non-condensing humidity)
Do not install the battery box under direct sunlight. Your w arranty will be
void if the batteries fail due to overheating.
This battery box is not designed for use in dusty, corrosive and salty
environment.
The warranty for this battery bank will be void if water or other liquid is
spilt or poured directly onto the battery box. Similarly we do not warrant
any damage to the battery box if foreign objects are deliber ately or
accidentally inserted into the battery box enclosure.
The battery will discharge naturally if the system is unused for a period of
time.
It should be recharged every 2-3 months if unused. If this is not done,
then the warranty will be null and void. During normal operation, the
batteries will be automatically remained in charged condition.
Servicing of batteries should be performed or supervised by qualified
personnel and with required precautions.
When replacing batteries, it is necessary to replace ALL batteries with the
same quantity, type & capacity.
CAUTION – Do not dispose of batteries into a fire. The battery may
explode.
CAUTION – Do not open or damage the batteries. The electrolyte from
the batteries is toxic and harmful to the skin and eyes.
CAUTION – Risk of Electric Shock –Hazardous voltage may exist between
battery terminals and ground. Test before touching with bare hands.
CAUTION – A battery can present a risk of electrical shock and short
circuit current. The following precaution should be observed when
working on batteries:
1. Remove watches, rings, or other metal objects.
2. Use tools with insulated handles.
3. Wear rubber gloves and boots.
4. Do not lay tools or metal parts on top of batteries.
5. Disconnect mains prior to connecting or disconnecting battery
terminals.
Do not plug or unplug the battery connector if UPS works in DC
(discharging) mode.
2. Installation and Setup
NOTE: Before installation, please inspec t the unit. Be sure that nothing inside
the package is damaged. Please keep the original package in a safe place for
future use.
2-1 Rear Panel View
1. DC connector : connects to either UPS or 2
nd
battery box
2. DC breaker: Battery over-current protection breaker
3. External battery numbers detection port: detects the numbers of
connected batteries.
2-2 Installation and Setup with UPS
Unpacking & Inspection
1. Remove the battery box from the packing.
Note: The battery box is very heavy, be cautious when unpacking and
lifting the unit to avoid injury.

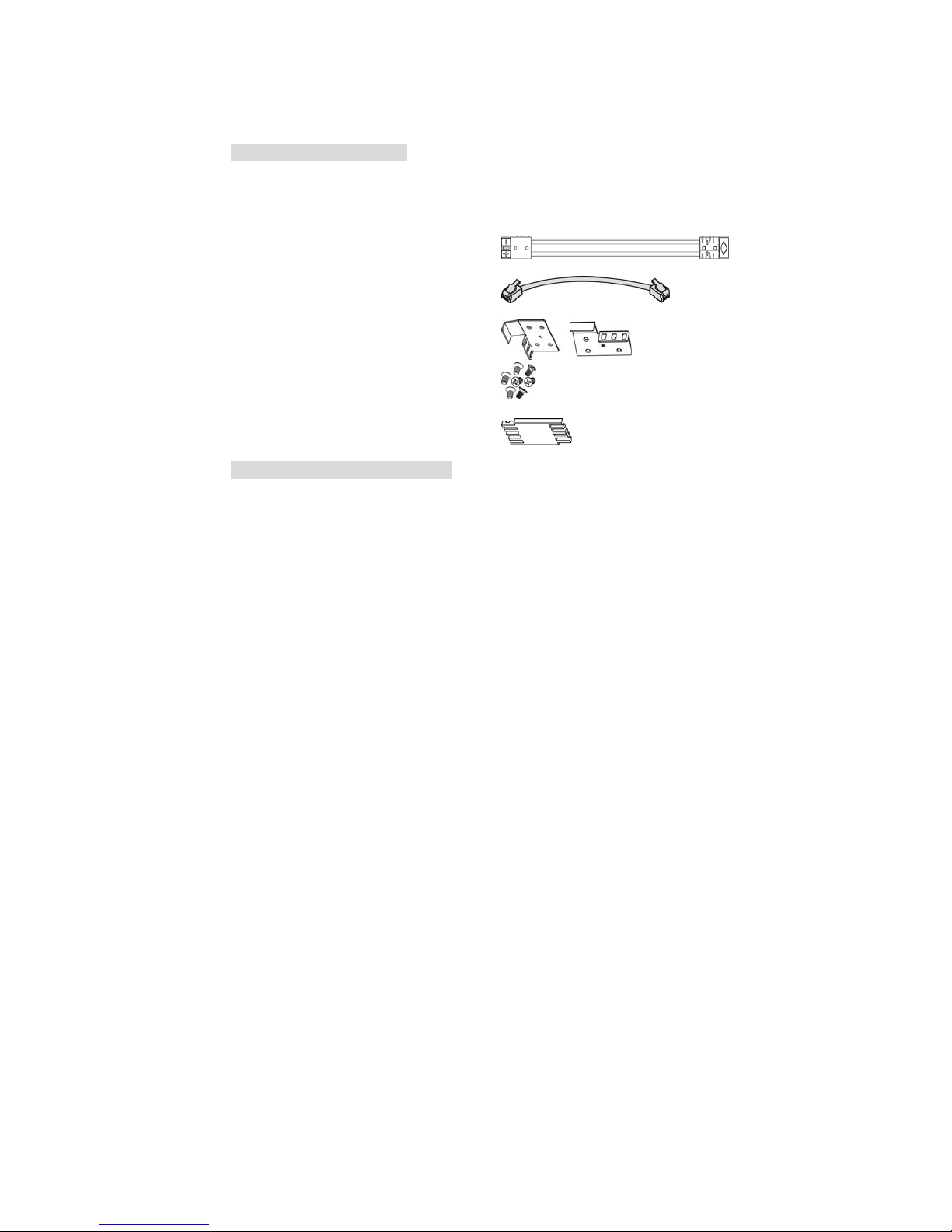

2. Check the inside package
Battery box unit
Quick guide
Battery connection cable x 1
Detection cable x 1
Ear x 2 & screw x 8
Extended stand
Selecting Installation Position
It is necessary to select a proper environment to install the unit, in order to
minimize the possibility of damage to the battery box and extend the life of
the batteries. Please follow the instructions below:
1. Keep at least 20cm (8 inches) clearance from the rear panel of the unit
from the wall or other obstructions.
2. Do not block the air-flow of the ventilation vents of the unit.
3. Please ensure the installation site environmental conditions are in
accordance with the unit’s working specifications to avoid overheat and
excessive moisture.
4. Do not place the unit in a dusty or corrosive environment or near any
flammable objects.
5. This unit is not designed for outdoor use.
Battery connection cable
Detection cable
Ears
screws
Extended stand

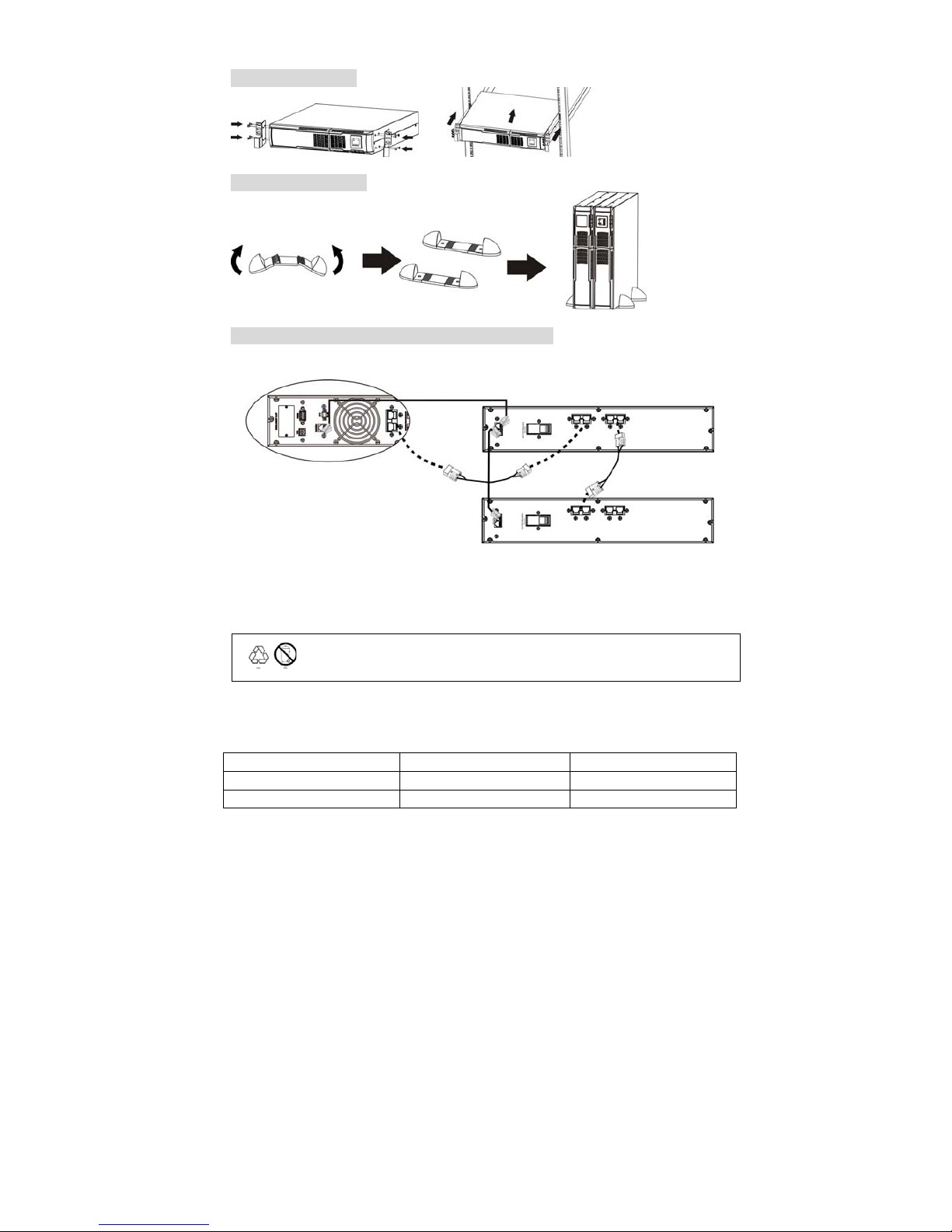

This unit can either be mounted or placed vertically on the desk.
Rack Installation
Tower Installation
Connecting with UPS and Other Battery Box
Follow below installation chart to connect with UPS and other battery box with
included cable.
3. Storage & Maintenance
The unit contains none user-serviceable parts. If the battery service life
(3~5 years at 25°C ambient temperature) has been exceeded, the
batteries must be replaced. In this case, please contact your dealer.
Storage
Before storing, charge the unit 4 hours. Store the unit covered and
upright in a cool, dry location. During storage, recharge the battery in
accordance with the following table:
Storage Temperature Recharge Frequency Charging Duration
-25°C - 40°C Every 3 months 1-2 hours
40°C - 45°C Every 2 months 1-2 hours
Be sure to deliver the used battery to a recycling facility or ship it
to your dealer in the replacement battery packing material.
UPS
2
nd
battery box
1
st
battery box
