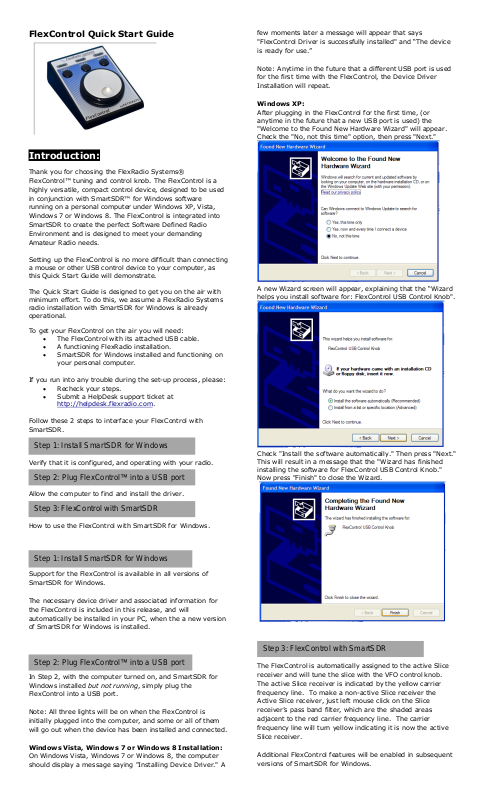

FlexControl Quick Start Guide
Step 1: Install SmartSDR for Windows
Step 2: Plug FlexControl™ into a USB port
Step 1: Install SmartSDR for Windows
Step 2: Plug FlexControl™ into a USB port
Step 3: FlexControl with SmartSDR
Step 3: FlexControl with SmartSDR
Introduction:
Thank you for choosing the FlexRadio Systems®
FlexControl™ tuning and control knob. The FlexControl is a
highly versatile, compact control device, designed to be used
in conjunction with SmartSDR™ for Windows software
running on a personal computer under Windows XP, Vista,
Windows 7 or Windows 8. The FlexControl is integrated into
SmartSDR to create the perfect Software Defined Radio
Environment and is designed to meet your demanding
Amateur Radio needs.
Setting up the FlexControl is no more difficult than connecting
a mouse or other USB control device to your computer, as
this Quick Start Guide will demonstrate.
The Quick Start Guide is designed to get you on the air with
minimum effort. To do this, we assume a FlexRadio Systems
radio installation with SmartSDR for Windows is already
operational.
To get your FlexControl on the air you will need:
The FlexControl with its attached USB cable.
A functioning FlexRadio installation.
SmartSDR for Windows installed and functioning on
your personal computer.
If you run into any trouble during the set-up process, please:
Recheck your steps.
Submit a HelpDesk support ticket at
http://helpdesk.flexradio.com.
Follow these 2 steps to interface your FlexControl with
SmartSDR.
Verify that it is configured, and operating with your radio.
Allow the computer to find and install the driver.
How to use the FlexControl with SmartSDR for Windows.
few moments later a message will appear that says
"FlexControl Driver is successfully installed" and “The device
is ready for use.”
Note: Anytime in the future that a different USB port is used
for the first time with the FlexControl, the Device Driver
Installation will repeat.
Windows XP:
After plugging in the FlexControl for the first time, (or
anytime in the future that a new USB port is used) the
"Welcome to the Found New Hardware Wizard" will appear.
Check the "No, not this time" option, then press "Next."
A new Wizard screen will appear, explaining that the “Wizard
helps you install software for: FlexControl USB Control Knob".
Check "Install the software automatically." Then press "Next."
This will result in a message that the "Wizard has finished
installing the software for FlexControl USB Control Knob."
Now press "Finish" to close the Wizard.
Support for the FlexControl is available in all versions of
SmartSDR for Windows.
The necessary device driver and associated information for
the FlexControl is included in this release, and will
automatically be installed in your PC, when the a new version
of SmartSDR for Windows is installed.
In Step 2, with the computer turned on, and SmartSDR for
Windows installed but not running, simply plug the
FlexControl into a USB port.
Note: All three lights will be on when the FlexControl is
initially plugged into the computer, and some or all of them
will go out when the device has been installed and connected.
Windows Vista, Windows 7 or Windows 8 Installation:
On Windows Vista, Windows 7 or Windows 8, the computer
should display a message saying "Installing Device Driver." A
The FlexControl is automatically assigned to the active Slice
receiver and will tune the slice with the VFO control knob.
The active Slice receiver is indicated by the yellow carrier
frequency line. To make a non-active Slice receiver the
Active Slice receiver, just left mouse click on the Slice
receiver’s pass band filter, which are the shaded areas
adjacent to the red carrier frequency line. The carrier
frequency line will turn yellow indicating it is now the active
Slice receiver.
Additional FlexControl features will be enabled in subsequent
versions of SmartSDR for Windows.
This device was tested to comply with FCC and CE standards
and is approved for home or office use.
Note:
This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful Interference in a residential
installation. This equipment generates uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the Instruction manual, may cause harmful
interference to radio communications. However, there is no
guarantee that Interference will not occur in a particular
installation.
! – WARNING! i – Information Δ – Caution
! – This unit is NOT A TOY. It must not be handled by children nor
placed/operated within reach of children.
! – Do not leave packing material for this unit unattended. It may be
harmful to children if misused.
! – This unit contains small parts that could be a choking hazard to small
children. Do not leave accessories unattended.
! – Do not operate this unit in potentially explosive environments.
! – Never attempt to insert wires or any tools into the interior of this unit
during operation. This may cause fire or electric shock.
! – This unit must only be operated with the electrical power supplied by a
computer USB port, as described in this Quick Start Guide. NEVER
CONNECT THE USB CONNECTOR to anything other than Computer with an
approved USB connector.
Δ - This unit must only be opened and/or serviced by a qualified technician.
Δ - Do not operate this unit in areas of extreme humidity.
Δ - Avoid operating this device in areas of extreme heat, excessive vibration,
or mechanical force.
Δ - If any defect, abnormal result, or other observations occur that are not
covered by this Quick Start Guide or the Owner’s Manual; immediately cease
operation and contact the manufacturer or local distributor for operational
advice or repair of the unit.
i - Please study the complete Quick Start Guide and Owner’s Manual.
These documents contain important information regarding the safe
operation of this unit. If you have any questions, please contact the
manufacturer or local distributor for further information.
©2012-2013. All rights reserved. FlexRadio Systems is a registered trademark. FlexControl and
SmartSDR are trademarks of FlexRadio Systems. Specifications are subject to change without
www.flexradio.com support@flexradio.com 512-535-4713
notice. Personal computer and monitor required but not included.
