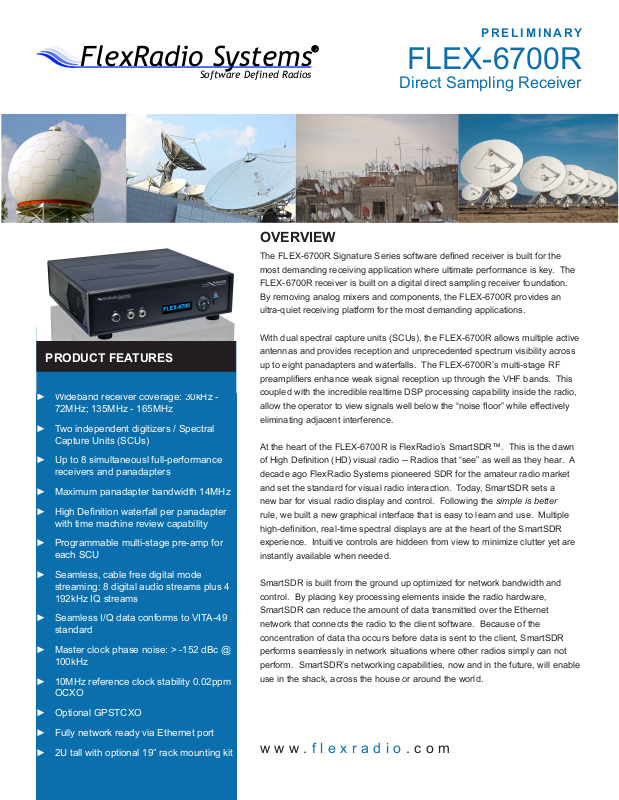

Page 1
FlexRadio Systems
Software Defined Radios
OVERVIEW
The FLEX-6700R Signature Series software dened receiver is built for the
most demanding receiving application where ultimate performance is key. The
FLEX-6700R receiver is built on a digital direct sampling receiver foundation.
By removing analog mixers and components, the FLEX-6700R provides an
ultra-quiet receiving platform for the most demanding applications.
PRELIMINARY
®
FLEX-6700R
Direct Sampling Receiver
PRODUCT FEATURES
► Wideband receiver coverage: 30kHz -
72MHz; 135MHz - 165MHz
► Two independent digitizers / Spectral
Capture Units (SCUs)
► Up to 8 simultaneousl full-performance
receivers and panadapters
► Maximum panadapter bandwidth 14MHz
► High Denition waterfall per panadapter
with time machine review capability
► Programmable multi-stage pre-amp for
each SCU
► Seamless, cable free digital mode
streaming: 8 digital audio streams plus 4
192kHz IQ streams
► Seamless I/Q data conforms to VITA-49
standard
► Master clock phase noise: > -152 dBc @
100kHz
► 10MHz reference clock stability 0.02ppm
OCXO
With dual spectral capture units (SCUs), the FLEX-6700R allows multiple active
antennas and provides reception and unprecedented spectrum visibility across
up to eight panadapters and waterfalls. The FLEX-6700R’s multi-stage RF
preampliers enhance weak signal reception up through the VHF bands. This
coupled with the incredible realtime DSP processing capability inside the radio,
allow the operator to view signals well below the “noise oor” while effectively
eliminating adjacent interference.
At the heart of the FLEX-6700R is FlexRadio’s SmartSDR™. This is the dawn
of High Denition (HD) visual radio -- Radios that “see” as well as they hear. A
decade ago FlexRadio Systems pioneered SDR for the amateur radio market
and set the standard for visual radio interaction. Today, SmartSDR sets a
new bar for visual radio display and control. Following the simple is better
rule, we built a new graphical interface that is easy to learn and use. Multiple
high-denition, real-time spectral displays are at the heart of the SmartSDR
experience. Intuitive controls are hiddeen from view to minimize clutter yet are
instantly available when needed.
SmartSDR is built from the ground up optimized for network bandwidth and
control. By placing key processing elements inside the radio hardware,
SmartSDR can reduce the amount of data transmitted over the Ethernet
network that connects the radio to the client software. Because of the
concentration of data tha occurs before data is sent to the client, SmartSDR
performs seamlessly in network situations where other radios simply can not
perform. SmartSDR’s networking capabilities, now and in the future, will enable
use in the shack, across the house or around the world.
► Optional GPSTCXO
► Fully network ready via Ethernet port
► 2U tall with optional 19” rack mounting kit
www.flexradio.com
Page 2
FLEX-6700R
PRELIMINARY
General Specications
Ethernet Communications 1 Gbps
USB 2.0 Ports (peripheral control) 2
Master Clock Frequency 983.04 MHz
Master Clock Phase Noise in -147 dBc@ 10kHz,
dBc/Hz @245.76 MHz -152 dBc@ 100 kHz
10 MHz Reference Clock Stability 0.02ppm OCXO
(0 to +50 C; +32 to +122 F)
GPSTCXO with Rear Panel Optional
10MHz Reference
GPSTCXO Frequency Stabilty 5x10
(GPS locked)
Modes USB, LSB, CW, RTTY,
AM, Synchronous AM,
FM*
Frequency Resolution 1 Hz min.
Antenna Connectors SO-239x2; BNCx2;
XVTR-BNCx1
Antenna Impedance (w/o tuner) 50 Ohm Unbalanced
Number of Memory Channels Unlimited
-12
over 24 hours
Receiver Data Output
Data I/O Format 32-bit per channel streaming
IQ in VITA-49 format over
UDP/IP
Data Output Transport 1000Base-T (Gigabit)
Ethernet
Bandwidth per Channel 1.6 Mb/s - 12.5 Mb/s
Streaming Data Target Selectable by channel
Control Interface TCP/IP
Firmware Updates Available over Ethernet
Electrical
Power Supply Requirements 100-240 VAC; 50-60Hz;
< 5W standby
< 50W operational
Mechanical
Height 4" (2RU) 3.5” without feet or
10.2cm (8.9cm) without feet
Receiver Specications
Receiver Architecture Direct Digital Sampling
Spectral Capture Units 2
Maximum Slice Receivers 8
ADC Resolution 16-bits
ADC Sampling Rate 245.76 Msps
Wideband Frequency Coverage 30kHz - 72MHz;
135 - 165MHz
Amateur Band Preselector 160m - 2m
Coverage (except 60m)
Preampliers/Attenuators -10 to +30dB
Spurious and Image Rejection >100 dB
Ratio
External Powered Speaker 600 Ohm stereo
Output Impedance Level unbalanced
www.flexradio.com
© Copyright 2014. FlexRadio Systems. All Rights Reserved. FLEX-6700R and SmartSDR are
rademarks of FlexRadio Systems. Specications are subject to change without notice.
Rev 003 10/30/2014
FlexRadio Systems 4616 W. Howard Lane, Ste. 1-150, Austin, Texas 78728 +1–512–535–5266, Fax 512–233–5143
Width 13" (33cm)
Depth 12" (30.5cm) or 13” (33.04
cm) with front handles
Weight: 10 lbs. or 4.5 kg
Operating Temperature 0 to +50 C; +32 to +122 F
Options
2U, 19 inch (48.26cm) Optional
Rack Mounting Kit
Front Handle Kit (Adds Optional
1 inch/2.54cm to total depth
GPSTCXO with Rear Panel Optional
10MHz Reference Output
®
