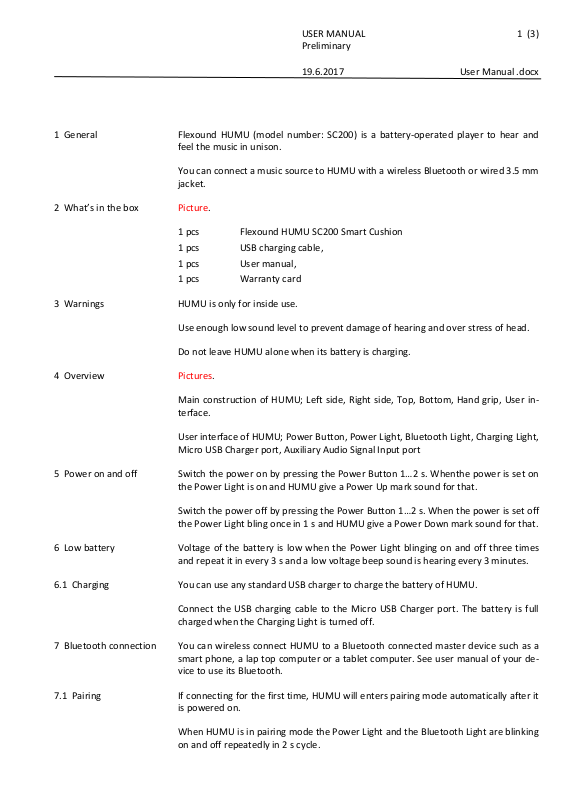

USER MANUAL 1 (3)
Preliminary
19.6.2017 User Manual .docx
1 General Flexound HUMU (model number: SC200) is a battery-operated player to hear and
feel the music in unison.
You can connect a music source to HUMU with a wireless Bluetooth or wired 3.5 mm
jacket.
2 What’s in the box Picture.
1 pcs Flexound HUMU SC200 Smart Cushion
1 pcs USB charging cable,
1 pcs User manual,
1 pcs Warranty card
3 Warnings HUMU is only for inside use.
Use enough low sound level to prevent damage of hearing and over stress of head.
Do not leave HUMU alone when its battery is charging.
4 Overview Pictures.
Main construction of HUMU; Left side, Right side, Top, Bottom, Hand grip, User interface.
User interface of HUMU; Power Button, Power Light, Bluetooth Light, Charging Light,
Micro USB Charger port, Auxiliary Audio Signal Input port
5 Power on and off Switch the power on by pressing the Power Button 1…2 s. Whenthe power is set on
the Power Light is on and HUMU give a Power Up mark sound for that.
Switch the power off by pressing the Power Button 1…2 s. When the power is set off
the Power Light bling once in 1 s and HUMU give a Power Down mark sound for that.
6 Low battery Voltage of the battery is low when the Power Light blinging on and off three times
and repeat it in every 3 s and a low voltage beep sound is hearing every 3 minutes.
6.1 Charging You can use any standard USB charger to charge the battery of HUMU.
Connect the USB charging cable to the Micro USB Charger port. The battery is full
charged when the Charging Light is turned off.
7 Bluetooth connection You can wireless connect HUMU to a Bluetooth connected master device such as a
smart phone, a lap top computer or a tablet computer. See user manual of your device to use its Bluetooth.
7.1 Pairing If connecting for the first time, HUMU will enters pairing mode automatically after it
is powered on.
When HUMU is in pairing mode the Power Light and the Bluetooth Light are blinking
on and off repeatedly in 2 s cycle.
USER MANUAL 2 (3)
Preliminary
19.6.2017 User Manual .docx
Chose “Flexound Experience” in your device to pair HUMU to it.
When HUMU is connected to the master device the Bluetooth Light blink slowly repeatedly first on 0.5 s and after that off 4 s and HUMU give once a Connected mark
sound for that.
Set HUMU to the pairing mode by pressing the Power Button 3…4 s to pairing another master device.
When HUMU was paired already in a master device or master devices and HUMUS’s
power is set on it enters automatically to discoverable mode to reconnecting a master device. When HUMU is in discoverable mode the Power Light and the Bluetooth
Light are blinking on and off repeatedly in 2 s cycle as in the pairing mode.
If HUMU can’t connect to a master device in the discoverable mode or the pairing
mode for 5 minutes HUMU turn off.
7.2 Bluetooth link lost If HUMU lost Bluetooth connection to the master device the Bluetooth Light blink
repeatedly in 2 s cycle and HUMUenters automatically to discoverable mode to reconnecting the master device.
7.3 PDL list HUMU can remember last eight paired connections to different master device in its
Paired Device List (PDL) for automatic reconnection to a master device.
If you want clean the PDL press the Power Button over 5 s. During cleaning the PDL
the Power Light flash fast on and off twice and after that HUMU will enters pairing
mode automatically.
8 Axillary connection Use the Auxiliary Audio Signal Input port to connect an auxiliary line level analogy
stereo signal to HUMU. The port connector is a standard 3.5 mm stereo connector.
When a cable connector is connected in the Auxiliary Audio Signal Input port
HUMU’s Bluetooth receiver is turned off.
9 Fit the HUMU You can use HUMU in different position but it is designed to use as Picture.
10 Maintenance HUMU does not need any specific maintenance. Only battery charging…
If you need to clean the cover of HUMU use only a moist wiper. No any strong washing agents.
If you need to extend operation time of HUMU you can connect anexternal Power
Bank to the Micro USB Charging port.
11 Specification Main dimensions: 512 mm x 309 mm x 308 mm
Weight: 1.5 kg
Cover material: 50% Polyurethane + 50% Nylon
Battery: Lithium Polymer 3.7 V, 5.5 Wh
Play time with full battery in normal sound content and level up to 8 h.
Frequency range: 15 Hz to 20 kHz
