F L E X L I T E
Your worklight has been engineered and manufactured to our high standard for dependability, ease of operation, and operator safety.
When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator’s manual before using this product.
Thank you for buying a FLEXLITE product.
OPERATOR’S MANUAL
LED WORKLIGHT
FLX3T — 3 LED
SAVE THIS MANUAL FOR FUTURE REFERENCE
Patent pending
Printed and made in Canada
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
WORK AREA
Keep your work area clean and well lit. Cluttered benches
and dark areas invite accidents.
Working temperature. This worklight is designed to be
used at normal room temperature. If used under 0°C (32°F)
the battery will discharge faster. If used over 45°C (113°F)
an automatic cut-off will turn the light off until the
temperature of the light head comes down. Depending on if
the work area is closed, with or without a fresh air draft, the
cut-off temperature can be affected (see Features for more
information).
FLEXLITE is designed to be used in an industrial
environment in rain, snow and dust, but FLEXLITE products
can not be immersed in water. If the working area is moist
and dusty, some particles will stick on the fan or heatsink and
reduce the performance. See maintenance section to remove
any dirt.
Don’t operate FLEXLITE in sunshine or near to other heat
sources.
The power supply should be protected with an optional
sealed case. It can’t be used outside or in rain, moisture,
snow, …
DANGER!
Never connect / disconnect or use an external power supply
or charger in a hazardous area.
DANGER!
Never connect or disconnect the connector on the lighthead or
any extension cord when the power is on or when use in
hazardous area.
SERVICE
Worklight service must be performed only by qualified
repair personnel. Service or maintenance performed by
unqualified personnel may result in a risk of injury.
When servicing a worklight, use only identical
replacement parts. Follow instructions in the
Maintenance section of this manual. Use of unauthorized
parts or failure to follow Maintenance Instructions may
create a risk of shock or injury
.
STORAGE TEMPERATURE
Store worklight at room temperature between -35°C and
35°C (-31°F and 95°F) for best results.
When transporting or temporarily storing in a vehicle,
temperature range should be between -35°C(-31°F) and
66°C(151°F).
Storing worklight at temperatures greater than 76°C
(169°F) for extended periods of time (more than 2 hours)
may cause damage to worklight.
DANGER!
Don’t use the power supply outside without protection cabinet
IP66.
2
SPECIFIC SAFETY RULES
Know your worklight. Read operator’s manual carefully.
Learn its applications and limitations, as well as the
specific potential hazards related to this worklight.
Following this rule will reduce the risk of electric shock, fire,
or serious injury.
Lens and housing become hot during use:
During or immediately after use, don’t lay worklight flat
on lens surface or place lens area in contact with a plastic
or fabric covered surface.
Handle worklight with care around any flammable surface.
Do not use or permit use of worklight in bed or sleeping
bags. This worklight lens can melt fabric and a burn injury
could result.
Do not disassemble your worklight.
Do not permit children to use worklight unsupervised. It
is not a toy. The temperature of the light head will become
WARNING!
LED LIGHT
Do not stare into the beam or view directly with or without optical instruments.
hot after being on for only a short period of time. This hot
temperature can cause burn injury if touched and can create
sufficient heat to melt some fabrics.
Stay alert. Watch what you are doing and use common
sense. Do not rush.
If wrapped or in contact with fabrics, the worklight lens
can produce sufficient heat to melt some fabrics. To avoid
serious personal injury, never allow the worklight lens to
come in contact with anything.
Check damaged parts. Before further use of this worklight,
a part that is damaged should be carefully checked to
determine that it will operate properly and perform its
intended function. Do not use worklight if it does not
function properly.
DANGER!
Never install or use the light fixture when the light beam faces a road or sidewalk or if its use may affect the visibility or safety of another
person.
INSTALLATION
You can use your FLX3T with an optional bracket and support. The light fixture must not be installed face up to prevent accumulation of
dust and water in the light lens.
3
SYMBOLS
Some of the following symbols may be used on this worklight. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to operate the worklight better and more safely.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
Class II Construction Double-insulated construction
Safety Alert Precautions that involve your safety.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER :
WARNING :
CAUTION :
CAUTION :
Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SERVICE
Servicing requires extreme care and knowledge and should be
performed only by a qualified service technician. For service
we suggest you return the product to your nearest
AUTHORIZED SERVICE CENTER for repair. When
servicing, use only identical replacement parts.
WARNING:
To avoid serious personal injury, do not attempt to use this
product until you have thoroughly read and completely
understood the operator’s manual. Save this operator’s manual
and review frequently for continuing safe peration and
instructing others who may use this product.
SAVE THESE INSTRUCTIONS
4
FEATURES FLX3T
PRODUCT SPECIFICATIONS
Electrical:
Input voltage : 12 – 15 VDC
Consumption : 2.2 A @ 12V
Lumen : 1755 lumen
Cable length : not included
Efficacy : 93% @ 12 VDCin
Color temperature : 5000°K
Beam spread : 130°
Mechanical:
Diameter : 2 inches (50.8 mm)
Length : 20 inches (508 mm)
Weight : 1.65 lbs (0.75 kg) (without bracket)
Options:
110 to 240V AC power supply #FLX3T-110-2
Mounting bracket #MBN-04
Mounting base #XF-7000
Union to assemble FLX3H together #P-FLSJ
Special « Y » cable (custom order) #FLX3T-Y
Contact your supplier for more information or visit
IMPORTANT : The FLEXLITE model FLX3T is designed to be connected to specific voltage. Any
other voltage can permanently damage the unit.
www.flexlite.ca
5
ASSEMBLY
UNPACKING
This product has been shipped completely assembled.
Carefully remove the worklight and any accessories from the
box. Make sure that all items listed in the packing list are
included.
Inspect the worklight carefully to make sure no breakage or
damage occurred during shipping.
Do not discard the packing material until you have carefully
inspected and satisfactorily operated the worklight.
If any parts are damaged or missing, please call
1-866-854-1411 for assistance.
PACKING LIST
Worklight
Operator’s Manual
Optional: Mounting bracket
Optional
: Voltage converter
WARNING:
If any parts are missing do not operate this worklight until the
missing parts are replaced. Failure to do so could result in
possible serious personal injury.
WARNING:
Do not attempt to modify this worklight or create accessories
not recommended for use with this worklight. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal injury.
WIRING
Voltage
Max 12VDC 2.5 amperes per unit
Caution
Insulate connections, otherwise a fire, electric shock, or damage to electrical equipment may occur.
Wiring polarity
Be sure to respect polarity, red screw is 12V + (positive), use a minimum 16 AWG cable with round jacket
See KNOW YOUR WORKLIGHT section before wiring your FLEXLITE.
.
6
MAINTENANCE
WARNING:
When servicing use only identical FLEXLITE replacement parts. Use of any other parts may create a hazard or cause product damage.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and
may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
FAN AND /OR HEATSINK MAINTENANCE
The FLX3T model is made with an integrated cooling heatsink. Designed to resist rain and dust. This heatsink must be cleaned
WARNING:
Always wear safety goggles or safety glasses with side shields when using compressed air to clean worklights. If operation is dusty, also wear a
dust mask.
WARNING:
Do not at any time let brake fluids, gasoline, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can
damage, weaken or destroy plastic which may result in serious personal injury.
frequently to perform well. Use only a low air pressure
unit is clean when you can see across the heatsink.
gun to clean and remove any dust. Don’t use solvent, soap or cleaner. The
WARNING:
Do not immerse in water.
7
WARNING DIAGRAM
FLX3T
Heatsink
Junction box
Inside the heatsink
In front
6 X heatsink screw
Cable connector (red=positive + 12VDC)
Junction box screw
Cable grip
Important: Tighten well all 6 heatsink screws
8

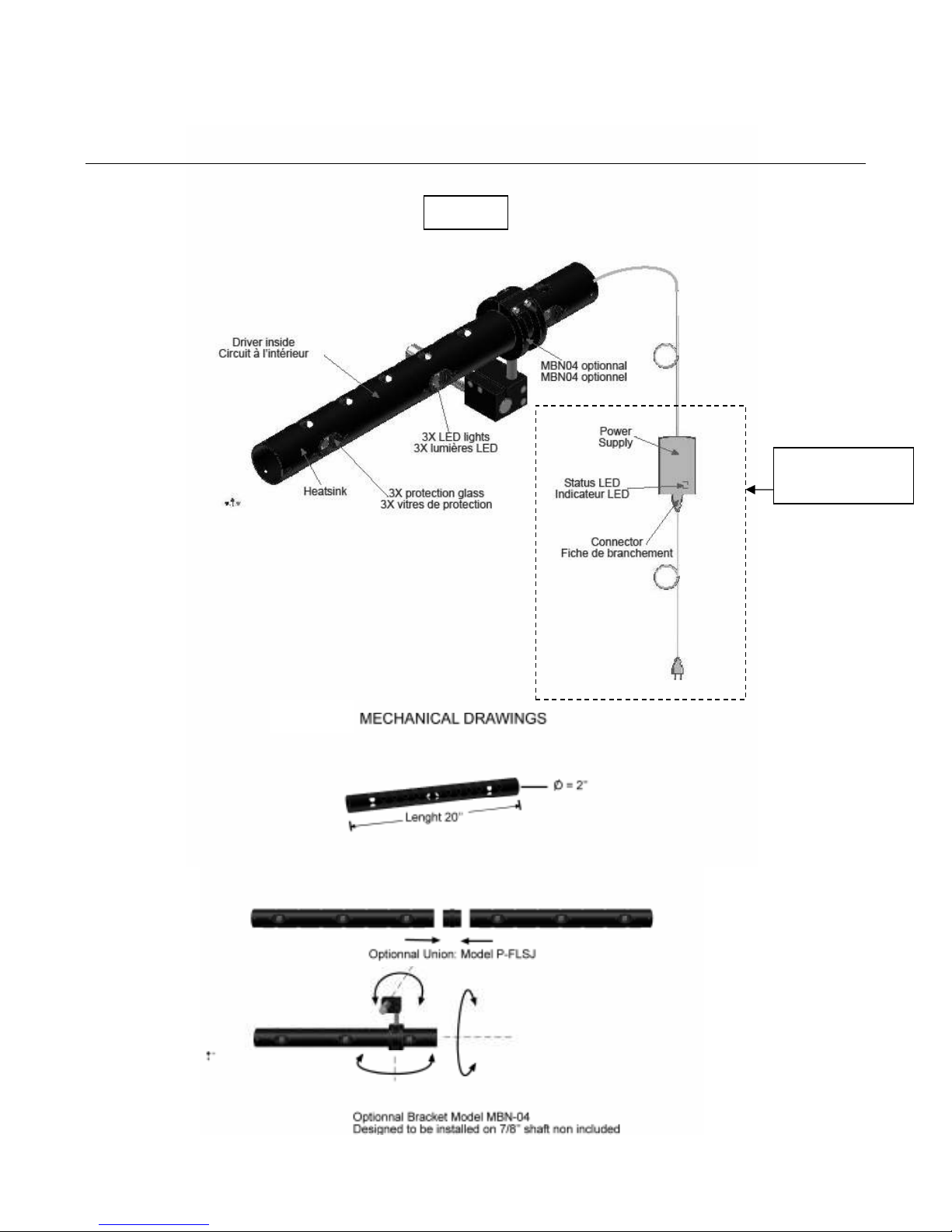

KNOW YOUR WORKLIGHT
FLX3T
Optional
Power supply
FLX3T
9
WARRANTY
FLEXLITE 1 YEAR LIMITED SERVICE WARRANTY
Proof of purchase must be presented when requesting warranty
service.
Limited to FLEXLITE purchased 1
This product is manufactured by FP Technologies. The
FLEXLITE trademark is licensed by FP Technologies. All
warranty communications should be directed to FP
Technologies Technical Service at (toll free) 1-866-854-1411.
GUARANTEE POLICY
To receive a replacement you must present proof of purchase
and return all original equipment packaged with the original
product. The replacement will be covered by the limited
warranty for the balance of the 1 YEAR service warranty
period.
WHAT IS COVERED UNDER THE 1 YEAR
LIMITED SERVICE WARRANTY
This warranty on FLEXLITE covers all defects in workmanship
or materials including the brushes, switches, LED and cables,
for one year after the purchase date. Malfunction is covered by
warranty only if the product has been used normally and not if
it results from misuse.
Warranties for other FLEXLITE products may vary.
HOW TO OBTAIN SERVICE
To obtain service for this FLEXLITE you must return it freight
prepaid, or take it in to an authorized service center for
FLEXLITE. You may obtain the location of the authorized
service center nearest you by calling (toll free) : 1-866-8541411 or by logging on to the FLEXLITE website at
www.flexlite.ca. When requesting warranty service, ask for a
RMA number before returning any products and you must
present the original dated sales receipt. The authorized service
center will repair any faulty workmanship, and at our discretion
either repair or replace any part covered under the warranty, at
no charge to you.
WHAT IS NOT COVERED
This warranty applies only to the original purchaser at retail and
may not be transferred. This warranty only covers defects
arising under normal usage and does not cover any malfunction,
failure or defect resulting from misuse, abuse, neglect,
alteration, modification or repair by other than an authorized
service center for FLEXLITE branded.
FLEXLITE MAKES NO WARRANTIES,
REPRESENTATIONS OR PROMISES AS TO THE
QUALITY OR PERFORMANCE OF ITS WORKLIGHT
OTHER THAN THOSE SPECIFICALLY STATED IN
THIS WARRANTY.
st
December 2010 and after.
ADDITIONAL LIMITATIONS
To the extent permitted by applicable law, all implied
warranties, including warranties of MERCHANTABILITY or
FITNESS FOR A PARTICULAR PURPOSE, are disclaimed.
Any implied warranties, including warranties of
merchantability or fitness for a particular purpose, that cannot
be disclaimed under state law are limited to one year from the
date of purchase. FLEXLITE are not responsible for direct,
indirect, incidental or consequential damages. Some states do
not allow limitations on how long an implied warranty lasts
and/or do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitations may not apply
to you. This warranty gives you specific legal rights, and you
may also have other rights which vary from state to state.
10
Loading...
