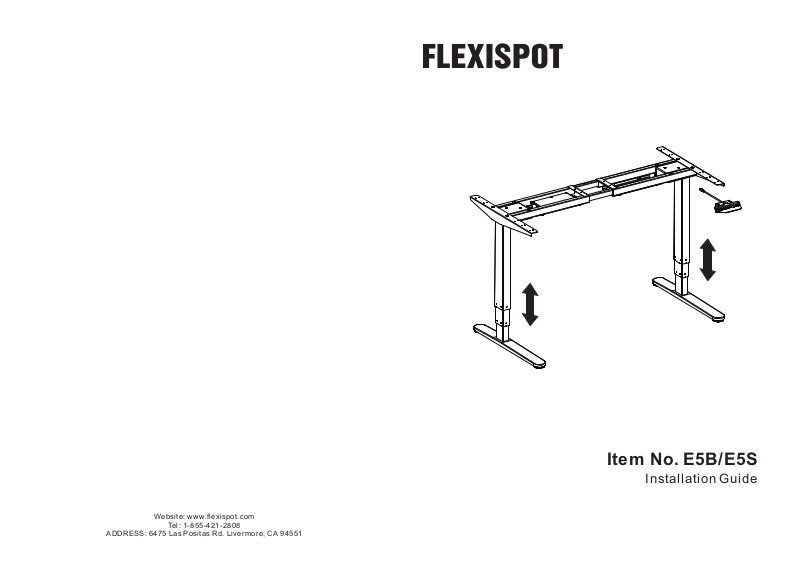

Item No. E5B/E5S
Installation Guide
Website: www.flexispot.com
Tel: 1-855-421-2808
ADDRESS: 6475 Las Positas Rd. Livermore, CA 94551
Specifications
Column |
3 |
|
|
Max. Weight Capacity |
275 Ibs (125 kg) |
Speed |
38 mm/s |
|
|
Input Voltage |
100 - 240 V |
|
|
Adjustable Height |
24.4" - 49.2" (620 - 1250mm) |
|
|
Wide Expand |
43.3" - 70.9" (1100 - 1800mm) |
Duty Cycle |
10% (Working 2 minutes then stop 18 minutes) |
|
|
Working Temperature |
32º-104º F |
|
|
Certification |
CE FCC CUL |
Accessory Package
Figures shown are for reference only, specific please in kind prevail. If there is any accessory or tool missing, contact customer service please.
A |
B |
C |
D |
E |
|
x8 |
x26 |
x8 |
x6 |
x1 |
x1 |
M6X16mm |
St4.2X20mm |
M8X35mm |
Square washer |
4x4 |
5x5 |
Parts Included |
|
Diagram of Components |
|
NO. |
Accessory |
Parts |
Qty |
1 |
Feet |
|
2 |
2 |
Leg |
|
2 |
3 |
Supporting |
|
1 |
beam |
|
||
|
|
|
|
|
Cable |
|
|
4 |
management |
|
2 |
|
plate |
|
|
5 |
Left supporting |
|
1 |
plate |
|
||
|
|
|
|
6 |
Right supporting |
|
1 |
plate |
|
||
|
|
|
|
7 |
Control box |
|
1 |
8 |
Handset |
|
1 |
9 |
Connecting |
|
1 |
cable |
|
||
|
|
|
|
01

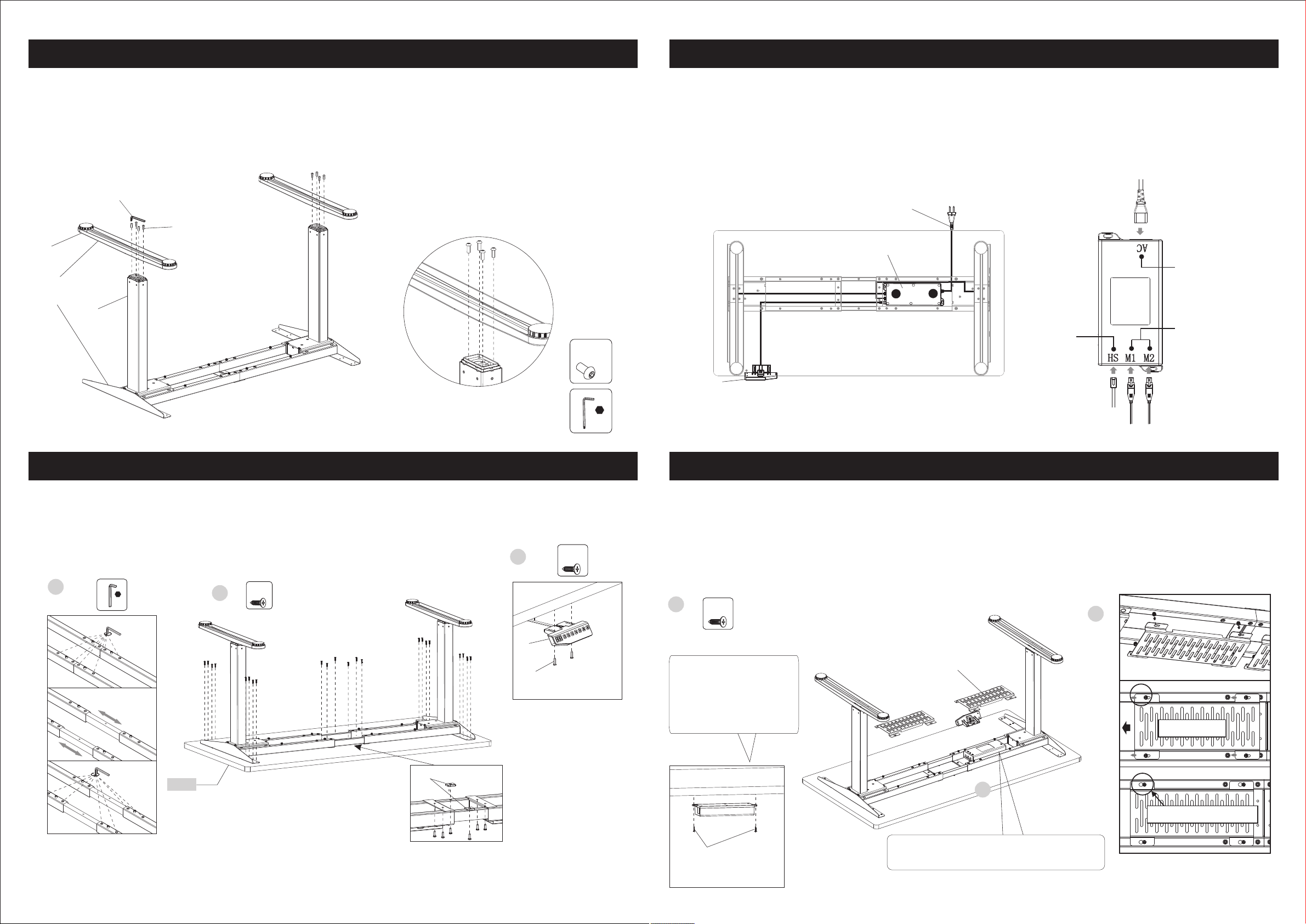

Step 1
Install supporting beam (3) using screws (C). Tighten with 5 x 5 hex key (E).
E
C
3
2 |
C |
|
x4 |
|
E |
|
5x5 |
Step 2
Install supporting plate (5) (6) using screws (C). Tighten with 5 x 5 hex key (E).
E
C |
3 |
6 |
5
C
x4
E
5x5
02
