BEFORE CONTINUING WITH THIS INSTRUCTION MANUAL OR ASSEMBLY
OF YOUR AIRCRAFT, PLEASE VISIT OUR WIKI SUPPORT SITE FOR THE
LATEST PRODUCT UPDATES, FEATURE CHANGES, MANUAL ADDENDUMS
AND FIRMWARE CHANGES FOR BOTH YOUR AIRCRAFT AND THE
INSTALLED AURA 8 ADVANCED FLIGHT CONTROL SYSTEM.
wiki.flexinnovations.com/wiki/RV8
wiki.flexinnovations.com/wiki/Aura
1
Page 4
TABLE OF CONTENTS
Introduction
Box Contents
Specifications
Completion Items
Battery Charging Guidelines
Special Language Definitions
Important Information Regarding Warranty
Safety Warnings and Precautions
Low Voltage Cutoff
Main Landing Gear Installation
Tailwheel Installation
Vertical Fin Installation
Aura 8 AFCS
Transmitter Setup

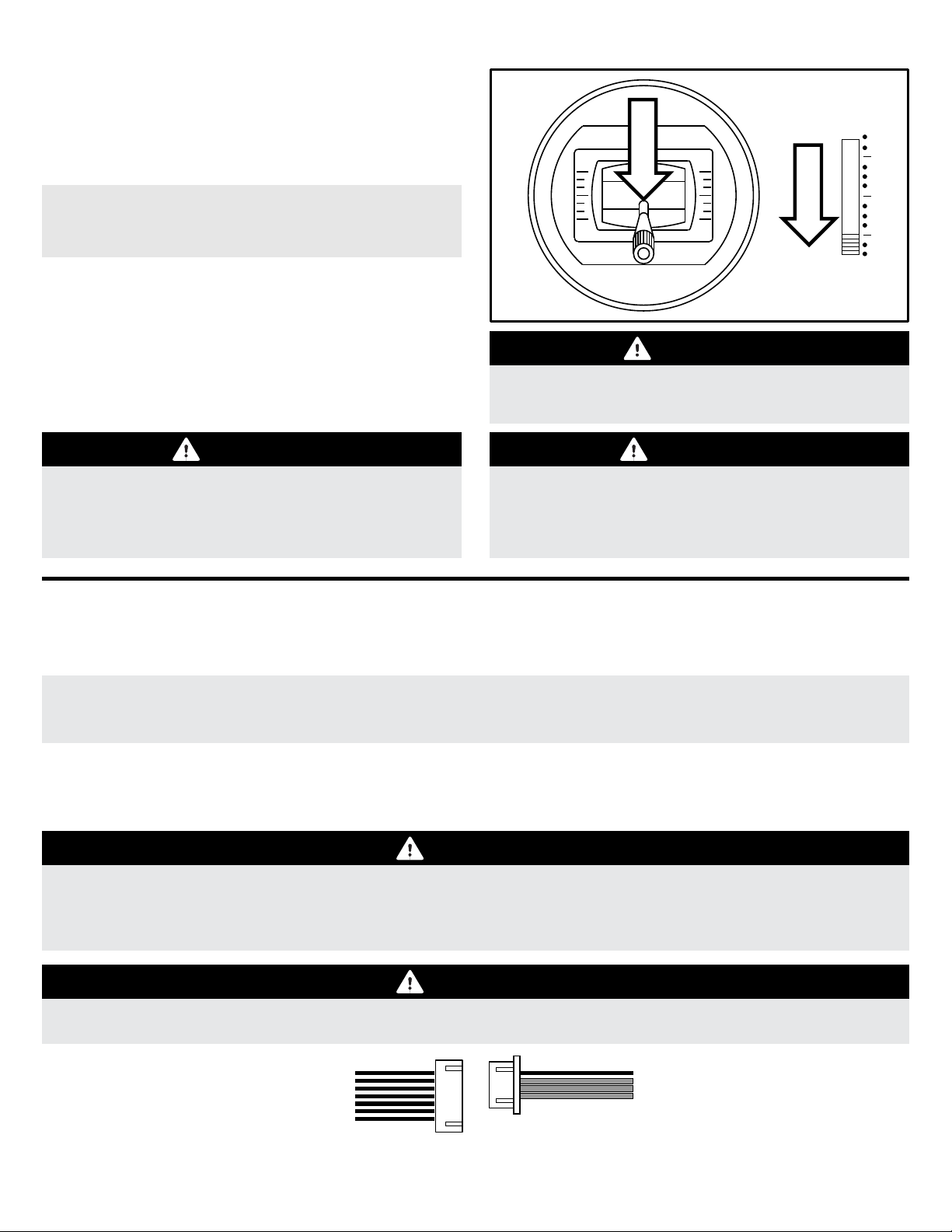

Connecting a Battery/Arming the ESC
LED Controller Connections (Night Version Only)

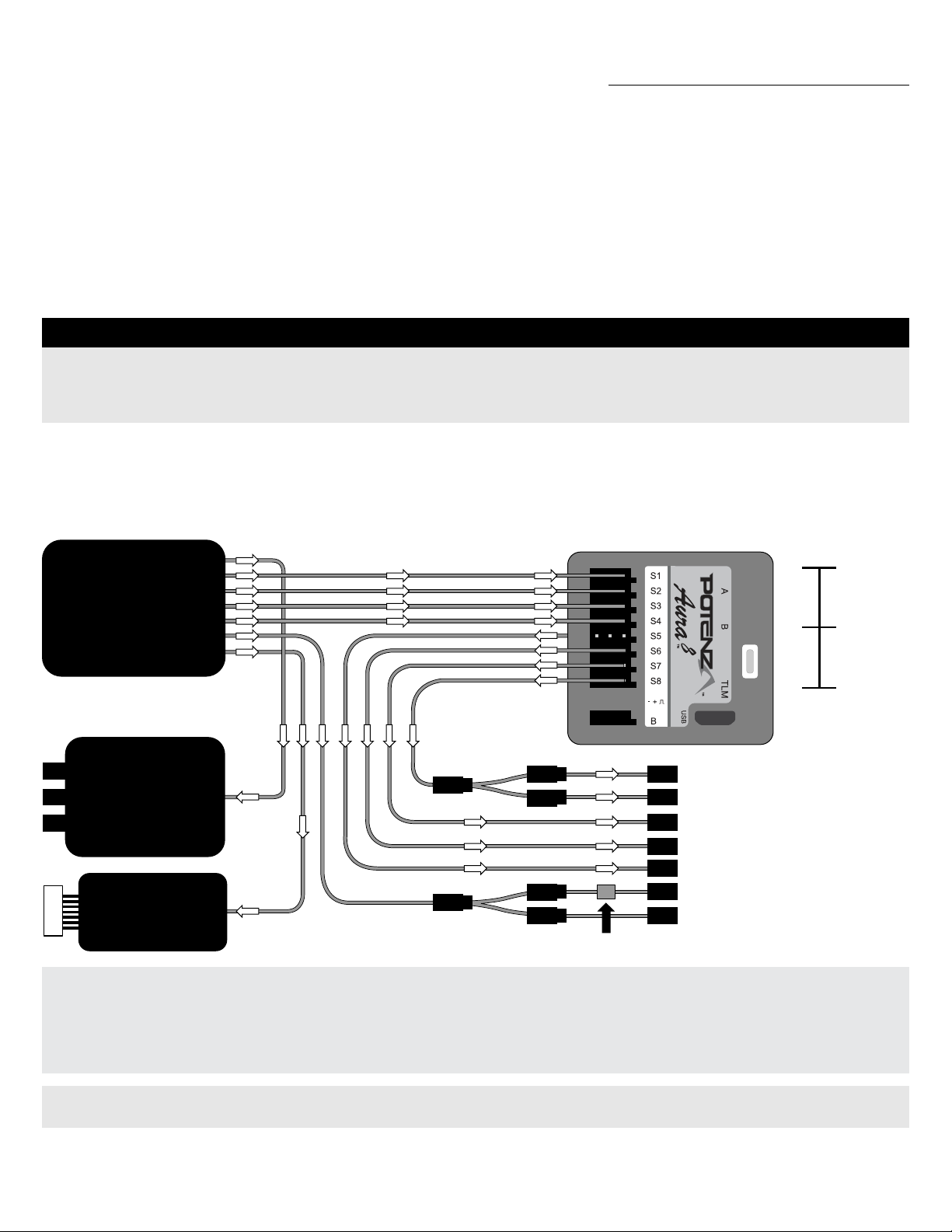

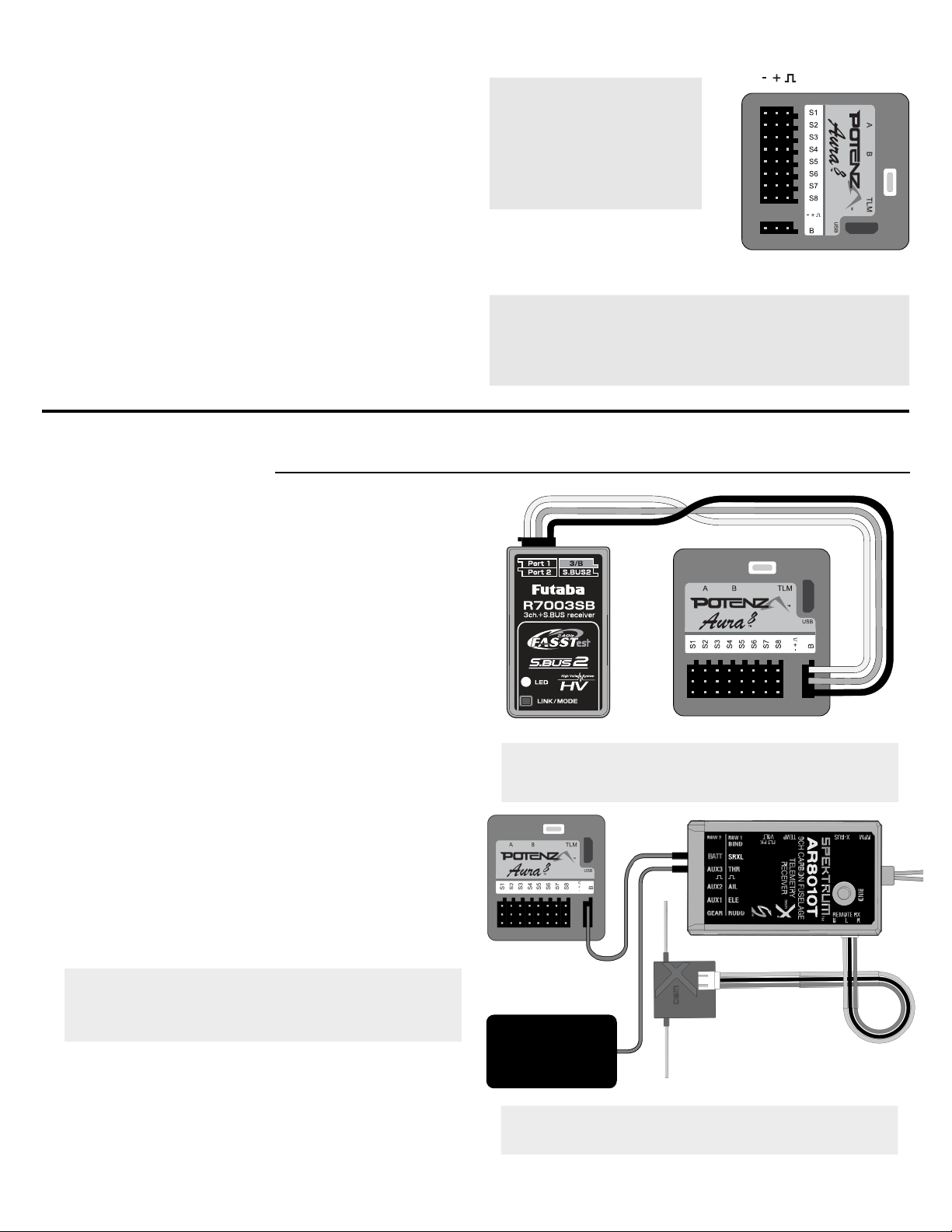

Receiver Installation/Servo Connections
..........................................................................
.......................................................................
......................................................................
................................................................
...............................................
..............................................
.........................
.......................................
...............................................................
............................................
............................................................
.........................................................
........................................................................
................................................................
................................
.............................
...............
2
2
3
3
3
4
4
4
4
5, 6, 7
8
9
10
11
12
12
13, 14, 15
INTRODUCTION
Unparalleled Flight Performance
The Flex Innovations RV-8 is a massive, yet lightweight airframe that
offers an incredibly wide flight envelope. From beginners to experts,
the RV-8 has something to offer everyone. Beautiful scale lines, clear
canopy with pilot figure and a beautiful color scheme deliver a
true-to-scale presence in the air and on the ground.
With over hundreds of designs, World F3A and Free Style Champion
Quique Somenzini has maximiized the simplicity and practicality of the
RV-8 design and matched it with the incredible Aura 8 Flight Control
System (AFCS) for the ultimate stability with out interfering with the
pilot's control. It takes less than one-hour to assemble out of the box
and remains quick to assemble at the field, yet transportable in size.
For the latest updates, features, addendums and more, before
assembly, please visit:
wiki.flexinnovations.com/wiki/RV8
Horizontal Stabilizer Installation

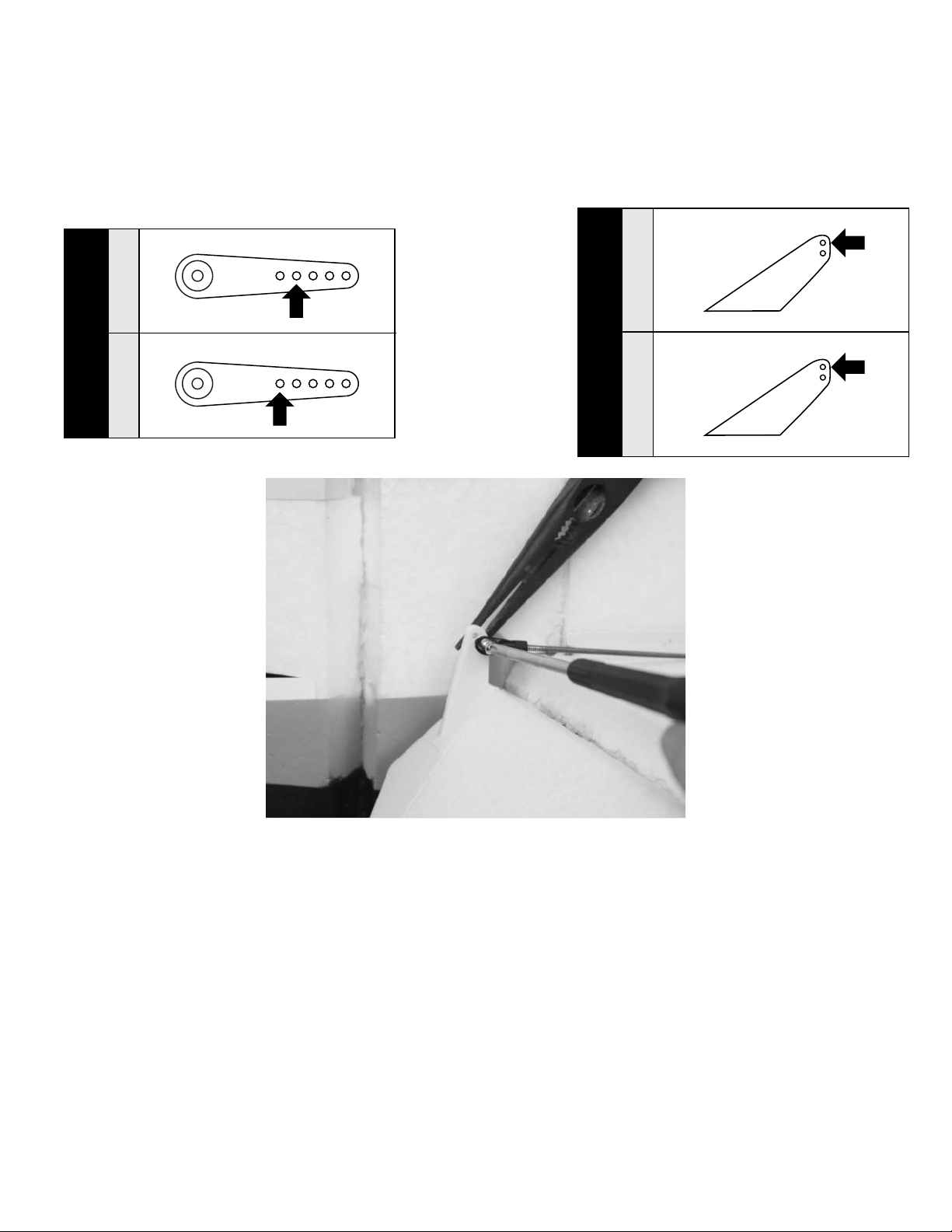

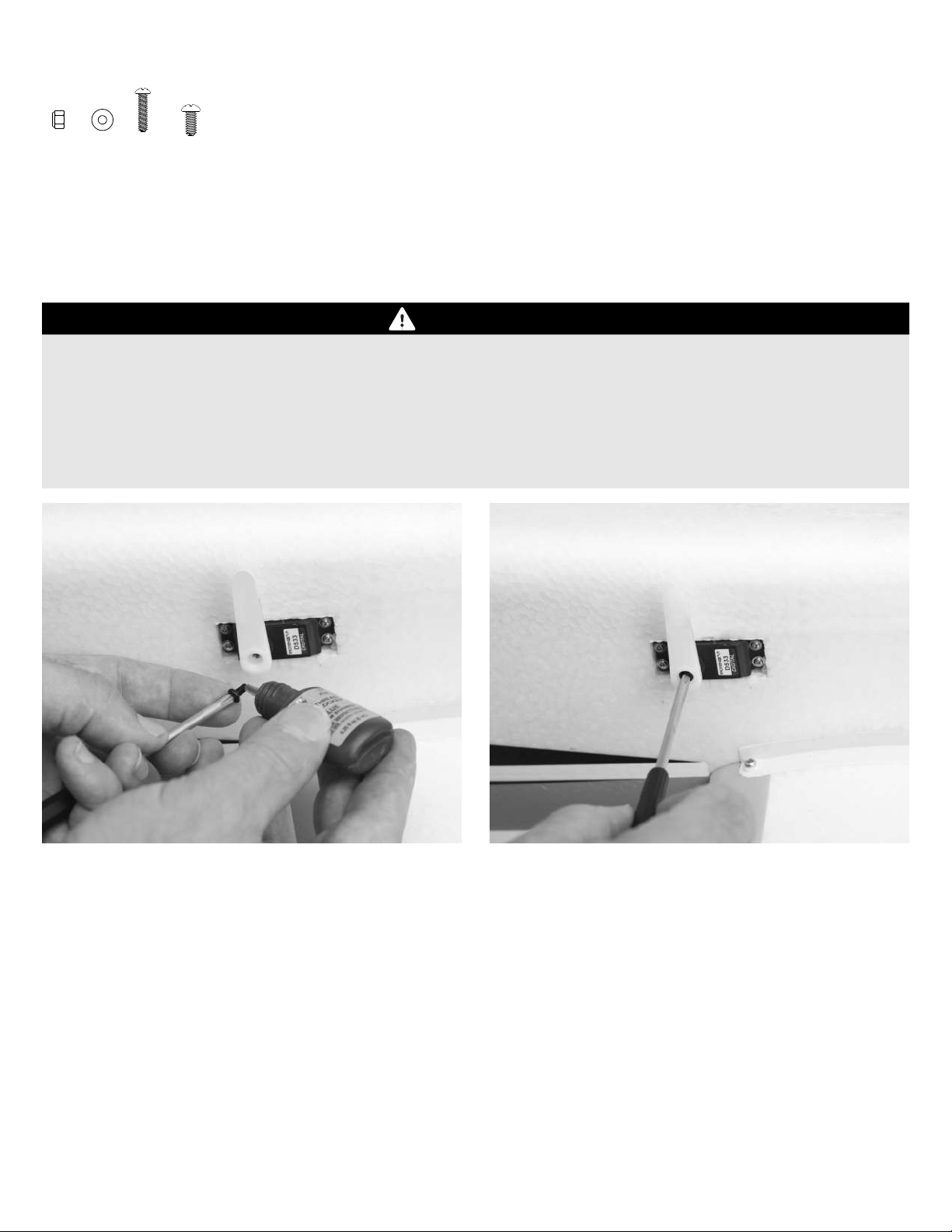

Rudder and Elevator Linkage Installation

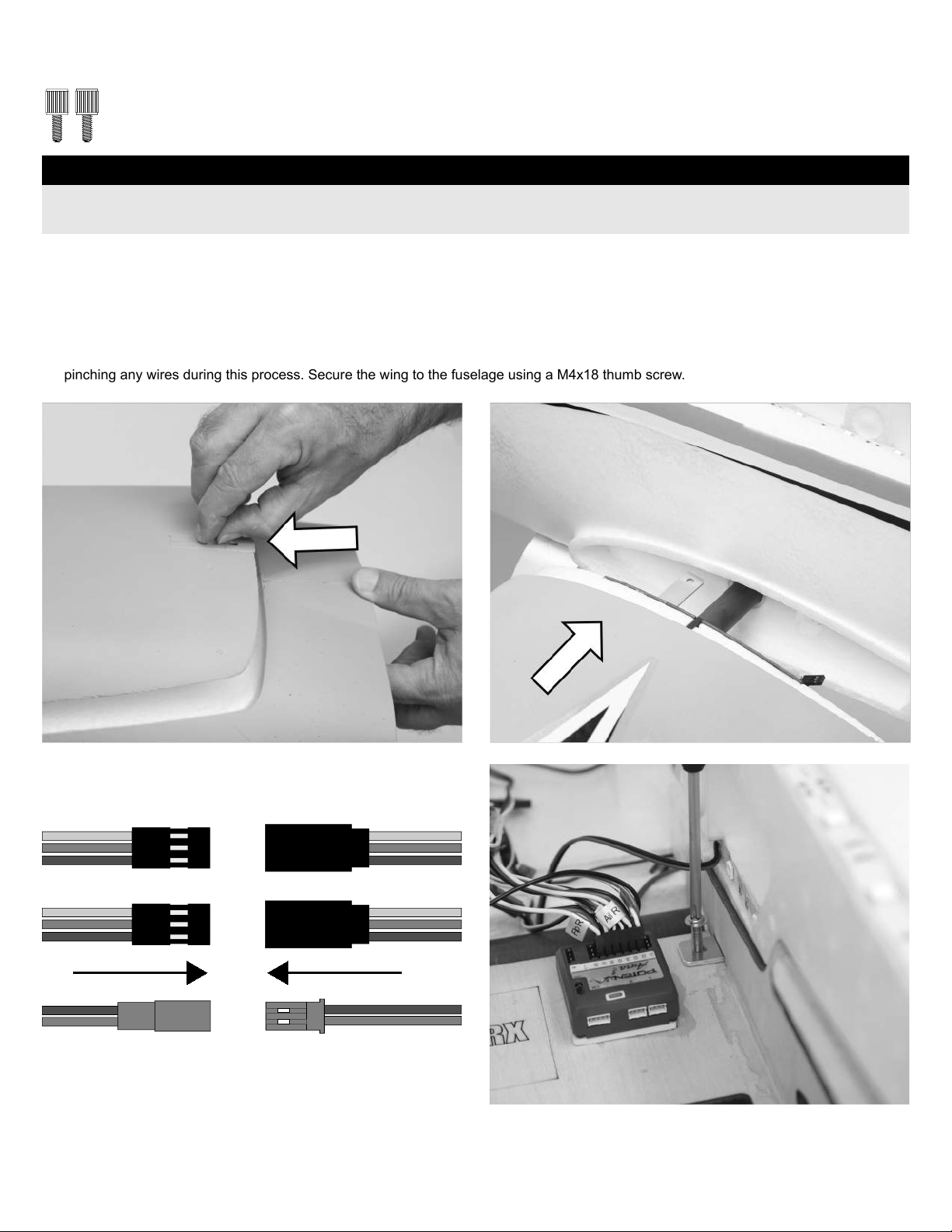

Main Wing Installation

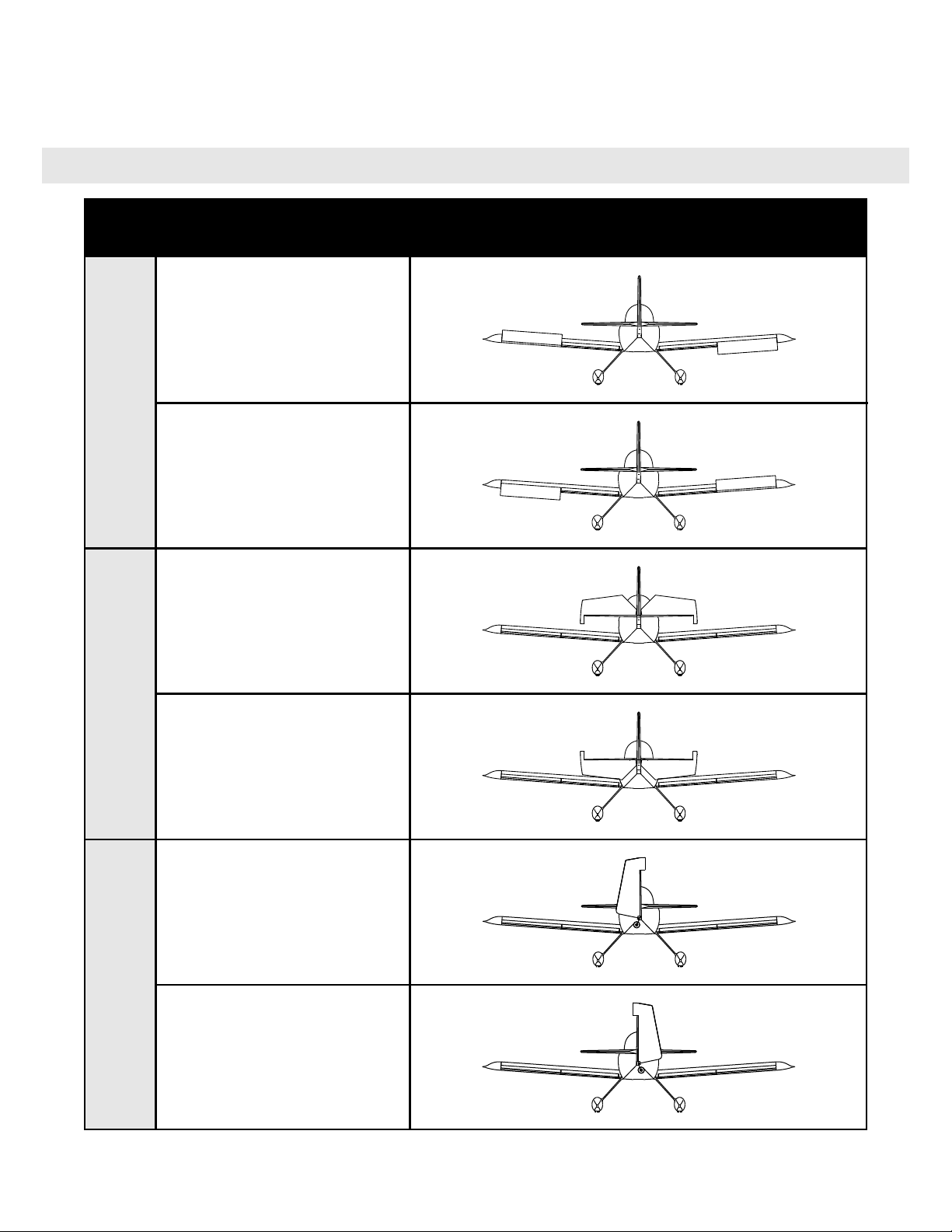

Transmitter Control Direction Test

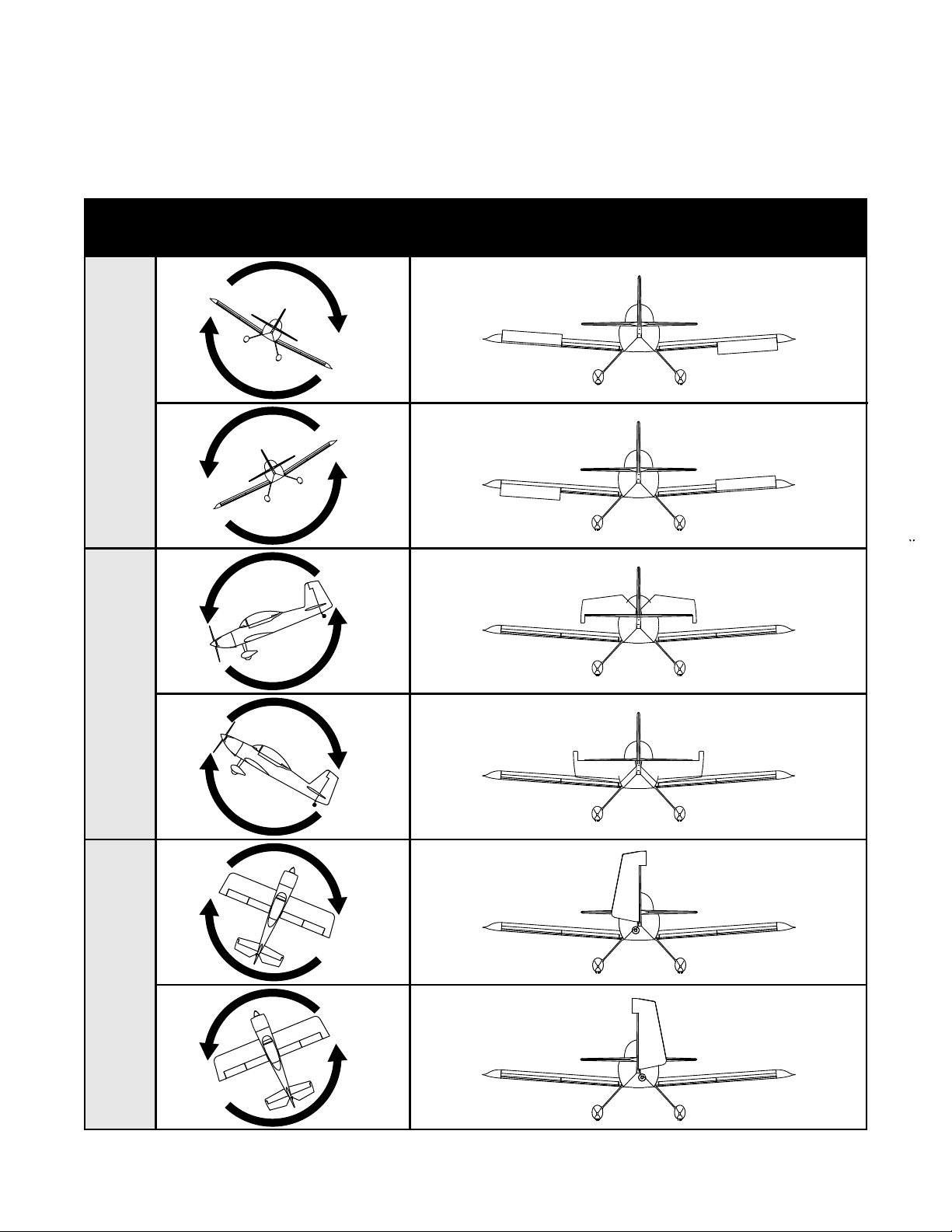

Flight Control Sensing Direction Test

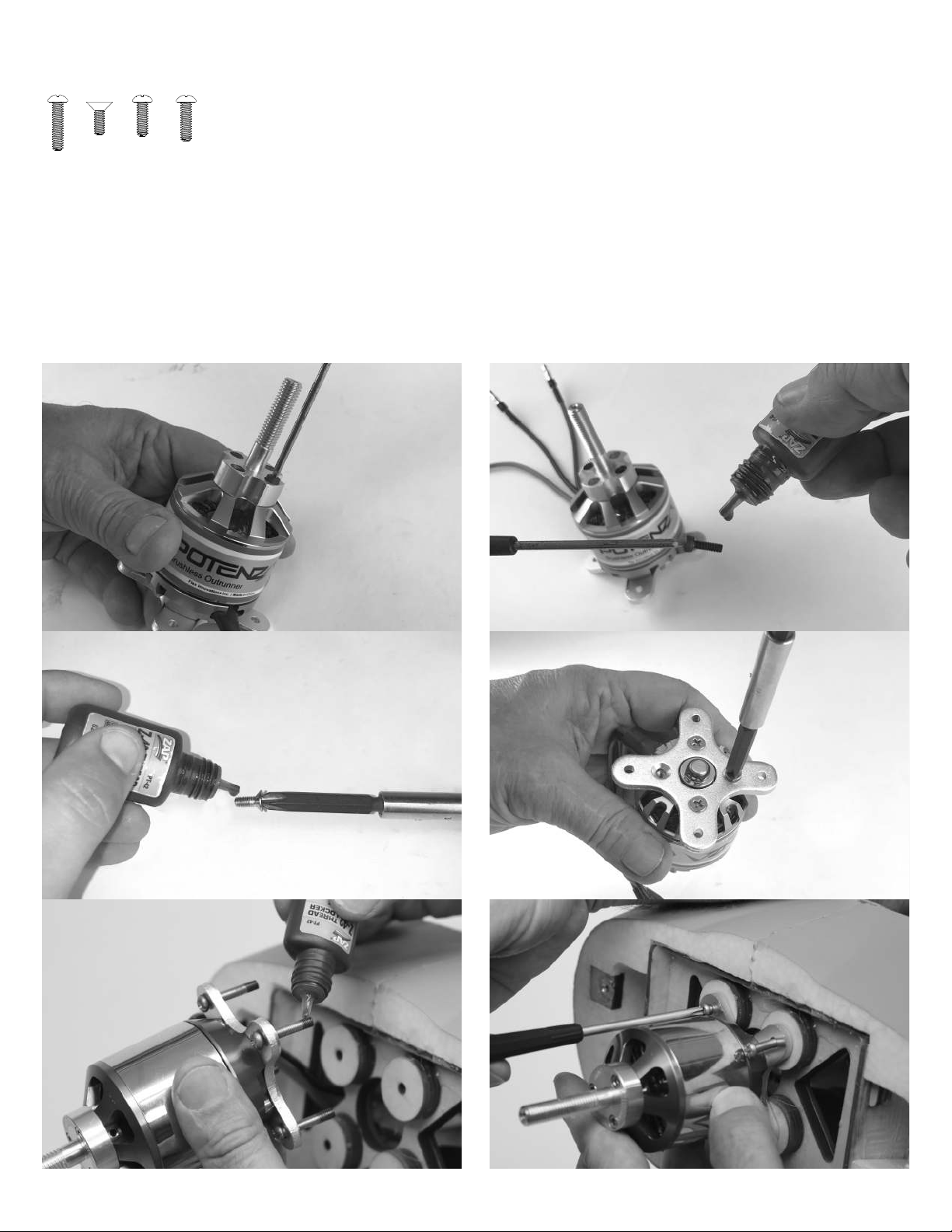

Motor And Propeller Installation

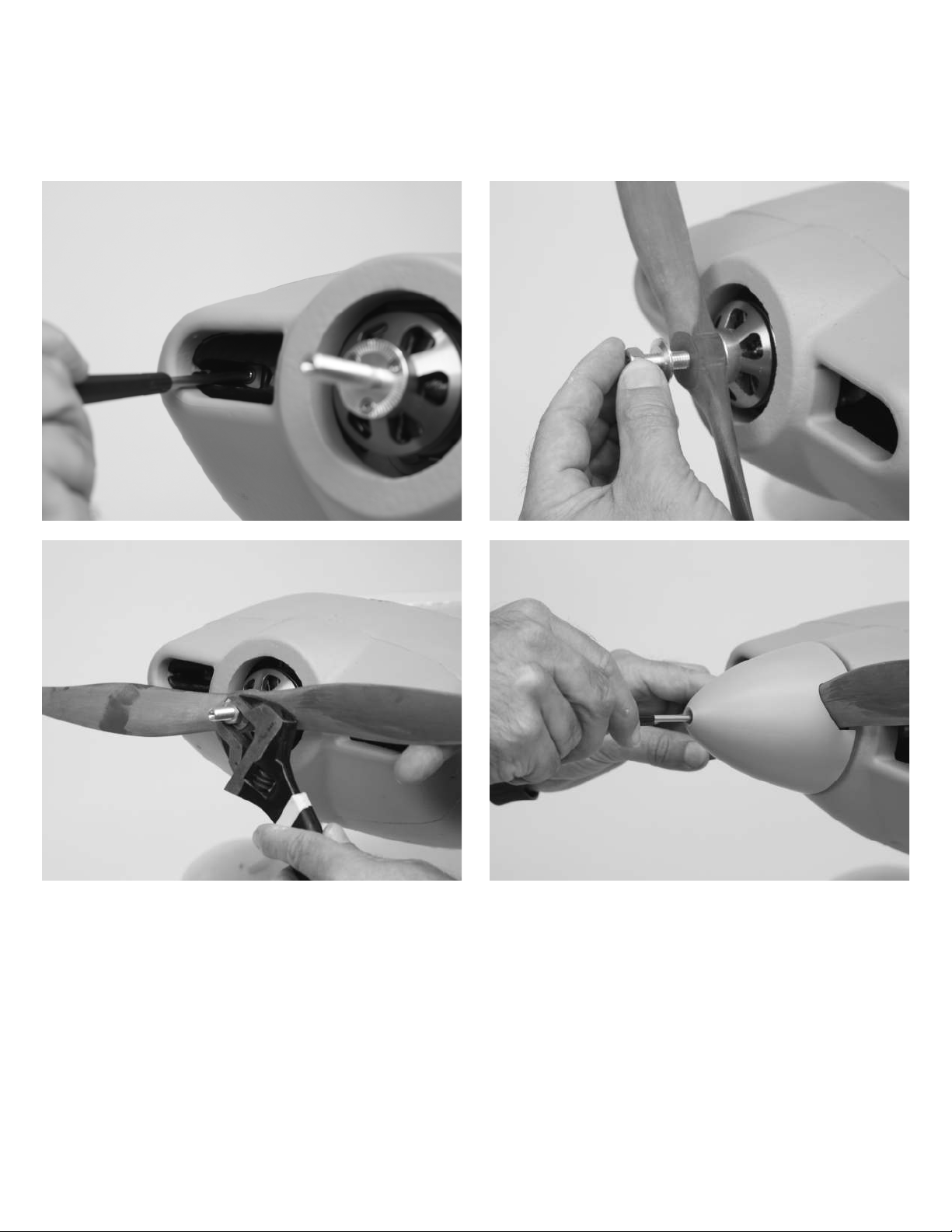

Propeller and Spinner Installation

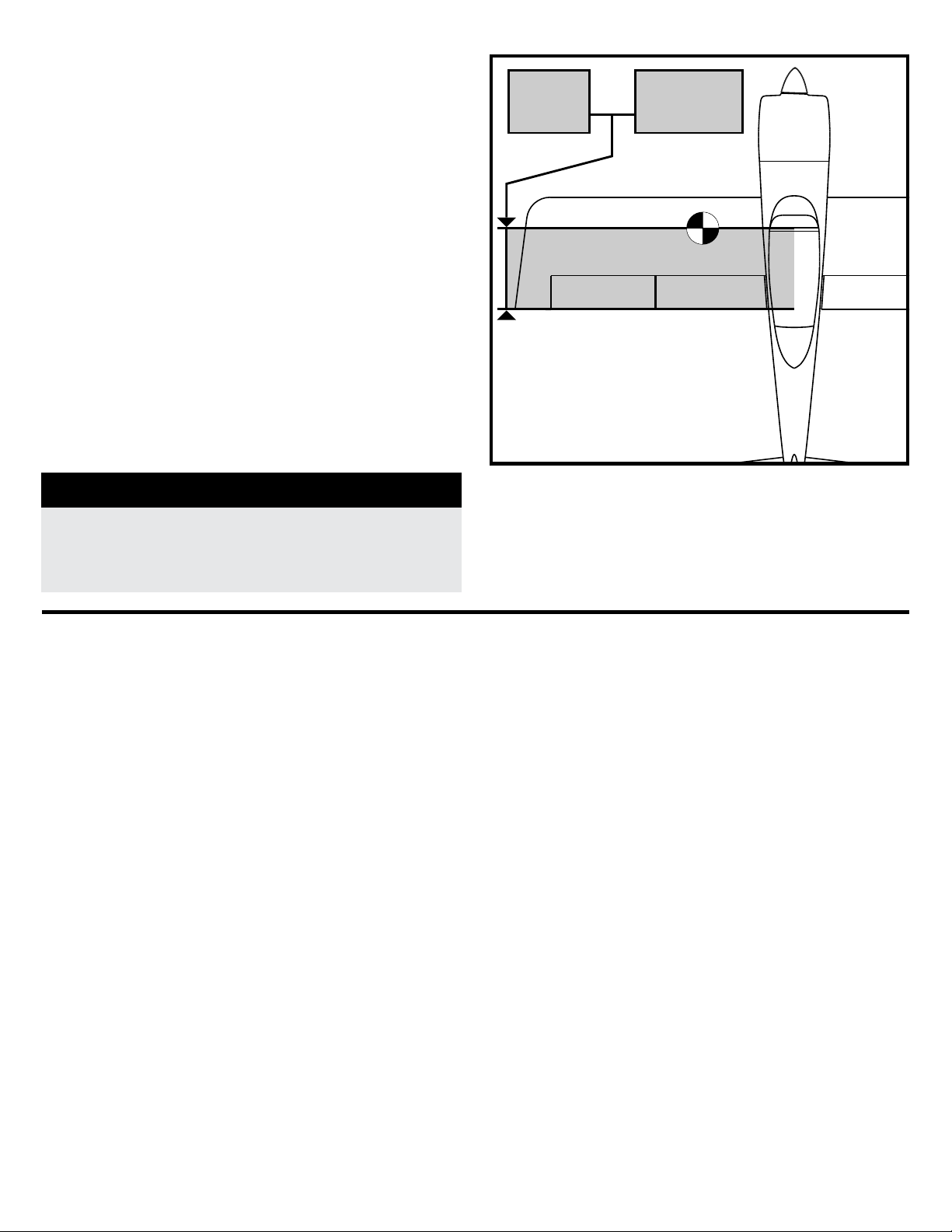

Center of Gravity Verification
Pre-Flight Checks
Flying your RV-8
Airframe Repairs

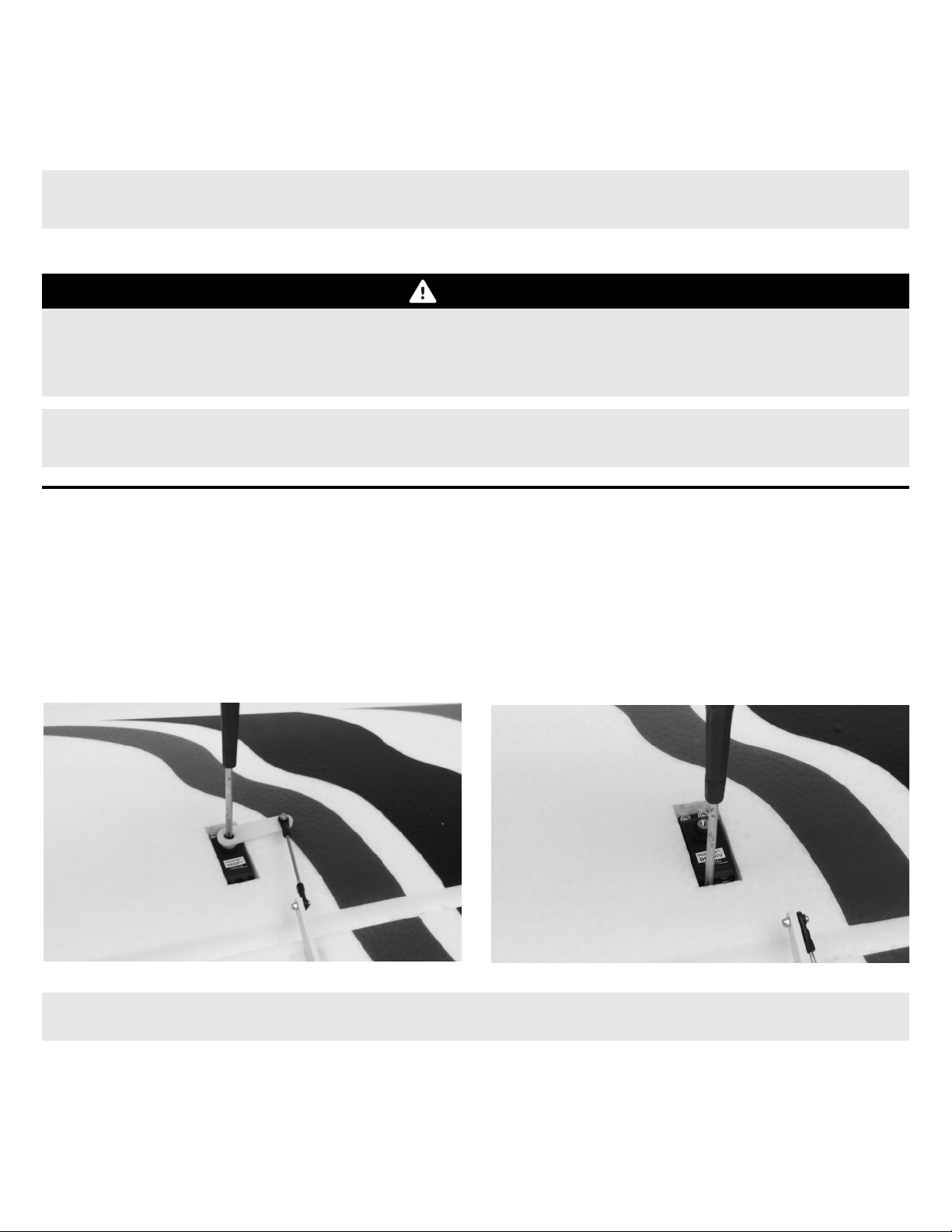

Replacing Servos
Aircraft Troubleshooting Guide
Limited Warranty
AMA Safety Code
Pre-installed and custom-tuned Aura 8 Advanced
Flight Control System with bounceback control
70-size, 500kV motor and 100A ESC for big power
(6) New, High-Precision Potenza DS-34 servos.
Light wing loading for easy handling
5-9 minute flight times depending on battery choice
and throttle management
Designed around the popular 6S 5200mAh battery.
Light Weight EPO foam that is durable and easy to
repair
CA Hinges for free movement and large throws
...............................................................
......................................................................
........................................................................
........................................................................
.......................................................................
........................................................................
......................................................................
................................................
.............................................
........................................
................................................
..............................................
.....................................................
..................................................
..................................
16
17, 18
19
20
21
22
23
24
24
25
26
26
27
28
29
wiki.flexinnovations.com/wiki/Aura

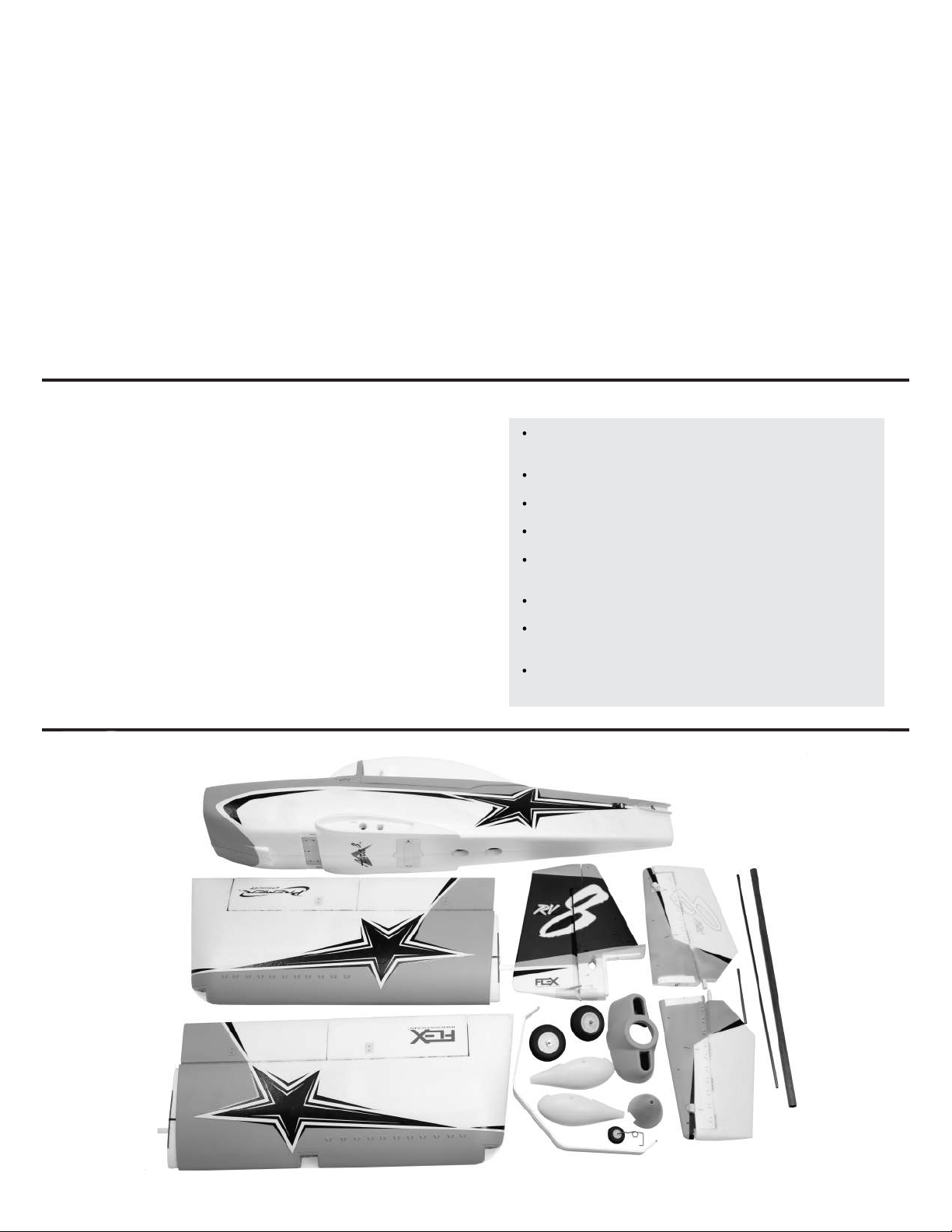

BOX CONTENTS
2
Page 5

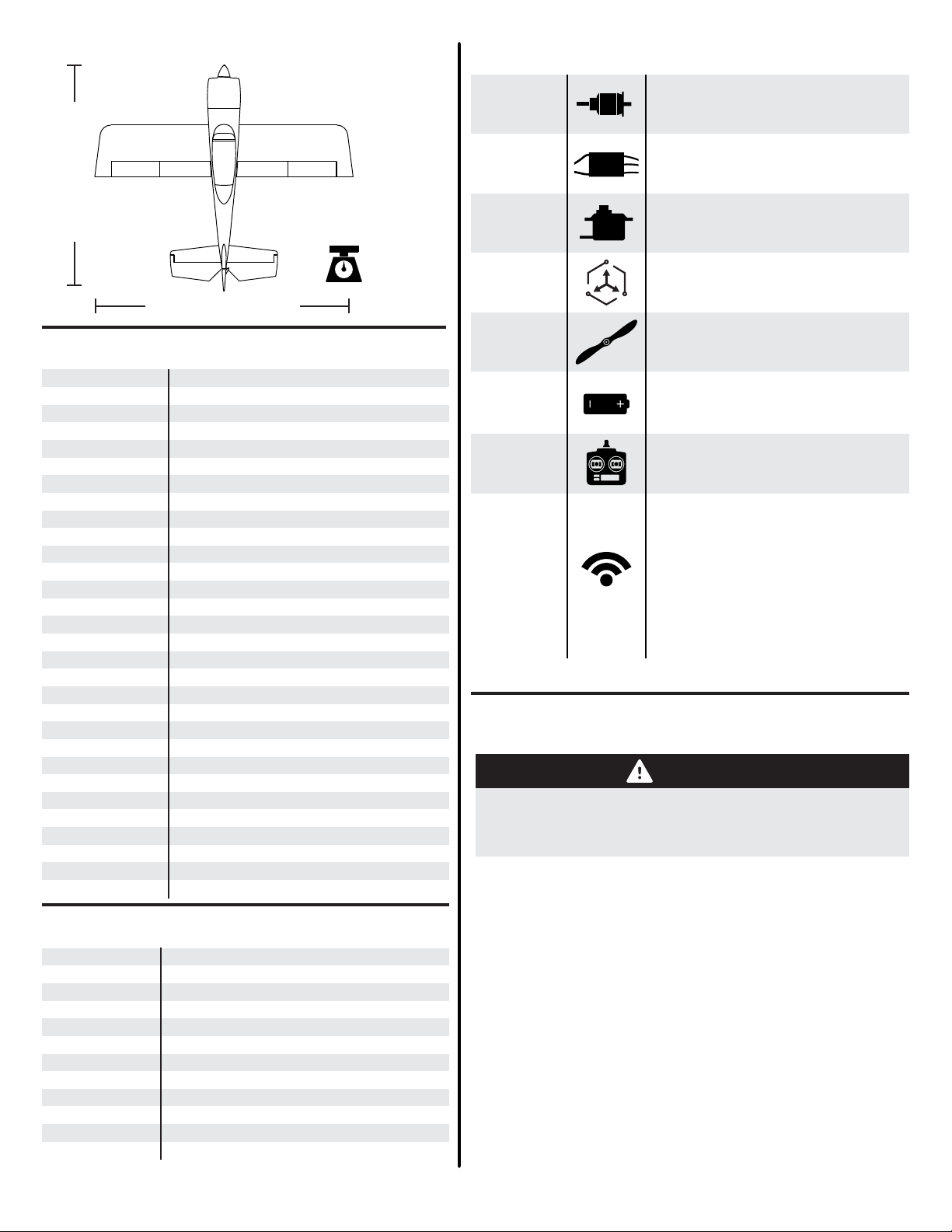

COMPLETION ITEMS
Potenza 70 500Kv Brushless
Outrunner Motor (FPZM1070)
ZTW 100A ESC with 5V/10A
BEC (ZTW100AEBEC)
Potenza DS34 Digital Servos
(FPZDS34)
Aura 8 Advanced Flight Control
System (FPZAURA08ZZRV8)
17.5 x 7 Electric SR Propeller
(FPMP17570E)
4200-6200mAh 6S 22.2V 35C+ Li-Po
(FPZB52006S40)
6+ Channel Computer Transmitter
(7+ Channels Required for Switchable Night LEDs)
NEEDED TO
COMPLETE
INSTALLED!
INSTALLED!
SPECIFICATIONS
75.8 in. (1925mm)
66.3 in. (1685mm)
Day Version: 10.3lb (4660g)
Night Version: 10.6lb (4770g)
RTF with 6S 5200mAh ba�ery installed
1120 sq. in.
(72.3 sq. dm.)
BATTERY CHARGING GUIDELINES
REPLACEMENT PARTS
FPM357001
FPM358001
FPM357002R
FPM357002L
FPM358002R
FPM358002L
FPM357003
FPM357004
FPM357005
FPM357006
FPM357007
FPM357008
FPM357009
FPM357010
FPM357011
FPM357012
FPM357013
FPM357014
FPM357015
FPZM1070
FPZM10701
FPZM10702
FPZM10703
FPMP17570E
FPZDS34
ZTW100AEBEC
FPZA1016
FPZA1017
FPZAURA08ZZRV8
Fuselage (Day)
Fuselage (Night)
Right Wing (Day)
Left Wing (Day)
Right Wing (Night)
Left Wing (Night)
Horizontal Stabilizer Set
Canopy Hatch
Aluminum Landing Gear
Wheel Pant, Wheel and Tail Gear Set
Wing and Stab Tube Joiner Set
Pushrod Set
Decal Set
Spinner
Stabilizer LED Set
Hardware Package
Pilot
Cowling with Screws
Vertical Stabilizer
Potenza 70 500Kv BL Motor
Potenza 70 Bolt-On Prop Adapter
Potenza 70 Aluminum X-Mount
Potenza 70 Motor Shaft
SR 17.5 x 7E Propeller
Potenza DS34 Digital Metal Gear Mini Servo
ZTW 100A ESC with 10A External BEC
Potenza Advanced R/C LED Controller (6s)
Potenza 1.5 in. Plastic Servo Arm (2)
Potenza Aura 8 AFCS for the RV-8
OPTIONAL ACCESSORIES
FPM357016
FPZAU01
FPZB52006S40
FPZB62006S40
FPZA1010
ZTWCARD
SPMAR8010T
SPM9645
FUTR2001SB
FUTR7003SB
FPM357017
RV-8 Float Set
Potenza 3pc. Male-Male Servo Connectors
Potenza 6S 5200mAh 45C Li-Po
Potenza 6S 6200mAh 40C Li-Po
Potenza Digital Battery Analyzer
ZTW ESC Programming Card
Spektrum AR8010T DSMX Receiver
Spektrum DSMX Remote Receiver
R2001SB S.BUS S-FHSS Receiver
R7003SB S.BUS FASSTest Receiver
RV-8 Keychain Camera Mount
(Recomended
SPM Receiver)
(Recomended
FUT Receiver)
INSTALLED!
INSTALLED!
INCLUDED!
NEEDED TO
COMPLETE
NEEDED TO
COMPLETE
Receiver
FOLLOW ALL INSTRUCTIONS PROVIDED BY YOUR
BATTERY AND CHARGER MANUFACTURER.
FAILURE TO COMPLY CAN RESULT IN FIRE.
The assembly of the RV-8 can be accomplished in less than
one hour. Prior to assembling the airplane, it is advisable to
charge your battery so that you are ready to begin setup upon
completion of the assembly of your model.
We recommend the use of an advanced Li-Po balancing
charger for your batteries to get the maximum performance
and lifespan.
Our airplanes are designed around our Potenza Li-Po
batteries, and we recommend the Potenza 6S 5200mAh 40C
Li-Po based on our extensive testing and development. These
batteries feature an EC5 connector, so no soldering is required
for use in your RV-8.
All are available at www.flexinnovations.com
Spektrum DSMX Remote Receiver(s)
Spektrum SRXL Receiver
Futaba S.Bus Receiver
Hitec S.Bus Receiver
Graupner SumD Receiver
JR XBus Mode B Receiver
Jeti UDI 12 Receiver
6+ Channel Receiver (any brand)
WARNING
3
Page 6
SPECIAL LANGUAGE DEFINITIONS
WARNING
AGES 14+
NOTICE:
CAUTION:
WARNING:
Procedures, which if not properly followed, create a possibility of physical
property damage AND a little or no possibility of injury.
Procedures, which if not properly followed, create the probability of physical
property damage AND a possibility of serious injury.
Procedures, which if not properly followed, create the probability of property
damage, collateral damage, and serious injury OR create a high probability of
serious injury.
Read the ENTIRE instruction manual to become familiar with the features of the
product before operating. Failure to assemble or operate the product correctly can
result in damage to the product, personal property, and cause serious or fatal injury.
All instructions, warranties and other collateral documents are subject to change at
the sole discretion of Flex Innovations, Inc. For up-to-date product literature, please
visit our website at www.flexinnovations.com, click on your aircraft and the Aura 8
AFCS product pages.
This product is not intended for
use by children under 14 years
without direct adult supervision.
IMPORTANT INFORMATION REGARDING WARRANTY
SAFETY WARNINGS AND PRECAUTIONS
Please read our Warranty and Liability Limitations section before building this product. If you as the Purchaser or user are not
prepared to accept the liability associated with the use of this Product, you are advised to return this product immediately in
new and unused condition to the place of purchase.
LOW VOLTAGE CUTOFF
Protect yourself and others by following these basic safety guidelines.
1. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the
instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or
serious injury.
2. This model is not a toy, rather it is a sophisticated hobby product and must be operated with caution and common sense.
This product requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could
result in injury or damage to the product or other property.
3. This model must be assembled according to these instructions. Do not alter or modify the model outside of these
instructions provided by Flex Innovations, Inc. as doing so may render it unsafe and/or unflyable. It is your responsibility to
ensure the airworthiness of the model.
4. Inspect and check operation of the model and all its components before every flight.
5. If you are not an experienced pilot or have not flown a high-performance model before, it is recommended that you seek
assistance from an experienced pilot in your R/C club for your first flights. If you're not a member of a club, the Academy of
Model Aeronautics (AMA) has information about clubs in your area whose membership includes experienced pilots.
6. Keep the propeller area clear from such items as loose clothing, jewelry, long hair, or tools as they can become entangled.
Keep your hands and body parts away from the propeller as injury can occur.
7. Never fly in visible moisture, or submerge the airplane or any of its electronic components in water. Permanent damage to
electronic components may occur, or corrosion of components may lead to intermittent failures.
Li-Po batteries have a nominal (rated) voltage of 3.7V per cell, and fully charged, reach 4.2V per cell. Batteries are designed to be
discharged below the nominal voltage, however, if they are discharged below 3.0V per cell, damage will occur and the pack will lose
capacity. For best long term battery life, set a timer and land after a time that leaves approximately 15% of the battery's capacity
remaining.
Low voltage cutoff is a feature that is built into the included ESC that is designed to protect the connected battery from being
discharged too far and causing permanent damage to the cells. Circuitry within the ESC will automatically detect when the input
voltage from the battery pack reaches below 3.15V per cell (average) and will remove power to the motor, but still deliver power to
the servos so that a safe landing may be made. If the motor begins to lose power rapidly during flight, the LVC has sensed that the
total voltage of the pack has dropped below 3.15V per cell average, and the airplane should be landed immediately.
Note: The ESC is set to low timing for efficiency.
4
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
ATTENTION
Page 7
MAIN LANDING GEAR INSTALLATION
Required Tools and Fasteners:
#1 Phillips Screwdriver
1.5mm Hex Driver
8mm Open End Wrench
12mm Open End Wrench
Adjustable Wrench (optional)
(2) M3x12 Phillips Head Self-Tapping Screw
(10) M3x8 Phillips Head Self-Tapping Screw
(4) M3x20 Phillips Head Machine Screw
Blue Thread Lock
(QTY 2) (QTY 10)

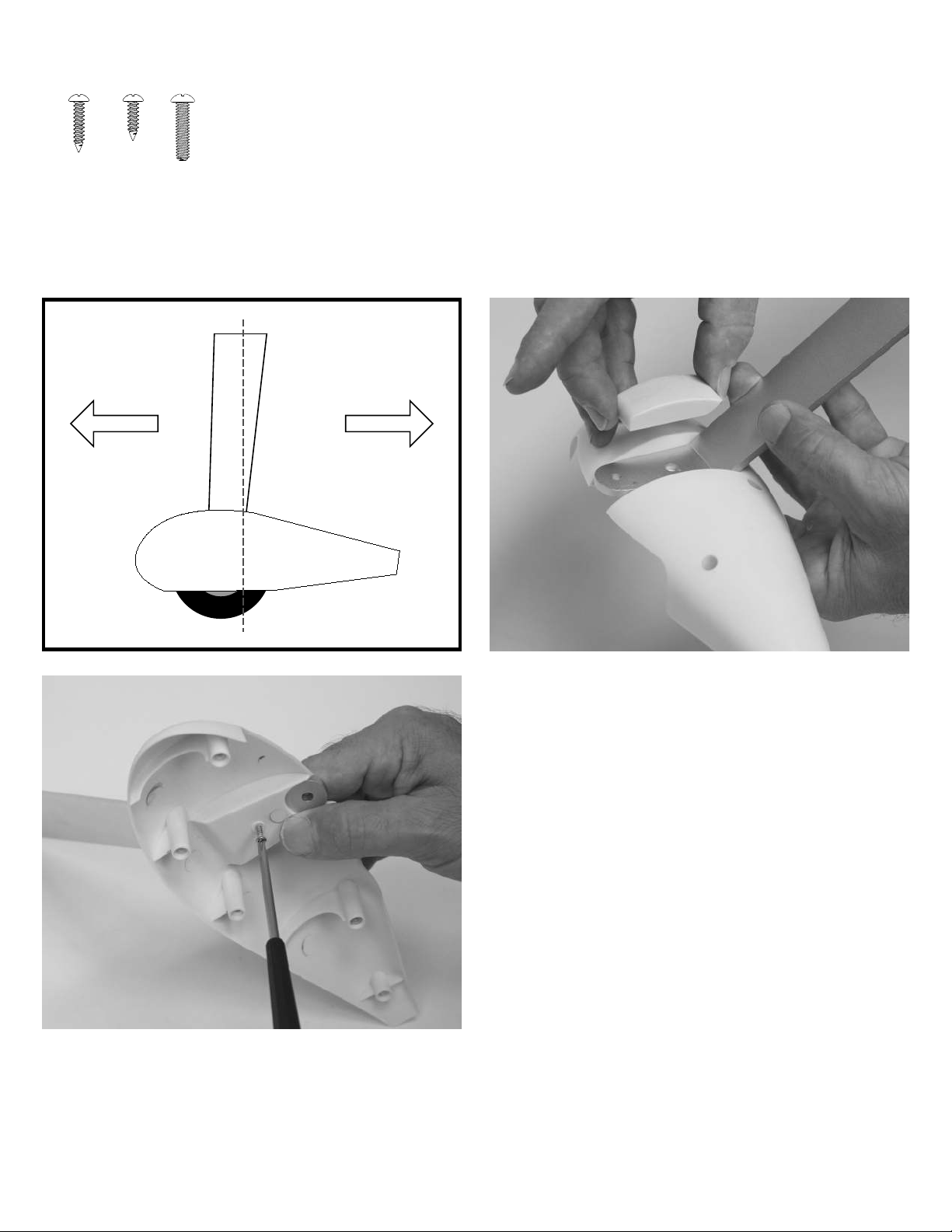

Locate the wheel pants, Use a #1 Phillips screwdriver to remove the screws from the wheel pants and separate the wheel pant halves
1.
from each other.
Locate the landing gear. Place the inside half of the wheel pant against the outside of landing gear leg, and the wheel pant retaining
2.
plate against the inside. Note that the retaining plates are identical. Use a #1 Phillips screwdriver and a M3x12 screw to secure the
wheel pant half in place. Be sure the landing gear and wheel pant are oriented in the proper direction.
Nose
(QTY 4)
Tail
5
Page 8
MAIN LANDING GEAR INSTALLATION (CONTINUED)

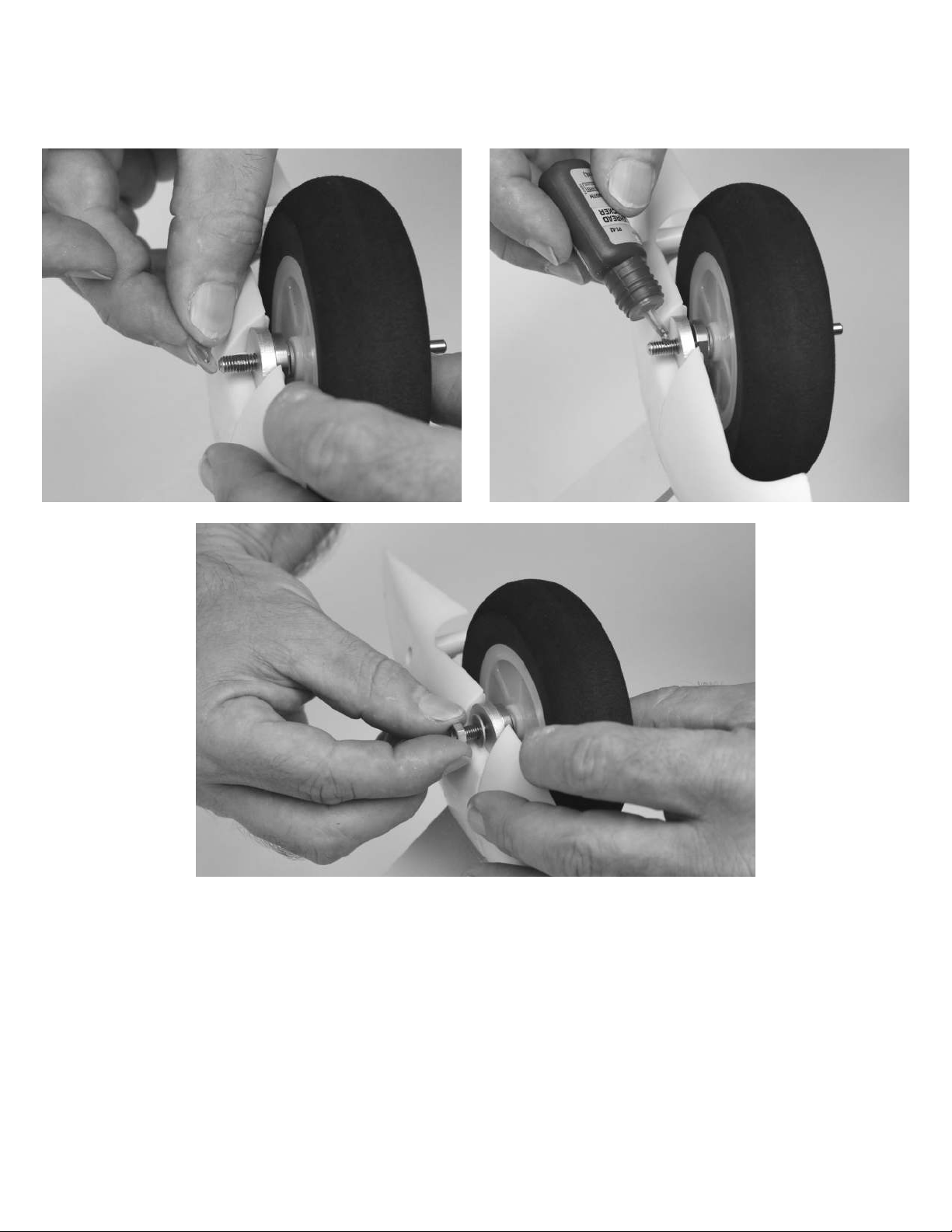

Locate the wheel and axle assembly. Use a 1.5mm hex driver to remove the set screws in the wheel collars. Apply blue thread lock to
3.
the set screws and re-assemble.
Slide the threaded end of the axle through the landing gear from the outside of the landing gear. Place a washer over the axle and apply
4.
blue thread lock to the axle threads. Secure the axle to the landing gear using an M5 nut and an 8mm and 12mm open end wrench.
.
6
Page 9
MAIN LANDING GEAR INSTALLATION (CONTINUED)

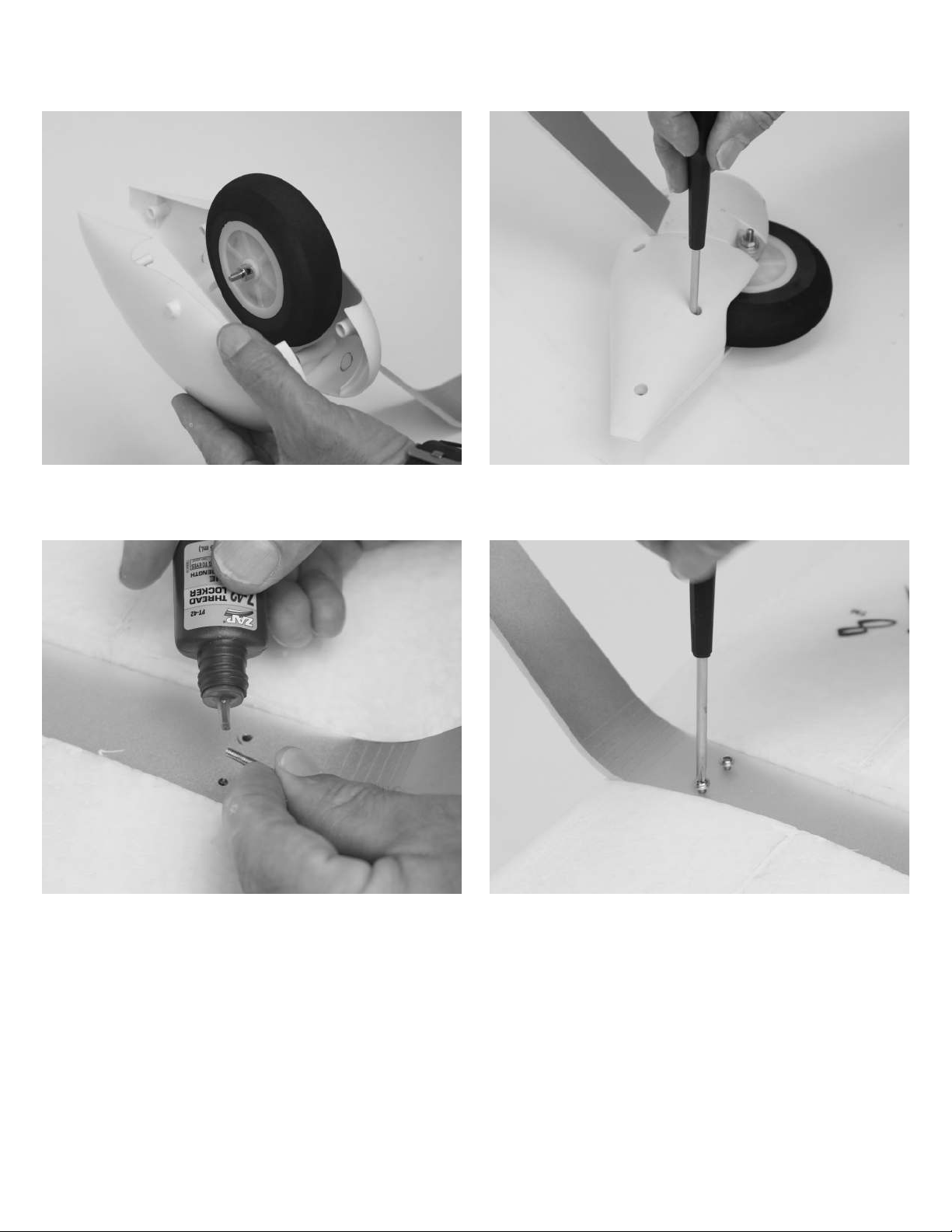

Use a #1 Phillips screwdriver and five M3x8 self-tapping screws to secure the outside half of the wheel pant to the landing gear
6.
assembly.
Apply blue thread lock to the four M3x20 machine screws. Use a #1 Phillips screwdriver and the four M3x20 screws to secure the
7.
landing gear to the fuselage.
7
Page 10

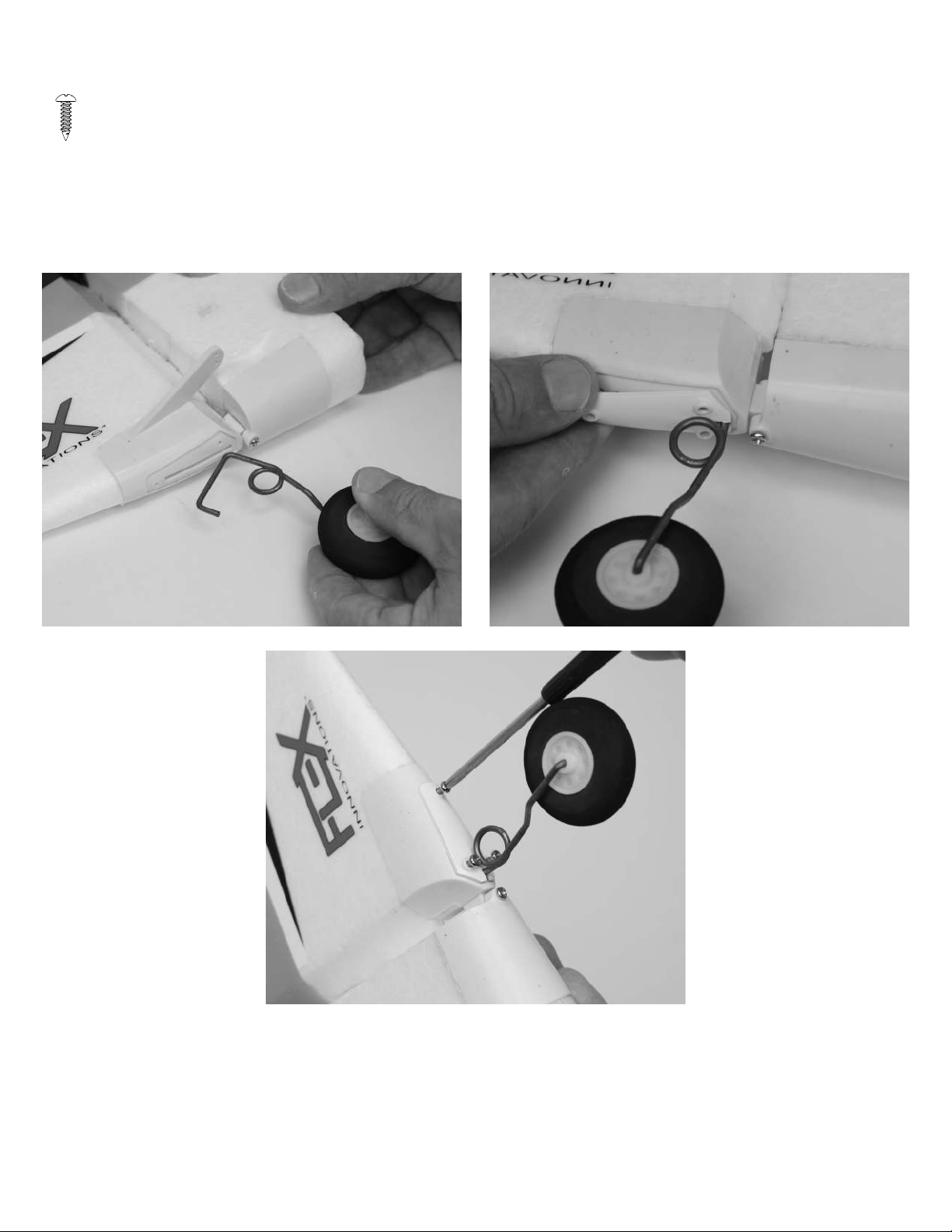

TAIL WHEEL INSTALLATION
Required Tools and Fasteners:
(QTY 3)
Locate the vertical fin assembly, tail wheel and tail wheel retaining plate. Insert the tail wheel into the bottom of the rudder, being sure to
1.
orient it so that the tail wheel wire angles towards the tail as the wire moves away from the fuselage.
Insert the retaininig plate into the cavity on the bottom of the rudder. Use a #1 Phillips screwdriver and the three M3x7 self-tapping

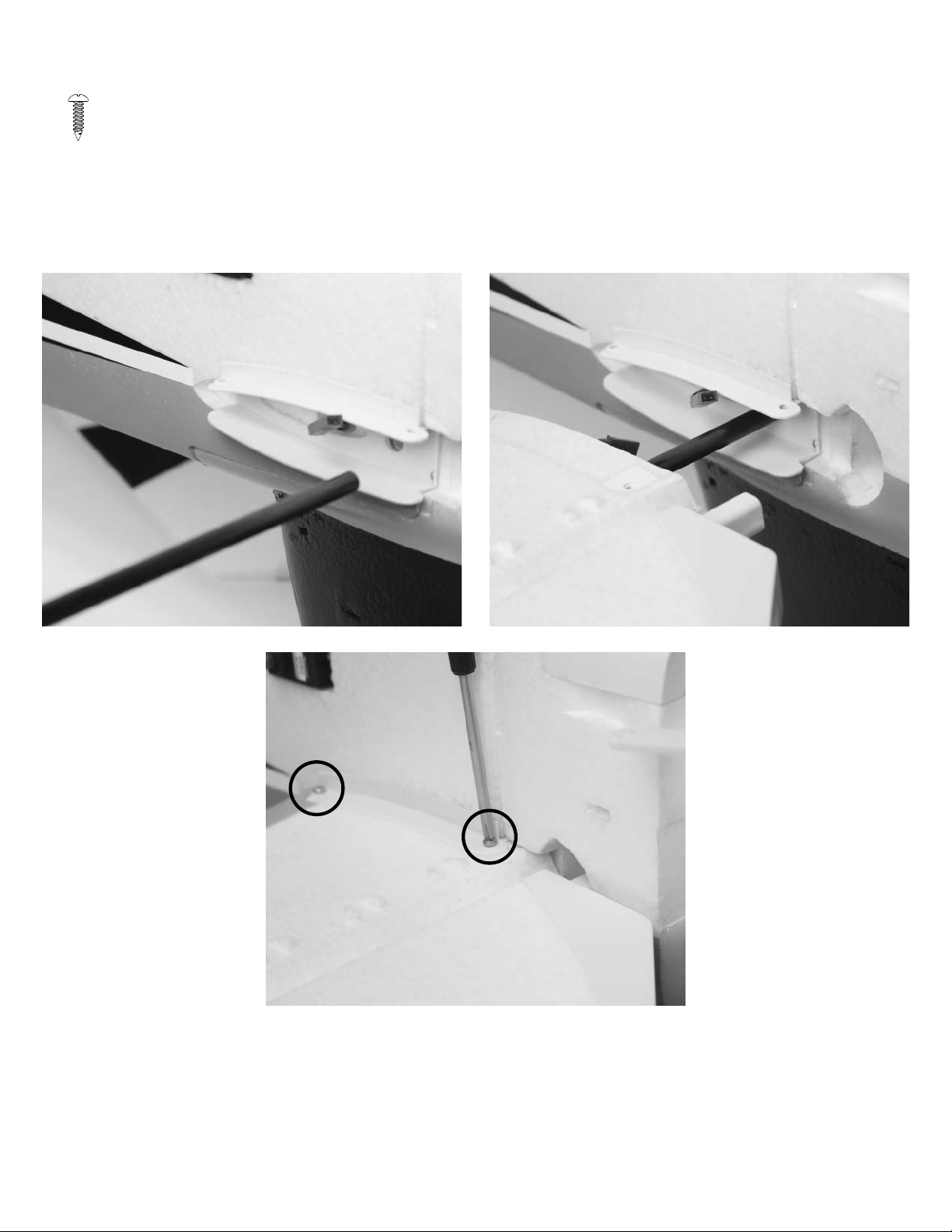

2.
screws to secure it in place.
#1 Phillips Screwdriver
(3) M3x7 Phillips Head Self-Tapping Screw
8
Page 11

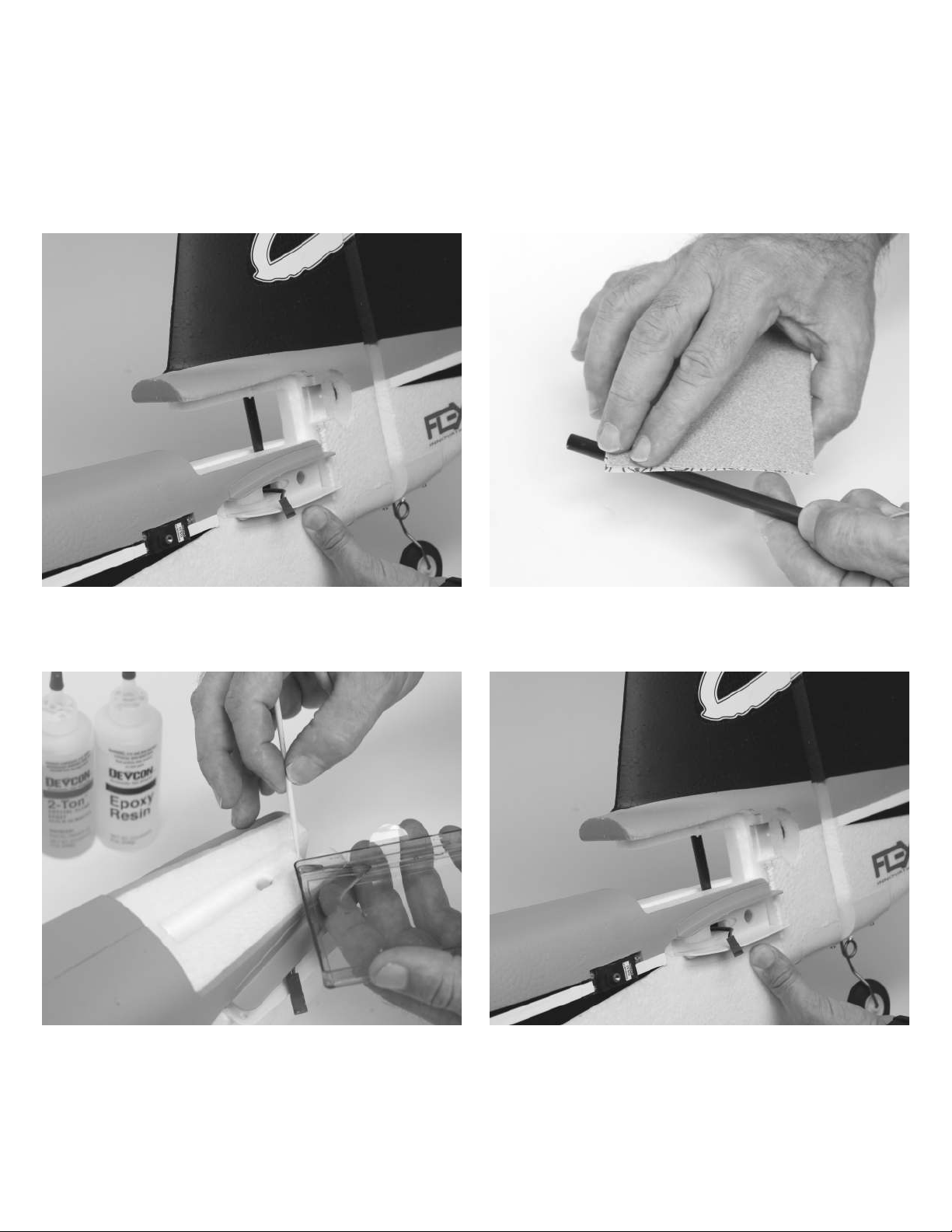

VERTICAL FIN INSTALLATION
Required Tools and Fasteners:
1.
Locate the vertical fin assembly and vertical fin tube. The vertical fin tube is the shortest tube included with your aircraft. Test fit the
vertical fin to the fuselage by inserting the tube into the vertical fin, and then into the fuselage. Confirm everything fits, and aligns
appropriately. Make any adjustments and test fit again until you are happy with the fit of the parts.
2.
Use 220 grit sandpaper to scuff the vertical fin tube to prepare the surface for gluing. Use a paper towel and isopropyl alcohol to clean
the tube after scuffing. It is important to only scuff the tube. DO NOT remove a significant amount of material from the tube as it
can weaken the structure.
30-Minute Epoxy
Craft Sticks (for mixing epoxy)
Mixing Cup
220 Grit Sandpaper
Paper Towels
Isopropyl Alcohol
3.
Use the craft sticks and mixing cups to mix an adequate amount of 30-minute epoxy. Apply epoxy to the vertical fin tube hole as well as
the fuselage parts that meet the vertical fin. Assemble the parts, being sure to wipe up any excess epoxy with a paper towel. Confirm
alignment, and wait for the epoxy to cure before proceeding to the next step. DO NOT use tape to secure the fin in place as it will
remove paint when it is removed.
9
Page 12
AURA 8 AFCS
The Aura 8 Advanced Flight Control System (AFCS) installed in
your RV-8 is a giant leap forward in aircraft flight control system
technology. Compatible with virtually every receiver on the market
today, the Aura features special configuration for DSM systems via
remote receiver connection(s), and serial data connection for
Futaba or Hitec S.Bus, Spektrum SRXL, Graupner HOTT (Sum D
of 8), JR XBus (Mode B), and Jeti UDI12 (standard) systems, as
well as being compatible with traditional receivers via PWM servo
connections.
The Aura 8 advanced flight control system installed in your aircraft
has been pre-tuned for ease of use, eliminating many hours of
tedious setup. For the latest Aura features, programs, transmitter
downloads, and instructions, please visit wiki.flexinnovations.com/
wiki/Aura
The Aura is programmable through any Windows based PC or
tablet. All dual rate, expo, travel and assignable mode programs are
adjusted inside the Aura through the PC application. An assignable
master gain that is OFF by default can be enabled by the Aura
application. If desired, assign CH 8/AUX 3 on a proportional dial or
slider.
By default, CH5/Gear is used to select the 3 flight modes by 3
position transmitter switch. CH6/Aux 1 is used to manipulate the
flaps by 3 position transmitter switch. If you wish to control the
LED's in your RV-8 (Night Version only), you'll need to use a
standard receiver and plug the LED controller into an open channel
in your receiver.
Works conveniently with all major radio systems
Accepts signals from DSM Remote Receiver(s), Spektrum
SRXL, Futaba S.Bus, Graupner Hott (Sum D of 8), JR
XBus (Mode B), Jeti UDI12 (standard), Hitec S.Bus, PPM
Stream, or any brand of receiver via male to male servo
connectors
Expertly tuned and ready to use
USB port allows loading model configurations, user
programming, and firmware updates (cable included)
Flexible and extensive programming through Windowsbased PC or tablet
3+ flight modes allow precise or aggressive settings to be
selected in flight
3-axis gyro utilized in RV-8 programming
Visit wiki.flexinnovations.com/wiki/Aura for the
latest Aura-related product information and
tips for your particular radio brand.
Description of Pre-Loaded Aura Flight Modes (FM)
Mode 1 (Gyro Off):
Gyro gain is set to 0 (off). All rates are set to low for general flight (same as Sport Mode). Exponential is tuned for comfortable flight.
Mode 2 (Sport):
Gyro gains are moderate and tuned for comfortable feel/best performance for general flight. All rates are set to low for general flight.
Exponential is tuned for comfortable flight.
Mode 3 (High Rate/Live Wing Mode):
Gyro gains are moderate and tuned for general flight. Flaps work with aileron in roll. All rates are set to highest. Exponential is tuned for
comfortable flight.
Each of the modes has been tuned by our team to offer a solid start. Because tastes in control feel are unique, if changes in rates and
expo are needed, adjustments should be made through the Aura.
Changes in gain value can only be made through the Aura.
REFERENCE ONLY: Aura Settings
10
Page 13
WARNING
DO NOT ATTEMPT RADIO SETUP WITH PROPELLER INSTALLED. INADVERTENT POWER UP COULD CAUSE
DEATH OR SERIOUS INJURY.
TRANSMITTER SETUP
The Aura 8 AFCS is designed to work seamlessly with all major transmitter and receiver brands. When programming your transmitter, start
with a freshly reset new model memory in your transmitter. Make ONLY the changes shown in the Transmitter Configuration Guide
unless otherwise noted.
The Aura 8 in your aircraft defaults to 3 flight modes that are switched via CH5/Gear in your transmitter. You may need to reassign CH5/
Gear to a 3-position switch.
The Night LEDs are switchable on/off via the transmitter. You will need to use a standard receiver, and plug the LED controller into an open
channel port in your receiver. You may need to reassign that channel in your transmitter to a 2-position switch.
Consult your transmitter manual if you have questions on how to change the switch or channel assignments.
The Aura comes pre-programmed with dual rates and expos specifically designed for your aircraft. For large (greater than 5%) changes in
expo or dual rates, it is highly recommended to reset all expos and rates to default in the transmitter, and tune through the Aura Config Tool.
The Aura Config Tool is free to download, and can be used on any Windows-based PC or tablet. Download at:
www.flexinnovations.com/AuraConfigTool
TRANSMITTER CONFIGURATION GUIDE
1
88%
88%
Wing/Tail Type
End Points
(Travel Adjust
or ATV)
Reversing
Sub Trim
Trim Levers
CH. 5 (Gear)
CH. 6 (Flap)
Flap > Ele Mix
Timer
4
Spektrum, Futaba & Graupner
1 Aileron, 1 Flap, 1 Elevator, 1 Rudder
Ail/Ele/Rud
Thro/Gear/Flap
None Required
Verify at zero, NOT ALLOWED
Verify at zero
Assigned to a 3-position switch
Use flap system, assign CH. 6 (Flap) to a 3-position switch
Set switch position values to 0% (neutral), -50% (takeoff), -100% (full flap)
Neutral - 0% | Takeoff - 17% Down Elevator | Landing - 17% Down Elevator
125%
100%
2
Set to 5:30 for initial flights
1 Aileron, 1 Flap, 1 Elevator, 1 Rudder
Ail/Ele/Rud
Thro/Gear/Flap
None Required
Verify at zero, NOT ALLOWED
Verify at zero
Assigned to a 3-position switch
JR DMSS
JR transmitter users that use Spektrum DSM2/DSMX receivers should follow the Spektrum information in the chart
1.
above.
If you are using a Futaba transmitter, please note that some Futaba transmitters have the throttle set to reversed by
2.
default. Leave reversing set to defaults to start, and reverse as needed.
This is only required to switch the LEDs on/off via the transmitter. If the LED controller is unplugged from the receiver
3.
or Aura 8, the lights default in the ON position when powered.
This aircraft can fly anywhere between 5 and 9 minutes (w/6S 5200mAh Li-Po), depending on flying style.
4.
NOTICE
FOR CUSTOMERS USING TRANSMITTERS OTHER THAN WHAT IS LISTED IN THE CHART ABOVE, PLEASE VISIT
OUR WIKI PAGE FOR INSTRUCTIONS SPECIFIC TO YOUR TRANSMITTER AND RECEIVER BRAND
JETI
HITEC
FRSKY
wiki.flexinnovations.com/wiki/Aura/JetiUse
wiki.flexinnovations.com/wiki/Aura/HitecSbusUse
wiki.flexinnovations.com/wiki/Aura/FrSkyUse
11
Page 14
CONNECTING A BATTERY/ARMING THE ESC
WARNING
When making adjustments to linkages,
transmitter settings or the Aura 8 flight control
system, remove the propeller to guard against
accidental spool up.
Hold the aircraft securely when connecting the
battery before flight. Always ensure the propeller
is clear of any and all objects as they may
become entangled.
WARNING
CAUTION
WARNING
WARNING
Observe the following procedures to safely power up your model
after it has been bound. Ensure propeller is removed unless
sequence is followed to power up before flight.
1.
Lower the throttle stick and trim to their lowest setting and turn
on the transmitter. Wait for your transmitter to indicate the radio
signal is being broadcast before proceeding.
If a battery is connected to the ESC with the throttle fully
open on the active transmitter, the ESC will enter
programming mode. If this occurs, simply disconnect the
battery, lower the throttle, and reconnect the battery.
2.
Ensure the aileron, elevator and rudder gimbals are centered.
3.
With the airplane on a solid surface, connect the battery to the
ESC and wait. The ESC will make the motor emit a series of
audible tones during its intialization process.
4.
The ESC will make the motor emit a short, final tone sequence
idicating that the ESC is now armed, and that the motor will spin
in response to throttle stick movement.
Always connect the battery when the throttle stick
and throttle trim is in the idle/cut-off position.
CONNECTING A BATTERY TO THE LED CONTROLLER (NIGHT VERSION ONLY)
The LEDs on your aircraft are switchable via the transmitter, and are designed to be powered by 12 volts (3S Li-Po) through the 6S JST-XH
balance tab on the LED controller. By default, the LED controller is left unplugged.
IN ORDER TO CONTROL THE LEDS FROM THE TRANSMITTER, YOU MUST USE A STANDARD RECEIVER THAT IS
CAPABLE OF 7+ CHANNELS, AND KEEPS THE SERVO PORTS ACTIVE WHEN USING A DIGITAL DATA STREAM
(like S.Bus, SRXL etc.).
If the servo lead of the LED controller is not plugged into the Aura or a receiver, the LEDs will default in the ON position, allowing
the Night Version to be flown at night with a basic 6-channel transmitter or receiver.
The LEDs should be powered from a separate 3S Li-Po battery per the diagram below.
The LEDs draw approximately 2.5A from ONLY 3 cells of the battery powering it. If using a higher cell count battery for
power, 3 of the cells will have a lower voltage than the others at the end of each flight. Leave excess voltage in the battery
at the end of each flight to prevent the over-discharging of the cells that power the LEDs. You MUST balance charge your
batteries after each flight the LED controller is powered by anything other than a 3 cell battery.
Do not leave the battery plugged into the LED controller for extended periods of time. Doing so can
damage the battery.
LED
3-6S Li-Po
CONTROLLER
12
Page 15
RECEIVER INSTALLATION/SERVO CONNECTIONS
ESC
-
+
-
+
Aura will auto-detect modern digital receiver connection(s). Using a
modern digital receiver connection gives the Aura access to precise
data of each channel for additional gyro-enabled outputs, simplifies
wiring, and allows for more advanced features. To connect a
modern digital receiver connection, follow the steps on this page,
then skip ahead to page 16.
For traditional PWM receivers without digital connection(s), male to
male servo leads must be used for each channel. Please refer to
the connection diagram on page 15.
Supported Modern Data-Linked Receivers
Aura will auto-detect these modern digital receiver connections:
Spektrum Remote Receiver(s)
Futaba or Hitec S.Bus
Graupner HOTT (Sum D of 8)
A PPM (8CH, negative shift, approximately 22ms/frame) receiver may also be
connected into Port 'B', however Aura will not auto-detect and setup must be
performed through the Aura Config Tool (Windows Application).
Spektrum SRXL
JR XBus (Mode B)
Jeti UDI12 (standard)*

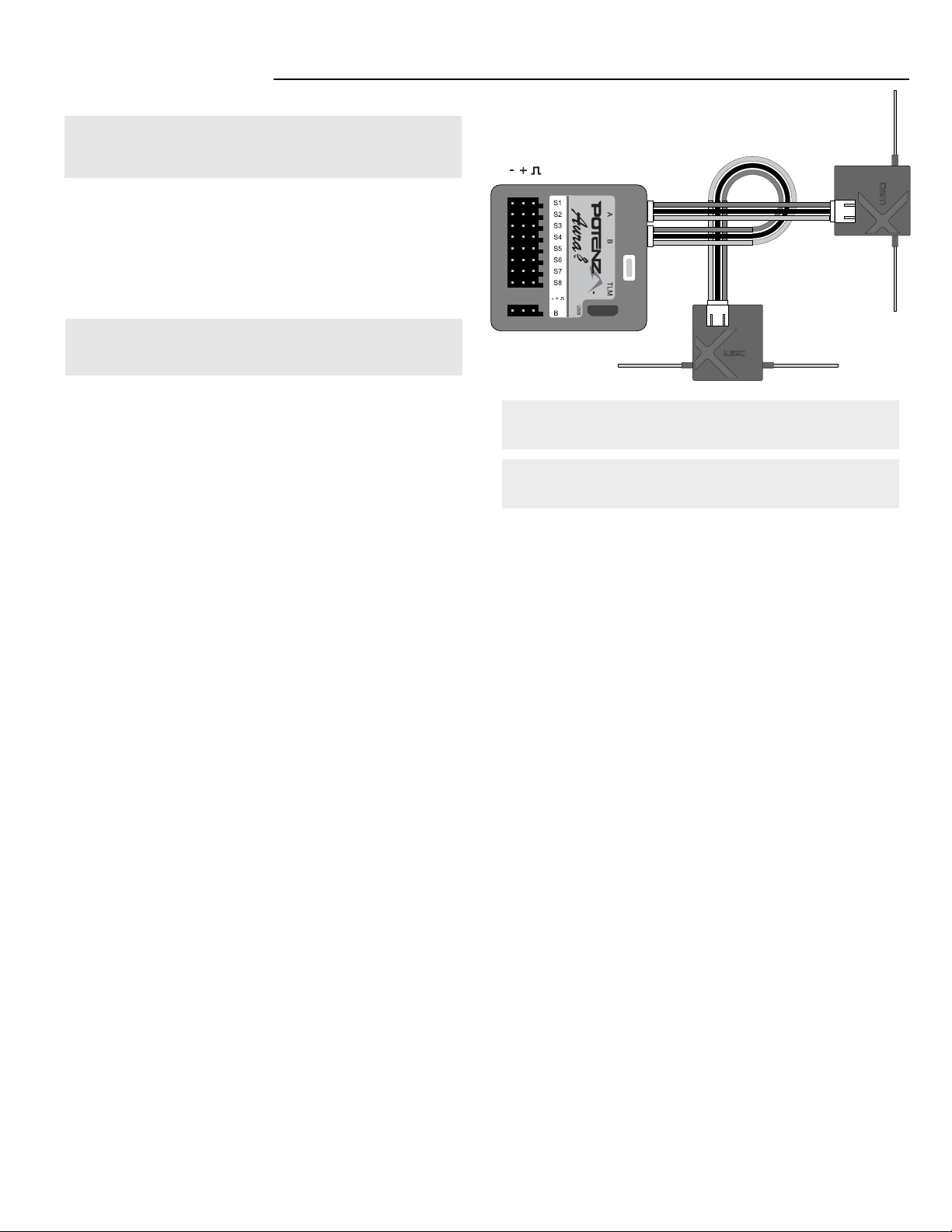

Connecting Your Receiver to Aura
Digital Receiver Connections
Examples of Recommended Receivers:
Spektrum SRXL
AR7700
AR8010T
AR9030T
Futaba S.Bus
S-FHSS - R2001SB
FASST - R6303SB
FASSTest - R7008SB
DEFAULT AURA CONNECTIONS
S1
Throttle (ESC/BEC)
S2
Left Aileron
S3
Right Aileron
S4
Elevator
S5
Rudder
S6
Left Flap
S7
Right Flap
S8
Float Water Rudder
For specific information on receiver types and our
recommended receivers for this aircraft, please visit the RV-8
Wiki page at the below URL:
wiki.flexinnovations.com/wiki/RV8
JR XBus
RG612BX
RG712BX
Jeti UDI
EX R6i
Graupner SUMD
GR-12L
GR-16L
Hitec S.Bus
Optima SL-8
EX R11
FrSky S.Bus
RX6R
RX8R
1.
While Spektrum and Futaba usually output their digital data
stream, it may be necessary for JR DMSS, Graupner HOTT,
and Jeti users to program the transmitter/receiver to output the
correct digital format listed on the previous page. Consult your
transmitter and receiver manuals for further details.
2.
Bind your transmitter and receiver per your manufacturer's
instructions.
3.
Connect the included male to male servo extension to the
receiver's data port (ex: S.Bus, SRXL etc.) and connect to servo
port 'B' on the face of the Aura. Refer to your radio
manufacturer's instructions for specific information on
appropriate serial port connections and system settings.
If your receiver has a working throttle port while using it's
digital connection, USE IT. Move the ESC (throttle) lead from
Aura Port S1 to your receiver's throttle port. Consult your
receiver and/or transmitter instruction manual for specific
details on your system.
Note: If you are using Futaba S.Bus, be sure to use the proper
S.Bus port in your receiver. DO NOT use the S.Bus 2 port, as it
is not supported for use with the Aura 8. Refer to your
manufacturer's instructions for proper S.Bus use.
4.
With the transmitter powered, power up the aircraft. Aura will
search (sweeping LEDs) and lock onto the signal. You will then
see solid orange (power and calibrated sensor) plus solid green
(valid radio source), and have control of the model.
Note: When using Spektrum SRXL to connect to the Aura,
always connect the remote receivers to the Spektrum receiver,
NOT to the Aura.
13
Page 16
RECEIVER INSTALLATION/SERVO CONNECTIONS (CONTINUED)
Spektrum Remote Receivers
Please note, for optimum connection reliability and performance
using Spektrum, the Flex Team HIGHLY recommends the use of
a traditional receiver with SRXL (like the AR8010T or AR9030T).
Remote receivers may still be used, however.
Connect (2) matching Spektrum remote receivers to Mini Port
1.
'A' and Mini Port 'B' at the top of the Aura case.
To bind a DSMX Spektrum remote receiver connection, insert a
2A.
bind plug into Aura Port S8.
To bind a DSM2 Spektrum remote receiver connection, insert a
2B.
bind plug into Aura Port S1 AND S8.
If you are unsure which type of DSM remote receiver you
have, start by attempting the bind process with a bind plug
in S8. If you continue to have trouble binding, then insert
one bind plug in S1, and one bind plug in S8.
Connect the flight battery to the ESC and the remote receivers
3.
will begin to flash, indicating that they are ready to bind. Follow
the instructions provided with your transmitter to complete the
bind process.
Once bound (indicated by both remote receivers showing a
4.
solid orange LED), Aura will begin the Auto-Detect process,
indicated by sweeping LEDs on the Aura. Once complete, you
will see a solid orange (power and calibrated sensor) and solid
green (Aura receiving valid receiver data) LED, indicating that
the Aura is in its flight ready state.
Note: It may be necessary to move the ESC lead to another open
port (such as 'Port B') during the binding precedure. Be sure to
return the ESC lead back to S1 after binding is complete.
Note: There are many JR-branded remote receivers that use
Spektrum DSM2 and DSMX RF protocol. For these, follow the
instructions as Spektrum remote receivers.
Mount your receivers using double sided foam tape or hook and
5.
loop tape. Consult your receiver manual for proper mounting
orientations and procedures.
14
Page 17
RECEIVER INSTALLATION/SERVO CONNECTIONS (CONTINUED)
Connecting a Traditional Receiver to Aura with PWM Servo Connections
PWM is an acronym which stands for Pulse Width Modulation. A servo will move to a specific angle in a specific direction based on the
width of the signal pulse it receives. Most transmitters output a total pulse width of 1.1-1.9ms, with the midpoint being 1.5ms. Lower pulse
widths will move the servo to one side of neutral and higher pulse widths to the other side of neutral. Different from serial data connections
(S.Bus, SRXL etc.) this is how traditional receivers work. In order to utilize this type of receiver connection with your aircraft, male to male
servo leads to connect the corresponding receiver ports to Aura are required. A minimum 6-channel receiver is required to set up Aura with
PWM servo connections. Please purchase FPZAU01 Aura 3-piece male to male servo cable/S.Bus to complete the PWM connection
setup.
1.
Bind your receiver to your transmitter by following the instructions provided by your transmitter and receiver manufacturer. Verify that it is
bound by connecting a spare servo to the receiver and verify that it responds to the appropriate input.
2.
With the transmitter and receiver powerd OFF, connect your receiver to Aura using the diagram below. Note that the throttle is plugged
directly into the receiver, and other connections will need to removed per the diagram below. Depending on your particular transmitter,
you may need to reverse the throttle in the transmitter when the ESCs throttle lead is plugged directly into your receiver.
NOTICE
VERIFY PROPER POLARITY OF ALL CABLE CONNECTIONS PRIOR TO ADDING POWER TO THE SYSTEM
All four (4) PWM male to male connections must be connected AND connected in the proper polarity from receiver outputs
3.
With the propeller removed and ALL connections made (observing correct polarity), power on your transmitter and the airplane with the
flight battery, ensuring that the airplane is kept stationary. After a few seconds, the LEDs on Aura will sweep back and forth as Aura
searches for a valid control signal. Once found, a solid orange (aura Running), and solid green (Aura receiving valid signal from the
receiver) LED is illuminated. After the source is found, apply transmitter right rudder to assist Aura to determine your radio type, after
which point control of the model is established. This is only required during initial setup
to Aura inputs for Aura to activate servo outputs. (Aileron - S1, Elevator - S2, Rudder - S3, Gear/CH5 - S4)
Thro
RX
Ail
Ele
Rud
Gear (CH5)
Aux 1 (CH6)
Aux 2 (CH7)
Y-Harness
(FPZA1012)
S1
S2
S3
S4
S5
S6
S7
S8
Receiver
PWM Inputs
Servo PWM
Outputs
Rudder Servo
Float Water Rudder Servo
Lead
To Motor
Throttle
ESC
Elevator Servo
Right Aileron Servo
Left Aileron Servo
LED
CONTROLLER
To LED
Battery
Note: The LEDs on the RV-8 Night Version are able to be turned on and off via a channel from your transmitter. Simply plug the servo
lead from the LED controller following the diagram above and assign that channel to a 2-position switch on your transmitter accordingly.
Servo Lead
Plug Into Open
RX Channel
*Y-Harness
(FPZA1012)
*Servo Reverser
(FPZA1025)
Right Flap Servo
Left Flap Servo
If you do not have an available channel on your transmitter and/or receiver for the LED controller, you can simply leave the
servo lead unplugged, and the lights will be on by default (once powered). Be sure to secure the wiring to the fuselage.
If you are using a traditional Spektrum receiver, with remote receivers, DO NOT plug any remote receivers into the
* Y-Harness and Servo Reverser is not required if using a 7+ channel transmitter and receiver (or 8+ if you want switchable LEDs) with dual flap servo and independent servo reversing capability.
** Arrows indicate signal (data) flow. They do not necessarily indicate voltage (+) flow.
Aura 8. They should instead be plugged directly into your traditional receiver.
15
Page 18
HORIZONTAL STABILIZER INSTALLATION
1
2
Required Tools and Fasteners:
(QTY 4)
Insert the horizontal stabilizer tube into the fuselage and roughly center.
1.
Slide the left and right sides of the horizontal stabilizer onto the tube. Ensure the control horn orients to the bottom of the fuselage and
2.
that the elevator joiner tabs are indexed properly. Do not force the stabilizer into place.
Use a #1 Phillips screwdriver and two M3x8 Phillips head self-tapping screw to secure each stabilizer in place.
3.
#1 Phillips Screwdriver
Blue Thread Lock
(4) M3x8 Phillips Head Self-Tapping Screw
16
Page 19
RUDDER AND ELEVATOR LINKAGE INSTALLATION
Required Tools and Fasteners:
(QTY 4) (QTY 4) (QTY 4) (QTY 4)
Locate the rudder and elevator pushrod assemblies, as well as the servo arms and hardware. Note that both pushrods and servo arms
1.
are the same length.
Power on your transmitter, and move your Flight Mode switch (assigned on page 11 of this manual) to Mode 1 (Gyro Off). Power on the
2.
airplane, and confirm the Aura is in Mode 1 by rotating the airplane quickly, and verifying that you get no gyro controlled servo
movement.
With the aircraft still powered on, install the rudder and elevator servo arms perpendicular to the servo case, being sure to orient the
3.
servo arm torwards the bottom of the fuselage. Apply blue thread lock to the M3x6 phillips head machine screw, and secure the servo
arm in place with a #1 Phillips screwdriver.
Elevator and Rudder Pushrod Assemblies
M2x10 Phillips Head Machine Screw (4)
M2 Flat Washer (4)
M2 Lock Nut (4)
M3x6 Phillips Head Machine Screw (4)
#1 Phillips Screwdriver
#0 Phillips Screwdriver
Needle-Nosed Pliers (or Hemostats)
Blue Thread Lock
WARNING
DUE TO VARIANCES IN PRODUCTION AND THE LARGE CONTROL SURFACE THROWS ON THIS AIRCRAFT,
PROPER SERVO CENTERING AND TRAVEL ADJUSTMENT IS CRITICAL TO PREVENT SERVO OVER TRAVEL
AND FAILURE. IF THE SERVO ARMS ON YOUR AIRCRAFT DO NOT SIT PERPINDICULAR TO THE SERVO
CASE, YOU MUST USE THE AURA CONFIG TOOL TO ADJUST THE SUB-TRIM AND OUTPUT SCALE VALUES
TO PREVENT OVER TRAVEL OF THE SERVOS.
To download the Aura Config Tool, please visit:
https://www.flexinnovations.com/articles.asp?ID=257
17
Page 20
RUDDER AND ELEVATOR LINKAGE INSTALLATION (CONTINUED)
Prototype shown. Control horn location is
not correct. Reference the chart above.
Use a #0 Phillips screwdriver, M2x10 machine screw, M2 washer and M2 lock nut to secure the linkage to the control horn and servo
4.
arm. Use the chart below for proper control horn and servo arm linkage locations. The order of components is as follows:
M2x10 Machine Screw
M2 Washer
Servo Arm or Control Horn
M2 Lock Nut
Repeat the process for the other control linkage.
5.
Elevator Rudder
Servo Arms
Control Horns
Elevator Rudder
18
Page 21
MAIN WING INSTALLATION
Required Tools and Fasteners:
M4x18 Thumb Machine Screw (2)
WARNING
REMOVE THE AILERON SERVO SCREWS AND APPLY BLUE THREAD LOCK TO THE SCREWS. RE-INSTALL
Remove the canopy from the fuselage by pulling the latch to the rear and lifting the canopy from the fuselage. Insert the main wing tube
1.
into the fuselage and roughly center.
Slide the left and right wing panels onto the tube. Ensure the servos orient to the bottom of the fuselage.
2.
Connect the aileron servo leads to their respective extensions in the fuselage. If you have a night version, connect the wing JST to the
3.
LED controller JST connector per the diagram below.
Fully seat the wing into the fuselage while being careful to align the wing mounting tab with the slot in the fuselage. Be sure to avoid
4.
pinching any wires during this process. Secure the wing to the fuselage using a M4x18 thumb screw.
THE SCREWS AND TIGHTEN FULLY. FAILURE TO DO SO MAY RESULT IN A CRASH
Aileron Servo Aileron Servo Extension
Flap Servo ExtensionFlap Servo
From Wing
*JST connector for Night Version Only
Any Lead From LED Controller
19
Page 22
TRANSMITTER CONTROL DIRECTION TEST
Refer to the chart below to determine the proper control surface directions.
If controls are reversed, DO NOT REVERSE CONTROLS IN THE TRANSMITTER OR THE AURA CONFIG TOOL. Email us at
[email protected] for corrective action. Note that BOTH the Transmitter Control Direction Test AND the Flight
Note: There is a pre-configured rudder to elevator mix programmed into the Aura. If you see the elevator move with rudder stick
Controller Sensor Direction Test MUST BOTH BE PASSED! IF ONE DOES NOT PASS, DO NOT FLY!
input, this function is intentional and completely NORMAL.
AILERONELEVATOR
Stick
Movement
Stick Left
Stick Right
Stick Aft
Proper Control
Surface Deflection
Stick Forward
Stick Left
Stick Right
RUDDER
20
Page 23
FLIGHT CONTROL SENSING DIRECTION TEST
Perform a test of the gyro system to verify the corrections made for a given movement are correct. If any of the tests do not result in the
correct reaction for the airplane's gyro system, DO NOT FLY THE AIRPLANE, and contact us via email at [email protected].
The flight control system activates with RF broadcast. Perform these tests in Mode 3 (higher gain) for better visibility, and then again in
Mode 2, and any other flight modes that have gyro gains assigned. (By default, Mode 1 has no gain assigned.) Control surface deflections
are exaggerated in the drawings below for clarity. Please note that the control surfaces will move ONLY while the aircraft is ROTATING.
AILERONELEVATOR
Aircraft
Movement
Proper Control
Surface Deflection
RUDDER
21
Page 24
EXHAUST INSTALLATION
Required Tools and Fasteners:

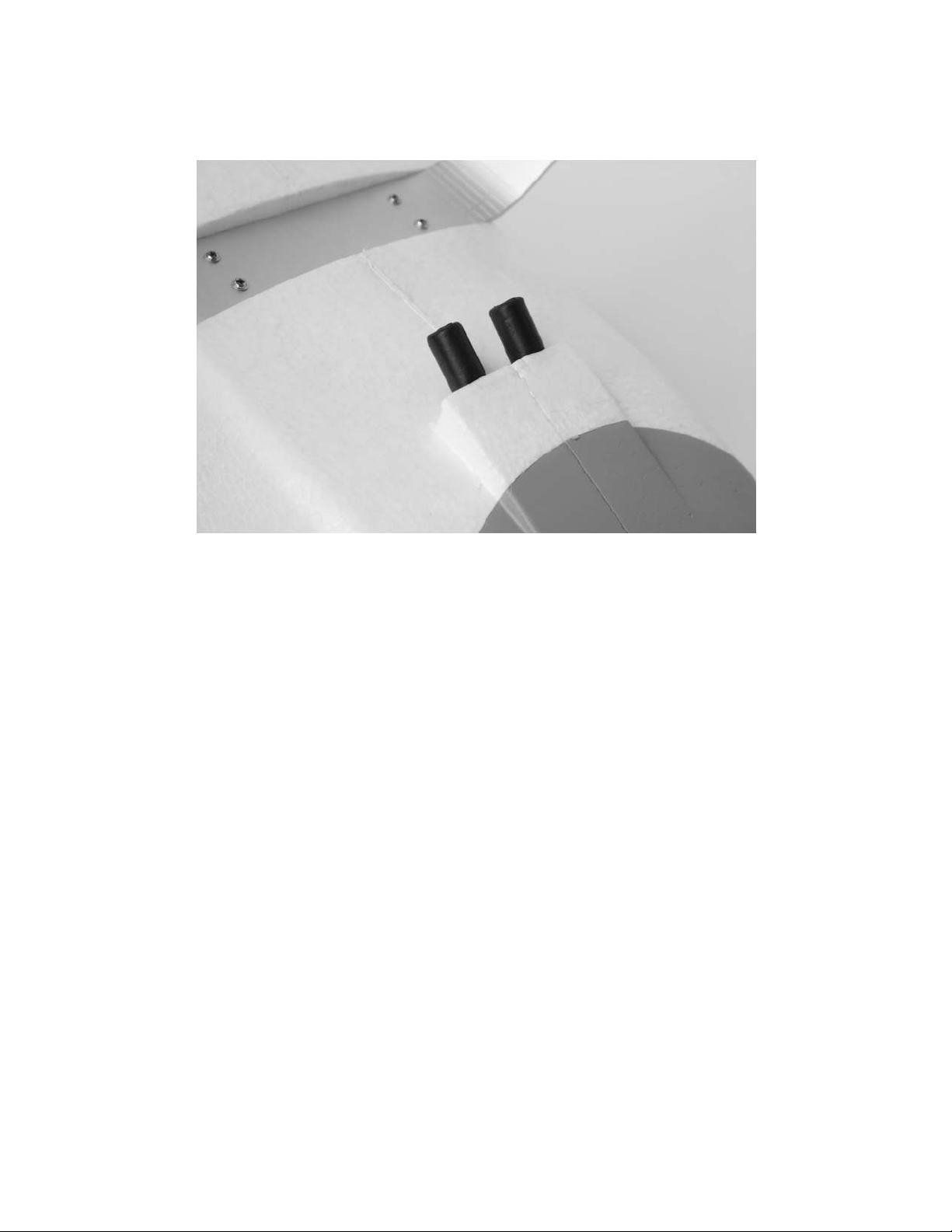

Locate the two black foam scale exhaust pieces. Use medium CA to secure the exhaust as shown in the photo below. You can also use
1.
CA accelerator to help speed up the process.
Medium CA
CA Accelerator
22
Page 25
MOTOR AND PROPELLER INSTALLATION
Required Tools and Fasteners:
(QTY 4) (QTY 4) (QTY 2) (QTY 1)
Locate the motor assembly. Use a 2.5mm hex driver to remove the four prop adapter screws in the front of the motor. Apply blue thread
1.
lock to the screws and reassemble.
Locate the aluminum x-mount for the motor. Apply blue thread lock to the M4x12 Phillips flat head screws and use a #1 Phillips
2.
screwdriver to secure the x-mount to the back of the motor. Be sure to orient the mount so tht the flat head screws sink into the mount
and sit flush with the back of the motor mount.
Plug the motor wires into the ESC wires. There is no proper polarity; plug any one of the motor wires into any one of the ESC wires. If
3.
the motor spins backwards when you test motor function, simply swap any two wires to make the motor spin in the proper direction.
Apply blue thread lock to the M4x22 Phillips button head screws and use a #1 Phillips screwdriver to secure the motor to the firewall of
4.
the aircraft.
Motor Assembly
M4x22 Phillips Button Head Screw (4)
M4x8 Phillips Flat Head Screw (4)
M3x10 Phillips Button Head Screw (1)
M3x8 Phillips Button Head Screw (2)
M8 Nut
#1 Phillips Screwdriver
Blue Thread Lock
Note: Different Motor Shown
Note: Different Motor Shown
23
Page 26
MOTOR AND PROPELLER INSTALLATION (CONTINUED)
Use a #1 Phillips screwdriver and two M3x8 Phillips button head screws to secure the the cowling to the aircraft.
4.
Place the propeller onto the propeller adapter, with the convex side facing forward. Place the propeller washer over the shaft, and thread
5.
the propeller nut onto the propeller adapter. Use an adjustable wrench to tighten the propeller nut.
Place the spinner over the prop shaft, being sure to align the cutouts in the spinner with the propeller blades. Use a M3x10 Phillips
6.
button head screw and a #1 Phillips screwdriver to secure the spinner in place.
24
Page 27
CENTER OF GRAVITY VERIFICATION
AEROBATIC
10-13/16 in.
(275mm)
OR
The center of gravity (CG) location for your aircraft is located in two
locations depending on the flying style you wish to fly.
For general sport flying, the CG is located 11-7/32 inches
(285mm) FORWARD of the trailing edge of the wing.
For more aerobatic capability, the CG is located 10-13/16
inches (275mm) FORWARD of the trailing edge of the wing.
These CGs are measured by lifting the completed airplane upright,
with all components installed. This location was determined from
many test flights by designer and multi-time world aerobatic
champion, Quique Somenzini. Lift the airplane from the underside
of the wing to check CG.
Setting the center of gravity is one of the most important steps for
success, particularly with a new airplane. The RV-8 is a
high-performance airplane with large control surface throws, and a
high thrust-to-weight ratio. These two factors combined make it a
very enjoyable aircraft to fly, but if the CG is not within an
acceptable range, it will make the aircraft difficult, if not impossible
to control.
NOTICE
The CG measurement should be made with the completed
airframe with all components (batteries, servos, receiver,
linkages, hardware, etc.) installed. Failure to do so will result
in an inaccurate measurement.
SPORT
11-7/32 in.
(285mm)
PRE-FLIGHT CHECKS
To help ensure a successful first flight, as well as many flights after, perform a few simple pre-flight checks to ensure the aircraft is ready for
flight.
Verify control surfaces are properly hinged and in good working order. Pinch a control surface between your thumb and fore finger, and
1.
stabilize the wing with your other hand. Give the control surface a firm pull away from the wing. The control surface should not come
unhinged from the wing. Be sure to avoid over-stressing the part, as an aggressive pull may cause the surface to come unhinged even
though it is hinged properly. If hinging is loose, do not fly. Apply thin CA to the loose side(s) of the hinge(s) to resecure.
Verify that all hardware and all other aircraft parts are properly secured, including those connections that require blue thread lock. This
2.
includes hardware and parts installed by the factory.
Verify your battery is fully charged and in good condition. Avoid using batteries with swollen cells, or batteries that do not charge back
3.
to their full capacity.
Verify the CG is in the proper location, and the battery is secured in place.
4.
Ensure the Aura is on and functioning properly. Power on your transmitter, followed by the aircraft. Ensure the Aura is calibrated
5.
properly and receiving a valid radio source (solid orange + solid green LEDs).
Verify transmitter stick inputs result in the proper control surface movements (reference page 20), and that all Aura flight modes work
6.
properly.
Verify aircraft movement results in proper Aura sensor corrections (reference page 21).
7.
Verify the motor and ESC function properly. Point the aircraft in a safe direction, and away from any objects or limbs that could become
8.
entangled in the propeller. Hold the aircraft firmly so that you are behind the aircraft. Smoothly advance the throttle to full and back to
idle. Listen and watch for any od or unusual behavior from the motor and ESC.
25
Page 28
FLYING YOUR RV-8
Takeoff
Taxi or place the aircraft on the runway centerline, with the nose
pointed into the wind. Select Flight Mode 2, then set throttle trim so
that the motor spins at it's lowest RPM without stopping. For the
first flight, set flaps to up. Smoothly advance the throttle to full while
maintaining directional control with the rudder and slight back
pressure on the elevator. The airplane should lift off smoothly
before the throttle is fully open. Fly in Flight Mode 2 until the aircraft
is fully trimmed (see special trimming instructions), and you are
comfortable with it's handling, then explore the other modes as
desired.
Flying
Altitude is your friend on the first flight. Briskly climb to a safe
altitude and trim the airplane. The airplane should fly straight
and level at 1/2-3/4 power with no input from the sticks. Try
some basic maneuvers, and slowly progress into the airplane's
flight envelope as you become more comfortable with the
airplane's flight qualities and perfect your setup. Note: if at
any time, such as after gain adjustments, you experience
unexpected control system inputs or oscillations, switch
to Mode 1, and land and troubleshoot the issue. (Mode 1
turns the sensor inputs off with default programming)
Trimming
The first several flights on your aircraft should be dedicated to
trimming and setup. Fly the airplane at 2/3 power in Flight Mode 2
and trim for level flight. Land, adjust linkages and return the trim t
CAUTION
Selecting a Flying Site
Selecting a flying site is critical to a successful flight. Airplanes
require a lot more room than other R/C products, therefore, a
neighborhood or parking lot is not recommended. A local AMA field
is the best location for flying your aircraft. If no AMA field is
available in your area, a large open field with short grass and
generous overfly area is the best candidate. Know your overfly
area. Ensure that there are no houses, playgrounds, people or
other buildings that may be damaged if the airplane were to crash.
Landing
Be mindful of your flight time and allow adequate battery
reserve for a couple of landing attempts, if necessary, on the
first few flights. Select Flight Mode 2 and slow the airplane and
align with the runway, into the wind. Keep the throttle at 1/8-1/4
power for the majority of the decent. The airplane should
descend smoothly in this configuration with proper airspeed.
Once you are close to the ground, gradually close the throttle
fully and begin to smoothly apply up elevator as required to
arrest descent and the airplane should gently touch down with
a short roll out. Remember, you can always smoothly
advance the throttle to full, and make a go-around to set up
for another landing. You don't have to land on the first
attempt. After you get comfortable landing the aircraft without
flaps, you can experiment more with both flap positions on
landings.
zero, and fly again. Repeat until the airplane flies hands off, straight
and level. Transmitter trim or sub-trim will cause trim shifts when
different flight modes are selected. To eliminate this trim shift, you
can mechanically trim the model, or you can complete Aura "Quick
Trim".
Please note, due to the nature of Aura Flight Modes, trim in low
rates will not be as effective as trim in high rates. This functionality
is NORMAL.
Aura Quick Trim
The Aura 8 features a Quick Trim Mode that eliminates the need for
mechanical linkage adjustments during test flights. Aura will learn
the trim values from your transmitter, and apply them to the control
surfaces at power up when enabling quick trim mode.
NOTE:
NOTE: ENSURE AILERON/ELEVATOR/RUDDER
NOTE: QUICK TRIM IS NOT AVAILABLE TO PWM
1.
2.
3.
4.
5.
6.
Quick Trim can also be used BEFORE flying to make
small changes to center the control surfaces before flight.
TRANSMITTER SUB-TRIMS ARE ZERO BEFORE
FLYING FOR QUICK TRIM PROCESS
CONNECTION USERS. IF YOU ARE USING A PWM
CONNECTION, YOU WILL NEED TO MECHANICALLY
TRIM THE MODEL.
Fly the airplane in Flight Mode 2. Trim the aircraft with the
transmitter and land. DO NOT CHANGE FLIGHT MODES.
Power off the Aura. Insert a bind plug into Aura Port S3
(you will need to remove the servo lead that is currently in
S3). Check the transmitter is on and repower the Aura.
Wait 5 seconds for the Aura to completely initialize. Confirm
Quick Trim mode is active by checking the Blue LED is
slowly flashing.
Remove the bind plug from Aura Port S3, and re-install the
servo that was previously removed into S3. Removing the
bind plug stores the current trims in the Aura. The Blue LED
will flash quickly after control surface trim values are stored.
While the trim values are stored in Aura, they are not
applied to the control surface(s) until the Aura is repowered.
Remove power from the Aura and center all control surface
trims on the transmitter.
Re-power the Aura. The control surfaces should be
unchanged even though the trim has been centered on the
Transmitter. Switch between other Flight Modes to ensure
you do not see any changes in trim.
o
USE CAUTION WHEN FLYING YOUR AIRCRAFT IN FLIGHT
MODE 3 AT HIGH AIRSPEEDS. DOING SO CAN INDUCE
CONTROL SURFACE OSCILLATIONS AND MAY CAUSE A
CRASH.
26
Page 29
AIRFRAME REPAIRS
NOTICE
Your aircraft is molded from durable EPO foam and is repairable with most adhesives. Similar to building and repairing wood or composite
aircraft, the correct glue for a given application is critical to the repair holding and not breaking again. For major repairs, such as a broken
fuselage, epoxy is preferred because it allows time to correct any misalignment, and is less brittle than CAs. For smaller repairs, such as a
cracked control surface or small chunk of material missing from the airframe, regular CA is very effective. The use of odorless (foam safe)
CA is not recommended on EPO foam because it is weaker than regular CA and takes a longer period of time to cure.
NOTE: Avoid the use of CA accelerant in repairs. It can damage paint and will weaken the bond of the glue. If CA accelerant is used, be
mindful of the locations of CA to prevent premature bonding of parts or bonding a hand or clamp to the airframe.
If a part is damaged too badly to be repaired, please refer to page 3 of this manual for a complete listing of available replacement parts.
If a crash is imminent, fully reduce the throttle to prevent further damage to the power system and reduce energy to lessen
impact damage. Never allow the propeller to contact the ground under power, even at a slow idle.
CRASH DAMAGE IS NOT COVERED UNDER WARRANTY
NOTE: Avoid keeping the aircraft in direct sunlight when not flying. Excessive heat can damage the airplane's structure, and UV light
can permanently discolor decals.
REPLACING SERVOS
Required Tools and Fasteners:
1.
Disconnect the servo from the Aura 8.
2.
Unscrew the servo arm screw from the servo, and remove the servo arm.
3.
Unscrew the two servo mounting screws at each end of the servo and remove. Please note, the aileron servo extensions are wired to
the navigation lights for connection simplicity. DO NOT remove the aileron servo extensions from the wing, as damage to your
navigation and landing lights may occur.
#1 Phillips Screwdriver
TIP: Plug a spare servo extension into the servo lead before removing to make it easier to install the lead of the servo when replaced. Note
that this dones not work for the aileron servo extensions, as they should not be removed per step 3 above.
27
Page 30
AIRCRAFT TROUBLESHOOTING GUIDE
NOTICE
Should you encounter any abnormal situations with your aircraft, refer to the matrix below to determine probable cause and a recommended
solution for the action.
If the required solution does not rectify the problem, please contact product support for further assistance.
Unless specifically required, ALWAYS troubleshoot the airplane with the propeller removed.
DISCREPANCY
Motor nonresponsive
(ESC initialization tones
audible)
Motor nonresponsive (No
ESC initialization tones
audible)
Motor turns in the wrong
direction
Reduced flight time or
aircraft under powered
Excessive propeller noise
and/or vibration
Control surface(s)
non-responsive
Failed control direction test
Control surface oscillation
Trim changes between
flight modes
PWM Receiver Connection
type, and cannot get
orange + green LED on
Aura, and no control of
model
Throttle not at idle and/or throttle trim too high
Throttle channel is reversed
Motor disconnected from ESC
The three motor wires are connected
incorrectly to the ESC
Flight battery not fully charged
Propeller installed backwards
Flight battery is weak or damaged
Ambient temperature is too cold
Battery capacity too small for intended use
ESC reaching preset LVC (low-voltage cutoff)
Battery's discharge rating too low
ESC timing set to high
Damaged spinner, propeller, prop adapter or
motor
Propeller is not balanced
Prop nut is loose
Spinner is not fully in place or tightened
Propeller nut or propeller adapter threads
not cut straight
Airframe or control linkage system damaged
Transmitter model bound incorrectly, incorrect
active model memory, incorrect Aura data
input configuration, incorrect transmitter
settings
Battery voltage too low
Battery disconnected from ESC
Battery Eliminator Circuit (BEC) damaged
Damaged servo
Incorrect transmitter or Aura 8 setting.
DO NOT FLY!
Exceeding maximum airspeed for configuration
Propeller/spinner not balanced
Motor vibration
Loose Aura 8 Mounting
Excessive control linkage slop or play
Improper transmitter setup
Damaged spinner and/or propeller
Improperly set master gain
Trims are not properly zeroed
Sub-trims are not properly zeroed
Transmitter is out of calibration (aileron/elevator/
rudder are not at neutral with sticks centered;
reference transmitter monitor screen)
Any of the four PWM cables not connected
Any of four PWM cables connected to incorrect
ports
Polarity of any PWM cables incorrect
Receiver not bound and/or outputting PWM
servo pulses
PROBABLE CAUSE
RECOMMENDED SOLUTION
Lower throttle stick and trim completely. If problem persists, ensure
that the sub-trim and travel adjust are properly set in the radio's
programming.
Reverse throttle channel in radio programming.
Ensure plugs are fully seated. Check battery and/or plugs for damage and
replace any damaged components found. DO NOT ATTEMPT TO REPAIR.
Swap any TWO motor wires.
Ensure battery is fully charged prior to installing in aircraft.
Install the propeller so that the convex side faces forward.
Remove battery from service and replace with a different battery.
Ensure battery packs are adequately warm (70°F/21°C) before flight.
Replace battery with one of proper capacity and discharge capacity (C
rating).
Recharge battery, or reduce flight time.
Replace battery with one of a higher discharge rating.
Re-program ESC to low timing
Replace damaged components. DO NOT ATTEMPT REPAIR.
Balance or replace the propeller.
Tighten prop nut with properly sized wrench.
Loosen the spinner bolt, adjust as required and retighten bolt.
Rotate 180 degrees and re-tighten or Replace propeller nut or propeller
shaft. DO NOT ATTEMPT REPAIR.
Replace damaged control system components. DO NOT ATTEMPT
REPAIR.
Consult radio manual for proper binding and model selection instructions.
Use volt meter to check battery. Replace or recharge as necessary.
Verify that battery is connected, and that the EC5 plugs are fully seated.
Replace ESC. DO NOT ATTEMPT REPAIR.
Replace servo. DO NOT ATTEMPT REPAIR.
Reference transmitter and receiver sections of this manual. If no solution is
found, contact customer support at [email protected].
Reduce airspeed.
Balance or replace spinner/propeller.
Inspect motor and motor mounting. Tighten screws as needed or replace
motor.
Realign and secure the Aura 8 to the aircraft.
Inspect control linkage system and replace components as necessary.
Refer to the transmitter configuration guide in this manual to properly
configure transmitter settings.
Replace spinner and/or propeller as needed. DO NOT ATTEMPT REPAIR.
Ensure master gain is set for proper gain value(s).
Use Aura "Quick Trim" feature, or mechanically trim the model and reset
tranmsitter trim to zero.
Use Aura "Quick Trim" feature, or mechanically trim the model and reset
tranmsitter sub-trim to zero.
Calibrate transmitter (reference transmitter's instruction manual) or return
transmitter to manufacturer for calibration.
Connect all four male to male servo cables between your receiver and
Aura.
Connect all cables to the proper ports. Reference the diagram on the PWM
receiver connections page of this manual.
Reconnect servo cables with the proper polarity.
Bind receiver per manufacturer's instructions and verify with a servo to
ensure PWM signal is output from each channel as required.
28
Page 31
LIMITED WARRANTY
Warranty Coverage
Flex Innovations, Inc. and its authorized resellers ("Flex") warrant to
the original purchaser that the product purchased (the "Product") it
will be free from defects in materials and workmanship at the date
of purchase.
Outside of Coverage
This warranty is not transferable and does not cover:
Products with more than 45 days after purchased date.
(a)
Damage due to acts of God, accident, misuse, abuse,
(b)
negligence, commercial use, or due to improper use,
installation, operation or maintenance
Modification of or to any part of the Product.
(c)
Product not compliant with applicable technical
(d)
regulations.
Shipping damage
(e)
Cosmetic damage
(f)
Products that have been partially, or fully assembled
(g)
OTHER THAN THE EXPRESS WARRANTY ABOVE, FLEX
MAKES NO OTHER WARRANTY OR REPRESENTATION, AND
HERBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED
WARRANTIES OF NONINFRINGEMENT, MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE. THE
PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE
DETERMINED THAT THE PRODUCT WILL SUITABLY MEET
THE REQUIREMENTS OF THE PURCHASER'S INTENDED USE.
Purchaser's Solution
Flex's sole obligation and purchaser's sole and exclusive remedy
shall be that Flex will, at its option, either (i) service, or (ii) replace,
any Product determined by Flex to be defective. Flex reserves the
right to inspect any and all Product(s) involved in a warranty claim.
Service or replacement decisions are at the sole discretion of Flex.
Proof of purchase is required for all warranty claims. SERVICE OR
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS
THE PURCHASER'S SOLE AND EXCLUSIVE REMEDY.
Limitation of Liability
FLEX SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF
PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY
WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN
CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT
LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF
FLEX HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Further, in no event shall the liability of Flex exceed the individual
price of the Product on which liability is asserted. As Flex has no
control over use, setup, assembly, modification or misuse, no
liability shall be assumed nor accepted for any resulting damage or
injury. By the act of use, setup or assembly, the user accepts all
resulting liability. If you as the purchaser or user are not prepared to
accept the liability associated with the use of the Product,
purchaser is advised to return the Product immediately in new and
unused condition to the place of purchase.
Law
these terms are governed by Florida law (without regard to conflict
of law principals). This warranty gives you specific legal rights, and
you may also have other rights which vary from state to state.
FLEX RESERVES THE RIGHT TO MODIFY THIS WARRANTY AT
ANY TIME WITHOUT PRIOR NOTICE.
Questions & Assistance
Visit www.flexinnovations.com/articles.asp?ID=269 to find
customer support in your region.
Inspection or Services
If this Product needs to be inspected or serviced and is compliant in
the region you live and use the Product in, please contact your
regional Flex authorized reseller. Pack the Product securely using a
shipping carton. Please note that original boxes need to be
included, but are not designed to withstand the regors of shipping
without additional protection. Ship via a carrier that provides
tracking and insurance for lost or damaged parcels, as Flex is not
responsible for merchandise until it arrives and is accepted at our
facility.
Warranty Requirements
For Warranty consideration, you must include your original sales
receipt verifying the proof of purchase date, original packaging
materials, including the shipping carton. Provided warranty
conditions have been met, your Product will be replaced free of
charge. Shipping charges are as follows: shipping to Flex paid by
customer, shipping to customer paid by Flex. Service or
replacement decisions are at the sole discretion of Flex.
COMPLIANCE INFORMATION FOR THE
EUROPEAN UNION
Declaration of Conformity (In accordance
with ISO/IEC 17050-1)
Product(s):
Item Number(s):
The object of declaration described above is in conformity with
the requirements of the specifications listed below, following the
provisions of the EMC Directive 2004/108/EC.
EN 55022: 2010+AC:2011
EN 55024: 2010
EN 61000-3-2: 2006+A2:2009
EN 61000-3-3: 2013
EN 61000-6-3: 2007/A1:2011
EN 61000-6-1: 2007
Instructions for disposal of WEEE by users in the
European Union
This product must not be disposed of with other waste.
Instead, it is the user's responsibility to dispose of their
waste equipment by handing it over to a designated
collections point for the recycling of waste and electronic
equipment. The seperate collection and recycling of your
waste equipment at the time of disposal will help to
conserve natural resources and ensure that it is recycled
in a manner that protects human health and the
environment. For more information about where to drop
off your waste equipment for recycling, please contact
your local city office, your household waste disposal
service or where you purchased this product.
RV-8 Super PNP
RV-8 Night Version Super PNP
FPM3570
FPM3580
29
Page 32
(a)
(b)
(a)
(b)
(c)
(d)
(e)
(f)
(g)
(h)
(i)
(j)
(a)
(b)
Academy of Model Aeronautics National Model Aircraft Safety Code
A.
GENERAL: A model aircraft is a non-human-carrying aircraft
capable of sustained fight in the atmosphere. It may not exceed
limitations of this code and is intended exclusively for sport,
recreation, education and/or competition. All model fights must be
conducted in accordance with this safety code and any additional
rules specific to the flying site.
1.
Model aircraft will not be flown:
In a careless or reckless manner.
2.
Exceptions:
3.
4.
B.
1.
2.
At a location where model aircraft activities are prohibited.
Model aircraft pilots will:
Yield the right of way to all human-carrying aircraft.
See and avoid all aircraft and a spotter must be used when
appropriate. (AMA Document #540-D.)
Not fly higher than approximately 400 feet above ground level
within three (3) miles of an airport without notifying the airport
operator.
Not interfere with operations and traffic patterns at any airport,
heliport or seaplane base except where there is a mixed use
agreement.
Not exceed a takeoff weight, including fuel, of 55 pounds unless
in compliance with the AMA Large Model Airplane program. (AMA
Document 520-A.)
Ensure the aircraft is identified with the name and address or
AMA number of the owner on the inside of affixed to the outside
of the model aircraft. (This does not apply to model aircraft flown
indoors.)
Not operate aircraft with metal-blade propellers or with gaseous
boosts except for helicopters operated under the provisions of
AMA Document #555.
Not operate model aircraft while under the influence of alcohol or
while using any drug that could adversely affect the pilot's ability
to safely control the model.
Not operate model aircraft carrying pyrotechnic devices that
explode or burn, or any device which propels a projectile or drops
any object that creates hazard to persons or property.
Free Flight fuses or devices that burn producing smoke and are
securely attached to the model aircraft during flight.
Rocket motors (using solid propellant) up to a G-series size may
be used provided they remain attached to the model during flight.
Model rockets may be flown in accordance with the National
Model Rocketry Safety Code but may not be launched from
model aircraft.
Officially designated AMA Air Show Teams (AST) are authorized
to use devices and practices as defined within the Team AMA
Program Document. (AMA Document #718.)
Not operate a turbine-powered aircraft, unless in compliance with
the AMA turbine regulations. (AMA Document #510-A.)
Model aircraft will not be flown in AMA sanctioned events, air shows
or model demonstrations unless:
The aircraft, control system and pilot skills have successfully
demonstrated all maneuvers intended or anticipated prior to the
specific event.
An inexperienced pilot is assisted by an experienced pilot.
When and where required by rule, helmets must be properly worn
and fastened. They must be OSHA, DOT, ANSI, SNELL or NOCSAE
approved or comply with comparable standards.
RADIO CONTROL (RC)
All pilots shall avoid flying directly over unprotected people, vessels,
vehicles or structures and shall avoid endangerment of life and
property of others.
A successful radio equipment ground-range check in accordance
with manufacturer's recommendations will be completed before the
first flight of a new or repaired model aircraft.
At all flying sites a safety line(s) must be established in front of
which all flying takes place. (AMA Document #706.)
(a)
Only personnel associated with flying the model aircraft are
allowed at or in front of the safety line.
(b)
At air shows or demonstrations, a straight safety line must be
established.
(c)
An area away from the safety line must be maintained for
spectators.
(d)
Intentional flying behind the safety line is prohibited.
Effective January 1, 2015
4.
RC model aircraft must use the radio-control frequencies currently
allowed by the Federal Communications Commission (FCC). Only
individuals properly licensed by the FCC are authorized to operate
equipment on Amateur Band frequencies.
5.
RC model aircraft will not knowingly operate within three (3) miles
of any pre-existing flying site without a frequency-management
agreement. (AMA Documents #922 and #923)
6.
With the exception of events flown under official AMA Competition
Regulations, excluding takeoff and landing, no powered model may
be flown outdoors closer than 25 feet to any individual, except for
the pilot and the pilot's helper(s) located at the flightline.
7.
Under no circumstances may a pilot or other person touch an
outdoor model aircraft in flight while it is still under power, except to
divert it from striking an individual.
8.
RC night flying requires a lighting system providing the pilot with a
clear view of the model's attitude and orientation at all times. Handheld illumination systems are inadequate for night flying operations.
9.
The pilot of an RC model aircraft shall:
(a)
Maintain control during the entire flight, maintaining visual
contact without enhancement other than by corrective lenses
prescribed for the pilot.
(b)
Fly using the assistance of a camera or First-Person-View
(FPV) only in accordance with the procedures outlined in AMA
Document #550.
(c)
Fly using the assistance of autopilot or stabilization system only
in accordance with the procedures outlined in AMA Document
#560
C. FREE FLIGHT
1.
Must be at least 100 feet downwind of spectators and automobile
parking when the model aircraft is launched.
2.
Launch area must be clear of all individuals except mechanics,
officials, and other fliers.
3.
An effective device will be used to extinguish any fuse on the model
aircraft after the fuse has completed its function.
D. CONTROL LINE
1.
The complete control system (including the safety thong where
applicable) must have an inspection and pull test prior to flying.
2.
The pull test will be in accordance with the current Competition
Regulations for the applicable model aircraft category.
3.
Model aircraft not fitting a specific category shall use those pull-test
requirements as indicated for Control Line Precision Aerobatics.
4.
The flying area must be clear of all utility wires or poles and a
model aircraft will not be flown closer than 50 feet to any above-
5.
ground electric utility lines.
The flying area must be clear of all nonessential participants and
spectators before the engine is started.
If you are not an AMA member, please consider joining.
Founded in 1936 and open to anyone interested in model
aviation, the AMA is the governing body for model aviation in
the United States and sanctions over 2,000 competitions
anually. Membership in the AMA provides liability insurance
coverage, protects modelers' rights and interests, and is
required to fly at most of the 2,700+ R/C sites nationwide.
Academy of Model Aeronautics
5161 East Memorial Drive
Muncie, IN 47302-9252
Toll Free (800) 435-9262
Fax (765) 741-0057
www.modelaircraft.org
30
Page 33
Page 34
INNOVATIONS
INCORPORATED
w w w . f l e x i n n o v a t i o n s . c o m
TM
Premier Aircraft™, Potenza™, and Top Value RC™ are trademarks or registered trademarks of Flex Innovations, Inc.
DSM®, DSM2™, and DSMX™ are trademarks or registered trademarks of Horizon Hobby LLC
Futaba™ is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporation of Japan.
Jeti™, UDI, and Jeti Model are trademarks or registered trademarks of Jelen, Ing. Stanislav of Czech Republic
Hitec is a trademark or registered trademark of Hitec RCD USA Inc.
Graupner HoTT® is a registered trademark of Graupner Co., Ltd.
©2017 Flex Innovations, Inc.
Version 1.1
Created 11/2018
Loading...
