INTRODUCTION
The Cessna 170 and the Aura 8: the perfect combinaon!
The Cessna 170 is the evoluon and accumulaon of many years of
experience in the aerodynamic and electronic stabilizaon world. A perfectly
tuned airframe design, combined with today's most advanced control system
gives an unmatched ying experience.
Pilots will feel smooth, precise aircra control without any interference to
pilot inputs. The aircra will y as if it were much larger, turbulent air will be
less noceable, rotaons will stop more precisely and landing will be easier
to execute. Flex Innovaons has tuned and matched both to their best
potenal, however, the Aura 8 programming capability allows total freedom
to the pilot to adjust (including seng ight modes that can turn it o). USB
rmware update capability allows you to enjoy and benet from the latest
features and advancements.
For the latest updates, features, addendums and more, before assembly,
please visit:
............................................................................................
...............................................
........................................................
....................................................................
................................................................................
...................................................................................
..........................................................................
................................................................................
.......................................................
....................................................................................
....................................................................................
..................................................................
.............................................................
..........................................................................
.................................................................................
..................................................................................
...................................................................................
Low wing loading oers superb stability at slow speed.
Custom-tuned Aura 8 gyro stabilizaon system provides
the ulmate in stability and control
Powerful 60-sized motor provides the punch for
demanding tasks
High-precision digital servos with full metal gears
Light weight EPO foam is s and tough
Hollow carbon and plywood-reinforced wing is s and
lightweight
Custom-designed control horns to maximize control
geometry and performance
Bush wheels to handle rough terrain and enhance the
scale appearance
12
12, 13
14
15
16
16
17
18
18
19
19
20
21, 22
23
23
24
25
hp://wiki.exinnovaons.com/wiki/Cessna170
1
Page 3
COMPLETION ITEMS
Potenza 60L 540 Kv Brushless
Outrunner Motor (FPZM1060L)
HobbyWing SkyWalker 80A ESC
with 5V/8A External BEC
(FTVHWBQ8012EB)
Potenza DS33 and DS19 Digital
Servos (FPZDS33 & FPZDS19)
Aura 8 Advanced Flight Control
System (FPZAURA08ZZC17)
16 x 6 Electric SR Propeller
(FPMP1606E)
3300-5000mAh 6S 22.2V 40C+ LiPo
3300-5000mAh 5S 18.5V 30C+ LiPo
3300-5000mAh 4S 14.8V 30C+ LiPo
(FPZB40006S40), (FPZB50006S40)
(FPZB40005S40)
(FPZB50004S40)
Hot Aeroba�cs:
Sport Aeroba�cs:
Sport/Scale:
6-Channel Computer Transmier
DSM2/DSMX Remote Receivers (x2)/
SRXL/S.Bus Futaba/Graupner HOTT
JR XBus/Je UDI
6+ Channel RX (any brand)
NEEDED TO
COMPLETE
NEEDED TO
COMPLETE
NEEDED TO
COMPLETE
INCLUDED!
INSTALLED!
INSTALLED!
INSTALLED!
INSTALLED!
SPECIFICATIONS
86.7 in. (2204mm)
60.1 in. (1544mm)
Standard: 8.66lb (3.93kg)
Night: 9.63 lb (4.37kg)
RTF with 6S 4000mAh baery installed
RTF with 6S 4000mAh baery (motor) &
3S 2200mAh (Night LEDs) baery installed
1,094 sq. in.
(70.6 sq. dm.)
BATTERY CHARGING GUIDELINES
The assembly of the Cessna 170 can be accomplished in
less than one hour. Prior to assembling the airplane, it is
advisable to charge your baery so that you are ready
to begin setup upon compleon of the assembly of your
model.
We recommend the use of an advanced LiPo balancing
charger, such as our Potenza C80 Mul Chemistry Touch
Screen AC/DC balancing charger for your baeries to
get the maximum performance and lifespan.
Our airplanes are designed around our Potenza LiPo
baeries, and we recommend the Potenza 4S 5000mAh
40C LiPo, the 5S 5000mAh 40C LiPo, and the 6S
4000mAh 40C LiPo in the Cessna 170 based on our
extensive tesng and development. These baeries
feature an EC5 connector, so no soldering is required for
use in your Cessna.
All are available at www.exinnovaons.com or at your
local retailer.
FOLLOW ALL INSTRUCTIONS PROVIDED BY YOUR
BATTERY AND CHARGER MANUFACTURER. FAILURE
TO COMPLY CAN RESULT IN FIRE.
WARNING
Receiver
OPTIONAL ACCESSORIES
FPM317014
FPM317015
FPM317016
FPM317018
FPZB40006S40
FPZB50006S40
FPZB50006S60
FPZB50005S40
FPZB50004S40
FPZC80
FTVHWBQ2006
FPZA1010
Cessna 170: Float Set & Struts w/ LED Light
Cessna 170: Fixed Slat Set
Cessna 170: Snow Ski Set
Cessna 170: Key Chain Camera Mount
Potenza 6S 4000mAh 40C Li-Po Baery
Potenza 6S 5000mAh 40C Li-Po Baery
Potenza 6S 5000mAh 60C Li-Po Baery
Potenza 5S 5000mAh 40C Li-Po Baery
Potenza 4S 5000mAh 40C Li-Po Baery
C80 Mul-Chemistry Touch Screen AC/DC Charger
Hobbywing ESC Programming Card
Potenza Mul-Funcon Digital Baery Analyzer
2
Page 4
The following terms are used throughout the product literature to indicate various levels of potenal harm when operang this product:
SPECIAL LANGUAGE DEFINITIONS
ATTENTION
WARNING
AGES 14+
NOTICE:
CAUTION:
WARNING:
Procedures, which if not properly followed, create a possibility of physical property
damage AND a lile or no possibility of injury.
Procedures, which if not properly followed, create the probability of physical
property damage AND a possibility of serious injury.
Procedures, which if not properly followed, create the probability of property
damage, collateral damage, and serious injury OR create a high probability of
serious injury.
Read the ENTIRE instrucon manual to become familiar with the features of the product
before operang. Failure to assemble or operate the product correctly can result in damage
to the product, personal property, and cause serious or fatal injury.
All instrucons, warranes and other collateral documents are subject to change at the sole
discreon of Flex Innovaons, Inc. For up-to-date product literature, please visit our website
at www.exinnovaons.com and click on the Cessna 170 and Aura 8 product pages.
This product is not intended for use
by children under 14 years without
direct adult supervision.
IMPORTANT INFORMATION REGARDING WARRANTY
SAFETY WARNINGS AND PRECAUTIONS
Please read our Warranty and Liability Limitaons secon before building this product. If you as the Purchaser or user are not prepared
to accept the liability associated with the use of this Product, you are advised to return this product immediately in new and unused
condion to the place of purchase.
LOW VOLTAGE CUTOFF
Protect yourself and others by following these basic safety guidelines.
1. This manual contains instrucons for safety, operaon and maintenance. It is essenal to read and follow all the instrucons and
warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
2. This model is not a toy, rather it is a sophiscated hobby product and must be operated with cauon and common sense. This product
requires some basic mechanical ability. Failure to operate this product in a safe and responsible manner could result in injury or damage
to the product or other property.
3. This model must be assembled according to these instrucons. Do not alter or modify the model outside of these instrucons
provided by Flex Innovaons, Inc. as doing so may render it unsafe and/or unyable. It is your responsibility to ensure the airworthiness
of the model.
4. Inspect and check operaon of the model and all its components before every ight.
5. If you are not an experienced pilot or have not own a high-performance model before, it is recommended that you seek assistance
from an experienced pilot in your R/C club for your rst ights. If you're not a member of a club, the Academy of Model Aeronaucs
(AMA) has informaon about clubs in your area whose membership includes experienced pilots.
6. Keep the propeller area clear from such items as loose clothing, jewelry, long hair, or tools as they can become entangled. Keep your
hands and body parts away from the propeller as injury can occur.
7. Never y in visible moisture, or submerge the airplane or any of its electronic components in water. Permanent damage to electronic
components may occur, or corrosion of components may lead to intermient failures.
LiPo baeries have a nominal (rated) voltage of 3.7V per cell, and fully charged, reach 4.2V per cell. Baeries are designed to be
discharged below the nominal voltage, however, if they are discharged below 3.0V per cell, damage will occur and the pack will lose
capacity. For best long term baery life, set a mer and land aer a me that leaves approximately 15% of the baery's capacity
remaining.
Low voltage cuto is a feature that is built into the Hobby Wing SkyWalker 80A ESC that is designed to protect the connected baery
from being discharged too far and causing permanent damage to the cells. Circuitry within the ESC will automacally detect when the
input voltage from the baery pack reaches below 3.15V per cell (average) and will remove power to the motor, but sll deliver power
to the servos so that a safe landing may be made. If the motor begins to lose power rapidly during ight, the LVC has sensed that the
total voltage of the pack has dropped blow 3.15V per cell average, and the airplane should be landed immediately.
3
Page 5
RUDDER INSTALLATION
Required Tools and Fasteners: Medium CA
1.
The rudder comes pre-hinged to a small secon of vercal n. Test t the rudder and n secon onto the fuselage. Remove it from the
fuselage once t is conrmed.
2.
Lay the fuselage on its side, and using medium CA (foam-safe is not required), apply an adequate amount to the fuselage. Press the rudder and
vercal n secon into the fuselage, being sure to wipe away any excess CA.
3.
Secure the lower plasc support in place by threading an M3x10 hex head self-tapping screw through the boom of the plasc part in the
fuselage. Do not fully ghten, as you can cause the rudder to bind. A small amount of play is needed here.
4.
Allow me for the CA to dry, and once dry, check for proper rudder movement. Be sure the rudder moves freely with lile to no binding.
5.
Press the tailwheel wire into the plate on the boom of the rudder. Lay the tailwheel plate over the wire, and secure it in place with two
M3x10 hex head self-tapping screws.
2mm Hex Driver
3 - M3x10 Hex Head Self-Tapping Screw
Connect the rudder clevis to the innermost hole in the control horn. Slide the clear tubing over the clevis to secure it in place.
5.
Aer assembly is complete, and your receiver is bound and transmier properly set up, center the rudder by turning the clevis
in or out as needed. Use the rudder counter balance and xed poron of the vercal n for reference. Do NOT use trim or sub-
trim.
4
Page 6
MAIN LANDING GEAR INSTALLATION
Required Tools and Fasteners:
1.
Slide an M5 spacer over the landing gear wire.
2.
Slide a main wheel over the landing gear wire, followed by a lock collar. Add a drop of blue thread lock to the set screw, and secure it in place.
Repeat for the other wheel.
1.
Push the landing gear wire into the boom of the fuselage. Orientaon of the wire landing gear does not maer, however, the plasc wire
covers are direconal. You should have more material AFT of the landing gear wire. Insert the plasc landing gear keeper aer the landing gear,
nong orientaon. The plasc part will sit ush in one orientaon, but in the wrong direcon, may not sit ush.
2mm Hex Driver
1.5mm Hex Driver
1.5mm Hex Driver
#1 Phillips Screwdriver
4 - M3x10 Hex Head Self-Tapping Screws
2 - M5 Lock Collars, with Set Screws
2 - M5 Spacer
2.
Secure the plasc landing gear plate into the fuselage using 4 M3x10 self-tapping hex head screws. Do not overghten.
5
Page 7
PROP ADAPTER, PROPELLER AND SPINNER INSTALLATION
Required Tools and Fasteners:
Note: It is important to check the rear motor sha collar and set screw for thread lock before rst ights. If no thread lock is found, remove the
set screw, add blue thread lock, and re-secure. It is always a good idea to check all hardware connecons every few ights to ensure they stay
ght.
Note: Do not complete transmier, receiver and/or Aura setup with the propeller installed.
1.

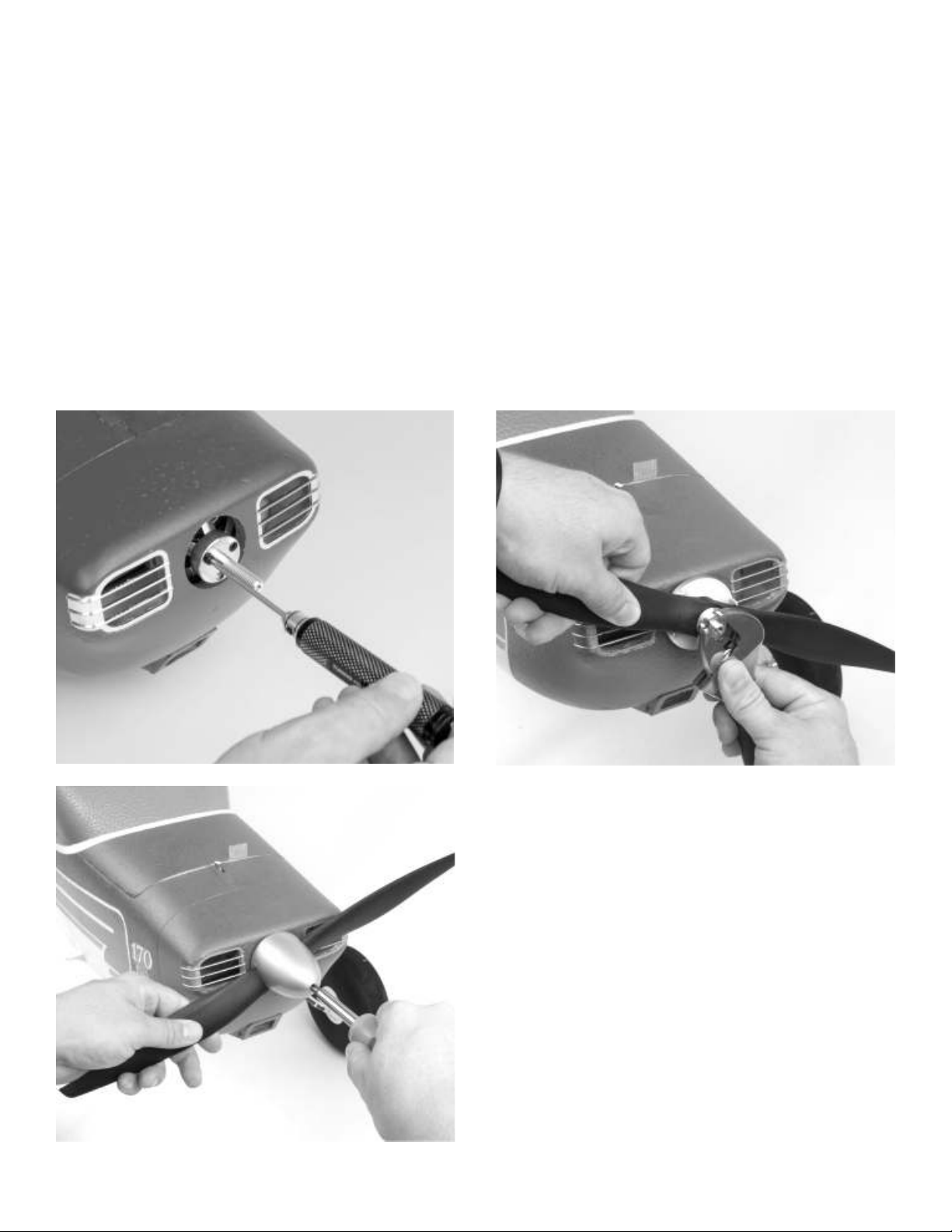

Locate the bolt-on prop adapter for the motor. Apply blue thread lock to each of the three M3x9 hex head machine screws, and secure the prop
adapter to the motor. Make sure that the propeller adapter seats fully against the motor face, and is concentric with the motor sha.
2.
Install the spinner backplate onto the motor sha. Ensure that it is fully seated.
3.
Install the propeller with the convex surface facing forward. The propeller size numbers are printed on the front face of the prop and should
orient forward.
4.
Slide the prop washer on the sha with the widest face a, and ghten the prop nut.
5.
Install the spinner cone, and ghten the M3x30 Phillips Head screw using a #1 Phillips screwdriver. Do not apply blue thread lock and do not
over ghten.
2.5mm Hex Driver
#1 Phillips Screwdriver
Adjustable Wrench
Blue Thread Lock
3 - M3x9 Hex Head Machine Screws
1 - M3x30 Phillips Head Machine Screw
1 - Prop Washer
1 - Propeller Nut
6
Page 8

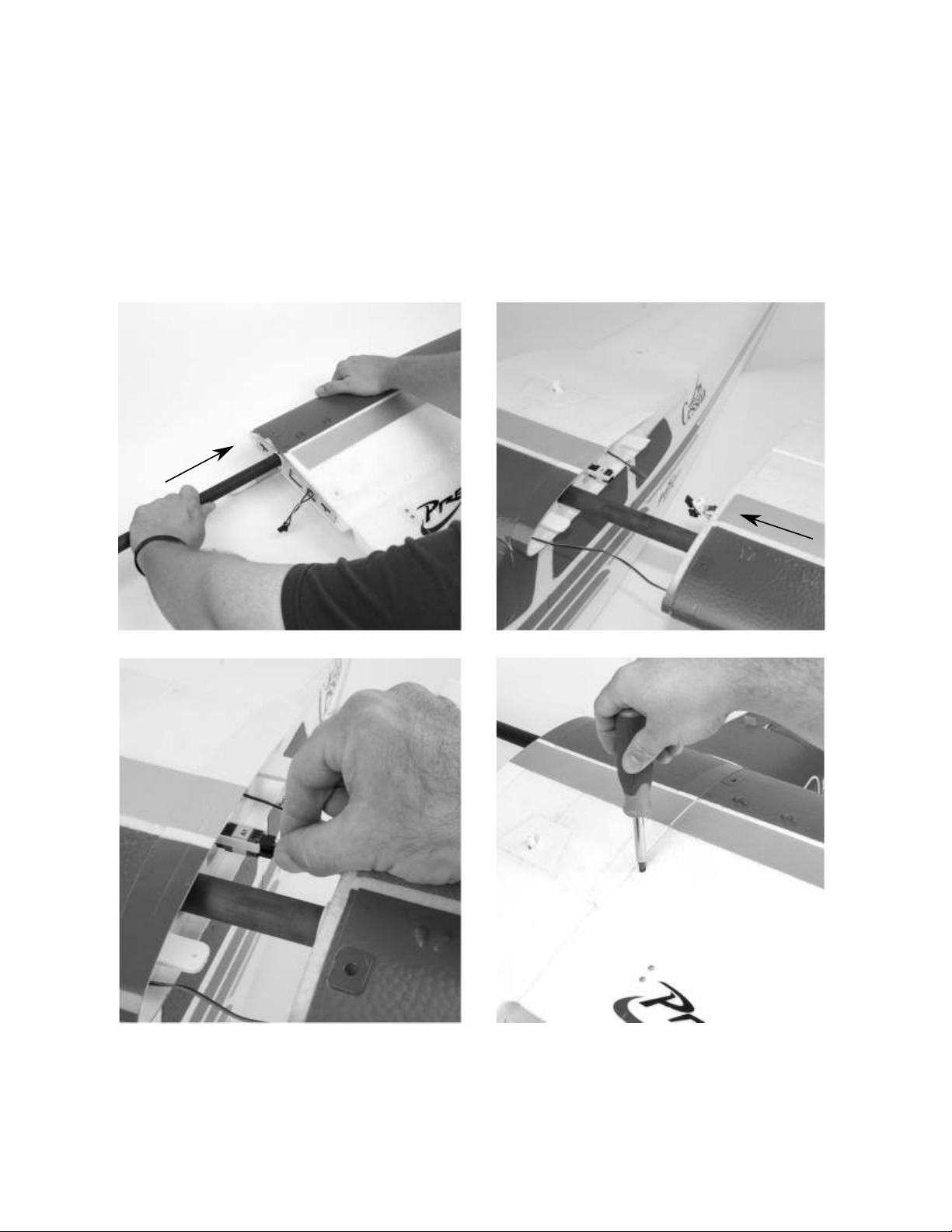

HORIZONTAL STABILIZER INSTALLATION
Required Tools and Fasteners: Clear Tape (4 Strips)
1.
Insert the horizontal stabilizer tube into one of the horizontal stabilizer halves.
2.
Slide the tube through the hole in the fuselage, being sure to orient the control horn towards the boom of the airplane. Do not
force it into place.
3.
Slide the other stabilizer half onto the tube, being sure to index the elevator joiner tabs into one another. Do not force it into
place.
4.
Apply 4 pieces of clear tape to the joint between the stabilizer and the plasc mounts. Be sure to apply tape to both the top and
boom sides of the stabilizer.
5.
Aach the clevis to the elevator control horn in the innermost hole. Slide the clear tubing over the clevis to secure it in place.
7
Page 9
MAIN WING INSTALLATION
Required Tools and Fasteners: 2.5mm Hex Driver
1.
Insert the main wing tube into one of the main wing halves.
2.
Slide the tube through the hole in the fuselage. Make any necessary servo or light connec�ons (reference Night LED Connec�ons page if you
have purchased the Night Cessna). Note that the aileron and flap extensions are marked accordingly. Slide the wing fully into the plas�c
mounts, while taking special care to prevent any wires from being pinched when installing the panel.
3.
Slide the other wing half onto the tube, and make any connec�ons as completed in the previous step. Fully seat the wing into the plas�c
mounts in the fuselage. Do not force it into place.
4.
Secure each wing panel to the fuselage using 2 M3x25 hex head machine screws. Don't over �ghten.
4 - M3x25 Hex Head Machine Screws
4 - 6mm Strut Retaining Pins
4 - Strut Retaining Pin Keepers
8
Page 10
MAIN WING INSTALLATION (CONTINUED)
Note which wing strut goes to each wing panel, and which end goes to the wing and to the fuselage The struts are labeled R and
5.
L at one end of the strut. Also note that there are two dierent strut retaining pins; one that is shorter (A) and one that is longer
with a "D" shaped head (B). Pin A goes to the fuselage side, and Pin B goes to the wing side of the strut.
Insert a strut retaining pin through the end of the strut AND the mount in the wing. Slide a retaining pin keeper through the hole
6.
in the retaining pin to secure it in place.
Repeat step 6, but for the plasc mount in the boom of the fuselage. The strut goes ABOVE the mount in the fuselage. Note
7.
that for faster eld assembly, it is recommended to leave the strut aached to the wing panel, and only remove it from the
fuselage. The strut will lay at on the wing for storage.
Conrm the linkage locaons in the servo arm and control horn for both aps and ailerons, referencing the images below. Adjust
8.
as necessary. Note that the ap servo will NOT be centered when the ap is in the up posion. This is proper, and intenonal in
A - Fuselage Side
B - Wing Side
2.
1.
MAIN WING CONTROL LINKAGE SETUP
Note: Aileron Differen�al has been tuned with Aura
FLAP
9
AILERON
Page 11

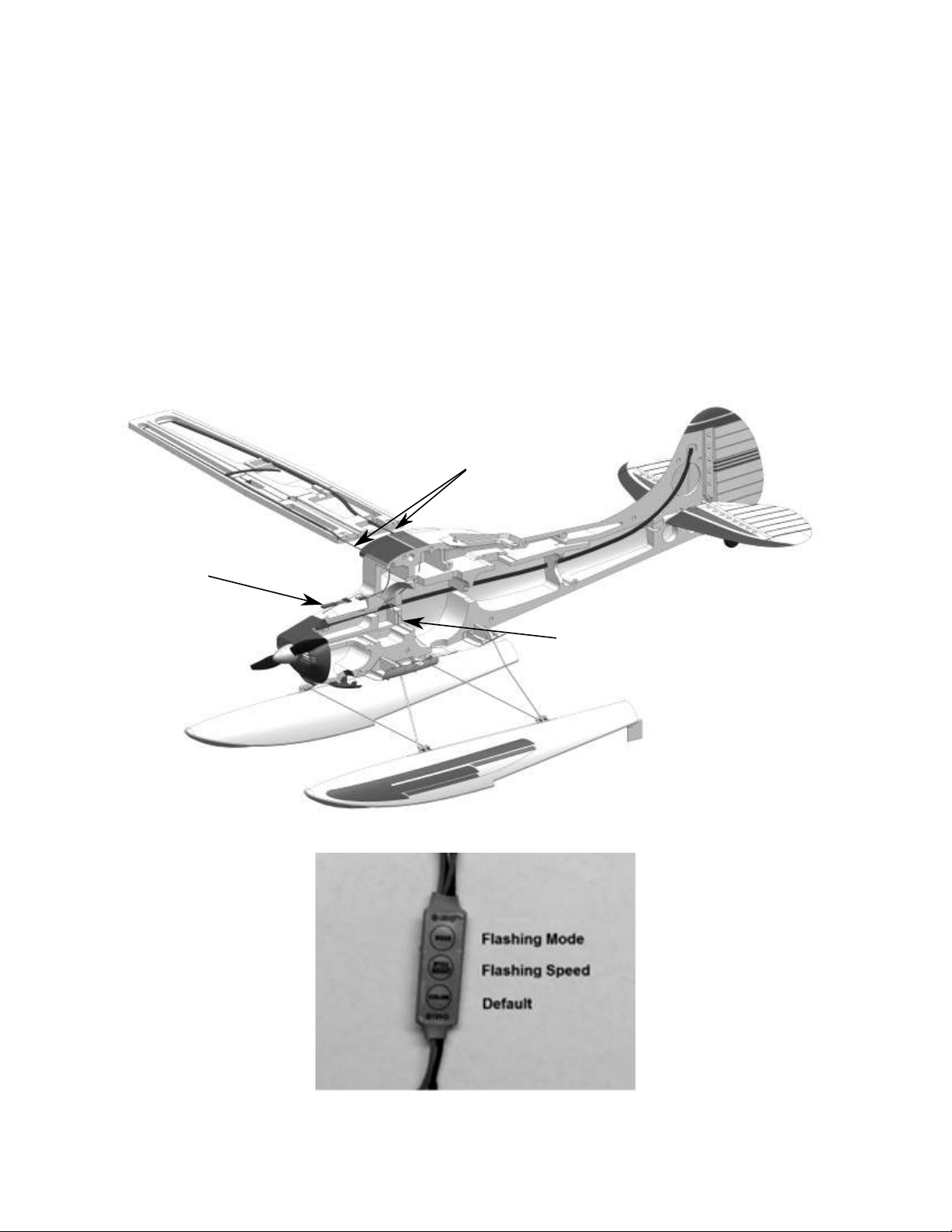

NIGHT CESSNA LED CONNECTIONS
LED Controller
Two Wing Connecons
Float Connecon
If you have purchased the Night version of the Cessna, this page will cover all LED light connecons. If you did not purchase the night version, skip
ahead to the next page.
In order to power the internal Night LED lights (not wing p or landing lights) you will need to use a seperate 3S Lithium-Polymer baery. We
recommend the Potenza 3S 2200mAh 40C Li-Po (FPZB22003S40). Average current draw for the lighng system is 2.2A/h.
There are two connecons for each wing panel, one at the leading edge, and one at the trailing edge of the wing. Connect the one at the
1.
trailing edge to the installed JST extension. Route the connector at the leading edge through the hole in the fuselage and plug into the LED
controller directly.
If using the oats with lights, connect each JST for the oat set to the LED controller in the fuselage. Route the leads through the cooling hole
2.
in the boom of the fuselage. Secure the wire to the at strut and fuselage using water proof tape.
The fuselage LED strip is pre-connected to the LED controller for you. Should it become disconnected, connect it to one of the four JST
3.
connectors on the LED controller.
Connect the balance tab (JST-XH) of any 3-Cell (12V DC) Li-Po baery (greater than 1300mAh, and 20C) to the balance tab adapter on the LED
4.
controller. When connected, the lights are automacally powered. Turn to the LED lights o, disconnect the baery from the LED controller.
The LED controller defaults to a non-ashing mode. It has dierent ashing modes, and dierent ashing speeds available. Simply select the
5.
speed or mode by pressing the buon(s) on the LED controller unl a desired seng is reached.
10
Page 12
WARNING
CONNECTING BATTERY/ARMING ESC
Observe the following procedures to safely power up your model aer
it has been bound. Ensure propeller is removed unless sequence is
followed to power up before ight.
1.
2.
3.
4.
Lower the throle sck and trim to their lowest seng and turn
on the transmier. Wait for your transmier to indicate the RF
signal is being broadcast before proceeding.
If a baery is connected to the ESC with the throle fully open
on the acve transmier, the ESC will enter into programming
mode. If this occurs, simply disconnect the baery, lower the
throle, and reconnect the baery.
Ensure the rudder, elevator and aileron scks are centered.
With the airplane on a solid surface, connect the baery to the
ESC and wait. The ESC will emit a series of audible tones during its
inializaon process.
The ESC will emit a short, nal tone sequence indicang that the
ESC is now armed, and that the motor will spin in response to
throle sck movement.
When making adjustments to linkages, transmier sengs, or the
Aura 8 ight control system, REMOVE THE PROPELLER to guard
against accidental spool up.
WARNING
DO NOT ATTEMPT RADIO SETUP WITH PROPELLER INSTALLED. INADVERTENT POWER UP COULD CAUSE PERSONAL INJURY.
TRANSMITTER SETUP
Begin by starng with a freshly reset and new model memory in your transmier. Make ONLY the changes shown in the Transmier Setup Guide.
The Aura 8 on the Cessna 170 defaults to 3 ight modes that are switched via CH5/Gear in your transmier. You may need to reassign CH5/Gear to
a 3-posion switch. Consult your radio manual for direcons on channel assignment.
Descripon of Pre-Loaded Aura Flight Modes (FM)
FM 1:
Flight Control system is o. Rates are set for general ight
(same as FM 2). Exponenal is tuned for comfortable ight.
Rudder to aileron and rudder to elevator mix acve.
FM 2:
Flight Control system is on. Gains are moderate and tuned
for comfortable feel/best performance. Rates are set for
general sport ying, and expo is tuned for comfortable
ight. Rudder to aileron and rudder to elevator mix acve.
FM 3:
Flight Control system is on. Gains are moderate and tuned
for comfortable feel/best performance. Rates are set for
aggressive ying, and expo is tuned for comfortable ight.
Rudder to aileron and rudder to elevator mix acve.
Note: Rudder sck movement will also move ailerons and elevator.
This funconality is NORMAL.
Each of the modes has been tuned by our team to oer a solid start.
Because tastes in control feel are unique, if changes in rates and
expo are needed, adjustments should be made through the Aura 8.
Changes in gain value can only be made via Master Gain, or through
the Aura Cong Tool (Windows Applicaon).
For large (greater than 5%) changes in expo, or dual rates, it is highly
recommended to reset all expos and rates to default in the transmier,
and tune through the Aura Cong Tool.
The Aura Cong Tool can be used on any Windows-based PC or Tablet,
and can be downloaded at the following address:
www.exinnovaons.com/arcles.asp?ID=257
TRANSMITTER SETUP GUIDE
End Points*
Sub Trim
Trim Levers
CH. 5 (Gear)
CH. 6 (AUX1)
Reversing
Timer
*Note: JR Mode B Users set Throle, Aileron, Elevator, Rudder and Gear Travels to 88%
Veried at zero, sub-trim not allowed
Veried at zero
Assigned to a 3-posion switch
Assigned to a 3-posion switch OR Flap System
If using ap system, assign 100%, 0%, -100%
Ail/Ele/Rudder set to Normal
Thro/Flap depends on transmier manufacturer
Set to 4:00 for inial ights
Aileron/Elevator/Rudder
Throle
125%
100%
AURA FLIGHT MODE REFERENCE
Note: These are for reference only. DO NOT put these values into your transmier.
Mode 1 Mode 2 Mode 3
Aura 8
Rate Setup
Aura 8
Expo Setup
Aileron
Elevator
Rudder
Aileron
Elevator
Rudder
70% 100%
45% 45% 100%
100% 100% 100%
Mode 1
30% 10% 15%
30% 15% 40%
40% 35% 35%
70%
Mode 2
Mode 3
WARNING
11
CAUTION
Always connect the baery when the throle and
throle trim are in the cut-o posion.
Hold aircra securely when connecng the ight baery before
ight. Always ensure that the propeller is clear of any and all
objects, as they may become entangled.
Page 13
AURA 8 AFCS
The Aura 8 advanced ight control system installed in your Cessna 170 is a
giant leap forward in aircra ight control system technology. Compable
with virtually every receiver on the market today via PWM connecons,
the Aura features special conguraon for DSM systems via remote
receiver connecon, and serial data connecon for Futaba S.Bus, Spektrum
SRXL, Graupner HOTT (Sum D of 8), JR XBus (Mode B), and Je UDI12
(standard) systems.
The Aura 8 advanced ight control system in your Cessna 170 has been
pre-tuned for ease of use, eliminang many hours of seng gains. For the
latest Aura features, programs, transmier downloads, and instrucons,
please visit www.exinnovaons.com/aura
The Aura is programmable through any Windows based computer, and
every axis has independent gain adjustment and by each ight mode. All
dual rate, expo, travel, and assignable mode programs are adjusted inside
the Aura through the PC applicaon. Anassignable master gain that is OFF
by default can be enabled by the Aura applicaon. If desired, assign it to
CH 8/AUX 3 on a proporonal dial or slider.
By default, CH5/Gear is used to select the 3 ight modes by 3 posion
transmier switch.
Works conveniently with all major radio systems
Accepts signals from DSM Satellite(s), Spektrum SRXL,
Futaba S.Bus, Graupner Ho (Sum D of 8), JR XBus (Mode
B), Je UDI12 (standard), PPM Stream, or any brand of
receiver via male to male servo connecons*
Expertly tuned and ready to use
USB port allows loading model conguraons, user
programming, and rmware updates (cable included)
Flexible and extensive programming through PC
3 ight modes in Aura allow precise or aggressive sengs,
or gyro o to be selected in ight
3-axis gyro ulized in Cessna 170 programming
Powerful 32-bit processor and 6 axis sensor for future
updates and re-use
*Visit hp://wiki.exinnovaons.com/wiki/Aura for the latest
Aura-related product informaon.
RECEIVER INSTALLATION/SERVO CONNECTIONS
Aura will Auto-Detect modern data-linked receivers. The advantage of using a modern data-linked receiver is the ability to have 4 addional gyro-enabled
outputs to servos (total of 8 outputs), as well as wiring simplicity versus tradional PWM connecon types. To connect a modern data-linked receiver,
follow the steps on this page, then skip ahead to page 14.
For tradional PWM receivers (male to male servo leads for each channel), refer to the connecon diagram on page 13.
Supported Modern Data-Linked Receivers
Aura will Auto-Detect these modern data-linked receivers:
Spektrum Remote Receivers (2 required for the Cessna)
Spektrum SRXL
Futaba S.Bus
JR XBus, Mode B
Graupner HOTT, Sum D of 8*
Je UDI12* (Standard)
You can also use a PPM (8ch, Negave, Approximately 22ms Frame) connecon in Port B, but it
will not auto-detect, and will need to be set in the Aura Cong Tool (Windows Applicaon)
Connecng Your Receiver to Aura
Spektrum Remote Receivers
Connect (2) Spektrum Remote Receivers to Mini Port 'A' and Mini Port 'B' at
1.
the top of the Aura case.
To bind a DSMX Spektrum Remote Receiver connecon, insert a bind plug into
2.
Aura Port S8.
To bind a DSM2 Spektrum Remote Receiver connecon, insert a bind plug into
Aura port S1 AND S8.
Power up the model, and the remote receivers should begin to ash, indicang
they are ready to bind. Bind from here as recommended in your transmier
manufacturer's instrucons.
Once bound (indicated by each remote receiver showing a solid orange LED),
3.
Aura will begin the Auto-Detect process, searching for a valid control signal,
indicated by sweeping LEDs on the Aura. Once found, you will see solid orange
(power and calibrated sensor) and solid green (valid receiver data) LEDs,
indicang the Aura is in its ight-ready state.
Mount your receivers using double sided foam tape, or hook and loop tape.
4.
Consult your receiver manual for proper mounng orientaons.
All Other Data-Linked Receivers
For JR DMSS, Graupner Ho and Je, consult your radio documentaon and
1.
program the transmier/receiver to output the correct digital data format as
listed above. (Spektrum and Futaba typically always output the digital data
stream.
Bind your transmier and receiver per your manufacturer's instrucons.
2.
Connect the included male to male extension to the receiver's data port (ex:
3.
S.Bus) and connect to servo port 'B' on the face of the Aura. Refer to your radio
manufacturer's instrucons for specic informaon on appropriate serial port
connecons and system sengs.
With the transmier powered, power up the aircra. Aura will search
4.
(sweeping LEDs) and lock onto the signal. You will then see solid orange (power
and calibrated sensor) plus solid green (valid radio source), and have control of
the model.
Mount your receiver using double sided foam tape or hook and loop tape.
5.
Consult your receiver manual for proper mounng and antenna placement.
Note: When using S.Bus, Aura reverses the throle direcon. It is
therefore NOT necessary for Futaba S.Bus users to reverse the
throle IF the throle/ESC is le plugged into the Aura.
DEFAULT AURA CONNECTIONS
S1
Throle (ESC/BEC)
S2
Le Aileron
S3
Right Aileron
S4
Elevator
S5
Rudder
S6
Le Flap
S7
Right Flap
S8
Float Rudder
Aura
Polarity
- +
For Je/UDI users, please visit hp://wiki.exinnovaons.com/wiki/Aura/JeUse for more informaon.
For FrSky Taranis users, please visit hp://wiki.exinnovaons.com/wiki/Cessna170 for more informaon.
For Graupner users, please visit hp://wiki.exinnovaons.com/wiki/Aura/GraupnerHoUse for more informaon.
12
Page 14
RECEIVER INSTALLATION/SERVO CONNECTIONS (CONTINUED)
PWM Connecons
If you are using a digital receiver connecon, and have completed the steps on page 12, skip ahead to the next page.
PWM is an acronym that stands for Pulse Width Modulaon. PWM is how tradional receivers send a signal to the servo to command the servo
move to a parcular posion. In short, PWM in regards to the Cessna requires the use of male to male servo extensions to connect each channel
from your receiver, to each port in the Aura. Due to the aps and the ight modes in the Aura, a minimum of a 6-channel receiver and transmier is
required to maximize the funconality of the Cessna 170. A 7+ channel receiver and transmier is recommended.
Depending on your parcular radio and PWM setup, some addional items to purchase are required:
FPZAU01
FPZA1011
FPZA1012
1.
Bind your receiver to your transmier by following the instrucons included with your radio and/or receiver. Verify it is bound by connecng a
spare servo to your receiver, and that it responds to transmier inputs.
2.
With the transmier and receiver powered OFF, connect your receiver to the Aura using the diagram below. Note the throle AND both aps are
plugged directly into the receiver. Important: all four (4) PWM male-to-male leads must be properly connected for the Aura to acvate servo
outputs!
3.
With the propeller removed and ALL connecons made between the Aura and the receiver (and in the proper polarity), power on your
transmier, and power on the airplane with the ight baery, and keep the airplane staonary. Aer a few seconds, the LEDs on the Aura will
sweep back and forth as the Aura searches for a valid control signal. Once found, you will see a solid orange (Aura running) and solid green (Aura
is receiving a valid signal from the receiver) LED. Aer the source is found, apply transmier right rudder to assist Aura in determining your
radio type, then you will have control of the model.
Aura 3 piece male to male servo cable/S.Bus
*In-Line Servo Reverser (one for aps)
*2-inch Y-Harness (one for aps, two if using oats)
NOTICE
VERIFY PROPER POLARITY OF ALL CABLE CONNECTIONS PRIOR TO ADDING POWER TO THE SYSTEM
IMPORTANT
All four PWM male-to-male connecons must be connected AND connected in the proper polarity for the
RECEIVER
Aura to acvate servo outputs. (Aileron-S1, Elevator-S2, Rudder-S3, Gear/Ch.5-S4)
Aura Polarity
- +
Throle
Aileron
Elevator
Rudder
Gear/Ch.5
Aux 1/Ch.6
Aura Data Input Aura Data Output
**
To RX
ESC
Y-Harness*
(FPZA1012)
Le Aileron Servo
Right Aileron Servo
Elevator Servo
Rudder Servo
To Motor
Float Rudder Servo
Le Flap Servo
Right Flap Servo
Y-Harness*
(FPZA1012)
*Note: Y-Harness and Servo Reverser not required if using a 7+ channel receiver/transmier with dual ap servo and independent reversing capability
**Note: Arrows indicate signal (data) ow. They do not necessarily indicate voltage (+) ow.
Servo Reverser*
(FPZA1011)
13
Page 15
TRANSMITTER CONTROL DIRECTION TEST
Refer to the chart below to determine the proper control surface direc�ons. If controls are reversed, DO NOT REVERSE CONTROLS IN TRANSMITTER
OR IN THE AURA CONFIG TOOL. Email us at support@exinnovaons.com for correcve acon. Note that BOTH the Transmier Control Direcon
Test AND the Flight Controller Sensor Direcon Test MUST BOTH BE PASSED! IF ONE DOES NOT PASS, DO NOT FLY!
Note: There is pre-configured rudder to aileron and rudder to elevator mixing programmed into the Aura. If you see elevator or ailerons move
with rudder s�ck input, this func�on is inten�onal and completely NORMAL.
AILERON
Sck
Movement
Sck Le
Sck Right
Sck A
Proper Control
Surface Deecon
Sck Forward
ELEVATOR
RUDDER
Sck Le
Sck Right
14
Page 16
FLIGHT CONTROLLER SENSOR DIRECTION TEST
Perform a test of the gyro system to verify the correcons made for a given movement are correct. If any of the tests do not result in the correct
reacon from the airplane's gyro system, do not y the airplane, and contact us via email at support@exinnovaons.com
The ight control system acvates with RF broadcast. Perform thest tests in Flight Mode 3 (highest gain) for beer visibility and then in Flight Mode
2, and any other modes that have gyro gains assigned. (By default, Mode 1 has no gain assigned). Control surface deecons are exaggerated in the
drawings below for clarity. Note that the control surfaces will only deect while the model is rotang.
AILERON
Aircra
Movement
Proper Control
Surface Deecon
15
ELEVATOR
RUDDER
Page 17
BATTERY INSTALLATION
WARNING
CAUTION
NOTICE
The CG measurement should be made with the
It is recommended to install adhesive-backed hook and loop tape strips to the baery and baery tray to help prevent the baery from coming
1.
loose in ight.
Pull the spring-loaded baery latch tab towards the nose of the airplane to release the baery hatch. Be sure to connue holding the latch.
2.
Using the tape on the front of the hatch, li the hatch up, and towards the nose to remove it from the fuselage. Release the latch once the
hatch is o of the fuselage.
3.
Press the baery to the center of the baery tray and secure with the provided hook and loop straps. Depending on your baery selecon,
locaon may vary. Consult the center of gravity secon at the boom of this page in order to set the baery locaon for the proper center of
gravity.
4.
Reinstall the hatch in reverse order, and conrm that the latch has posively engaged.
5.
Always keep limbs clear from the propeller when the
baery is connected. Aer the ESC arms, the propeller
will rotate when the throle is moved. Unlike an
internal combuson engine, electric motors apply
more voltage to counteract resistance, therefore any
object that is entangled in the propeller will be
severely damaged before the motor will stop.
CENTER OF GRAVITY
The locaon of the center of gravity (CG) for the Cessna
170 is 90mm (3-1/2-inches) AFT of the leading edge of
the wing at the wing root, plus or minus 7mm (1/4-inch).
This measurement was determined from many test
ights by designer and many me world aerobac
champion, Quique Somenzini. Li the airplane from the
underside of the wing to check the CG. Be sure to keep
the model level while measuring CG (model should be in
its ying posion, where the boom of the airfoil is
level).
Seng the center of gravity is one of the most important
steps for success, parcularly with a new airplane. The
Cessna is a versale airplane, with many dierent baery
opons, large throws, and a high thrust to weight rao.
These factors make it a very enjoyable aircra to y, but
if the center of gravity is not within an acceptable range,
it will make the airplane dicult, if not impossible, to
control.
When making adjustments to linkages, transmier
sengs, or the Aura 8 ight control system, remove
the propeller to guard against accidental spool up.
90mm (+/- 7mm)
3-1/2- inches (+/- 1/4-inch)
completed airframe, with all components (baeries,
servos, receiver, linkages, screws, bolts, hardware,
etc.) installed. Failure to do so will result in
inaccurate measurement.
16
Page 18
FLYING YOUR CESSNA 170
Takeo
Taxi or place the aircra on the runway centerline, with the nose
pointed into the wind. Select Flight Mode 2, with the aps in the up
posion for the rst ight. Set throle trim so that the motor spins
at it's lowest RPM without stopping. Smoothly advance the throle
to full while maintaining direconal control with the rudder and
slight back pressure on the elevator. The airplane should li o
smoothly before the throle is fully open. Fly in Flight Mode 2 unl
the aircra is fully trimmed (see special trimming instrucons), and
you are comfortable with it's handling, then explore the other
modes as desired.
Flying
Altude is your friend on the rst ight. Briskly climb to a safe
altude and trim the airplane. The airplane should y straight and
level at 2/3 power (depending on baery pack voltage selecon),
with no input from the scks. Try some basic maneuvers, and slowly
progress into the airplane's ight envelope as you become more
comfortable with the airplane's ight qualies and perfect your
setup. Note: if at any me, such as aer gain adjustments, you
experience unexpected control system inputs or oscillaons, switch
to Mode 1, and land and troubleshoot the issue. (Mode 1 turns the
sensor inputs o with default programming)
Trimming
The rst several ights on your Cessna 170 should be dedicated to
trimming and setup. Fly the airplane at 2/3 power in Flight Mode 2
and trim for level ight. Land, adjust linkages and return the trim to
zero, and y again. Repeat unl the airplane ies hands o, straight
and level. Transmier trim or sub-trim will cause trim shis when
dierent ight modes are selected. To eliminate this trim shi, you
can mechanically trim the model, or you can complete and Aura
"Quick Trim".
Aura Quick Trim
The Aura 8 features a Quick Trim Mode that eliminates the need
for mechanical linkage adjustments during test ights. Aura will
learn the trim values from your transmier, and apply them to the
control surfaces at power up when enabling quick trim mode.
1.
2.
3.
4.
5.
6.
USE CAUTION WHEN FLYING YOUR CESSNA 170 IN FLIGHT
MODE 3 AT HIGH AIRSPEEDS. DOING SO CAN INDUCE CONTROL
SURFACE OSCILLATIONS AND MAY CAUSE A CRASH.
Landing
Be mindful of your ight me and allow adequate baery reserve
for a couple of landing aempts, if necessary, on the rst few
ights. For the rst few landings, land with the aps in the up
posion. Select Flight Mode 2 and slow the airplane and align with
the runway, into the wind. The airplane should descend smoothly
in this conguraon with proper airspeed. Once you are close to
the ground, gradually close the throle fully and begin to smoothly
apply up elevator as required to arrest descent and the airplane
should gently touch down with a short roll out.
NOTE:
Quick Trim can also be used BEFORE ying to make
small changes to center the control surfaces before
ight.
Fly the airplane in Flight Mode 2. Trim the aircra with the
transmier and land. DO NOT CHANGE FLIGHT MODES.
Power o the Aura. Insert a bind plug into Aura Port S3 (you
will need to remove the servo lead that is currently in S3).
Check the transmier is on and repower the Aura.
Wait 5 seconds for the Aura to completely inialize. Conrm
Quick Trim mode is acve by checking the Blue LED is slowly
ashing.
Remove the bind plug from Aura Port S3, and re-install the
servo that was previously removed into S3. Removing the bind
plug stores the current trims in the Aura. The Blue LED will
ash quickly aer control surface trim values are store. While
the trim values are stored in Aura, they are not applied to the
control surface(s) unl the Aura is repowered.
Remove power from the Aura and center all control surface
trims on the transmier.
Repower the Aura. The control surfaces should be unchanged
even though the trim has been centered on the Transmier.
Switch between other Flight Modes to ensure you do not see
any changes in trim.
NOTE:
QUICK TRIM MAY BE REPEATED AS NEEDED FOR
FINE TUNING, OR IF CHANGES TO THE AIRCRAFT
ARE MADE.
ENSURE AILERON/ELEVATOR/RUDDER SUB-TRIMS
ARE ZERO BEFORE FLYING FOR QUICK TRIM
PROCESS
QUICK TRIM IS NOT AVAILABLE TO PWM
CONNECTION USERS. IF USING A PWM
CONNECTION TYPE, YOU WILL NEED TO
MECHANICALLY TRIM THE MODEL
NOTE:
NOTE:
Selecng a Flying Site
Selecng a ying site is crical to a successful ight. Airplanes
require a lot more room than other R/C products, therefore, a
neighborhood or parking lot is not recommended. A local AMA eld
is the best locaon for ying your Cessna 170. If no AMA eld is
available in your area, a large open eld with short grass and
generous overy area is the best candidate. Know your overy area.
Ensure that there are no houses, playgrounds, people or other
buildings that may be damaged if the airplane were to crash.
17
Page 19
LEARNING TO USE FLAPS WITH THE CESSNA 170
The Cessna 170 was designed from the ground up to be the most
versale and fun-ying aircra possible. Pilot workload has been
greatly reduced thanks to its nely tuned aerodynamic design, and
the pre-set conguraon of the Aura 8 Advanced Flight Control
System. Pilots of all skill levels will quickly nd the Cessna 170 is a
forgiving airplane, in many dierent atudes and ight regimes.
Sharpening Your Skills & Understanding How Flaps Work
Obviously, before aempng to y with aps, you should be procient at
ying an airplane, and be comfortable ying the Cessna 170 in various
atudes.
As a short aerodyamics explanaon, aps essenally change the airfoil or
cross-secon shape of the wing, and have two primary goals or funcons
depending on the model. One, to add li (by changing the airfoil shape)
and two, to increase drag. A high-li airfoil is typically at boom, or
undercambered (boom wing prole curves in similar direcon to the
top prole). By adding ap deecon, the wing transforms into a parally
undercambered airfoil, generang more li, and more drag as a byproduct. Due to this addion of li, variances in airspeed can cause pitch
changes in the aircra when the aps are deployed. Typically with a high
wing model like the Cessna 170, the addion of ap input will cause a
pitching-up moment, as the model is not "trimmed" for that amount of
li at that parcular speed. To combat this, many experienced pilots will
use "ight mode trims" that change elevator trim with ap posion, or a
ap to elevator mix, so that this pitching up moment is automacally
compensated for. Note that it is virtually impossible to eliminate this
pitching moment at all airspeeds, but can be compensated for in the
most common airspeeds the pilot will use the aps. Quique's ap to
elevator mixing recommendaons are in the chart to the right for your
reference.
It is important to understand that this pitching moment when the aps
are deployed is normal. It is also normal for this pitching moment to vary,
depending on airspeed.
Flap Deecon
1-9/16-inches (40mm) Flap Deecon
2-3/4-inches (70mm) Flap Deecon
Mix %
15% Down Elevator
24% Down Elevator
First Flights with Flaps
For rst ights, it is recommended to have two ap posions, a half
ap seng, and a full ap seng. It is also helpful to have the ap
speed slowed to about 1.5 seconds. As with learning anything new,
altude is your friend. Start at a safe altude, several mistakes high,
and begin to slow the model down. It is best if you move the
throle to the o or idle posion, and let the airplane stabilize in a
slight descent. Once the model has stabilized at a slow airspeed
and slow decent, move the ap switch to the half ap posion.
Note that the model may pitch up slightly, but quickly will stabilize
into a shallow descent again. Once the aircra has stabilized in the
half ap posion, move the ap switch to the full posion, nong
that the model may pitch up once again. Full ap, depending on
airspeed, may require a small amount of down elevator pressure to
keep it from pitching up. Note that the higher the airspeed, the
more the model will pitch up when aps are applied. It is always
best to deploy the aps at slower airspeeds unl you are
comfortable with how the model acts when the aps are deployed.
As you become more comfortable with the aps, you'll soon realize
how much they aid in short-eld takeos and landings!
My Cessna Rolls When I Deploy Flaps!
This is typically caused by ap travels that are not traveling the
same amount. This can be xed by adjusng ap linkage length,
and/or servo arm posion on the spline of the servo. Consult our
Cessna wiki page for more detailed informaon:
hp://wiki.exinnovaons.com/wiki/Cessna170
ADVANCED "3D" CESSNA SETUP
The Cessna comes with addional ap pushrods that are longer than the stock (installed) pushrods. This allows the aps to travel in both the up and down
posion, much like ailerons. With this capability, you can mix the aps with the ailerons and have much greater aileron authority in slow speed "high-alpha"
ight, and also mix in "crow" or speed brake funconality as well. Also, the aps are in the roll axis gyro loop, which allows them to correct along with the
ailerons for changes in roll. This adds extra stability at slow speeds, including landing, and 3D ight.
Should you choose to install these pushrods, you will need to re-program the Aura 8. A new Aura Cong le pre-programmed for this advanced setup is
located on the Aura Wiki page. To install, download the Aura 8 Cong Tool, and download the Advanced Cessna Setup. Follow the direcons on the wiki
page to program the Aura 8 with this cong le. Both the cong le, and Aura Cong Tool can be found here:
hp://wiki.exinnovaons.com/wiki/Cessna170
It is important to note that this advanced setup is not compable with PWM Aura connecon types. If you sll want similar capability with a PWM setup,
mixing in your transmier is required. Consult your transmier manufacturer or manufacturer's manual for further assistance.
Reference the informaon below for a basic understanding of each Flight Mode with the Advanced Cessna setup.
Flight Mode 1 - Crow
Low dual rate aileron, high dual rate elevator/rudder
Low gyro sensivity for aileron, high gyro sensivity for elevator/rudder
Rudder to aileron mix and rudder to elevator mix is OFF
Crow" with ailerons up, and aps down. Mixed to throle so that crow is removed as throle is advanced.
Throle to elevator mix to compensate for crow eects
Flaps are in the roll axis gyro loop
Aileron dierenal set with Aura
Flight Mode 2 - Sport Aerobacs
Low dual rates on all surfaces
Low gyro sensivity on all surfaces
Standard ap funcon
Rudder to aileron mix and rudder to elevator mix is ON
Flaps are NOT in the roll axis gyro loop
Aileron dierenal set with Aura
Flight Mode 3 - 3D Aerobacs
3D dual rates on all surfaces
High gyro sensivity
Flaps mixed to work with ailerons in roll
Rudder to aileron and rudder to elevator mix is ON
Flaps are in the roll axis gyro loop
Aileron dierenal set with Aura
18
Page 20
AIRFRAME REPAIRS
The Cessna 170 is molded from durable EPO foam and is repairable with most adhesives. Similar to building and repairing wood or composite
airplanes, the correct glue for a given applicaon is crical to the repair holding and not breaking again. For major repairs, such as a broken
fuselage, epoxy is preferred because it allows me to correct any misalignment. For smaller repairs, such as a cracked control surface or small chunk
of material missing from the airframe, regular CA is very eecve. The use of oderless (foam safe) CA is not recommended on EPO foam aircra
because it is weaker than regular CA and takes a longer period of me to cure and the bond tends to be weaker.
NOTE: Avoid the use of CA accelerant in repairs. It can damage paint and will weaken the bond of the glue. If CA accelerant is used, be
If a part is damaged too badly to be repaired, please refer to the back of the manual for a complete lisng of spare airframe parts.
NOTICE: If a crash is immenent, fully reduce the throle to prevent further damage to the power system and reduce energy to lessen
Avoid keeping the airplane in direct sunlight or in hot vehicles when not ying. Excessive heat can damage the airplane's structure and UV
mindful of the locaons of CA to prevent premature bonding of parts, or bonding a hand or clamp to the airframe.
impact damage. Never allow the propeller to contact the ground under power, even idle.
BE ADVISED THAT CRASH DAMAGE IS NOT COVERED UNDER ANY PRODUCT WARRANTY.
damage can permanently discolor decals.
REPLACING SERVOS
Required Tools and Fasteners: #1 Phillips Screwdriver
1. Unplug the servo from the receiver or any extension.
2. Unscrew the servo arm from the servo and remove the servo arm.
3. Unscrew the two mounng screws located at each end of the servo and remove. Note that the aileron servos are connected to the navigaon lights
with a Y-harness. The wires are also taped to the inner wing skin, and may require a rm pull to remove.
19
Tip: Plug a spare extension lead into the servo when removing to make it easier to install the lead of the servo when replaced.
Page 21
SERVICING THE POWER SYSTEM
Required Tools and Fasteners: #1 Phillips Screwdriver, Adjustable Wrench
1.
Remove the propeller and spinner assembly from the motor. Follow the assembly instruc�ons on page 6 in reverse.
2.
Remove the cowling by unscrewing the M3x10 phillips self-tapping screws from the firewall. You will need a long enough screwdriver to reach
through the grill of the cowling.
3.
Gently remove the cowling from the fuselage, being sure not to lose the two M3x10 screws.
4.
Remove the (4) bolts holding the motor to the firewall using a #1 Phillips screwdriver. Disconnect the motor from the ESC.
5.
To remove the ESC, simply unplug its lead from the receiver or Aura and the output leads from the motor.
20
Page 22
AIRCRAFT TROUBLESHOOTING GUIDE
NOTICE
Should you encounter any abnormal situaons with your Cessna 170, refer to the matrix below to determine probable cause and a recommended
soluon for the acon.
If the required soluon does not recfy the problem, please contact product support for further assistance.
DISCREPANCY
Motor nonresponsive (ESC
inializaon tones audible)
Motor nonresponsive (No ESC
inializaon tones audible)
Motor turns in the wrong
direcon
Reduced ight me or aircra
under powered
Excessive propeller noise
and/or vibraon
Control surfaces
nonresponsive
Failed control direcon test
Controls Reversed
Control surface oscillaon
Trim changes between
ight modes
Unless specically required, ALWAYS troubleshoot the airplane with the propeller removed.
PROBABLE CAUSE
Throle not at idle and/or throle trim too high
Throle channel is reversed
Motor disconnected from ESC
The three motor wires are connected
incorrectly to the ESC
Flight baery not fully charged
Propeller installed backwards
Flight baery damaged
Ambient temperature is too cold
Baery capacity too small for intended use.
ESC reaching preset LVC (low-voltage cuto)
Baery is too weak or damaged
Baery's discharge rang may be too small
Damaged spinner and/or propeller, collet, or
motor
Propeller is not balanced
Prop nut is loose
Spinner is not fully in place or ghtened
Propeller nut or propeller adapter threads not
cut straight
Airframe or control linkage system damaged
Wire damaged or connector loose
Transmier bound incorrectly, incorrect acve
model memory, incorrect Aura data input
conguraon, incorrect Aura transmier sengs
Baery voltage too low
Baery disconnected from ESC
BEC (baery eliminator ciruit) damaged
Damaged Servo
Incorrect Aura 8 or Transmier seng - DO NOT
FLY!
Aura 8 or transmier sengs incorrect
Exceeding maximum airspeed for conguraon
Gains too high for aircra/ight conguraon
Propeller/spinner not balanced
Motor vibraon
Loose Aura 8 mounng
Control linkage slop
Improper transmier setup
Damaged propeller or spinner
Improperly Set Master Gain
Trims are not properly zeroed
Sub-trim is not properly zeroed
Transmier is not properly calibrated (Ail, Ele,
Rud are not zero/center with scks centered;
reference transmier monitor
Lower throle sck and trim completely. If problem persists, ensure that the
sub-trim and travel adjust are properly set in the radio's programming.
Reverse throle channel in radio programming
Ensure plugs are fully seated. Check baery and/or plugs for damage and
replace any damaged components found. DO NOT ATTEMPT TO REPAIR
Swap any TWO motor wires.
Ensure baery is fully charged prior to installing in aircra.
Install propeller so that the convex side faces forward (tractor conguraon)
Remove baery from service completely and replace with a dierent baery
Ensure baery packs are adequately warm (70F/21C) before ight
Replace baery with one of proper capacity and discharge capacity (C rang)
Recharge ight baery or reduce ight me
Check baery's physical condion, check baery voltages aer charge
Replace baery with one with higher 'C' rang
Replace damaged components - DO NOT ATTEMPT REPAIR
Balance or replace the propeller
Tighten prop nut with appropriate-sized wrench
Loosen the spinner bolt, adjust as required, reghten spinner bolt
Replace propeller nut or propeller sha - DO NOT ATTEMPT REPAIR
Examine airframe for damage, repair as required, inspect control linkage
system (servo, pushrod, control horn) for damaged components and
replace as required
Examine wires and connecons, replace as necessary
Consult radio manual for proper binding and model selecon instrucons
Use volt meter to check baery; recharge or replace as necessary
Check that the EC5 plugs are fully seated
Replace ESC - DO NOT ATTEMPT REPAIR
Replace Servo - DO NOT ATTEMPT REPAIR
Reference transmier and receiver secons of this manual. If no soluon
found, contact customer support at support@exinnovaons.com
Refer to control surface direcon chart and transmier setup; adjust
appropriate sengs as required. Check Cessna and Aura wiki web pages for
addional informaon. Contact support
Reduce airspeed
Refer to Aura 8 manual to decrease desired control surface gain
Balance or replace propeller and/or spinner
Inspect motor mounng bolts and re-ghten as necessary
Re-align and secure the Aura 8 to the aircra
Examine control system and repair or replace work components
Refer to Aura 8 manual to correctly congure transmier
Replace damaged component - DO NOT ATTEMPT REPAIR
Ensure Master Gain channel is set for proper gain value
Readjust control linkage and re-center trims in radio
Remove sub-trim; adjust the servo arm or clevis to achieve proper geometry
Calibrate transmier (reference your manufacturer's instrucons, or send to
manufacturer to have calibrated)
RECOMMENDED SOLUTION
21
Page 23
AIRCRAFT TROUBLESHOOTING GUIDE (CONTINUED)
NOTICE
Unless specically required, ALWAYS troubleshoot the airplane with the propeller removed.
DISCREPANCY
PWM Connecon type and
cannot get Orange+Green
Aura LED and Control of
Airplane Rolls when aps are
in the down posion
Model
PROBABLE CAUSE
Any of four PWM servo cables not connected
PWM Servo cables connected to incorrect ports
Polarity of PWM Servo cables not correct
Receiver not bound and/or outpung PWM
servo pulses
Le and right ap travels are not equal
RECOMMENDED SOLUTION
Connect all four male to male servo cables between your receiver and Aura
Re-connect cables to proper ports. Reference chart on page 11
Remove servo cables and connect with proper polarity (reference page 11)
Bind your receiver per your manufacturer's instrucons, and use a servo
ensure it is outpung PWM signal from all four channels required
Adjust servo arm locaon on spline and/or ap pushrod length to match
throws. Reference Cessna 170 wiki page for more informaon:
hp://www.wiki.exinnovaons.com/Cessna170
22
Page 24
REPLACEMENT PARTS
FPM3170
FPM3180
FPM317001
FPM318001
FPM317002
FPM318002
FPM317003
FPM317004
FPM317005
FPM317006
FPM317007
FPM317008
FPM317009
FPM317010
FPM317011
FPM317012
FPMP1606E
FPZDS33
FPZDS19
FPZDS19F
FPZM1060L
FTVHWBQ8012EB
FPZM1060L2
FPZM1060L1
FPZM1060L3
FPZAURA08ZZC17
FPZA1014
Cessna 170 Super PNP
Cessna 170 Super PNP Night
Cessna 170: Fuselage
Cessna 170: Fuselage with LED
Cessna 170: Wing Set
Cessna 170: Wing Set with LED
Cessna 170: Tail Set
Cessna 170: Hatch Set/Cowling
Cessna 170: Landing Gear Set
Cessna 170: Main Wheel Set
Cessna 170: Tube Joiner Set
Cessna 170: Wing Strut Set
Cessna 170: Pushrod Set
Cessna 170: Hardware Set
Cessna 170: Red/Silver Decal Set
Cessna 170: Spinner
SR Propeller 16x6E
Potenza DS33 MG Digital Mini Servo
Potenza DS19 MG Digital Sub-Micro Servo
Potenza DS19 MG Digital Sub-Micro Servo Float
Potenza 60 Light 540Kv Brushless Motor
Hobby Wing 80A Skywalker ESC w/External 5V-8A SBEC
Potenza 60L Motor X-Mount w/Screws
Potenza 60L Motor Bolt-On Adapter
Potenza 60L Motor Sha w/Collar
Potenza Aura 8 for Cessna 170
Potenza LED Controller Cessna 170
OPTIONAL ACCESSORIES
FPM317014
FPM317015
FPM317016
FPM317017
FPM317018
FPZA1011
FPZA1012
FPZB40006S40
FPZB50006S40
FPZB50006S60
FPZB50005S40
FPZB50004S40
FPZC80
FTVHWBQ2006
FPZA1010
FPZA1013
For the latest informa�on regarding replacement parts, and all op�onal
accessories, please visit the Cessna 170 product page at:
23
Cessna 170: Float Set & Struts w/ LED Light
Cessna 170: Leading Edge Fixed Slat Set
Cessna 170: Snow Ski Set
Cessna 170: Glider Tow Pushrod
Cessna 170: Key Chain Camera Mount
Potenza Single Line Servo Reverser
Potenza 2 in. Servo Y Harness
Potenza 6S 4000mAh 40C Li-Po Baery
Potenza 6S 5000mAh 40C Li-Po Baery
Potenza 6S 5000mAh 60C Li-Po Baery
Potenza 5S 5000mAh 40C Li-Po Baery
Potenza 4S 5000mAh 40C Li-Po Baery
C80 Mul-Chemistry Touch Screen AC/DC Charger
Hobbywing ESC Programming Card
Mul-Funcon Digital Baery Analyzer
Potenza LED Controller QQ Extra 300
www.flexinnova�ons.com
Page 25
LIMITED WARRANTY
Warranty Coverage
Flex Innovaons, Inc. and its authorized resellers ("Flex") warrant to the
original purchaser that the product purchased (the "Product") it will be
free from defects in materials and workmanship at the date of
purchase.
Outside of Coverage
This warranty is not transferable and does not cover:
Products with more than 45 days aer purchased date.
(a)
Damage due to acts of God, accident, misuse, abuse,
(b)
negligence, commercial use, or due to improper use,
installaon, operaon or maintenance
Modicaon of or to any part of the Product.
(c)
Product not compliant with applicable technical regulaons.
(d)
Shipping damage
(e)
Cosmec damage
(f)
OTHER THAN THE EXPRESS WARRANTY ABOVE, FLEX MAKES NO
OTHER WARRANTY OR REPRESENTATION, AND HERBY DISCLAIMS ANY
AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
THE IMPLIED WARRANTIES OF NONINFRINGEMENT,
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE
PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED
THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF
THE PURCHASER'S INTENDED USE.
Purchaser's Solu�on
Ques�ons & Assistance
Visit www.flexinnova�ons.com/ar�cles.asp?ID=269 to nd customer
support in your region.
Inspec�on or Services
If this Product needs to be inspected or serviced and is compliant in
the region you live and use the Product in, please contact your regional
Flex authorized reseller. Pack the Product securely using a shipping
carton. Please note that original boxes needs to be included, but are
not designed to withstand the regors of shipping without addional
protecon. Ship via a carrier that provides tracking and insurance for
lost or damaged parcels, as Flex is not responsible for merchandise
unl it arrives and is accepted at our facility.
Warranty Requirements
For Warranty consideraon, you must include your original sales
receipt verifying the proof of purchase date. Provided warranty
condions have been met, your Product will be replaced free of
charge. Shipping charges are as follow: to Flex by customer, Flex out is
by Flex. Service or replacement decisions are at the sole discreon of
Flex.
COMPLIANCE INFORMATION FOR THE EUROPEAN
UNION
Declara�on of Conformity (In accordance with ISO/IEC
17050-1)
Flex's sole obligaon and purchaser's sole and exclusive remedy shall
be that Flex will, at its opon, either (i) service, or (ii) replace, any
Product determined by Flex to be defecve. Flex reserves the right to
inspect any and all Product(s) involved in a warranty claim. Service or
replacement decisions are at the sole discreon of Flex. Proof of
purchase is required for all warranty claims. SERVICE OR
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE
PURCHASER'S SOLE AND EXCLUSIVE REMEDY.
Limita�on of Liability
FLEX SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR
COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH
CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE,
STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF FLEX
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Further, in no event shall the liability of Flex exceed the individual price
of the Product on which liability is asserted. As Flex has no control over
use, setup, assembly, modicaon or misuse, no liability shall be
assumed nor accepted for any resulng damage or injury. By the act of
use, setup or assembly, the user accepts all resulng liability. If you as
the purchaser or user are not prepared to accept the liability
associated with the use of the Product, purchaser is advised to return
the Product immediately in new and unused condion to the place of
purchase.
Law
these terms are governed by Florida law (without regard to conict of
law principals). This warranty gives you specic legal rights, and you
may also have other rights which vary from state to state. FLEX
RESERVES THE RIGHT TO MODIFY THIS WARRANTY AT ANY TIME
WITHOUT PRIOR NOTICE.
Product(s):
Item Number(s):
The object of declaraon described above is in conformity with the
requirements of the specicaons listed below, following the
provisions of the EMC Direcve 2004/108/EC.
EN 55022: 2010+AC:2011
EN 55024: 2010
EN 61000-3-2: 2006+A2:2009
EN 61000-3-3: 2013
EN 61000-6-3: 2007/A1:2011
EN 61000-6-1: 2007
Instruc�ons for disposal of WEEE by users in the European
Union
This product must not be disposed of with other waste.
Instead, it is the user's responsibility to dispose of their
waste equipment by handing it over to a designated
collecons point for the recycling of waste and electronic
equipment. The seperate collecon and recycling of your
waste equipment at the me of disposal will help to
conserve natural resources and ensure that it is recycled in
a manner that protects human health and the
environment. For more informaon about where to drop
o your waste equipment for recycling, please contact your
local city oce, your household waste disposal service or
where you purchased this product.
Cessna 170 Super PNP
Cessna170 Super PNP Night
FPM3170
FPM3180
24
Page 26
(a)
(b)
(a)
(b)
(c)
(d)
(e)
(f)
(g)
(h)
(i)
(j)
(a)
(b)
Academy of Model Aeronaucs Naonal Model Aircra Safety Code
A.
GENERAL: A model aircra is a non-human-carrying aircra capable of
sustained ght in the
atmosphere. It may not exceed limitaons of this code and is intended
exclusively for sport, recreaon, educaon and/or compeon. All model
ghts must be conducted in accordance with this safety code and any
addional rules specic to the ying site.
Model aircra will not be own:
1.
2.
Excepons:
3.
4.
B.
1.
2.
In a careless or reckless manner.
At a locaon where model aircra acvies are prohibited.
Model aircra pilots will:
Yield the right of way to all human-carrying aircra.
See and avoid all aircra and a spoer must be used when
appropriate. (AMA Document #540-D.)
Not y higher than approximately 400 feet above ground level within
three (3) miles of an airport without nofying the airport operator.
Not interfere with operaons and trac paerns at any airport,
heliport or seaplane base except where there is a mixed use
agreement.
Not exceed a takeo weight, including fuel, of 55 pounds unless in
compliance with the AMA Large Model Airplane program. (AMA
Document 520-A.)
Ensure the aircra is idened with the name and address or AMA
number of the owner on the inside of axed to the outside of the
model aircra. (This does not apply to model aircra own indoors.)
Not operate aircra with metal-blade propellers or with gaseous
boosts except for helicopters operated under the provisions of AMA
Document #555.
Not operate model aircra while under the inuence of alcohol or
while using any drug that could adversely aect the pilot's ability to
safely control the model.
Not operate model aircra carrying pyrotechnic devices that explode
or burn, or any device which propels a projecle or drops any object
that creates hazard to persons or property.
Free Flight fuses or devices that burn producing smoke and are securely
aached to the model aircra during ight.
Rocket motors (using solid propellant) up to a G-series size may be used
provided they remain aached to the model during ight. Model
rockets may be own in accordance with the Naonal Model Rocketry
Safety Code but may not be launched from model aircra.
Ocially designated AMA Air Show Teams (AST) are authorized to use
devices and pracces as dened within the Team AMA Program
Document. (AMA Document #718.)
Not operate a turbine-powered aircra, unless in compliance with the
AMA turbine regulaons. (AMA Document #510-A.)
Model aircra will not be own in AMA sanconed events, air shows or
model demonstraons unless:
The aircra, control system and pilot skills have successfully
demonstrated all maneuvers intended or ancipated prior to the
specic event.
An inexperienced pilot is assisted by an experienced pilot.
When and where required by rule, helmets must be properly worn and
fastened. They must be OSHA, DOT, ANSI, SNELL or NOCSAE approved or
comply with comparable standards.
RADIO CONTROL (RC)
All pilots shall avoid ying directly over unprotected people, vessels,
vehicles or structures and shall avoid endangerment of life and property of
others.
A successful radio equipment ground-range check in accordance with
manufacturer's recommendaons will be completed before the rst ight
of a new or repaired model aircra.
At all ying sites a safety line(s) must be established in front of which all
ying takes place. (AMA Document #706.)
(a)
Only personnel associated with ying the model aircra are allowed
at or in front of the safety line.
(b)
At air shows or demonstraons, a straight safety line must be
established.
(c)
An area away from the safety line must be maintained for spectators.
(d)
Intenonal ying behind the safety line is prohibited.
Eecve January 1, 2015
4.
RC model aircra must use the radio-control frequencies currently
allowed by the Federal Communicaons Commission (FCC). Only
individuals properly licensed by the FCC are authorized to operate
equipment on Amateur Band frequencies.
5.
RC model aircra will not knowingly operate within three (3) miles of any
pre-exisng ying site without a frequency-management agreement.
(AMA Documents #922 and #923)
6.
With the excepon of events own under ocial AMA Compeon
Regulaons, excluding takeo and landing, no powered model may be
own outdoors closer than 25 feet to any individual, except for the pilot
and the pilot's helper(s) located at the ightline.
7.
Under no circumstances may a pilot or other person touch an outdoor
model aircra in ight while it is sll under power, except to divert it from
striking an individual.
8.
RC night ying requires a lighng system providing the pilot with a clear
view of the model's atude and orientaon at all mes. Hand-held
illuminaon systems are inadequate for night ying operaons.
9.
The pilot of an RC model aircra shall:
(a)
Maintain control during the enre ight, maintaining visual contact
without enhancement other than by correcve lenses prescribed for
the pilot.
(b)
Fly using the assistance of a camera or First-Person-View (FPV) only
in accordance with the procedures outlined in AMA Document #550.
Fly using the assistance of autopilot or stabilizaon system only in
(c)
C. FREE FLIGHT
1.
2.
3.
D. CONTROL LINE
1.
2.
3.
4.
5.
accordance with the procedures outlined in AMA Document #560
Must be at least 100 feet downwind of spectators and automobile
parking when the model aircra is launched.
Launch area must be clear of all individuals except mechanics, ocials,
and other iers.
An eecve device will be used to exnguish any fuse on the model
aircra aer the fuse has completed its funcon.
The complete control system (including the safety thong where
applicable) must have an inspecon and pull test prior to ying.
The pull test will be in accordance with the current Compeon
Regulaons for the applicable model aircra category.
Model aircra not ng a specic category shall use those pull-test
requirements as indicated for Control Line Precision Aerobacs.
The ying area must be clear of all ulity wires or poles and a model
aircra will not be own closer than 50 feet to any above-ground electric
ulity lines.
The ying area must be clear of all nonessenal parcipants and
spectators before the engine is started.
If you are not an AMA member, please consider joining. Founded in
1936 and open to anyone interested in model aviaon, the AMA is
the governing body for model aviaon in the United States and
sancons over 2,000 compeons anually. Membership in the AMA
provides liability insurance coverage, protects modelers' rights and
interests, and is required to y at most of the 2,700+ R/C sites
Academy of Model Aeronaucs
naonwide.
5161 East Memorial Drive
Muncie, IN 47302-9252
Toll Free (800) 435-9262
Fax (765) 741-0057
www.modelaircra.org
25
Page 27
INNOVATIONS
INCORPORATED
w w w . f l e x i n n o v a t i o n s . c o m
TM
Officially Licensed Product
E78023
Cessna and Cessna 170 are trademarks or registered trademarks of Textron Innovaons, Inc. and are used under license by Flex Innovaons, Inc.
Premier Aircra™, Potenza™, and Top Value RC™ are trademarks or registered trademarks of Flex Innovaons, Inc.
DSM®, DSM2™, and DSMX™ are trademarks or registered trademarks of Horizon Hobby LLC
Futaba™ is a registered trademark of Futaba Denshi Kogyo Kabushiki Kaisha Corporaon of Japan.
Je, UDI, and Je Model are trademarks or registered trademarks of Jelen, Ing. Stanislav of Czech Republic
HoTT is a registered trademark of SJ, Inc.
©2016 Flex Innovaons, Inc.
Created 7/2016
Loading...
