FLUXUS F60*

UMFLUXUS_F60xV5-0EN

Operating instruction

Page 2

FLEXIM GmbH

Boxberger Straße 4

12681 Berlin

Germany

Tel.: +49 (30) 936 67 660

Fax: +49 (30) 936 67 680

E-mail: [email protected]

www.flexim.com

FLUXUS is a registered trademark of FLEXIM GmbH.

Operating instruction for

FLUXUS F60*

UMFLUXUS_F60xV5-0EN, 2017-10-16

Firmware version: V6.28

Subject to change without prior notice.

Page 3

FLUXUS F60* Table of contents

Table of contents

UMFLUXUS_F60xV5-0EN, 2017-10-16

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.1 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.2 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.3 Not intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.4 Safety instructions for the user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.5 Safety instructions for the operator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2.6 Safety instructions for electrical work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.7 Safety instructions for transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2.8 Recommended procedure in hazardous situations . . . . . . . . . . . . . . . . . . . . . 12

3 General principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.1 Measurement principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.2 Measurement arrangements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

3.3 Acoustic penetration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3.4 Undisturbed flow profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4 Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.1 Measuring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.2 Handling concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.3 Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

4.4 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

5 Transport and storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.1 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

5.2 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

6Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

6.1 Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

6.2 Transducers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

6.3 Temperature probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

7 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

7.1 FLUXUS *601 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

7.2 FLUXUS *608 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

8 Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

8.1 Start-up settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

8.2 Switching on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Page 4

Table of contents FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

8.3 Program branches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

8.4 HotCodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

8.5 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

8.6 Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

8.7 Time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

8.8 Instrument information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

9 Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

9.1 Parameter input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

9.2 Measurement settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

9.3 Start of the measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

9.4 Displaying measured values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

9.5 Execution of special functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

9.6 Determination of the flow direction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

9.7 Stop of measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

10.1 Problems with the measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

10.2 Measuring point selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

10.3 Maximum acoustic contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

10.4 Application-specific problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

10.5 Significant deviations of the measured values . . . . . . . . . . . . . . . . . . . . . . . 115

10.6 Problems with the totalizers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

10.7 Problems during the heat flow measurement . . . . . . . . . . . . . . . . . . . . . . . . 116

11 Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

11.1 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

11.2 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

12 Dismounting and disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

12.1 Dismounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

12.2 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

13 Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

13.1 Configuration of an output using the adapter for the active current input . . . 120

13.2 Installation of a binary output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

13.3 Configuration of a frequency output as pulse output . . . . . . . . . . . . . . . . . . . 125

13.4 Activation of a binary output as pulse output . . . . . . . . . . . . . . . . . . . . . . . . . 127

14 Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

14.1 Assignment of the temperature inputs to the measuring channels . . . . . . . . 129

Page 5

FLUXUS F60* Table of contents

UMFLUXUS_F60xV5-0EN, 2017-10-16

14.2 Assignment of other inputs to the measuring channels . . . . . . . . . . . . . . . . 131

14.3 Activation of the inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

14.4 Temperature correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

15 Data logger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

15.1 Activating/deactivating the data logger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

15.2 Setting the storage rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

15.3 Configuration of the data logger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

15.4 Measurement with activated data logger . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

15.5 Deletion of measured values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

15.6 Information relating the data logger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

16 Data transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

16.1 Online transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

16.2 Offline transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

16.3 Data format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

16.4 Transmission parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

16.5 Online transmission of data to a terminal program . . . . . . . . . . . . . . . . . . . . 145

16.6 Offline transmission of data to a terminal program . . . . . . . . . . . . . . . . . . . . 146

16.7 Data structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

17 Advanced functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

17.1 Totalizers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

17.2 NoiseTrek parallel beam mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

17.3 HybridTrek mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

17.4 Upper limit of the flow velocity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

17.5 Cut-off flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

17.6 Uncorrected flow velocity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

17.7 FastFood mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

17.8 Calculation channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

17.9 Diagnosis by means of the snap function . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

17.10 Modification of the limit for the inner pipe diameter . . . . . . . . . . . . . . . . . . . 165

17.11 Activation of a binary output as alarm output . . . . . . . . . . . . . . . . . . . . . . . . 165

17.12 Behavior of the alarm outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

18 SuperUser mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

18.1 Activation/deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

18.2 Transducer parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

18.3 Definition of the flow parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

18.4 Limit of the signal amplification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Page 6

Table of contents FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

18.5 Upper limit of the sound speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

18.6 Detection of long measurement failures . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

18.7 Number of decimal places of the totalizers . . . . . . . . . . . . . . . . . . . . . . . . . . 181

18.8 Temperature-based heat flow cut-off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

18.9 Manual reset of the totalizers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

18.10 Display of the totalizer sum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183

18.11 Display of the last valid measured value . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

18.12 Displays during the measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

19 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

19.1 Dialogs and menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

19.2 Measurement settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

19.3 Working with parameter records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

19.4 Libraries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

19.5 Contrast settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

20 Wall thickness measurement (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . 198

20.1 Orientation of the wall thickness probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

20.2 Activation of the wall thickness measurement . . . . . . . . . . . . . . . . . . . . . . . . 199

20.3 Parameter input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

20.4 Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

21 Heat flow measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

21.1 Calculation of the heat flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

21.2 Normal measuring mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

21.3 BTU mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

21.4 Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214

21.5 Two independent heat flow measurements . . . . . . . . . . . . . . . . . . . . . . . . . . 215

21.6 Steam in inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

Annex

A Menu structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219

B Units of measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229

C Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235

D Conformity declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241

Page 7

1 Introduction

FLUXUS F60*

UMFLUXUS_F60xV5-0EN, 2017-10-16

1 Introduction

This operating instruction has been written for users operating the ultrasonic flowmeter FLUXUS. It contains important information about the measuring equipment, how to handle it correctly, and how to avoid damages. Read the safety instructions carefully. Make sure you have read and understood this operating instruction before using the measuring equipment.

Any work on the measuring equipment has to be carried out by authorized and qualified personnel in order to detect and avoid possible risks and dangers.

Presentation of warnings

This operating instruction contains warnings marked as follows:

Danger!

Type and source of danger

danger with high level of risk, which if not avoided, can lead to death or serious injuries

→ measures of prevention

Warning!

Type and source of danger

danger with medium level of risk, which if not avoided, can lead to death or serious injuries

→ measures of prevention

Caution!

Type and source of danger

danger with low level of risk, which if not avoided, can lead to minor or moderate injuries

→ measures of prevention

Notice!

This text contains important information about the use of the transmitter. The information describes situations which can lead to material damage.

Page 8

1 Introduction

FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

Storage of the operating instruction

The operating instruction must permanently be available at the place where the measuring equipment is used. It must always be available to the user.

User comments

All reasonable effort has been made to ensure the correctness of the content of this operating instruction. If you however find some erroneous information or miss information, please inform us.

We will be grateful for any suggestions and comments regarding the concept and your experience working with the measuring equipment. If you have any suggestions about improving the documentation and particularly this operating instruction, please let us know so that we can consider your comments for future reprints.

The contents of this operating instruction are subject to changes without prior notice. All rights reserved. No part of this operating instruction may be reproduced in any form without FLEXIM's written permission.

Page 9

2 Safety instructions

FLUXUS F60* 2.1 General safety instructions

UMFLUXUS_F60xV5-0EN, 2017-10-16

2 Safety instructions

2.1 General safety instructions

Prior to any work, read the operating instruction carefully and in full.

Failure to comply with the instructions, in particular with the safety instructions, poses a risk to health and can lead to material damages. For further information, contact FLEXIM.

During installation and operation of the measuring equipment, observe the ambient and installation conditions specified in the documentation.

The measuring equipment has to be checked for proper condition and operational safety before each use. If disturbances or damages have occurred during installation or operation of the measuring equipment, please inform FLEXIM.

It is not allowed to make unauthorized modifications or alterations to the measuring equipment.

If the measuring point is within an explosive atmosphere, the danger zone and present explosive atmosphere have to be determined. The transmitter, transducers and accessories have to be appropriate and approved for the conditions in this zone.

The personnel has to be suitably trained and experienced for the work.

Observe the "Safety instructions for the use in explosive atmospheres", see document SIFLUXUS_608. Observe the instructions for hazardous substances and the respective safety data sheets. Observe the regulations for the disposal of electrical equipment.

2.2 Intended use

The measuring equipment is intended for the measurement of fluid properties in closed pipes. By means of connected transducers, the transit times of the ultrasonic signals in the fluid and the pipe as well as other related properties, such as temperature and pressure, are measured and evaluated.

The transmitter uses these values to calculate the sought physical quantities, e.g., volumetric flow rate, mass flow rate, heat quantity, density and concentration. Through comparison with the values stored in the transmitter further physical quantities can be determined. The physical quantities are provided via configurable outputs and the display.

• All instructions of this operating manual have to be observed to ensure intended use.

• Any use beyond or other than the intended use is not covered by warranty and can present a danger. Any damage arising from not intended use shall be solely the liability of the operator or user.

• The measurement is carried out without direct contact to the fluid in the pipe. The flow profile is not influenced.

• The transducers are fixed to the pipe using the supplied transducer mounting fixture.

• Observe the operating conditions, e.g., environment, voltage ranges. For the technical data of the transmitter, transducers and accessories, see Technical specification.

Page 10

2 Safety instructions

2.3 Not intended use FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

2.3 Not intended use

Not intended use in terms of a misuse means:

• any work on the measuring equipment without observing all instructions in this operating instruction

• use of transmitter, transducer and accessories combinations not intended by FLEXIM

• installation of the transmitter, transducers and accessories in explosive atmospheres they are not approved for

• any work on the measuring equipment (e.g., installation, dismounting, connection, startup, operation, service and maintenance) carried out by unauthorized and untrained personnel

• storage, installation and operation of the measuring equipment outside the specified ambient conditions, see Technical specification

2.4 Safety instructions for the user

Any work on the transmitter has to be carried out by authorized and qualified personnel. Observe the safety instructions in the operating instruction. For the technical data of the transmitter, transducers and accessories, see Technical specification.

• Observe the safety and accident prevention regulations applicable on the site of operation.

• Only use the supplied mounting fixtures and transducers as well as the intended accessories.

• Always wear the required personal protective equipment.

2.5 Safety instructions for the operator

• The operator shall qualify the personnel to perform their assigned tasks. They shall provide the required personal protective equipment and oblige the personnel to wear it. It is recommended to risk assess the workplace.

• Besides the safety instructions in this operating instruction, the health, safety and environment regulations applicable for the range of application of the transmitter, transducers and accessories have to be observed.

• With the exceptions stated in chapter 10, the measuring equipment is maintenancefree. Any components and spare parts may only be replaced by FLEXIM. The operator shall carry out periodic checks for changes or damages that can present a danger. For further information, contact FLEXIM.

• Observe the specifications for the installation and connection of the transmitter, transducers and accessories, see chapter 6 and 7.

Page 11

2 Safety instructions

FLUXUS F60* 2.6 Safety instructions for electrical work

UMFLUXUS_F60xV5-0EN, 2017-10-16

2.6 Safety instructions for electrical work

• Electrical work may only be carried out if there is enough space.

• The degree of protection of the transmitter is only ensured if the cables are firmly connected to the transmitter and all unused connections are covered.

• The condition and tight fit of the electrical connections have to be checked at regular intervals.

• The power supply unit for charging the battery, may only be connected to networks up to overvoltage category II. Use only the supplied power supply unit. For the power supply via power cable and power adapter, observe the safety instructions in the sections

7.1.2 and 7.2.2.

• The transmitter and the power supply unit must not be disassembled, see Fig. 2.1. The transmitter does not contain any components to be maintained by the user. For repair and service work, please contact FLEXIM.

• Observe the safety and accident prevention regulations for electrical systems and equipment.

2.7 Safety instructions for transport

• If you detect a transport damage when unpacking the delivery, please contact the supplier or FLEXIM immediately.

• The transmitter is a sensitive electronic measuring instrument. Avoid shocks or impacts.

• Handle the transducer cable with care. Avoid sharp bends or kinks. Observe the ambient conditions.

• Select a solid surface to put the transmitter, transducers and accessories on.

• The transmitter, transducers and accessories have to be properly packed for transport:

– Use, if possible, the original packaging by FLEXIM or an equivalent cardboard box.

– Position the transmitter, transducers and accessories in the middle of the cardboard

box.

– Fill any voids with appropriate packaging material (e.g., paper, foam, bubble wrap).

– Protect the cardboard box against humidity.

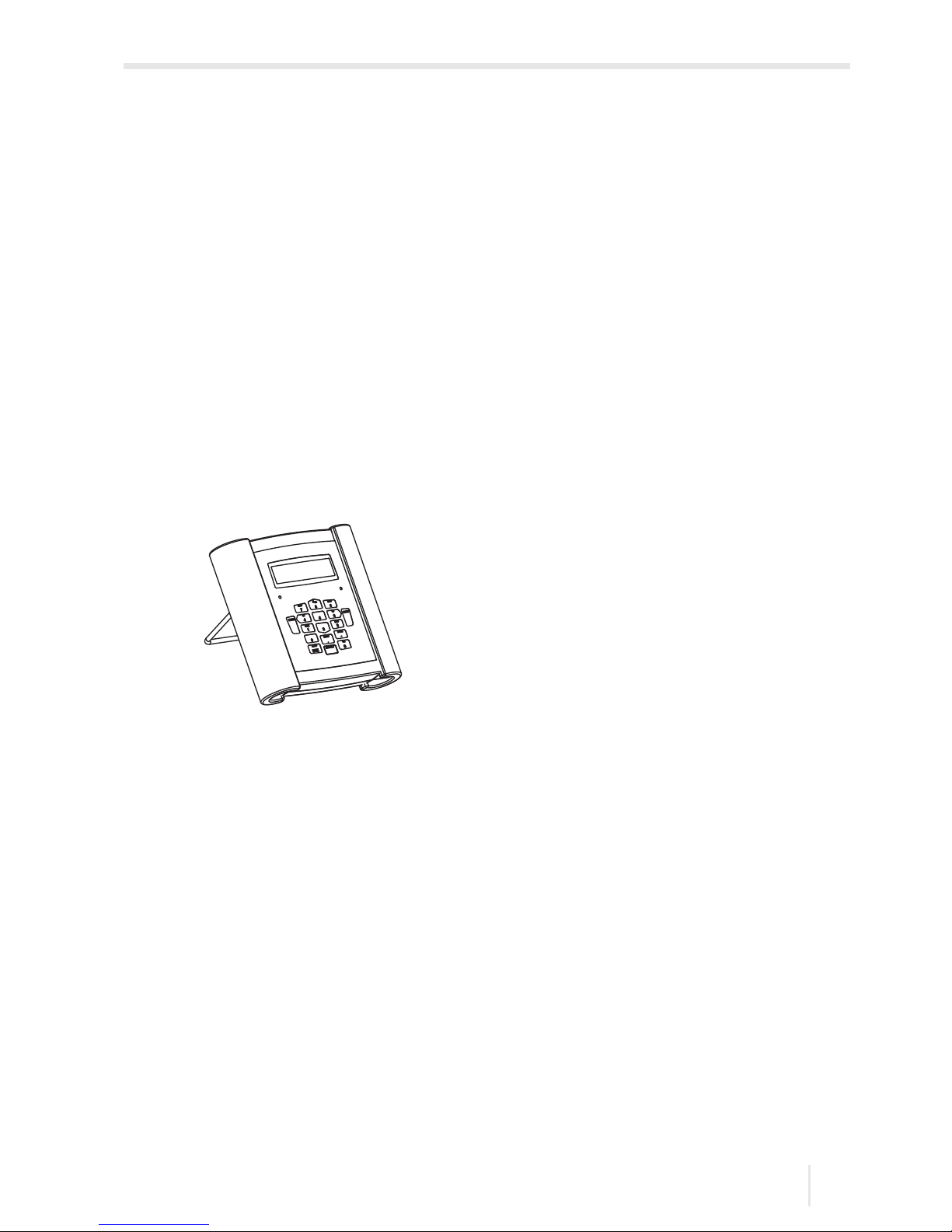

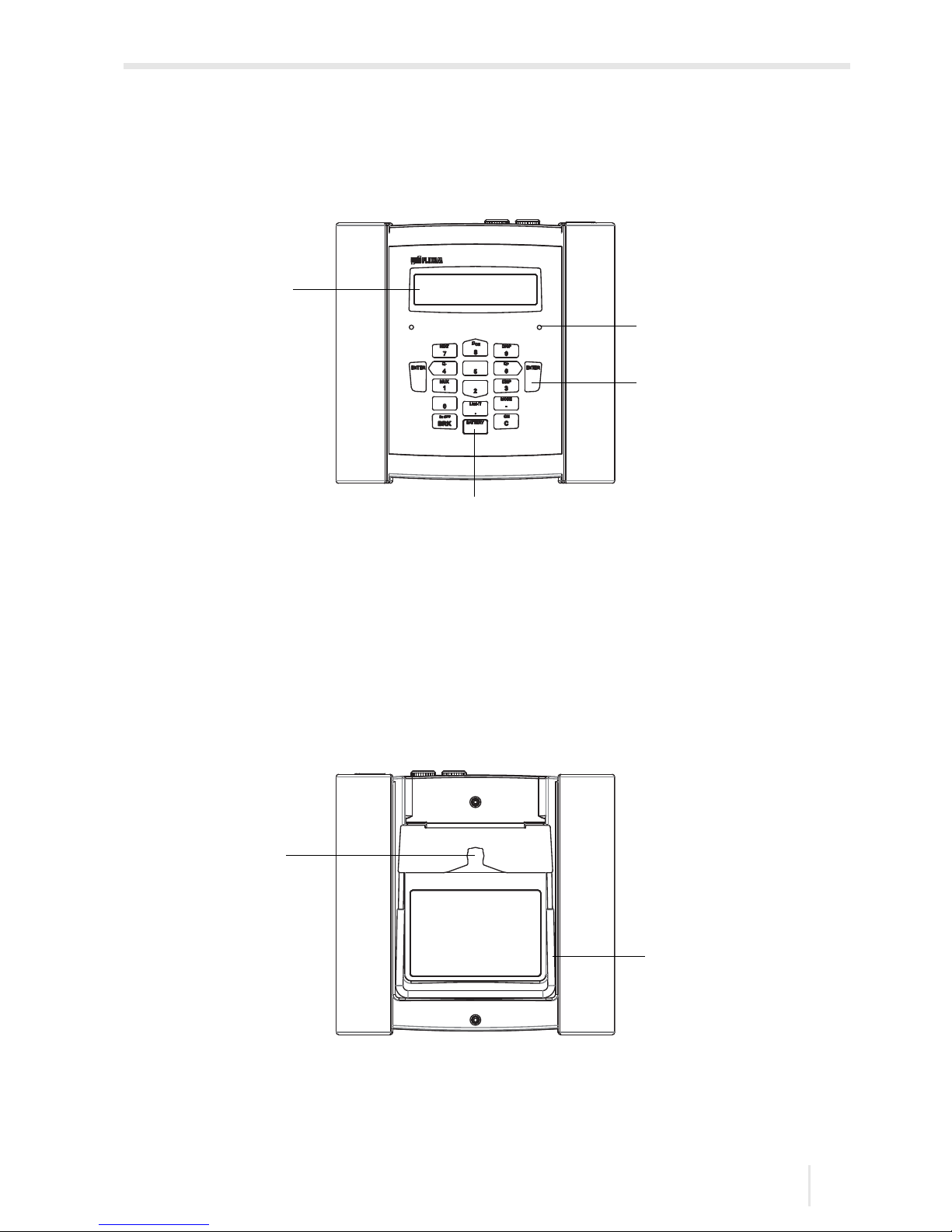

Fig. 2.1: Transmitter

Page 12

2 Safety instructions

2.8 Recommended procedure in hazardous situations FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

2.8 Recommended procedure in hazardous situations

Fire fighting measures

• If possible, disconnect the transmitter from the power supply.

• Prior to extinguishing, protect any electrical parts that are not affected by the fire (e.g., using a cover).

• Select a suitable extinguishing agent. Avoid, if possible, conductive extinguishing agents.

• Observe the applicable minimum distances. The minimum distances differ depending on the used extinguishing agent.

Page 13

3 General principles

FLUXUS F60* 3.1 Measurement principle

UMFLUXUS_F60xV5-0EN, 2017-10-16

3 General principles

For the ultrasonic measurement of the flow rate, the flow velocity of the fluid in a pipe is determined. Further physical quantities are derived from the flow velocity and from additional physical quantities, if necessary.

3.1 Measurement principle

The flow velocity of the fluid is measured in the TransitTime mode using the ultrasonic transit time difference correlation principle. When measuring with a high proportion of gas or solid particles, the transmitter can toggle into the NoiseTrek mode.

3.1.1 Terms

Flow profile

Distribution of flow velocities over the cross-sectional pipe area. For an optimal measurement, the flow profile has to be fully developed and axisymmetrical. The shape of the flow profile depends on whether the flow is laminar or turbulent and is influenced by the conditions at the inlet of the measuring point.

Reynolds number Re

Coefficient describing the turbulence behavior of a fluid in the pipe. The Reynolds number Re is calculated from the flow velocity, the kinematic viscosity of the fluid and the inner pipe diameter.

If the Reynolds number exceeds a critical value (usually approx. 2300, if the fluid flows in a pipe), a transition from a laminar flow to a turbulent flow takes place.

Laminar flow

A flow without any turbulence. There is no mixing between the parallel flowing layers of the fluid.

Turbulent flow

A flow with turbulences (swirling of the fluid). In technical applications, the flow in the pipe is mostly turbulent.

Transition range

The flow is partly laminar and partly turbulent.

Sound speed c

Speed of the propagating sound. The sound speed depends on the mechanical properties of the fluid or the pipe material. In pipe materials and other solid materials, a distinction is made between the longitudinal and transversal sound speed. For the sound speed of some fluids and materials, see annex C.

Flow velocity v

Average value of all flow velocities of the fluid over the cross-sectional pipe area.

Page 14

3 General principles

3.1 Measurement principle FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

Acoustic calibration factor k

ka =

The acoustic calibration factor k

is a transducer parameter which results from the sound speed c within the transducer and the angle of incidence. According to Snell's law of refraction, the angle of propagation in the adjoining fluid or pipe material is:

= = =

Fluid mechanics correction factor k

With the fluid mechanics correction factor kRe, the measured value of the flow velocity in the area of the sound beam is converted into the value of the flow velocity across the whole cross-sectional pipe area. In case of a fully developed flow profile, the fluid mechanics correction factor only depends on the Reynolds number and the roughness of the inner pipe wall. The fluid mechanics correction factor is recalculated by the transmitter for each new measurement.

Mass flow rate

= · ρ

The mass of the fluid that passes through the pipe per unit time. The mass flow rate is calculated from the product of the volumetric flow rate and the density ρ.

Transit time difference ∆t

Is the transit time difference of the signals. In the TransitTime principle, the transit time difference of the signals in and against the flow direction is measured, in the NoiseTrek mode, the time difference of the signal from the transducer to the particle and vice versa. The flow velocity of the fluid flowing in the pipe is determined from the transit time difference.

Volumetric flow rate

= v · A

The volume of the fluid that passes through the pipe per unit time. The volumetric flow rate is calculated from the product of the flow velocity v and the cross-sectional pipe area A.

Heat flow

The heat quantity that is transferred per unit time. For the calculation of the heat flow see chapter 21.



sin

------------



sin

------------



sin

------------



sin

-----------

m·V·V

V·V·

Page 15

3 General principles

FLUXUS F60* 3.1 Measurement principle

UMFLUXUS_F60xV5-0EN, 2017-10-16

3.1.2 Measurement of the flow velocity in the TransitTime mode

The signals are emitted and received by two transducers alternatively in and against the flow direction. If the fluid is flowing, the signals propagating in the fluid are displaced with the flow.

This displacement causes a reduction in distance for the signal in flow direction and an increase in distance for the signal against the flow direction of the receiving transducer, see Fig. 3.1 and Fig. 3.2.

This causes a change in the transit times. The transit time of the signal in flow direction is shorter than the transit time against the flow direction. This transit time difference is proportional to the average flow velocity.

The average flow velocity of the fluid is calculated as follows:

v = k

· ka ·

where

v – average flow velocity of the fluid

– fluid mechanics correction factor

– acoustic calibration factor

∆t – transit time difference

– transit time in the fluid

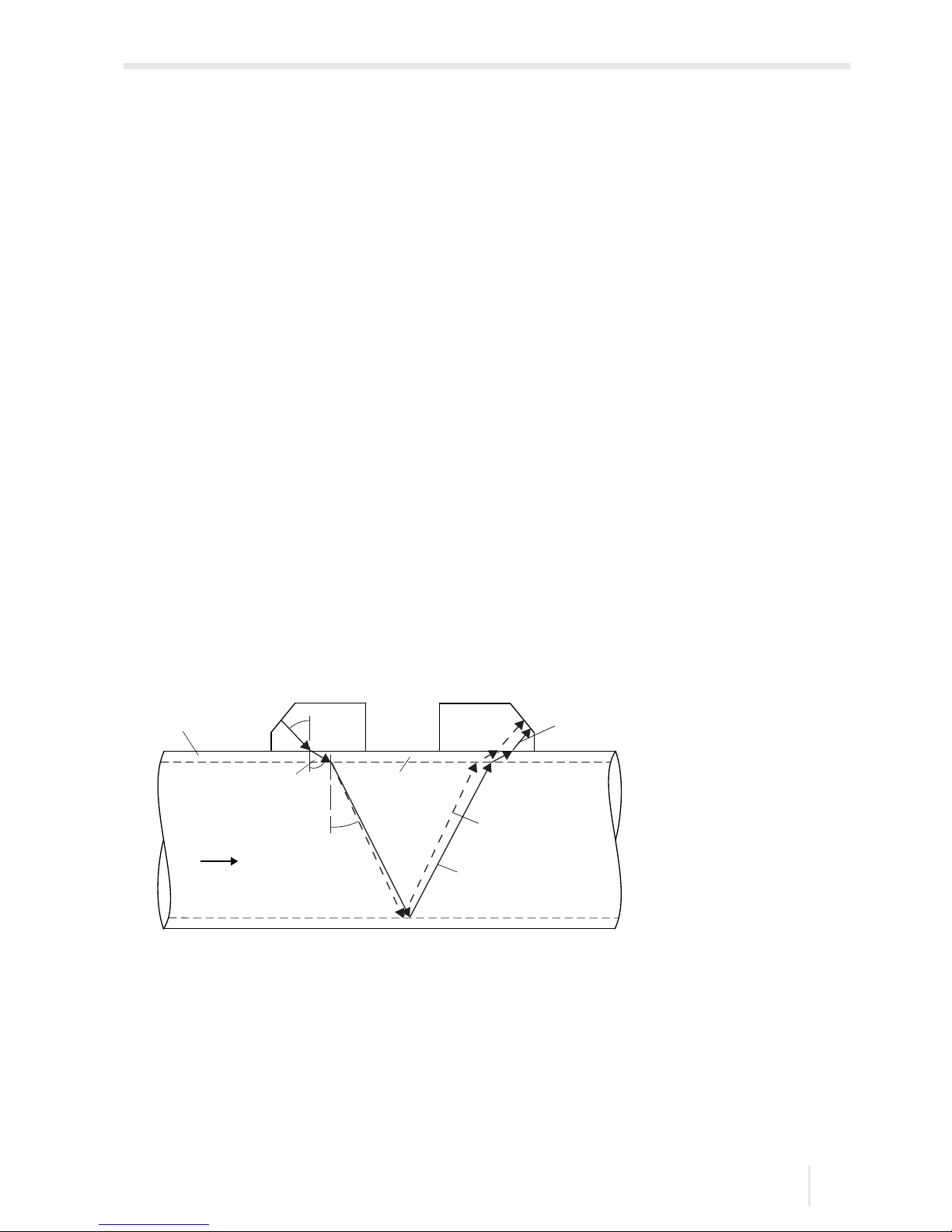

Fig. 3.1: Sound path of the signal in the flow direction

c – sound speed 1 – transducer (emitter) 2 – transducer (receiver) 3 – pipe wall

t

2t

-----------

distance reduction within the transducer

flow direction of the fluid

sound path with flow

sound path without flow

Page 16

3 General principles

3.1 Measurement principle FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

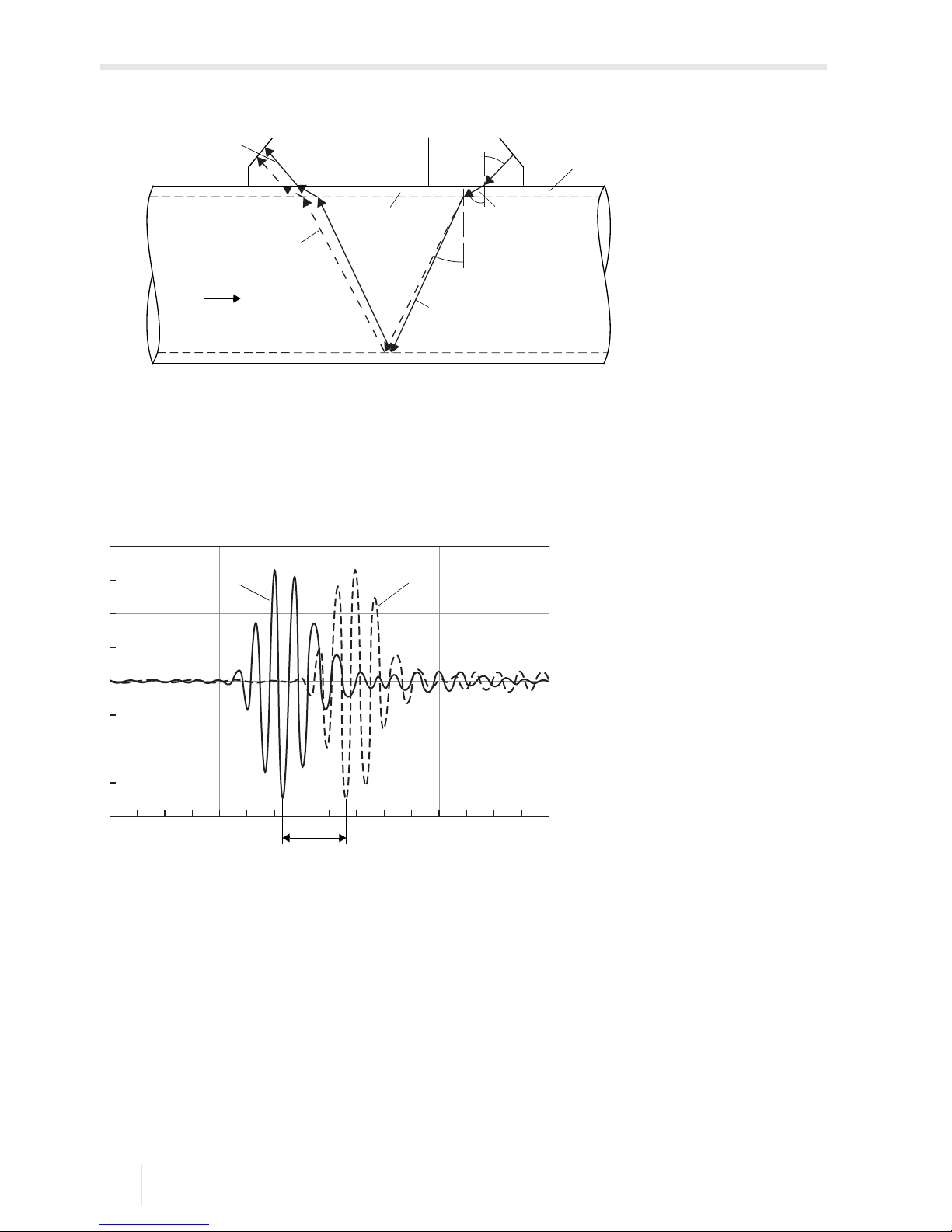

Fig. 3.2: Sound path of the signal against the flow direction

c – sound speed 1 – transducer (emitter) 2 – transducer (receiver) 3 – pipe wall

Fig. 3.3: Transit time difference ∆t

1 – signal in the flow direction 2 – signal against the flow direction

flow direction of the fluid

sound path with flow

sound path without

flow

distance increase

within the transducer

1 2

∆t

Page 17

3 General principles

FLUXUS F60* 3.1 Measurement principle

UMFLUXUS_F60xV5-0EN, 2017-10-16

3.1.3 Measurement of the flow velocity in the NoiseTrek mode

If the proportion of gas or solids in the fluid is high, the damping of the ultrasonic signal can be so high that the complete propagation of the fluid and therefore a measurement in TransitTime mode is not possible anymore. In this case the NoiseTrek mode has to be used.

The NoiseTrek mode uses the presence of gas bubbles and/or solids in the fluids.

Ultrasonic signals are sent from a transducer into the fluid at short intervals, reflected by the gas bubbles and/or the solids particles and again received by the same transducer.

The measurement setup used in the TransitTime mode does not need to be changed.

The transit time difference t of two consecutive ultrasonic signals is determined. It behaves proportionately to the distance the solid particle is covering between two consecutive pulses and thus, to the average flow velocity of the fluid, see Fig. 3.4.

The average flow velocity of the fluid is calculated as follows:

v=k

Re·ka

where

Depending on the attenuation of the ultrasonic signal, the error of measurement in the NoiseTrek mode can be greater than in the TransitTime mode.

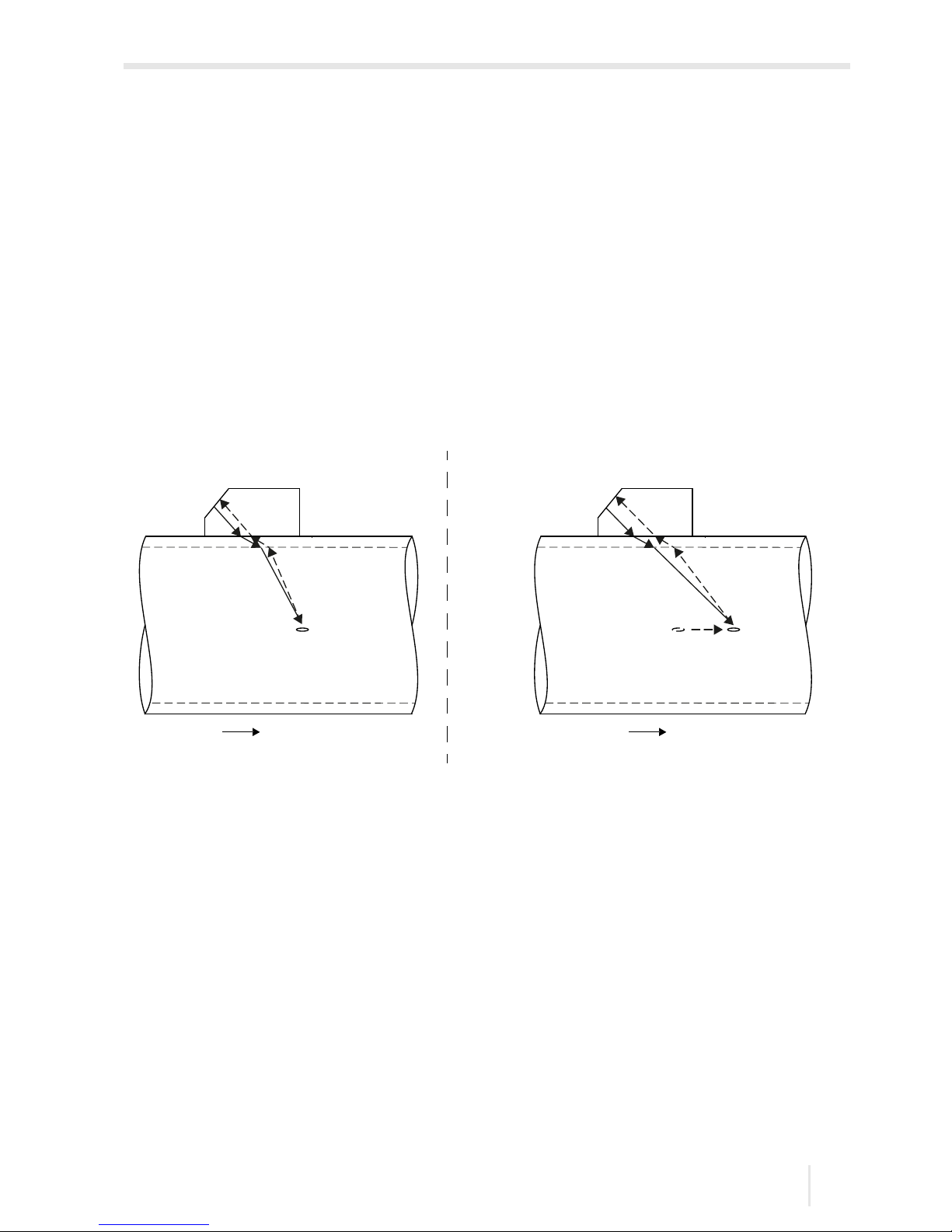

Fig. 3.4: Measurement of the flow velocity in the NoiseTrek mode

v – average flow velocity of the fluid

– fluid mechanics calibration factor

– acoustic calibration factor

∆t

– time difference between 2 consecutive pulses

∆t – transit time difference of ultrasonic signals S

and S2 (∆t = t2 - t1)

flow direction

transducer 1 transducer 1

flow direction

ultrasonic signal S

gas bubble or solids particle

ultrasonic signal S

pulse at time t

gas bubble or solids particle

pulse at time t + ∆t

transit time t

t

2 tp

----------------

Page 18

3 General principles

3.1 Measurement principle FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

3.1.4 Measurement of the flow velocity in the HybridTrek mode

The HybridTrek mode combines the TransitTime and the NoiseTrek mode. During a measurement in the HybridTrek mode, the transmitter automatically toggles between the TransitTime and the NoiseTrek mode depending on the gaseous or solid content.

The measurement setup is the same as the one in the TransitTime mode.

3.1.5 Measurement of the flow velocity in the NoiseTrek parallel beam

mode

Pipes with a small pipe diameter or fluids which strongly attenuate the ultrasonic signal can cause a reduction of the transit time in the fluid with the result that the signal quality is no longer sufficient. In this case the NoiseTrek parallel beam mode has to be used.

The NoiseTrek parallel beam mode works the same way the NoiseTrek mode does, the only difference is that the sending and receiving process do not occur in the same transducer. This leads to a better signal quality. The transducers are mounted in parallel on the pipe at a small angle, see Fig. 3.5.

This measurement arrangement cannot be used in the TransitTime mode.

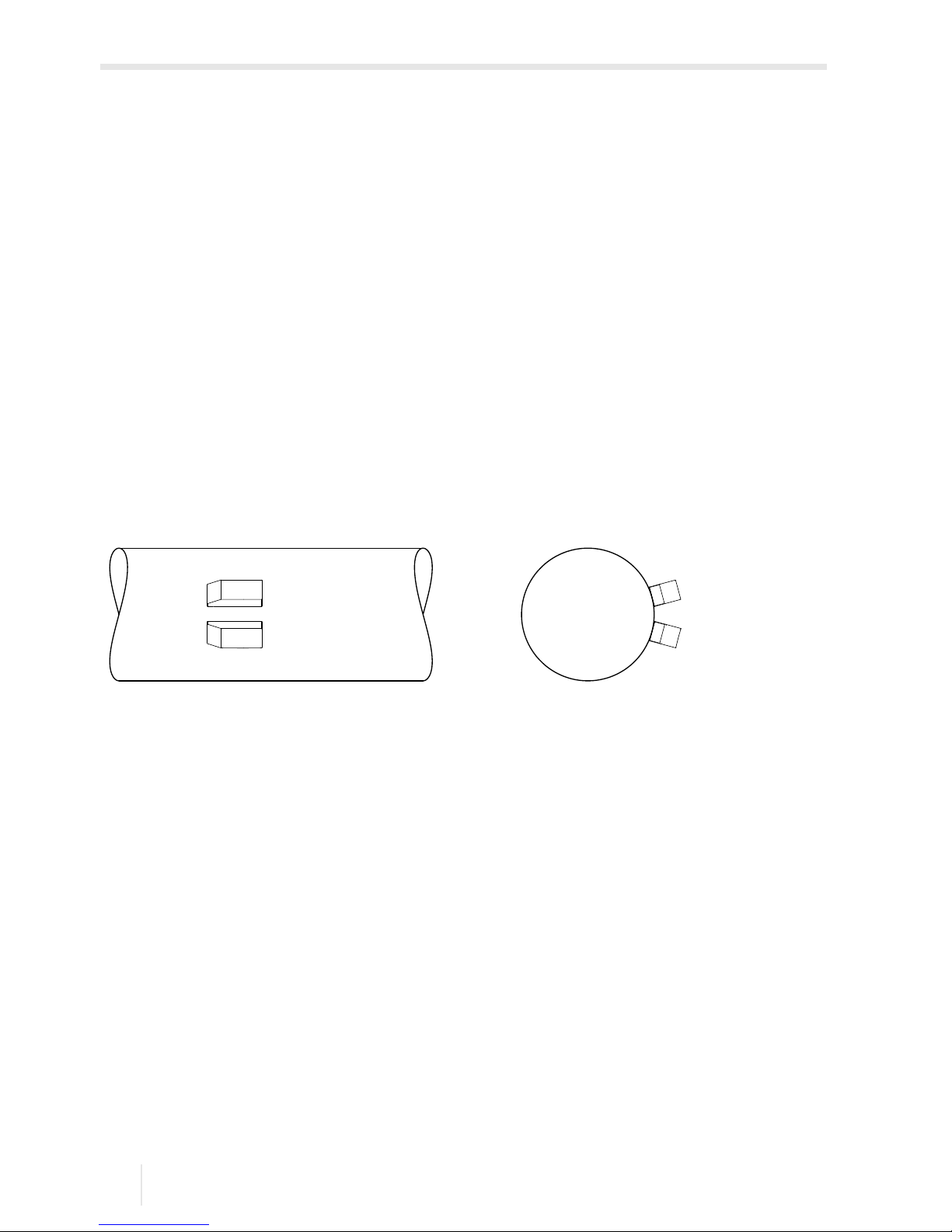

Fig. 3.5: Measurement arrangement in the NoiseTrek parallel beam mode

Page 19

3 General principles

FLUXUS F60* 3.2 Measurement arrangements

UMFLUXUS_F60xV5-0EN, 2017-10-16

3.2 Measurement arrangements

3.2.1 Terms

Sound path

The distance covered by the ultrasonic signal after crossing the pipe once. The number of the sound paths is:

• odd if the measurement is carried out in diagonal arrangement

• even if the measurement is carried out in reflection arrangement

Beam

The path covered by the ultrasonic signal between the transducers, i.e., the transducer emitting the ultrasonic signal and the transducer receiving it. One beam consists of 1 or several sound paths.

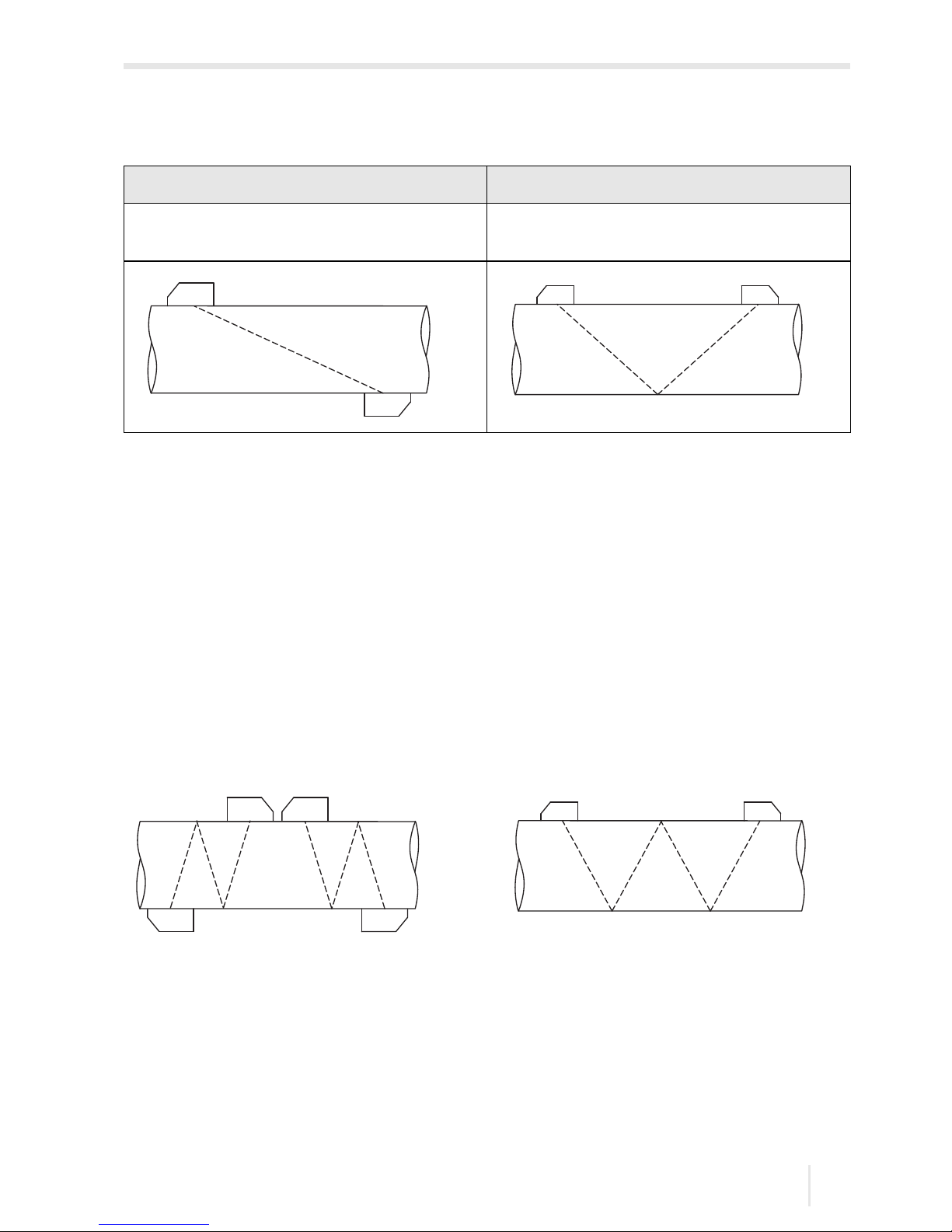

Diagonal arrangement Reflection arrangement

The transducers are mounted on opposite sides of the pipe.

The transducers are mounted on the same side of the pipe.

Fig. 3.6: Diagonal arrangement with

2 beams and 3 sound paths

Fig. 3.7: Reflection arrangement with

1 beam and 4 sound paths

Page 20

3 General principles

3.2 Measurement arrangements FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

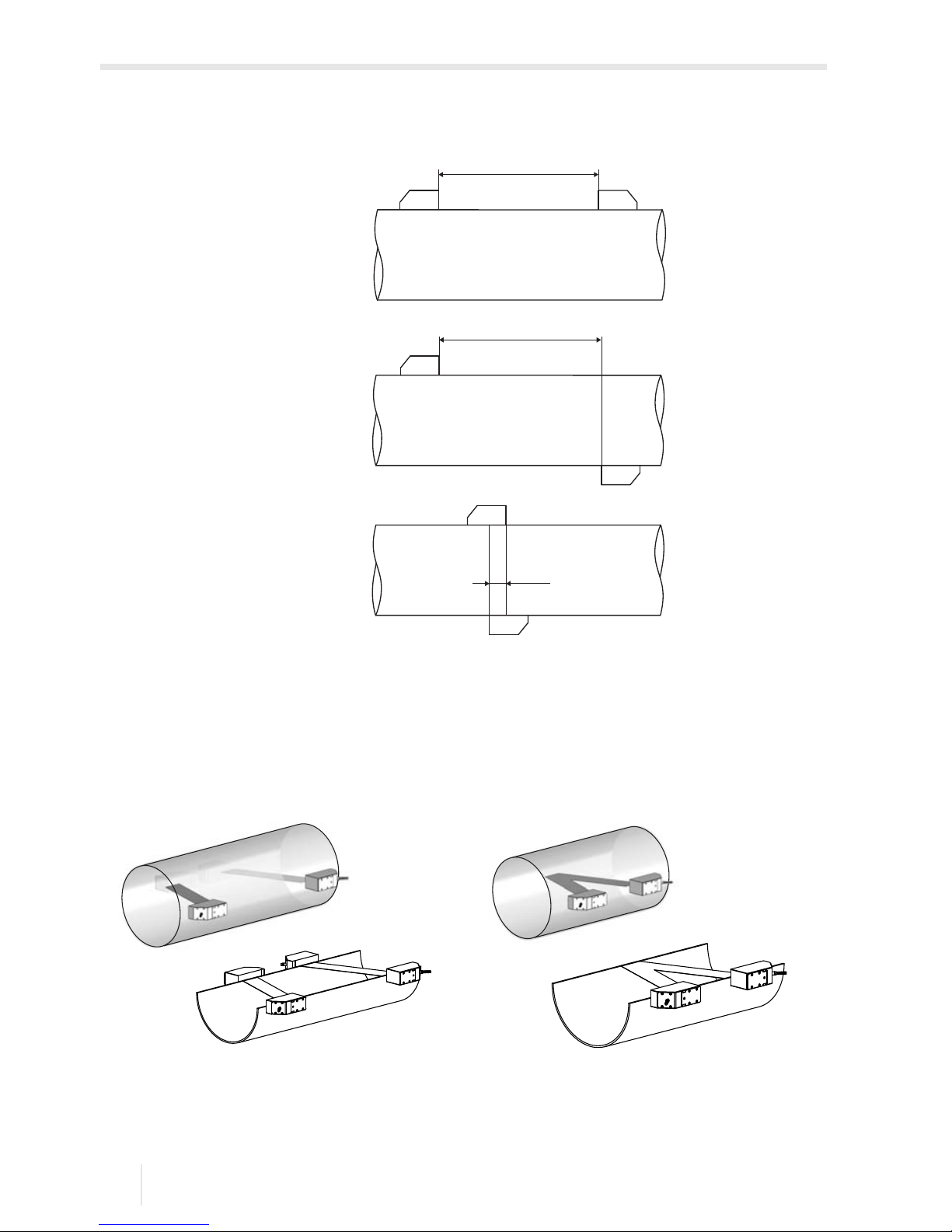

Transducer distance

The transducer distance is measured between the inner edges of the transducers.

Sound beam plane

Plane containing 1 or several sound paths or beams.

reflection arrangement

diagonal arrangement (positive transducer distance)

diagonal arrangement (negative transducer distance)

a – transducer distance

Fig. 3.8: 2 beams in 1 plane Fig. 3.9: 2 sound paths in 1 plane

Page 21

3 General principles

FLUXUS F60* 3.2 Measurement arrangements

UMFLUXUS_F60xV5-0EN, 2017-10-16

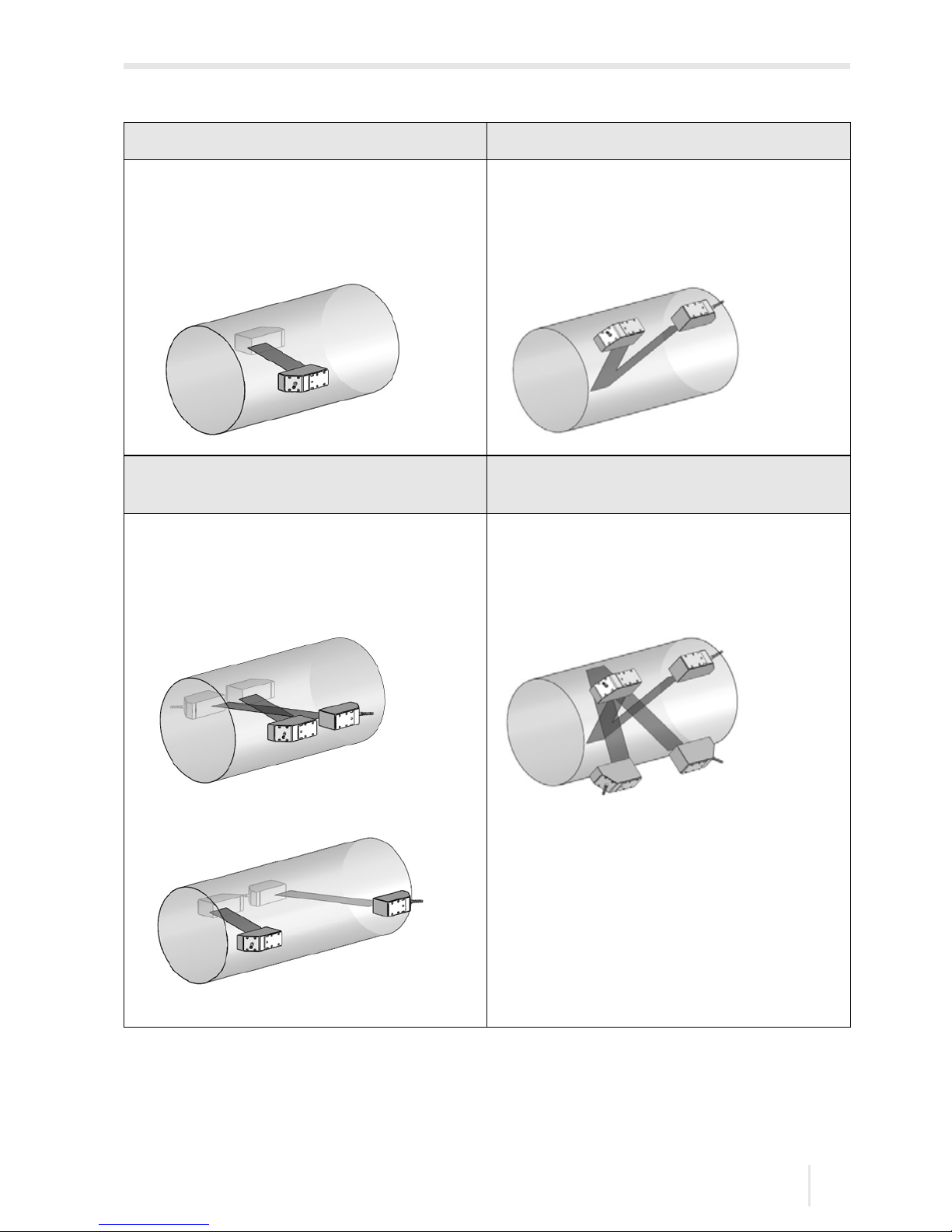

3.2.2 Examples

Diagonal arrangement with 1 beam Reflection arrangement with 1 beam

1 transducer pair 1 sound path 1 beam 1 plane

1 transducer pair 2 sound paths 1 beam 1 plane

Diagonal arrangement with 2 beams Reflection arrangement with 2 beams and

2planes

2 transducer pairs 2 sound paths 2 beams 1 plane

2 transducer pairs 4 sound paths 2 beams 2 planes

X arrangement

displaced X arrangement

Page 22

3 General principles

3.3 Acoustic penetration FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

3.3 Acoustic penetration

The pipe has to be acoustically penetrable at the measuring point. The acoustic penetration is reached when pipe and fluid do not attenuate the sound signal so strongly that it is completely absorbed before reaching the second transducer.

The attenuation caused by the pipe and the fluid depends on:

• kinematic viscosity of the fluid

• proportion of gas bubbles and solids in the fluid

• deposits on the inner pipe wall

• pipe material

The following requirements have to be met at the measuring point:

• the pipe is always completely filled

• no solid deposits in the pipe

• no bubble formation in the pipe

Observe the following notes on the selection of the measuring point:

Horizontal pipe

Select a measuring point where the transducers can be mounted laterally on the pipe, allowing the sound waves to propagate horizontally in the pipe. Thus, solids on the bottom of the pipe or gas bubbles in the pipe's upper part are prevented from influencing the propagation of the signal, see Fig. 3.10 and Fig. 3.11.

Notice!

Even bubble-free fluids can form gas bubbles when the fluid expands, e.g., before pumps and after great cross-section extensions.

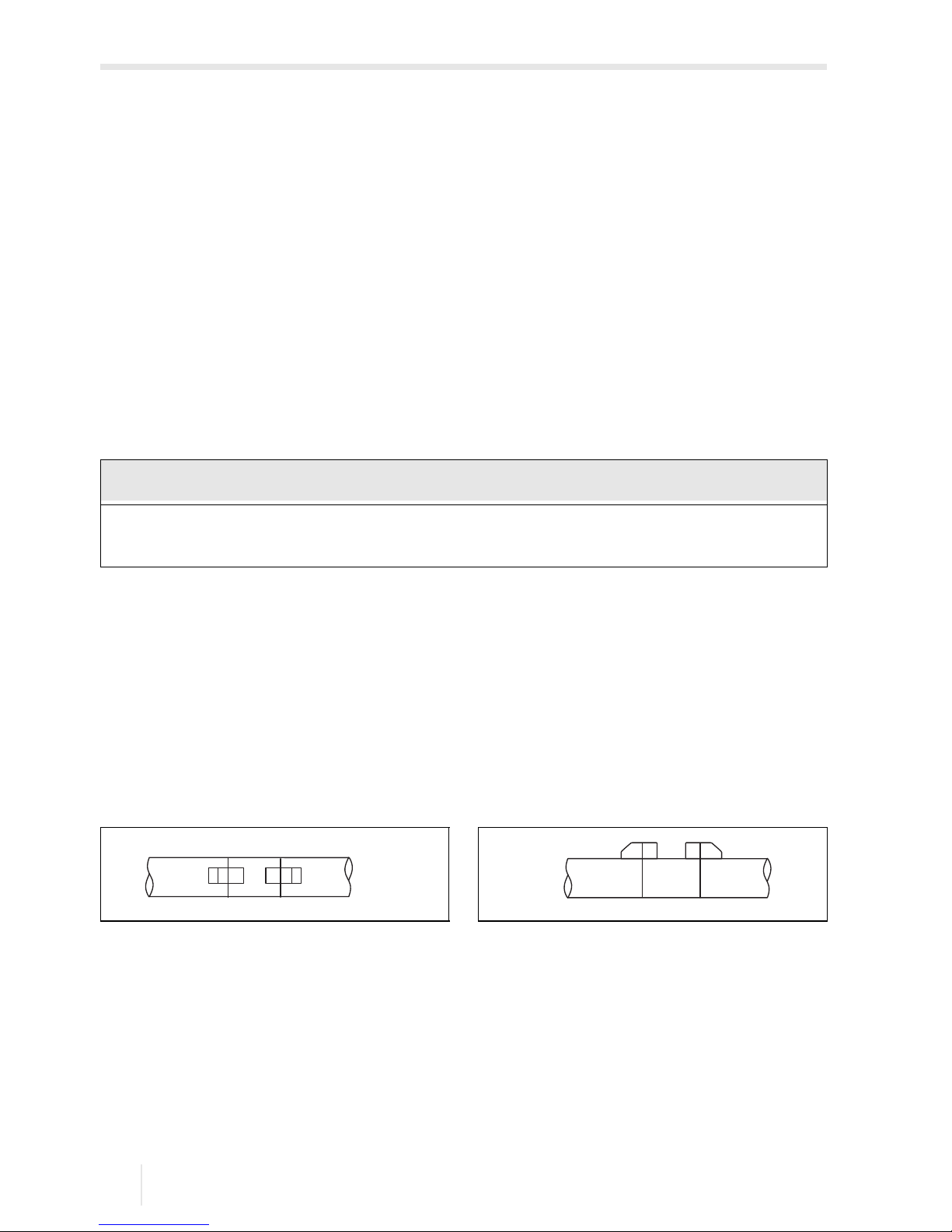

Fig. 3.10: Recommended transducer

mounting position

Fig. 3.11: Disadvantageous transducer

mounting position

Page 23

3 General principles

FLUXUS F60* 3.3 Acoustic penetration

UMFLUXUS_F60xV5-0EN, 2017-10-16

Vertical pipe

Select the measuring point at a pipe location where the fluid flows upward. The pipe has to be completely filled, see Fig. 3.12 and Fig. 3.13.

Free inlet or outlet pipe section

Select the measuring point at a pipe section where the pipe cannot run empty, see Fig.

3.14 and Fig. 3.15.

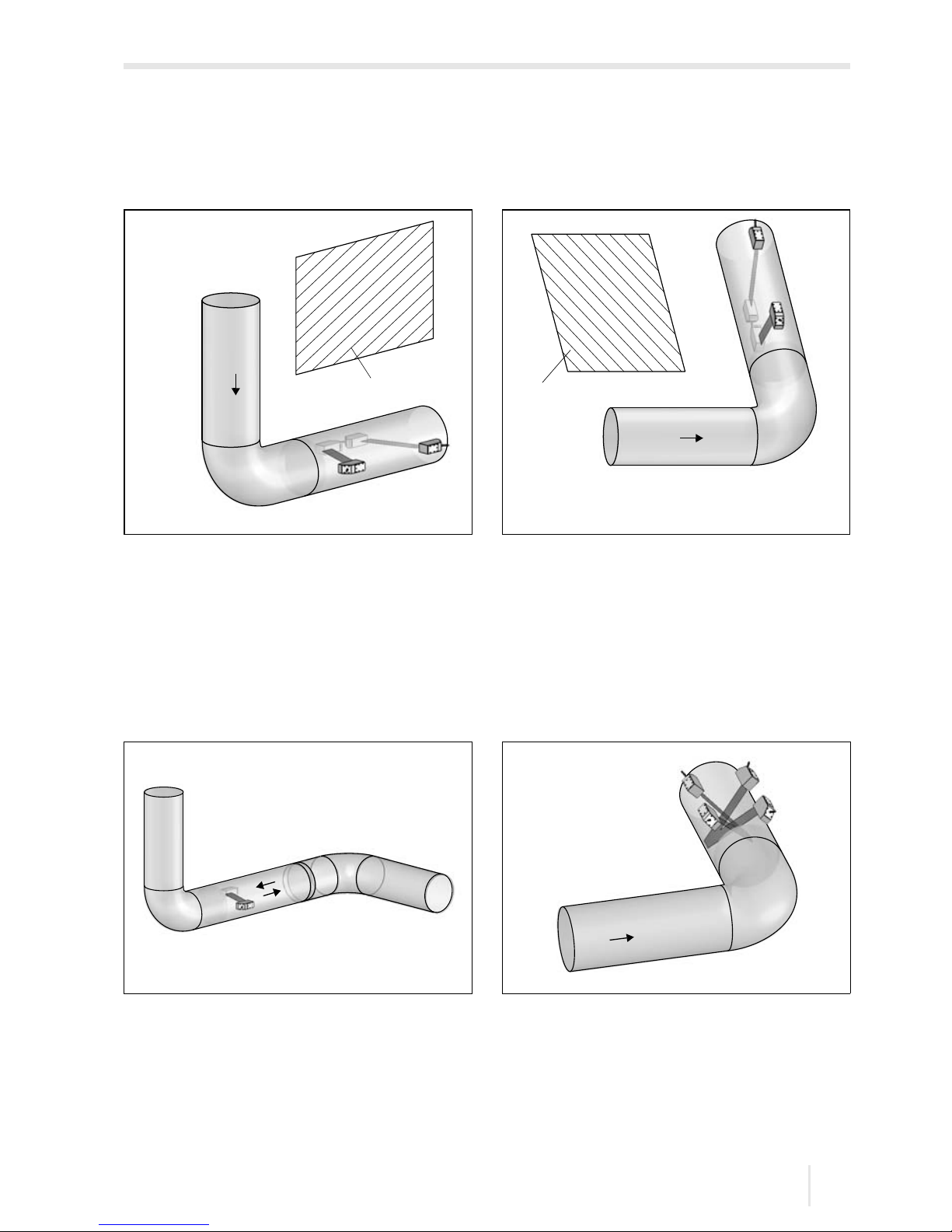

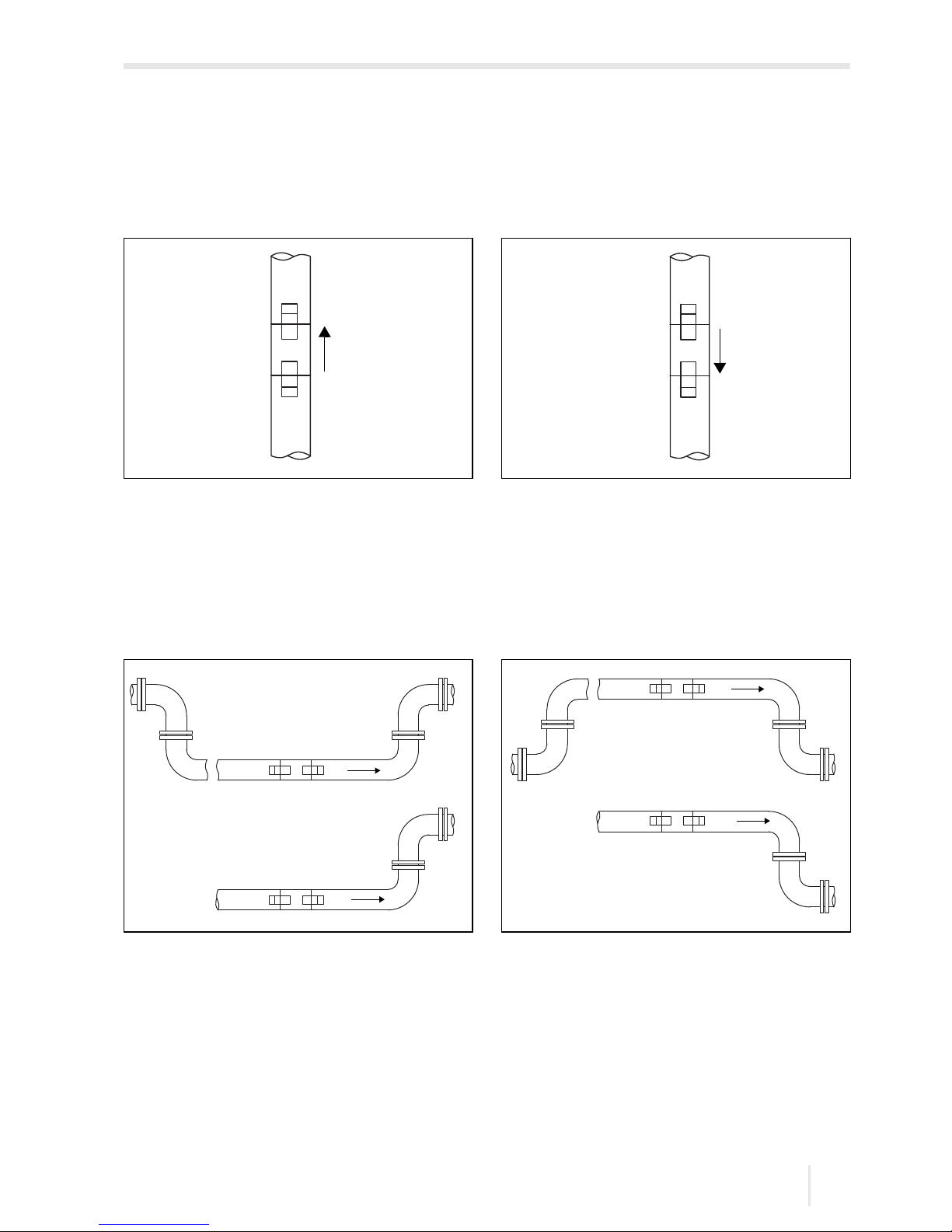

Fig. 3.12: Recommended transducer

mounting position

Fig. 3.13: Disadvantageous transducer

mounting position

Fig. 3.14: Recommended transducer

mounting position

Fig. 3.15: Disadvantageous transducer

mounting position

Page 24

3 General principles

3.4 Undisturbed flow profile FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

3.4 Undisturbed flow profile

Some flow elements (e.g., elbows, valves, pumps, reducers) distort the flow profile in their vicinity. The axisymmetrical flow profile in the pipe needed for correct measurement is no longer given. A careful selection of the measuring point helps to reduce the impact of disturbance sources.

It is most important that the measuring point is chosen at a sufficient distance from any disturbance sources. Only then it can be assumed that the flow profile in the pipe is fully developed. However, measuring results can be obtained even if the recommended distance to disturbance sources cannot be met for practical reasons.

The recommended straight inlet and outlet pipe lengths for different types of flow disturbance sources are shown in the examples in Tab. 3.1.

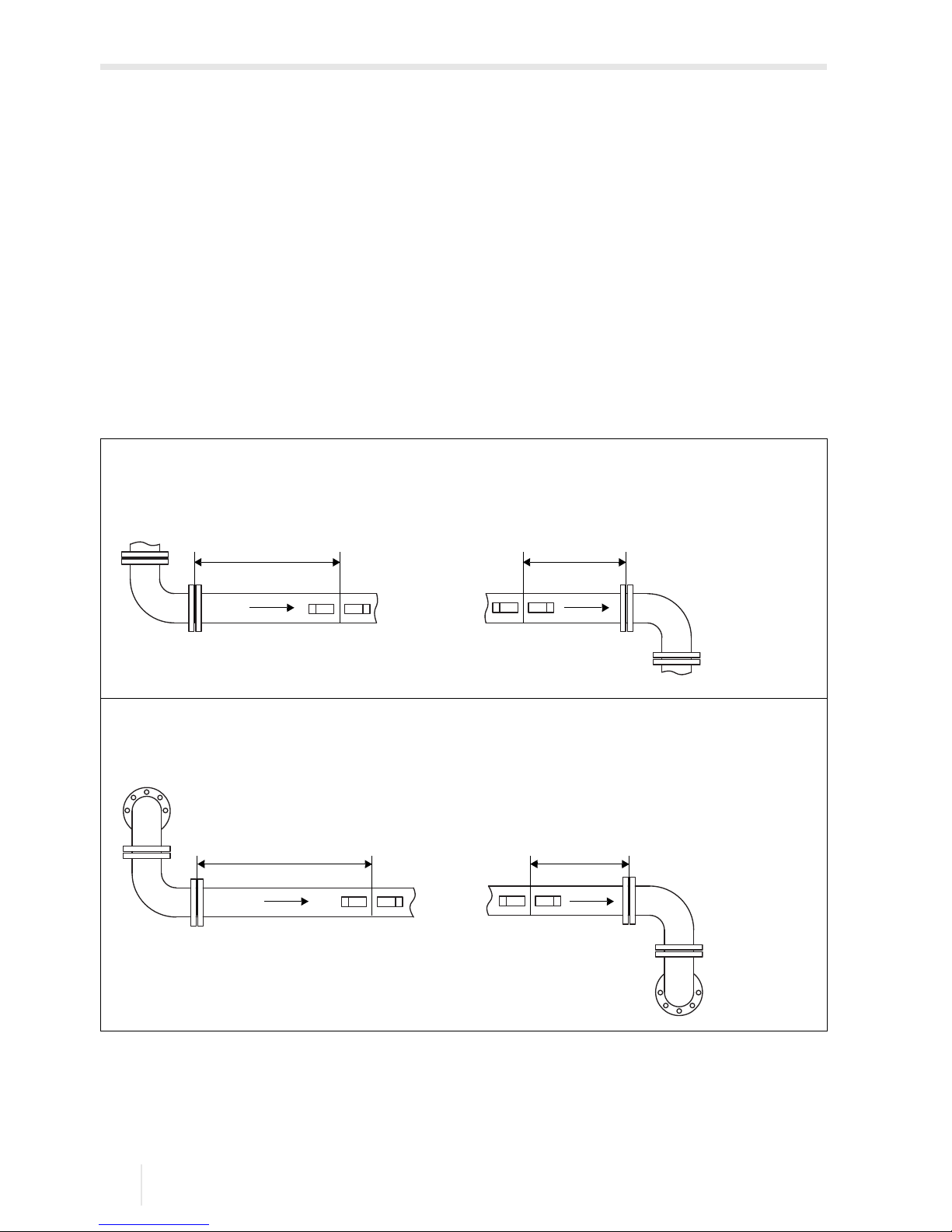

Tab. 3.1: Recommended distance from disturbance sources

D – nominal pipe diameter at the measuring point l – recommended distance between disturbance source and transducer position

disturbance source: 90° elbow

inlet: l ≥ 10 D outlet: l ≥ 5D

disturbance source: 2 x 90° elbows on different levels

inlet: l ≥ 40 D outlet: l ≥ 5D

l l

Page 25

3 General principles

FLUXUS F60* 3.4 Undisturbed flow profile

UMFLUXUS_F60xV5-0EN, 2017-10-16

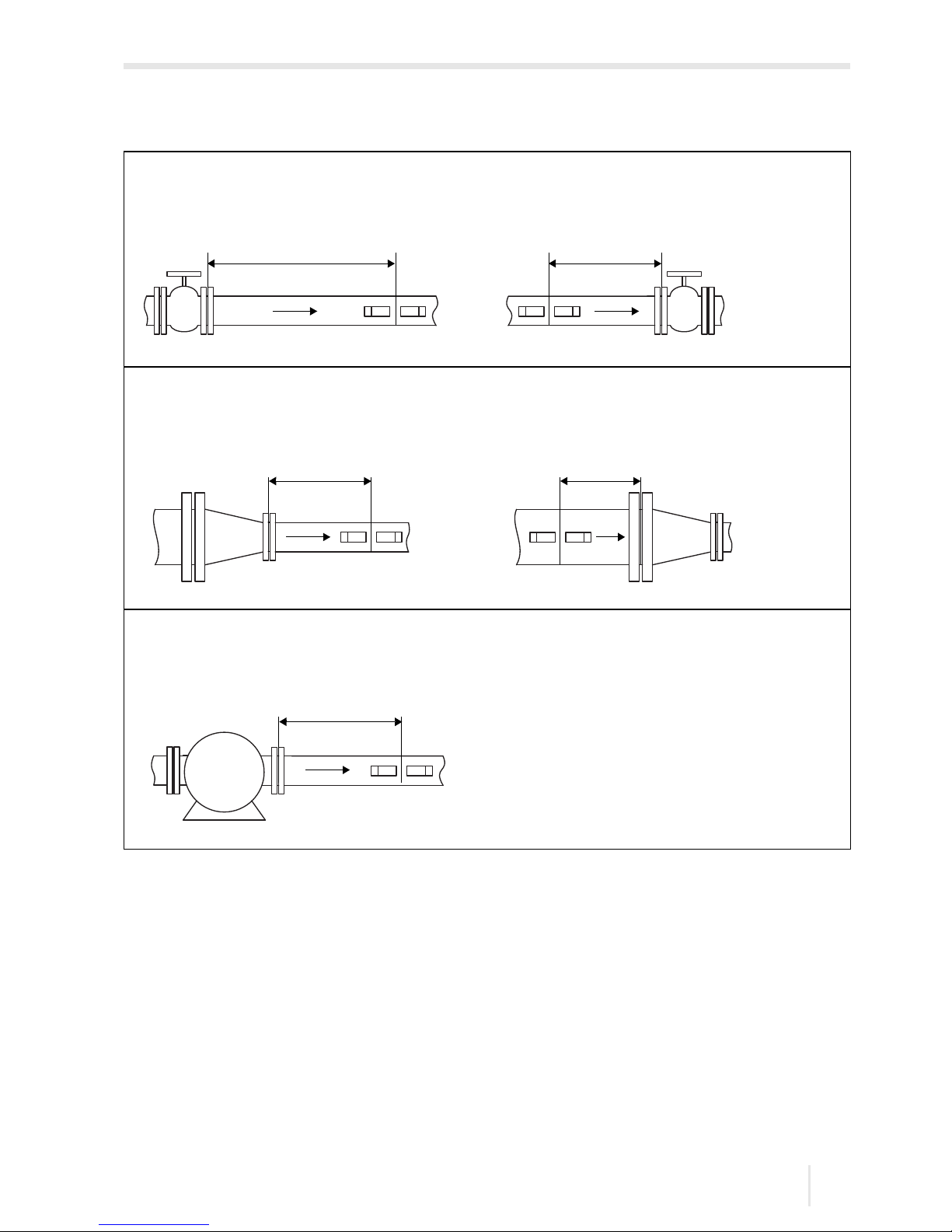

disturbance source: valve

inlet: l ≥ 40 D outlet: l ≥ 5D

disturbance source: reducer

inlet: l ≥ 10 D outlet: l ≥ 5D

disturbance source: pump

inlet: l ≥ 20 D

Tab. 3.1: Recommended distance from disturbance sources

D – nominal pipe diameter at the measuring point l – recommended distance between disturbance source and transducer position

l l

Page 26

4 Product description

4.1 Measuring system FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

4 Product description

4.1 Measuring system

The measurement system consists of a transmitter, the ultrasonic transducers and the pipe on which the measurement is carried out, see Fig. 4.1.

The ultrasonic transducers are mounted on the pipe. They send and receive ultrasonic signals through the fluid.

The transmitter controls the measuring cycle, eliminates disturbance signals and analyzes useful signals. The measured values can be displayed, used for calculations and transmitted by the transmitter.

4.2 Handling concept

The transmitter is operated via the keyboard.

The selected program branch is displayed in angle brackets and capital letters, see Fig.

4.2. The complete name of the selected program branch is displayed in the lower line.

Select a program branch with key and . Press ENTER.

•par (Parameter)

• mea (Measuring)

• opt (Output Options)

• sf (Special Funct.)

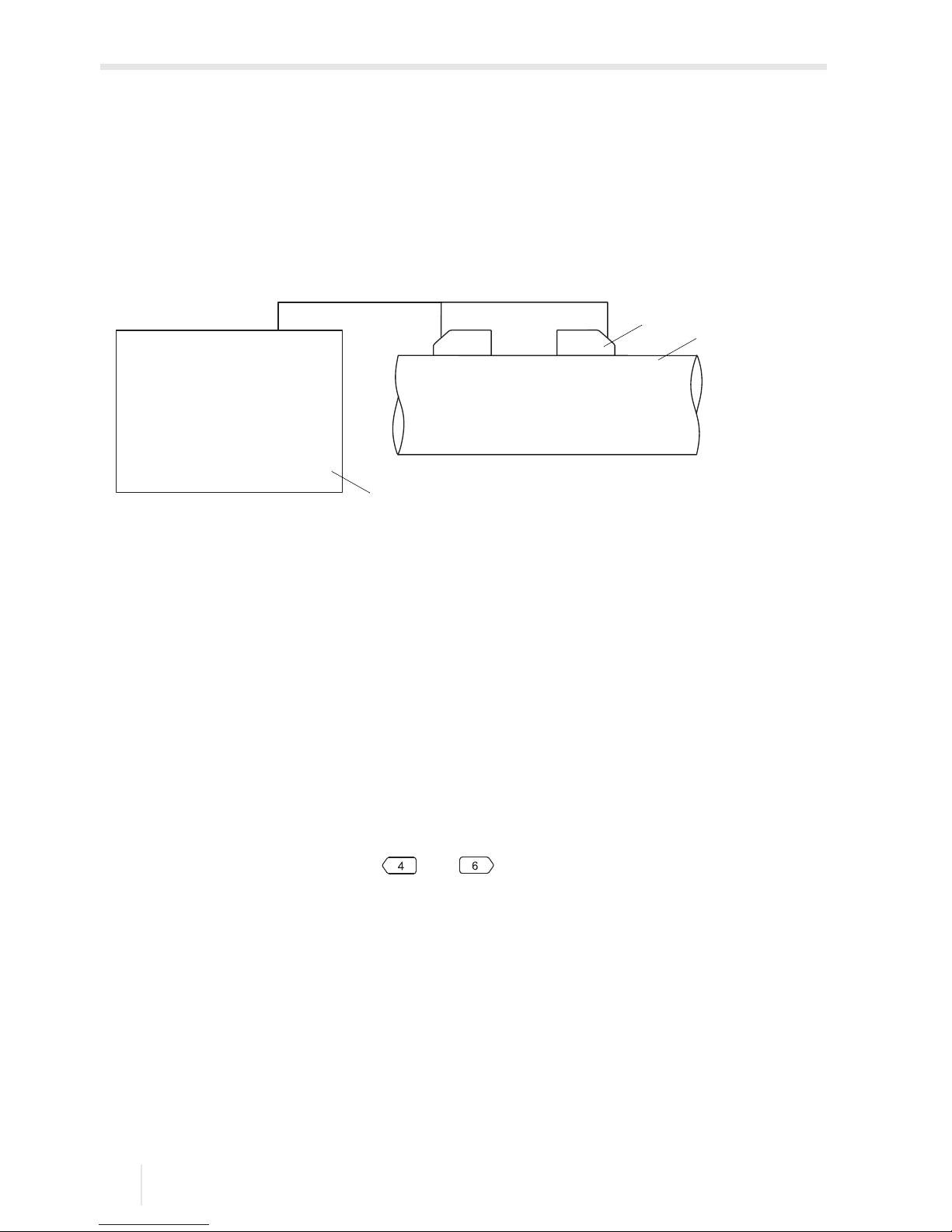

Fig. 4.1: Example of a measurement setup

1 – transducer 2 – pipe 3 – transmitter

Page 27

4 Product description

FLUXUS F60* 4.2 Handling concept

UMFLUXUS_F60xV5-0EN, 2017-10-16

For a description of the individual program branches, see Tab. 4.1.

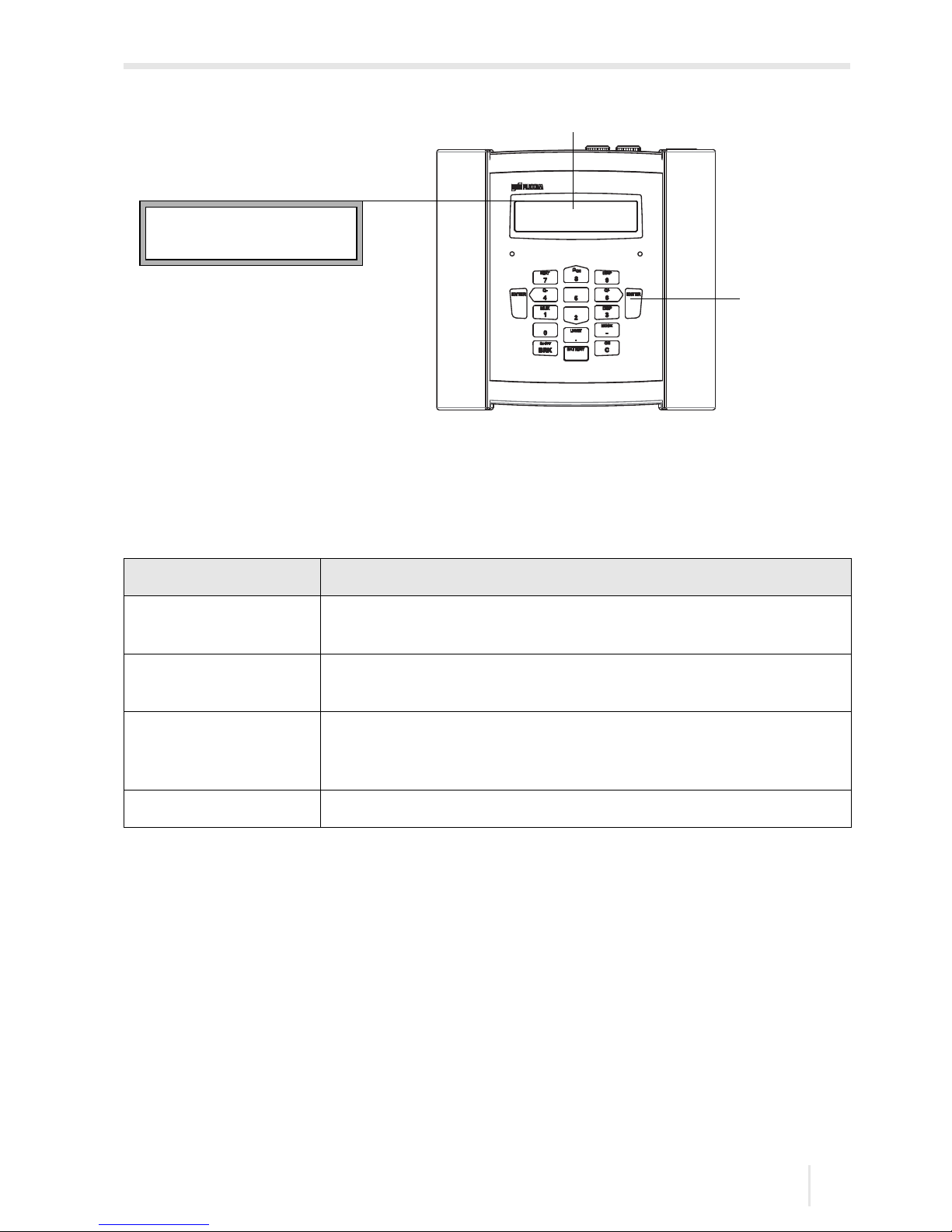

Fig. 4.2: Command panel of the transmitter

1–display 2 – keyboard

Tab. 4.1: Description of the program branches

program branch description

Parameter Before starting a measurement, the transducer, pipe and fluid param-

eters have to be entered in the program branch Parameter.

Measuring

After activating the measuring channels and the input of the transducer distance, the measurement is started in the program branch

Measuring

Output Options Channel-related settings such as determination of the physical quan-

tity, unit of measurement and parameters for the transmission of measured values are set in the program branch Output Options.

Special Funct. Global settings which are not directly related to the measurement.

>PAR< mea opt sf Parameter

Page 28

4 Product description

4.3 Navigation FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

4.3 Navigation

4.3.1 Scroll lists

If a vertical arrow ↕ is displayed, the menu item contains a scroll list. The current list item is displayed in the lower line.

• Press key and to scroll and select a list item in the lower line.

• Press ENTER.

Some menu item contain a horizontal scroll list in the lower line. The selected list item is displayed in angle brackets and capital letters.

• Press key and to scroll and select a list item in the lower line.

• Press ENTER.

Some menu items contain a horizontal scroll list in the upper line. The selected list item is displayed in capital letters and in angle brackets. The current value of the list item is displayed in the lower line.

• Press key and to scroll and select a list item in the upper line.

• Press key and to scroll and to select a value for the selected list item in the

lower line.

• Press ENTER.

4.3.2 Input fields

• Enter a value via the numerical keys of the keyboard, see Tab. 4.4.

• Press ENTER.

Parameter ↕ for Channel A:

Lining no YES

R1=FUNC< typ mode Function MAX

OUTER DIAMETER

100.0 mm

Page 29

4 Product description

FLUXUS F60* 4.4 Keyboard

UMFLUXUS_F60xV5-0EN, 2017-10-16

4.4 Keyboard

The keyboard has 15 keys, including 3 function keys: ENTER, BRK and C.

Some key have multiple functions. They can be used to enter data, to navigate through scroll lists as well as to execute special functions (e.g., reset of totalizers).

Tab. 4.2: General functions

C switching on the transmitter

LIGHT switching on/off the display backlight

ENTER confirmation of selection or input

BRK + C + ENTER Reset: press these 3 keys simultaneously to correct a malfunction. The

reset has the same effect as a restart of the transmitter. Stored data are not affected.

BRK interruption of the measurement and selection of the main menu

Be careful not to stop a current measurement by inadvertently pressing key BRK.

BRK switching off the transmitter by pressing key BRK 3 times

Tab. 4.3: Navigation

BRK selection of the main menu

scroll to the left/right through a scroll list

scroll upwards/downwards through a scroll list

ENTER confirmation of a menu item of the program branch

Tab. 4.4: Input of numbers

… input of the number pictured on the key

sign for the input of negative values

decimal marker

C deletion of values

After the value has been deleted, the previous value will be displayed.

ENTER confirmation of the input

Page 30

4 Product description

4.4 Keyboard FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

Tab. 4.5: Input of text

positioning of the cursor

"A" is displayed and capitalization is activated

"Z" is displayed and capitalization is activated

toggling between upper and lower case

selection of the previous/next character

deletion of a character and insertion of a blank

Automatic scrolling up or down through the limited ASCII character set.

The character changes every second. The scrolling is stopped by pressing any other key.

ENTER confirmation of the input

Page 31

5 Transport and storage

FLUXUS F60* 5.1 Transport

UMFLUXUS_F60xV5-0EN, 2017-10-16

5 Transport and storage

5.1 Transport

The measuring equipment must be packaged properly for transport, see section 2.7. For weight indications of the transmitter and the transducers, see Technical specification.

5.2 Storage

The transmitter and the transducers have to be stored in a dry place.

Caution!

When packaging, the transmitter can fall down.

There is a danger of crushing body parts or damaging the measuring equipment.

→ Secure the transmitter against falling during packaging. Wear the

required personal protective equipment. Observe the applicable rules.

Caution!

When lifting, the center of gravity of the transmitter can be displaced within the cardboard box. The transmitter can fall down.

There is a danger of crushing body parts or damaging the measuring equipment.

→ Secure the transmitter against falling during transport. Wear the

required personal protective equipment. Observe the applicable rules.

Page 32

6 Installation

FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

6 Installation

Danger!

Risk of explosion when using the transmitter FLUXUS *608**-A2 in explosive atmospheres

This may result in personal or material damage or other dangerous situations.

→ Observe the "Safety instructions for the use in explosive atmospheres",

see document SIFLUXUS_608.

Danger!

Risk of explosion when using the transmitter FLUXUS *608**-F2 in explosive atmospheres

This may result in personal or material damage or other dangerous situations.

→ Observe the "Safety instructions for the use in explosive atmospheres",

see document SIFLUXUS_608F2.

Caution!

Touching hot or cold surfaces

This may result in injuries (e.g., thermal damages). → Observe the ambient conditions at the measuring point during installa-

tion. Wear the required personal protective equipment. Observe the applicable rules.

Page 33

6 Installation

FLUXUS F60* 6.1 Transmitter

UMFLUXUS_F60xV5-0EN, 2017-10-16

6.1 Transmitter

6.1.1 Transmitter design

A handle is mounted on the rear side of the transmitter, see Fig. 6.2. The handle can also be used as support. The opening on the support plate is used to fasten the transmitter to the pipe, see section 6.1.2.3.

Fig. 6.1: Command panel of the transmitter

1 – display, 2 × 16-digit (backlight) 2 – status indication "SIGNAL" 3 – keyboard 4 – state indicator "BATTERY"

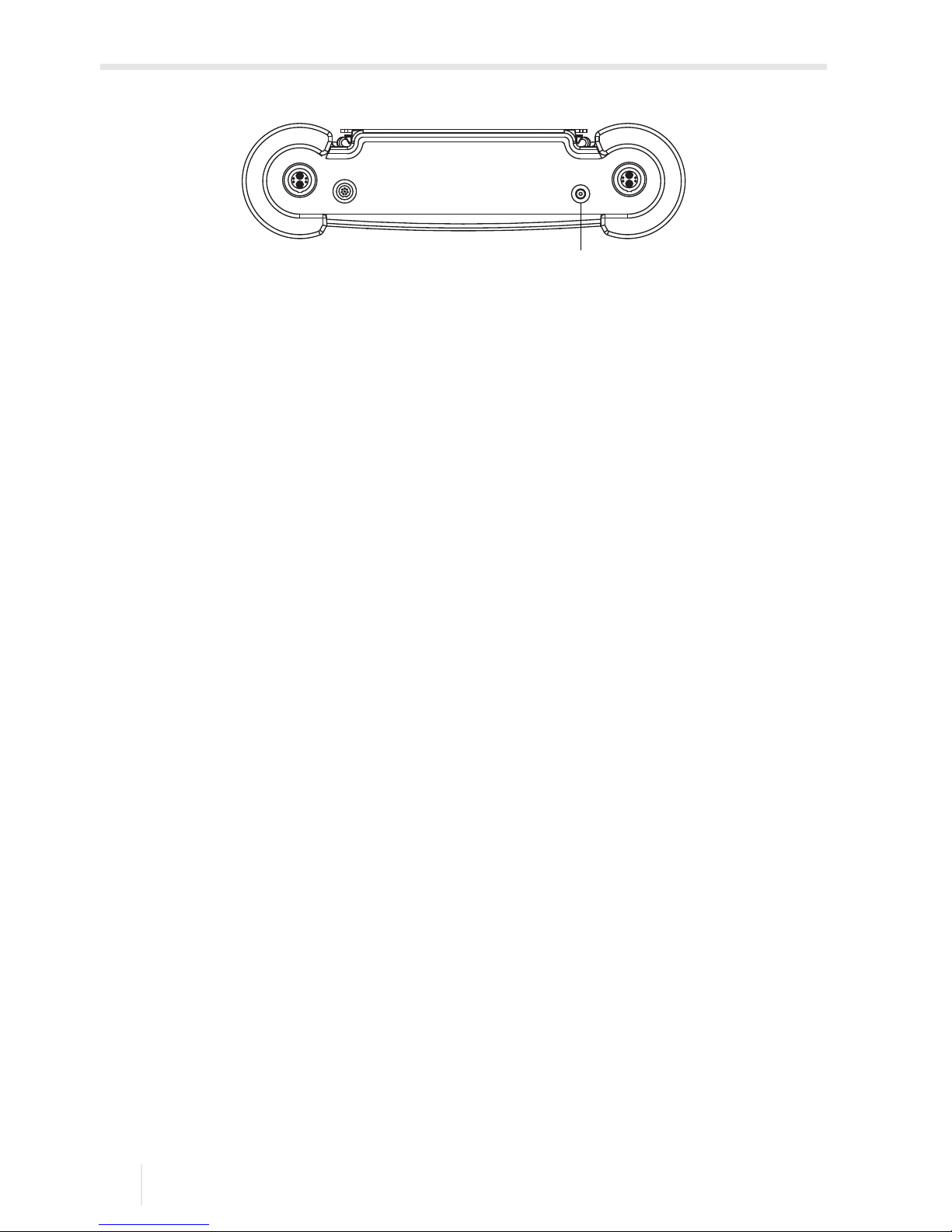

Fig. 6.2: Rear side of the transmitter

1 – opening in the support plate for button 2 – handle/support

Page 34

6 Installation

6.1 Transmitter FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

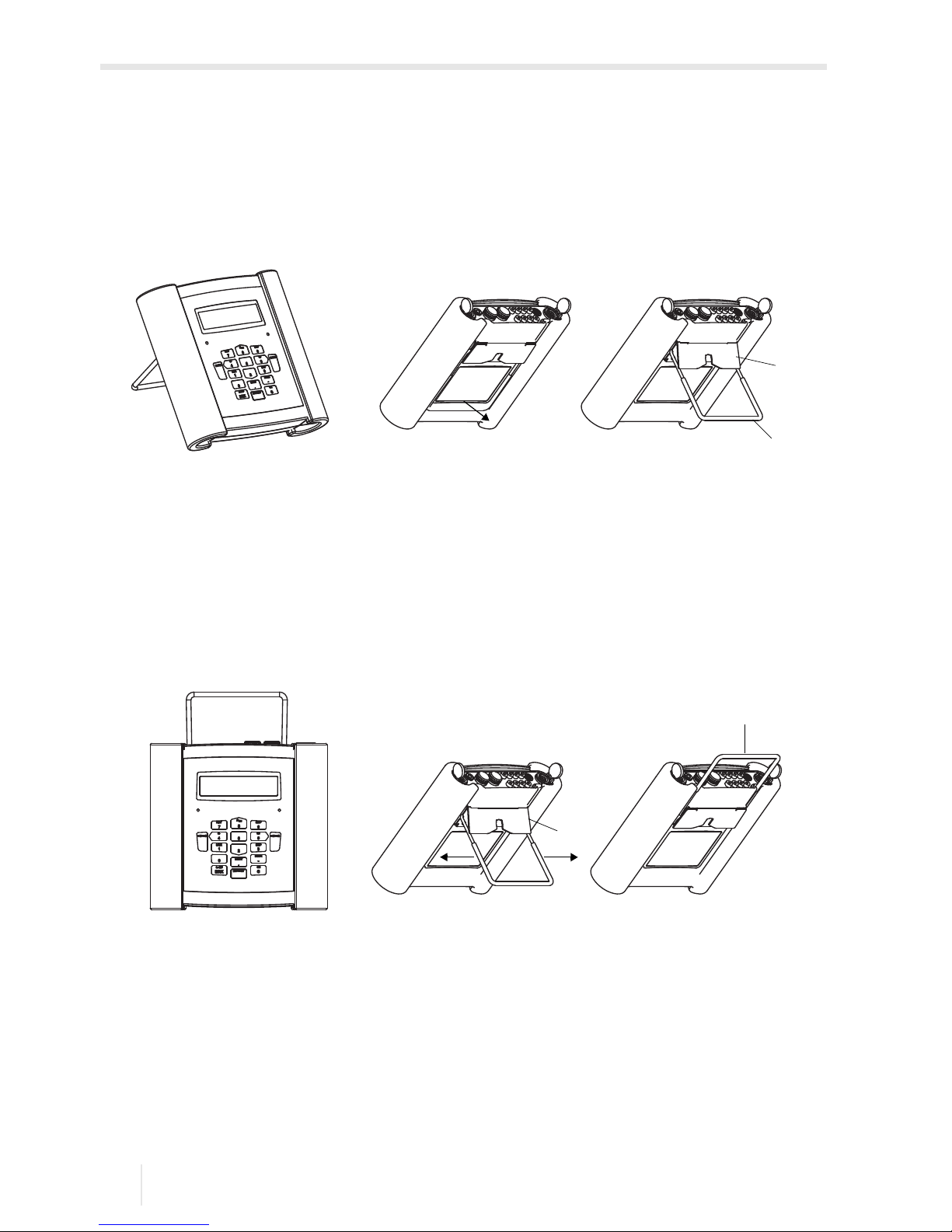

6.1.2 Installation of the transmitter

6.1.2.1 Placement

Pull the support back to the stop of the support plate, see Fig. 6.3.

6.1.2.2 Suspension

Press both ends of the handle outwards and pass them past the support plate. Turn the handle upwards.

Fig. 6.3: Placement of the transmitter

1 – handle 2 – support plate

Fig. 6.4: Suspension of the transmitter

1 – handle 2 – support plate

Page 35

6 Installation

FLUXUS F60* 6.1 Transmitter

UMFLUXUS_F60xV5-0EN, 2017-10-16

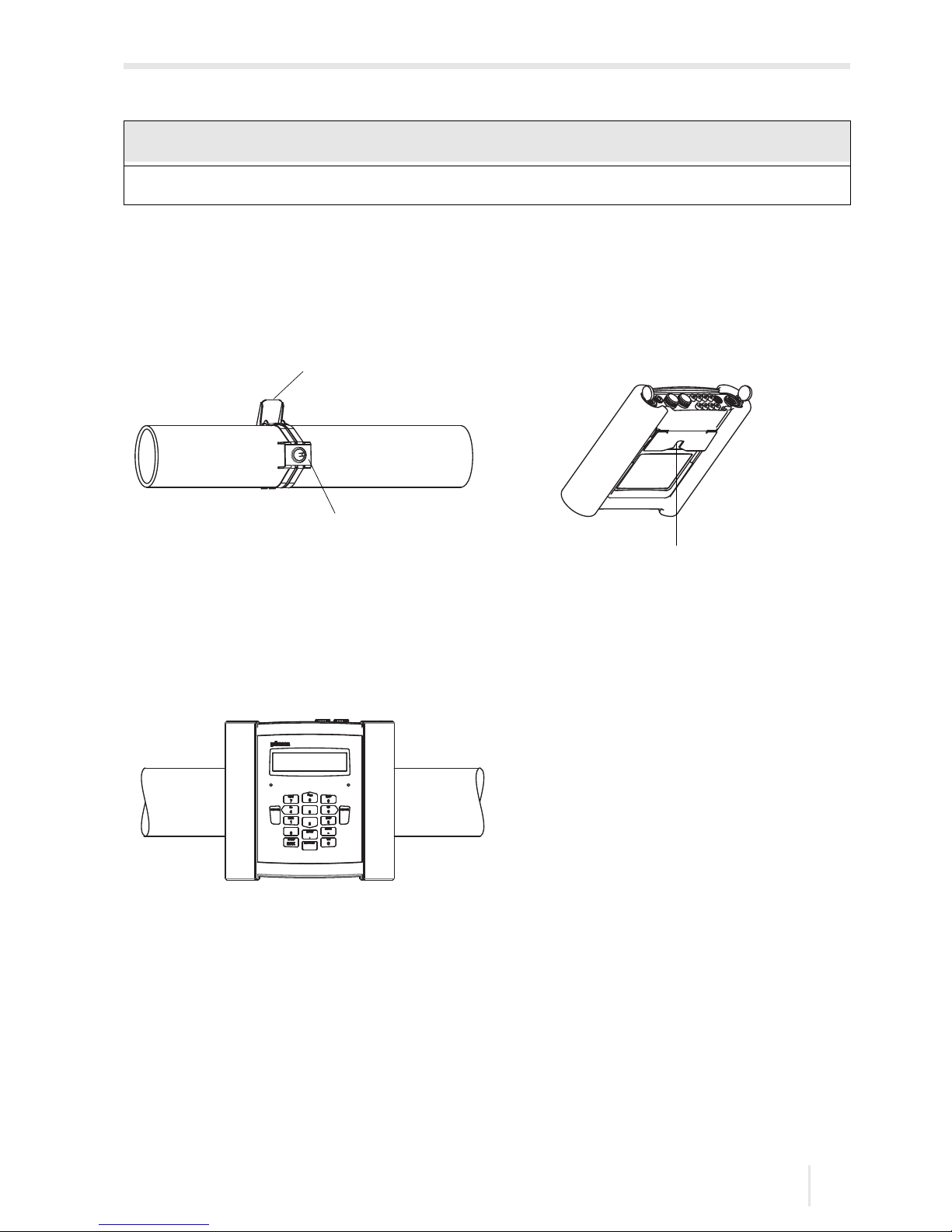

6.1.2.3 Pipe installation

Fix the tension belt with the button to the pipe. Tighten the belt using the ratchet. Insert the button into the opening in the support plate on the rear side of the transmitter, see Fig. 6.5 and Fig. 6.6.

Notice!

The pipe temperature must not exceed the operating temperature of the transmitter.

Fig. 6.5: Pipe installation

1–ratchet 2 – button on the pipe 3 – opening in the support plate

Fig. 6.6: Transmitter on the pipe

Page 36

6 Installation

6.2 Transducers FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

6.2 Transducers

6.2.1 Preparation

6.2.1.1 Measuring point selection

The correct selection of the measuring point is crucial for achieving reliable measurement results and a high measurement accuracy.

A measurement on a pipe is possible if:

• the ultrasound propagates with a sufficiently high amplitude

• the flow profile is fully developed

The correct selection of the measuring point and the correct transducer positioning guarantee that the sound signal will be received under optimum conditions and evaluated correctly.

Because of the variety of applications and the different factors that influence the measurement, there is no standard solution for the transducer positioning.

The measurement is influenced by the following factors:

– diameter, material, lining, wall thickness and shape of the pipe

– fluid

– gas bubbles in the fluid

• Avoid measuring points in the vicinity of distorted or defective areas of the pipe or in the

vicinity of welds.

• Avoid measuring points with deposit formation in the pipe.

• Make sure the pipe surface at the selected measuring point is even.

• Select the location of the transmitter within the transducer cable range.

• The ambient temperature at the measuring point has to be within the operating tem-

perature range of the transmitter and the transducers, see Technical specification.

If the measuring point is within an explosive atmosphere, possibly present danger zones and gases have to be determined. The transducers and the transmitter have to be appropriate for these conditions.

6.2.1.2 Pipe preparation

Caution!

Contact with grinding dust

This may result in injuries (e.g., breathing difficulties, skin reactions, eye irritations).

→ Wear the required personal protective equipment. Observe the appli-

cable rules.

Page 37

6 Installation

FLUXUS F60* 6.2 Transducers

UMFLUXUS_F60xV5-0EN, 2017-10-16

Rust, paint or deposits on the pipe absorb the sound signal. A good acoustic contact between the pipe and the transducers is obtained as follows:

• Clean the pipe at the selected measuring point.

– If present, the paint layer has to be smoothed by grinding. The paint does not need to

be removed completely.

– Remove rust or loose paint.

• Use coupling foil or apply a bead of acoustic coupling compound along the center line of the contact surface of the transducers.

• Observe that there must be no air pockets between the transducer contact surface and the pipe wall.

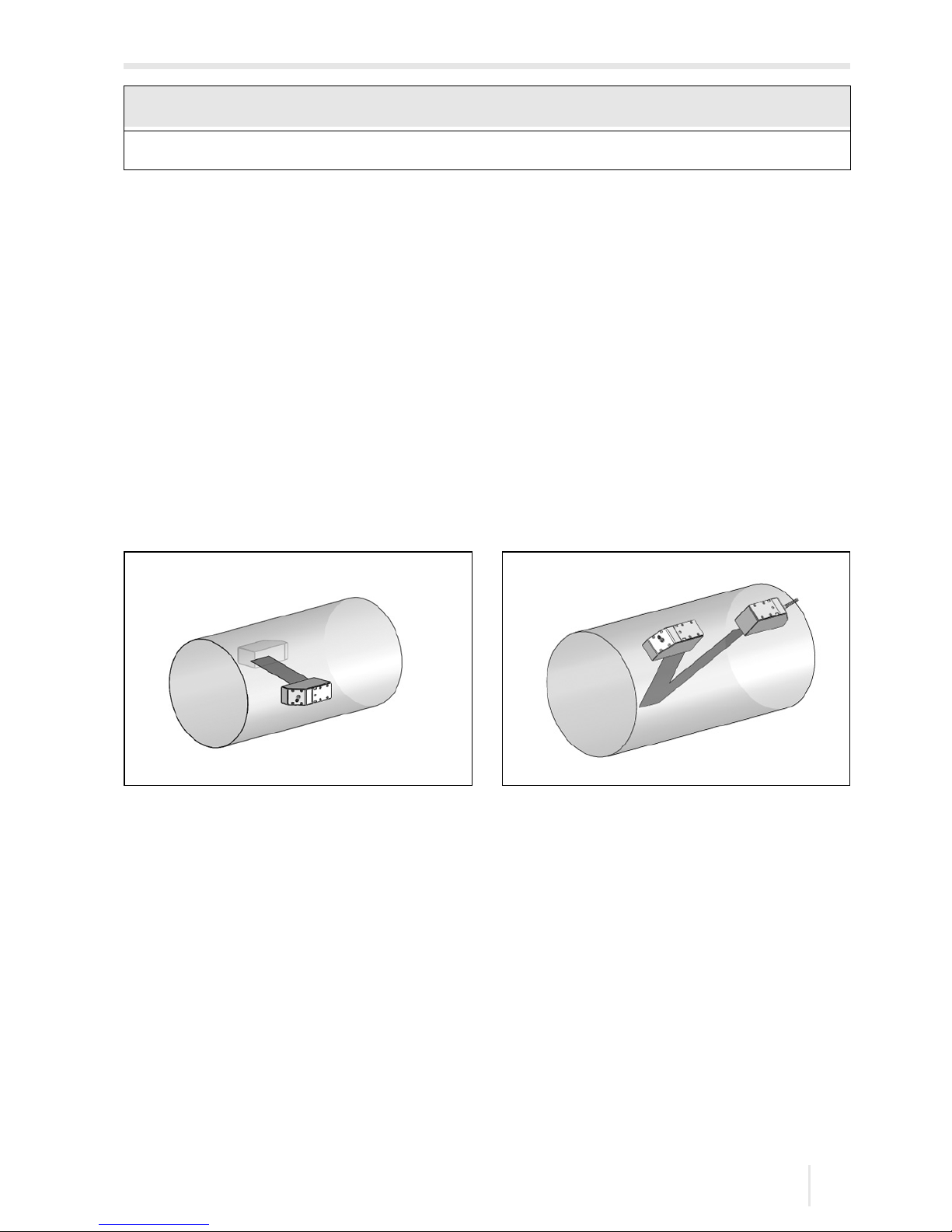

6.2.1.3 Selection of the measurement arrangement

Notice!

Observe the selection criteria for the pipe and the measuring point.

Diagonal arrangement with 1 beam Reflection arrangement with 1 beam

• wider flow velocity and sound speed range compared to the reflection arrangement

• use in the presence of deposits on the inner pipe wall or with strongly attenuating gases or liquids (only 1 sound path)

• smaller flow velocity and sound speed range compared to the diagonal arrangement

• transverse flow effects are compensated because the beam crosses the pipe in 2 directions

• higher accuracy of measurement because the accuracy increases with the number of sound paths

Page 38

6 Installation

6.2 Transducers FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

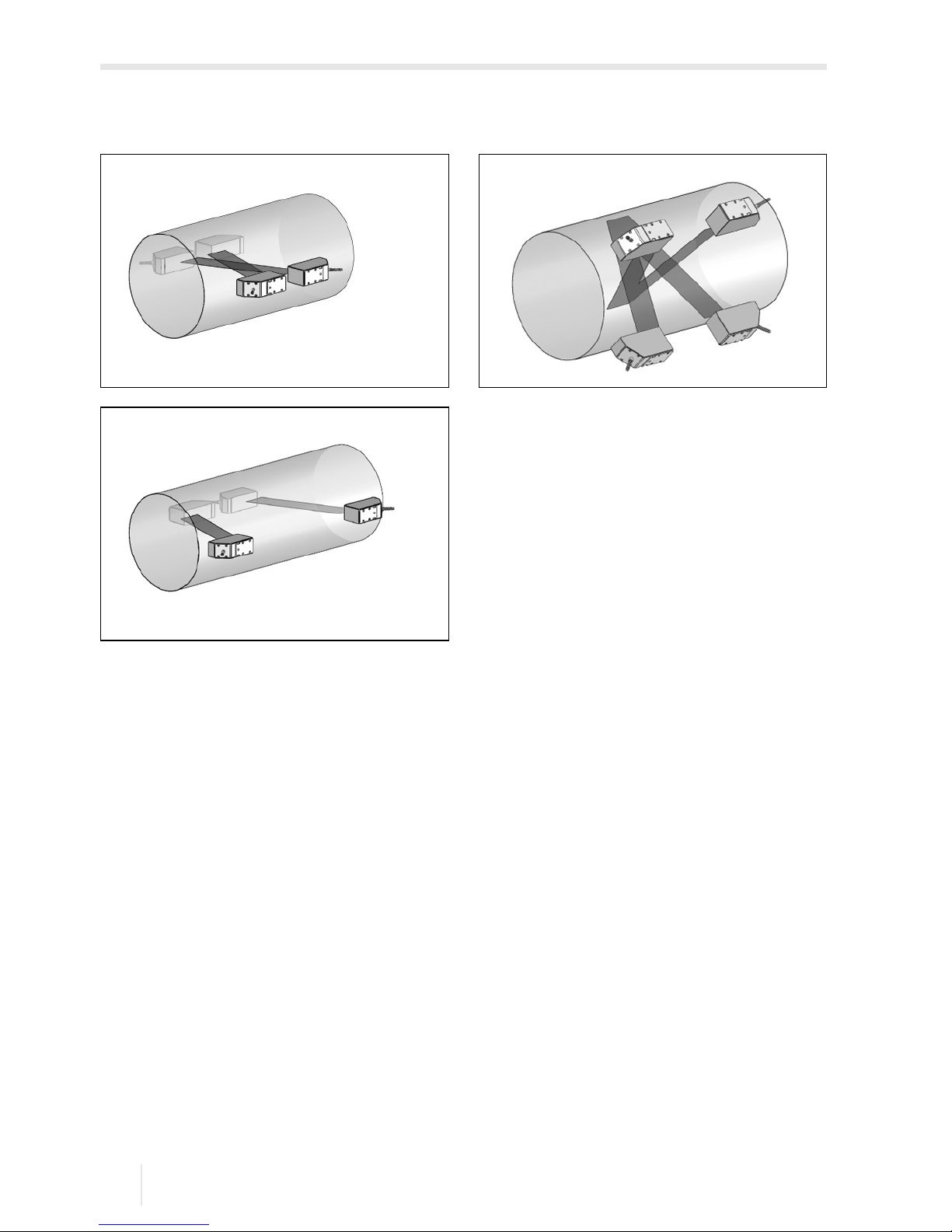

Diagonal arrangement with 2 beams Reflection arrangement with 2 beams

and 2 planes

• same characteristics as reflection arrangement with 2 beams

• additional characteristic: influences of the flow profile are compensated because the measurement takes place in 2 planes

• same characteristics as diagonal arrangement with 1 beam

• additional characteristic: transverse flow effects are compensated because the measurement is conducted with 2 beams

X arrangement

displaced X arrangement

Page 39

6 Installation

FLUXUS F60* 6.2 Transducers

UMFLUXUS_F60xV5-0EN, 2017-10-16

If the measuring point is situated near an elbow, the following measurement arrangements are recommended for the selection of the sound beam plane.

Vertical pipes Horizontal pipes

• The sound beam plan is selected in an angle of 90° to the elbow plane. The elbow is upstream of the measuring point.

• The sound beam plane is selected in an angle of 90° ± 45° to the elbow plane. The elbow is upstream of the measuring point.

Bidirectional measurements

Measurements in reflection arrangement with 2 beams and 2 planes

• The sound beam plane is selected according to the nearest elbow (horizontal or vertical, depending on the pipe orientation, see above).

• The 2 sound beam planes are selected in an angle of 45° to the elbow plane. The elbow is upstream of the measuring point.

• On horizontal pipes, the transducers are mounted on the upper half of the pipe.

flow

direction

elbow plane

flow direction

elbow plane

flow direction

Page 40

6 Installation

6.2 Transducers FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

6.2.2 Installation of the transducers

6.2.2.1 Orientation of the transducers and determination of the transducer distance

Observe the orientation of the transducers. If the transducers have been mounted properly, the engravings on the transducers form an arrow, see Fig. 6.7. The transducer cables show in opposite directions.

The transducer distance measured between the inner edges of the transducers.

6.2.2.2 Installation of transducers with fastening shoes and chains

• Insert the transducers into the fastening shoes. Turn the screw on top of the fastening

shoes by 90° to engage and lock its end in the groove on top of the inserted transducer.

• Insert the ruler into the lateral slot of the fastening shoes. Adjust the displayed transduc-

er distance, see section 9.3. Fix the transducers with the plastic screws on the transducer cable side of the fastening shoes.

• Place the fastening shoes/ruler assembly on the pipe at the measuring point. Insert the

last ball into the slot on the upper side of one of the fastening shoe.

• Place the chain around the pipe.

• Tighten the chain and insert it into the other slot of the fastening shoe.

Notice!

Handle the transducer cable with care. Avoid sharp bends or kinks, especially at simultaneous strain.

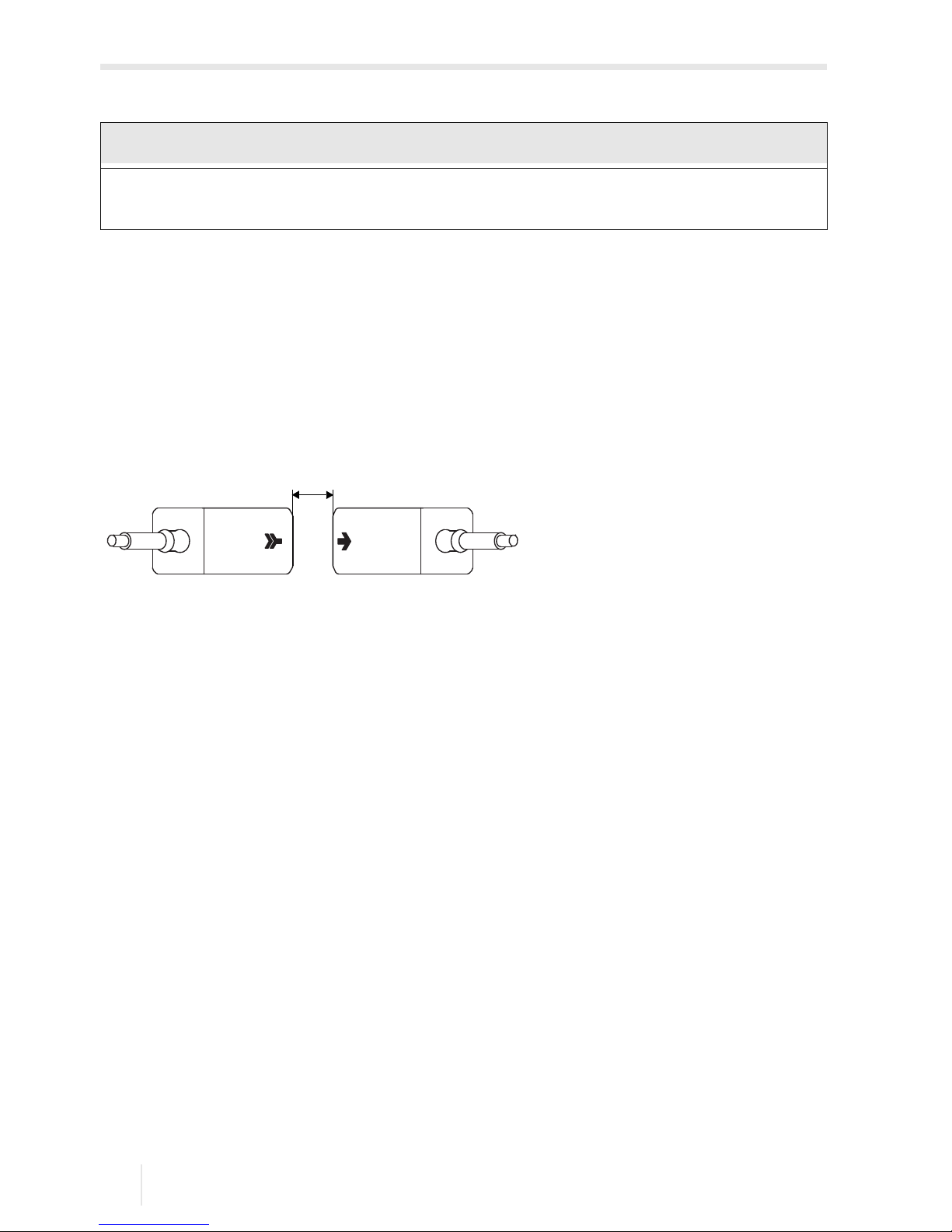

Fig. 6.7: Orientation of the transducers and transducer distance

a – transducer distance

Page 41

6 Installation

FLUXUS F60* 6.2 Transducers

UMFLUXUS_F60xV5-0EN, 2017-10-16

Extension of the ball chain

In order to extend the chain, insert the last ball of the extension into the fastening clip of the ball chain. The spare fastening clips supplied with the chain can be used to repair a broken chain.

6.2.2.3 Installation of the transducers with magnetic fastening shoes

• Insert the transducers into the fastening shoes. Turn the screw on the upper side of the fastening shoes by 90° in order to engage and lock its extremity in the groove on top of the inserted transducer. Apply some coupling compound to the contact surface of the transducers.

• Insert the ruler into the lateral slot of the fastening shoes.

• Adjust the displayed transducer distance, see section 9.3. Fix the transducers with the plastic screws on the transducer cable side of the fastening shoes.

• Place the fastening shoe/ruler assembly on the pipe at the measuring point. There must be no air pockets between pipe wall and contact surface of the transducer.

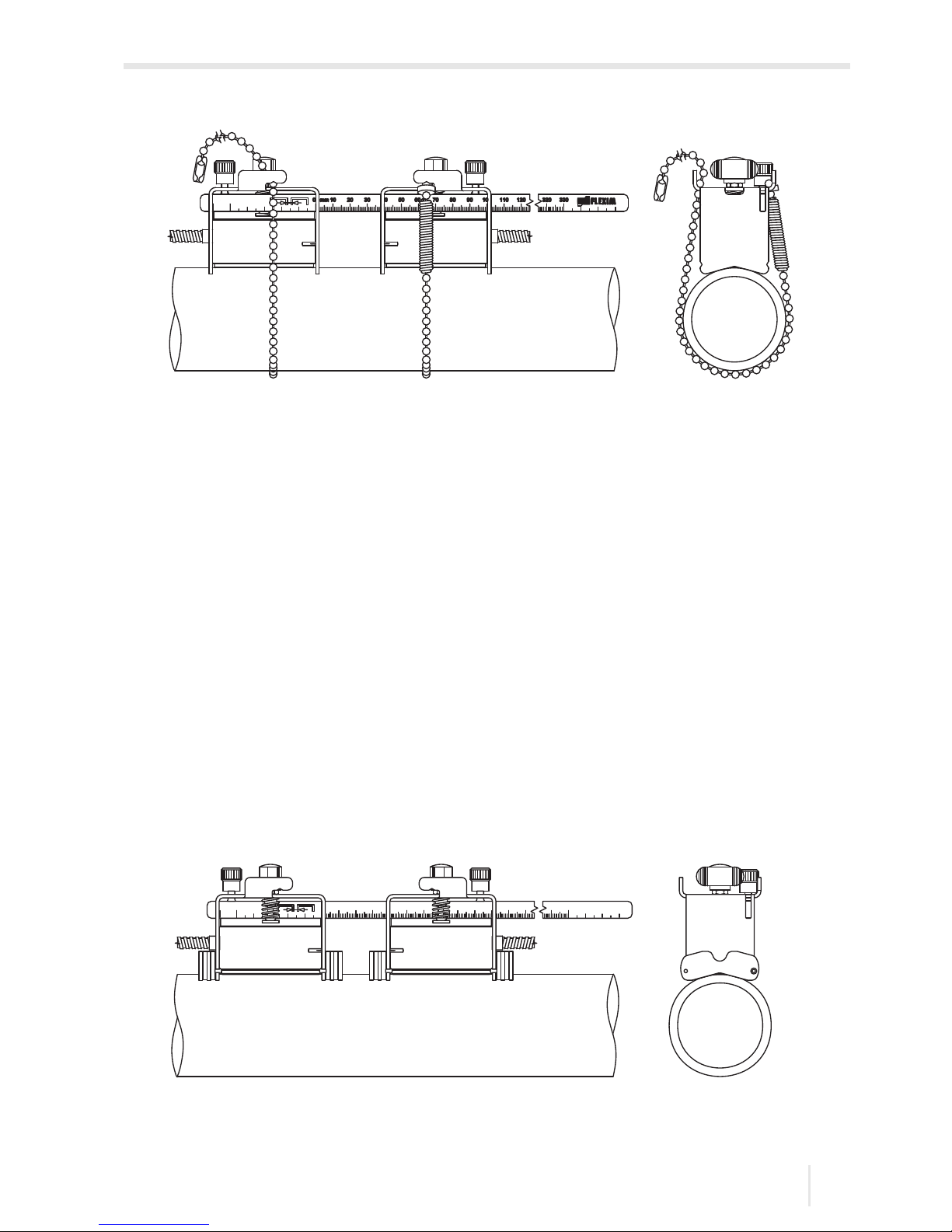

Fig. 6.8: Installation of the transducers with fastening shoes and chains

Fig. 6.9: Installation of the transducers with magnetic fastening shoes

Page 42

6 Installation

6.2 Transducers FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

6.2.2.4 Installation of the transducers with portable Variofix rail and chains

Normally, each transducer is mounted in its own Variofix rail. If the transducer distance is small and both transducers are on the same side of the pipe (reflection arrangement), both transducers can be fixed in one Variofix rail.

Installation of the Variofix rail

• Adjustment of the Variofix rail to transducer width:

– Loosen the 4 screws (1) for the adjustment of the rails (2) with an M8 wrench, see

Fig. 6.10.

– Place one transducer (3) in the center of the rails.

– Press the two rails (2) together and tighten the 4 screws (1). The transducer can be

shifted and removed.

– Remove the transducer.

• Loosen the chain tensioner (4), but do not unscrew it completely.

• If the chain has not been mounted in the rail support (6) yet: Compress the spring of the chain tensioner (4) with the cylinder (7) while pushing the chain tensioner (4) in the horizontal groove (5) of the rail support (6).

• Place the Variofix rail on the pipe. Both rail supports (6) have to be completely supported by the pipe. Lay the ball chain (8) around the pipe (if the pipe is vertical, start with the upper ball chain).

• Press the chain tensioner (4) inside completely and push the ball chain (8) into the other groove (9) of the rail support.

• Fix the second ball chain (8) in the same way.

• Tension the ball chains (8) by tightening the chain tensioners (4).

• Repeat the steps if the second transducer is fixed to its own Variofix rail.

Installation of the transducer

• Force the legs of the spring clip (10) apart and clamp it over the outer side of the rails (2). The height where the spring clip will snap in depends on the height of the transducer.

• Apply some coupling compound to the contact surface of the transducer.

• Place the transducer between the rails (2). Observe the mounting direction, see Fig.

6.10.

• Push the spring clip (10) over the transducer until the knurled screw (11) is positioned over the blind hole of the transducer.

• Fix the transducer by tightening the knurled screw by hand (11).

• Repeat the steps for fixing the second transducer.

• Adjust the transducer distance by loosening the knurled screw (11) of a spring clip (10) and shifting the transducer.

Page 43

6 Installation

FLUXUS F60* 6.3 Temperature probe

UMFLUXUS_F60xV5-0EN, 2017-10-16

6.3 Temperature probe

6.3.1 Pipe preparation

The pipe has to be stable. It has to be able to withstand the pressure exerted by the mounting fixture of the temperature probe.

Rust, paint or deposits on the pipe isolate the temperature at the measuring point. A good thermal contact between the pipe and the temperature probe is obtained as follows:

• Clean the pipe at the selected measuring point.

– Remove any insulation material, rust or loose paint.

– If present, the paint layer has to be smoothed by grinding. The paint does not need to

be removed completely.

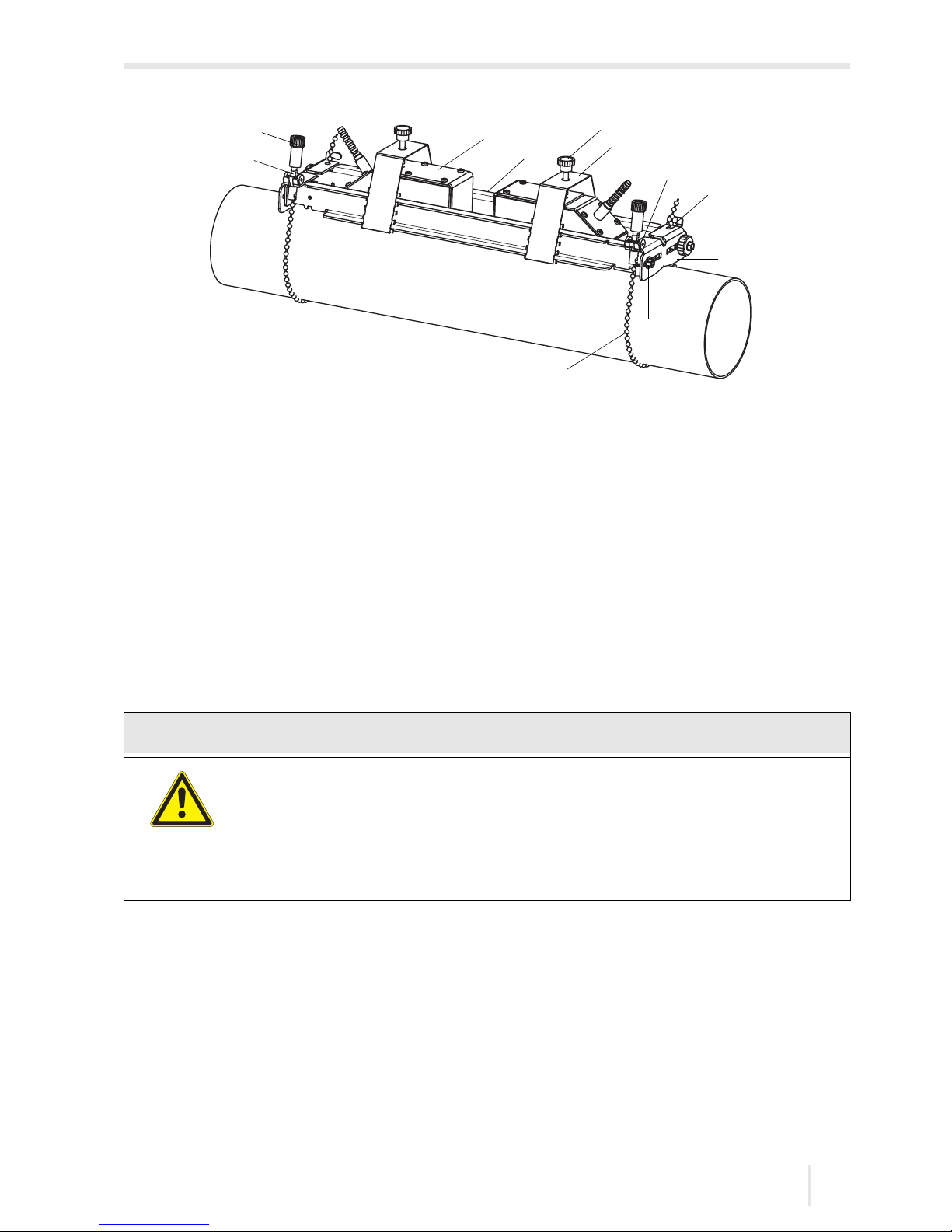

Fig. 6.10: Variofix rail with chains

1 – screw 2–rail 3 – transducer 4 – chain tensioner 5 – horizontal groove 6 – rail support 7 – cylinder 8 – ball chain 9 – groove 10 – spring clip 11 – knurled screw

Caution!

Contact with grinding dust

This may result in injuries (e.g., breathing difficulties, skin reactions, eye irritations).

→ Wear the required personal protective equipment. Observe the appli-

cable rules.

Page 44

6 Installation

6.3 Temperature probe FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

• Use coupling foil or apply a layer of thermal conductivity paste or coupling compound on the contact surface of the temperature probe. Observe the corresponding operating temperature range.

• Observe that there must be no air pockets between the contact surface of the temperature probe and the pipe wall.

6.3.2 Installation of the temperature probe (response time 50 s)

Select the installation instructions according to the supplied clasp:

• for the installation with clasp, see section 6.3.2.1

• for the installation with FLEXIM clasp, see section 6.3.2.2

• for the installation with quick release clasp, see section 6.3.2.3

6.3.2.1 Installation with clasp

• Cut the tension strap to length (pipe circumference + at least 120 mm).

• Make sure that part (2) of the clasp is on top of part (1), see Fig. 6.11 a. The hooks of part (2) have to be on the outer side of the clasp.

• Pull approx. 20 mm of the tension strap through the slot of the clasp to fix the clasp to the tension strap, see Fig. 6.11 b.

• Bend the end of the tension strap.

• Position the temperature probe on the pipe, see Fig. 6.12.

• Place the tension strap around the temperature probe and the pipe.

• Insert the tension strap through the parts (2) and (1) of the clasp.

• Tighten the tension strap and engage it in the inner hook of the clasp.

• Tighten the screw of the clasp.

Notice!

In case of great temperature differences, it is recommended to thermally insulate the temperature probe from its environment.

Caution!

The edge of the tension strap is very sharp.

Risk of injury!

→ Debur sharp edges. → Wear the required personal protective equipment. Observe the appli-

cable rules.

Page 45

6 Installation

FLUXUS F60* 6.3 Temperature probe

UMFLUXUS_F60xV5-0EN, 2017-10-16

6.3.2.2 Installation with FLEXIM clasp

• Cut the tension strap to length (pipe circumference + at least 120 mm).

• Insert approx. 20 mm of the tension strap into the slot of the clasp, see Fig. 6.13.

• Bend the end of the tension strap.

• Position the temperature probe on the pipe, see Fig. 6.12.

• Place the tension strap around the temperature probe and the pipe.

• Insert the tension strap through the parts (2) and (1) of the clasp.

• Pull the tension strap firmly and engage it in the inner hooks of the clasp.

• Tighten the screw of the clasp.

Fig. 6.11: Clasp

Fig. 6.12: Temperature probe on the pipe

Caution!

The edge of the tension strap is very sharp.

Risk of injury!

→ Debur sharp edges. → Wear the required personal protective equipment. Observe the appli-

cable rules.

(2)

(1)

Page 46

6 Installation

6.3 Temperature probe FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

6.3.2.3 Installation with quick release clasp

• Cut the tension strap to length (pipe circumference + at least 120 mm).

• Position the temperature probe on the pipe, see Fig. 6.12.

• Place the tension strap around the temperature probe and the pipe.

• Insert the tension strap into the clasp, see Fig. 6.14.

• Tighten the tension strap.

• Tighten the screw of the clasp.

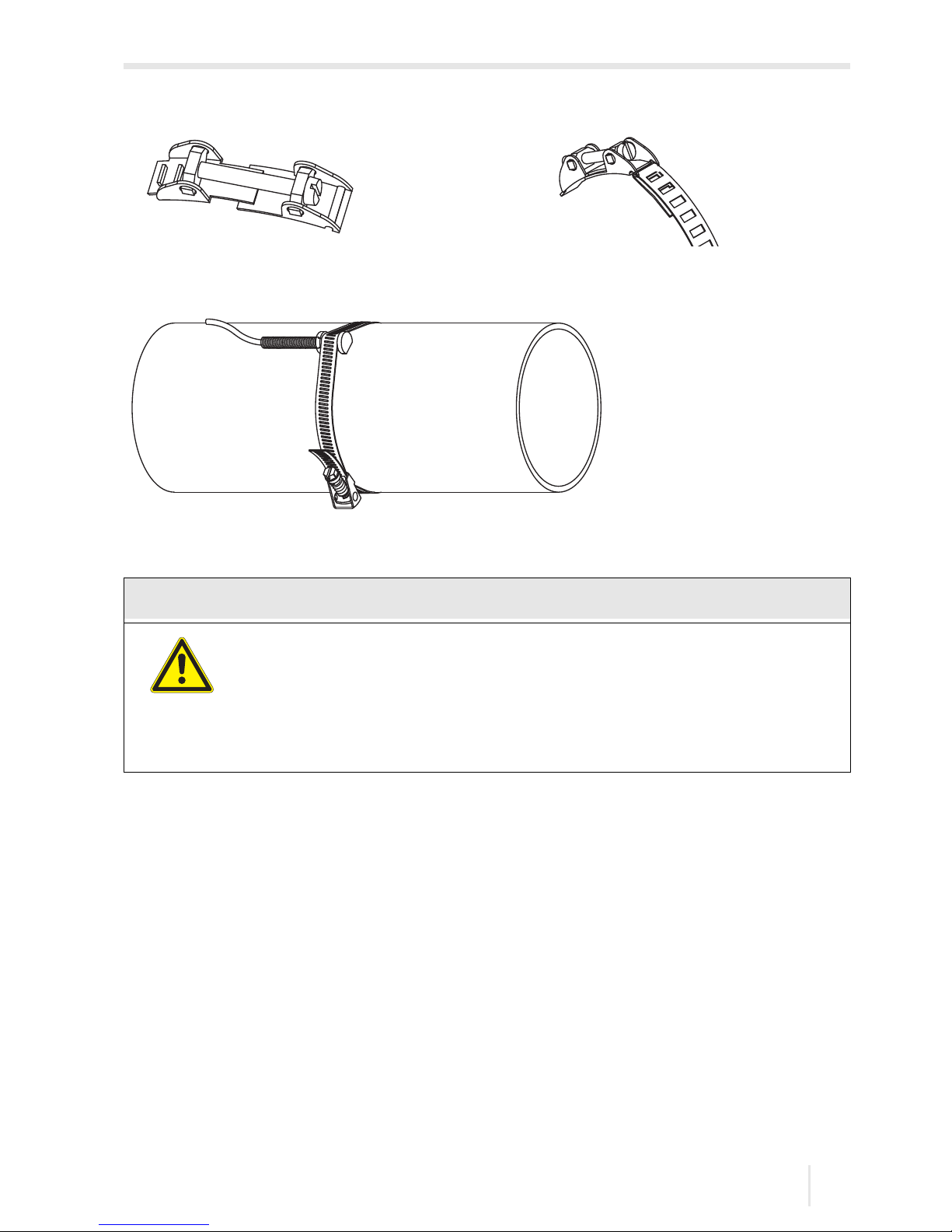

Fig. 6.13: FLEXIM clasp

Caution!

The edge of the tension strap is very sharp.

Risk of injury!

→ Debur sharp edges. → Wear the required personal protective equipment. Observe the appli-

cable rules.

Fig. 6.14: Quick release clasp

(1)

(2)

Page 47

6 Installation

FLUXUS F60* 6.3 Temperature probe

UMFLUXUS_F60xV5-0EN, 2017-10-16

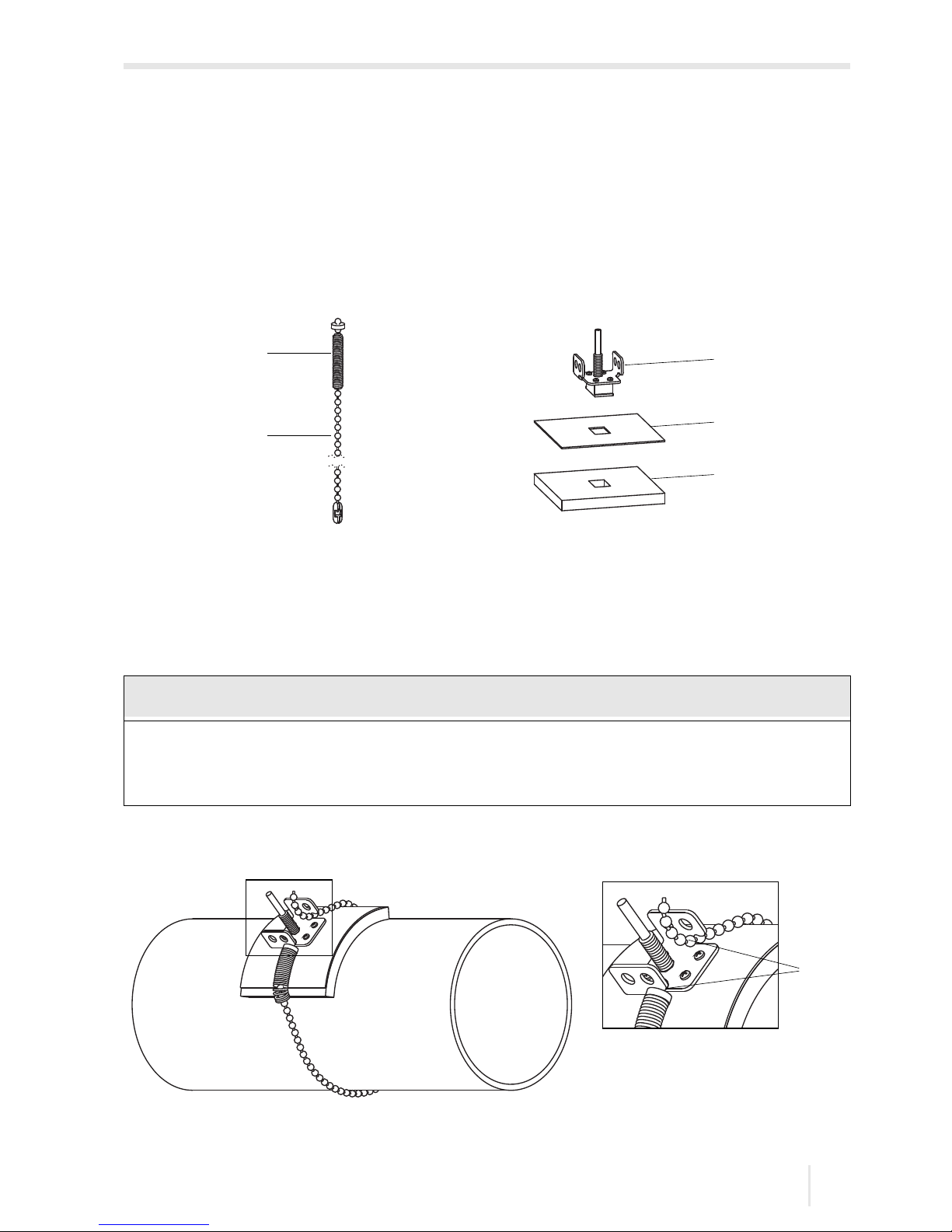

6.3.3 Installation of the temperature probe (response time 8 s)

• Fix the protection plate and the insulation foam to the temperature probe, see Fig. 6.15.

• Take the spring end of the chain and insert the first ball into one of the slots on the upper side of the temperature probe, see Fig. 6.16.

• Place the chain around the pipe. Tighten the chain and insert it into the other slot of the temperature probe.

Fig. 6.15: Temperature probe

1 – spring end 2 – chain 3 – temperature probe 4 – protection plate 5 – insulation foam

Notice!

The entire contact surface of the temperature probe always has to rest on the pipe. In case of very small pipes, the protection plate and the insulation foam have to be cut to size, if necessary.

Fig. 6.16: Temperature probe on the pipe

1 – slots on the upper side of the temperature probe

Page 48

7 Connection

7.1 FLUXUS *601 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

7 Connection

7.1 FLUXUS *601

7.1.1 Transducers

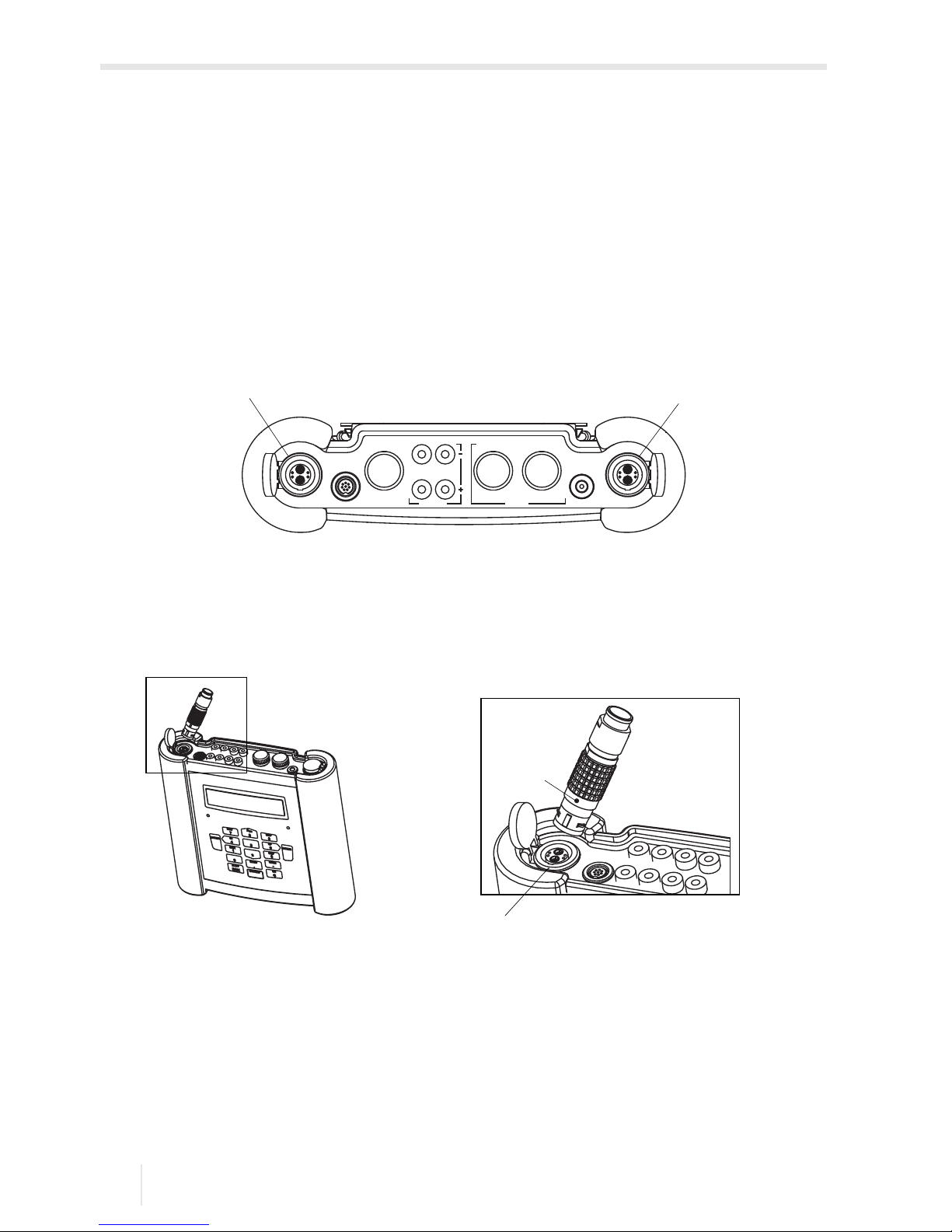

The connections are on the upper side of the transmitter, see Fig. 7.1.

• Pull up the socket cover, see Fig. 7.2.

• Insert the connector of the transducer cable into the socket of the transmitter. The red point (a) on the connector has to be aligned with the red marking (b) on the socket.

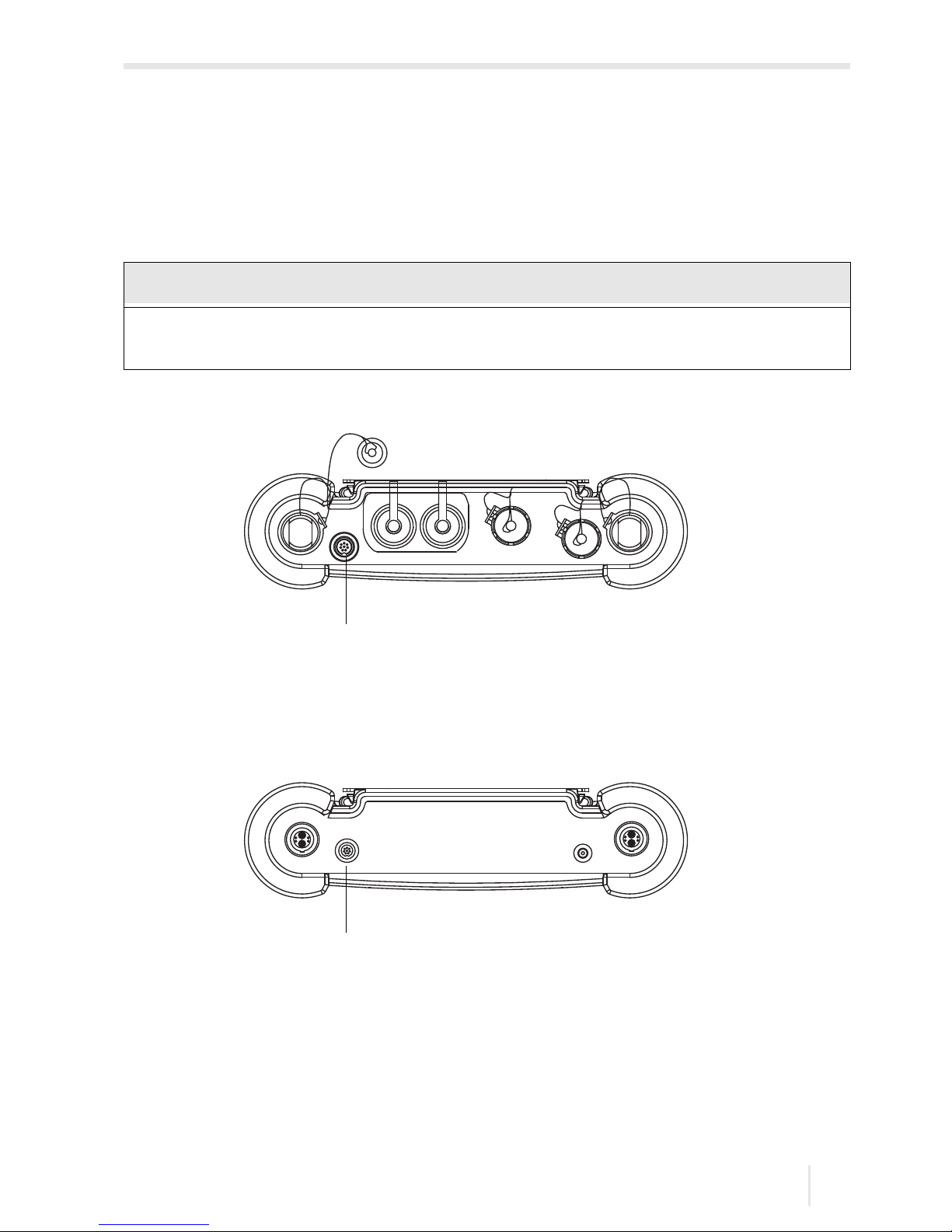

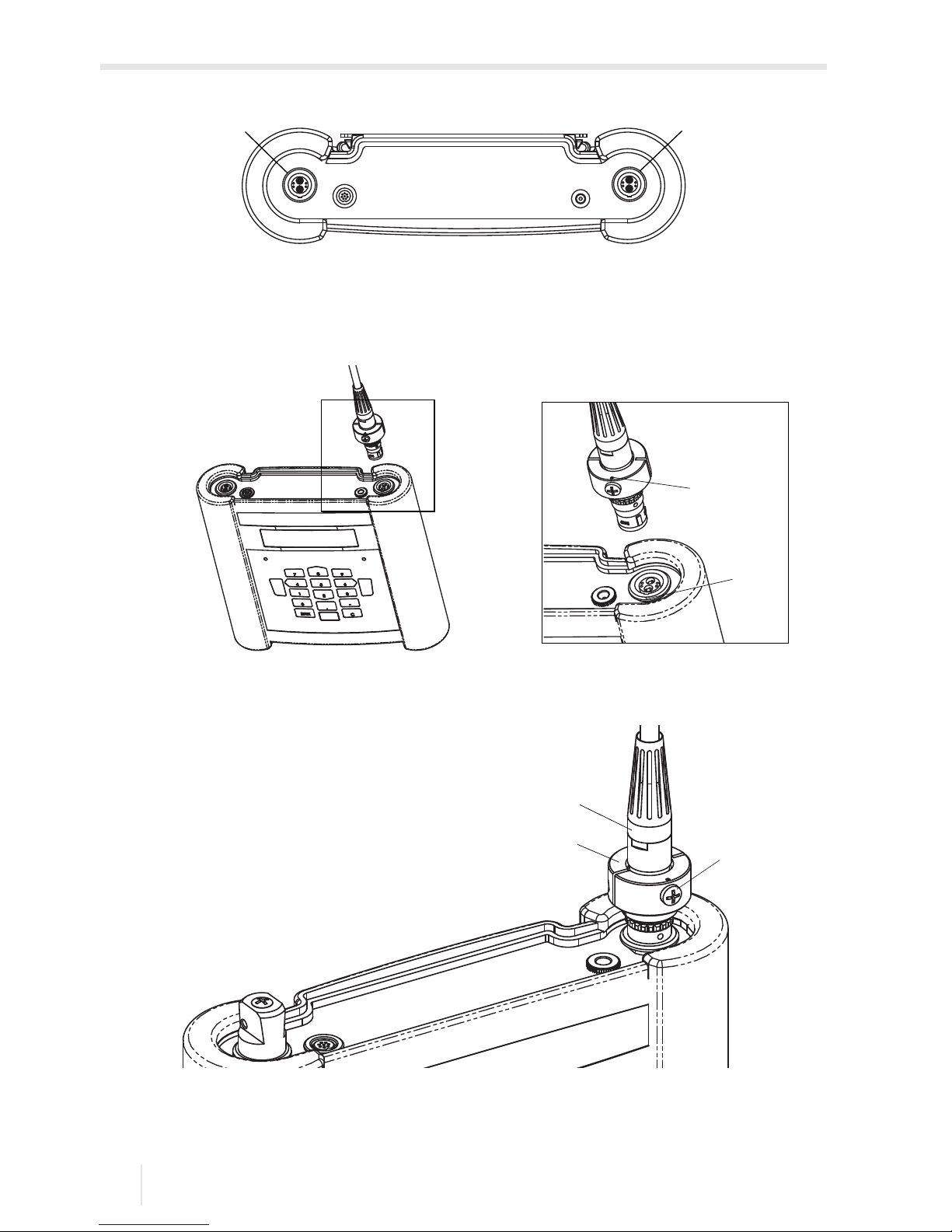

Fig. 7.1: Connections on the transmitter

1 – transducers (measuring channel A) 2 – transducers (measuring channel B)

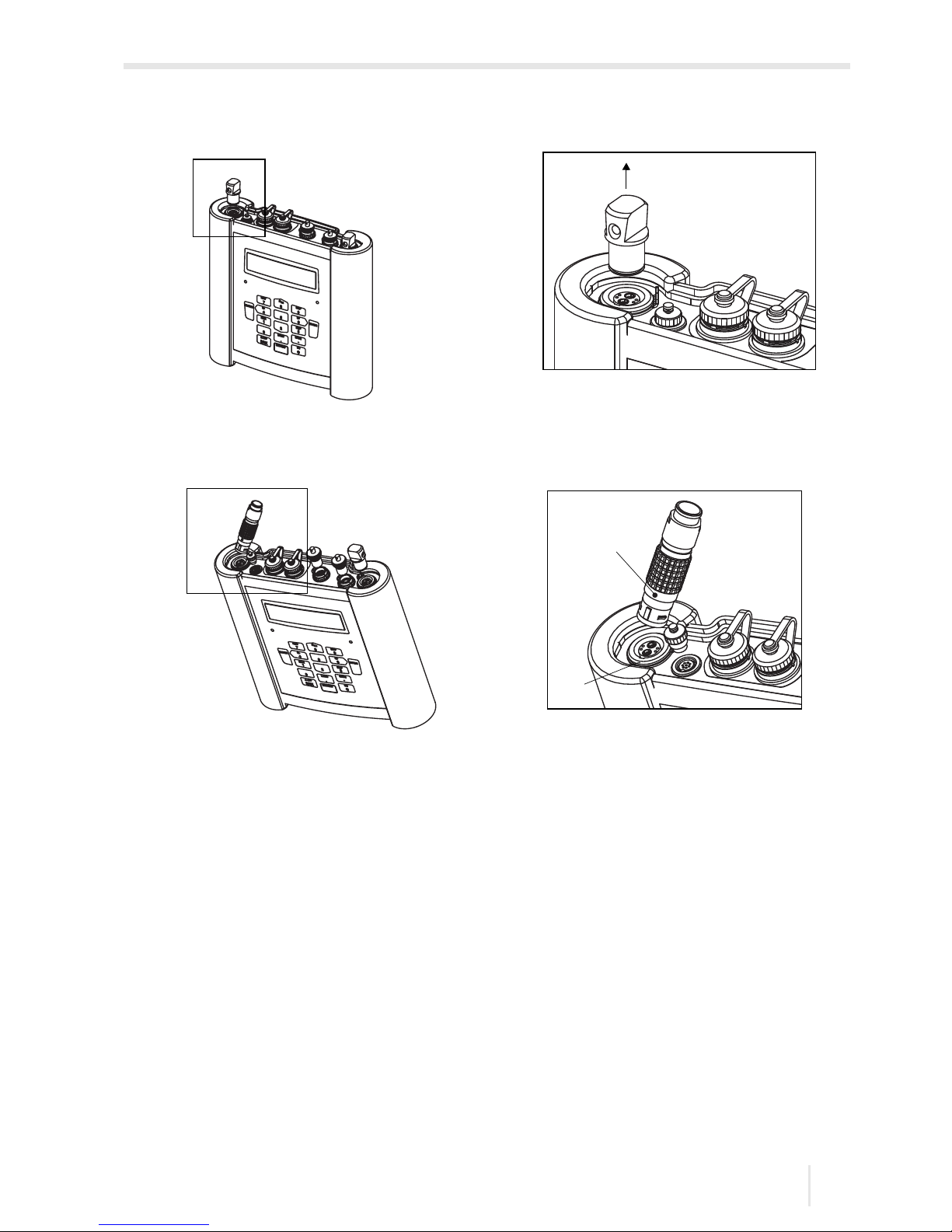

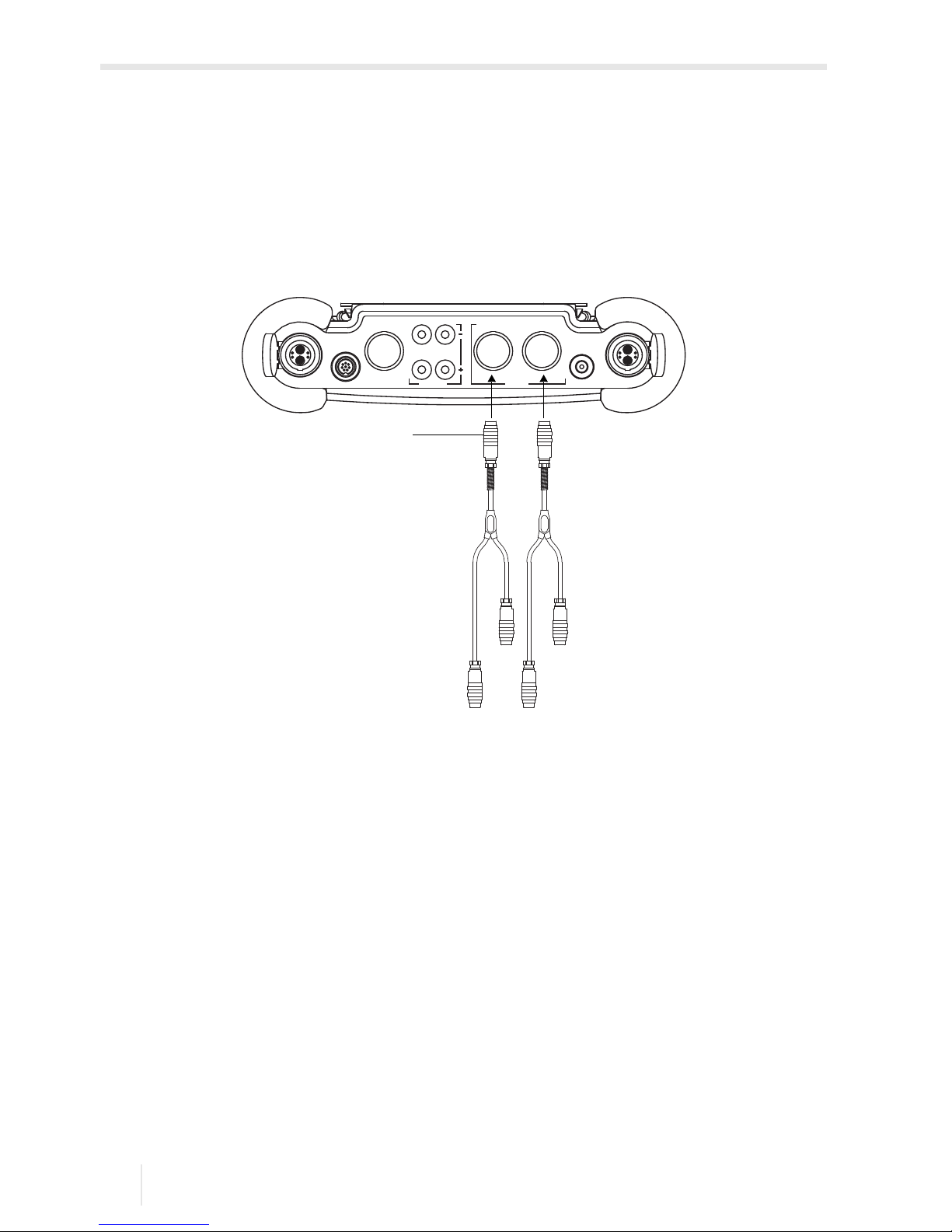

Fig. 7.2: Connection of the transducers

CH A

COMM

Output

P3...P8

P2 P1

T1/T3 T2/T4

Input

CH B

DC-IN

(a)

(b)

Page 49

7 Connection

FLUXUS F60* 7.1 FLUXUS *601

UMFLUXUS_F60xV5-0EN, 2017-10-16

7.1.2 Power supply

The transmitter can be operated with the integrated battery, the power supply unit or the power pack PP026NN, see document QSPowerPack_PP026.

7.1.2.1 Operation with battery

The transmitter has a Li-ion battery and can therefore be operated independently. When delivered, the battery is charged with approx. 30 %. The battery does not need to be fully charged before it is used for the first time.

The battery charge can be displayed during the measurement, see section 9.4.3 and in the program branch Special Funct.:

• Select Special Funct.\Battery status.

• Press ENTER.

The current battery charge is displayed (here: 30 %).

The minus sign (-) indicates that the transmitter is in battery mode and is being discharged.

The number of cycles the battery has passed is displayed after Cy:.

A cycle corresponds to a charging and discharging process. The life time of the battery can be derived by means of this value.

If RELEARN is displayed in the lower line and a question mark (?) is displayed after the current battery charge, a relearn cycle has to be started, see section "Maintenance (relearn cycle)" on the following page.

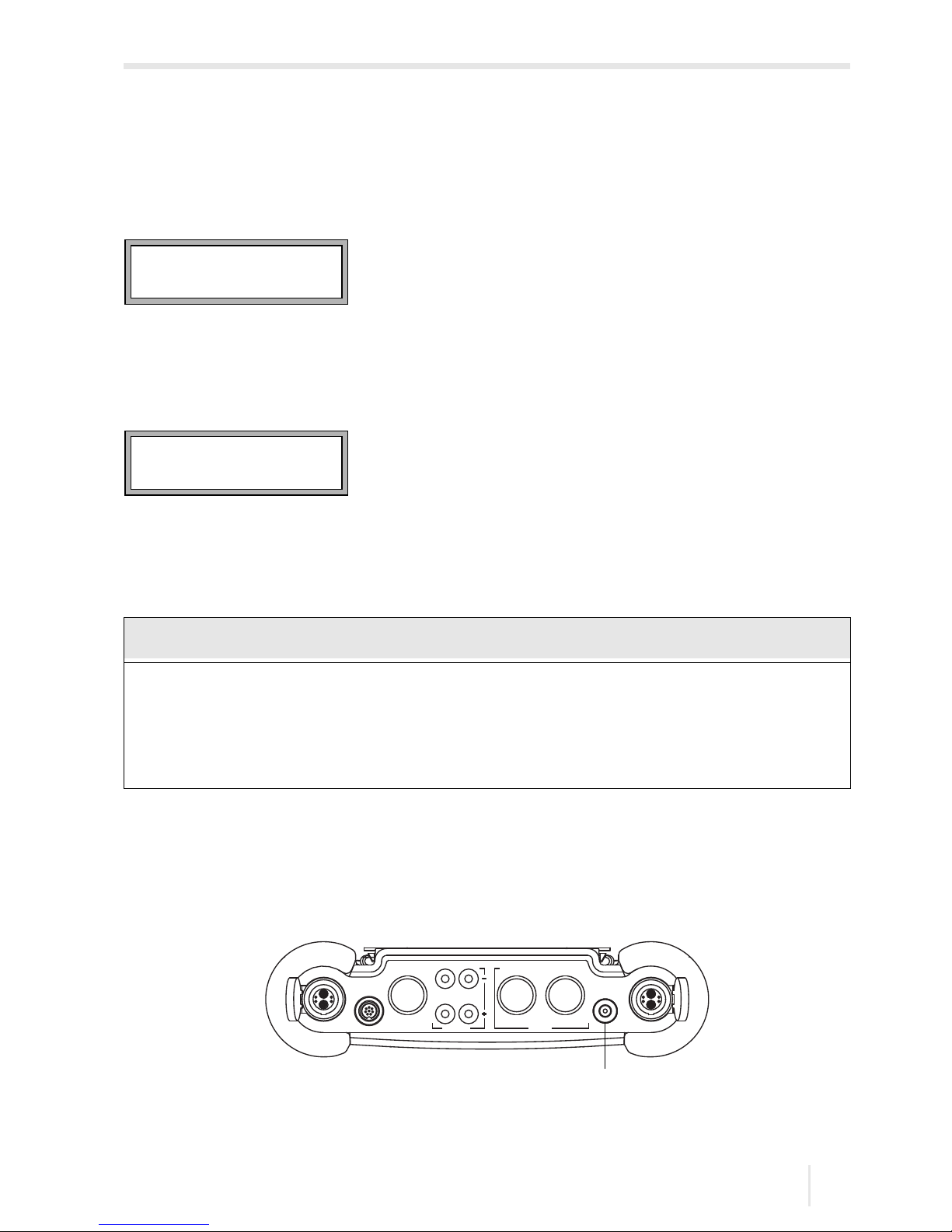

This message will be displayed if the battery is almost empty:

The capacity is sufficient for the display and storing of the current parameter record. A measurement is impossible.

Special Funct.\Battery status

LOW BATTERY !

■■■ 30‰Cy: 1

Page 50

7 Connection

7.1 FLUXUS *601 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

Charging the battery

Connect the power supply to the transmitter, see section 7.1.2.2. Switch on the transmitter. The charging starts automatically. The LED "BATTERY" flashes green while charging. The max. charging time is approx. 8 h.

During the charging process, the ambient temperature should be in the range of

0...45 °C.

A measurement can be made during the charging. Charging will be stopped automatically when the battery is fully charged. The LED "BATTERY" lights green then.

Storage of the battery

The battery remains in the transmitter. After storage, the transmitter can immediately be operated with the battery.

• battery charge: > 30 %

• storing temperature: 12...25 °C

Maintenance (relearn cycle)

The accuracy of the displayed value for the charge state of the battery is improved by executing a relearn cycle. The ambient temperature during a relearn cycle should be in the range of 12...30 °C.

• Select Special Funct.\Battery status.

• Press ENTER.

The charge state of the battery is displayed (here: 73 %).

A question mark (?) and RELEARN indicate that the value for the displayed battery charge is not reliable. A relearn cycle is recommended.

Proceed as follows for a relearn cycle:

• Charge the battery completely. The LED "BATTERY" lights green when charging is finished.

• Discharge the battery completely: Remove the power supply unit from the transmitter. In order to deactivate the automatic power-off during discharging, start a measurement. Discharging takes min. 14 h. The LED "BATTERY" will flash red afterwards.

Notice!

The battery will only be charged if the transmitter is switched on.

Special Funct.\Battery status

■■■■■ ? 73‰RELEARN! Cy: 24

Page 51

7 Connection

FLUXUS F60* 7.1 FLUXUS *601

UMFLUXUS_F60xV5-0EN, 2017-10-16

Automatic power-off

In battery mode, the transmitter has an automatic power-off. The transmitter will be switched off if

• no measurement is being made and no key is pressed within 10 min or

• the battery is empty

This message will be displayed before the transmitter is switched off automatically. A countdown with an acoustic signal will be started.

The countdown can be stopped by pressing any key.

If this message is displayed when the transmitter is switched on, the transmitter has been switched off automatically due to a too low battery charge.

7.1.2.2 Operation with power supply unit

• Connect the power supply unit to the socket on the upper side of the transmitter, see Fig. 7.3.

Notice!

→ Use only the supplied power supply unit. → The power supply is not protected against moisture. Use it only in dry rooms. → The voltage indicated on the power supply unit must not be exceeded. → Do not connect a defective power supply unit to the transmitter.

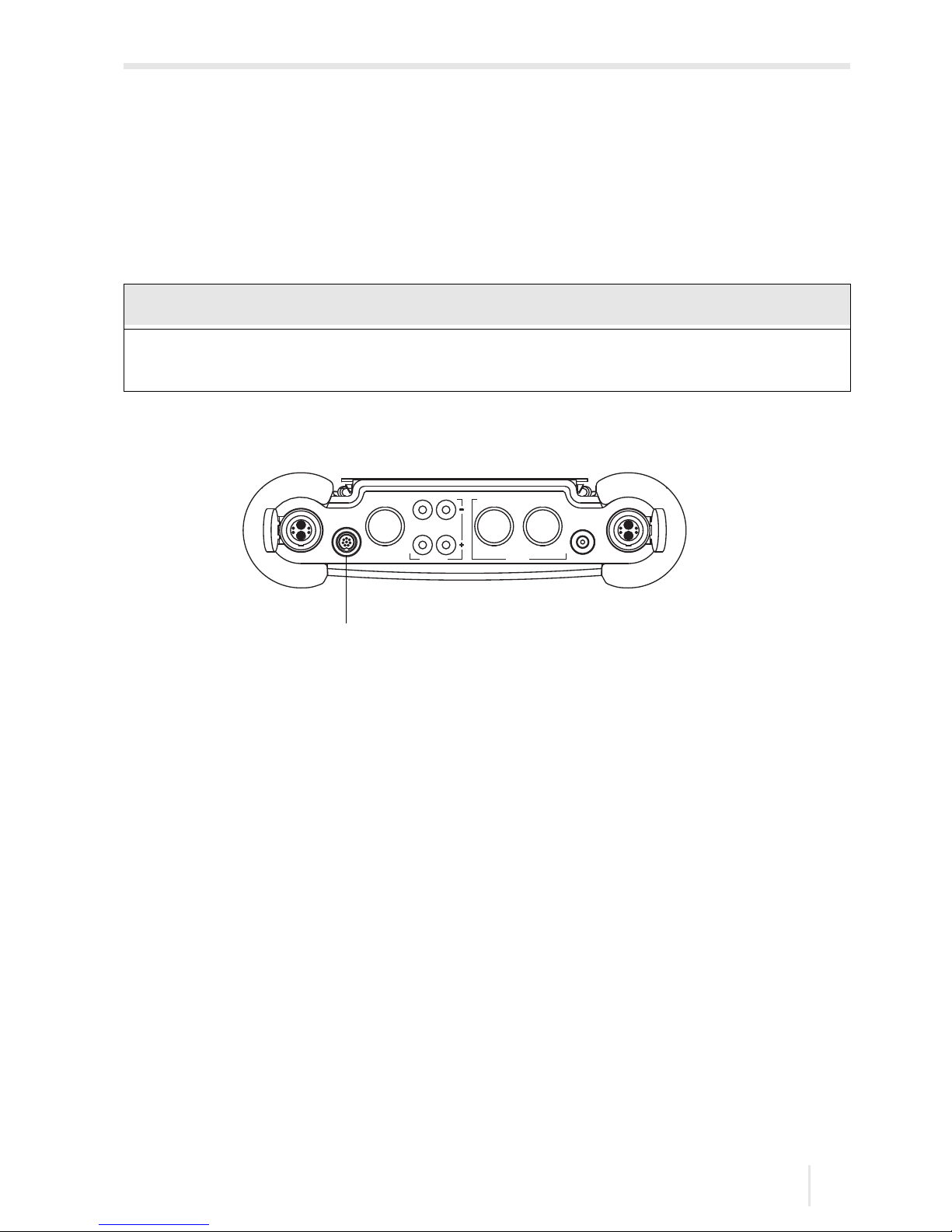

Fig. 7.3: Connection of the power supply unit to the transmitter

1 – power supply unit/battery charging unit

POWER OFF IN

10 s

■ LOW BATTERY WHILE POWER OFF

CH A

COMM

Output

P3...P8

P2 P1

T1/T3 T2/T4

Input

CH B

DC-IN

Page 52

7 Connection

7.1 FLUXUS *601 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

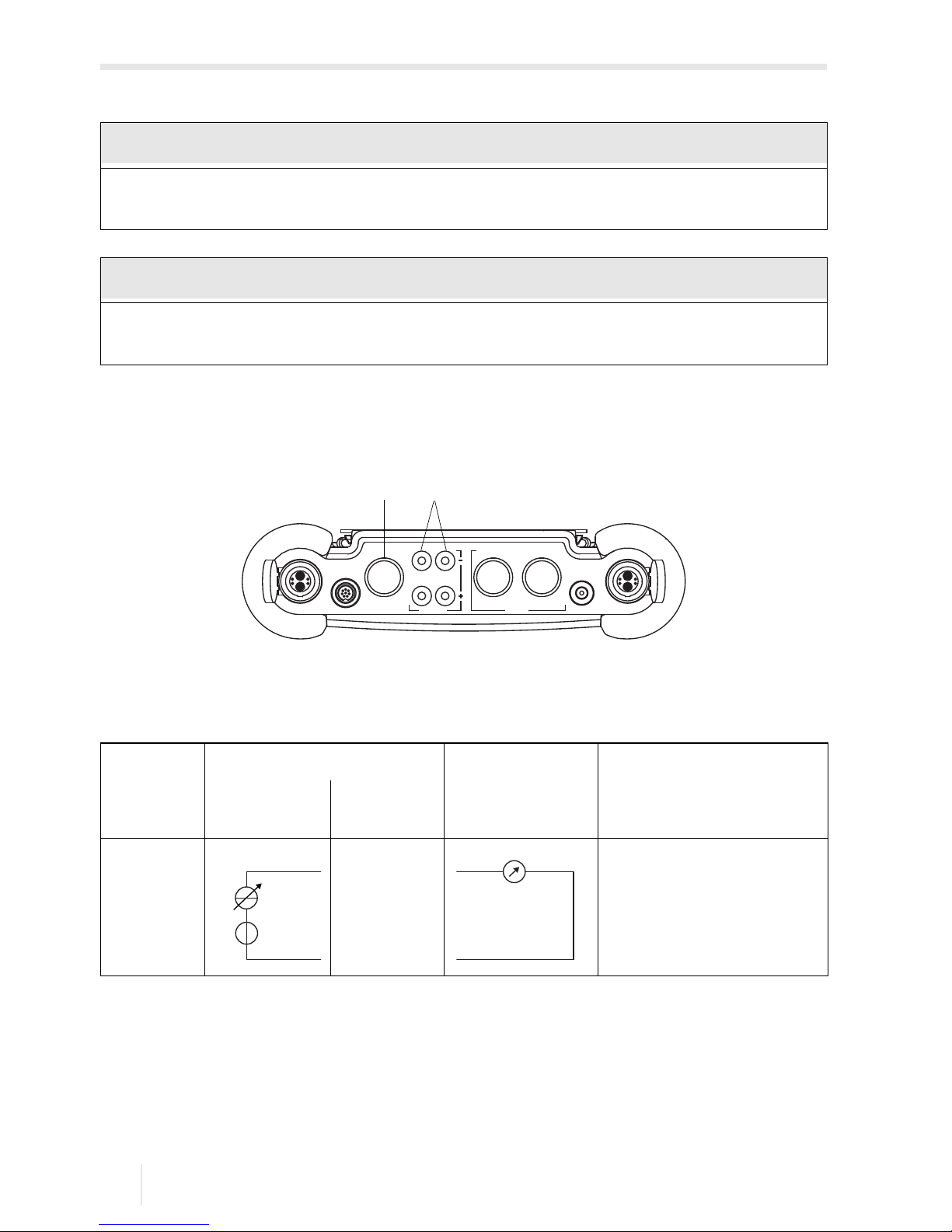

7.1.3 Outputs

For the connection of the outputs, see Fig. 7.4 and Tab. 7.1.

Notice!

For the connection, observe the specifications regarding the assignment of the outputs given on the nameplate on the backside of the transmitter.

Notice!

The max. voltage between the outputs and the internal power supply of the transmitter is 42 V DC (permanent).

Fig. 7.4: Connection of the transmitter outputs

1 – outputs 2 – output adapter

Tab. 7.1: Circuit of the outputs

output transmitter external circuit remark

internal circuit

connection

active current output

ext

< 750 Ω

int

= 24 V DC)

The number, type and the connections of the outputs depend on the order. R

ext

is the sum of all ohmic resistances in the circuit (e.g., resistance of the conductors, resistance of

the amperemeter/voltmeter).

CH A

COMM

Output

P3...P8

P2 P1

T1/T3 T2/T4

Input

CH B

DC-IN

P1/P2+

P1/P2-

Page 53

7 Connection

FLUXUS F60* 7.1 FLUXUS *601

UMFLUXUS_F60xV5-0EN, 2017-10-16

Connection of an output adapter

The number of outputs can be increased to max. 8 by connecting an output adapter (optional), see Fig. 7.4 and Fig. 7.5.

passive current output

ext =

4…26 V

ext

> 0.021 A · R

ext

[Ω] + 4 V

example: U

ext

= 12 V

ext

≤ 500 Ω

frequency output

ext

= 5…24 V

[kΩ] = U

ext/Ic

[mA]

= 1…4 mA

binary output (optorelay)

ext

≤ 26 V

≤ 100 mA

process interface

120 Ω termination resistor

Fig. 7.5: Output adapter

Tab. 7.1: Circuit of the outputs

output transmitter external circuit remark

internal circuit

connection

The number, type and the connections of the outputs depend on the order. R

ext

is the sum of all ohmic resistances in the circuit (e.g., resistance of the conductors, resistance of

the amperemeter/voltmeter).

Px+

Px-

ext

Px+

Px-

ext

Px+

Px-

ext

P5+

P5-

Output

P4P3 P5 P6 P7 P8

Page 54

7 Connection

7.1 FLUXUS *601 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

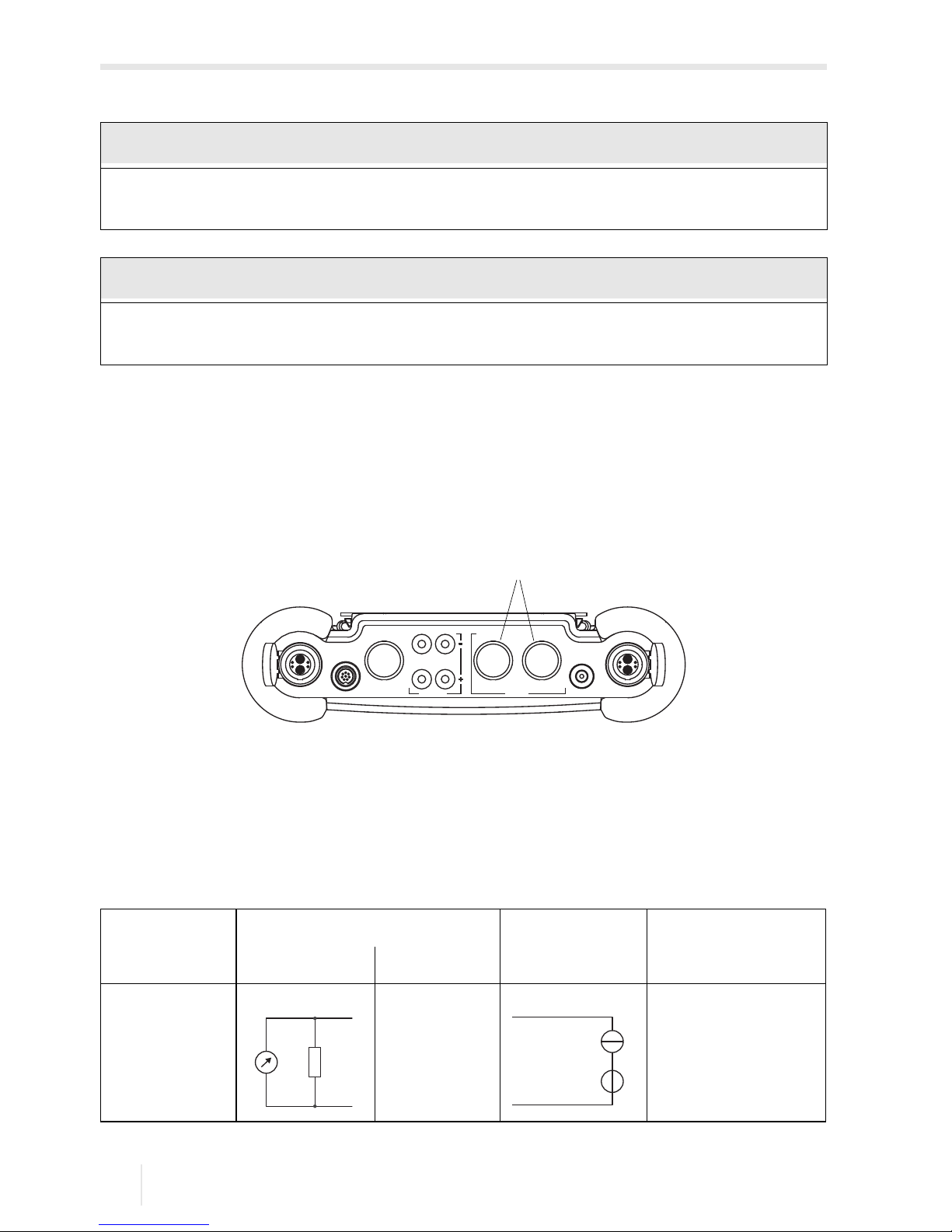

7.1.4 Inputs

7.1.4.1 Temperature input

It is possible to connect temperature probes Pt100/Pt1000 (4-wire) to the inputs of the transmitter (optional), see Fig. 7.6.

For the assignment and the activation of the temperature inputs, see chapter 14.

7.1.4.2 Current input

An active current source or a passive current source with an external power supply can be connected to a passive current input.

Notice!

For the connection, observe the specifications regarding the assignment of the inputs given on the nameplate on the backside of the transmitter.

Notice!

The max. voltage between the inputs and the internal power supply of the transmitter is 42 V DC (permanent).

Fig. 7.6: Connection of the transmitter inputs

1 – inputs

Tab. 7.2: Connection of a active current source

input transmitter external circuit remark

internal circuit connection

passive current input

max. permanent overcurrent: 40 mA

CH A

COMM

Output

P3...P8

P2 P1

T1/T3 T2/T4

Input

CH B

DC-IN

Page 55

7 Connection

FLUXUS F60* 7.1 FLUXUS *601

UMFLUXUS_F60xV5-0EN, 2017-10-16

If the polarity of the current source is inversed, only the sign of the measured current will change.

An external voltage source U

ext

is necessary. It has to provide a current of min. 20 mA

and

• supply sufficient power for the requirements of the passive current source and

• cover the voltage drop at the input resistor (1 V at 20 mA) and

• cover all other voltage drops (e.g., cable resistance) in the circuit.

If the transmitter has an active output, the output can be used as power supply by means of an adapter, see section 7.1.4.4.

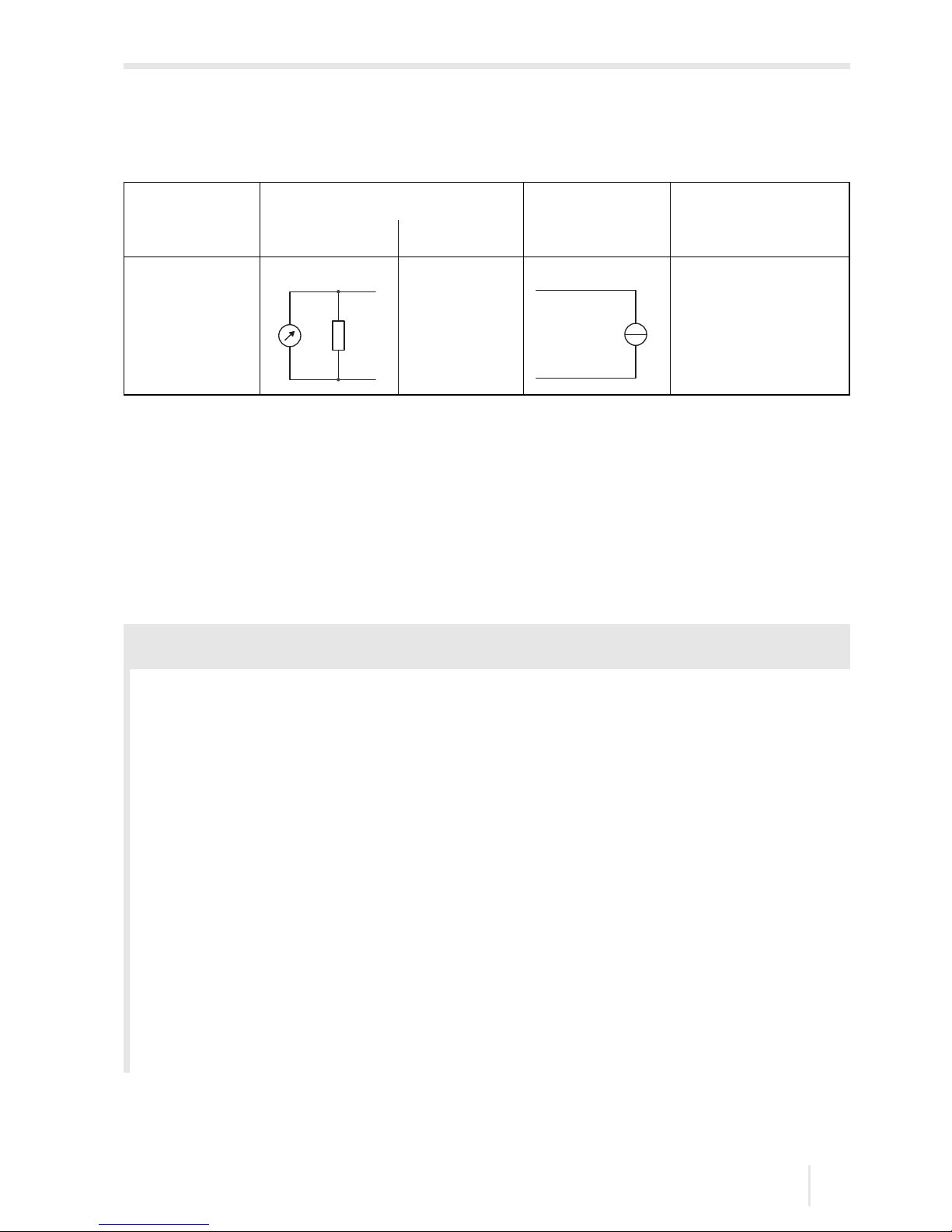

Tab. 7.3: Connection of a passive current source

input transmitter external circuit remark

internal circuit connection

passive current input

short circuit current: max. 40 mA

Example

A passive current source with an external power supply (e.g., a pressure sensor) is to be connected to a passive current input.

Technical data of the pressure sensor:

= 11...30 V DC

= 4...20 mA (I

a max

= 22 mA)

ext

required for the operation of the passive pressure sensor is:

ext min

= U

S min

+ I

a max

· Ri + I

a max

· R

ext min

= 11 V + 22 mA · 50 Ω + 22 mA · 2 Ω

ext min

= 12.14 V

ext max

= U

S max

ext max

= 30 V

– operating voltage of the pressure sensor

Ia – output current

Ri – input resistance

Rc – cable resistance

Page 56

7 Connection

7.1 FLUXUS *601 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

7.1.4.3 Input adapter

The number of temperature inputs can be increased to max. 4 by means of 2 input adapters (optional), see Fig. 7.7.

If the transmitter has voltage or current inputs, the adapter for voltage and current inputs will be used, see Fig. 7.8.

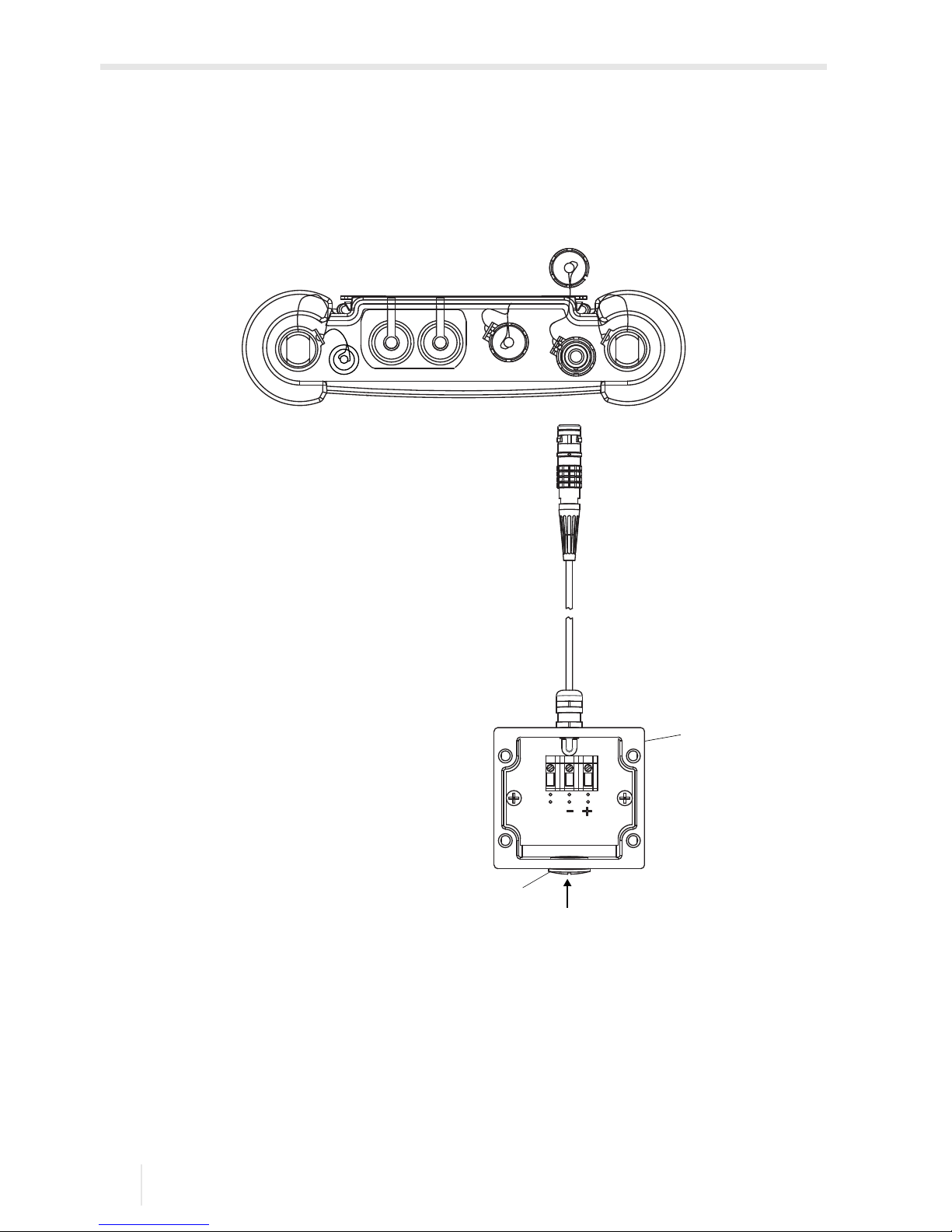

Fig. 7.7: Connection of the input adapters

1 – input adapter

CH A

COMM

Output

P3...P8

P2 P1

T1/T3 T2/T4

Input

CH B

DC-IN

T1 T2

T3 T4

Page 57

7 Connection

FLUXUS F60* 7.1 FLUXUS *601

UMFLUXUS_F60xV5-0EN, 2017-10-16

7.1.4.4 Connection of an active input

For the connection of a passive current source to a passive current input, an external power supply has to be provided.

If the transmitter has an active output, the output can be used as power supply by means of an adapter.

For the connection of the adapter see Fig. 7.9 and Tab. 7.4.

The adapter establishes the connection between the active output and the passive input of the transmitter. At the same time, the passive current source is connected via the adapter.

Fig. 7.8: Connection of the adapter for the voltage and current inputs

1 – input adapter 2 – adapter for voltage and current inputs

CH A

COMM

Output

P3...P8

P2 P1

T1/T3 T2/T4

Input

CH B

DC-IN

Page 58

7 Connection

7.1 FLUXUS *601 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

For the configuration of an output see section 13.1.

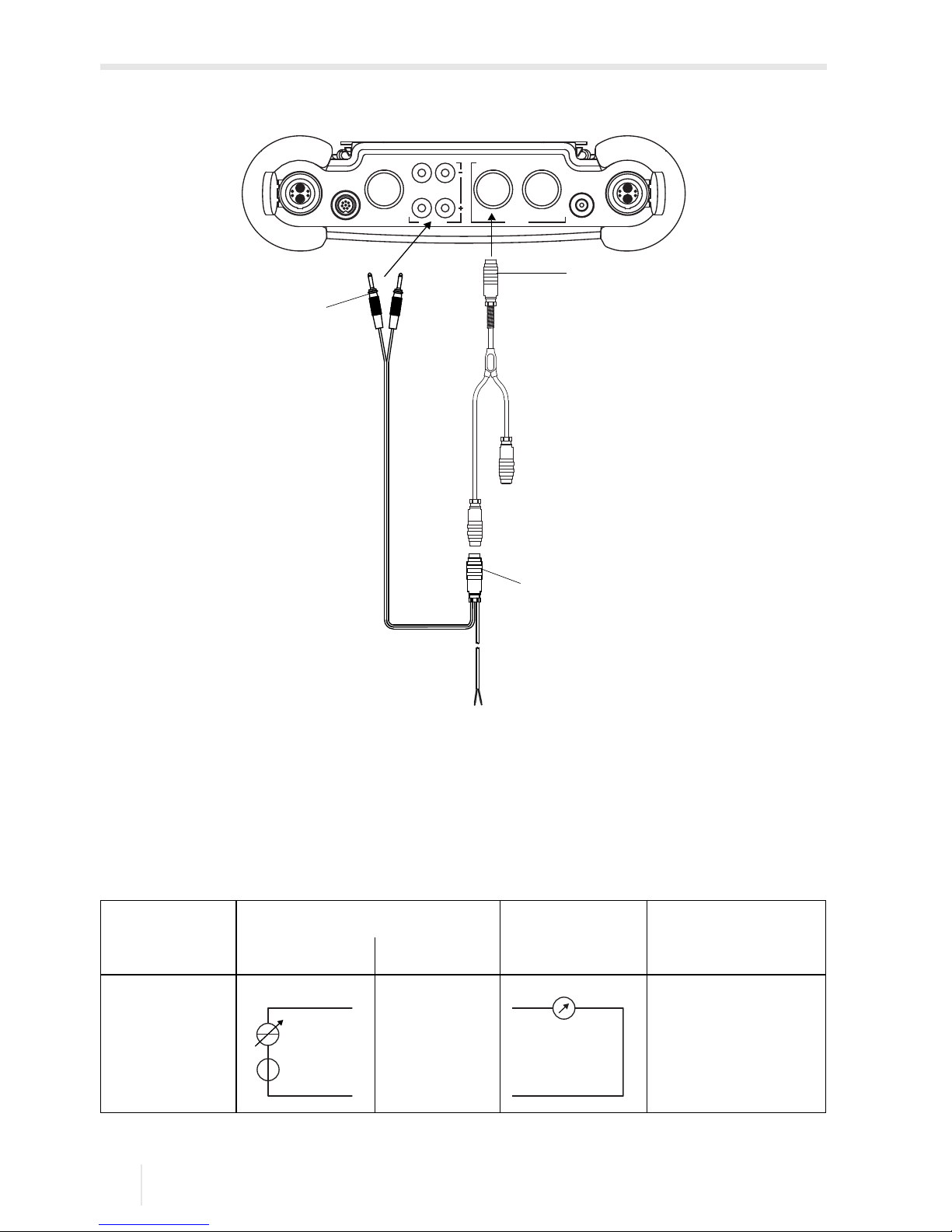

Fig. 7.9: Connection of the adapter for the active current input

1 – input adapter 2 – adapter for the active current input 3 – connector 4 – passive current source

Tab. 7.4: Circuit of the output when connecting an active input

output transmitter external circuit remark

internal circuit connection

active current output

ext

< 900 Ω

int

= 24 V DC

CH A

COMM

Output

P3...P8

P2 P1

T1/T3 T2/T4

Input

CH B

DC-IN

passive current source

Px+

Px-

Page 59

7 Connection

FLUXUS F60* 7.1 FLUXUS *601

UMFLUXUS_F60xV5-0EN, 2017-10-16

7.1.5 Serial interface

• Connect the RS232 cable to the transmitter, see Fig. 7.10, and to the serial interface of the PC.

• Use the RS232 adapter for the connection of the RS232 cable to the transmitter. If the RS232 cable cannot be connected to the PC, use the RS232/USB adapter.

The RS232 adapter, the RS232 cable and the RS232/USB adapter are part of the serial data kit (optional).

Notice!

If a problem occurs when using the RS232/USB adapter for connection, contact your system administrator.

Fig. 7.10: Connection of the serial interface

1 – serial interface

CH A

COMM

Output

P3...P8

P2 P1

T1/T3 T2/T4

Input

CH B

DC-IN

Page 60

7 Connection

7.2 FLUXUS *608 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

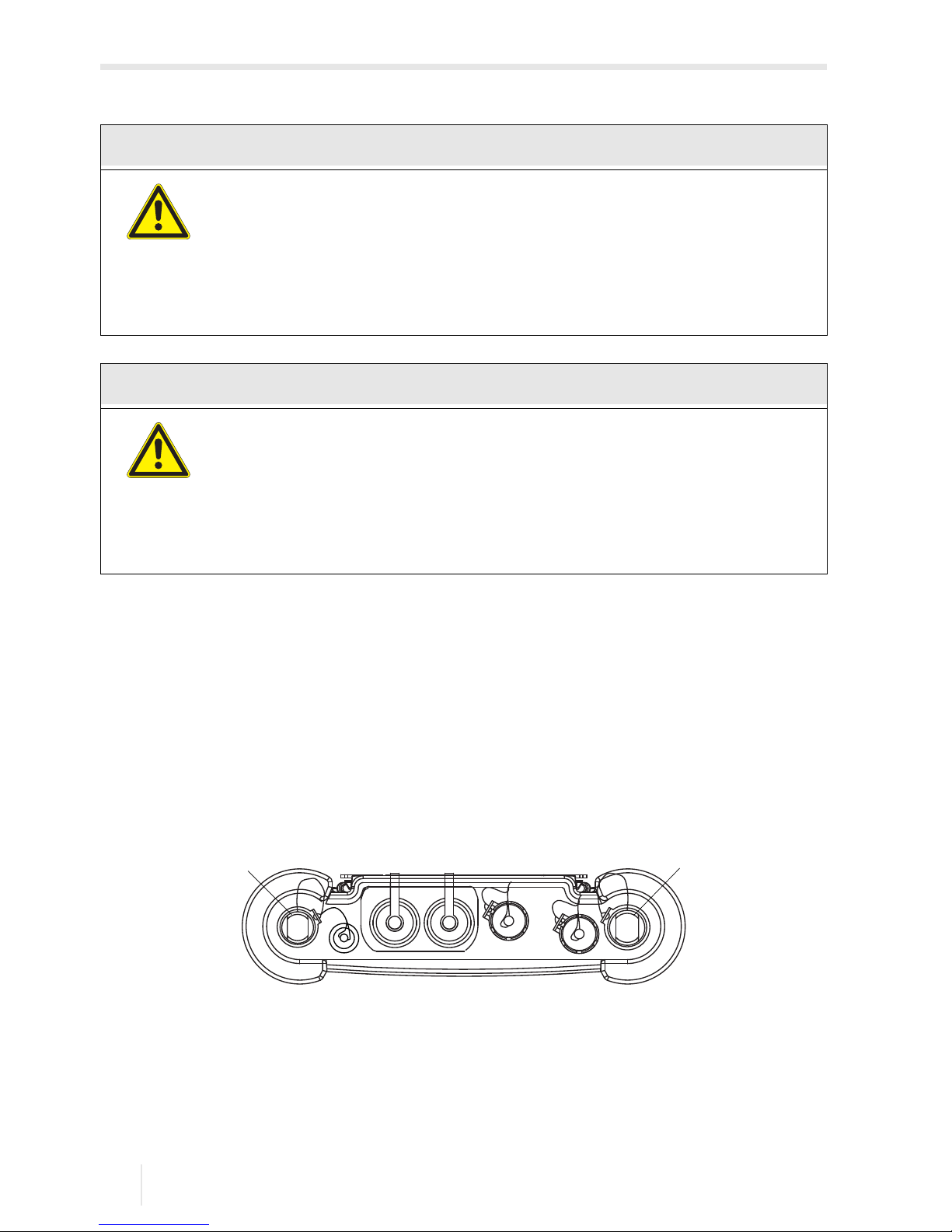

7.2 FLUXUS *608

7.2.1 Transducers

FLUXUS *608**-A2

The connections are on the upper side of the transmitter, see Fig. 7.11.

• Remove the blind plug, see Fig. 7.12.

• Insert the connector of the transducer cable into the socket of the transmitter. The red point (a) on the connector has to be aligned with the red marking (b) on the socket, see Fig. 7.13.

Danger!

Risk of explosion when using the transmitter FLUXUS *608**-A2 in explosive atmospheres

This may result in personal or material damage or other dangerous situations.

→ Observe the "Safety instructions for the use in explosive atmospheres",

(see document SIFLUXUS_608).

Danger!

Risk of explosion when using the transmitter FLUXUS *608**-F2 in explosive atmospheres

This may result in personal or material damage or other dangerous situations.

→ Observe the "Safety instructions for the use in explosive atmospheres",

see document SIFLUXUS_608F2).

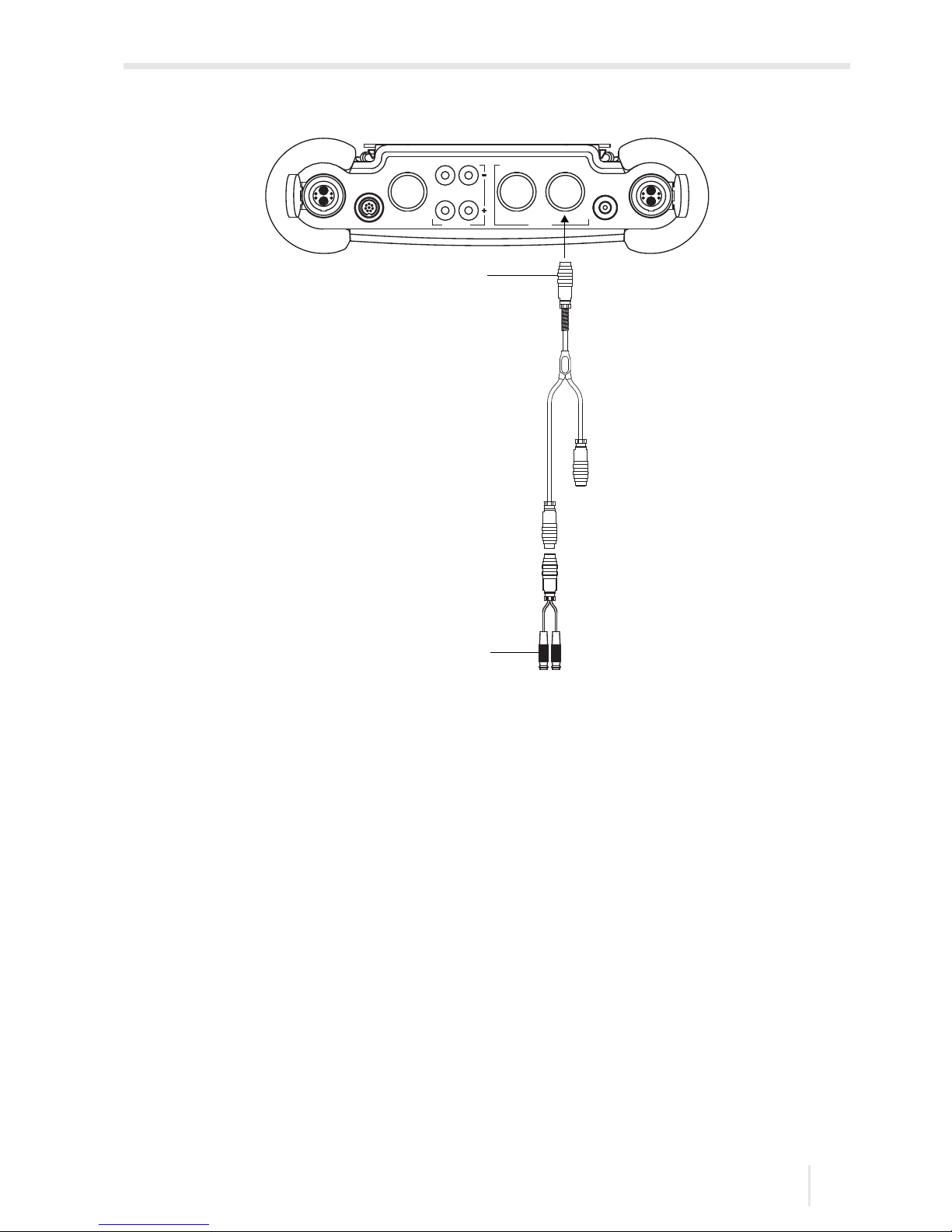

Fig. 7.11: Connection of the transducers to the transmitter

1 – transducers (measuring channel A) 2 – transducers (measuring channel B)

CH A

COMM

Input Output

CH B

DC-IN

Page 61

7 Connection

FLUXUS F60* 7.2 FLUXUS *608

UMFLUXUS_F60xV5-0EN, 2017-10-16

FLUXUS *608**-F2

The connections are on the upper side of the transmitter, see Fig. 7.14.

• Remove the substitute plug, if present.

• Insert the connector of the transducer cable into the socket of the transmitter. The red point (a) on the connector has to be aligned with the red marking (b) on the socket, see Fig. 7.15.

• Secure the connector with of the locking ring by tightening the locking screw, see Fig.

7.16.

• If a socket for the connection of transducers is not used, close it with a substitute plug. Secure the substitute plug by tightening the locking screw.

Fig. 7.12: Removal of the blind plug

Fig. 7.13: Transducer connection

(a)

(b)

Page 62

7 Connection

7.2 FLUXUS *608 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

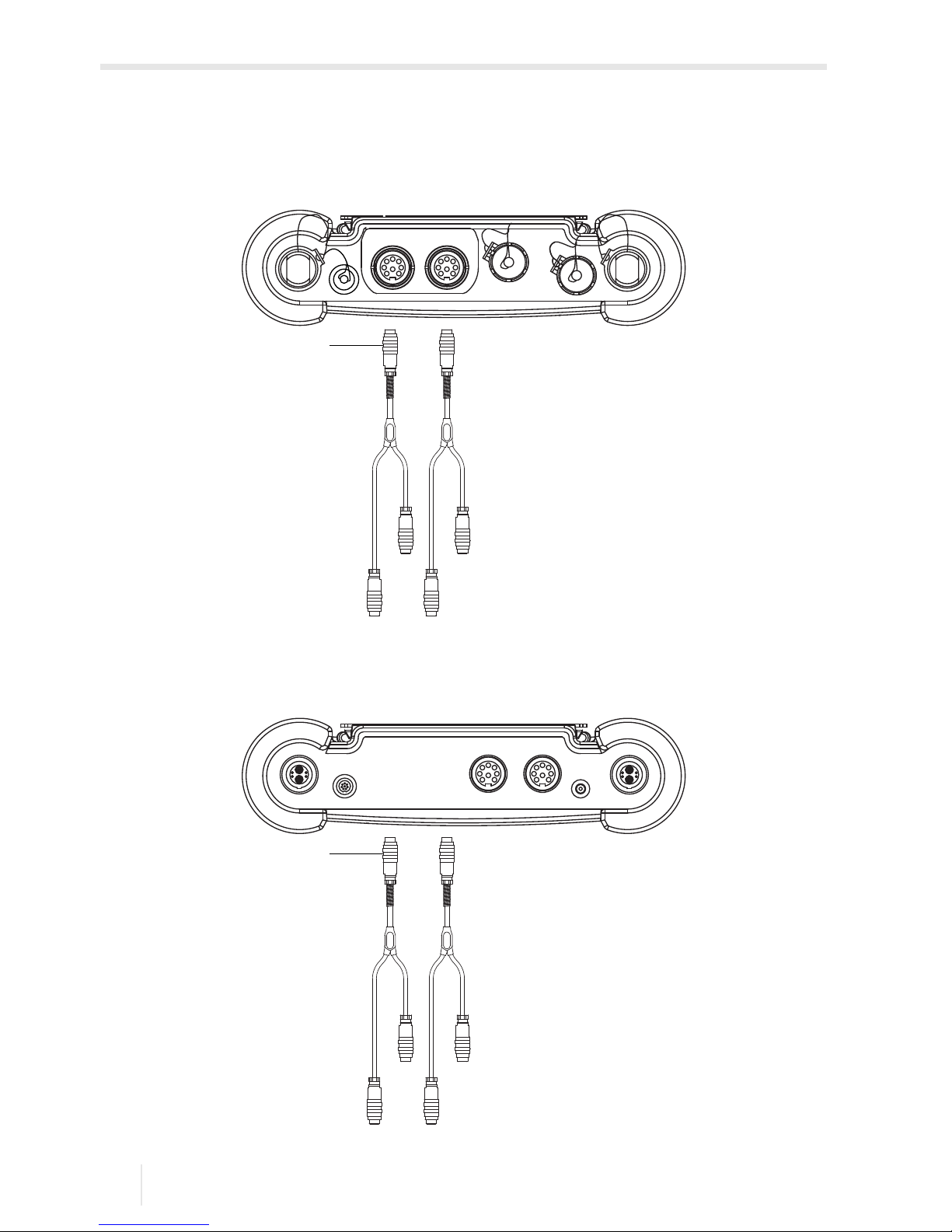

Fig. 7.14: Connection of the transducers to the transmitter

1 – transducers (measuring channel A) 2 – transducers (measuring channel B)

Fig. 7.15: Transducer connection

Fig. 7.16: Transducer connection

1 – transducer connector 2 – locking ring 3 – locking screw

CH A

COMM

CH B

DC-IN

(a)

(b)

Page 63

7 Connection

FLUXUS F60* 7.2 FLUXUS *608

UMFLUXUS_F60xV5-0EN, 2017-10-16

7.2.2 Power supply

The transmitter can be operated with the integrated battery, the power cable with power adapter (FLUXUS *608**-A2 only) or the power supply unit (FLUXUS *608**-F2 only).

7.2.2.1 Operation with battery

The battery charge can be displayed during the measurement, see section 9.4.3 and in the program branch Special Funct.:

• Select Special Funct.\Battery status.

• Press ENTER.

The current battery charge is displayed (here: 30 %).

The minus sign (-) indicates that the transmitter is in battery mode and is being discharged.

The number of cycles the battery has passed is displayed after Cy:.

A cycle corresponds to a charging and discharging process. The life time of the battery can be derived by means of this value.

This message will be displayed if the battery is almost empty:

The capacity is sufficient for the display and storing of the current parameter record. A measurement is impossible.

Special Funct.\Battery status

LOW BATTERY !

■■■ 30‰Cy: 1

Page 64

7 Connection

7.2 FLUXUS *608 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

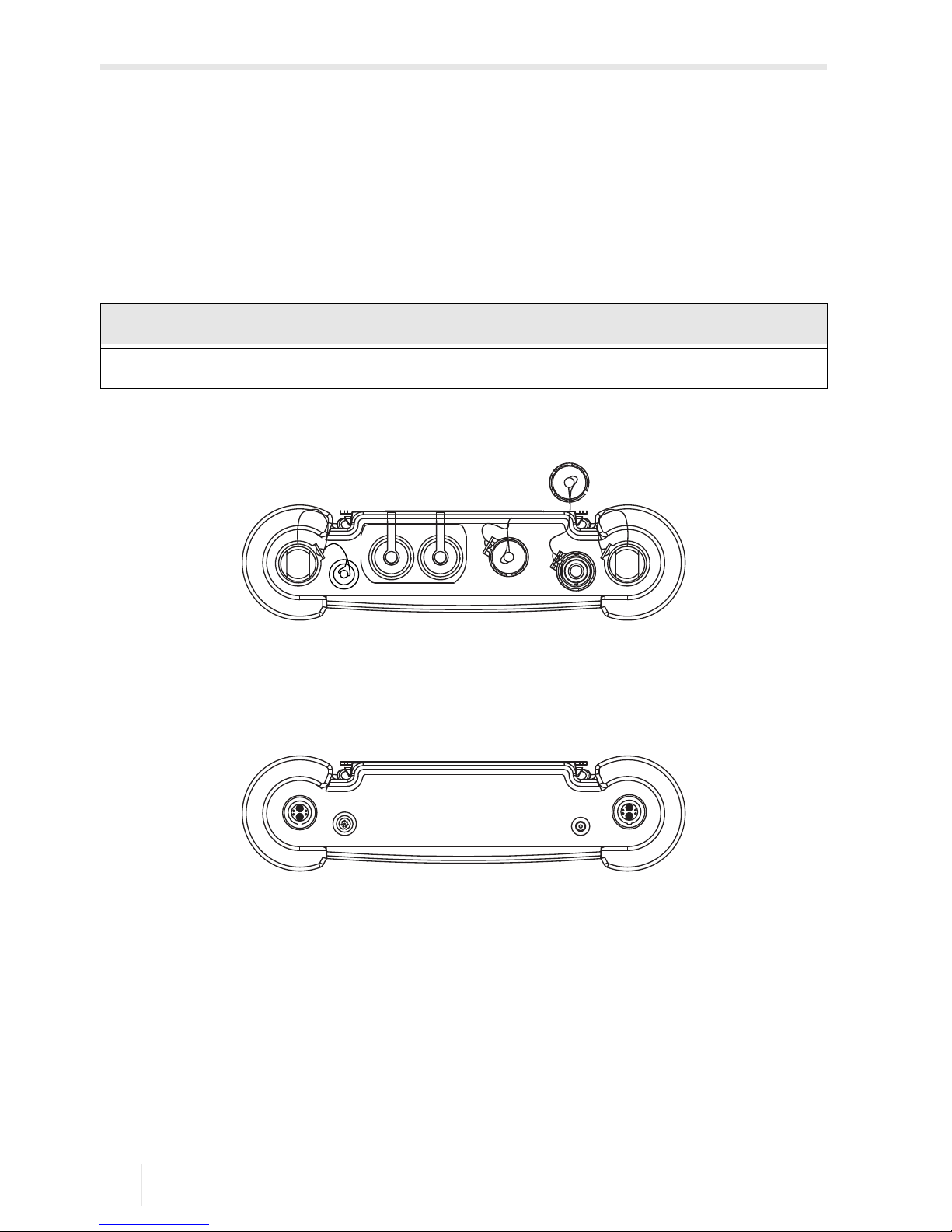

Charging the battery

Connect the power supply to the transmitter, see Fig. 7.17 or Fig. 7.18. Switch on the transmitter. The charging starts automatically. The LED "BATTERY" flashes green while charging. The max. charging time is approx. 8 h.

During the charging process, the ambient temperature should be in the range of

0...45 °C.

A measurement can be made during the charging. Charging will be stopped automatically when the battery is fully charged. The LED "BATTERY" lights green then.

Storage of the battery

The battery remains in the transmitter. After storage, the transmitter can immediately be operated with the battery.

• battery charge: > 30 %

• storing temperature: 12...25 °C

Notice!

The battery will only be charged if the transmitter is switched on.

Fig. 7.17: Connection of the power supply unit to the transmitter FLUXUS *608**-A2

1 – power supply unit/battery charging unit

Fig. 7.18: Connection of the power supply unit to the transmitter FLUXUS *608**-F2

1 – power supply unit/battery charging unit

CH A

COMM

Input Output

CH B

DC-IN

CH A

COMM

CH B

DC-IN

Page 65

7 Connection

FLUXUS F60* 7.2 FLUXUS *608

UMFLUXUS_F60xV5-0EN, 2017-10-16

Maintenance (relearn cycle)

The accuracy of the displayed value for the charge state of the battery is improved by executing a relearn cycle. The ambient temperature during a relearn cycle should be in the range of 12...30 °C.

• Select Special Funct.\Battery status.

• Press ENTER.

The charge state of the battery is displayed (here: 73 %).

A question mark (?) and RELEARN indicate that the value for the displayed battery charge is not reliable. A relearn cycle is recommended.

Proceed as follows for a relearn cycle:

• Charge the battery completely. The LED "BATTERY" lights green when charging is finished.

Automatic power-off

In battery mode, the transmitter has an automatic power-off. The transmitter will be switched off if

• no measurement is being made and no key is pressed within 10 min or

• the battery is empty

This message will be displayed before the transmitter is switched off automatically. A countdown with an acoustic signal will be started.

The countdown can be stopped by pressing any key.

If this message is displayed when the transmitter is switched on, the transmitter has been switched off automatically due to a too low battery charge.

Special Funct.\Battery status

■■■■■ ? 73‰RELEARN! Cy: 24

POWER OFF IN

10 s

■ LOW BATTERY WHILE POWER OFF

Page 66

7 Connection

7.2 FLUXUS *608 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

7.2.2.2 Power supply with cable and adapter (optional)

FLUXUS *608**-A2

The power adapter has to be used for the connection of the power cable.

Fig. 7.19: Connection of the power adapter to the transmitter

1 – power adapter 2 – blind plug 3 – connection of the power cable

CH A

COMM

Input Output

CH B

DC-IN

Page 67

7 Connection

FLUXUS F60* 7.2 FLUXUS *608

UMFLUXUS_F60xV5-0EN, 2017-10-16

• Remove the blind plug, see Fig. 7.19.

• Prepare the cable with an M20 cable gland.

• Push the cable through the cap nut, the compression part and the basic part of the cable gland, see Fig. 7.19 and Fig. 7.20.

• Insert the cable into the housing.

• Screw the sealing ring side of the basic part into the housing of the power adapter.

• Fix the cable gland by screwing the cap nut onto the basic part of the cable gland.

• Connect the cable to the terminals of the power adapter, see Fig. 7.19 and Tab. 7.5.

• Connect the connector of the power adapter to the socket of the transmitter, see Fig.

7.19.

7.2.2.3 Operation with power supply unit (FLUXUS *608**-F2 only)

• Connect the power supply unit to the socket on the upper side of the transmitter, see Fig. 7.21.

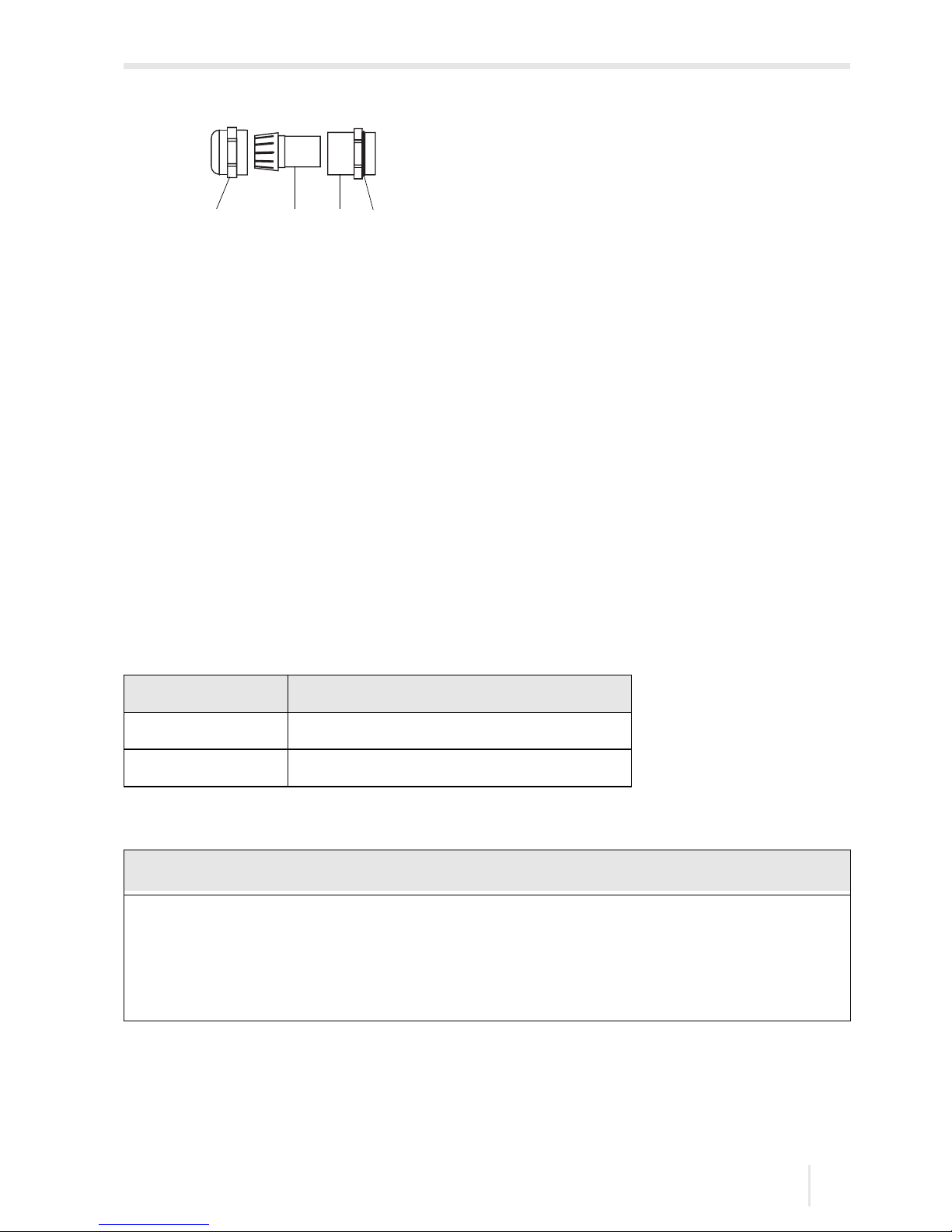

Fig. 7.20: Cable gland

1 – cap nut 2 – compression part 3 – basic part 4 – gasket ring side of the basic part

Tab. 7.5: Terminal assignment (power adapter)

terminal connection DC

(+) -DC

(-) +DC

Notice!

3214

Page 68

7 Connection

7.2 FLUXUS *608 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

7.2.3 Outputs

The output adapter has to be used for the connection of the output adapters, see Fig.

7.22.

• Remove the blind plug.

• Prepare the output cable with an M20 cable gland.

• Push the output cable through the cap nut, the compression part and the basic part of the cable gland, see Fig. 7.23.

• Insert the output cable into the housing, see Fig. 7.22.

• Screw the sealing ring side of the basic part into the housing of the power adapter.

• Fix the cable gland by screwing the cap nut onto the basic part of the cable gland, see Fig. 7.23.

• Connect the leads of the output cable to the terminals of the output adapter, see Fig.

7.22 and Tab. 7.6.

• Remove the socket cover from the transmitter for the connection of the output adapter.

• Connect the connector of the output adapter to the socket.

Fig. 7.21: Connections on the transmitter

1 – power supply unit/battery charging unit

CH A

COMM

CH B

DC-IN

Page 69

7 Connection

FLUXUS F60* 7.2 FLUXUS *608

UMFLUXUS_F60xV5-0EN, 2017-10-16

Fig. 7.22: Connection of the output adapter to the transmitter

1 – power adapter 2 – blind plug 3 – connection of the outputs

CH A

COMM

Input Output

CH B

DC-IN

Page 70

7 Connection

7.2 FLUXUS *608 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

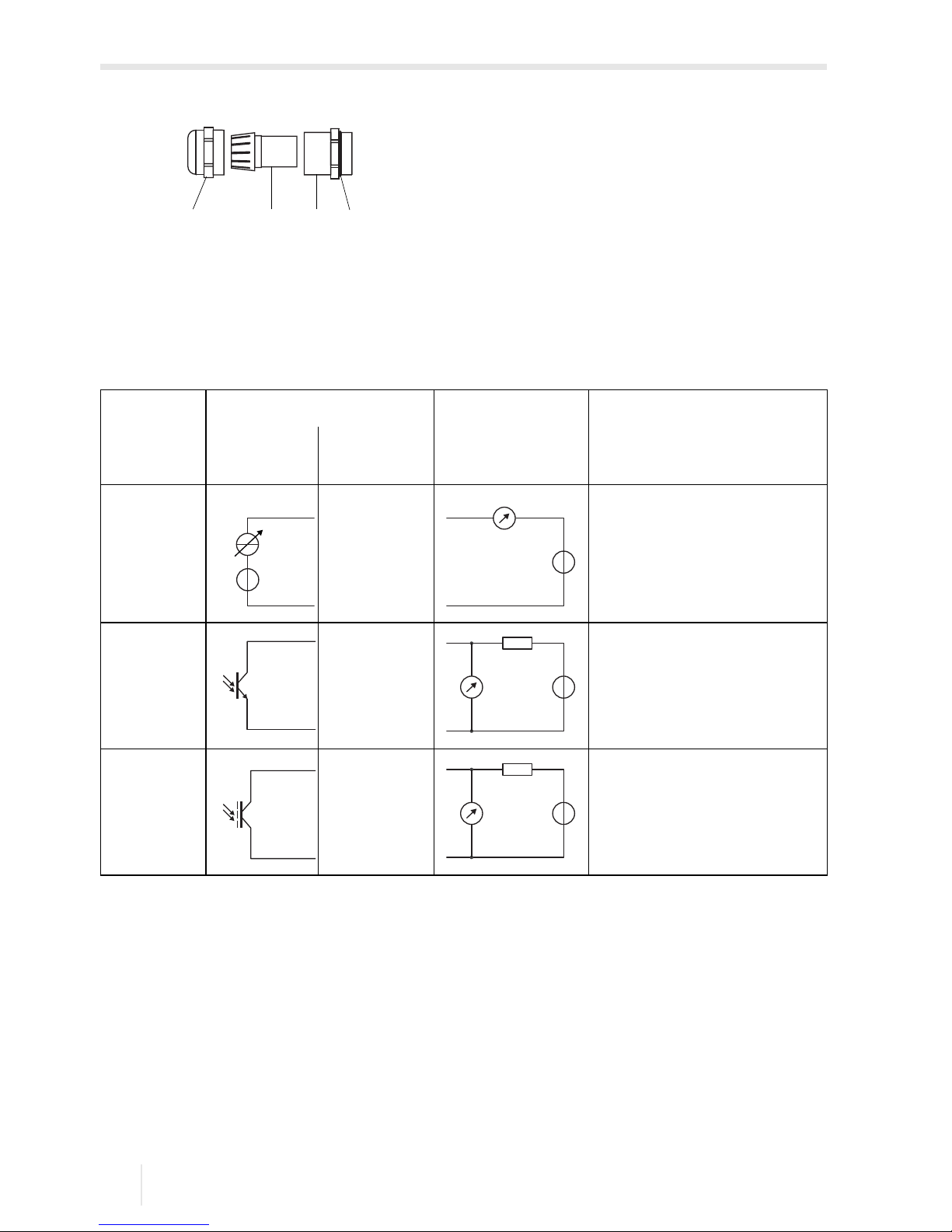

Fig. 7.23: Cable gland

1 – cap nut 2 – compression part 3 – basic part 4 – gasket ring side of the basic part

Tab. 7.6: Circuit of the outputs

output transmitter external circuit remark

internal circuit

connection

passive current output

ext =

4…9 V

ext

> 0.021 A · R

ext

[Ω] + 4 V

example: U

ext

= 6 V

ext

≤ 90 Ω

frequency output

ext

= 5…24 V

[kΩ] = U

ext/Ic

[mA]

= 1…4 mA

binary output (optorelay)

ext

≤ 26 V

≤ 100 mA

The number, type and the connections of the outputs depend on the order. R

ext

is the sum of all ohmic resistances in the circuit (e.g., resistance of the conductors, resistance

of the amperemeter/voltmeter).

3214

Px+

Px-

ext

Px+

Px-

ext

Px+

Px-

ext

Page 71

7 Connection

FLUXUS F60* 7.2 FLUXUS *608

UMFLUXUS_F60xV5-0EN, 2017-10-16

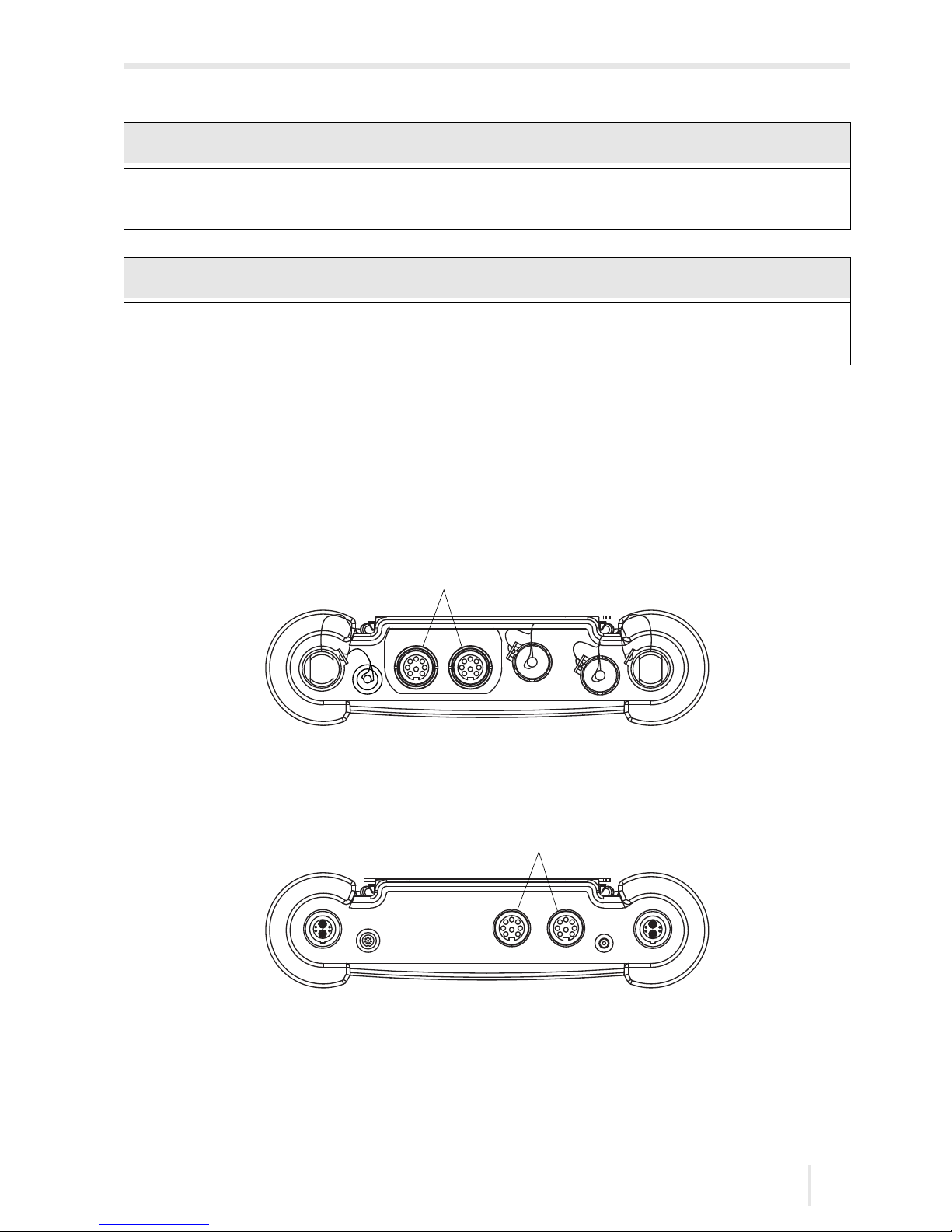

7.2.4 Inputs (optional)

7.2.4.1 Temperature input

It is possible to connect temperature probes Pt100/Pt1000 (4-wire) to the inputs of the transmitter (optional).

For the assignment and the activation of the temperature inputs, see chapter 14.

Notice!

For the connection, observe the specifications regarding the assignment of the inputs given on the nameplate on the backside of the transmitter.

Notice!

The max. voltage between the inputs and the internal power supply of the transmitter is 42 V DC (permanent).

Fig. 7.24: Connections on the transmitter FLUXUS *608**-A2

1 – inputs

Fig. 7.25: Connections on the transmitter FLUXUS *608**-F2

1 – inputs

CH A

COMM

Input Output

CH B

DC-IN

CH A

COMM

Input

CH B

DC-IN

Page 72

7 Connection

7.2 FLUXUS *608 FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

7.2.4.2 Input adapter (optional)

The number of temperature inputs can be increased to max. 4 by means of 2 input adapters.

Fig. 7.26: Connection of the input adapter to the transmitter FLUXUS *608**-A2

1 – input adapter

Fig. 7.27: Connection of the input adapter to the transmitter FLUXUS *608**-F2

1 – input adapter

CH A

COMM

Input Output

CH B

DC-IN

CH A

COMM

Input

CH B

DC-IN

Page 73

7 Connection

FLUXUS F60* 7.2 FLUXUS *608

UMFLUXUS_F60xV5-0EN, 2017-10-16

7.2.5 Serial interface

• Connect the RS232 cable to the transmitter and the serial interface of the PC.

• Use the RS232 adapter for the connection of the RS232 cable to the transmitter. If the RS232 cable cannot be connected to the PC, use the RS232/USB adapter.

The RS232 adapter, the RS232 cable and the RS232/USB adapter are part of the serial data kit (optional).

Notice!

If a problem occurs when using the RS232/USB adapter for connection, contact your system administrator.

Fig. 7.28: Connection of the serial interface to the transmitter FLUXUS *608**-A2

1 – serial interface

Fig. 7.29: Connection of the serial interface to the transmitter FLUXUS *608**-F2

1 – serial interface

CH A

COMM

Input Output

CH B

DC-IN

CH A

COMM

CH B

DC-IN

Page 74

8 Start-up

8.1 Start-up settings FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

8 Start-up

8.1 Start-up settings

When starting up the transmitter for the first time, the following settings are required:

• language

• units of measurement

• time/date

These displays will only be indicated once when the transmitter is switched on for the first time.

The available transmitter languages are displayed.

• Select a language.

• Press ENTER.

The menus are displayed in the selected language.

• Select metric or imperial.

• Press ENTER.

Danger!

Risk of explosion when using the transmitter FLUXUS *608**-A2 in explosive atmospheres

This may result in personal or material damage or other dangerous situations.

→ Observe the "Safety instructions for the use in explosive atmospheres",

see document SIFLUXUS_608.

Danger!

Risk of explosion when using the transmitter FLUXUS *608**-F2 in explosive atmospheres

This may result in personal or material damage or other dangerous situations.

→ Observe the "Safety instructions for the use in explosive atmospheres",

see document SIFLUXUS_608F2.

Select language

Engineer. Units

Page 75

8 Start-up

FLUXUS F60* 8.2 Switching on/off

UMFLUXUS_F60xV5-0EN, 2017-10-16

• Select yes if the transmitter is to be used in the region of Canada.

• Press ENTER.

This display will only be indicated if imperial is selected.

The current time is displayed.

• Press ENTER to confirm the time or to set the current time via the numeric field.

• Press ENTER.

The current date is displayed.

• Press ENTER to confirm the date or to set the current date via the numeric field.

• Press ENTER.

8.2 Switching on/off

Press key C to switch on the transmitter.

After switching on, it will be displayed which transducer has been detected at which measuring channel.

Afterwards, the serial number of the transmitter is displayed for a short time. It is not possible to enter any data while the serial number is displayed.

Afterwards, the main menu is displayed in the default language. The language of the display can be set, see section 8.4.

Press key BRK 3 times to switch off the transmitter.

CANADA-REGION

TIME

DATE

Page 76

8 Start-up

8.3 Program branches FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

8.3 Program branches

The following illustration provides an overview of the program branches. For a detailed overview of the menu structure, see annex A.

SYSTEM settings contains the following menu items:

• dialogs and menus

• inputs

• measurement

• outputs

•storing

• signal snap

• network

• serial transmission

• miscellaneous

• set clock

• libraries

Parameter Measuring Output Options Special Funct.

Selection of measuring

channel

Selection of measuring

channel

Selection of measuring

channel

System settings

Pipe parameters Measuring point number Physical quantity Instrument information

Fluid parameters Number of sound paths Unit of measurement Storage of parameter

record

Transducer positioning Damping Deletion of parameter

record

Measurement Printing of measured

values

Consistency check Deletion of measured

values

Battery status

Page 77

8 Start-up

FLUXUS F60* 8.4 HotCodes

UMFLUXUS_F60xV5-0EN, 2017-10-16

8.4 HotCodes

A HotCode is a digit sequence that activates certain functions and settings.

A HotCode can only be entered in the main menu immediately after the transmitter has been switched on. The HotCode is not displayed during the input.

8.5 Language

The language can be selected with the following HotCodes:

When the last digit has been entered, the main menu is displayed in the selected language.

The selected language remains activated when the transmitter is switched off and on again. After an initialization of the transmitter, the language is reset to the default language.

function HotCode deactivation

reset of the display to medium contrast 555000

language selection 9090xx

enabling the FastFood mode 007022 HotCode 007022

manual input of the lower limit for the inner pipe diameter 007001

activation of the SuperUser mode 071049 switching off the

transmitter

activation of the BTU mode 007025 HotCode 007025

change of the transmission parameters of the RS232 interface

232-0-

language HotCode

Dutch 909031

French 909033

Spanish 909034

English 909044

German 909049

Page 78

8 Start-up

8.6 Initialization FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

8.6 Initialization

During an initialization (INIT) of the transmitter, the settings in the program branches

Parameter and Output Options and some of the settings in the program branch Special Funct. are reset to the default settings of the manufacturer.

Proceed as follows to execute an initialization:

• When switching on the transmitter: keep keys BRK and C pressed.

• During the operation of the transmitter: press keys BRK, C and ENTER at the same time. A reset is executed. Release only key ENTER. Keep keys BRK and C pressed.

After the initialization has been executed, the message INITIALISATION DONE is displayed.

After the initialization, the remaining settings of the transmitter can be reset to the default settings and/or the stored measured values can be deleted.

• Select yes to reset the remaining settings of the transmitter to default settings or no to keep them at the current settings.

• Press ENTER.

If yes is selected, the message FACTORY DEFAULT DONE will be displayed.

• Select yes to delete the stored measured values or no to keep them.

• Press ENTER.

This display will only be indicated if measured values are stored in the transmitter.

FACTORY DEFAULT

Delete Meas.Val.

Page 79

8 Start-up

FLUXUS F60* 8.7 Time and date

UMFLUXUS_F60xV5-0EN, 2017-10-16

8.7 Time and date

The transmitter has a battery-powered clock. Measured values are automatically stored with date and time.

• Select the menu item Set Clock.

• Press ENTER.

The current time is displayed.

• Select ok to confirm the time or new to adjust it.

• Press ENTER.

• Select the character to be edited with key and . Edit the selected character with key and .

• Press ENTER.

The new time is displayed.

• Select ok to confirm the time or new to adjust it again.

• Press ENTER.

After the time has been set, the date is displayed.

• Select ok to confirm the date or new to adjust it.

• Press ENTER.

• Select the character to be edited with key and . Edit the selected character with key and .

• Press ENTER.

The new date is displayed.

• Select ok to confirm the date or new to adjust it again.

• Press ENTER.

Special Funct.\SYSTEM settings\Set Clock\TIME

Special Funct.\SYSTEM settings\Set Clock\DATE

Page 80

8 Start-up

8.8 Instrument information FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

8.8 Instrument information

• Select the menu item Instrum. Inform. to get information about the transmitter.

• Press ENTER.

The type and the serial number of the transmitter are displayed in the upper line.

The max. available data logger will be displayed in the lower line (here: 18 327 additional measured values can be stored).

• Press ENTER.

The firmware version of the transmitter is displayed with the date in the lower line.

• Press ENTER.

Special Funct.\Instrum. Inform.

F60x -XXXXXXXX

Free: 18327

V x.xx dd.mm.yy

Page 81

9 Measurement

FLUXUS F60*

UMFLUXUS_F60xV5-0EN, 2017-10-16

9 Measurement

Danger!

Risk of explosion when using the transmitter FLUXUS *608**-A2 in explosive atmospheres

This may result in personal or material damage or other dangerous situations.

→ Observe the "Safety instructions for the use in explosive atmospheres",

see document SIFLUXUS_608.

Danger!

Risk of explosion when using the transmitter FLUXUS *608**-F2 in explosive atmospheres

This may result in personal or material damage or other dangerous situations.

→ Observe the "Safety instructions for the use in explosive atmospheres",

see document SIFLUXUS_608F2.

Notice!

During the parameter input, the transducers have to be connected to the transmitter.

Notice!

The parameters will only be stored when the program branch Parameter has been edited in its entirety.

Page 82

9 Measurement

9.1 Parameter input FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

9.1 Parameter input

The pipe and fluid parameters are entered for the selected measuring point. The parameter ranges are limited by the technical characteristics of the transducers and the transmitter.

• Select the program branch Parameter.

• Press ENTER.

• Select a channel for which the parameters are to be entered (here: channel A).

• Press ENTER.

If Parameter from: is displayed, at least on parameter record can be stored and can be selected. Each parameter record comprises all data necessary for a measurement:

• pipe parameters

• fluid parameter

• transducer parameters

• output options

A parameter record can be defined for each measuring task, see section 19.3.

Parameter

for Channel …

Outer Diameter

Wall Thickness

Pipe Material

Lining

Roughness

Medium

Medium Temperat.

Transducer Type

see annex A, p. 220

Parameter\for Channel A:

Page 83

9 Measurement

FLUXUS F60* 9.1 Parameter input

UMFLUXUS_F60xV5-0EN, 2017-10-16

9.1.1 Input of pipe parameters

Outer pipe diameter/pipe circumference

• Enter the outer pipe diameter.

• Press ENTER.

An error message will be displayed if the entered parameter is outside the range. The limit is displayed.

Example: upper limit 1100 mm for the connected transducers and for a pipe wall thickness of 50 mm.

It is possible to enter the pipe circumference instead of the outer pipe diameter, see section 19.1.

If the input of the pipe circumference is activated and zero is entered in Outer Diame- ter, the menu item Pipe Circumfer. will be displayed. If the pipe circumference is not to be entered, press key BRK to return to the main menu and start the parameter input again.

Wall thickness

• Enter the pipe wall thickness.

• Press ENTER.

Parameter\Outer Diameter

Notice!

The inner pipe diameter (= outer pipe diameter - 2 × pipe wall thickness) will be calculated internally.

If the value is not within the inner pipe diameter range of the connected transducers, an error message will be displayed.

It is possible to change the lower limit of the inner pipe diameter for a given transducer type, see section 17.10.

Parameter\Wall Thickness

Outer Diameter

1100.0 MAXIMAL

Page 84

9 Measurement

9.1 Parameter input FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

Pipe material

The pipe material has to be selected to be able to determine the corresponding sound speed.

The sound speeds for the materials in the scroll list are stored in the transmitter.

• Select the pipe material.

• Press ENTER.

• If the material is not in the scroll list, select Other Material.

• Press ENTER.

Sound speed of the pipe material

• Enter the sound speed of the pipe material.

• Press ENTER.

These displays will only be indicated if Other Material is selected.

For the sound speed of some materials, see annex C.

Lining

• Select yes if the pipe has a lining. Select no if the pipe has no lining.

• Press ENTER.

Lining material

• Select the lining material.

• Press ENTER.

• If the lining material is not included in the scroll list, select Other Material.

• Press ENTER.

This display will only be indicated if yes is selected in the menu item Lining.

Parameter\Pipe Material

Parameter\Pipe Material\Other Material\c-Material

Notice!

There are 2 sound speeds for pipe materials, the longitudinal and the transversal one. Enter the sound speed which is nearer to 2500 m/s.

Parameter\Lining

Page 85

9 Measurement

FLUXUS F60* 9.1 Parameter input

UMFLUXUS_F60xV5-0EN, 2017-10-16

Sound speed of the lining material

• Enter the sound speed of the lining material.

• Press ENTER.

These displays will only be indicated if Other Material is selected.

Lining thickness

• Enter the thickness of the lining.

• Press ENTER.

This display will only be indicated if yes is selected in the menu item Lining.

Pipe roughness

The flow profile of the fluid is influenced by the roughness of the inner pipe wall.

The roughness is used for the calculation of the profile correction factor.

In most cases, the pipe roughness cannot be exactly determined and must therefore be estimated.

For the roughness of some materials, see annex C.

• Enter the roughness for the selected pipe or lining material.

• Change the value according to the condition of the inner pipe wall.

• Press ENTER.

Parameter\Lining\Other Material\c-Material

Notice!

For pipe materials there are 2 sound speeds, the longitudinal and the transversal one. Enter the sound speed which is nearer to 2500 m/s.

Parameter\Liner Thickness

Parameter\Roughness

Page 86

9 Measurement

9.1 Parameter input FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

9.1.2 Input of fluid parameters

Fluid

• Select the fluid from the scroll list.

• Press ENTER.

If the fluid is not in the scroll list, select Other Medium.

It is possible to specify which fluids will be displayed in the scroll list, see section 19.4.

If a fluid is selected from the scroll list, the menu item for the input of the fluid temperature is displayed directly.

If Other Medium is selected, the fluid parameters have to be entered first:

• average sound speed of the fluid

• range around the average sound speed of the fluid

• kinematic viscosity

• density

Sound speed of the fluid

The sound speed of the fluid is used for the calculation of the transducer distance. The exact value of the sound speed is not always known. Therefore, a range of possible values for the sound speed has to be entered.

• Enter the average sound speed of the fluid.

• Press ENTER.

This display will only be indicated if Other Medium is selected.

Sound speed range of the fluid

• Select auto if the area around the average sound speed is to be calculated by the transmitter.

• Select user if the range around the average sound speed has to be entered.

• Press ENTER.

This display will only be indicated if Other Medium is selected.

Parameter\Medium

Parameter\Medium\Other Medium\c-Medium

Parameter\Medium\Other Medium\c-Medium range

Page 87

9 Measurement

FLUXUS F60* 9.1 Parameter input

UMFLUXUS_F60xV5-0EN, 2017-10-16

• Enter the range around the average sound speed of the fluid.

• Press ENTER.

This display will only be indicated if user is selected.

Kinematic viscosity of the fluid

The kinematic viscosity influences the flow profile of the fluid. The value is considered in the profile correction.

• Enter the kinematic viscosity of the fluid.

• Press ENTER.

This display will only be indicated if Other Medium is selected.

Fluid density

The density is used to calculate the mass flow.

If the mass flow is not measured, an input is unnecessary. The default value can be used.

• Enter the operating density of the fluid.

• Press ENTER.

This display will only be indicated if Other Medium is selected.

Fluid temperature

At the beginning of the measurement, the fluid temperature is used for the interpolation of the sound speed and therefore for the calculation of the recommended transducer distance.

During the measurement, the fluid temperature is used for the interpolation of the density and viscosity of the fluid.

The value entered here is used for the calculation if the fluid temperature is not measured.

• Enter the fluid temperature. The value at the measuring point has to be within the operating temperature range of the transducers.

• Press ENTER.

Parameter\Medium\Other Medium\c-Medium range\c-Medium

Parameter\Medium\Other Medium\Kinem.Viscosity

Parameter\Medium\Other Medium\Density

Parameter\Medium Temperat.

Page 88

9 Measurement

9.1 Parameter input FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

Fluid pressure

The fluid pressure is used for the interpolation of the sound speed and the gas compressibility coefficient.

• Enter the fluid pressure.

• Press ENTER.

This display will only be indicated if the menu item Fluid pressure is activated in the program branch Special Funct.\SYSTEM settings\Dialogs/Menus.

9.1.3 Other parameters

Transducer parameters

If transducers are detected at a measuring channel, the input of parameters is finished. Press ENTER. The main menu will be displayed.

If no or special transducers are connected, the transducer parameters have to be entered.

• Select Standard to use the standard transducer parameters stored in the transmitter.

• Select Special Version to enter the transducer parameters. The transducer parameters have to be provided by FLEXIM.

• Press ENTER.

If Special Version is selected, enter the 6 transducer parameters specified by FLEXIM. Press ENTER after each input.

Parameter\Fluid pressure

Parameter\Transducer Type

Notice!

If a standard transducer is selected, no transducer-specific calibration values are considered. A higher uncertainty has to be expected.

Parameter\Transducer Type\Special Version

Page 89

9 Measurement

FLUXUS F60* 9.2 Measurement settings

UMFLUXUS_F60xV5-0EN, 2017-10-16

9.2 Measurement settings

9.2.1 Selection of the physical quantity and the unit of measurement

The following physical quantities can be measured:

• sound speed

• flow velocity: is calculated on the basis of the measured transit time difference

• volumetric flow rate: is calculated by multiplying the flow velocity by the cross-sectional pipe area

• mass flow rate: is calculated by multiplying the volumetric flow rate by the operating density of the fluid

• heat flow: is calculated from the volumetric flow rate, the measured temperatures of the supply and return lines, and the heat flow coefficients of the fluid

The physical quantity is selected as follows:

• Select the program branch Output Options.

• Press ENTER.

• Select the channel for which the physical quantity is to be entered (here: channel A).

• Press ENTER.

• Select the physical quantity in the scroll list.

• Press ENTER.

Output Options

for Channel A:

Physic. Quant.

Unit Of Measure

Damping

see annex A, p. 221

Output Options

Output Options\for Channel A:

Output Options\for Channel A:\Physic. Quant.

Page 90

9 Measurement

9.2 Measurement settings FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

For the selected physical quantity (except for the sound speed), a scroll list with the available units of measurement is displayed. The unit of measurement which was selected previously is displayed first.

• Select the unit of measurement of the selected physical quantity.

• Press ENTER.

9.2.2 Input of the damping factor

Each displayed measured value is a floating average of all measured values of the last x seconds, with x being the damping factor. A damping factor of 1 s means that the measured values are not averaged because the measuring rate is approx 1/s. The default value of 10 s is appropriate for normal flow conditions. Values which fluctuate strongly due to a higher flow dynamic, require a higher damping factor.

• Select the program branch Output Options.

• Press ENTER until the menu item Damping is displayed.

• Enter the damping factor.

• Press ENTER.

Press key BRK to return to the main menu. The further displays of the program branch

Output Options are used for the activation of the measured value transmission.

Output Options\for Channel A:\Physic. Quant.\Volume flow

Notice!

If the physical quantity or the unit of measurement is changed, the settings of the outputs have to be checked, see section 9.2.3.

Output Options\for Channel A:\...\Damping

Page 91

9 Measurement

FLUXUS F60* 9.2 Measurement settings

UMFLUXUS_F60xV5-0EN, 2017-10-16

9.2.3 Installation of an output

If the transmitter is equipped with outputs, they have to be installed and activated before they can be used:

• assignment of a measuring channel (source channel) to the output

• assignment of the physical quantity (source item) to be transmitted to the output by the source channel, and the properties of the signal

• definition of the output behavior in case no valid measured values are available

• activation of the installed output in the program branch Output Options

In the following, the configuration of an analog outputs is described.

• Select Special Funct.\SYSTEM settings\Proc. outputs.

• Press ENTER.

SYSTEM settings

Proc. outputs

Install Output

enable

Source chan.

Source item

see annex A, p. 224

Notice!

The settings will be stored at the end of the dialog. If the menu item is quit by pressing key BRK, the changes will not be stored.

Special Funct.\SYSTEM settings\Proc. outputs

Page 92

9 Measurement

9.2 Measurement settings FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

Selection of an output

• Select the output to be installed.

• Press ENTER.

The scroll list contains all available outputs of the transmitter:

– Current IX (--)

– Binary BX (--)

– Frequency FX (--)

A tick () after a list item indicates that this output has already been installed.

• Select yes to install or reconfigure the output.

• Press ENTER.

• Select no to uninstall the output and to return to the previous menu item in order to select another output.

• Press ENTER.

Assignment of a measuring channel

• Select the measuring channel to be assigned to the output as the source channel in the scroll list.

• Press ENTER.

Assignment of a source item

One source item has to be assigned to each selected output.

• Select the physical quantity (source item) to be transmitted to the output by the source channel.

• Press ENTER.

If a binary output is configured, only the list items Limit and Impuls will be displayed.

The source items and their scroll lists are described in Tab. 9.1.

Special Funct.\SYSTEM settings\Proc. outputs\Install Output

Special Funct.\SYSTEM settings\Proc. outputs\I1 enable

Special Funct.\SYSTEM settings\Proc. outputs\...\I1 Source chan.

Special Funct.\SYSTEM settings\Proc. outputs\...\Source item

Page 93

9 Measurement

FLUXUS F60* 9.2 Measurement settings

UMFLUXUS_F60xV5-0EN, 2017-10-16

Tab. 9.1: Configuration of outputs

source item list item output

Measuring value actual measure physical quantity selected in the program

branch Output Options

Flow flow, independently of the physical quantity se-

lected in the program branch Output Op-

tions

Heatflow heat flow, independent of the physical quantity

selected in the program branch Output Options

Quantity Q+ totalizer for the positive flow direction

* actual measure totalizer for the physical quantity selected in

the program branch Output Options

* Flow flow totalizer

* Heatflow heat flow totalizer

Q– totalizer for the negative flow direction

* actual measure totalizer for the physical quantity selected in

the program branch Output Options

* Flow flow totalizer

* Heatflow heat flow totalizer

ΣQ sum of the totalizers (positive and negative

flow direction)

* actual measure totalizer for the physical quantity selected in

the program branch Output Options

* Flow flow totalizer

* Heatflow heat flow totalizer

Limit R1 limit message (Alarm Output R1)

R2 limit message (Alarm Output R2)

R3 limit message (Alarm Output R3)

Page 94

9 Measurement

9.2 Measurement settings FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

Temperature is only available if a temperature input has been assigned to the channel

Tfluid ← (Ti)*

fluid temperature measured by the temperature probe at the point where the flow is measured

Taux S/R ← (Ti)*

fluid temperature measured by the other temperature probe

Tsupply ← (Ti)* supply temperature

Treturn ← (Ti)* return temperature

Ts-Tr ← (Ti-Tj)* difference supply temperature-return

temperature

Tr-Ts ← (Ti-Tj)* difference return temperature-supply

temperature

T(3) ← (Ti)* 3rd temperature input of the measuring

channel

T(4) ← (Ti)* 4th temperature input of the measuring

channel

* i, j: number of the assigned temperature input

Pulse from abs(x) pulse without sign consideration

from x > 0 pulse for positive measured values

from x < 0 pulse for negative measured values

Miscellaneous c-Medium sound speed of the fluid

SCNR ratio useful signal to correlated disturbance

signal

Signal signal amplitude of a measuring channel

VariAmp standard deviation of the signal amplitude

Density density of the fluid

Pressure pressure of the fluid

Tab. 9.1: Configuration of outputs

source item list item output

Page 95

9 Measurement

FLUXUS F60* 9.2 Measurement settings

UMFLUXUS_F60xV5-0EN, 2017-10-16

9.2.3.1 Output of the measured value

When configuring an analog output, the output range is defined.

• Select Special Funct.\SYSTEM settings\Proc. outputs\...\I1 Output range.

• Press ENTER.

Output range

• Select a list item.

– 4/20 mA

– other range...

• Press ENTER.

If other range... is selected, enter the values Output MIN and Output MAX.

• Press ENTER after each input.

Error output

In the following dialog, an error value can be defined which is output in case a source item cannot be measured, e.g., if there are gas bubbles in the fluid.

• Select a list item for the error output, see Tab. 9.2.

• Press ENTER.

•If Other value... is selected, enter an error value. The value has to be within the output range.

• Press ENTER.

Source item

Output range

Error-value

active loop

Output Test

see annex A, p. 224

Special Funct.\SYSTEM settings\Proc. outputs\...\I1 Output range

Special Funct.\SYSTEM settings\Proc. outputs\...\I1 Error-value

Page 96

9 Measurement

9.2 Measurement settings FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

Notice!

The settings will be stored at the end of the dialog.

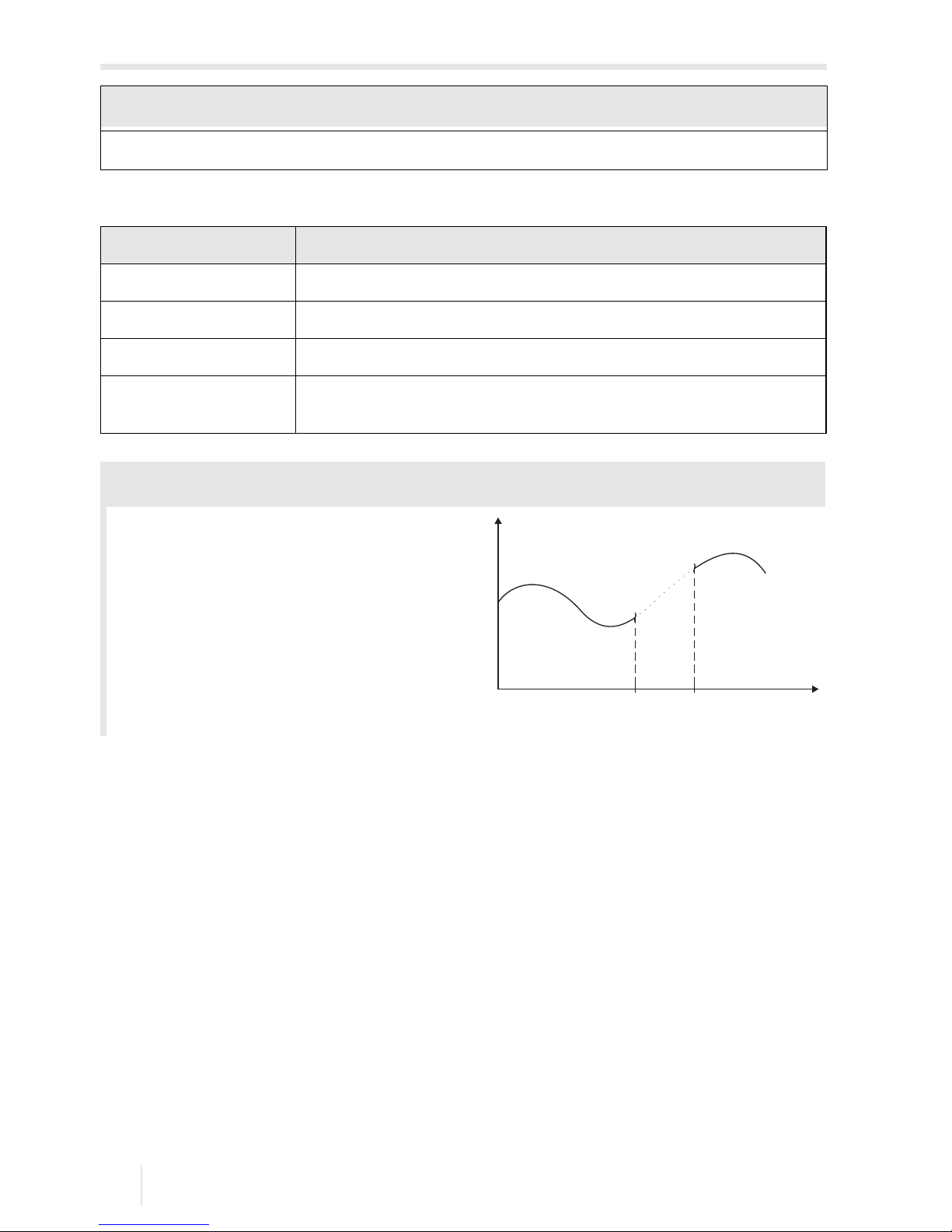

Tab. 9.2: Error output

error value result

Minimum the lower limit of the output range is output

Hold last value the last measured value is output

Maximum the upper limit of the output range is output

Other value... The value has to be entered manually. It has to be within the limits of

the output.

Example

source item:

output:

output range:

volumetric flow rate

current output

4…20 mA

error delay: td>0

(see section 9.2.5 and Tab. 9.3)

The volumetric flow rate cannot be measured during the time interval t

...t1. The error value will be output.

v [m³/h]

Page 97

9 Measurement

FLUXUS F60* 9.2 Measurement settings

UMFLUXUS_F60xV5-0EN, 2017-10-16

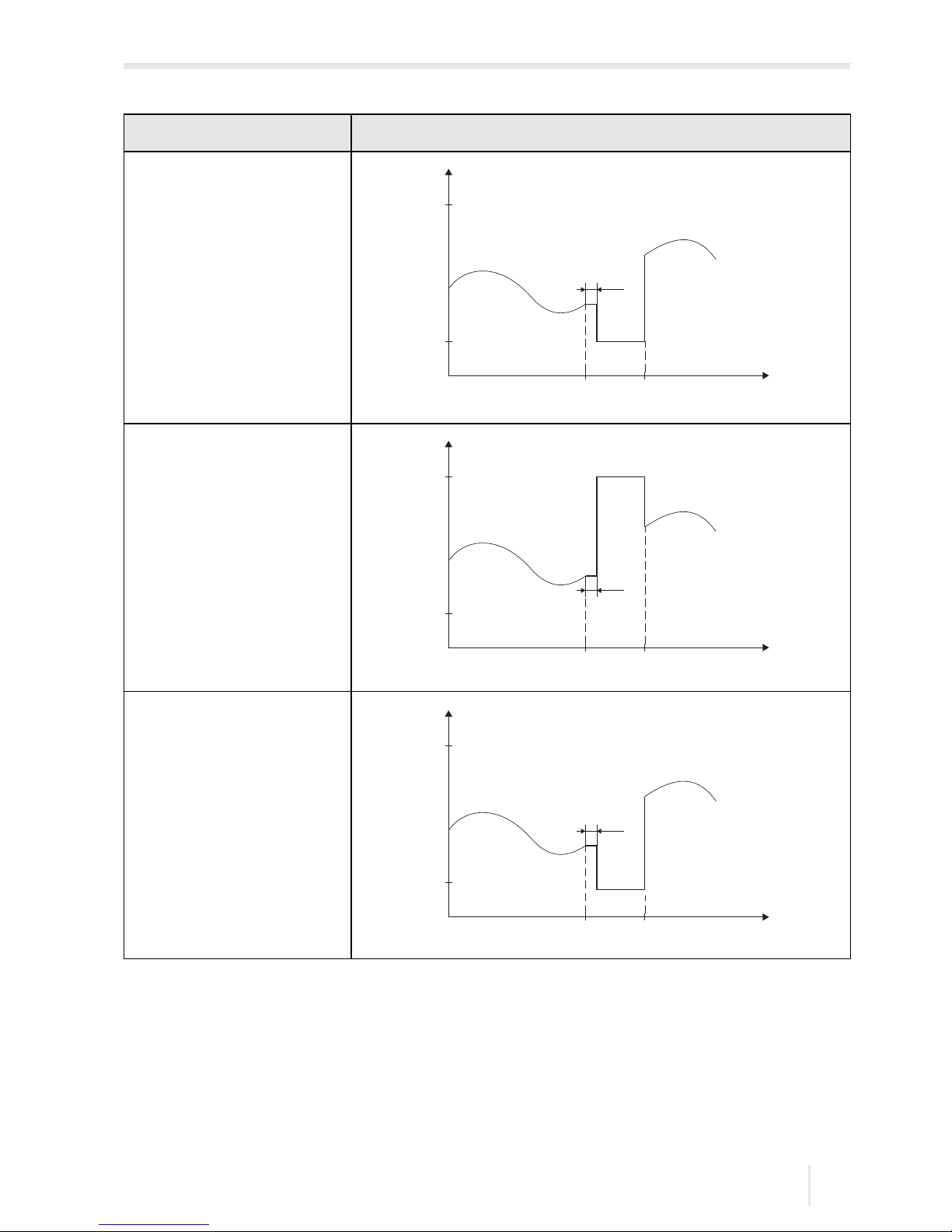

Tab. 9.3: Examples for the error output (output range: 4...20 mA)

list item output signal

4.0 mA

20.0 mA

Other value...

error value = 3.5 mA

I [mA]

Page 98

9 Measurement

9.2 Measurement settings FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

Terminal assignment

The terminals for the connection of the output are displayed.

• Press ENTER.

If the transmitter possesses a switchable current output, it is displayed whether it is active or passive (here: active).

Output function test

The function of the output can now be tested.

• Connect an external measuring instrument to the terminals of the output.

• Enter a test value. It has to be within the output range.

• Press ENTER.

If the external measuring instrument displays the entered value, the output functions correctly.

• Select yes to repeat the test, no to return to the menu item SYSTEM settings.

• Press ENTER.

Special Funct.\SYSTEM settings\Proc. outputs\...\I1 active loop

Special Funct.\SYSTEM settings\Proc. outputs\...\I1 Output Test

Special Funct.\SYSTEM settings\Proc. outputs\...\ I1= 10 mA\Again?

Page 99

9 Measurement

FLUXUS F60* 9.2 Measurement settings

UMFLUXUS_F60xV5-0EN, 2017-10-16

9.2.4 Activation of an analog output

• Select the channel for which an output is to be activated in the program branch Output Options.

• Press ENTER.

• Press ENTER until Current Loop is displayed. Select yes to activate the output.

• Press ENTER.

Output Options

for Channel …

ENTER until

Current Loop

Meas.Values

Zero-Scale Val.

Full-Scale Val.

Test output

Error-val. delay

see annex A, p. 224

Notice!

An output can only be activated in the program branch Output Options if it has previously been installed.

Output Options\for Channel A:

Output Options\...\Current Loop

Page 100

9 Measurement

9.2 Measurement settings FLUXUS F60*

2017-10-16, UMFLUXUSF60xV5-0EN

100

Measuring range

After an analog output has been activated in the program branch Output Options, the measuring range of the source item has to be entered.

• Select sign if the sign of the measured values is to be considered for the output.

• Select absolut if the sign of the measured values is not to be considered for the output.

• Press ENTER.

• Enter the lowest expected measured value. The unit of measurement of the source item will be displayed.

Zero-Scale Val. is the value assigned to the value Output MIN of the output range.

• Press ENTER.

• Enter the highest expected measured value. The unit of measurement of the source item will be displayed.

Full-Scale Val. is the value assigned to the value Output MAX of the output range.

• Press ENTER.

Output Options\...\Meas.Values

Output Options\...\Zero-Scale Val.

Output Options\...\Full-Scale Val.

Example

output: current output

output range: 4…20 mA

Zero-Scale Val.: 0 m³/h

Full-Scale Val.: 300 m³/h

volumetric flow rate = 0 m³/h, corresponds to 4 mA

volumetric flow rate = 300 m³/h, corresponds to 20 mA
