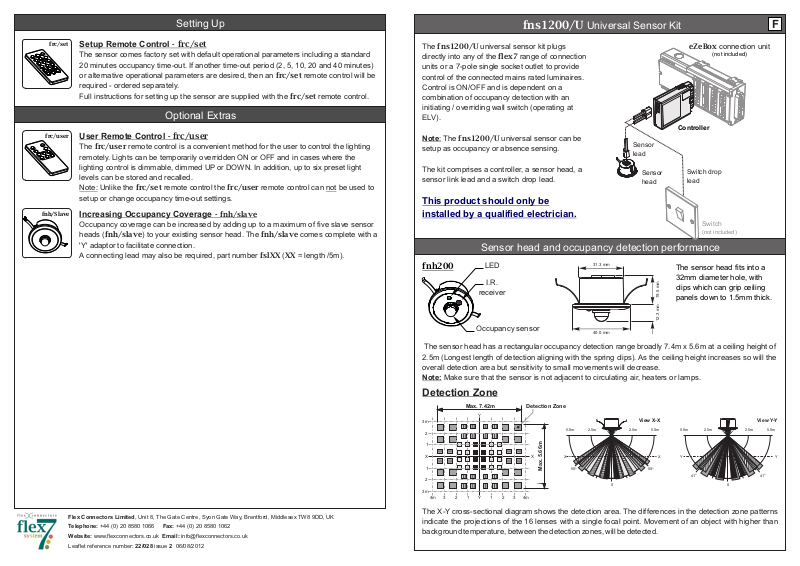

flex7 FNS1200/U Installation Instructions

Setting Up

fns1200/U Universal Sensor Kit

F

frc/set

Setup Remote Control - frc/set

The sensor comes factory set with default operational parameters including a standard
20 minutes occupancy time-out. If another time-out period (2, 5, 10, 20 and 40 minutes)
or alternative operational parameters are desired, then an frc/set remote control will be
required - ordered separately.
Full instructions for setting up the sensor are supplied with the frc/set remote control.

Optional Extras

frc/user

fnh/Slave

User Remote Control - frc/user

The frc/user remote control is a convenient method for the user to control the lighting
remotely. Lights can be temporarily overridden ON or OFF and in cases where the
lighting control is dimmable, dimmed UP or DOWN. In addition, up to six preset light
levels can be stored and recalled.
Note: Unlike the frc/set remote control the frc/user remote control can not be used to
setup or change occupancy time-out settings.

Increasing Occupancy Coverage -

Occupancy coverage can be increased by adding up to a maximum of five slave sensor
heads ( ) to your existing sensor head.

fnh/slave The fnh/slave comes complete with a

'Y' adaptor to facilitate connection.
A connecting lead may also be required, part number fslXX (XX = length /5m).

Flex Connectors Limited, Unit 8, The Gate Centre, Syon Gate Way, Brentford, Middlesex TW8 9DD, UK

Telephone: [phone] Fax: [phone]

Website: www.flexconnectors.co.uk Email: [e-mail]

Leaflet reference number: 22/028 issue 2 06/08/2012

fnh/slave

The fns1200/U universal sensor kit plugs
directly into any of the flex7 range of connection

eZeBox connection unit

(not included)

units or a 7-pole single socket outlet to provide
control of the connected mains rated luminaires.
Control is ON/OFF and is dependent on a
combination of occupancy detection with an
initiating / overriding wall switch (operating at
ELV).

Controller

Note: The fns1200/U universal sensor can be

setup as occupancy or absence sensing.

The kit comprises a controller, a sensor head, a
sensor link lead and a switch drop lead.

Sensor
lead

Sensor
head

Switch drop
lead

This product should only be
installed by a qualified electrician.

Switch

(not included)

Sensor head and occupancy detection performance

fnh200

LED

I.R.

receiver

Occupancy sensor

The sensor head has a rectangular occupancy detection range broadly 7.4m x 5.6m at a ceiling height of

2.5m (Longest length of detection aligning with the spring clips). As the ceiling height increases so will the
overall detection area but sensitivity to small movements will decrease.
Note: Make sure that the sensor is not adjacent to circulating air, heaters or lamps.

31.3 mm

40.0 mm

The sensor head fits into a
32mm diameter hole, with
clips which can grip ceiling

19.5 mm

panels down to 1.5mm thick

12.3 mm

.

Detection Zone

Max. 7.42m

3m

2

1

X X

1

2

3m

3 3

Y

Y

112 2

The X-Y cross-sectional diagram shows the detection area. The differences in the detection zone patterns
indicate the projections of the 16 lenses with a single focal point. Movement of an object with higher than
background temperature, between the detection zones, will be detected.

Detection Zone

Max. 5.66m

4m4m

5.0m

View X-X

2.5m

O

50

0

2.5m

5.0m

50

5.0m 2.5m 2.5m

XX

Y

O

O

41

0

View Y-Y

5.0m

O

41

Y

Configuring the controller and wiring the connection unit

Switching Options - Absence Sensing in conjunction with a 1-way Retractive Switch

Prise open lid 'C'

C

using a screw driver.
Position link as
required.

Rating

Supply Voltage : 230V~ 50Hz

Load

Fluorescent & Incandescent Lighting : 6A
Compact Fluorescent Lighting : 3A

Wiring Diagram

See overleaf for

switching options

Core colours if using 3

*

prewired plug and leads

flex7

Wiring

Option B

Em/L

Neutral

Earth

1

2

3

E

E

4

5

6

& 4-core

See front page

for details on

configuring link

Wiring

Option A

Aux/L

Em/L

Neutral

Earth

E

1

2

3

E

4

5

6

FswXX

retractive switch

Use 1 or 2-way

(not supplied)

Note: For safe operation it is advisable to

extend occupancy coverage to cover the
wall switch. In this way, operating the switch
to ‘SENSOR’ position ensures the lights
turn ON.

Switch Wiring

Toggle

ON/Dim

1 2

1 2

Link in position 1

Lights can remain ON during
an emergency test. Wire
connection unit as shown in
option A. See below for
details.

Link in position 2

Lights will switch OFF during
an emergency test. Wire

fnh200

FslXX

fnc1000

connection unit as shown in
option A or B. See below for
details.

Operation:

Switch control:
Absence detection: When occupancy is no longer

detected, lights will switch OFF after a pre-selected time­out period (default 20 minutes).

Pulse - toggles the lights ON or OFF.

Note:

Multiple switches can be connected in
parallel. 'Y' connectors are available to
enable two switch drop leads to be
connected into one point.
(Part No. fsy/A - adaptor).

Note: By default, absence sensors do not switch lights on due to occupancy, however with an frc/set
setup remote control it is possible to reconfigure the unit to initiate the lights ON with first occupancy ­This is not true occupancy detection as it can only occur where occupancy has timed out e.g. first thing
in the morning.

Switching Options - Occupancy Sensing in conjunction with a 1-way Latched Switch

Emergency

luminaire

R1

12

*

(Brown)

(Grn/Yel)

(Blue)

(Black)

Luminaire

*

(Brown)

FslXX

FswXX

Note: For safe operation it is advisable to
extend occupancy coverage to cover the
wall switch. In this way, operating the switch
to ‘SENSOR’ position ensures the lights

fnh200

(Grn/Yel)

(Blue)

Aux/L

Em/L

Neutral

Earth

Sw/L

D2/0V

D1/10V

Operation:

Occupancy detection: Provided the wall switch is in the

'Sensor' position the lights will switch ON whenever there is
occupancy detected by the sensor head. When occupancy
is no longer detected, lights will switch OFF after a pre­selected time-out period.
Override switch operation: Override OFF takes priority

fnc1000

Use 1 or 2-way
latched switch

(not supplied)

turn ON.

Switch wiring

Cut back & insulate unwanted cores.

Sensor

Override OFF

Note:

If your room requires 2-way switching, a
special 'Y' connector is available to enable
two switch drop leads to be connected.
(Part No. fsy/2e/2 - OFF control from 2 x
2-way switches).

over occupancy sensing.

(Connection unit shown) fsu06
