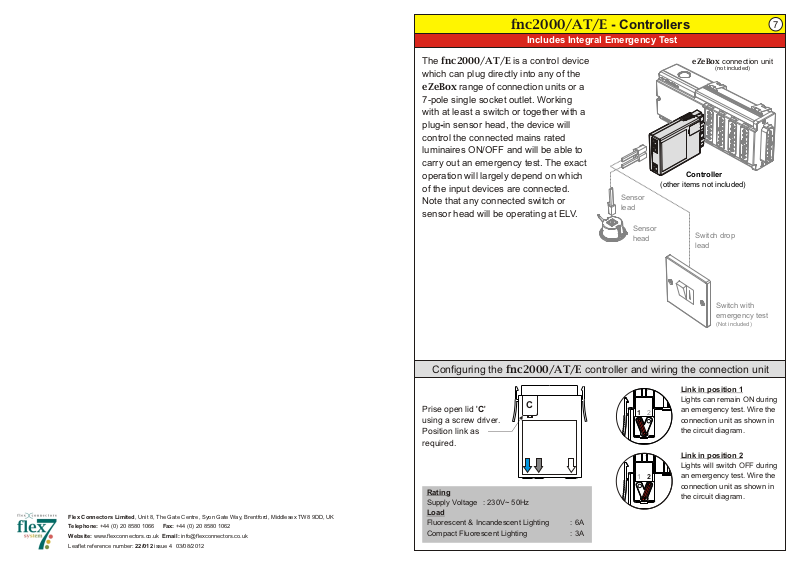

flex7 FNC2000/AT/E Installation Instructions

fnc2000/AT/E - Controllers

Includes Integral Emergency Test

7

The fnc2000/AT/E is a control device
which can plug directly into any of the
eZeBox range of connection units or a
7-pole single socket outlet. Working
with at least a switch or together with a
plug-in sensor head, the device will
control the connected mains rated
luminaires ON/OFF and will be able to
carry out an emergency test. The exact
operation will largely depend on which
of the input devices are connected.
Note that any connected switch or
sensor head will be operating at ELV.

Sensor
lead

Sensor
head

eZeBox connection unit

(not included)

Controller

(other items not included)

Switch drop
lead

Switch with
emergency test

(Not included)

Flex Connectors Limited, Unit 8, The Gate Centre, Syon Gate Way, Brentford, Middlesex TW8 9DD, UK

Telephone: [phone] Fax: [phone]

Website: www.flexconnectors.co.uk Email: [e-mail]

Leaflet reference number: 22/012 issue 4 03/08/2012

Configuring the fnc2000/AT/E controller and wiring the connection unit

Link in position 1

Prise open lid 'C'

C

using a screw driver.
Position link as
required.

Rating

Supply Voltage : 230V~ 50Hz

Load

Fluorescent & Incandescent Lighting : 6A
Compact Fluorescent Lighting : 3A

1 2

1 2

Lights can remain ON during
an emergency test. Wire the
connection unit as shown in
the circuit diagram.

Link in position 2

Lights will switch OFF during
an emergency test. Wire the
connection unit as shown in
the circuit diagram.

Using a fnc2000/AT/E controller with a switch only

Refer to leaflet Networking Sensors,leaflet number 17/245.

*

FswXX

*

Switch Wiring

Null

Toggle

Aux/L

D1/10V

Sw/L

D2/0V

Earth

Em/L

Neutral

fnc2000/AT/E

1-way, retractive

switch & Emergency

test key switch

(not supplied)

Emergency
Test

Note:

Multiple switches can be connected in

k

Open = Test

parallel. 'Y' connectors are available to

Operation:

Switch control:

Pulse - toggles the lights ON or OFF.

enable two switch drop leads to be
connected into one point.
(Part No. fsy/A - adaptor)

Emergency Test:

Operate key switch to carry out an emergency test.

Using fnc2000/AT/E controller with a sensor head and a switch

Refer to leaflet Networking Sensors,leaflet number 17/245.

*

fnh200

or

fnh400

FslXX

*

fnc2000/AT/E

FswXX

3-position, centre off,

retractive switch &

Emergency test key

switch (not supplied)

Note:

For best operation it is advisable that
occupancy coverage extends to cover the
wall switch.

Switch Wiring

Emergency
Test

Null

Toggle

Open = Test

(Blue)
(Grn/Yel)
(Brown)

Luminaire

(Black)
(Blue)
(Grn/Yel)
(Brown)

luminaire

Emergency

12

R1 R2

1

2

k

Circuit diagram for fnc2000/AT/E

4

3

5

E

E

(connection unit shown) fsu06

6

Operation:

Switch control:

Pulse - toggles the lights ON or OFF.
Absence detection: When occupancy is no longer detected,
lights will switch OFF after a pre-selected time-out period.

Emergency Test:

Note:

Multiple switches can be connected in
parallel. 'Y' connectors are available to
enable two switch drop leads to be
connected into one point
(Part No. fsy/A - adaptor).

Operate key switch to carry out an emergency test.
Daylight dependency (fnh400 only): During periods of
occupancy the lights will switch OFF if the ambient light
detected under the sensor head exceeds the set level.

Note: Alternative operational options not necessarily shown above are available using the frc/set
setup remote control.
Full instructions for setting up the sensor are supplied with the sensor head and the frc/set remote
control - both ordered separately.

Wiring

Option

Aux/L

Neutral

Earth

for details on

See front page

configuring link
