Flexiock FLE Roof Edge
Fully Adhered or Mechanically Attached Single-Ply and Built-Up or ModifiedVersion
Warranty:
Testing: • Tested per ANSI/SPRI ES-1 Standard to a design pressure of 290 Ibs./fP to comply with the
Standard Sizes: Sizes range from 4" up to 8 Vz" face heights to accommodate multiple nailers and coverage
Anchor Bar Protection: The patented, extruded aluminum anchor bar securely terminates the membrane. This provides
Available Materials:
Watertight:
The entire roof system is covered under one warranty and inspected after the project is complete to
assure proper installation. The system is inspected after the project is complete to assure proper
installation. This ensures protection for the most vulnerable area of the roof against failure due to
extreme wind up lift pressures.
International Building Code.
• Factory Mutual 1-645 approved for wind up lift protection.
• Miami-Dade Approved (No. 08-0604.02 12/11/13) to comply with the “High Velocity Hurricane
Zone of the Florida Building Code”.
requirements.
. 4"
• 5 1/2"
•7"
• 8 1/2"
protection unlike any other manufactured or shop-fabricated edge. The anchor bar is readily available
to dry-in the roof structure.
Covers can be manufactured in 24 ga. steel and .040" aluminum.
Its non-penetrating design eliminates the need for stripping-in or heat welding that is typical of
many other roof edge designs. Watertight integrity is not compromised by improper flashing
procedures, faded adhesives or lap sealants.
Competitively Priced:
Efficient Design:
Colors:
Custom Capabilities:
Accessories:
Also Included:
Reusable/Recyclable
Material:
featyres & benefits
The installed cost rivals even light gauge roof edge systems fabricated locally or in a roofer’s shop.
The product is provided in 12'-0" lengths with pre-punched holes for quicker installation and lower
labor costs. The fastening holes are slotted to allow for proper thermal movement of the materials
and ensure correct fastener placement and spacing.
Choose among a wide range of standard colors and finishes that meet your job requirements. A 20
year Kynar 500® finish warranty is included on standard colors. Custom post-coated Kynar 500
colors are avaUable with an included 10 year Kynar 500 finish warranty or a 20 year Kynar 500 finish
warranty is avadable upon request. Anodized finishes are also available, but are not warranted.
Radius and specially fabricated products are available to meet the unique needs of each project.
Factory fabricated miters, scuppers and drainage accessories provide a cleaner, more aesthetically
pleasing appearance.This eliminates the need for field fabrication, providing time and labor savings.
All anchor bar EPDM splice plates and fasteners are included and wih arrive to the job site with the
product (sealant by others).
When reroofmg the anchor bar can be removed, cleaned and reinstalled at any time without
compromising its strength and appearance.
p: 800-969-0108
f: 610-916-9501
Fi
APPROVED
FULLY ADHERED OR MECHANICALLY ATTACHED SINGLE-PLY VERSION
1-645
Fascia is to be installed per Specifications and Flex's Installation Instructions Dwg. # 28110-3440
FLEXLOCK FLE ROOF EDGE
DIMENSIONS
PRODUCT
ID. NO.
□ AF-40
□ AF-55
□ AF-70
□ AF-85
H
DIM
4" (102 mm)
5 1/2" (140 mm)
7" (178 mm)
8 1/2" (216 mm)
NOA NO. 08-0604.02
MIAMI-DADE COUNW, FLORIDA
12/11/13
X
DIM
2 3/4" (70 mm)
4 1/4" (108 mm)
5 3/4" (146 mm)
71/4" (184 mm)
Fabrication will proceed only after receipt of
signed print approval.
Print Approval:
Architect and/or contractor shall verify all
dimensions, sizes and quantities. All
products to be installed in strict accordance
with Flex's printed instructions.
Approved by:
Date:
PROJECT:
ARCHITECT:
ROOFING CONTRACTOR:
REPRESENTATIVE/DISTRIBUTOR:
_____
FLEXLOCK FLE ROOF EDGE
ANSI/SPRI ES-1 DESIGN PRESSURE OF 290 psf
FASCIA COVER
12'-0" (3.65 m) LENGTHS
FLEX
MEMBRANE
#9x2" (51 mm)
STAINLESS STEEL
FASTENERS 12" (305 mm) O.C
PROVIDED BY FLEX
EXTRUDED
ANCHOR BAR
MATERIAL:
NAILER
COVERAGE
1 NAILER
2 NAILERS
3 NAILERS
4 NAILERS
QUANTITIES:
___
24 Ga. (.65 mm) Galv. Steel
___
.040" (1.01 mm) Aluminum
___
OTHER
_______________
Color:
_________________
Finish:
_________________
___
Lineal Feet (12'-0" (3.65 m) Lengths)
, Outside Miters @ (
Inside Miters @ (
Overflow Scupper Style_
Spillout Scupper Style
Downspout Scupper Style.
( X ) Size
______
°)
_______
°)
_____
A: Tapered 1 1/2" (38 mm) Drop
B: Flat
Customer Service: Phone: 800-969-0108 Fax:610-916-9501
DATE: 12/03/10
DRN BY: JJC
CKD BY: SAK
SHT# OF
DWG# 28010-3166
A B
B
D
p: 800-969-0108
f: 610-916-9501
print approval
5
Fi
APPROW
1-645
FLEXLOCK FLE ROOF EDGE
FULLY ADHERED OR MECHANICALLY ATTACHED SINGLE-PLY VERSION
ALTERNATE PARAPET DETAIL
PROJECT:
ARCHITECT:
ROOFING CONTRACTOR:
REPRESENTATIVE/DISTRIBUTOR:
detail
6
Customer Service: Phone: 800-969-0108 Fax:610-916-9501
DATE: 12/03/10
DRN BY: JJC
CKD BY; SAK
SHT.# OF
DWG# 28510-3377
p: 800-969-0108
f: 610-916-9501
D

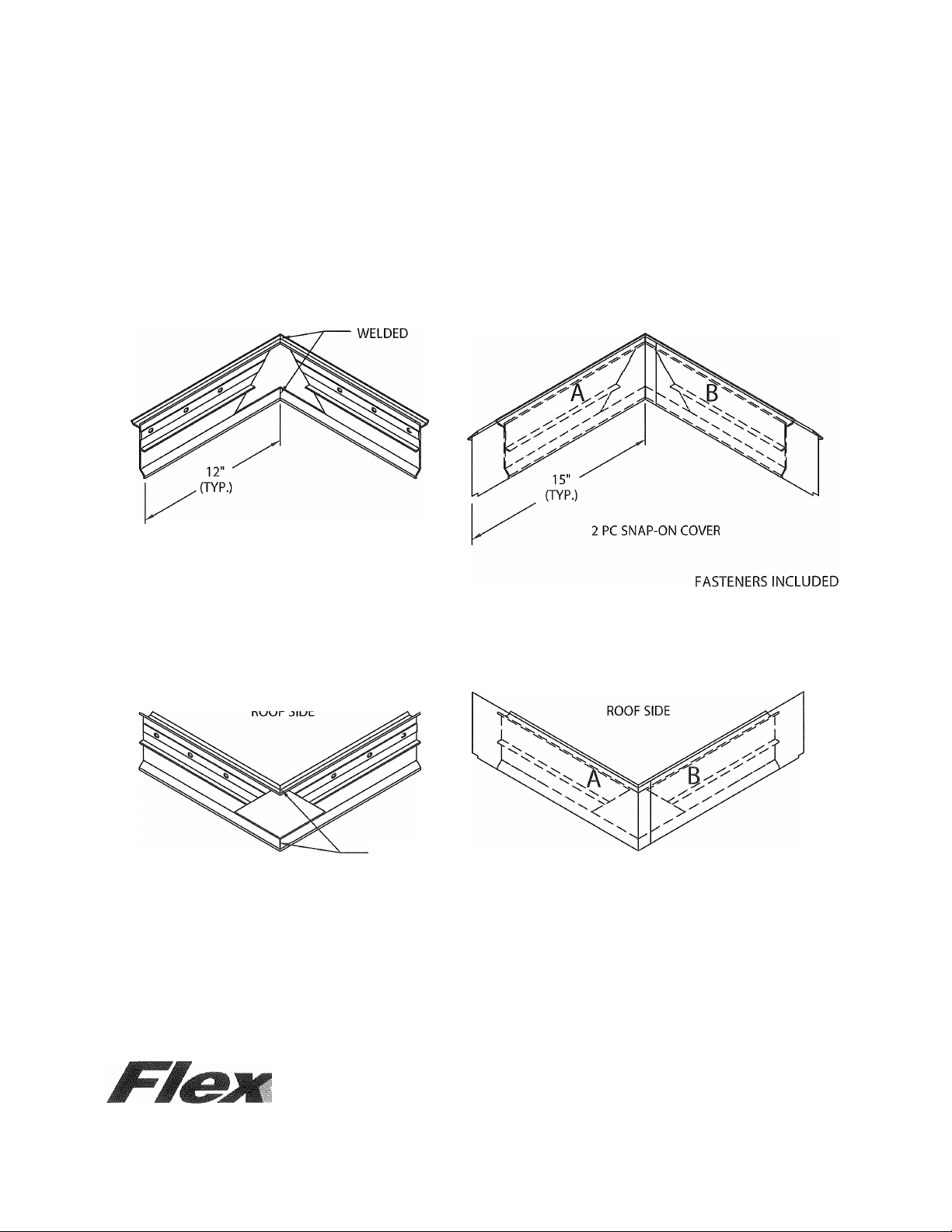

INSIDE MITER
FLEXLOCK FLE ROOF EDGE
FULLY ADHERED OR MECHANICALLY ATTACHED SINGLE-PLY VERSION
MITERS - FACTORY WELDED CONSTRUCTION
ROOF SIDE
1 PC ANCHOR-BAR
OUTSIDE MITER
nr\rsc: cir\c
ROOF SIDE
1 PC ANCHOR-BAR
NOTE: TREATED WOOD NAILERS REQUIRED.
PROJECT:
ARCHITECT:
ROOFING CONTRACTOR:
REPRESENTATIVE/DISTRIBUTOR:
p: 800-969-0108
f: 610-916-9501
WELDED
2 PC SNAP-ON COVER
Customer Service: Phone: 800^969-0108 Fax:610-916-9501
DATE: 12/03/10
DRN BY: JJC
CKD BY: SAK
SHT.# OF
DWG# 28510-3432
c
detail
7
NON 90° ANGLE FOR FASCIA
MEASUREMENT WORKSHEET FOR USE WITHOUT A PROTRACTOR
ROOF
1. CIRCLE APPROPRIATE "ROOF SIDE" TO INDICATE OUTSIDE MITER OR INSIDE MITER.
THIS DETAIL APPLIES FOR MITERS TIGHTER THEN 90° (ACUTE) OR WIDER THEN 90° (OBTUSE).
2. STARTING AT EITHER SIDE OF THE CORNER, MEASURE ALONG THE WALL EDGE A CONVENIENT
DIMENSION, SUCH AS 24" OR 36", DEPENDING ON JOB SITE CONDITIONS. PLACE A MARK ON
THE WALL AND RECORD MEASURED DIMENSION AS "DIM A" IN THE DRAWING ABOVE, REPEAT
PROCEDURE FOR THE OPPOSITE WALL, AS SHOWN ABOVE.
3. MEASURE STRAIGHT ACROSS FROM MARK TO MARK, AS SHOWN, AND RECORD THE MEASURED
DIMENSION AS "DIM B".
4. FAX THIS SHEET TO 610-916-9501 WITH ORDER.
PROJECT:
ARCHITECT:
ROOFING CONTRACTOR:
REPRESENTATIVE/DISTRIBUTOR:
Customer Service: Phone: 800-969-0108 Fax:610-916-9501
DATE: 12/03/10
DRN BY: JJC
CKD BY: SAK
SHT.# OF
DWG# 28810-3433
C
detail
8
p: 800-969-0108
f: 610-916-9501
NON 90° FASCIA MITERS
OUTSIDE MITER - OBTUSE
SPECIFY ANGLE 91°-179“
□ Standard Leg Lengths
□ Custom Leg Lengths _
INSIDE MITER-OBTUSE
SPECIFY ANGLE 91°-179°
OUTSIDE MITER - ACUTE
v'ROOF .
SIDE \
Qty
INSIDE MITER-ACUTE
□ Standard Leg Lengths
□ Custom Leg Lengths _
Fabrication will proceed only after receipt of
signed print approval.
Qty
Print Approval:
Architect and/or contractor shall verify all
dimensions, sizes and quantities. All
products to be installed in strict accordance
with Flex's printed instructions.
Approved by:
Date: _____
PROJECT:
ARCHITECT:
ROOFING CONTRACTOR:
REPRESENTATIVE/DISTRIBUTOR:
Standard Leg Lengths
□
Custom Leg Lengths _
□
MATERIAL:
___
24 Ga. (.65 mm) Galv.
___
.040" (1.01 mm) Alum.
___
.050" (1.27 mm) Alum.
___
.063" (1.60 mm) Alum.
OTHER
______________
Please Indicate Fascia System:
□ Flexlock FLE Roof Edge - Single-Ply
□ Flexlock FLE Roof Edge - BUR/Mod
□ Flexlock FLE Extended Roof Edge - Single-Ply
□ Flexlock FLE Extended Roof Edge - BUR/Mod
□ Flexlock FLS Roof Edge - Single-Ply
□ Flexlock FLS Roof Edge - BUR/Mod
□ Flexlock FLT Roof Edge - Single-Ply
□ Flexlock FLT Roof Edge - BUR/Mod
Customer Service: Phone: 800-969--0108 Fax: 610^916-9501
DATE: 12/03/10
DRN BY: JJC
CKD BY: SAK
____________
Qty
Color:_
Finish:
SHT.# OF
DWG# 28010-3436
c
p: 800-969-0108
f: 610-916-9501
print approval
9
FLEXLOCK FLE ROOF EDGE SCUPPERS
FULLY ADHERED OR MECHANICALLY ATTACHED SINGLE-PLY VERSION
SCUPPERS - FACTORY WELDED CONSTRUCTION
detail
10
p: 800-969-0108
f: 610-916-9501

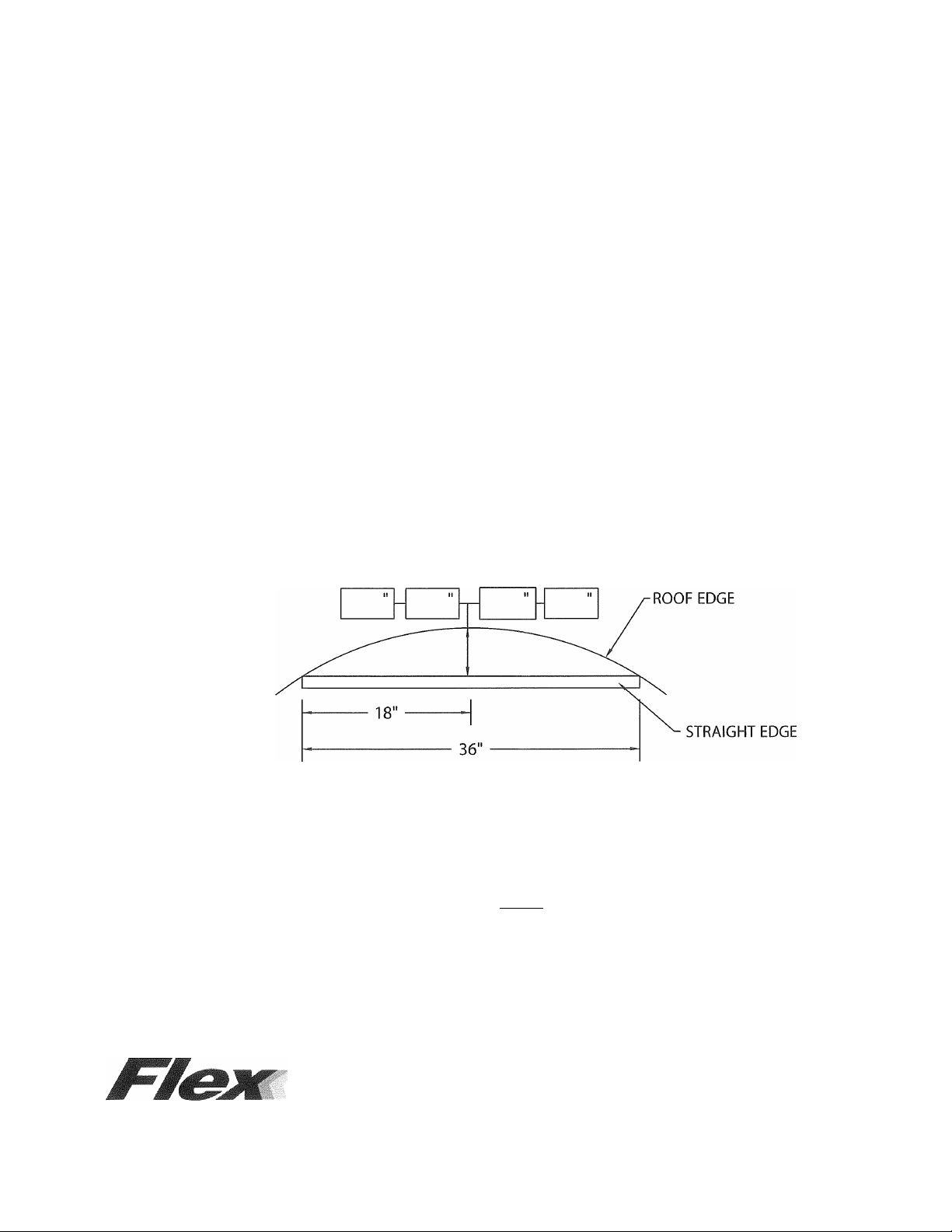

RADIUS FASCIA
MEASUREMENT INSTRUCTIONS
1. Using the 36" straight edge provided, set it against the wall (as illustrated).
2. Using the 12" rule provided, measure the distance (rise) from the edge of the yardstick at the
18" mark straight in to the face of the parapet.
3. Repeat steps 1 and 2 in several more areas along the arch. Record these measurements in the
boxes provided. We will calculate the radius from these measurements.
NOTE! If the measured rise dimensions vary by 5" or over, call Engineering Dept, at
800-558-2162 for further instructions
4. Fill in the general information below and fax this sheet back to 610-916-9501,
¡OUTSIDE^
RISE
PROJECT:
ARCHITECT:
ROOFING CONTRACTOR:
REPRESENTATIVE/DISTRIBUTOR:
p: 800-969-0108
f: 610-916-9501
i?
OUTSIDE
LfACij
PLAN VIEW
NOTE! INDICATE PROPER RADIUS CONDITION BY
CIRCLING APPROPIATE OUTSIDE FACE.
Customer Service: Phone: 800-969^0108 Fax:610-916-9501
DATE: 12/03/10
DRN BY: JJC
CKD BY: SAK
SHT.# OF
DWG# 28510-3438
detail
11
FLEXLOCK FLE RADIUS ROOF EDGE
FULLY ADHERED OR MECHANICALLY ATTACHED SINGLE-PLY VERSION
IMPORTANT!!!
PROVIDING A RADIUS
THE RADIUS MAY BE PROVIDED
IN ONE OF TWO METHODS:
1.) THE ACTUAL KNOWN RADIUS IS
OR
NOTE: REFER TO ATTACHED WORKSHEET
NOTE: CHECK MEASUREMENTS ALONG ENTIRE RADIUS.
2.) FIELD CONDITION MEASUREMENTS
(457 mm)
MIDPOINT OF
STRAIGHT EDGE
-
------------------
36"
(914 mm)
LENGTH OF
STRAIGHT EDGE
DETAIL A
MUST INDICATE PROPER RADIUS CONDITION BY
CIRCLING APPROPRIATE OUTSIDE FACE
Fabrication will proceed only after receipt of
signed print approval.
Print Approval:
Architect and/or contractor shall verify all
dimensions, sizes and quantities. All
products to be installed in strict accordance
with Flex's printed instructions.
ROOF LINE
(PROVIDED BY APPROVER
TOP
VIEW
--------
INDICATES AREAS THAT WILL BE SLIT AS
NEEDED TO ACCOMODATE RADIUS
RADIUS FASCIA PROVIDED
IN12'-0" (3.65 m) LENGTHS
i/''
FLEXLOCK FLE RADIUS ROOF EDGE DIMENSIONS
PRODUCT ID. NO.
□ AF-40
□ AF-55
□ AF-70
□ AF-85
H DIM.
4" (102 mm)
5 1/2" (140 mm) 4 1/4" (108 mm)
7" (178 mm) 5 3/4" (146 mm)
8 1/2" (216 mm) 7 1/4" (184 mm)
RADIUS EXTRUDED BAR PROVIDED
^ IN 12'-0" (3.65 m) LENGTHS
X DIM.
2 3/4" (60 mm) 1 NAILER
MATERIAL:
___
24 Ga. (.65 mm) Galv. Steel
___
.040" (1.01 mm) Aluminum
___
OTHER
__________________
Color:
_____________________
Finish:
____________________
QUANTITIES:
OUTSIDE
FACE
RADIUS
PER DETAIL A)
COVERAGE
2 NAILERS
3 NAILERS
4 NAILERS
Approved by:
Date;
____________________
_____
_____________
PROJECT:
ARCHITECT:
ROOFING CONTRACTOR:
REPRESENTATIVE/DISTRIBUTOR:
print approval
12
______
Lineal Feet (12'-0" (3.65 m) Lengths)
Customer Service:
Phone: 800-969^0108
Fax:610-916-9501
DATE: 12/06/10
DRN BY: JJC
CKD BY: SAK
SHT# OF
DWG# 28010-3439
p: 800-969-0108
f: 610-916-9501
c
