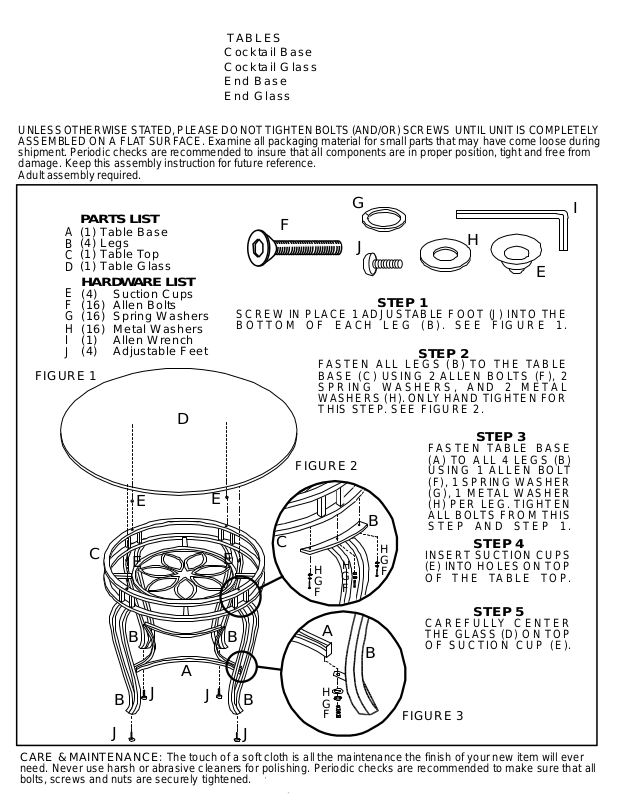

TABL ES
Cocktail Base
Cocktail Glass
End Ba se
End Gla ss
UNLESS OTHERWISE STAT ED, PLEASE DO NOT TIGHTEN BOLTS (AND/OR) SCREWS UNTIL UNIT IS COMPLETELY
ASSEMBLED ON A FLAT SURF ACE. Examine all packaging material for small parts that may have come loose during
shipment. Periodic checks are recommended to insure that all components are in proper position, tight and free from
damage. Keep this assembly instruction for future reference.
Adult assembly required.
PARTS LIST
(1) Table Base
A
(4) Legs
B
(1) Table Top
C
(1) Table Glass
D
HARDWARE LIST
E
(4) Suction Cups
(16) Allen Bolts
F
(16) Spring Washers
G
(16) Metal Washers
H
(1) Allen Wrench
I
(4) Adjustable Feet
J

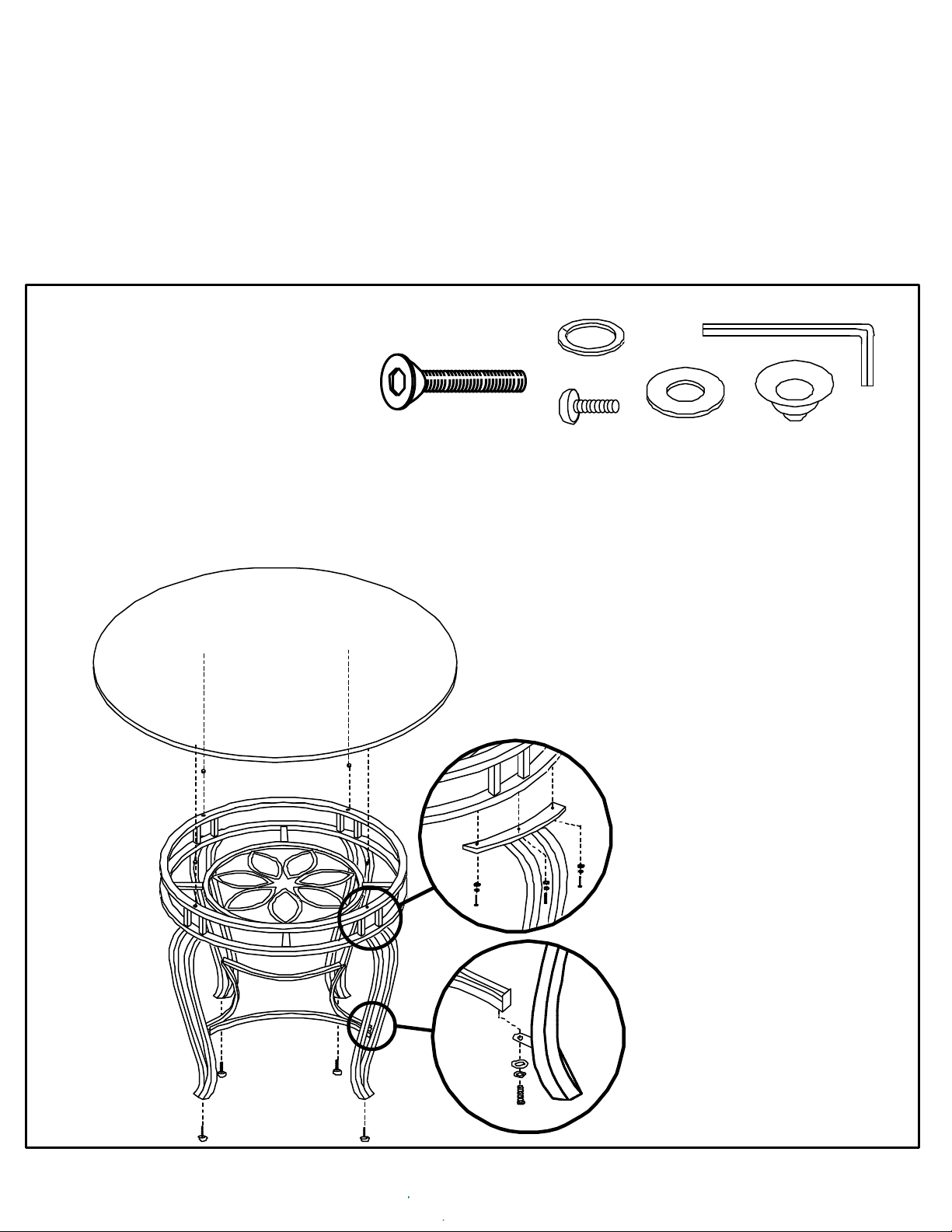

FIGURE 1
C
E
E
D
G
F
J
STEP 1
SCR EW IN PLACE 1 ADJUSTABLE FOOT (J) INTO THE
BO T TO M O F EACH LEG (B). S EE FIG UR E 1 .
STEP 2
FASTEN ALL LEGS (B) TO THE TABLE
BASE (C) U SING 2 ALLEN BOLTS (F), 2
SPRIN G WASHERS , AND 2 M ETA L
WASH ERS (H). ONLY HAND TIGHTEN FOR
TH IS STEP. SEE FIGURE 2.
FASTEN TABLE BASE
(A) TO ALL 4 LEGS (B)
USING 1 ALLEN BOLT
(F), 1 SPR ING WASHER
(G), 1 METAL WASHER
(H) PER LEG . TIGHTEN
ALL BO LTS FROM THIS
STEP AN D STE P 1.
IN SERT SUCTION CUPS
(E) IN TO HOLES ON TOP
OF THE TABL E TOP.
E
E
FIGURE 2
C
H
G
B
H
H
G
F
F
G
F
H
ST EP 3
STEP 4
I
E
STEP 5
BB
A
CAREFUL LY C ENTER
THE G LASS (D) ON TOP
OF SUCTION CUP (E).
B
A
B
J
J
CARE & MAINTENANCE
need. Never use harsh or abrasive cleaners for polishing. Periodic checks are recommended to make sure that all
bolts, screws and nuts are securely tightened.
: The touch of a soft cloth is all the maintenance the finish of your new item will ever
J
B
J
H
G
F
FIGURE 3
