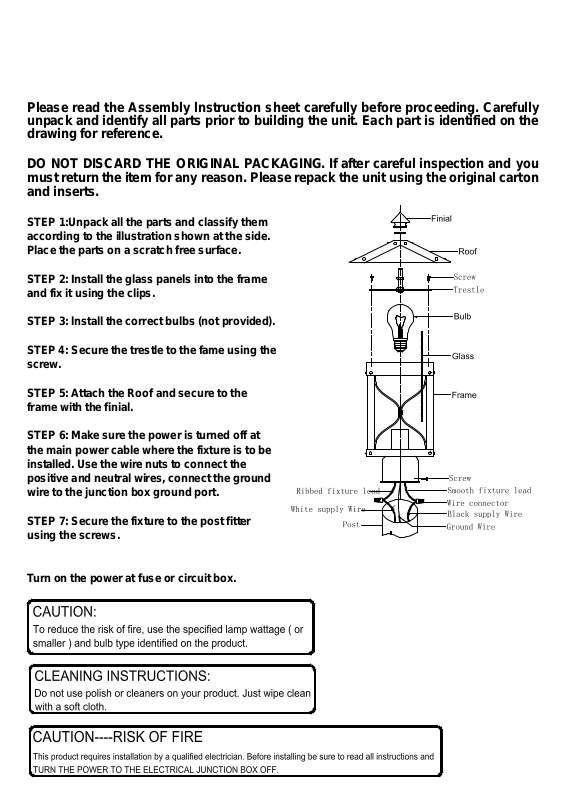

Please read the Assembly lnstruction sheet careful ly before proceeding. Carefully
unpack and identify all parts prior to building the u nit. Each part is identifi e d on the
drawing for reference.
DO
NOT DISCARD THE ORIGINAL PACKAGING. If after careful i nspection a nd you
must return the item for any reason. Please repack the unit using the original carton
and inserts.
STEP 1:Unpack all the parts and classify them
according to the illustration shown at the side.
Place the part s on a scratch free surface.
STEP 2: Install t he g lass panels into the frame
and fix it using the clips.
STEP 3: lnstall the correct bulbs (not provided).
STEP 4: Secur e the trestle to the fame using the
screw.
STEP 5: A ttach the Roof and secure to the
frame with the finial.
STEP 6: Make sure the power is turned off at
the main power cable where the fixture is to be
installed. Use the wire nuts to connect the
positive and neutral wires, connect the ground
wire to the junction box ground port.
STEP 7: Secure the f ixture t o the post fitter
using the screws.
T urn on the power at fuse or circuit box.
