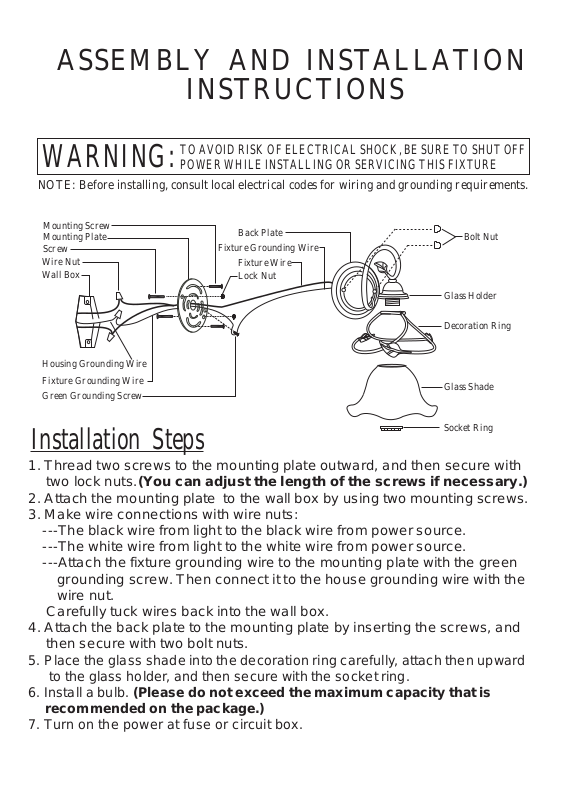

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
WARNING:
NOTE: Before installing, consult local electrical codes for wiring and grounding requirements.
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE
Mounting Screw
Mounting Plate
Screw
Wire Nut
Wall Box
Housing Grounding Wire
Fixture Grounding Wire
Green Grounding Screw

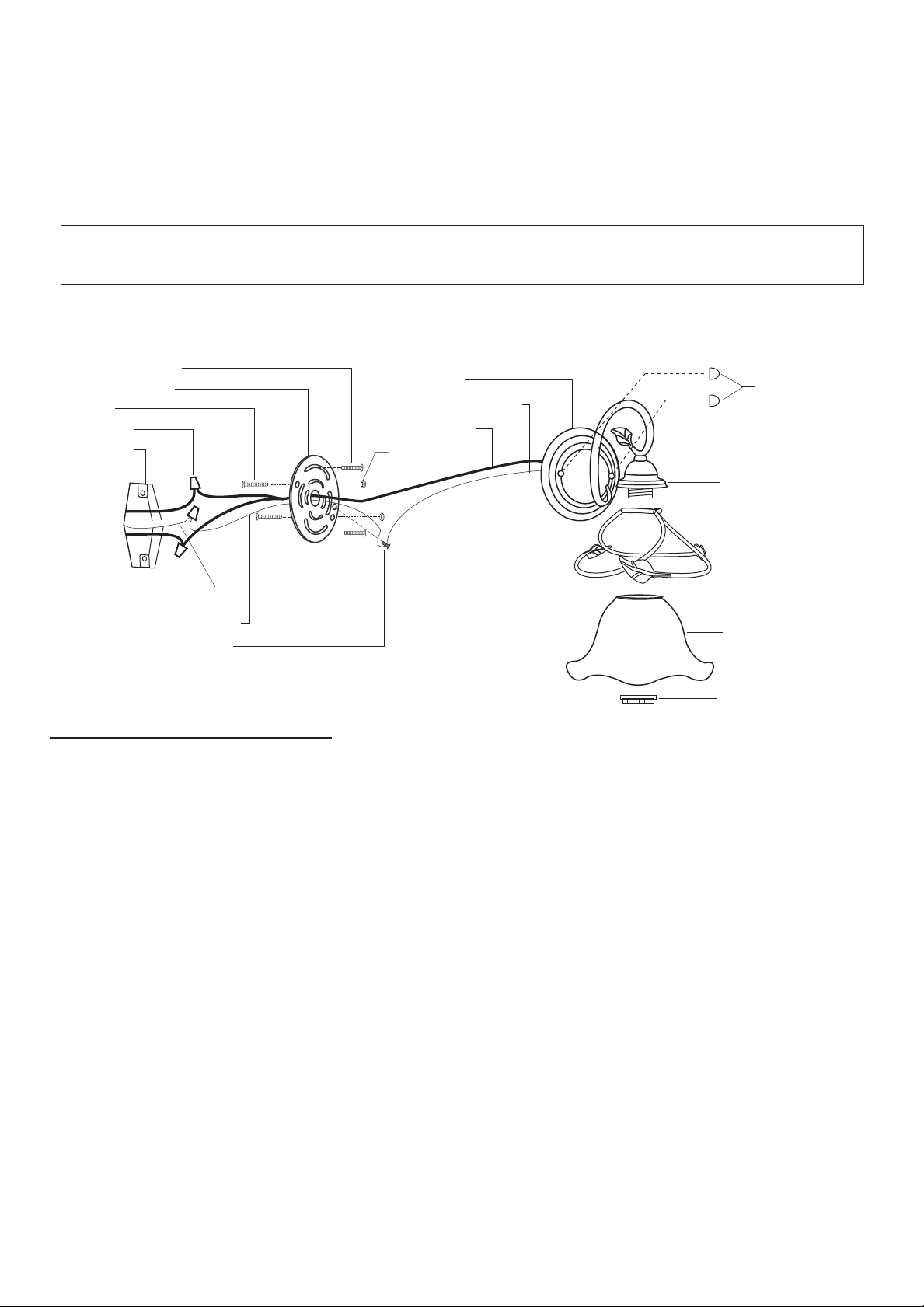

Installation Steps
Back Plate
Fixture Grounding Wire
Fixture Wire
Lock Nut
Bolt Nut
Glass Holder
Decoration Ring
Glass Shade
Socket Ring
1. Thread two screws to the mounting plate outward, and then secure with
two lock nuts.(You can adjust the length of the screws if necessary.)
2. Attach the mounting plate to the wall box by using two mounting screws.
3. Make wire connections with wire nuts:
---The black wire from light to the black wire from power source.
---The white wire from light to the white wire from power source.
---Attach the fixture grounding wire to the mounting plate with the green
grounding screw. Then connect it to the house grounding wire with the
wire nut.
Carefully tuck wires back into the wall box.
4. Attach the back plate to the mounting plate by inserting the screws, and
then secure with two bolt nuts.
5. Place the glass shade into the decoration ring carefully , attach then upward
to the glass holder , and then secure with the socket ring.
6. Install a bulb. (Please do not exceed the maximum capacity that is
recommended on the package.)
7. Turn on the power at fuse or circuit box.
