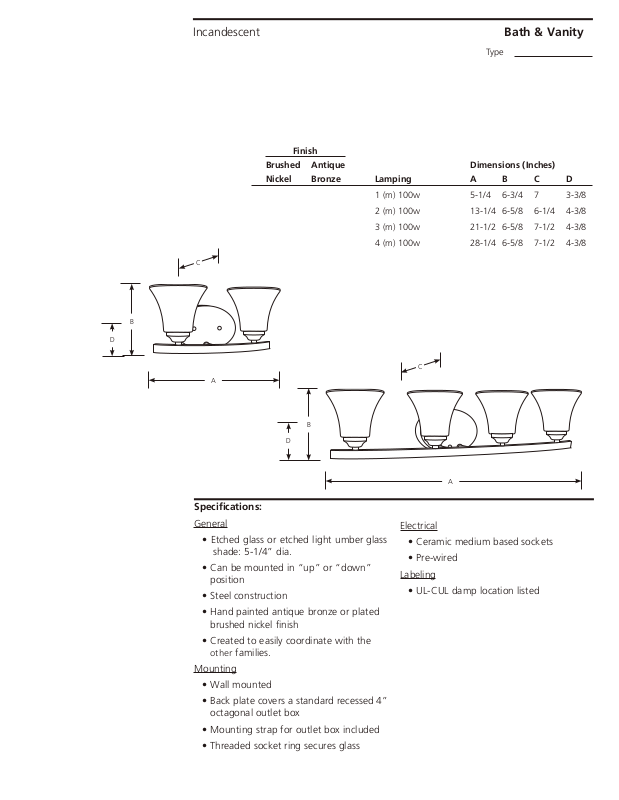

Page 1
Incandescent Bath & Vanity
Type
Finish
Brushed Antique Dimensions (Inches)
Nickel Bronze Lamping A B C D
1 (m) 100w 5-1/4 6-3/4 7 3-3/8
2 (m) 100w 13-1/4 6-5/8 6-1/4 4-3/8
3 (m) 100w 21-1/2 6-5/8 7-1/2 4-3/8
4 (m) 100w 28-1/4 6-5/8 7-1/2 4-3/8
C
B
D
C
A
B
D
A
Specifications:
General
• Etched glass or etched light umber glass
shade: 5-1/4” dia.
• Can be mounted in “up” or “down”
position
• Steel construction
Electrical
• Ceramic medium based sockets
• Pre-wired
Labeling
• UL-CUL damp location listed
• Hand painted antique bronze or plated
brushed nickel finish
• Created to easily coordinate with the
other families.
Mounting
• Wall mounted
• Back plate covers a standard recessed 4”
octagonal outlet box
• Mounting strap for outlet box included
• Threaded socket ring secures glass
