Page 1
Round Dining Table
IMPORTANT NOTE
This product is made of sturdy, high quality aluminum
and will provide years of enjoyment. Do not use power tools
to assemble and only tighten bolts until they are snug.
Over tightening can cause damage to the aluminum.
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the parts.
We have taken great care in the design of this product and
request that you carefully and strictly follow our assembly
instructions to ensure a completed product as it was designed.

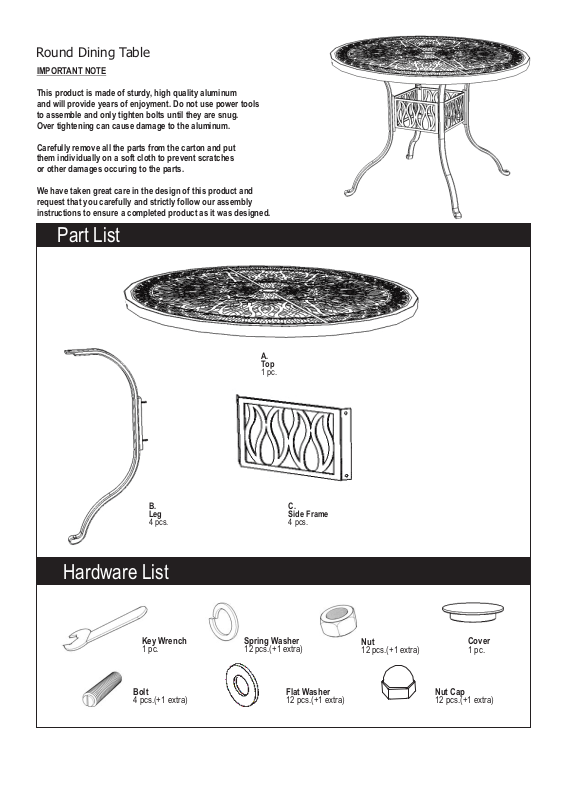

Part List
B.
Leg
4 pcs.
Hardware List
A.
Top
1 pc.
C.
Side Frame
4 pcs.
Key Wrench
1 pc.
Bolt
4 pcs.(+1 extra)
Spring Washer
12 pcs.(+1 extra)
Flat Washer
12 pcs.(+1 extra)
Nut
12 pcs.(+1 extra)
Cover
1 pc.
Nut Cap
12 pcs.(+1 extra)
Page 2
Assembly Instructions
IMPORTANT
* Do not use power tools to assemble and do not overtighten the bolts.
* Do not tighten up all the bolts until each part is properly assembled.
* You should keep Key Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future.
* After assembly, item must be level to work properly. Use the included adjustable levelers to level.

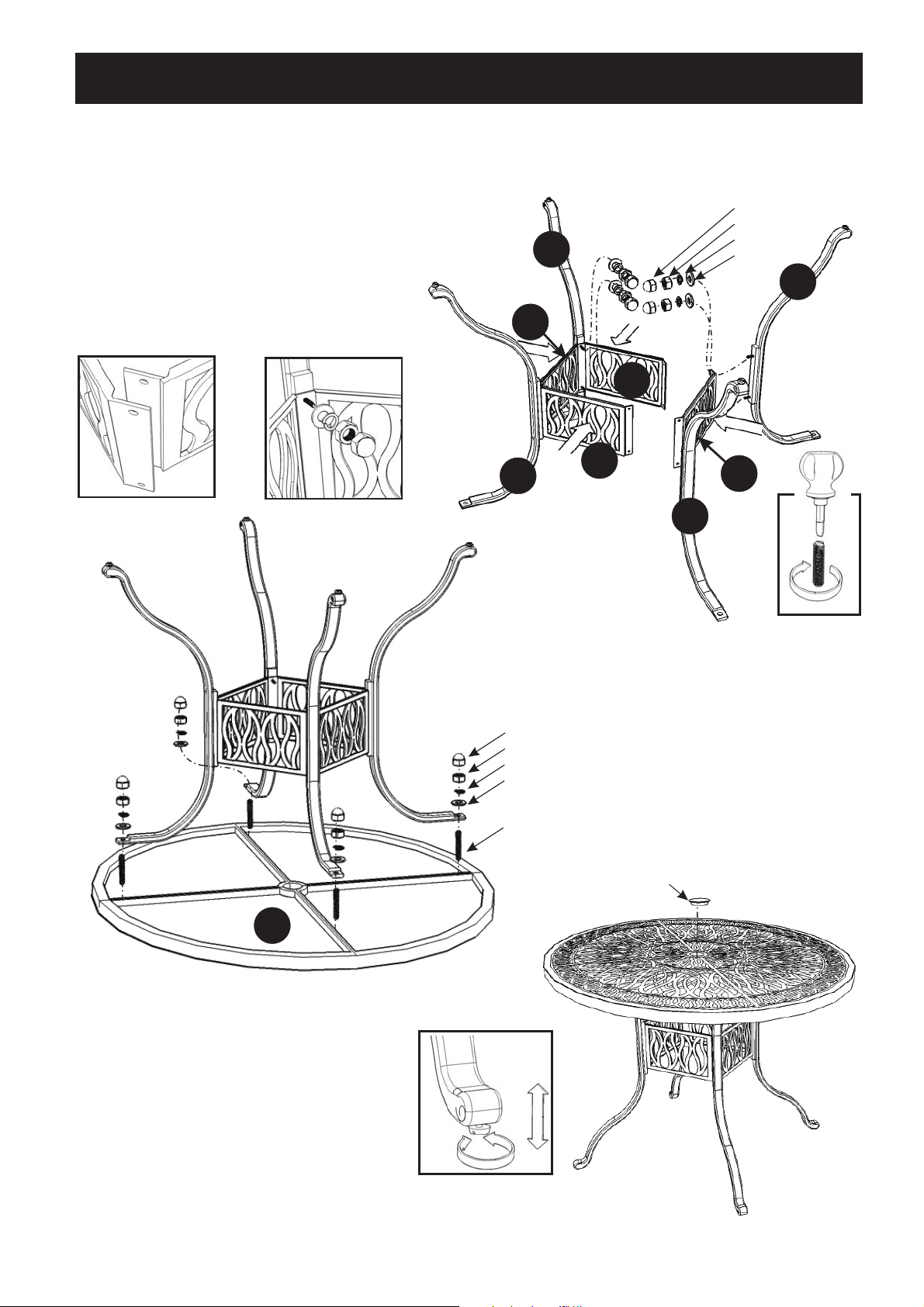

STEP 1
B
Nut Cap
Nut
Spring Washer
Flat Washer
Assemble Legs (B) and Side Frames (C)
with Flat Washers, Spring Washers, Nuts
and Nut Caps. (See Figure 1 )and Figure 2
Figure 1
Figure 2
C
B
Nut Cap
Nut
Spring Washer
Flat Washer
B
C
C
C
B
Figure 3
STEP 2
Insert Bolts into the pre-drilled
holes of Top (A), using a
Slotted Screwdriver.
(See Figure 3)
A
STEP 3
Turn the table to its’ upright position.
Cover the umbrella hole with Cover.
To level the table, adjust the adjustable
levelers on the bottom of the legs.
(See Figure 4)
Figure 4
Bolt
Attach unit to Top (A)
with Flat Washers,
Spring Washers, Nuts
and Nut Caps.
Cover
