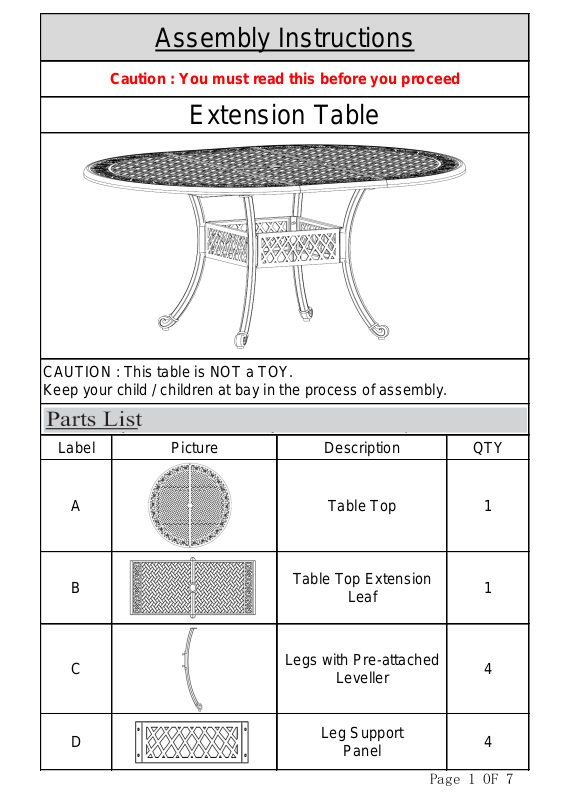

Page 1

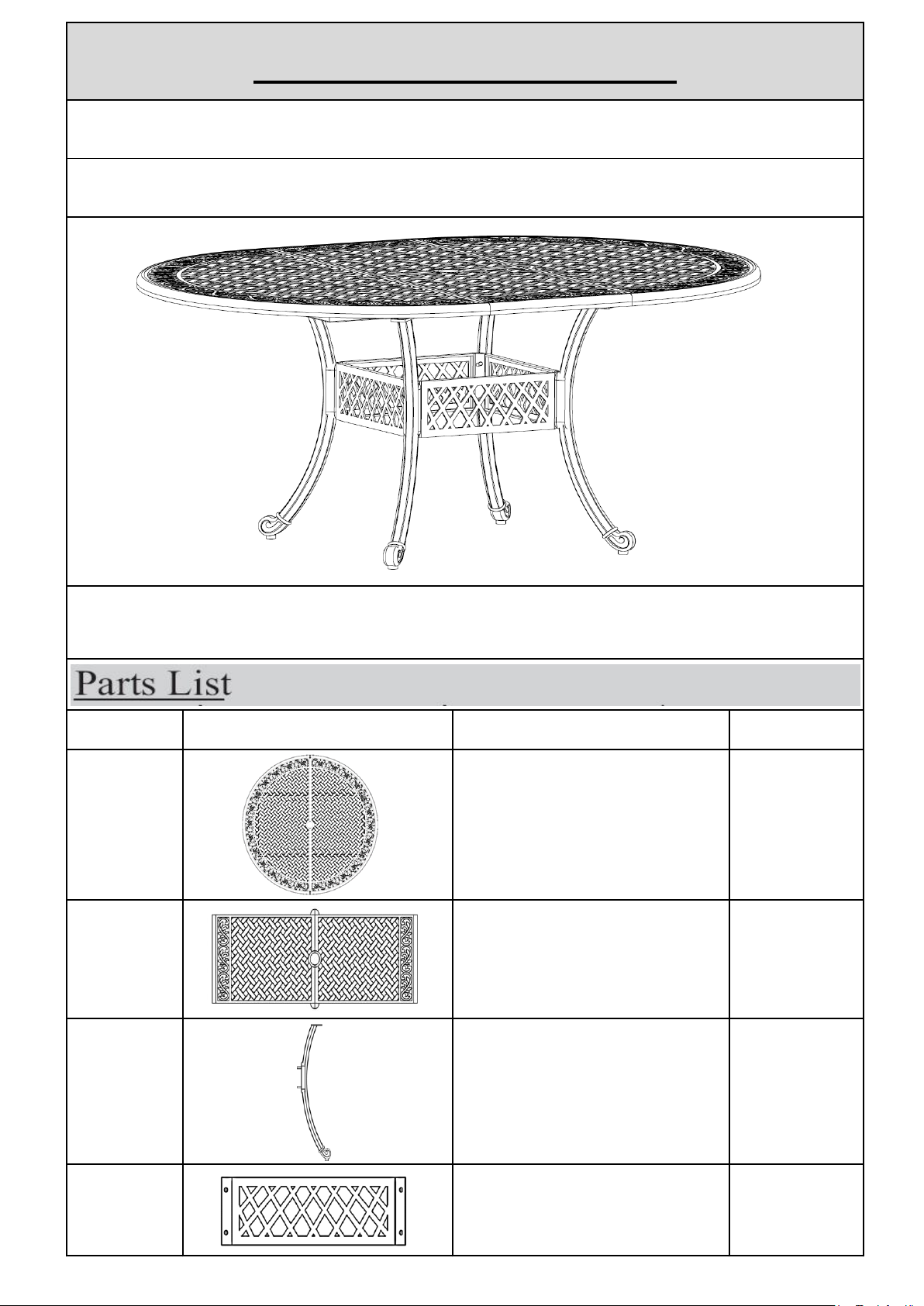

Label Picture Description QTY
A Table Top 1
B
Table Top Extension
Leaf
1
C
Legs with Pre-attached
Leveller
4
D
Leg Support
Panel
4
Assembly Instructions
Caution : You must read this before you proceed
Extension Table
CAUTION : This table is NOT a TOY.
Keep your child / children at bay in the process of assembly.
Page 1 OF 7
Page 2

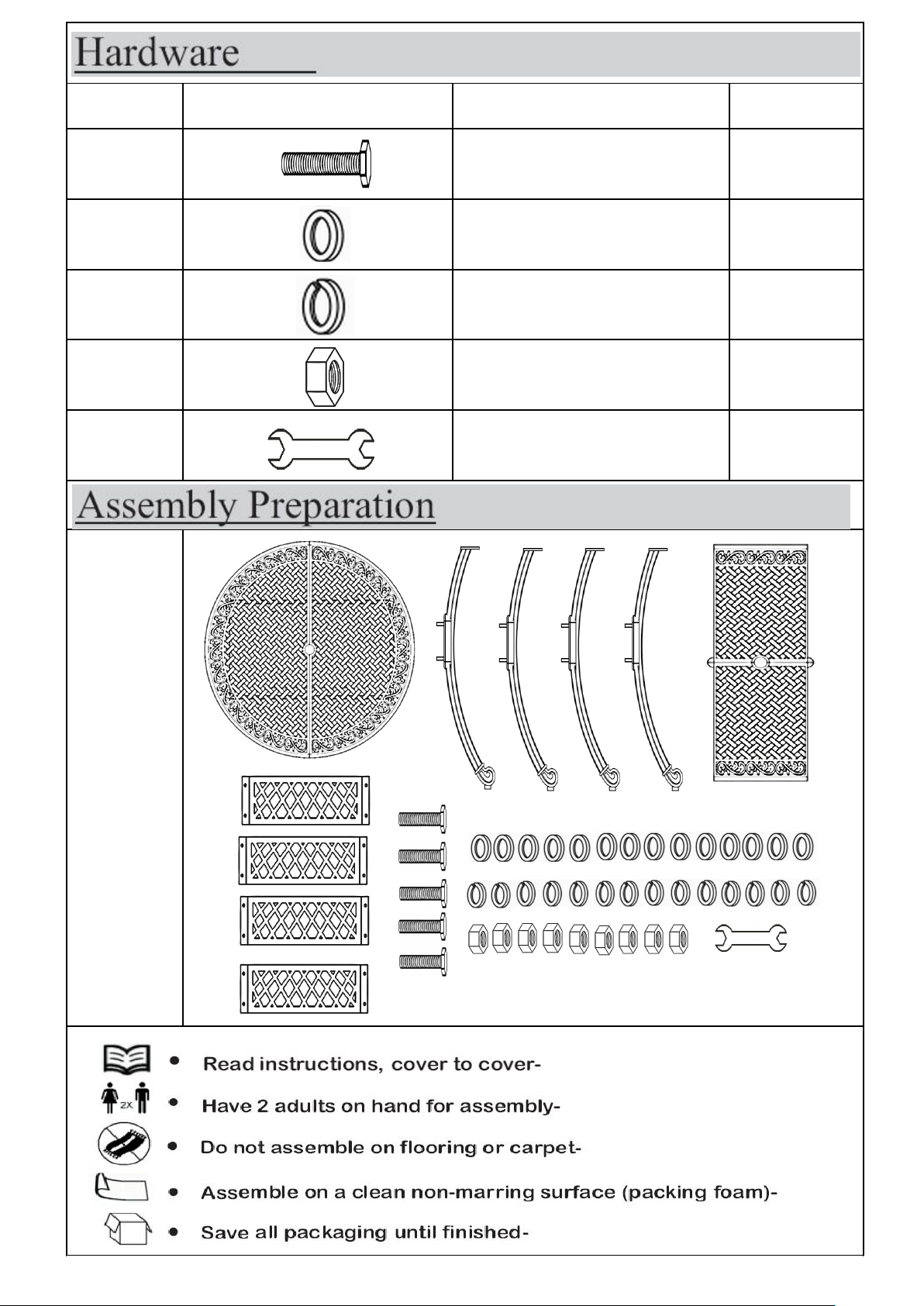

Label Picture Description QTY
①
Bolt(M8*25mm) 5
②
Washer(8mm) 14
③
Spring Washer(8mm) 14
④
Nut(8mm) 9
⑤
Spanner 1
Before
Beginnin
g
Assembly
:
Page 2 OF 7
Page 3
Step 1
This table has multiple parts and may require up to 30 minutes to
assemble.
To give you an overview of the table parts, the above picture is to help
you put the various parts into perspective.
Please read through the instructions below to familiarise yourself with
the parts and steps before assembly.
Unpack and place all parts on a clean soft surface.

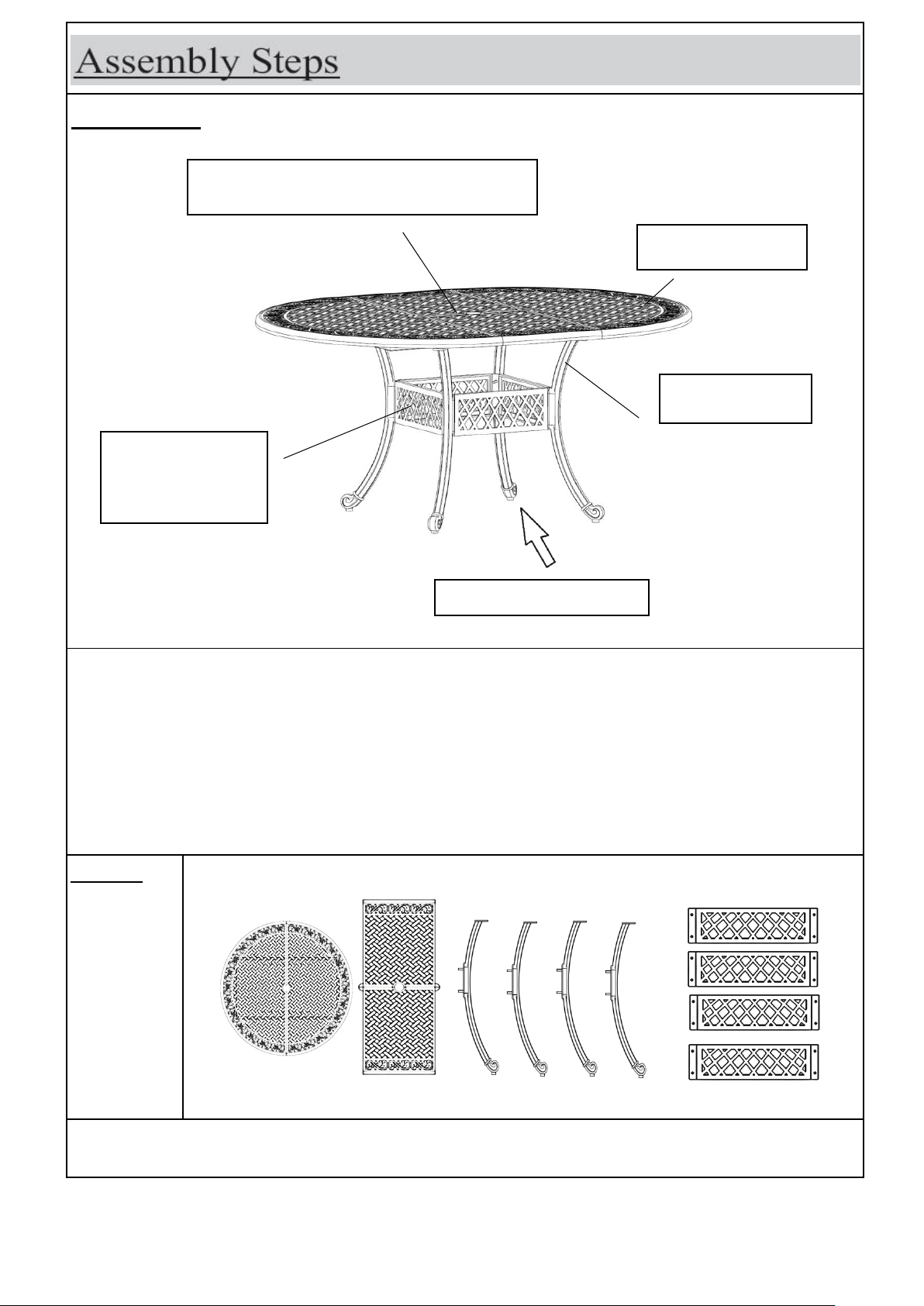

Overview
Table Top(A)
Table Top Extension Leaf(B)
Table Leg(C)
Leg Support
Panel(D)
FRONT FACING
Page 3 OF 7
Page 4
Step 2
Step 3
Turn the Table Top (A) upside down on to a soft surface that does not
scratch the table top.

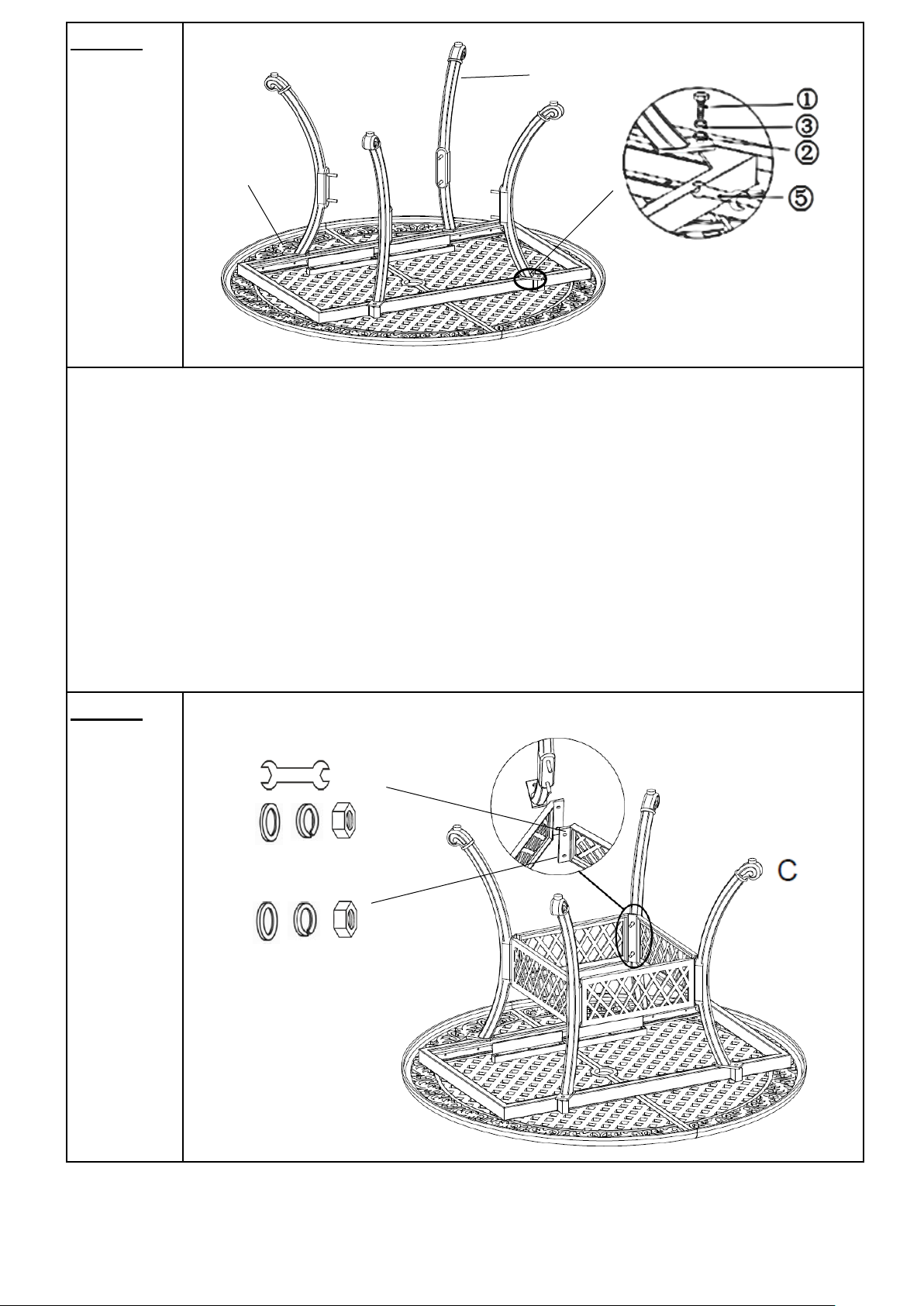

Attach four Table Legs (C) to the contact points on the Table Top (A)
with Bolts (①), Spring Washers (③) and Washers (②) with Spanner
(⑤).
Repeat the same process for other contact points of the Table Legs and
Table Top.
Do not over tighten.
Caution: You may need 2 adults to turn the table top A upside
down.
C
A
⑤
② ③ ④
② ③ ④
D
Page 4 OF 7
Page 5
Step 4
Step 5
NOTE : To hold the legs together in positon, the Leg Support
Panels will overlap at all 04 (four) corners.
Proceed to affix the Legs Support Panels (D) to the Table Legs (C)
with Washers (②) and Spring Washers (③) and Nuts (④) using
Spanner(⑤).
Do not over tighten.
Repeat the same process for all 04 (four) contact points of the Table
Legs and the Legs Support Panels.
Once all the panels are in place, proceed to tighten the Bolts of the
legs, in a rotational sequential manner.
By this, it allows the table legs to be locked into position, evenly, thus
reducing wobbles.
Thereafter, lock all the Leg Support Panels tightly into position.
Table Top Extension Leaf(D) can be folded, and then put into the table
as shown.
Turn the Table rightside up.
Caution: You may need 2 adults to turn the table rightside up.

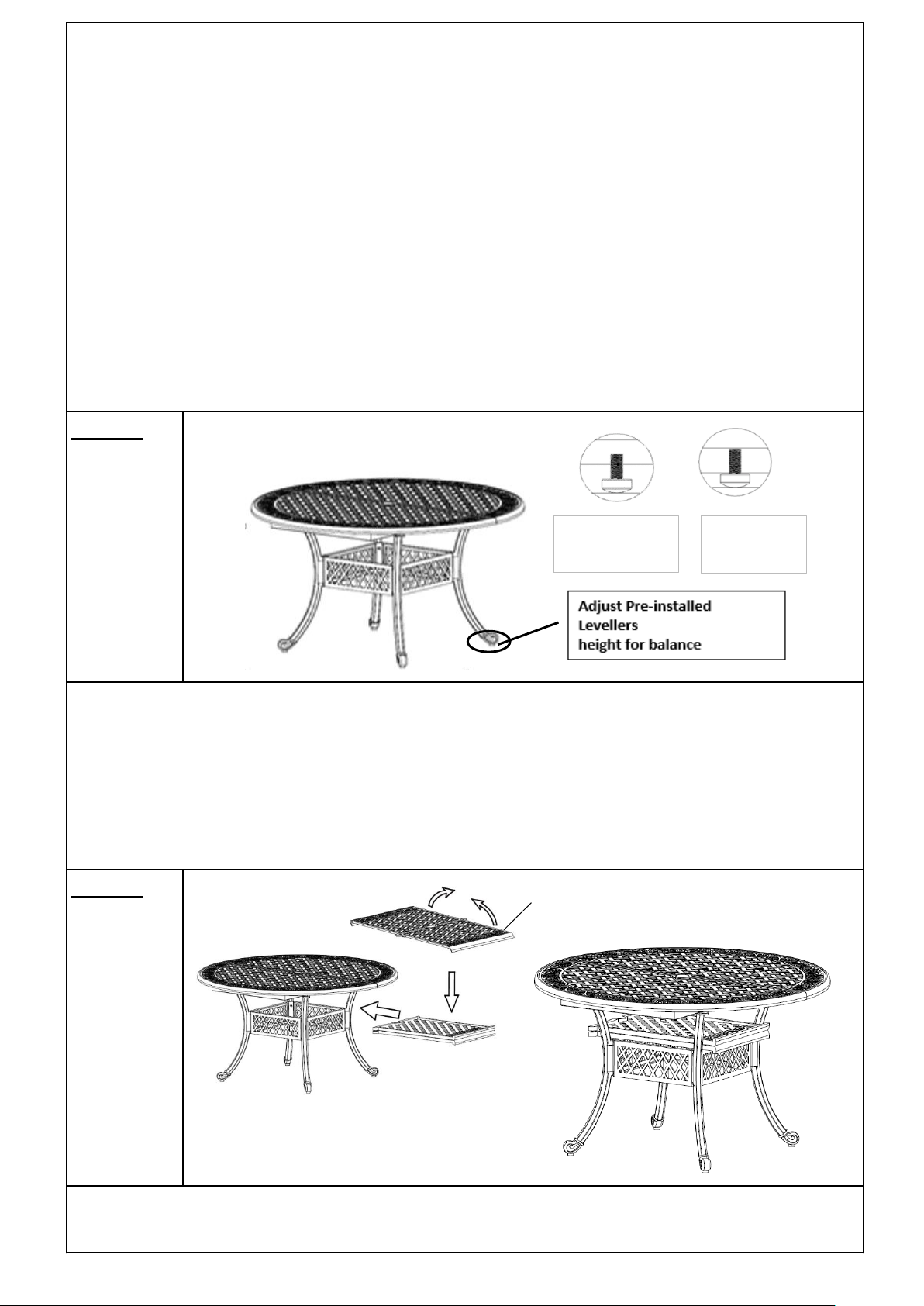

Adjust the pre-installed Leveller until the Table is level with the ground.
Then, proceed to tighten all Bolts and Nuts.
Your table is ready for use.
Caution: This Table can only be used on a flat, level surface.
B
Adjust height
for balance
Adjust low
for balance
Page 5 OF 7
Page 6
Step 6
Step 7

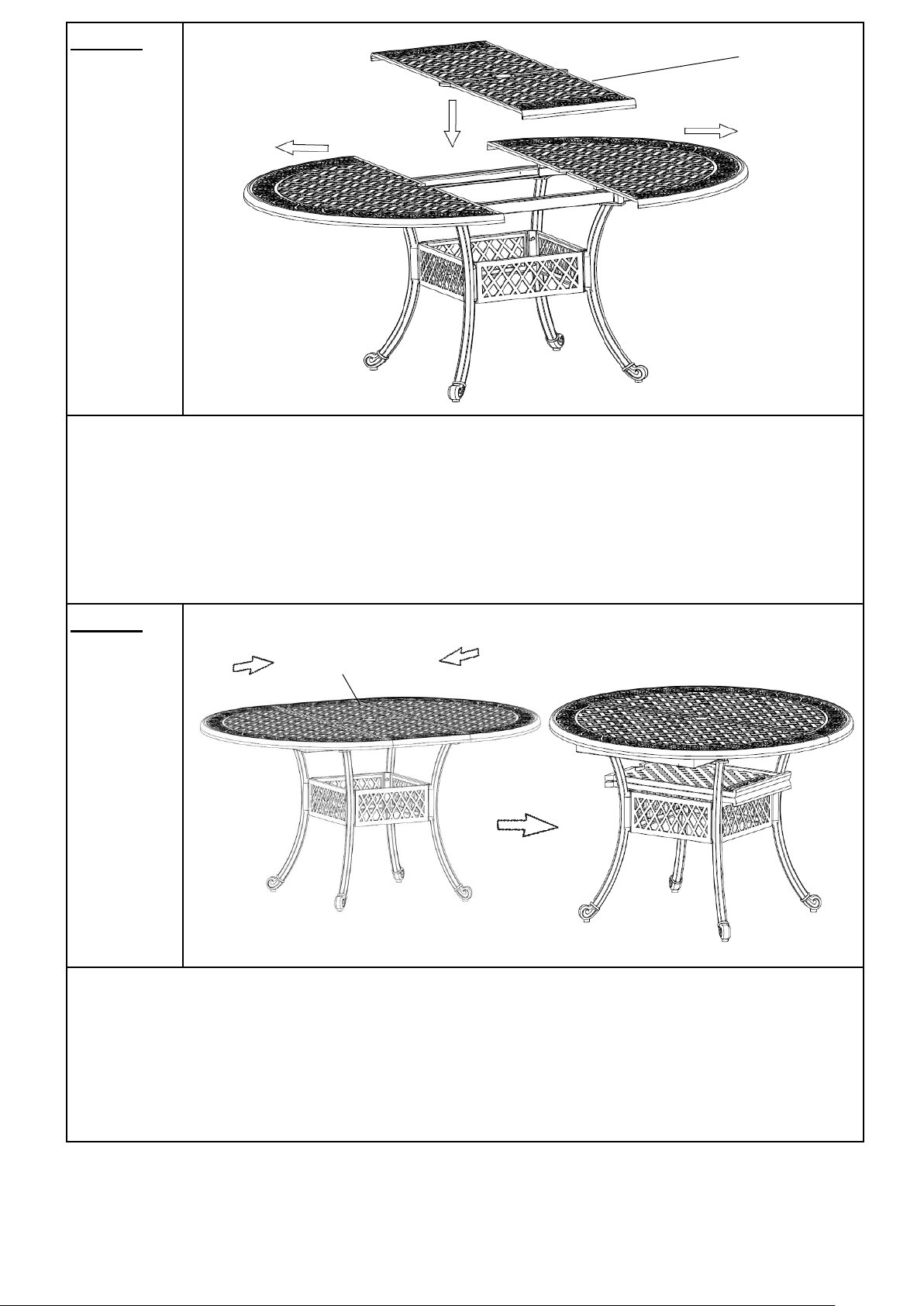

To shorten the Table, pull the table top apart, take Table Top Extension
Leaf (B) away, then towards the table top.
Your table is ready to use.
Caution: Table Top Extension Leaf (B) can be folded and push into
table as shown.
To expand the Table, pull the table top apart, place Table Top
Extension Leaf(B) into the middle leaf slot.
Push the Table Top(A) towards the center to lock in the table top
Extension Leave (B).
Adjust the direction/angle to tightly fit into the housing in the Table Top.
B
B
Page 6 OF 7

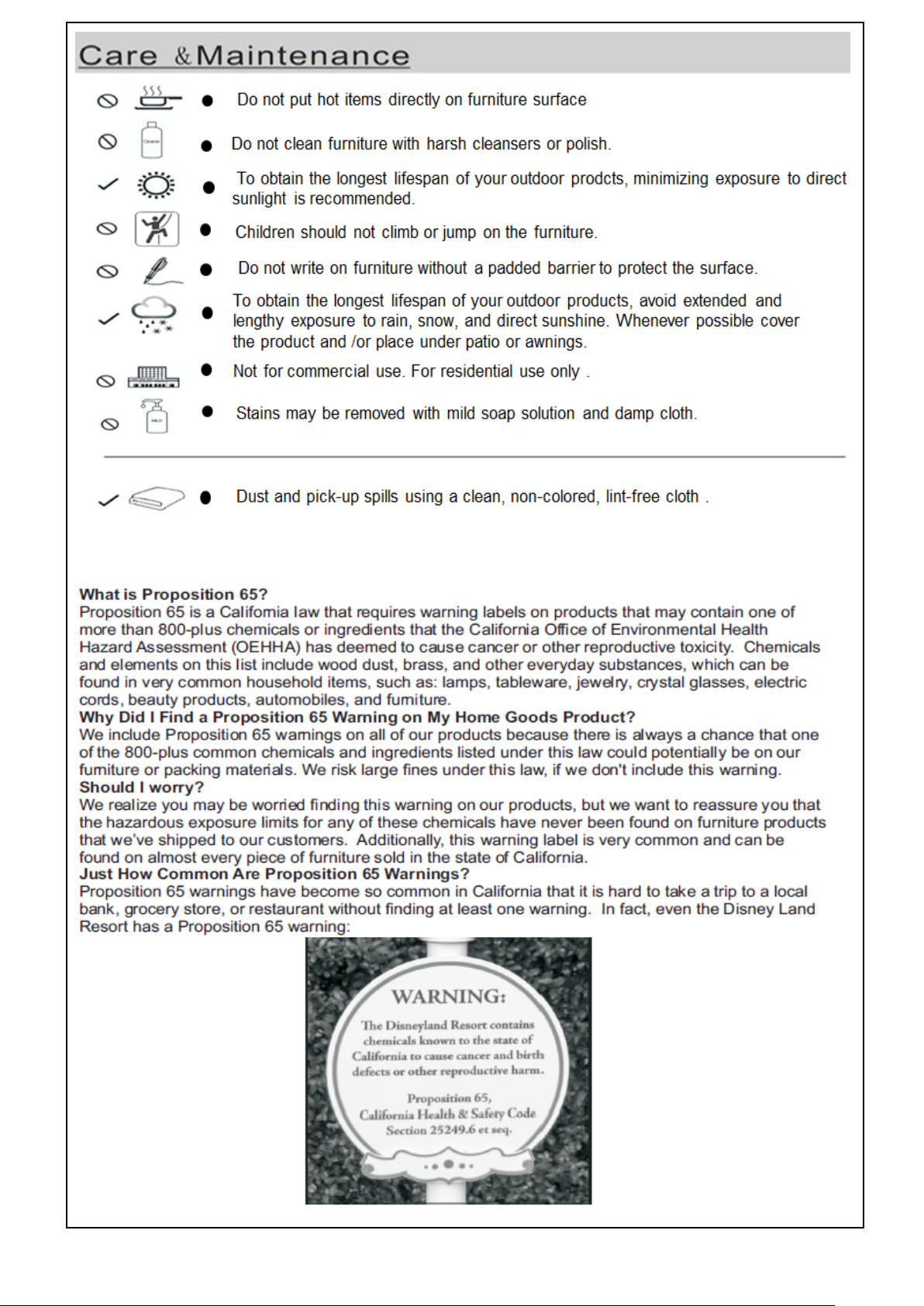

Page 7
Page 7 OF 7
