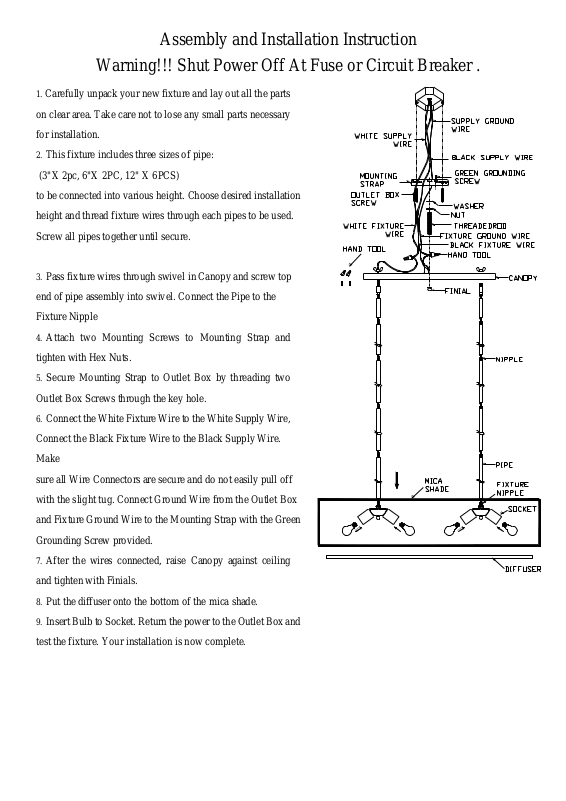

Assembly and Installation Instruction
Warning!!! Shut Power Off At Fuse or Circuit Breaker .
1. Carefully unpack your new fixture and lay out all the parts
on clear area. Take care not to lose any small parts necessary
for installation.

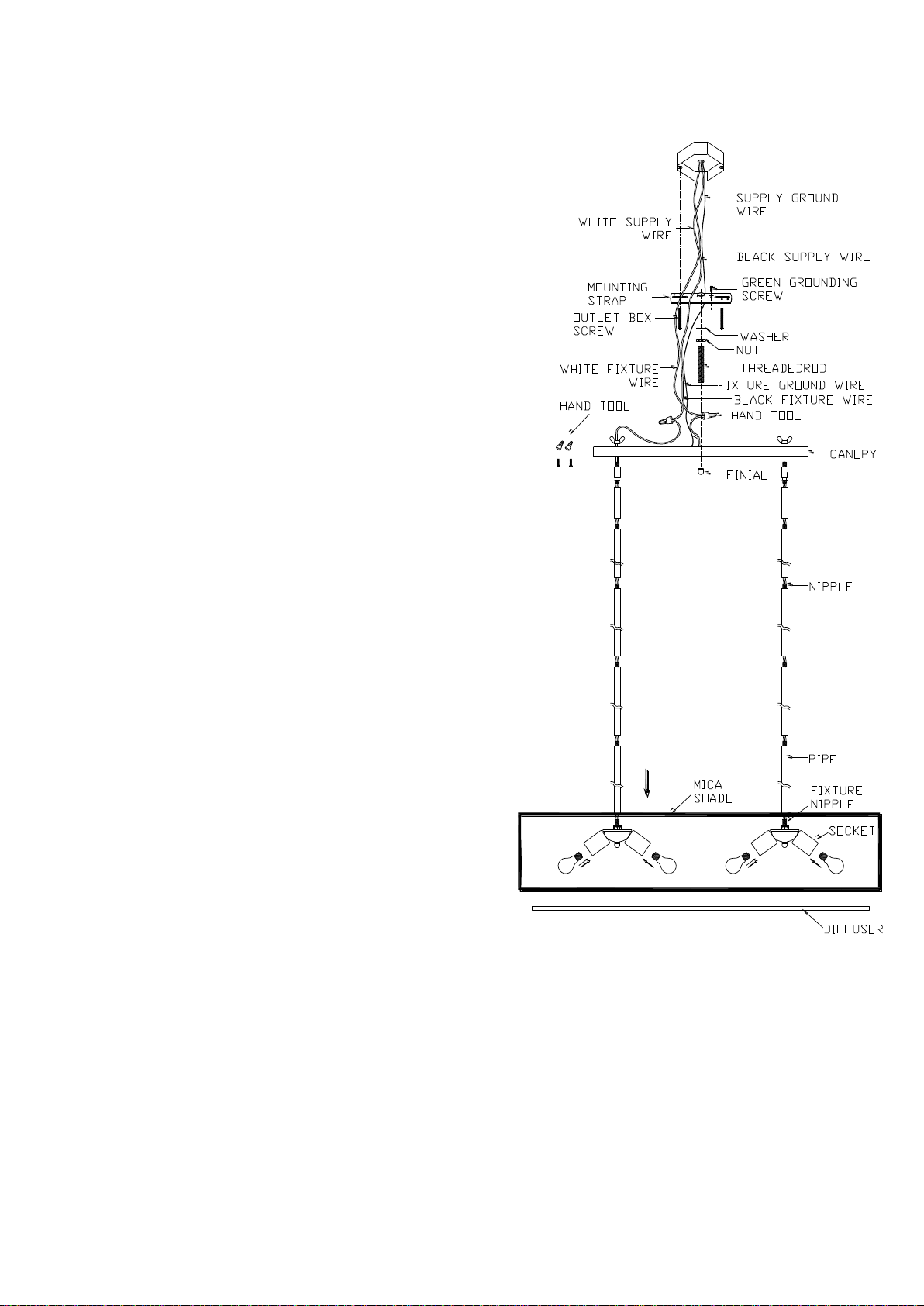

3. Pass fixture wires through swivel in Canopy and screw top
end of pipe assembly into swivel. Connect the Pipe to the
Fixture Nipple
4. Attach two Mounting Screws to Mounting Strap and
tighten with Hex Nuts.
5. Secure Mounting Strap to Outlet Box by threading two
Outlet Box Screws through the key hole.
6. Connect the White Fixture Wire to the White Supply Wire,
Connect the Black Fixture Wire to the Black Supply Wire.
Make
sure all Wire Connectors are secure and do not easily pull off
with the slight tug. Connect Ground Wire from the Outlet Box
and Fixture Ground Wire to the Mounting Strap with the Green
Grounding Screw provided.
7. After the wires connected, raise Canopy against ceiling
and tighten with Finials.
8. Put the diffuser onto the bottom of the mica shade.
9. Insert Bulb to Socket. Return the power to the Outlet Box and
test the fixture. Your installation is now complete.
2. This fixture includes three sizes of pipe:
(3"X 2pc, 6"X 2PC, 12" X 6PCS)
to be connected into various height. Choose desired installation
height and thread fixture wires through each pipes to be used.
Screw all pipes together until secure.
