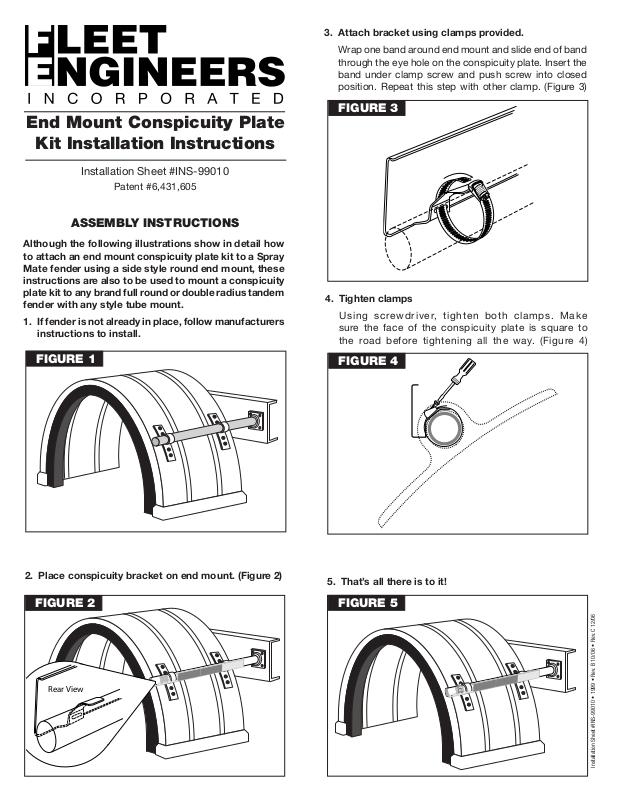

End Mount Conspicuity Plate
Rear View
Kit Installation Instructions
Installation Sheet #INS-99010
Patent #6,431,605
ASSEMBLY INSTRUCTIONS
Although the following illustrations show in detail how
to attach an end mount conspicuity plate kit to a Spray
Mate fender using a side style round end mount, these
instructions are also to be used to mount a conspicuity
plate kit to any brand full round or double radius tandem
fender with any style tube mount.
1. If fender is not already in place, follow manufacturers
instructions to install.
3. Attach bracket using clamps provided.
Wrap one band around end mount and slide end of band
through the eye hole on the conspicuity plate. Insert the
band under clamp screw and push screw into closed
position. Repeat this step with other clamp. (Figure 3)
FIGURE 3
4. Tighten clamps
Using screw d r iv e r, tig h ten bot h cla m ps. Mak e
sure the face of the conspicuity plate is square to
the road before tightening all the way. (Figure 4)
FIGURE 1
2. Place conspicuity bracket on end mount. (Figure 2)
FIGURE 2
FIGURE 4
5. That’s all there is to it!
FIGURE 5
Installation Sheet #INS-99010 • 1999 • Rev. B 10/06 • Rev. C 12/06
