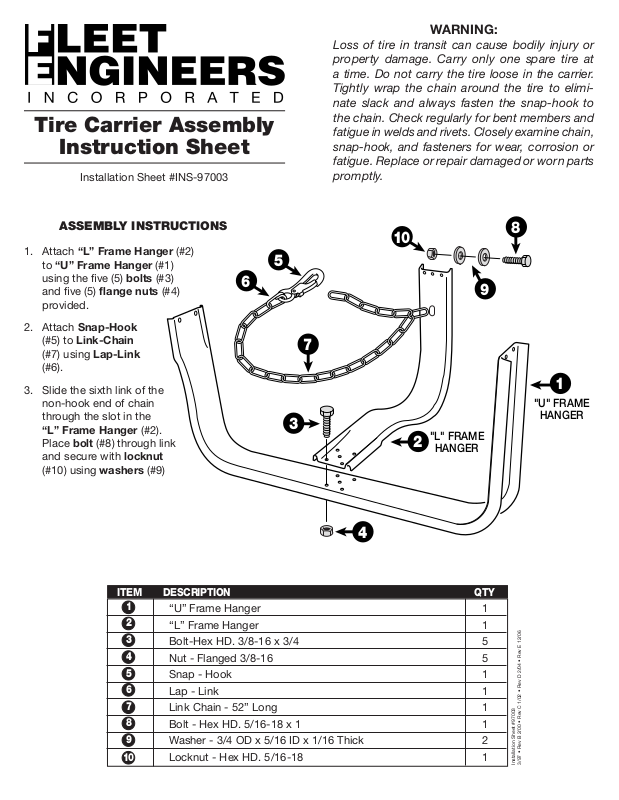

Tire Carrier Assembly
10
1
2
3
4
5
6
7
8
9
"U" FRAME
HANGER
"L" FRAME
HANGER
Instruction Sheet
Installation Sheet #INS-97003
ASSEMBLY INSTRUCTIONS
1. Attach “L” Frame Hanger (#2)
to “U” Frame Hanger (#1)
using the five (5) bolts (#3)
and five (5) flange nuts (#4)
provided.
WARNING:
Loss of tire in transit can cause bodily injury or
property damage. Carry only one spare tire at
a time. Do not carry the tire loose in the carrier.
Tightly wrap the chain around the tire to eliminate slack and always fasten the snap-hook to
the chain. Check regularly for bent members and
fatigue in welds and rivets. Closely examine chain,
snap-hook, and fasteners for wear, corrosion or
fatigue. Replace or repair damaged or worn parts
promptly.
2. Attach Snap-Hook
(#5) to Link-Chain
(#7) using Lap-Link
(#6).
3. Slide the sixth link of the
non-hook end of chain
through the slot in the
“L” Frame Hanger (#2).
Place bolt (#8) through link
and secure with locknut
(#10) using washers (#9)
ITEM DEscrIpTIon QTy
1
1 “U” Frame Hanger 1
2
2 “L” Frame Hanger 1
3
3 Bolt-Hex HD. 3/8-16 x 3/4 5
4
4 Nut - Flanged 3/8-16 5
5
5 Snap - Hook 1
6
6 Lap - Link 1
7
7 Link Chain - 52” Long 1
8
8 Bolt - Hex HD. 5/16-18 x 1 1
9
9 Washer - 3/4 OD x 5/16 ID x 1/16 Thick 2
10 Locknut - Hex HD. 5/16-18 1
10
Installation Sheet #97003
3/97 • Rev B 2/00 • Rev C 1/02 • Rev D 2/04 • Rev E 12/06
