3. Rotate Adjust-A-Mount to the desired position for the height
R
OR
Tighten Nuts
Behind Mount
R
of the mud flap bracket then tighten bolt and torque to 425
ft. lbs. minimum.

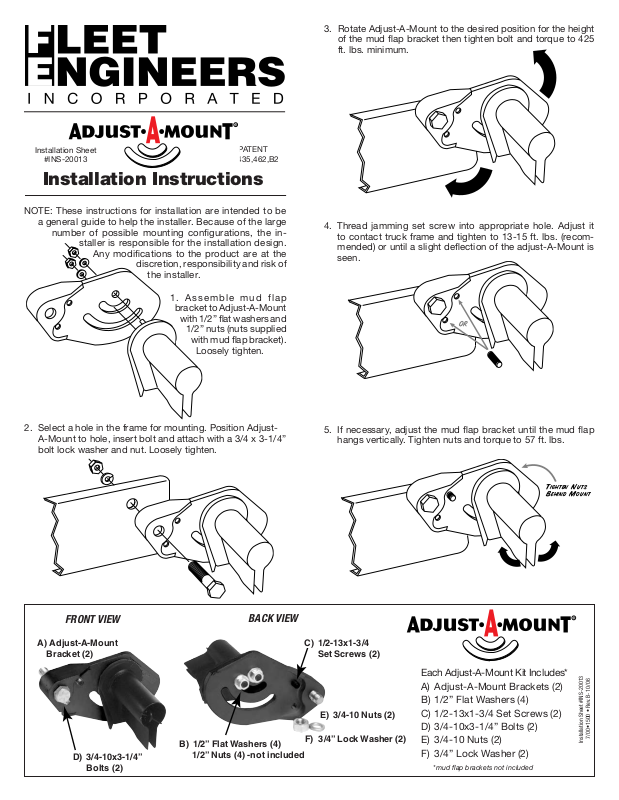

Installation Sheet
#INS-20013
PATENT
#6,435,462,B2
Installation Instructions
NOTE: These instructions for installation are intended to be
a general guide to help the installer. Because of the large
number of possible mounting configurations, the in-
staller is responsible for the installation design.
Any modifications to the product are at the
discretion, responsibility and risk of
the installer.
1. Assemble m u d f l a p
bracket to Adjust-A-Mount
with 1/2” flat washers and
1/2” nuts (nuts supplied
with mud flap bracket).
Loosely tighten.
2. Select a hole in the frame for mounting. Position AdjustA-Mount to hole, insert bolt and attach with a 3/4 x 3-1/4”
bolt lock washer and nut. Loosely tighten.
4. Thread jamming set screw into appropriate hole. Adjust it
to contact truck frame and tighten to 13-15 ft. lbs. (recommended) or until a slight deflection of the adjust-A-Mount is
seen.
5. If necessary, adjust the mud flap bracket until the mud flap
hangs vertically. Tighten nuts and torque to 57 ft. lbs.
FRONT VIEW
A) Adjust-A-Mount
Bracket (2)
D) 3/4-10x3-1/4”
Bolts (2)
BACK VIEW
B) 1/2” Flat Washers (4)
1/2” Nuts (4) -not included
C) 1/2-13x1-3/4
Set Screws (2)
E) 3/4-10 Nuts (2)
F) 3/4” Lock Washer (2)
Each Adjust-A-Mount Kit Includes*
A) Adjust-A-Mount Brackets (2)
B) 1/2” Flat Washers (4)
C) 1/2-13x1-3/4 Set Screws (2)
D) 3/4-10x3-1/4” Bolts (2)
E) 3/4-10 Nuts (2)
F) 3/4” Lock Washer (2)
*mud flap brackets not included
7/00•1500 • Rev.B- 10/06
Installation Sheet #INS-20013
