1800 East Keating Ave. • Muskegon, MI 49442
1-231-777-2537 • 1-800-333-7890 • FAX: 1-231-773-5500

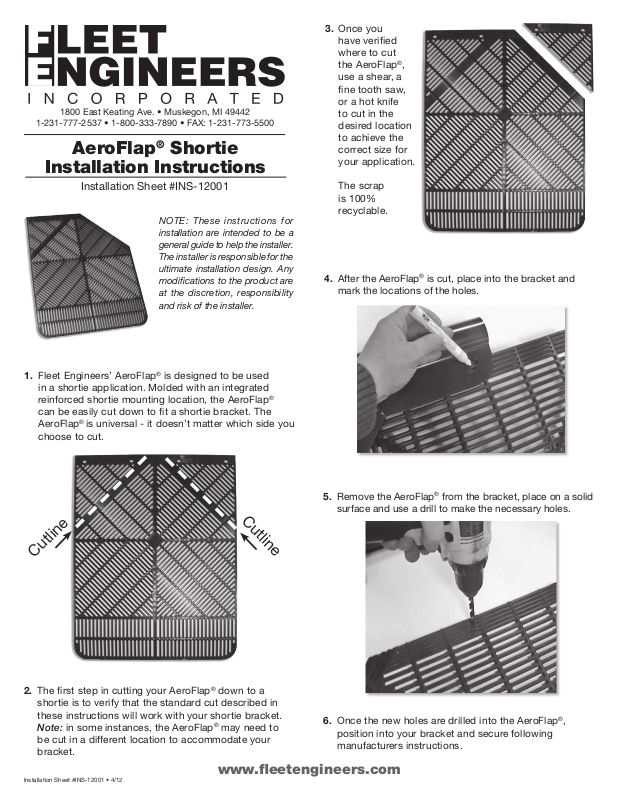

AeroFlap® Shortie
Installation Instructions
Installation Sheet #INS-12001
NOTE: These instructions for
installation are intended to be a
general guide to help the installer.
The installer is responsible for the
ultimate installation design. Any
modifications to the product are
at the discretion, responsibility
and risk of the installer.
3. Once you
have verified
where to cut
the AeroFlap®,
use a shear, a
fine tooth saw,
or a hot knife
to cut in the
desired location
to achieve the
correct size for
your application.
The scrap
is 100%
recyclable.
After the AeroFlap® is cut, place into the bracket and
4.
mark the locations of the holes.
1. Fleet Engineers’ AeroFlap® is designed to be used
in a shortie application. Molded with an integrated
reinforced shortie mounting location, the AeroFlap
can be easily cut down to fit a shortie bracket. The
AeroFlap® is universal - it doesn’t matter which side you
choose to cut.
Cutline
Cutline
®
5. Remove the AeroFlap
surface and use a drill to make the necessary holes.
®
from the bracket, place on a solid
2. The first step in cutting your AeroFlap® down to a
shortie is to verify that the standard cut described in
these instructions will work with your shortie bracket.
Note: in some instances, the AeroFlap® may need to
be cut in a different location to accommodate your
bracket.
Installation Sheet #INS-12001 • 4/12
www.fleetengineers.com
6.
Once the new holes are drilled into the AeroFlap®,
position into your bracket and secure following
manufacturers instructions.
