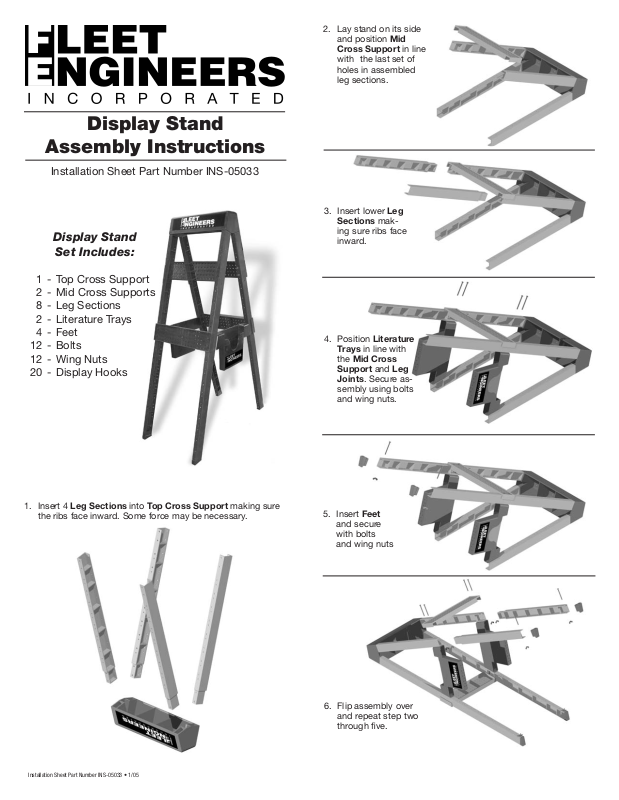

Display Stand
Assembly Instructions
Installation Sheet Part Number INS-05033
Display Stand
Set Includes:
1 - Top Cross Support 2 - Mid Cross Supports 8 - Leg Sections 2 - Literature Trays 4 - Feet 12 - Bolts 12 - Wing Nuts 20 - Display Hooks
2. Lay stand on its side and position Mid Cross Support in line with the last set of holes in assembled leg sections.
3. Insert lower Leg Sections mak­ing sure ribs face inward.
4. Position Literature Trays in line with the Mid Cross
Support and Leg Joints. Secure as-
sembly using bolts and wing nuts.
1. Insert 4 Leg Sections into Top Cross Support making sure the ribs face inward. Some force may be necessary.
Installation Sheet Part Number INS-05033 • 1/05
5. Insert Feet and secure with bolts and wing nuts
6. Flip assembly over and repeat step two through five.
